Front Suspension & Steering incl. Clutch Controls
Triumph Speed Twin 1200 · 16 diagrams
16 exploded diagrams for the front suspension & steering incl. clutch controls of the Triumph Speed Twin 1200, covering the Speed Twin 1200, Speed Twin 1200 RS. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

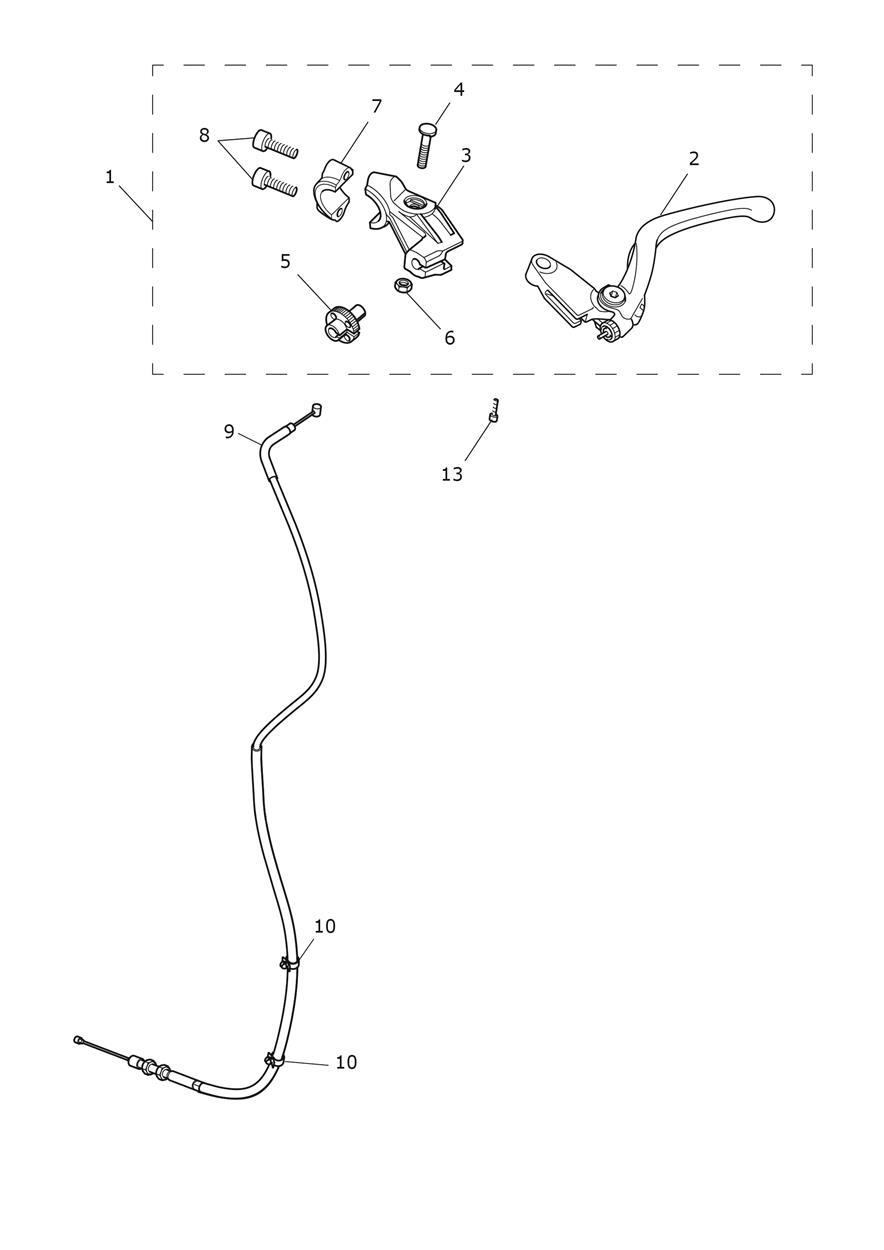

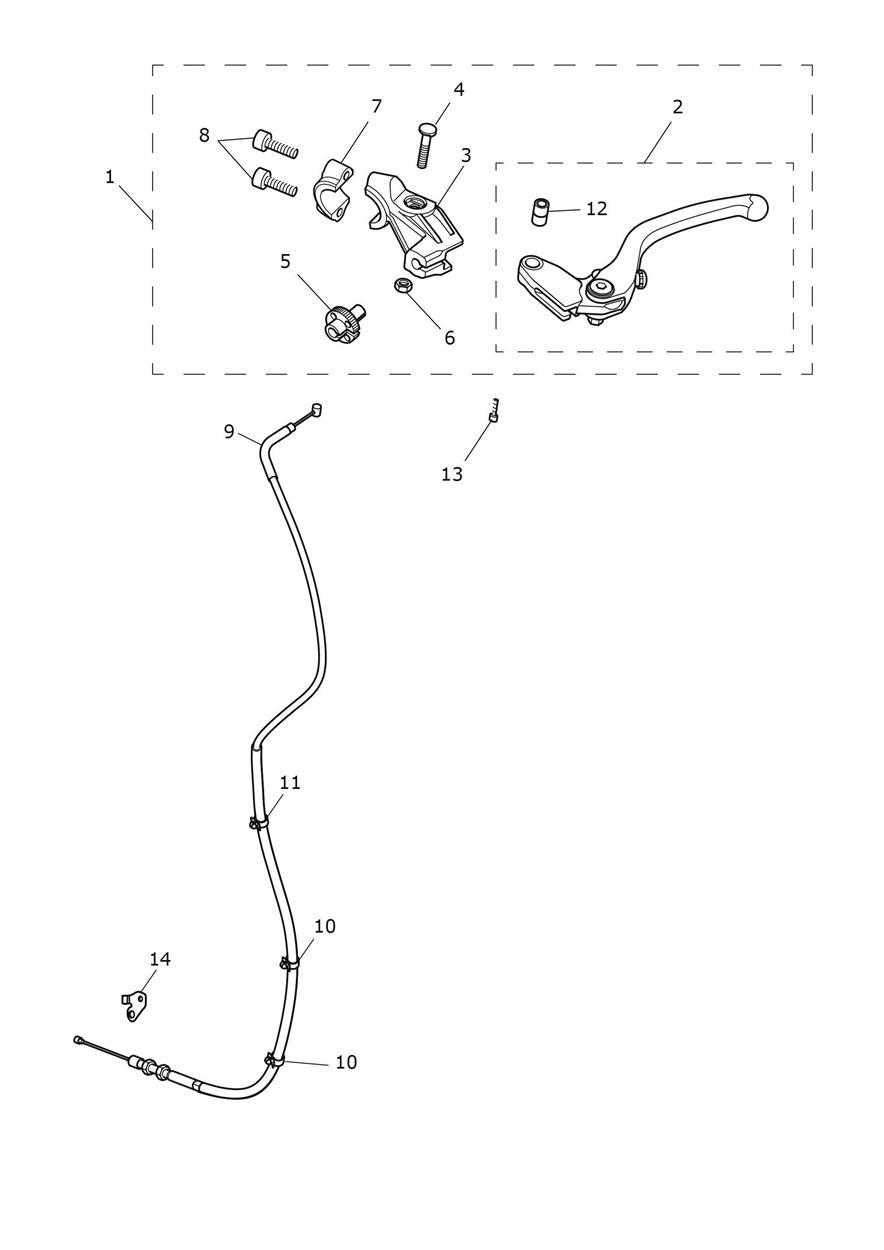

Clutch Controls
11 parts
Clutch Controls
11 parts

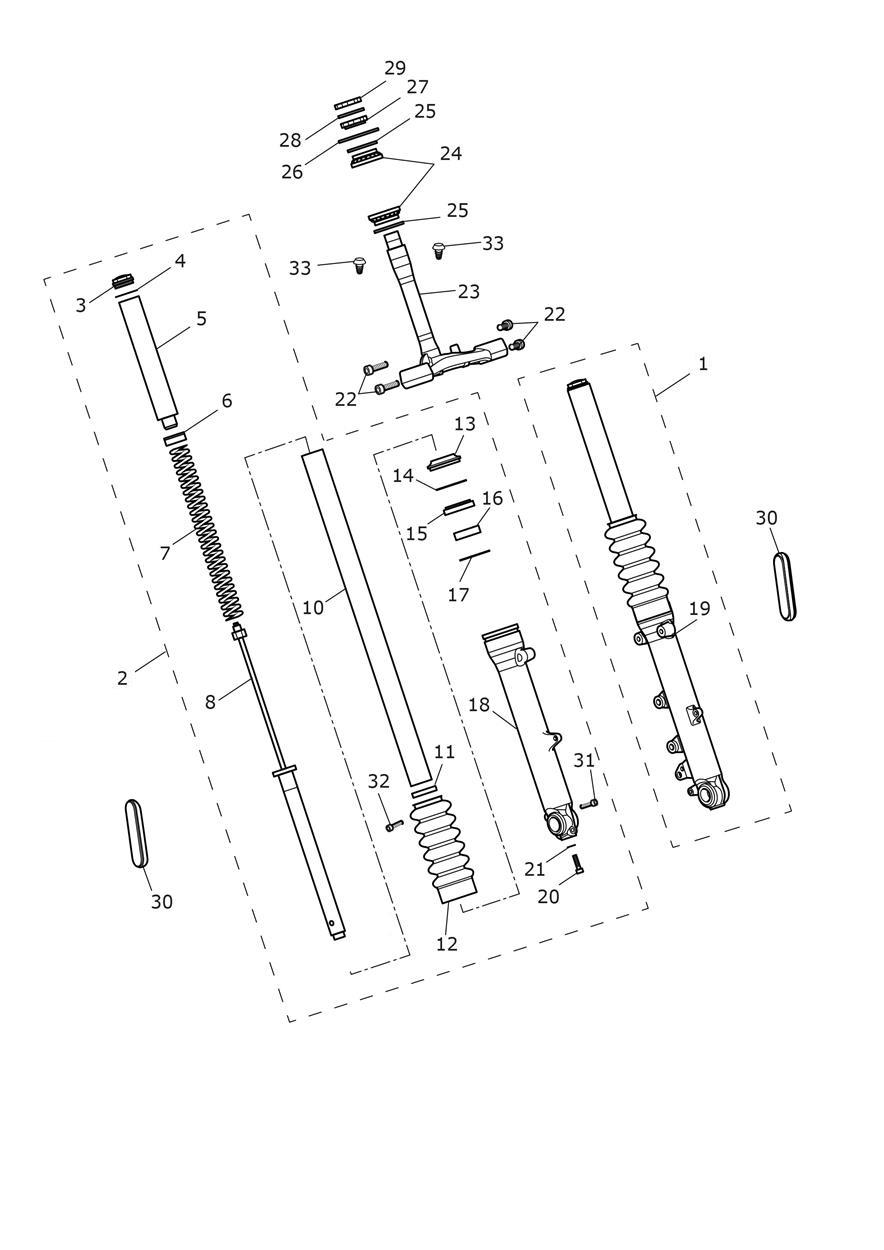

Front Forks & Lower Yoke
24 parts

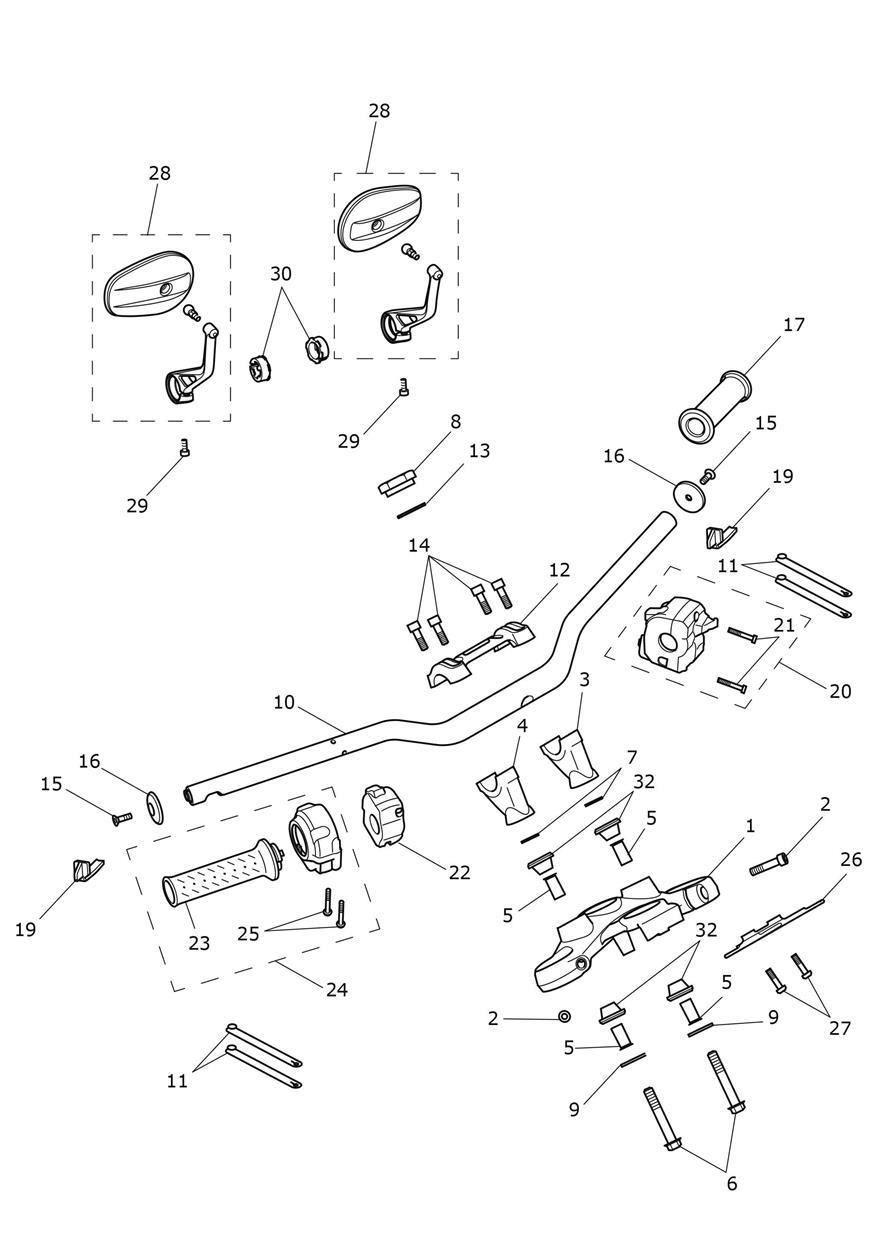

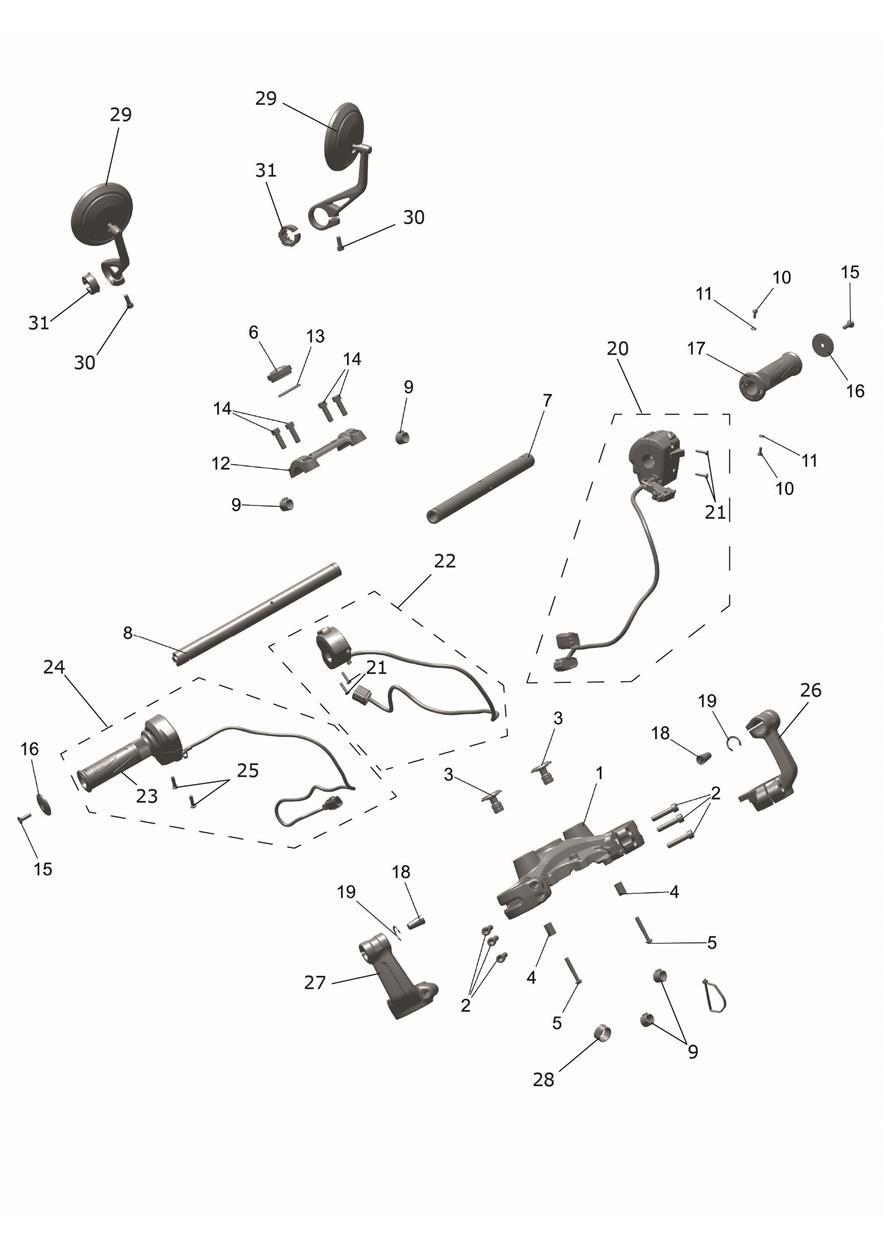

Handlebars, Top Yokes & Mirrors
31 parts
VIN AE2311 to CA0786
Clutch Controls
11 parts

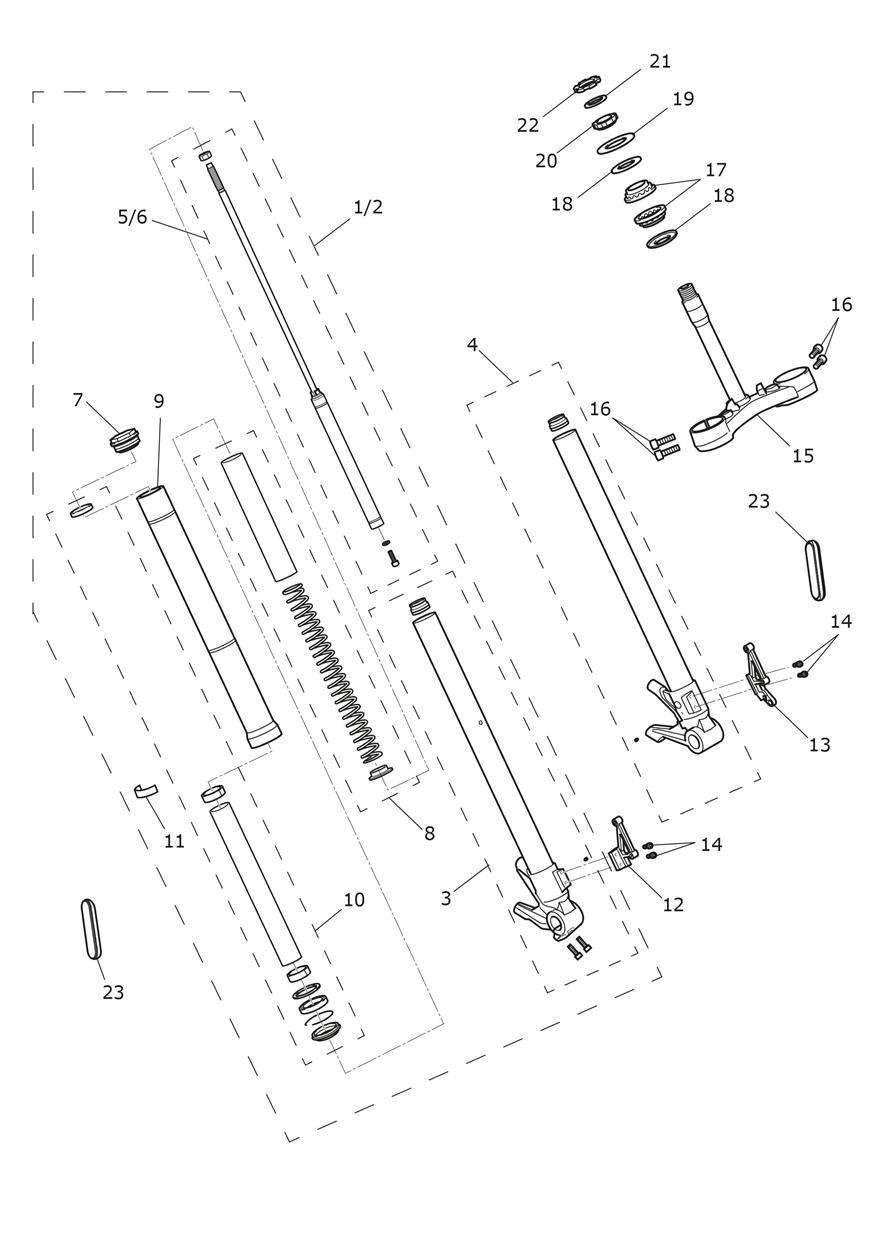

Front Forks & Lower Yoke
33 parts
VIN AE2310 and lower
Front Forks & Lower Yoke
23 parts
VIN AE2311 to CA0786
Front Forks & Lower Yoke
21 parts

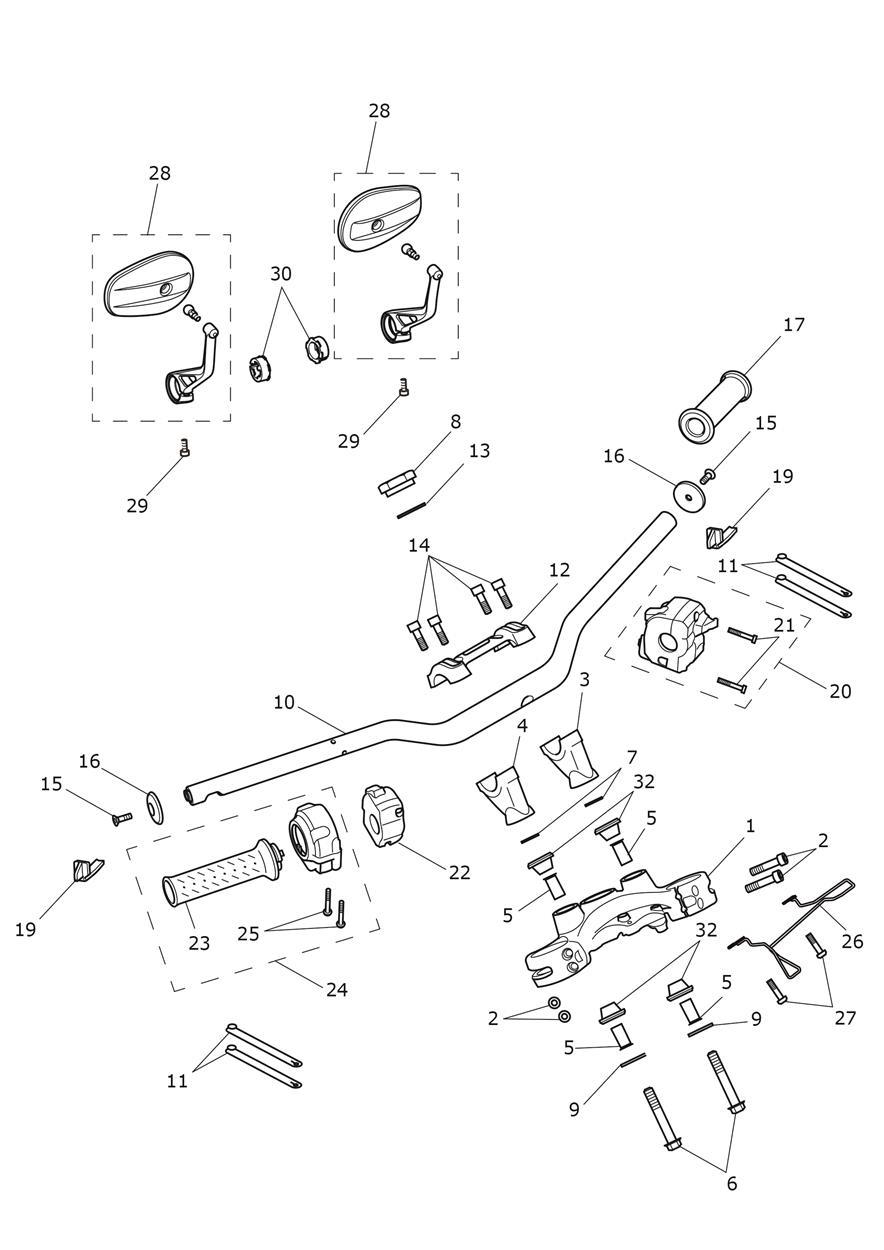

Handlebars, Top Yokes & Mirrors
29 parts

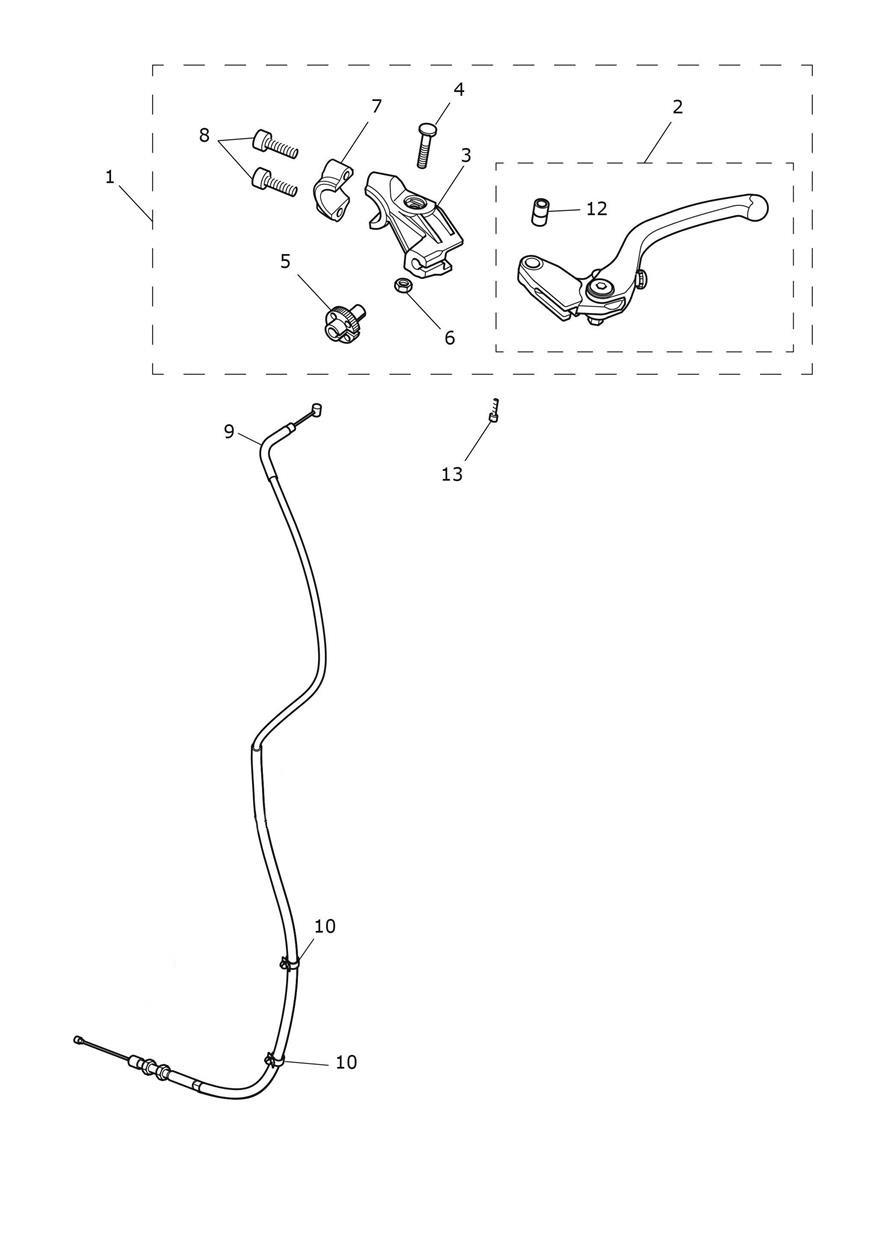

Clutch Controls
14 parts
VIN AE2310 and lower
Clutch Controls
12 parts
VIN AE2311 to CA0786
Front Forks & Lower Yoke
21 parts
Handlebars, Top Yokes & Mirrors
30 parts
Handlebars, Top Yokes & Mirrors
31 parts
HANDLEBARS, TOP YOKES & MIRRORS

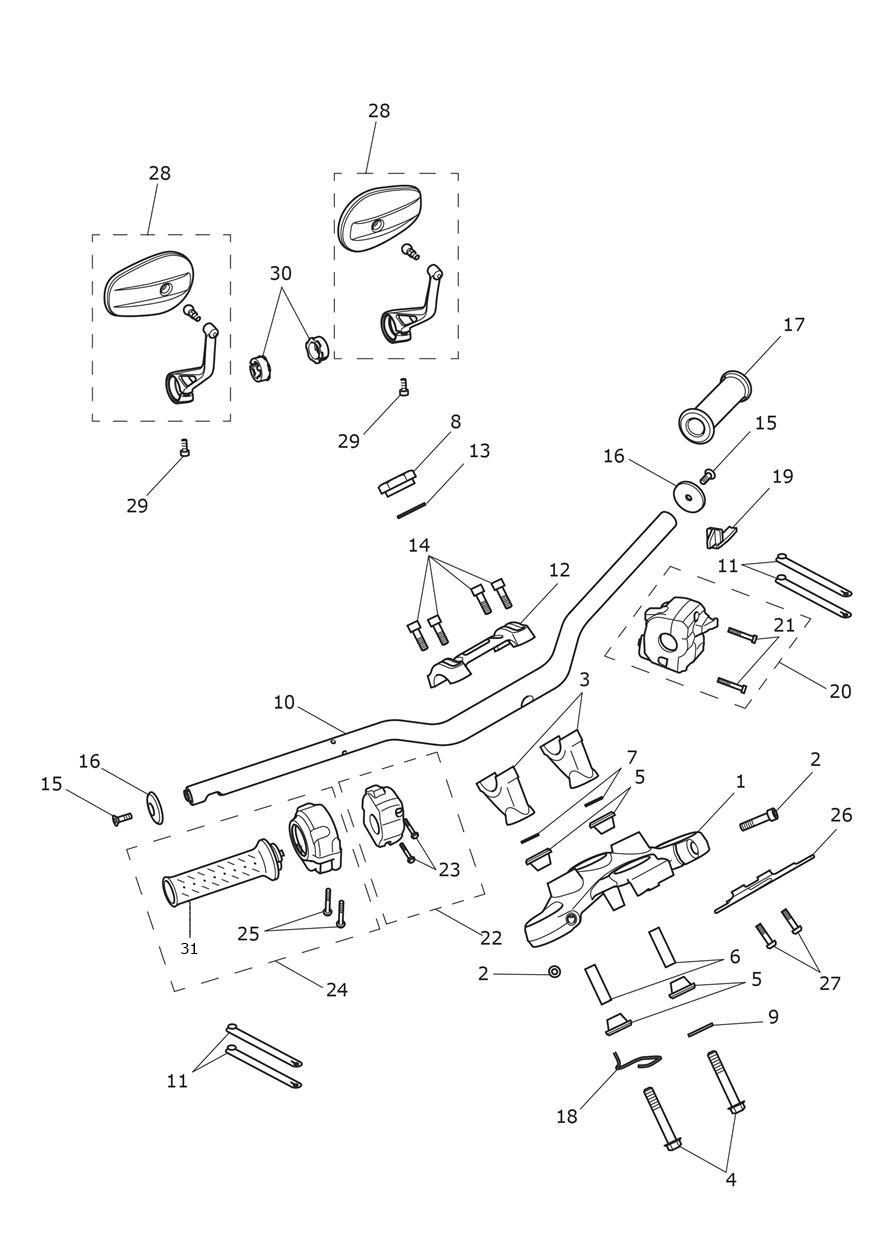

Handlebars, Top Yokes & Mirrors All Expt BR & 932929 BR Only
32 parts
VIN 920186 and higher

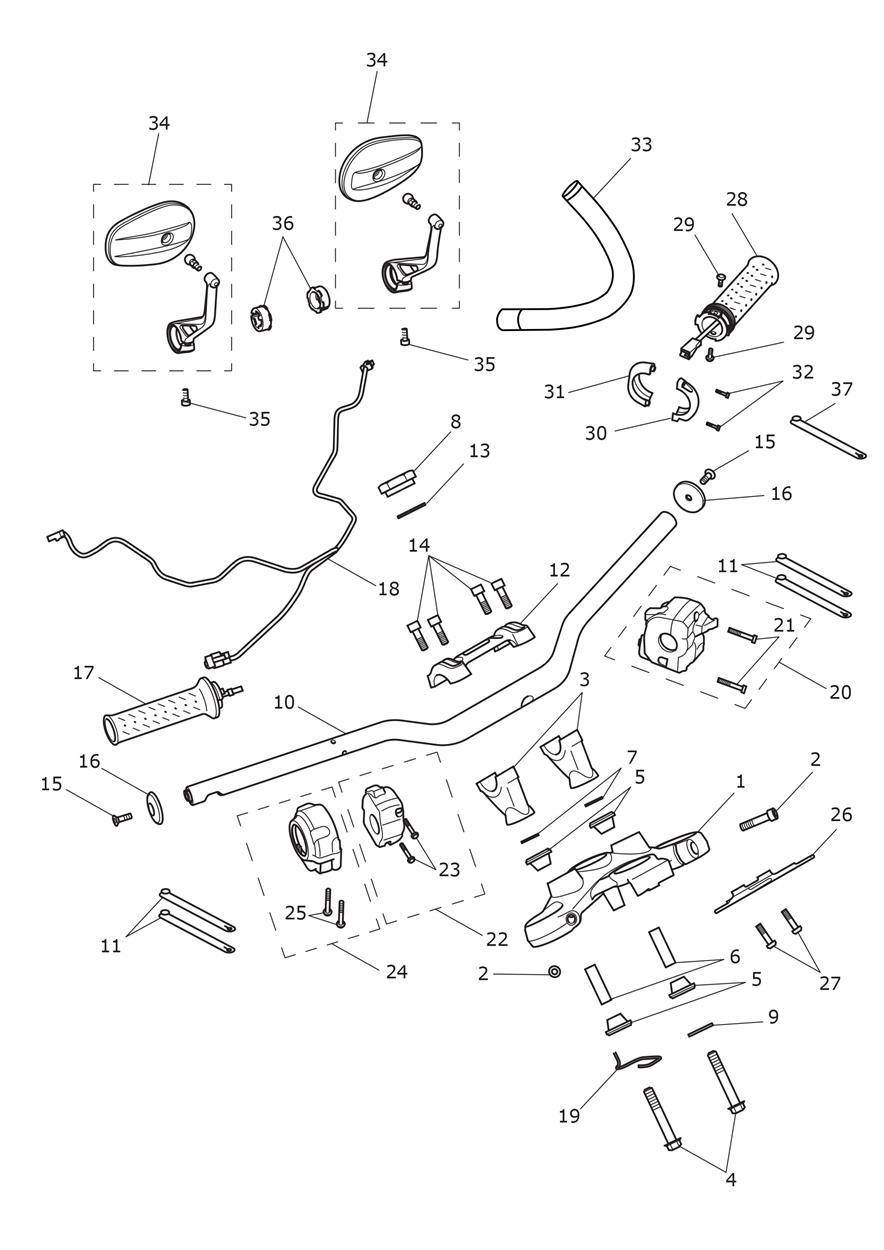

Handlebars, Top Yokes & Mirrors All Expt BR & BR Only
38 parts
More than one model
126 parts you can order online
Every part below appears in Triumph’s Front Suspension & Steering incl. Clutch Controls diagrams for the Speed Twin 1200 and is priced and orderable online. Open a part to see what it fits and to buy it.
Clutch Controls
T2043945 Clutch Lever Assembly, MCS
$119.64
In stock in BreaT2043946 Clutch Lever, MCS, Adjustable
$83.07
AvailableT2046082 Clutch Lever Bracket
$36.08
AvailableT2046524 Pivot Bolt
$2.43
AvailableT2046520 Adjuster Screw
$7.90
AvailableT2046521 Nut, Pivot Bolt
Low stock at Triumph
$1.99
Limited availabilityT2046510 Clamp, Clutch lever bracket
Low stock at Triumph
$14.86
Limited availabilityT2046522 Bolt, Handlebar Clamp
$1.99
AvailableT2043924 Clutch Cable
$43.90
AvailableT3700108 Clip, Cable, 14.3 x 10
$3.00
AvailableT3331750 Screw, Tx, M4 x 17.5, Slv
$3.98
AvailableFront Forks & Lower Yoke
T2043745 Stanchion, LH
$626.77
AvailableT2043748 Top Cap Assembly
$71.30
AvailableT2043749 Spring Compression
$109.15
AvailableT2043751 Sealing Bush Set
$86.48
AvailableT2048753 Decal, Fork Leg
$34.25
AvailableT3050355 Screw, Cap/Hd, M5 x 16, Slv, Enc
$1.99
AvailableT2043848 Lower Yoke Assembly
$509.77
AvailableT3051032 Screw, Cap/HD, M8 x 40, Slv
Backordered at Triumph · expected Nov 6
$1.99
On backorderT3800091 Bearing, Sac
$31.43
In stock in BreaT3600234 Dust Seal, Dia 55
Low stock at Triumph
$7.72
Limited availabilityT2042138 Cover, Headstock Bearing
$10.10
AvailableT2040301 Adjuster Nut, M30, Lower
Low stock at Triumph
$26.39
Limited availabilityT2042738 Rubber Washer
$1.99
AvailableT2040304 Locknut, M30
$19.08
AvailableT2700332 Reflector, Amber, Oval
$5.92
AvailableT2044184 Washer, Tabbed
$9.98
AvailableHandlebars, Top Yokes & Mirrors VIN AE2311 to CA0786
T2046853 Upper Yoke
$282.14
AvailableT3050324 Screw, Cap/Hd, M8 x 1.25 x 35, Slv
$4.39
AvailableT2043107 Riser, Hancllebar, LH
$43.42
AvailableT2043108 Riser, Handlebar, RH
$43.42
AvailableT3205765 Bolt, HHF, M10 x 65, Slv
$3.81
AvailableT3550632 Washer, 10.5 x 21 x 2
$2.73
AvailableT2049880 Nut, Upper Yoke, M25
$22.62
AvailableT3555030 Washer, 10.5 x 30 x 2.5
$6.16
AvailableT2041153 Handlbar, Tapered, Black
$213.66
AvailableT3700259 Rubber Band, 43mm
$3.61
AvailableT2043408 Clamp, Handlebar
Backordered at Triumph · we’ll confirm the ship date after you order
$60.03
On backorderT2043415 Badge, Handlebar Clamp
$64.23
AvailableT3051097 Screw, Cap/Hd, M8 x 25, Silver
$3.81
AvailableT3330923 Screw, Csk, M6 x 20, Slv, Enc
$2.20
In stock in BreaT2042476 Bar End Finisher
$20.85
AvailableT2041579 Grip, Handlebar, LH
$16.81
AvailableT2045856 Plastic Plug, 22.2
$2.09
AvailableT2045932 Switchcube, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$318.46
On backorderT3331790 Screw, Pan/Hd, Ph, M5 x 30, Blk
$1.99
AvailableT2045935 Switchcube, RH
$172.51
AvailableT2042119 Grip, APS, RH
$48.42
AvailableT2044045 Sensor, APS, Assembly
Low stock at Triumph
$230.60
Limited availabilityT2041629 Screw, APS Housing
$2.01
AvailableT2041583 Mount, Instruments
Backordered at Triumph · we’ll confirm the ship date after you order
$37.84
On backorderT3331110 Screw, Pan/Hd, Tx, M6 x 25, Enc
$1.99
AvailableT2060314 Mirror, Bar End, Assy
$80.24
AvailableT3050159 Capscrew, Skt HD, M6 x 20, SS
$4.76
AvailableT2060499 Friction Ring, 22.2
$34.22
AvailableT2042136 Rubber Bush, Handlebar Clamp
Low stock at Triumph
$7.64
Limited availabilityHandlebars, Top Yokes & Mirrors All Expt BR & 932929 BR Only VIN 920186 and higher
T2043304 Upper Yoke
Backordered at Triumph · we’ll confirm the ship date after you order
$282.14
On backorderT2043406 Riser, Handlebar Clamp
$43.42
AvailableT2049488 Sleeve, Dia 13 x 43
$4.50
In stock in BreaT2042135 Nut, Upper, M25, Domed
$3.49
AvailableT2042390 Wire Guide, Top Yoke
Backordered at Triumph · we’ll confirm the ship date after you order
$7.28
On backorderT2043529 Switchcube, LH, Inst Control, No DRL
Backordered at Triumph · we’ll confirm the ship date after you order
$170.73
On backorderT2048632 Switchcube, RH
$172.51
AvailableClutch Controls
T2044556 Clutch Lever Assy, Adj
$96.59
AvailableT2040140 Clutch Lever, MCS, Adjustable
$119.74
AvailableFront Forks & Lower Yoke VIN AE2310 and lower
T2042290 Stanchion Assy, LH
$1100.26
AvailableT2042295 Stanchion Assy, RH
$1100.26
AvailableT2041674 Cap
Backordered at Triumph · we’ll confirm the ship date after you order
$71.30
On backorderT2047113 O Ring, Fork Seal
$2.53
AvailableT2041673 Spacer
$10.84
AvailableT2041670 Piece Comp, Oil Lock
$9.85
AvailableT2042533 Spring
$109.15
AvailableT2042529 Fork Tube Inner
$317.65
AvailableT2045157 Clip, Gaiter, Front Forks
$3.32
AvailableT2044087 Fork Gaiter
Low stock at Triumph
$37.07
Limited availabilityT2047109 Dust Seal, Fork
$16.95
AvailableT2040248 Snap Ring
$6.24
AvailableT2044161 Oil Seal
$22.26
In stock in BreaT2047106 Guide, Bushing
$12.51
AvailableT2047107 Ring, Back Up
$4.04
AvailableT2042617 Tube Outer, RH
$822.84
AvailableT2042615 Tube Outer, LH
$822.84
AvailableT2045046 Capscrew, Oil Lock
$9.85
AvailableT2045045 Washer, Sealing B
$1.99
AvailableT2044712 Lower Yoke Assembly
$545.70
AvailableT2044183 Washer, Headstock
$7.68
AvailableT3050133 Capscrew
$4.21
AvailableT2040399 Screw, Fork Gaiter Clip, M4
$3.32
AvailableT3450222 Plug, Fir Tree, 6.6 x 22
Backordered at Triumph · we’ll confirm the ship date after you order
$2.94
On backorderFront Forks & Lower Yoke VIN AE2311 to CA0786
T2044908 Stanchion Assembly, RH
$1100.26
AvailableT2044909 Stanchion Assembly, LH
$1100.26
AvailableT2046852 Lower Yoke Assembly
$545.70
AvailableFront Forks & Lower Yoke
T2043977 Fork Stanchion Assy, RH
$1085.30
AvailableT2043976 Fork Stanchion Assy, LH
$1085.30
AvailableT2049324 Rebound Cartridge (RH)
Backordered at Triumph · expected Nov 6
$534.83
On backorderHandlebars, Top Yokes & Mirrors
T2043844 Upper Yoke
$271.32
AvailableT2044331 Riser, Handlebars
Backordered at Triumph · we’ll confirm the ship date after you order
$44.40
On backorderT2044384 Handlebar, Tapered, Black
$222.00
AvailableT2045139 Grip, Handlebar, LH
$24.67
AvailableT2044534 Switchcube, LH, Non-DRL
$273.05
AvailableT3331857 Screw, Torx, M4 x 0.7 x 18, Blk
$1.99
AvailableT2043559 Switchcube, RH
$263.19
AvailableT2044707 Grip, RH
$24.67
In stock in BreaT2046075 APS Sensor, Assy
$246.66
AvailableT3050314 Bolt, M5 x 20
Low stock at Triumph
$6.50
Limited availabilityT2046786 Wire Guide
$18.92
AvailableT3050331 Screw, Cap/Hd, M6 x 16, Slv, Enc
$2.17
In stock in BreaHandlebars, Top Yokes & Mirrors All Expt BR & BR Only More than one model
T9820073 Subharness, Heated Grips
$12.36
AvailableT2043437 Switchcube, Inst Control, LH
$258.75
AvailableT2043407 Sensor, AP
Backordered at Triumph · expected Nov 6
$284.27
On backorderT2041196 Heated Grip, LH
$163.59
AvailableT3330247 Screw, S/Tap, Pan/Hd, M4 x 10, HD
$6.61
AvailableT2041469 Button Housing, H/Grip, Lower
$6.16
AvailableT2041468 Button Housing, H/Grip, Upper
$6.16
AvailableT3330264 Screw, S/Tap, TX, 3 x 1.35 x 12, Blk
$4.65
AvailableT3700212 Band, Rubber
$3.04
AvailableClutch Controls VIN AE2310 and lower
T2043013 Clutch Lever, Adjustable
$82.56
AvailableT2048002 Clutch Cable
$49.69
AvailableT3700182 Clip, Omega, 18mm x 14mm
$3.81
In stock in BreaT2043014 Collar, Clutch Lever
$3.05
AvailableT3330283 Screw, Pan/Hd, Tx, M4 x 20, Blk
Low stock at Triumph
$4.39
Limited availabilityT2043071 Bracket, Clutch Cable Clip
Backordered at Triumph · expected Nov 6
$11.41
On backorder
