Braking System

Triumph Speed Twin - Breitling Edition · 5 diagrams

5 exploded diagrams for the braking system of the Triumph Speed Twin - Breitling Edition, covering the Speed Twin 1200 Breitling Edition. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

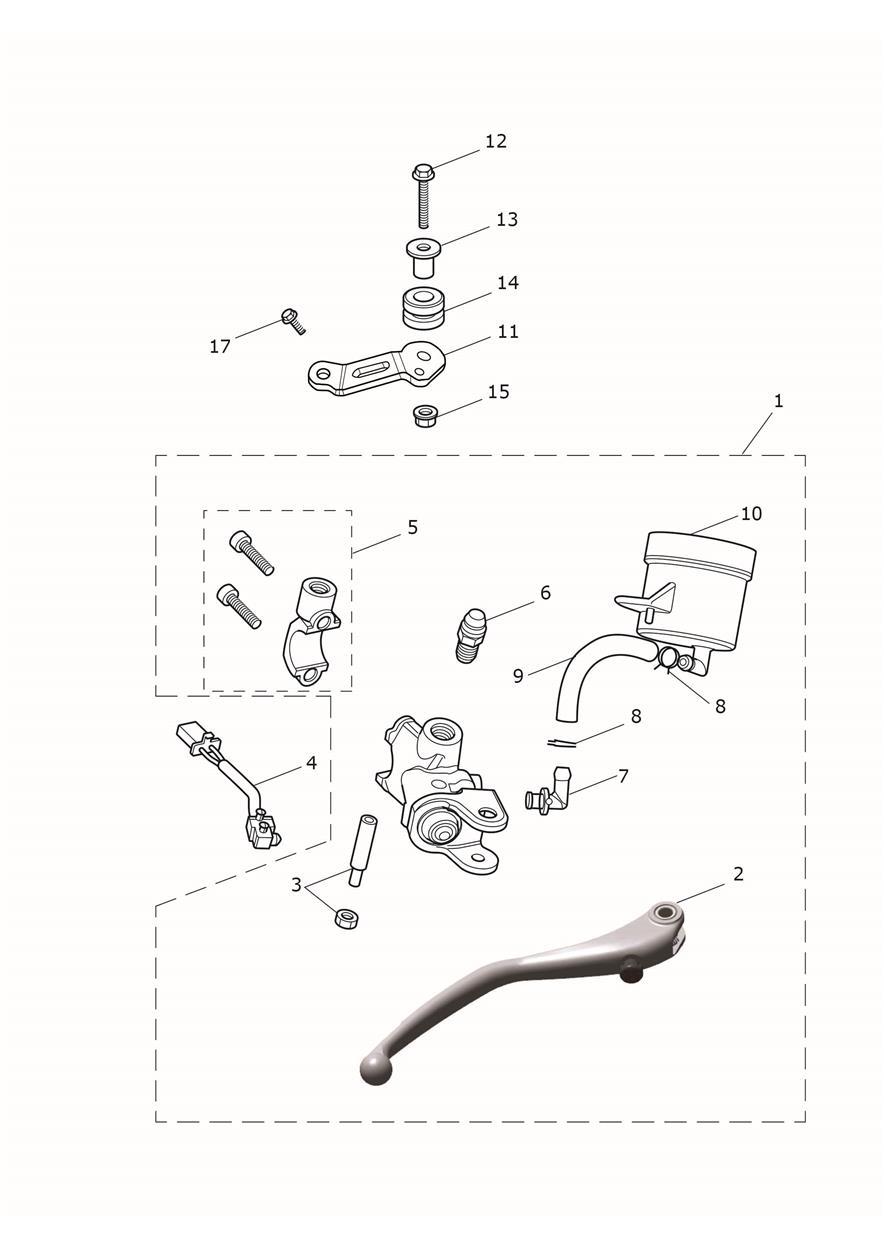

Front Brake Master Cylinder & Hoses exploded diagram
Front Brake Master Cylinder & Hoses
16 parts

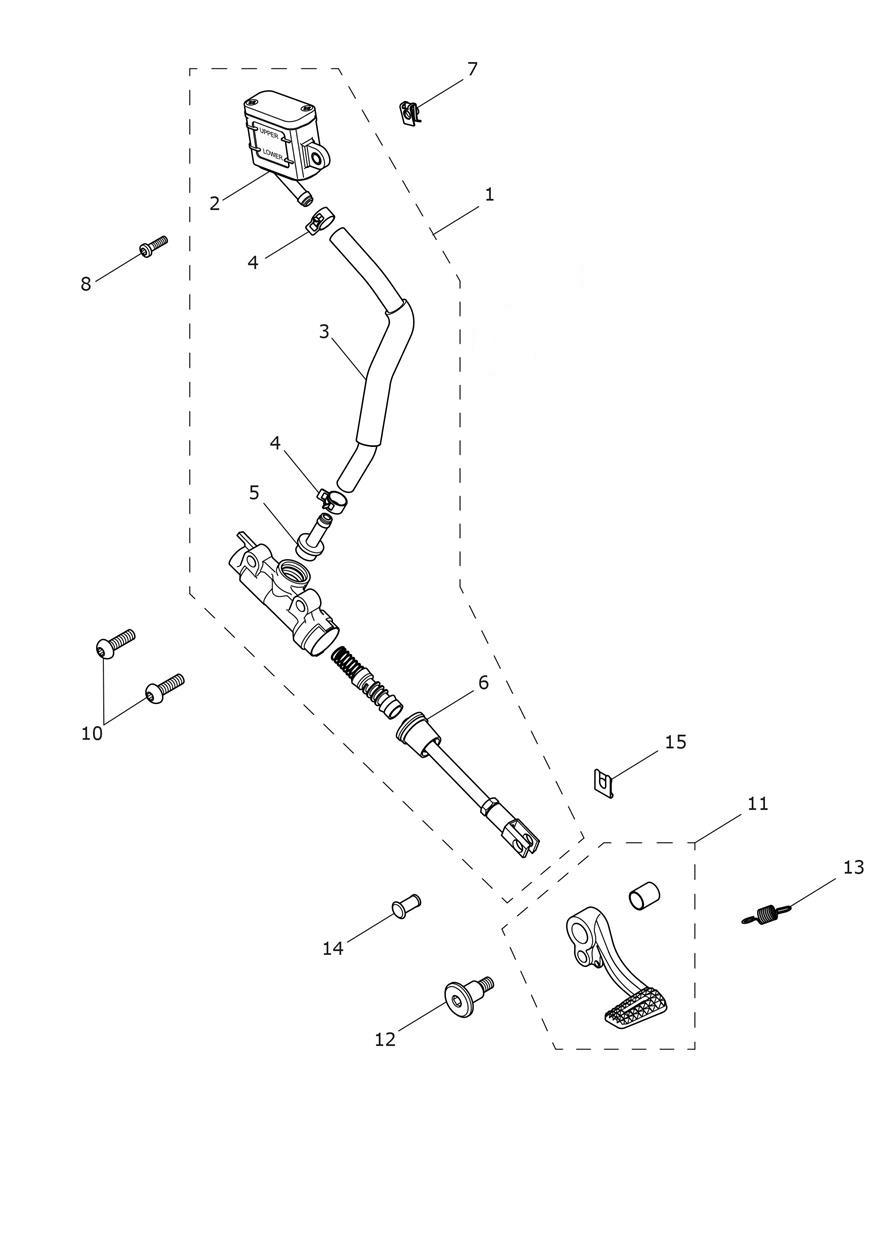

 Rear Brake Master Cylinder exploded diagram
Rear Brake Master Cylinder
14 parts

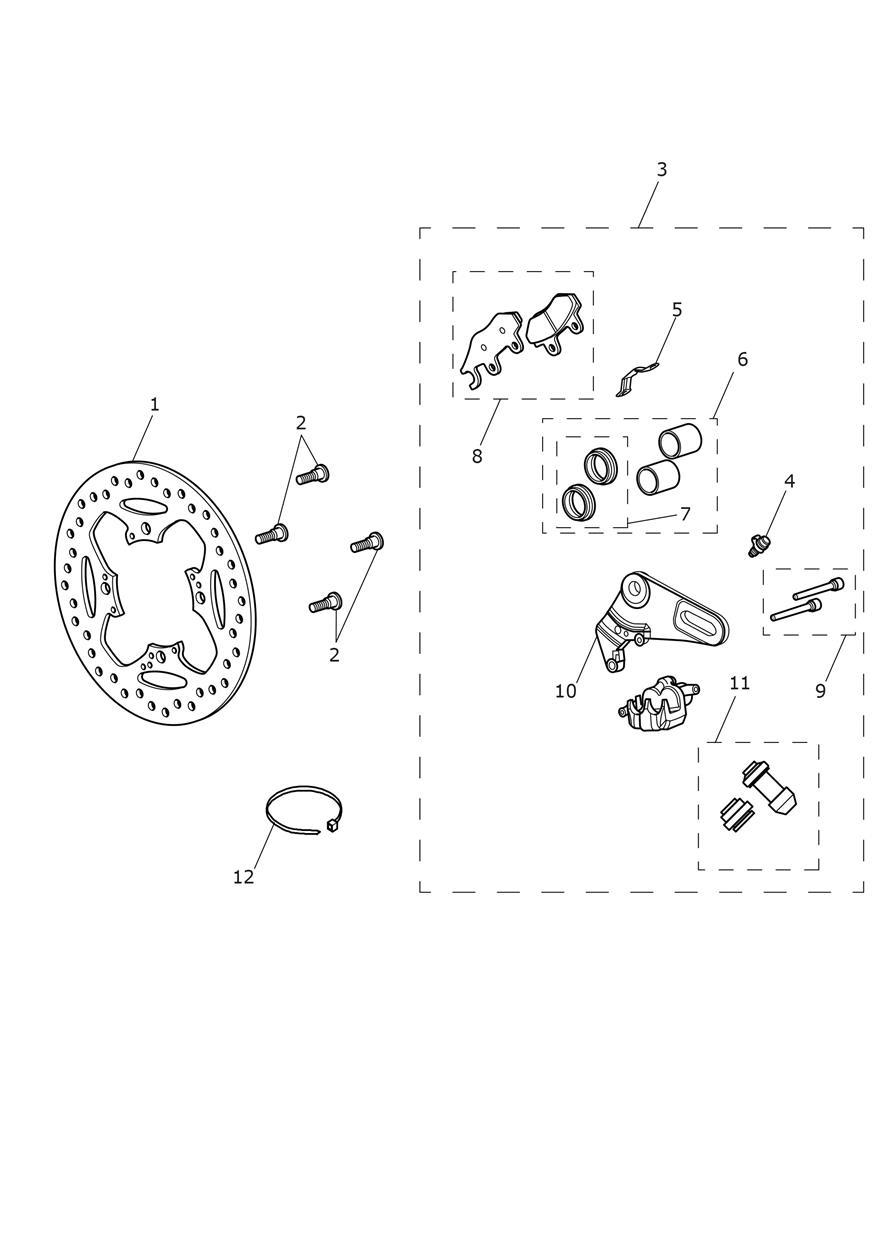

 Rear Brake Caliper & Disc exploded diagram
Rear Brake Caliper & Disc
12 parts

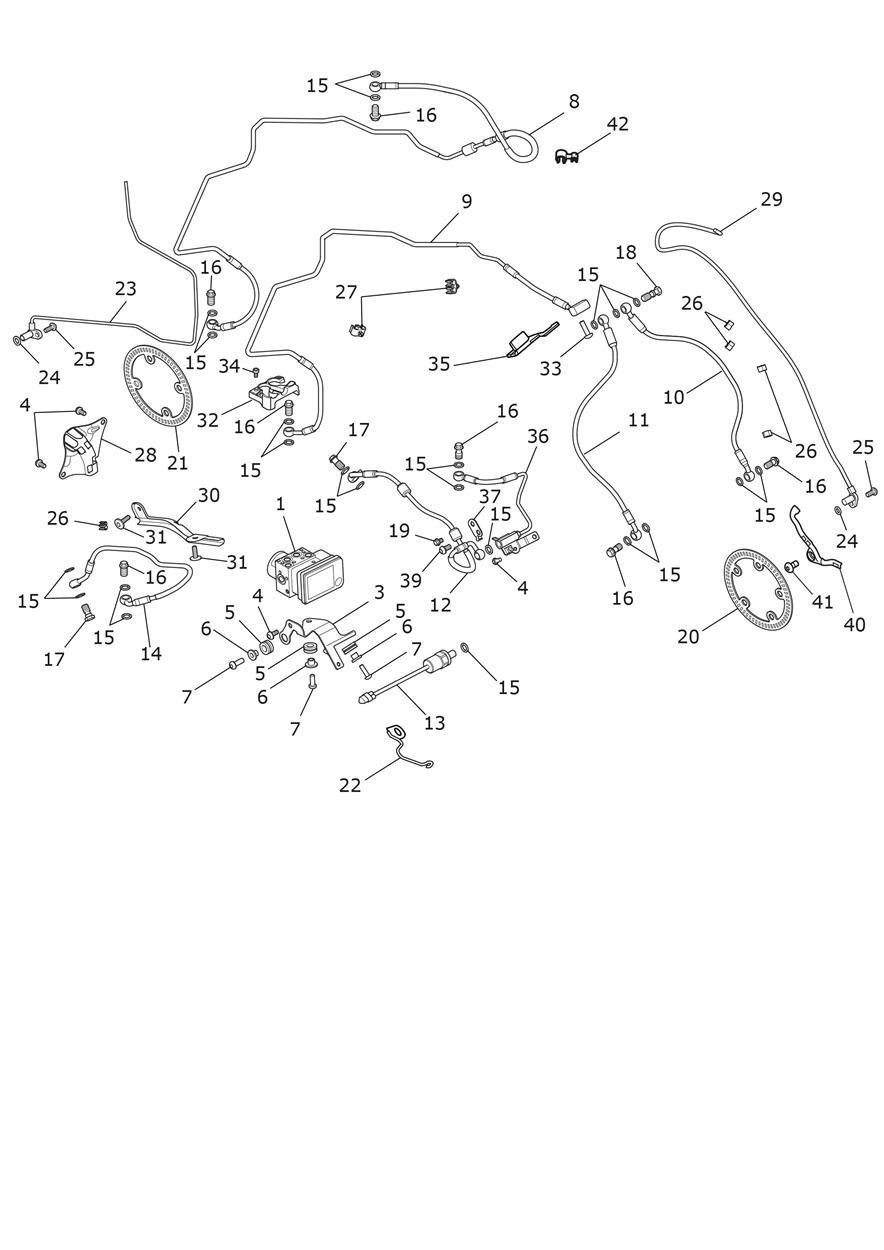

 ABS System exploded diagram
ABS System
43 parts

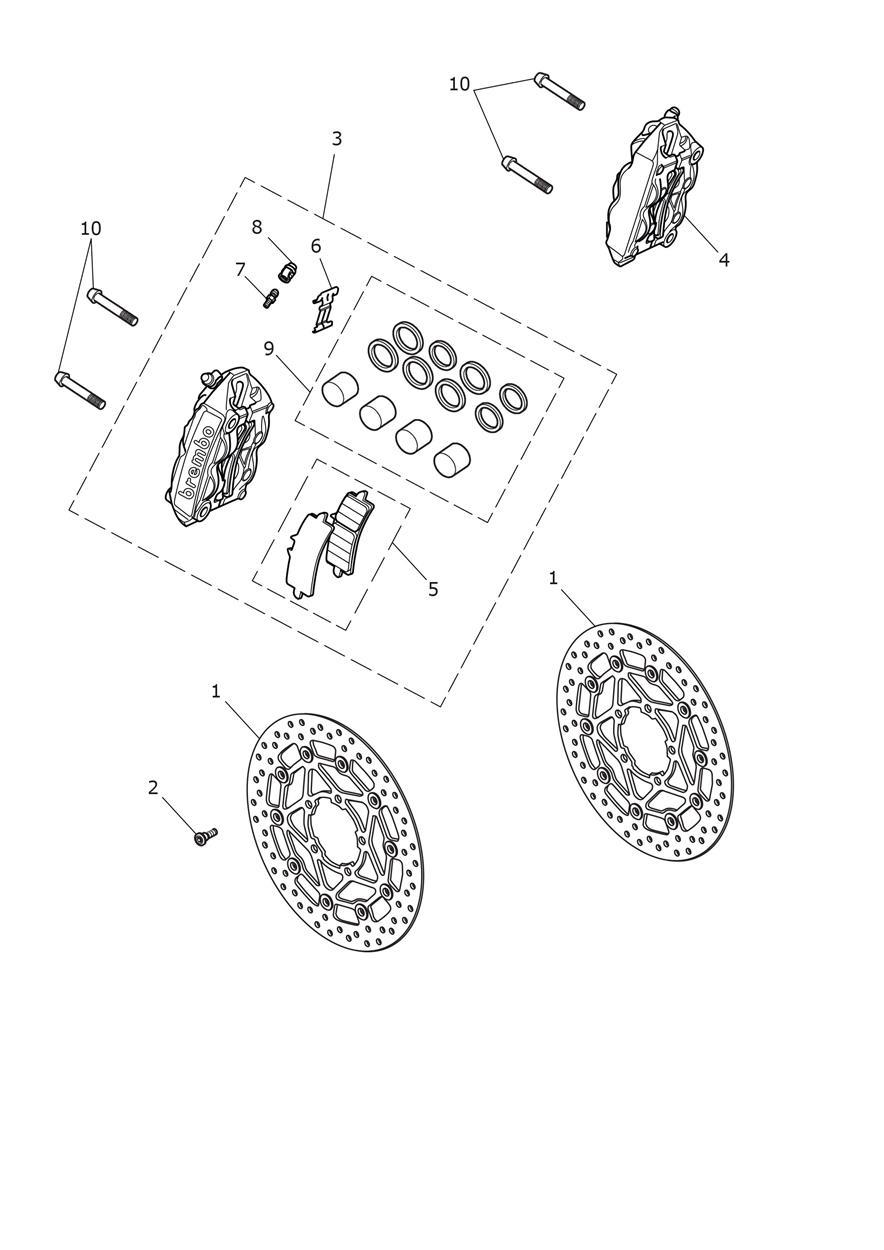

 Front Brake Caliper & Disc exploded diagram
Front Brake Caliper & Disc
10 parts

← All areas of the Speed Twin - Breitling Edition
