Fuel & Exhaust Systems
Triumph Speedmaster · 18 diagrams
18 exploded diagrams for the fuel & exhaust systems of the Triumph Speedmaster, covering the Speedmaster 865. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Carburettor Parts
Evaporative Loss Control System

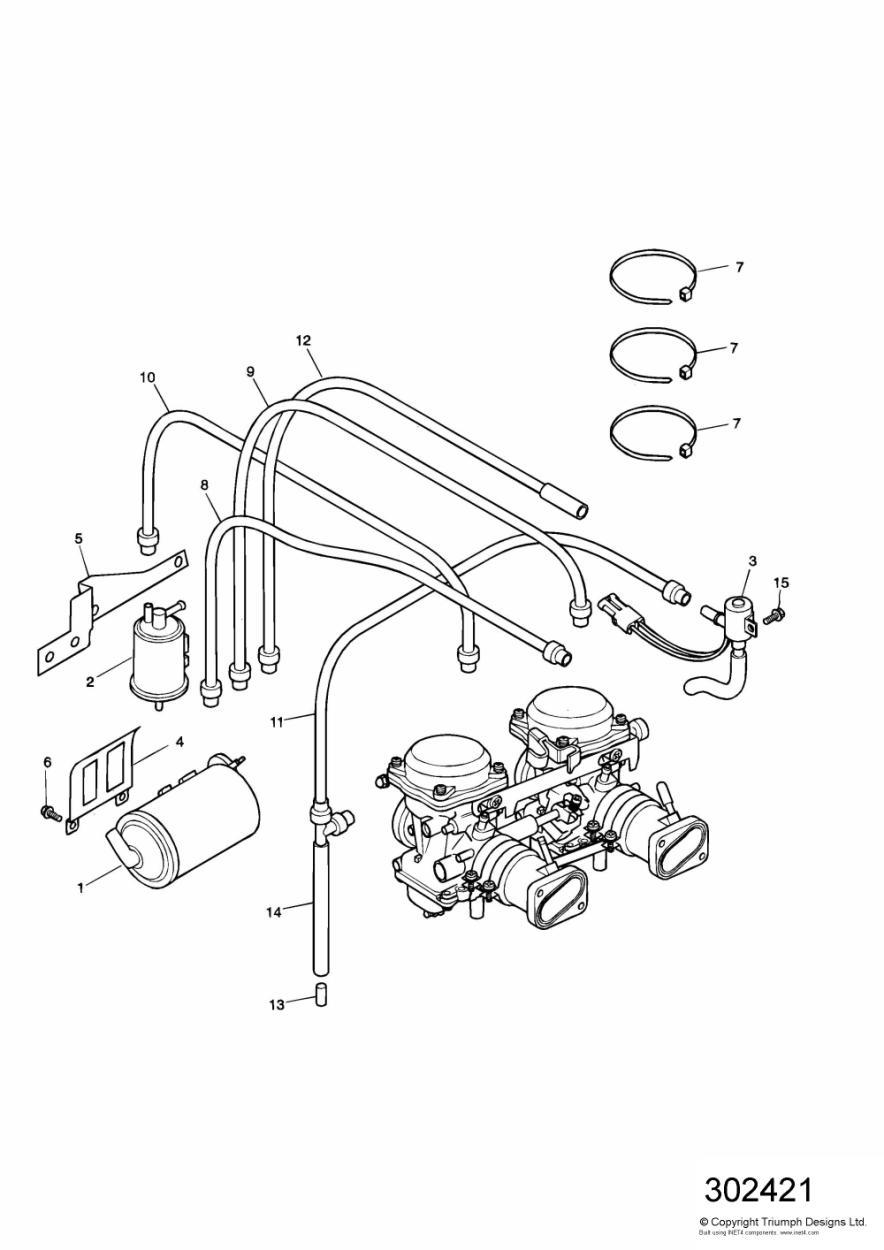

Evaporative Loss Control System California Only
15 parts
VIN 210261 and lower
Evaporative Loss Control System California Only
21 parts
VIN 210262 and higher

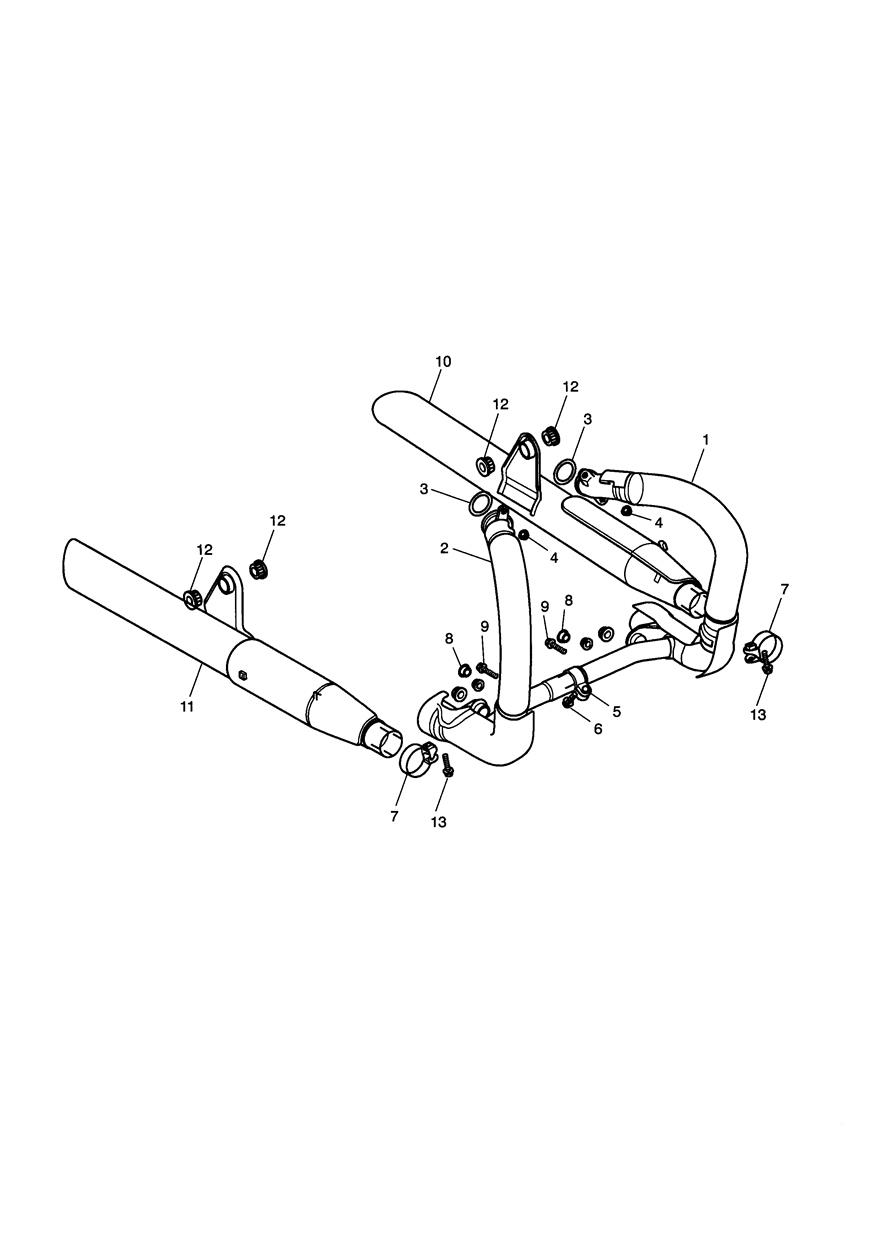

Exhaust System
Exhaust System
13 parts
VIN 281465-F2 or 279278-F4 and lower

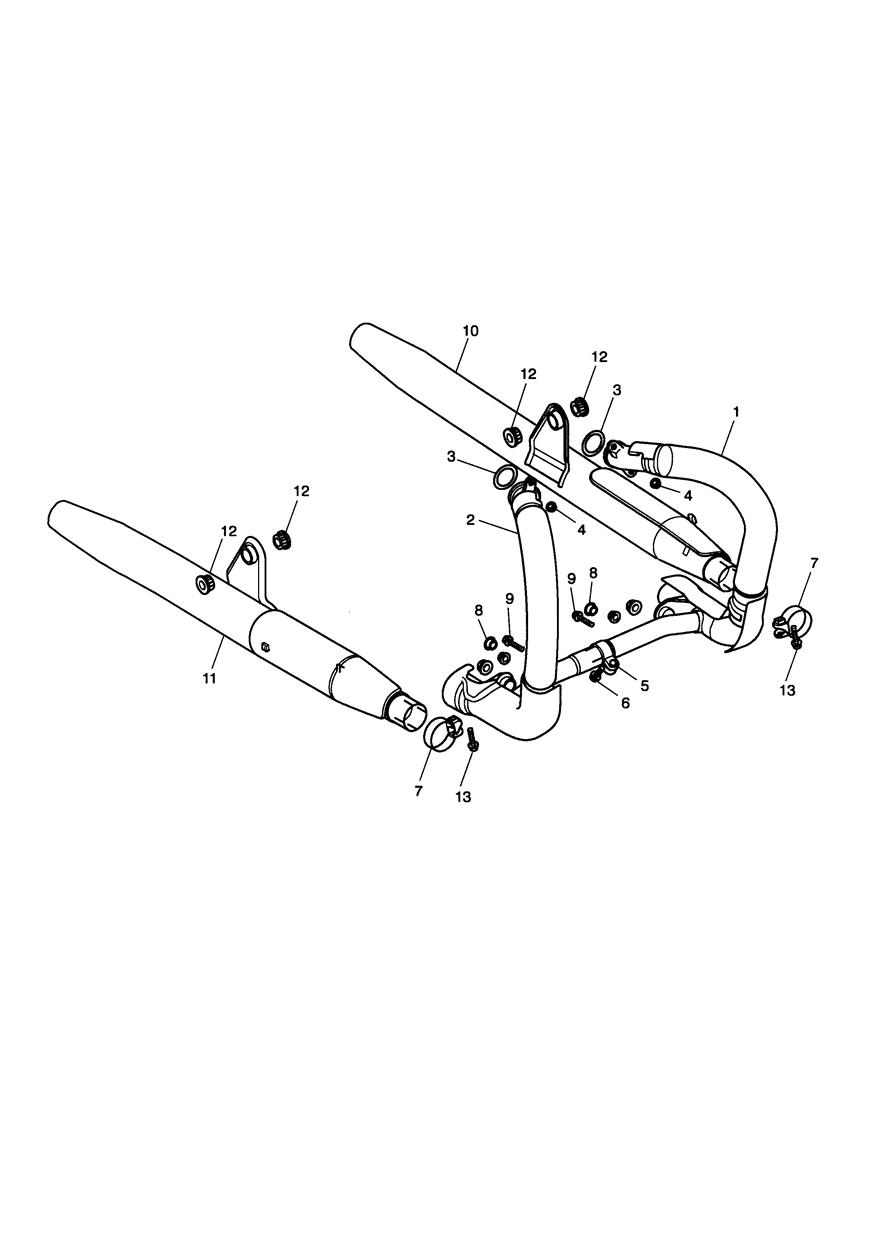

Exhaust System
13 parts
VIN 281466-F2 or 279279-F4 and higher

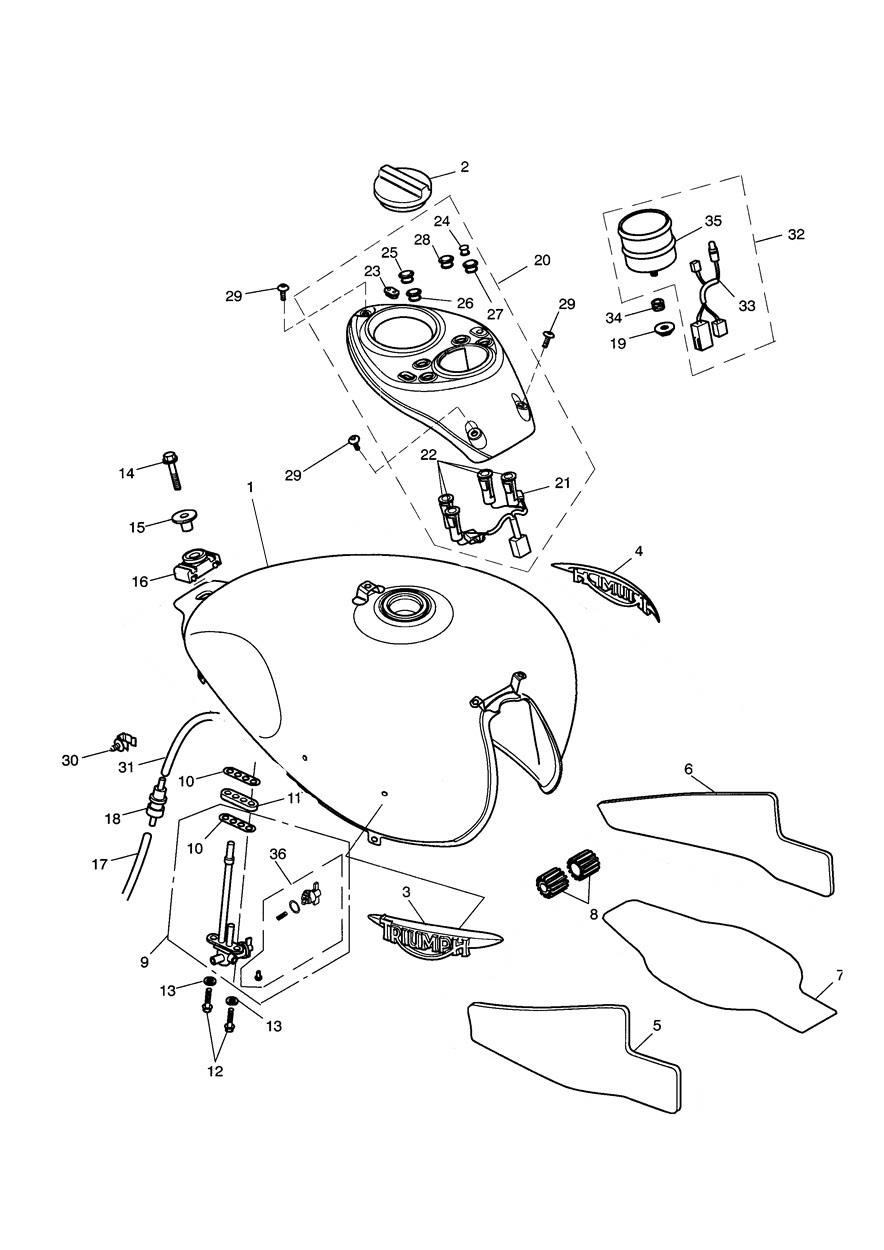

Fuel Tank & Fittings
Fuel Tank & Fittings
50 parts
VIN 317246 and lower
Fuel Tank & Fittings
37 parts
VIN 317247 and higher

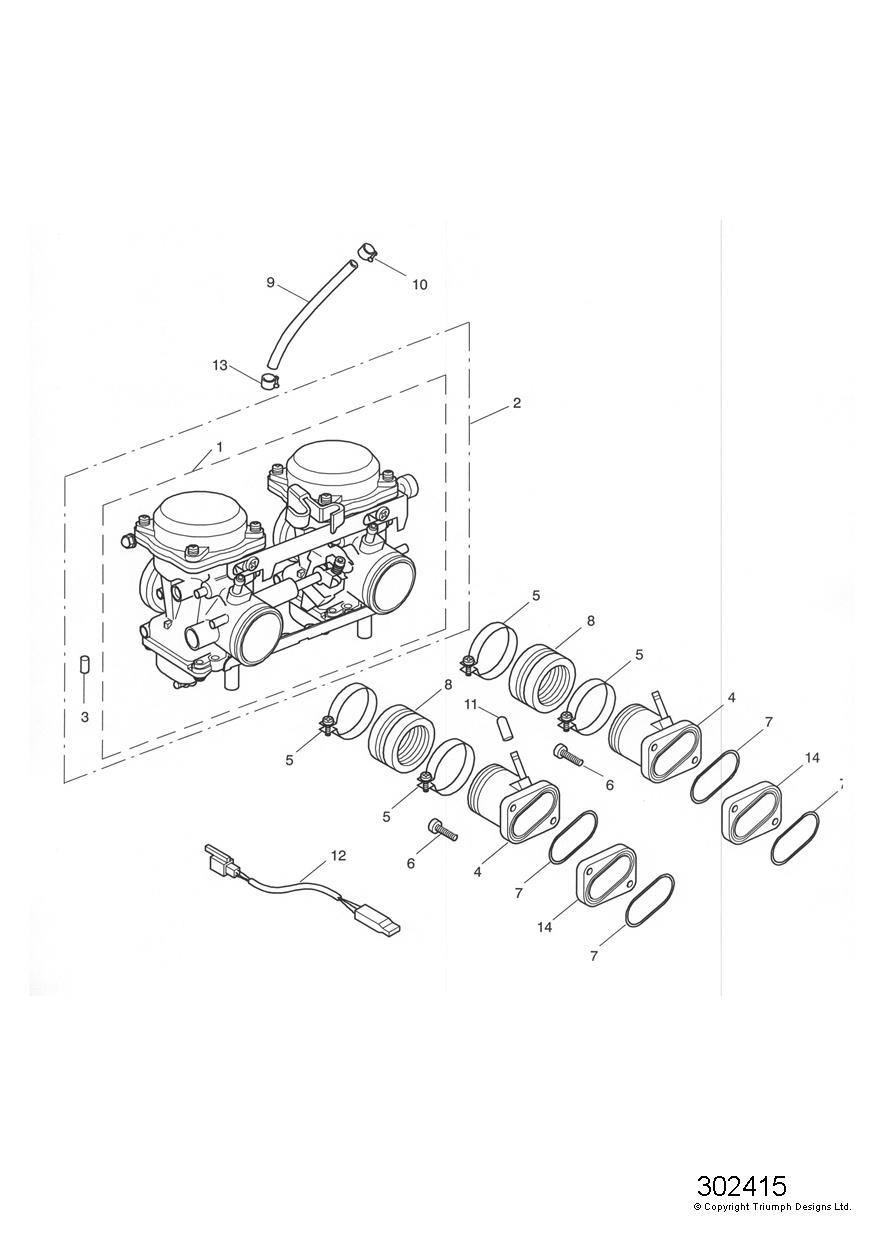

Carburettors
20 parts
Airbox
25 parts

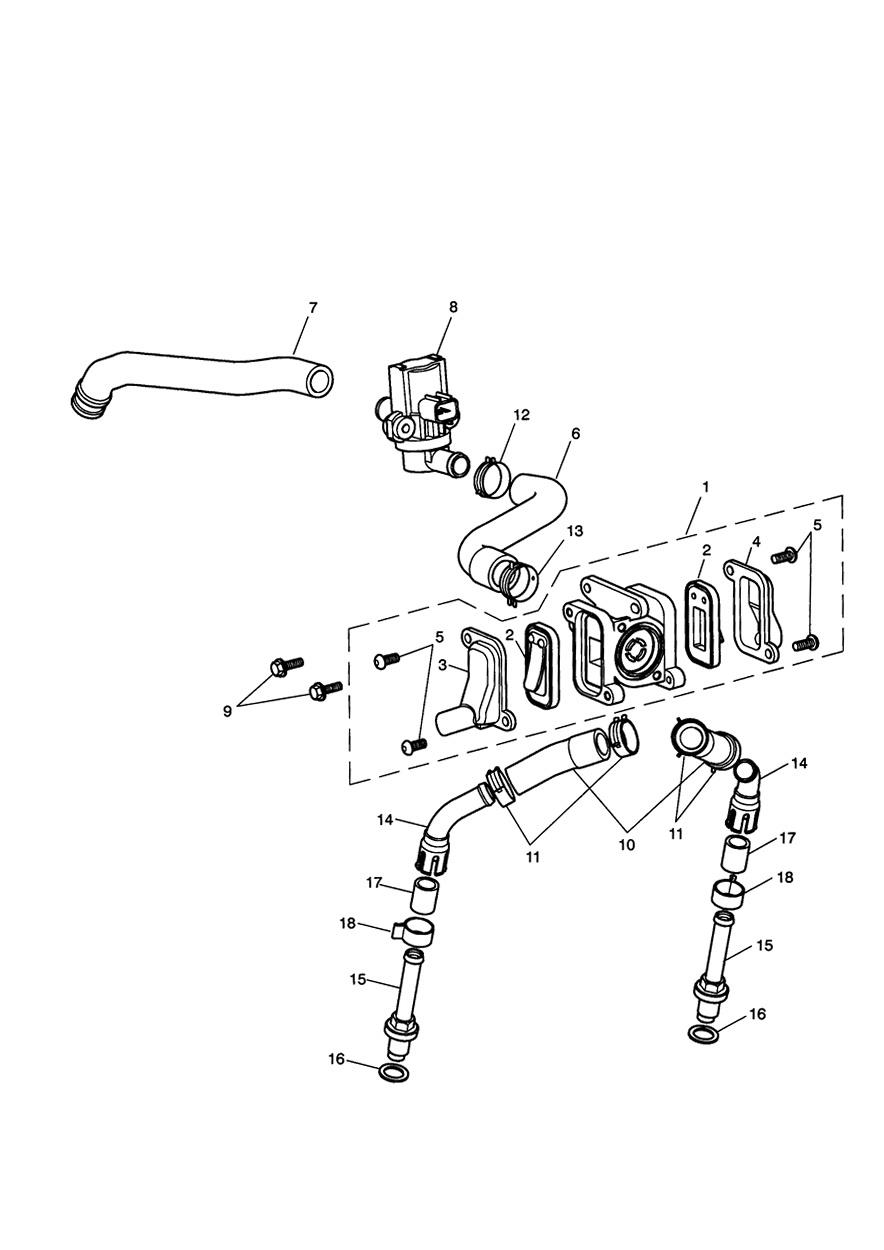

Emissions Control
19 parts
Fuel Tank & Fittings
51 parts
Fuel Pump & Fittings
29 parts

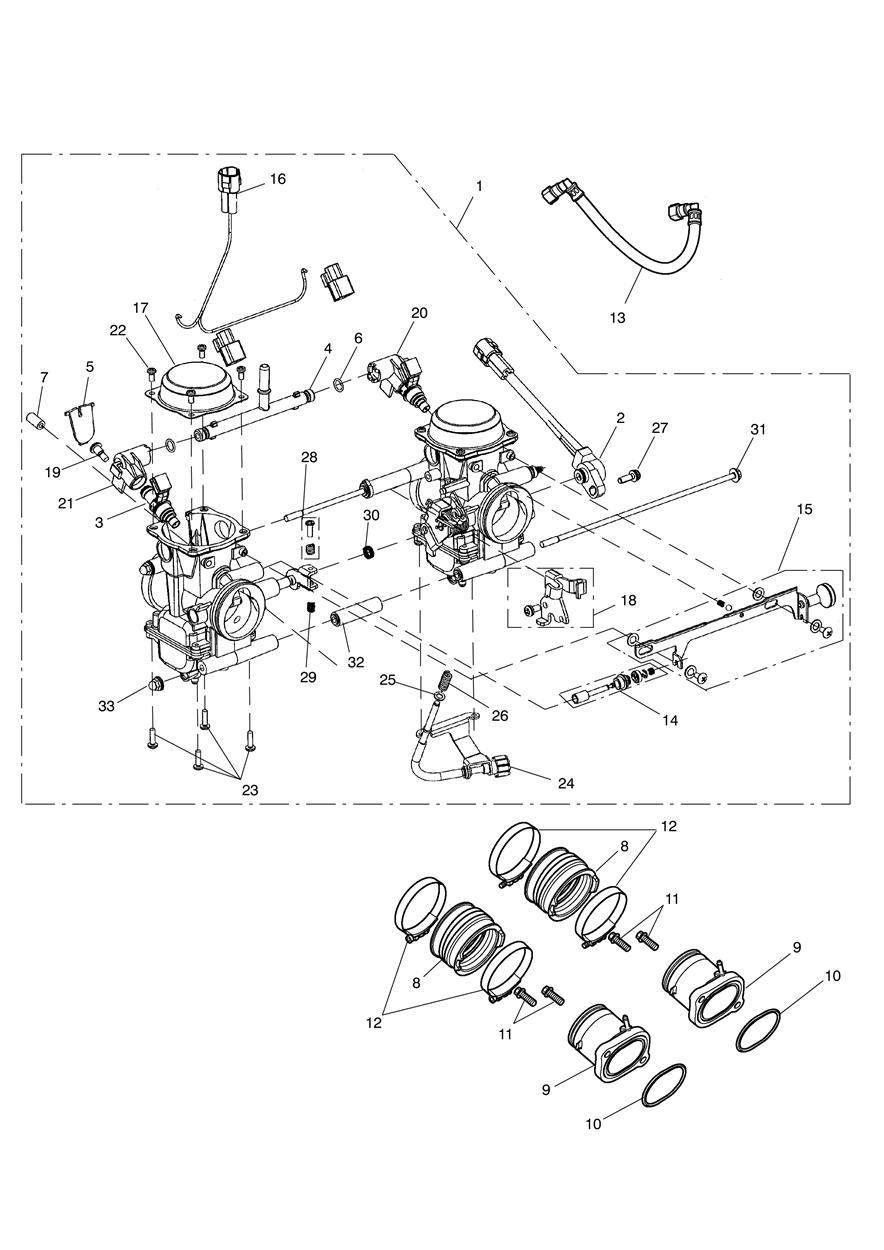

Throttle Bodies
33 parts
Airbox
28 parts
Exhaust System
20 parts

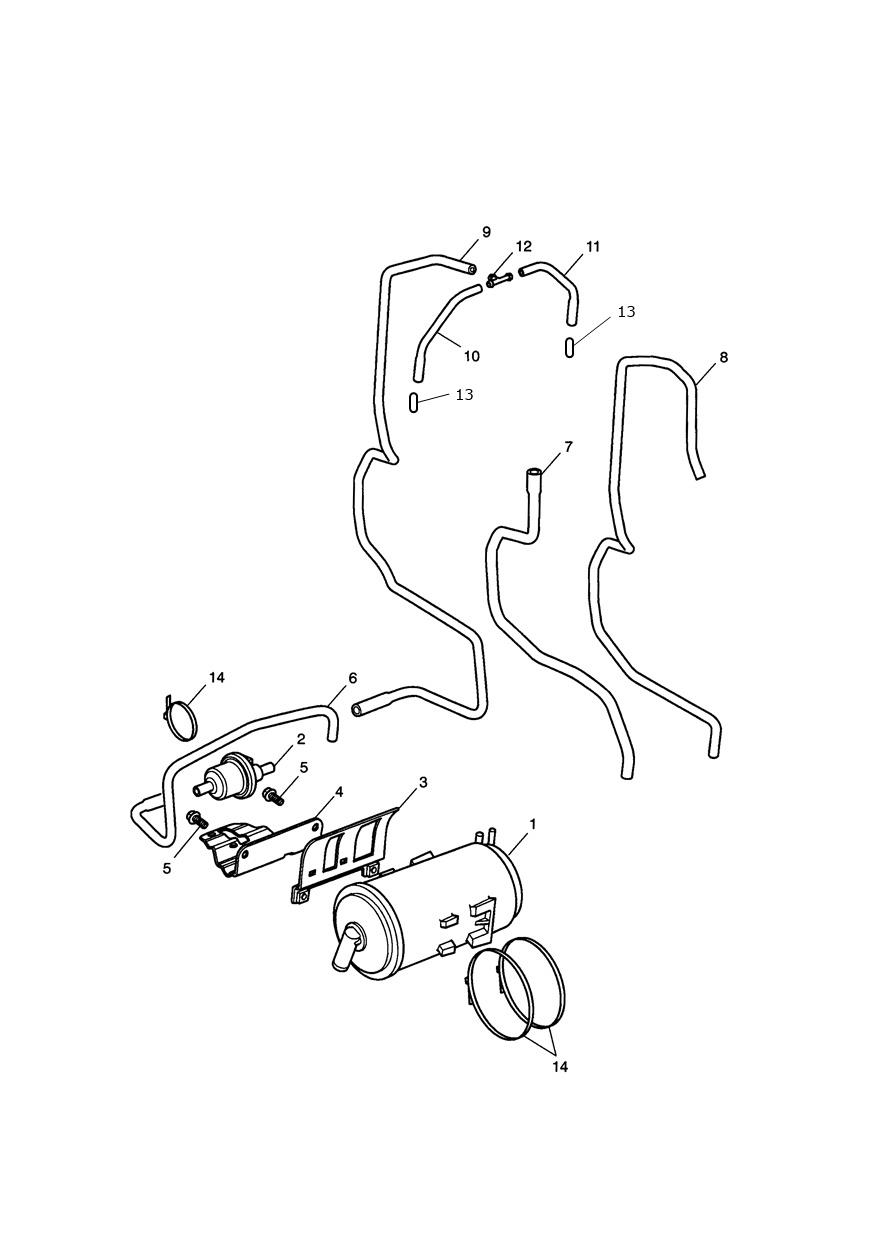

Evaporative Loss Control System - US CAL, TW, HK & CA Only
14 parts

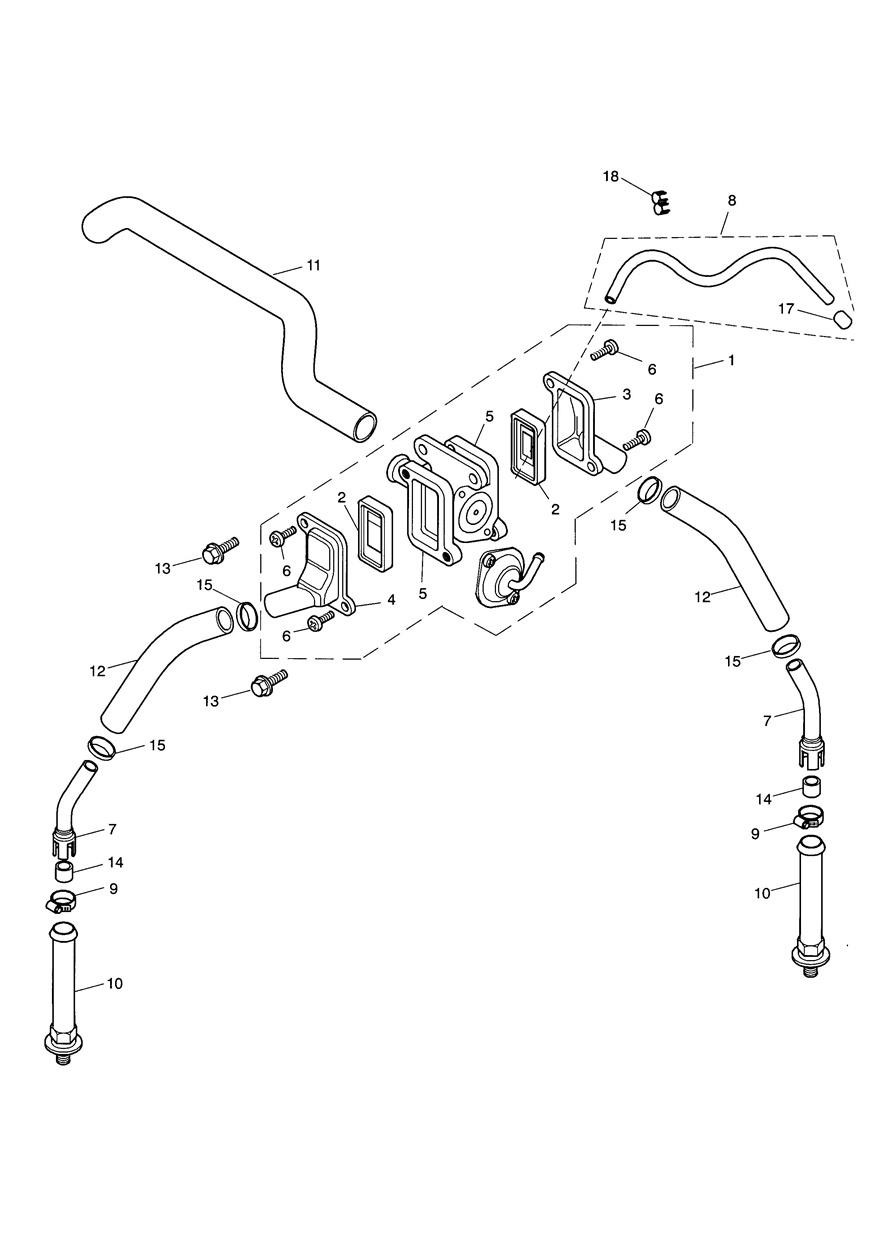

Emissions Control
18 parts
201 parts you can order online
Every part below appears in Triumph’s Fuel & Exhaust Systems diagrams for the Speedmaster and is priced and orderable online. Open a part to see what it fits and to buy it.
Most of these parts are shared with the America book. 19 parts are specific to the Speedmaster.

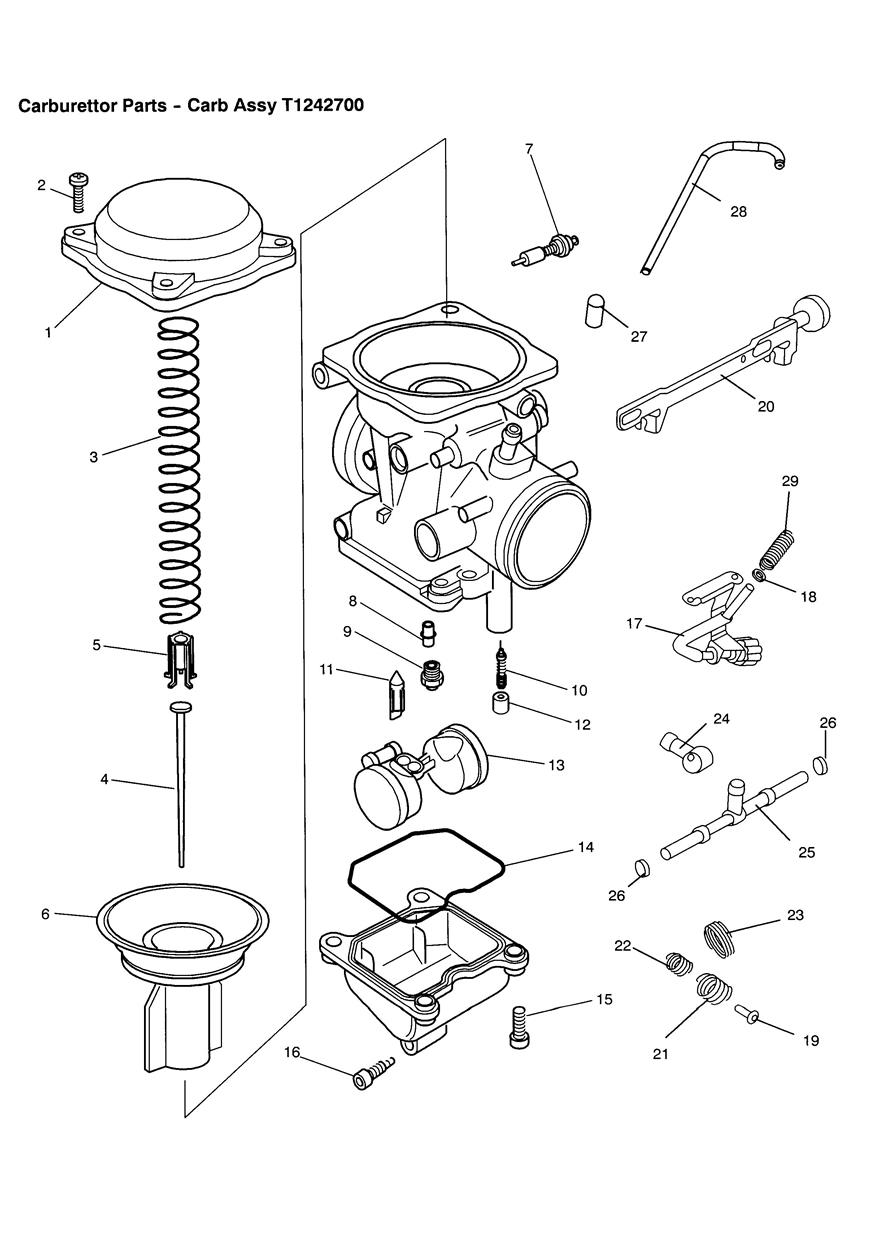

Carburettor Parts - Carb Assy T1242700
T1241070 Cover, Diaphragm
Backordered at Triumph · we’ll confirm the ship date after you order
$32.14
On backorderT1241071 Screw, Diaphragm
Low stock at Triumph
$1.99
Limited availabilityT1241072 Spring, Vacuum Piston
$9.15
AvailableT1242715 Needle
$12.45
AvailableT1241023 Seat, Piston Spring
$10.30
AvailableT1241019 Vacuum Piston, 3mm Hole
$91.53
AvailableT1241074 Kit, Choke Valve
$23.05
AvailableT1241025 Needle jet
$12.45
AvailableT1242716 Main Jet
$11.88
AvailableT1241076 Kit, Pilot Screw
$42.24
AvailableT1241077 Kit, Float Valve
$31.59
In stock in BreaT1240955 Plug, Pilot Screw
Low stock at Triumph
$2.93
Limited availabilityT1241078 Kit, Float
$68.63
AvailableT1241036 Seal, Float Bowl
$10.57
In stock in BreaT1241035 Screw, Float Bowl
$1.99
AvailableT1241034 Screw, Float Chamber Drain
Low stock at Triumph
$4.56
Limited availabilityT1240131 Stop screw
Low stock at Triumph
$26.39
Limited availabilityT1240132 Washer
Low stock at Triumph
$1.99
Limited availabilityT1241009 Screw, Carb Sync
$1.99
AvailableT1240133 Lever
Backordered at Triumph · expected Oct 23
$64.35
On backorderT1241010 Spring
Low stock at Triumph
$1.99
Limited availabilityT1241011 Spring
$2.73
AvailableT1240144 T-Fitting
Low stock at Triumph
$27.62
Limited availabilityT1240157 T-Fitting
$15.04
AvailableT1240158 U-Ring
$1.99
AvailableT1241012 Cap, Vacuum Connection
$2.73
AvailableT1240161 Rubber tube
$4.04
AvailableT1240162 Spring, Idle Adjuster
$4.04
AvailableEvaporative Loss Control System California Only VIN 210261 and lower
T1242540 Bracket, Pri Evap Canister
$93.29
AvailableT3205063 Bolt, HHF, Lghtd, M6 x 16, Slv
Low stock at Triumph
$3.24
Limited availabilityT3700016 Cable Tie, 370 Long
$1.99
In stock in BreaT3450145 End Tip
$1.99
AvailableT4000752 Fuel, Evap Pipe, 7 mm ID, 1M
$10.63
AvailableT3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041
$3.00

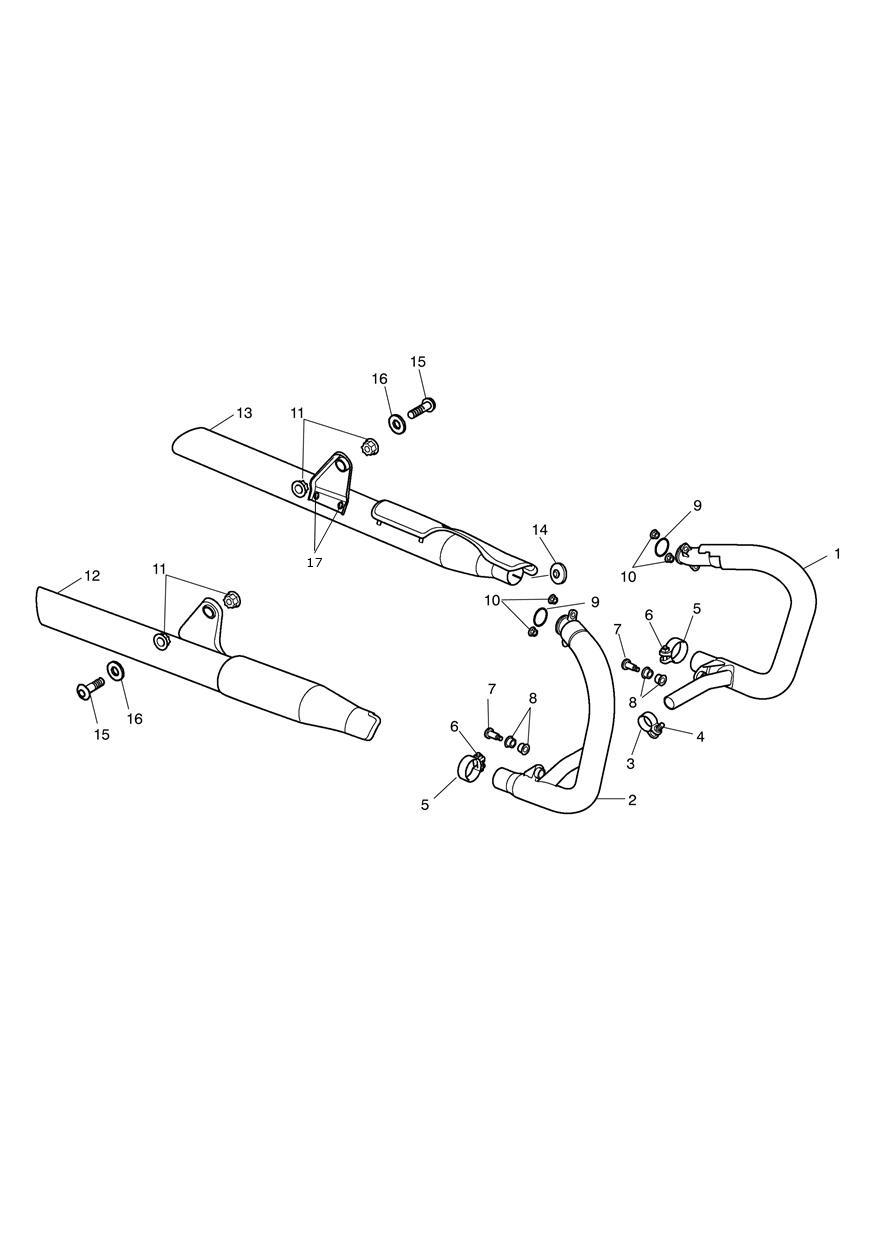

AvailableExhaust System VIN 281465-F2 or 279278-F4 and lower
T2200229 Exhaust Pipe Sealing Ring
$13.03
AvailableT3350004 Locknut, Flanged, M8 x 1.25
$2.27
In stock in BreaT2201675 Clamp, Exhaust, S/S
$9.23
AvailableT3050113 Bolt, Skt HD, M8 x 30, S/S
$3.61
AvailableT3020482 Bush, Rubber
$2.93
In stock in BreaT2218053 Bolt, Third Mount
$8.54
AvailableT2202702 Silencer Assy, Cat, LH
$616.14
AvailableT2200622 Bush, Rubber, M8
$2.09

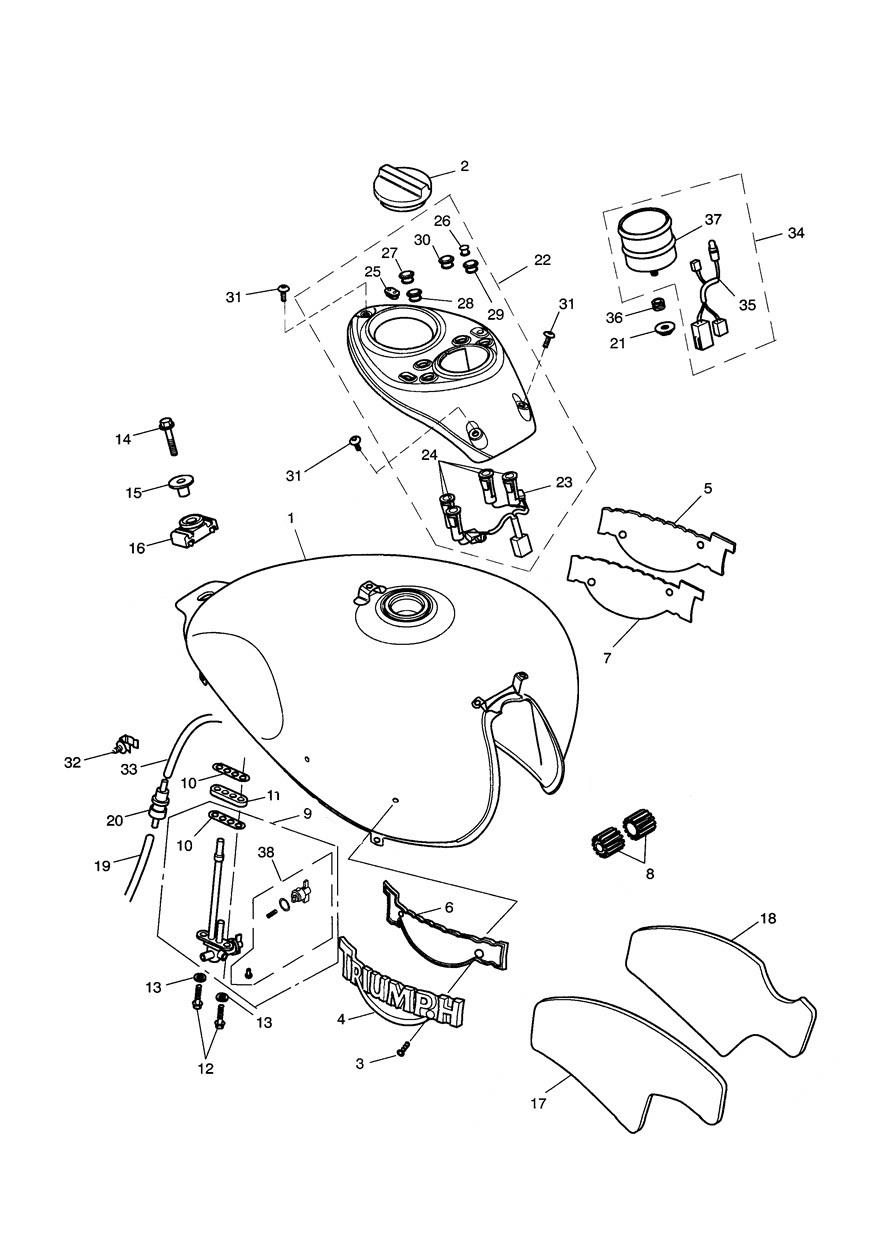

AvailableFuel Tank & Fittings VIN 317246 and lower
T2400598 Fuel Filler Cap
$53.69
AvailableT3330529 Screw, Raised C'sunk, Trx
$5.69
AvailableT3900087 Badge, Tank, RH, Type C
$55.43
AvailableT3900086 Badge, Tank, LH, Type C
$55.43
AvailableT3660136 Gasket, RH, Type C
$10.39
AvailableT3660137 Gasket, LH, Type C
Backordered at Triumph · we’ll confirm the ship date after you order
$10.39
On backorderT2400603 Bush, Tank Mount
$2.43
Available2400086-T0301 Seal, Fuel Tap (EN)
$3.81
Available3550150-T0301 Washer, Sealing, 11.5x6.4x0.64
$1.99
AvailableT3200601 Bolt, HHF, M8 x 40, Slv
$2.81
AvailableT3010096 Flanged Sleeve, M8 x 12.8 x 17.2
$11.00
AvailableT2401010 Grommet
$10.71
AvailableT2400980 Heat pad rh
$53.34
AvailableT2400985 Heat pad lh
$53.34
AvailableT2401565 Kit, Roll Over Valve
$46.64
AvailableT2401555 Tank Breather Hose
Backordered at Triumph · we’ll confirm the ship date after you order
$9.32
On backorderT2400074 Roll Over Valve
Low stock at Triumph
$37.31
Limited availabilityT2700493 Nut & Washer Assy, M5, Slv
$1.99
AvailableT2400729 Subharness, Fuel Tank Console
$80.99
AvailableT2400727 Switch Pad, Accessory Clock
$8.86
AvailableT2400728 Plug, Alarm LED
$3.61
AvailableT2400722 Lens, Indicator
last of these — Triumph no longer supplies it
$11.98
In stock in Brea · last onesT2400724 Lens, Oil Warning
$10.71
In stock in BreaT2400725 Lens, Neutral
last of these — Triumph no longer supplies it
$11.99
In stock in Brea · last onesT3331063 Bolt, But/Hd, M5 x 17, Slv
$2.01
AvailableT3700072 Cable Clip, Dia 15-16mm BK
$3.81
AvailableT2501252 Mounting rubber
$16.26
AvailableCarburettor Parts - Carb Assy T1245050

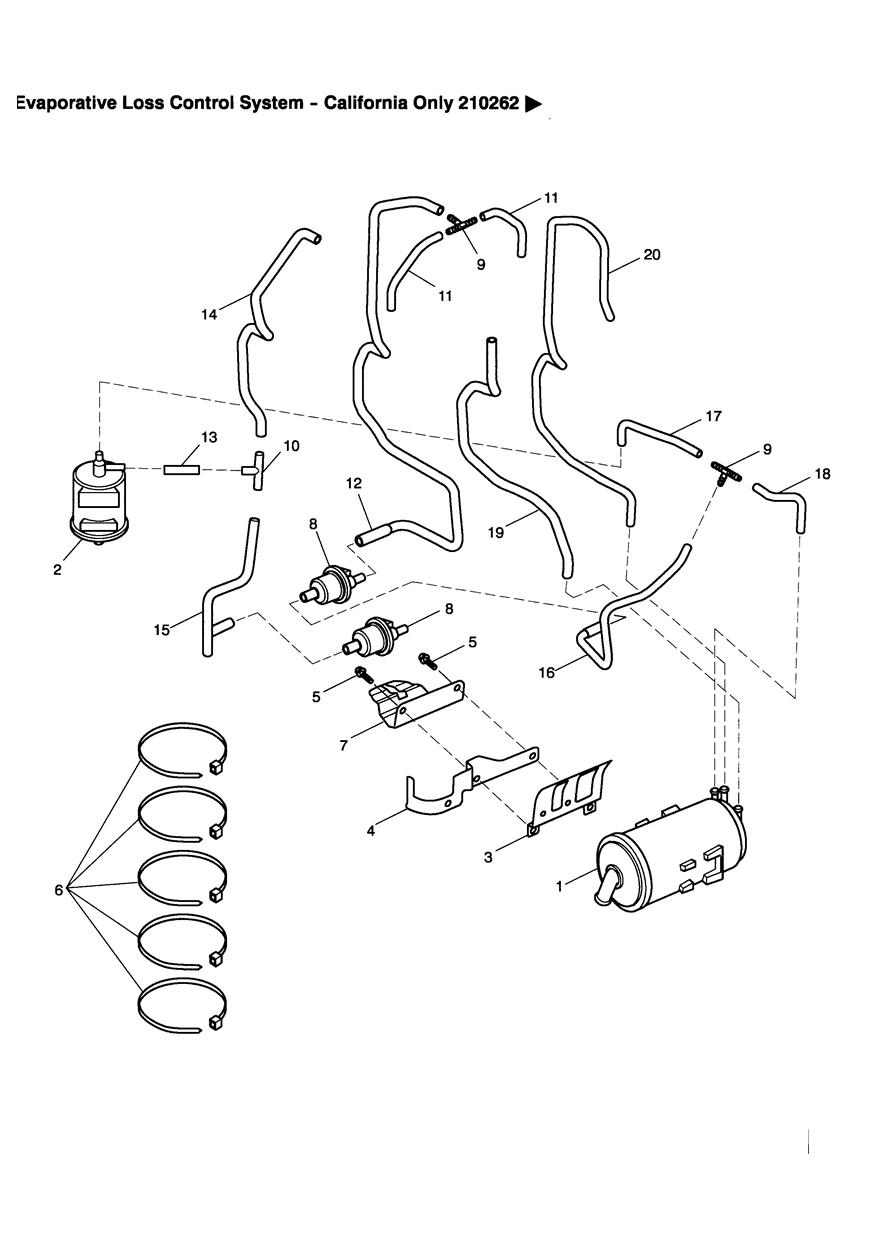

Evaporative Loss Control System California Only VIN 210262 and higher
Exhaust System VIN 281466-F2 or 279279-F4 and higher

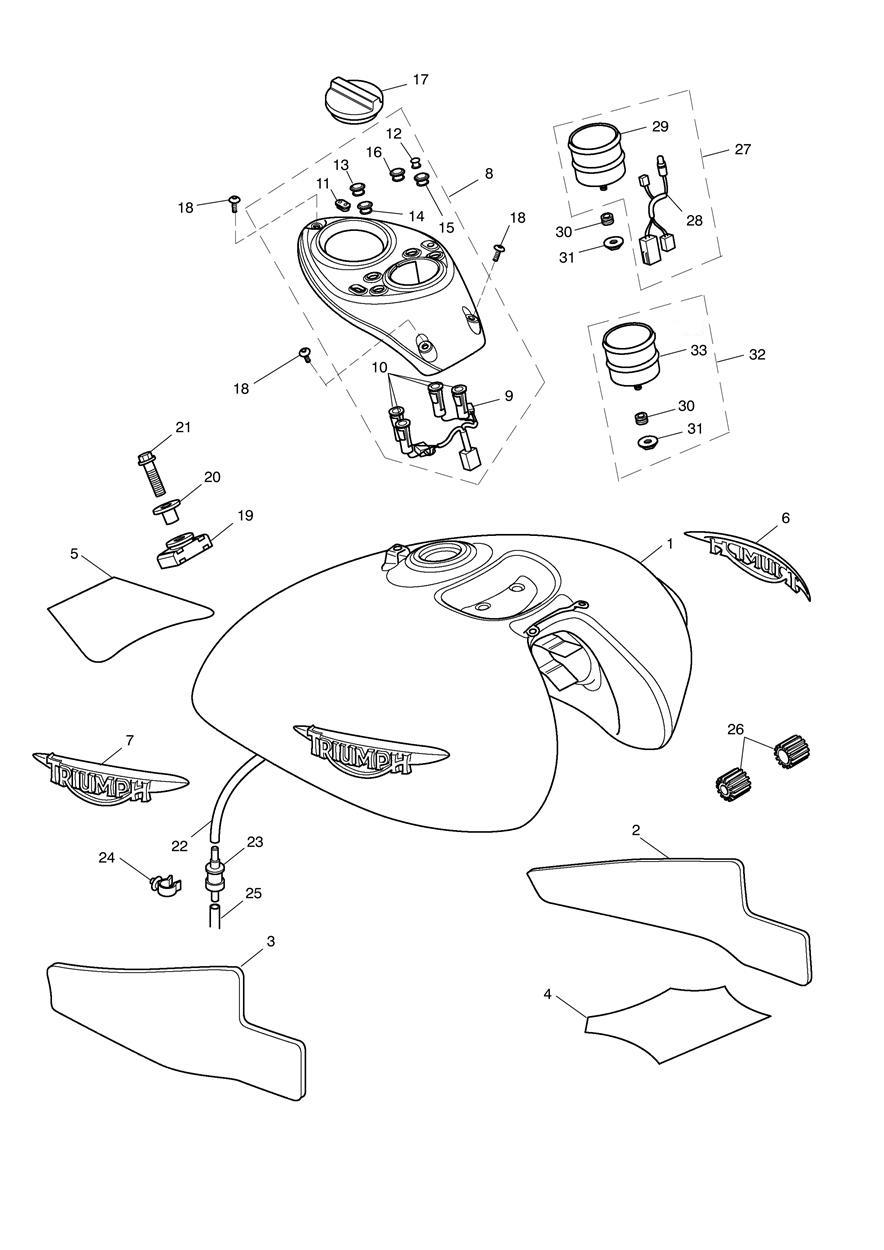

Fuel Tank & Fittings VIN 317247 and higher
T3900348 Badge, Fuel Tank, RH
$47.51
AvailableT3900342 Badge, Fuel Tank, LH
$47.51
AvailableT2400995 Heat Pad, Fuel Tank, RH
$53.34
AvailableT2400802 Fuel Tank Console Assy
$253.49
AvailableT2401552 Hose, Tank Breather, Formed
Backordered at Triumph · we’ll confirm the ship date after you order
$9.32
On backorderCarburettors
3700003-T0301 Clip, Carb Rubber
$3.98
AvailableT3203030 Bolt, RHHF, Domed, M6 x 30
$3.24
AvailableT3205066 Bolt, HHF, Lghtd, M6 x 20, Slv
$4.21
In stock in Brea · last onesT3600069 O ring
$10.84
AvailableT3600076 O ring
$10.84
AvailableT1240092 Rubber, HT, Carb to Head
$18.49
AvailableT3620029 Hose
Backordered at Triumph · we’ll confirm the ship date after you order
$5.19
On backorderT3700030 Clip pipe
$1.99
AvailableT3700440 Clip, Hose, 11-12.5mm
$5.02

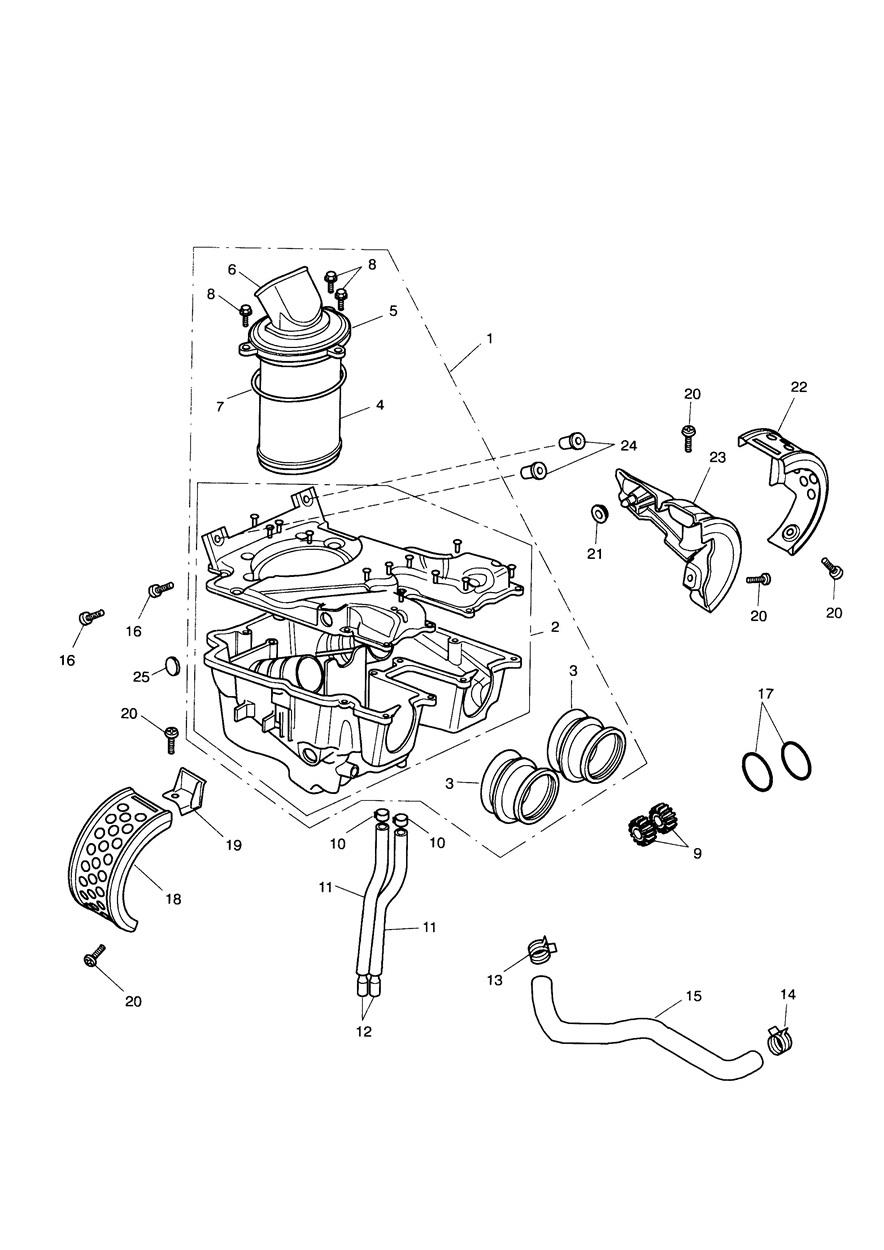

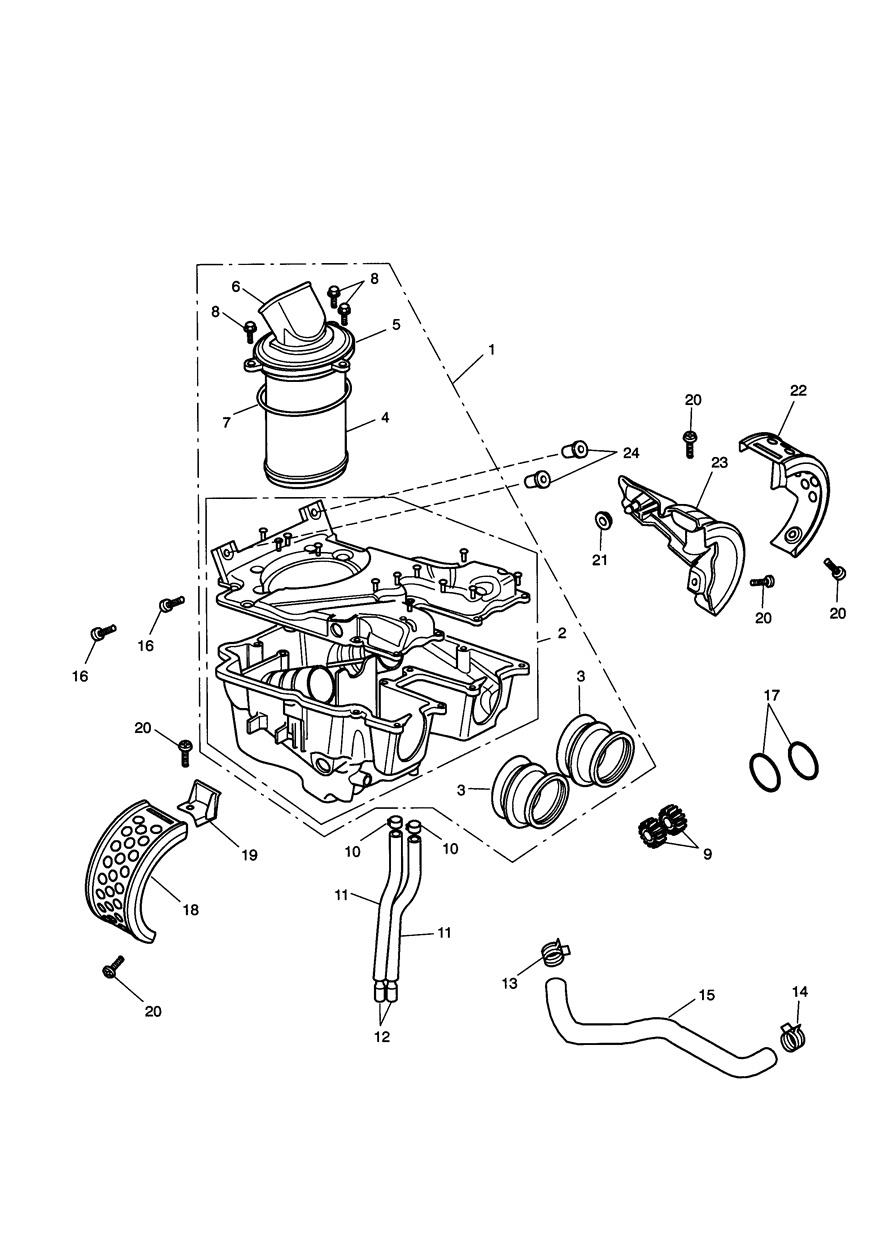

In stock in BreaAirbox
T2208760 Kit, Airbox Assy
Backordered at Triumph · we’ll confirm the ship date after you order
$320.40
On backorderT2203545 Intake Runner
$16.19
AvailableT2202450 Air filter
$44.67
AvailableT2208012 Cover, Intake
Low stock at Triumph
$8.21
Limited availabilityT2202505 Air inlet
$18.20
AvailableT3600255 O Ring
$1.99
AvailableT3330583 Screw, HHF, Ph, M5 x 14, Blk
$1.99
AvailableT2202503 Bush, Rubber, Airbox Mtg
$2.53
AvailableT3620239 Pipe, Airbox Drain
$10.71
AvailableT3700051 Hose Clip, Dia 18.1-20 x 8mm
$2.09
AvailableT3700076 Hose Clip, 14-15.5
$4.61
AvailableT2200159 Pipe, Engine Breather
$8.62
AvailableT3700041 Clip, Intake, Venturi, 60mm, Cap
$7.28
AvailableT2208114 Cover, Airbox, RH, Pltd
Backordered at Triumph · we’ll confirm the ship date after you order
$66.90
On backorderT2208118 Bracket, Airbox Cover
$6.24
AvailableT3332568 Screw, But/HD, M5 x 8, Slv
$3.61
AvailableT3020029 Grommet, Side Panel
$2.36
In stock in BreaT2208110 Cover, Airbox LH, Pltd
$66.90
AvailableT3010061 Flanged Sleeve, M6 x 9 x 3.25
$6.68
AvailableT2201000 Rubber Bung, Airbox
$2.73
AvailableEmissions Control
T1250151 Reed Valve
$55.43
AvailableT1250030 Cover, Reed Valve, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$15.42
On backorderT1250035 Cover, Reed Valve, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$15.42
On backorderT1250040 Screw, M5, Sai
$3.08
AvailableT1251100 Fab Pipe, Od 12.7, Castellated
$18.03
AvailableT1252555 Vacuum Line Assy, 362Lg
$21.30
AvailableT3700083 Clip, Hose, Oetiker, Stepless
$6.68
AvailableT1250065 Pipe, ID 8mm, M12
$22.27
AvailableT1250060 Pipe, Air, ID 9.5mm
Low stock at Triumph
$10.71
Limited availabilityT1250055 Seal
$14.38
In stock in BreaT1252500 Restrictor,Vacuum Line,Sai
Backordered at Triumph · we’ll confirm the ship date after you order
$10.49
On backorderT2040811 Twin Clip, Brake Hose
$2.43
AvailableFuel Tank & Fittings
T2402232-PR Fuel Tank Assy
$2289.21
AvailableT2402275-JI Fuel Tank Assy
$2587.81
AvailableT2402259-PR Fuel Tank Assy
Backordered at Triumph · expected Nov 6
$2587.81
On backorderT2402232-CX Fuel Tank Assy
$2289.21
AvailableT2402232-PS Fuel Tank Assy
Backordered at Triumph · we’ll confirm the ship date after you order
$2289.21
On backorderT2402223-JM Fuel Tank Assy
$2587.81
AvailableT2402232-LS Fuel Tank Assy
$2289.21
AvailableT2402232-PG Fuel Tank Assy
$1891.09
AvailableT2400975 Heat Shield, Fuel Tank, LH
$26.48
AvailableT2400963 Heatshield, Fuel Tank, Front
$26.48
AvailableT2400964 Heatshield, Fuel Tank, Rear
$26.48
AvailableT2400793 Lens, High Beam
$10.71
AvailableT2400794 Lens, Oil Warning
$10.71
AvailableT2501571 Damper Ring, Tachometer
Backordered at Triumph · expected Nov 6
$17.79
On backorderT2402548 Decal, Fuel Tank, Black
$49.29

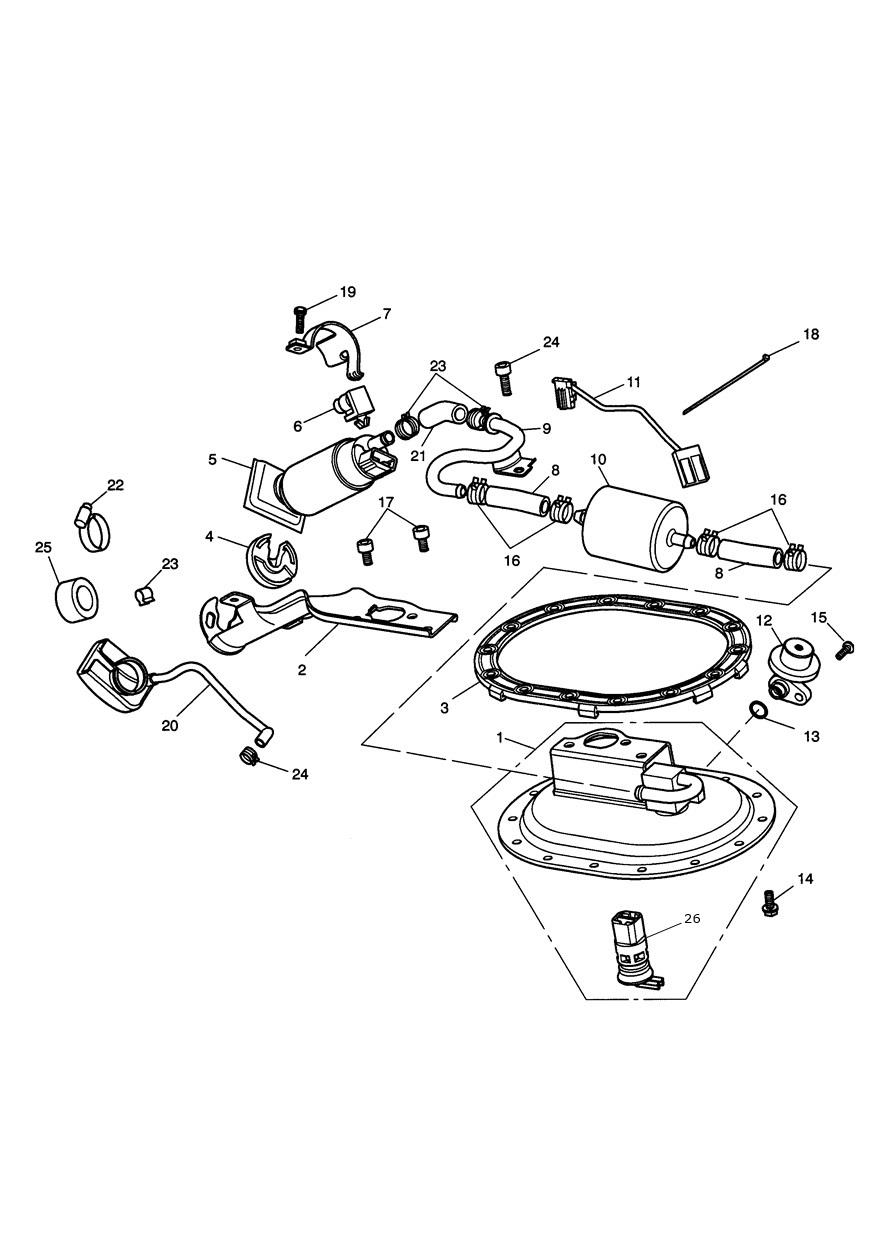

AvailableFuel Pump & Fittings
T2401154 Seal, Fuel Pump Plate, E25
$36.45
AvailableT1247557 Cushion, Fuel Pump
Low stock at Triumph
$8.36
Limited availabilityT1247559 Fuel Pump
Low stock at Triumph
$264.04
Limited availabilityT2400645 Fuel Sensor, Low Level Warning
$223.57
In stock in BreaT3620395 Fuel Hose, 45mm
$9.15
AvailableT2403103 Pipe Assy, Fuel Pump
Backordered at Triumph · expected Nov 6
$20.75
On backorderT1240850 Fuel Filter
$63.03
In stock in BreaT1240847 Fly Lead, Fuel Pump
$22.18
AvailableT1241093 Fuel Pressure Regulator
$78.32
AvailableT3600098 O Ring, ID 10 x 2.0
$1.99
In stock in BreaT3600213 O Ring, ID 9.8 x 1.9
$2.20
AvailableT3330892 Bolt, RHHF, M5 x 15, S5041
$1.99
AvailableT3332130 Bolt, H/HD, M4 x 16, Slv
$1.99
AvailableT3050342 Screw, Cap/Hd, M5 x 16, Slv
Low stock at Triumph
$2.64
Limited availabilityT3700089 Hose Clip, Dia 12.5
$3.71
AvailableT3051063 Screw, Cap/Hd, M6 x 16, Enc, Raw
$1.99
AvailableT3700015 Cable Tie, 185.7 Long
$1.99
AvailableT3050308 Screw, Cap/Hd, M4 x 8
Low stock at Triumph
$4.76
Limited availabilityT2401270 Baffle, Fuel Pump
$40.29
AvailableT3620363 Hose, Fuel, 55mm
$9.15
AvailableT2102116 Clip, Hose, 11-12.5
$6.07
AvailableT3700330 Clip Hose, Dia 9.1mm
$7.41
AvailableT2400224 Filter, Fuel Pump Baffle
$16.08
AvailableThrottle Bodies
T1245500 Throttle Body,270 Twin,Dia 36.5
Backordered at Triumph · expected Oct 23
$2640.58
On backorderT1245501 Sensor, Throttle Position
$163.71
AvailableT1245502 Injector Assy
$204.21
AvailableT1245503 Fuel Rail
Low stock at Triumph
$176.03
Limited availabilityT1245504 Cover, Access Window
$19.16
AvailableT1244024 O Ring, Injector
$3.61
AvailableT1245009 Cap, Vacuum Connection
$4.39
AvailableT1240191 Transition Piece, Rubber
Low stock at Triumph
$30.77
Limited availabilityT1240594 Hose Assy, Fuel Feed, Rubber
$116.17
AvailableT1245506 Valve, Choke Kit
$23.05
AvailableT1245507 Lever, Choke Kit
$64.35
AvailableT1245509 Top, Throttle Body
$37.39
AvailableT1245512 Screw, Injector
$18.49
AvailableT1245513 Pipe, Fuel, LH
$33.64
AvailableT1245514 Pipe, Fuel, RH
$33.64
AvailableT1245014 Screw, TPS
Backordered at Triumph · we’ll confirm the ship date after you order
$3.42
On backorderT1245516 Throttle Balancer Assembly
Low stock at Triumph
$51.92
Limited availabilityT1245517 Spring, Throttle, 1 to 2, Small
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorderT1245523 Nut, Throttle Body
$2.93
AvailableAirbox
T3330727 Screw, But/Hd, M6 x 20, Slv
$3.14
AvailableT2208115 Cover, Airbox, LH, Pltd
$66.90
AvailableExhaust System
T2203000 Exhaust Assembly, Cyl 1, LH
$422.46
AvailableT2203001 Exhaust Assembly, Cyl 1, RH
$422.46
AvailableT2208422 Clamp, Exhaust, ID 47.3
$11.62
AvailableT3205653 Bolt, HHF, Lghtd, M8 x 30, Slv
$1.99
AvailableT2206437 Silencer, Exhaust, RH, C4, Cat
$607.34
AvailableT2206413 Silencer, Exhaust, LH, C4, Cat
$530.02
AvailableT2206449 Silencer, Exhaust, LH, C4, Cat
$616.14
AvailableT2206439 Silencer, Exhaust, LH, C4, Cat
$607.34
AvailableT3020164 Stop, Sidestand, Push-In
$6.07
AvailableT3331625 Screw, Btn Hd, M8 x 12, Slv
$1.99
AvailableT3550331 Washer, 8.5 x 30 x 2
Low stock at Triumph
$2.53
Limited availabilityT3330237 Screw, Btn Hd, M8 x 20, SS
$2.53
AvailableEvaporative Loss Control System - US CAL, TW, HK & CA Only
T1245064 Hose, Evap, Purge
$22.00
AvailableT1245069 Pipe, Evap, Vacuum Signal
$22.00
AvailableT1245067 Hose, Evap, Purge, RH
$22.27
AvailableT1245068 Hose, Evap, Purge, LH
$22.00
AvailableT1245074 Restrictor, Purge Valve
Backordered at Triumph · expected Nov 6
$44.90
On backorder
