Frame/Footrests/Eng Mtgs/Stands/Luggage/Tool Kit
Triumph Sprint · 57 diagrams
57 exploded diagrams for the frame/footrests/eng mtgs/stands/luggage/tool kit of the Triumph Sprint, covering the Sprint. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

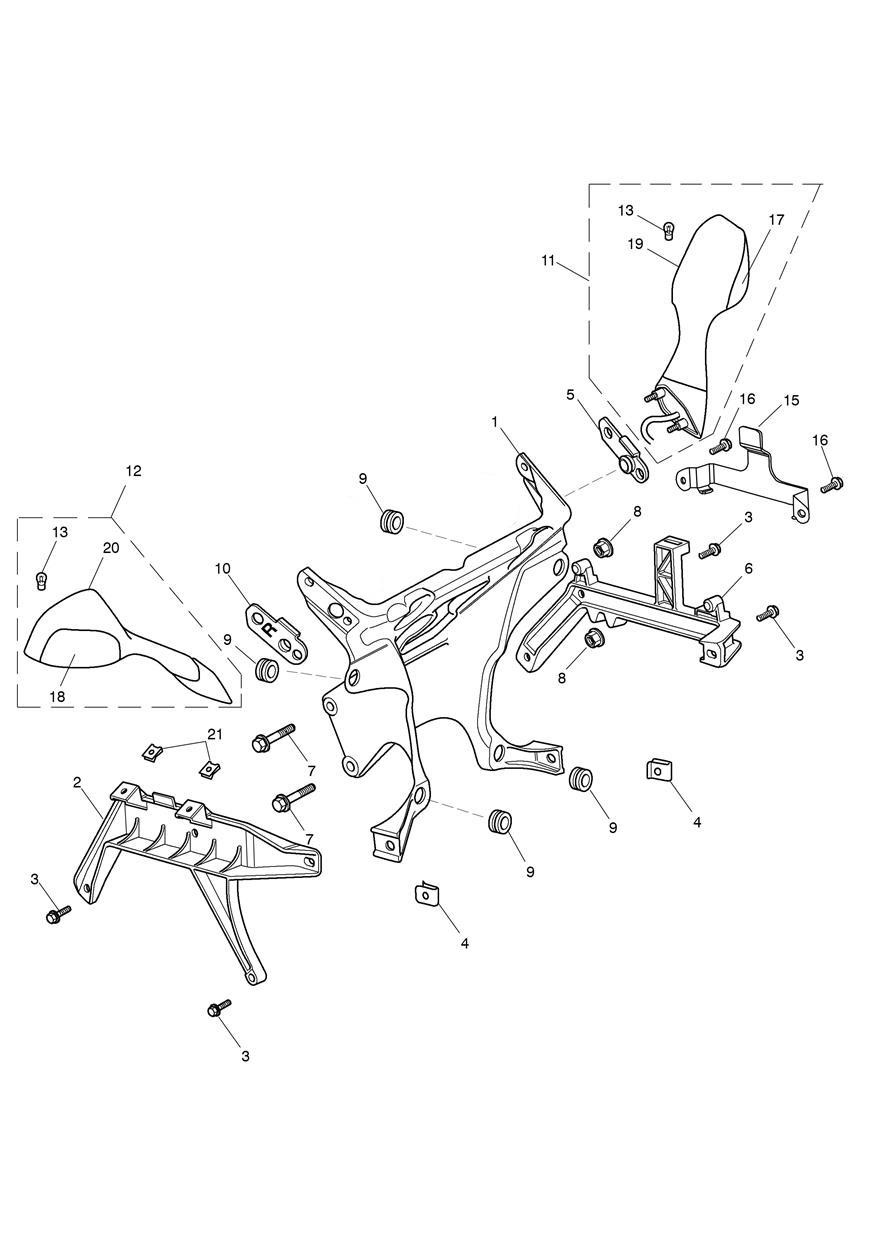

Front Sub-Frame & Fittings
21 parts

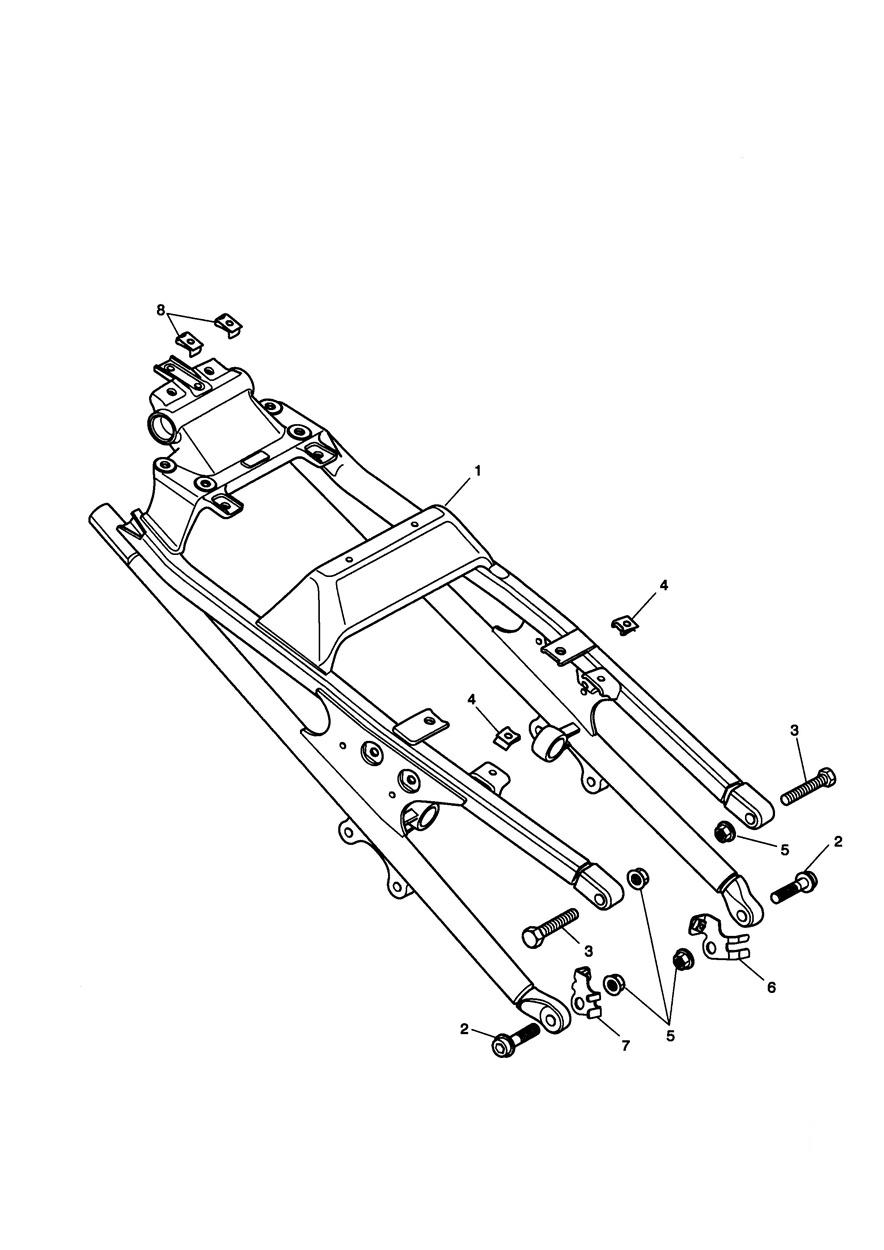

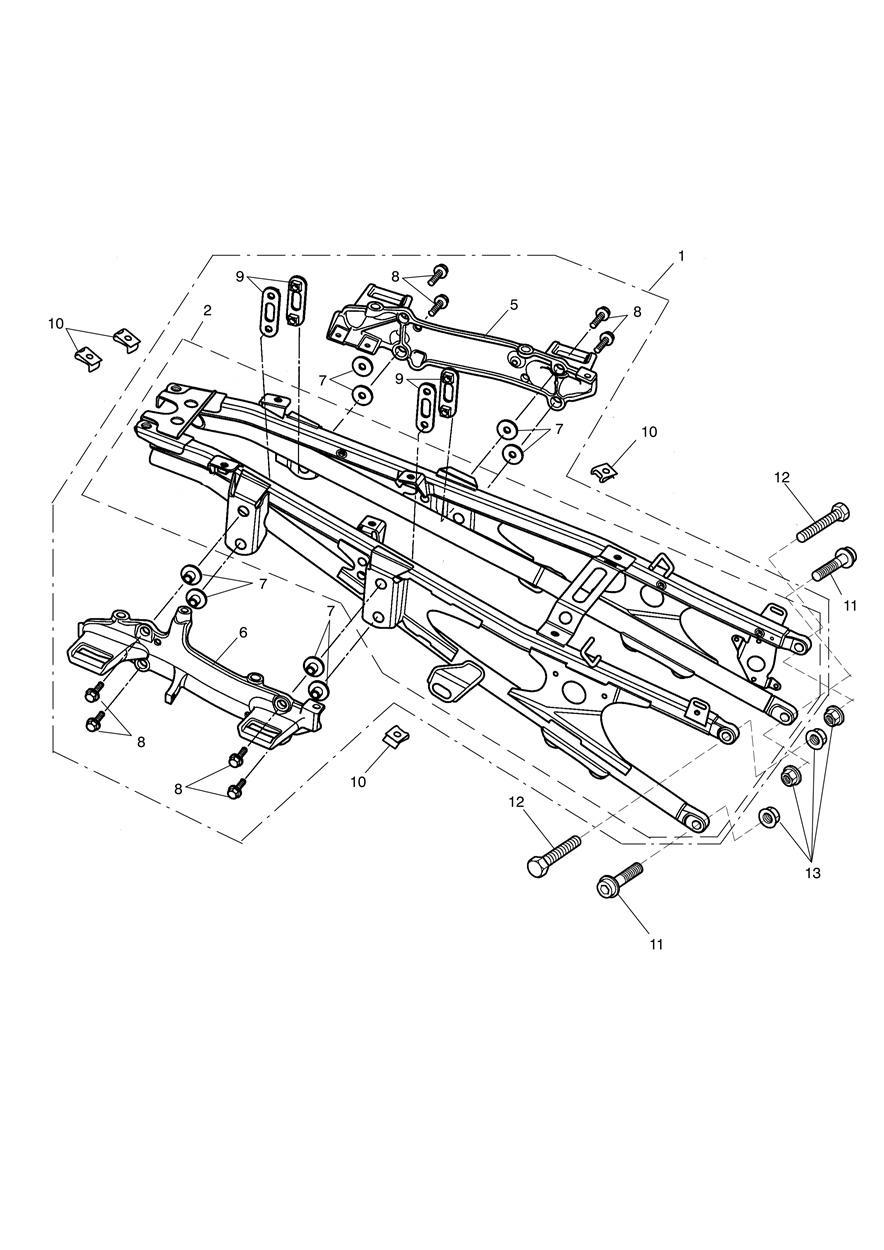

Rear Sub-Frame & Fittings
11 parts

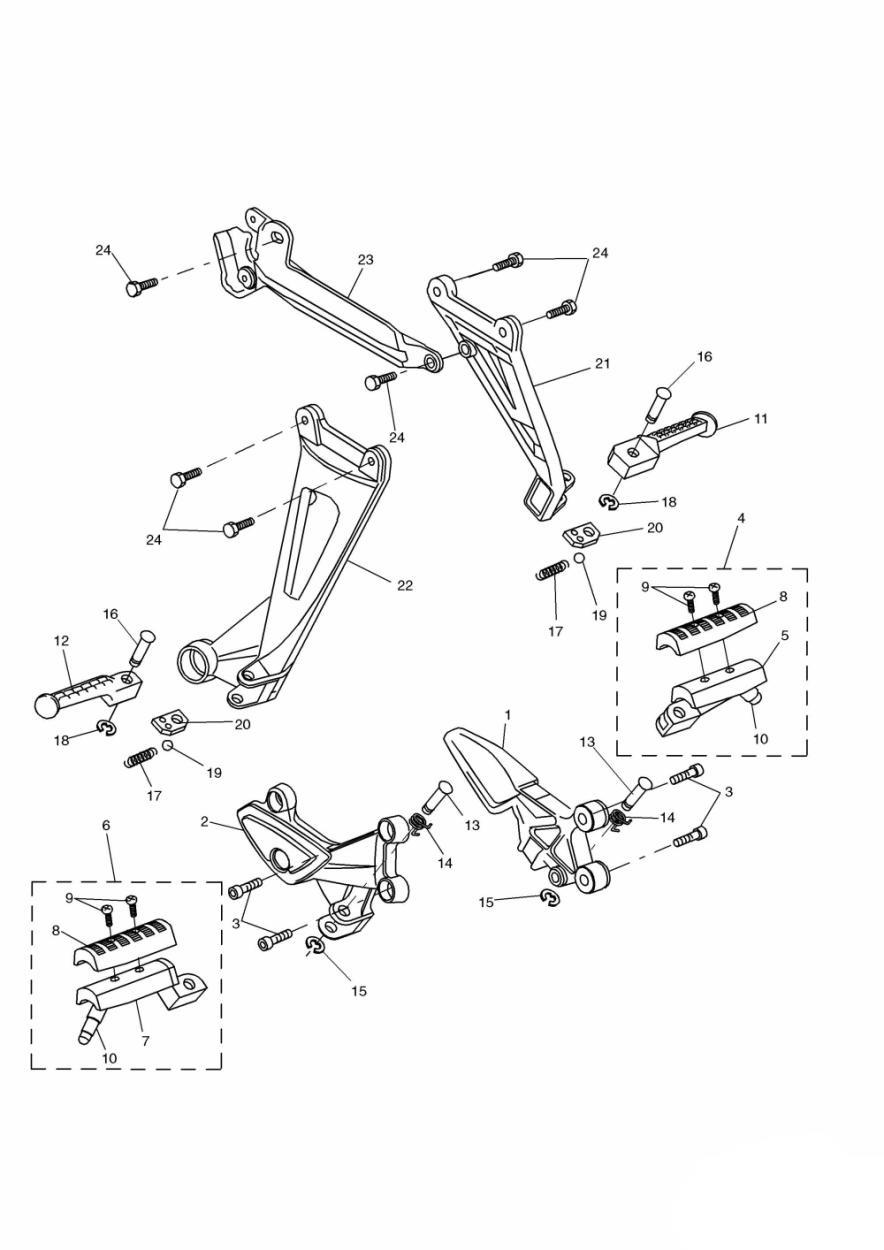

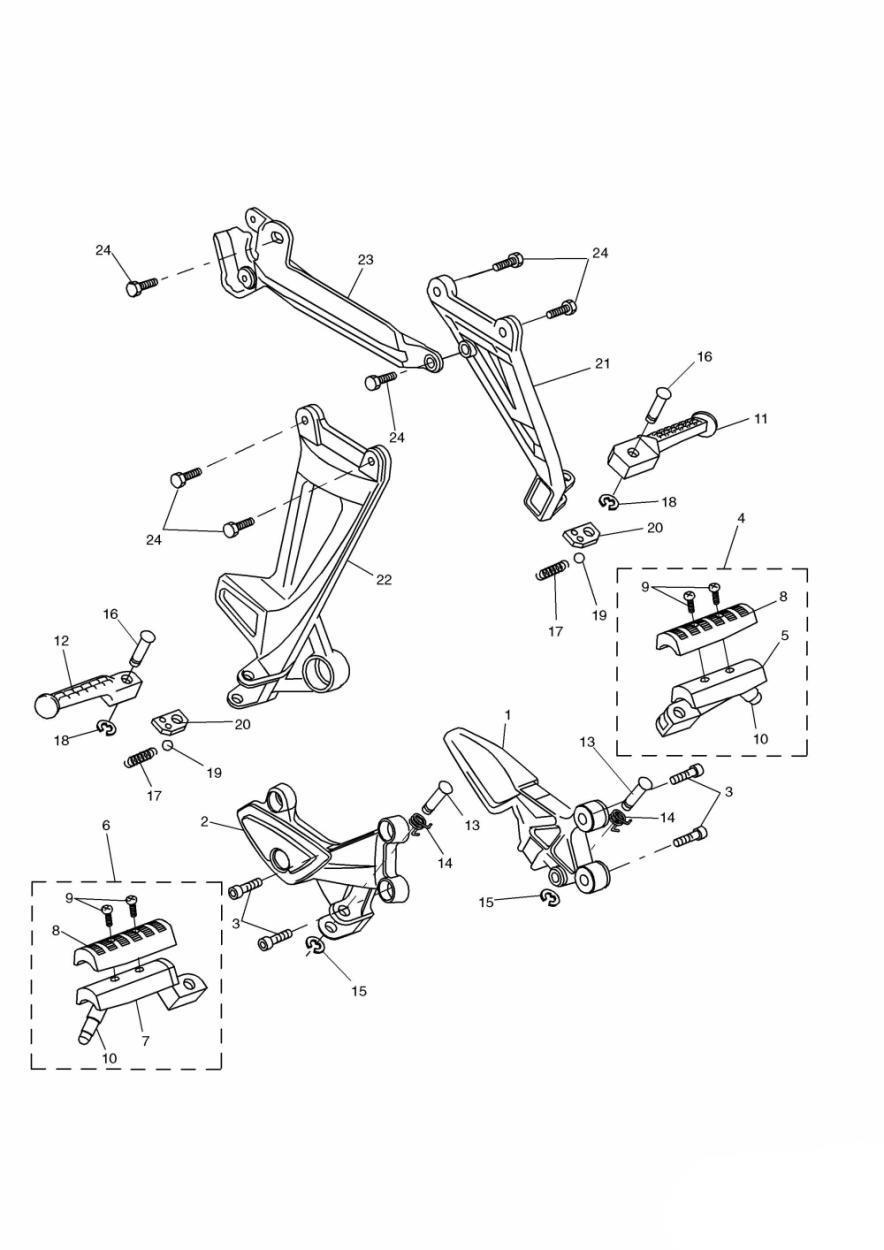

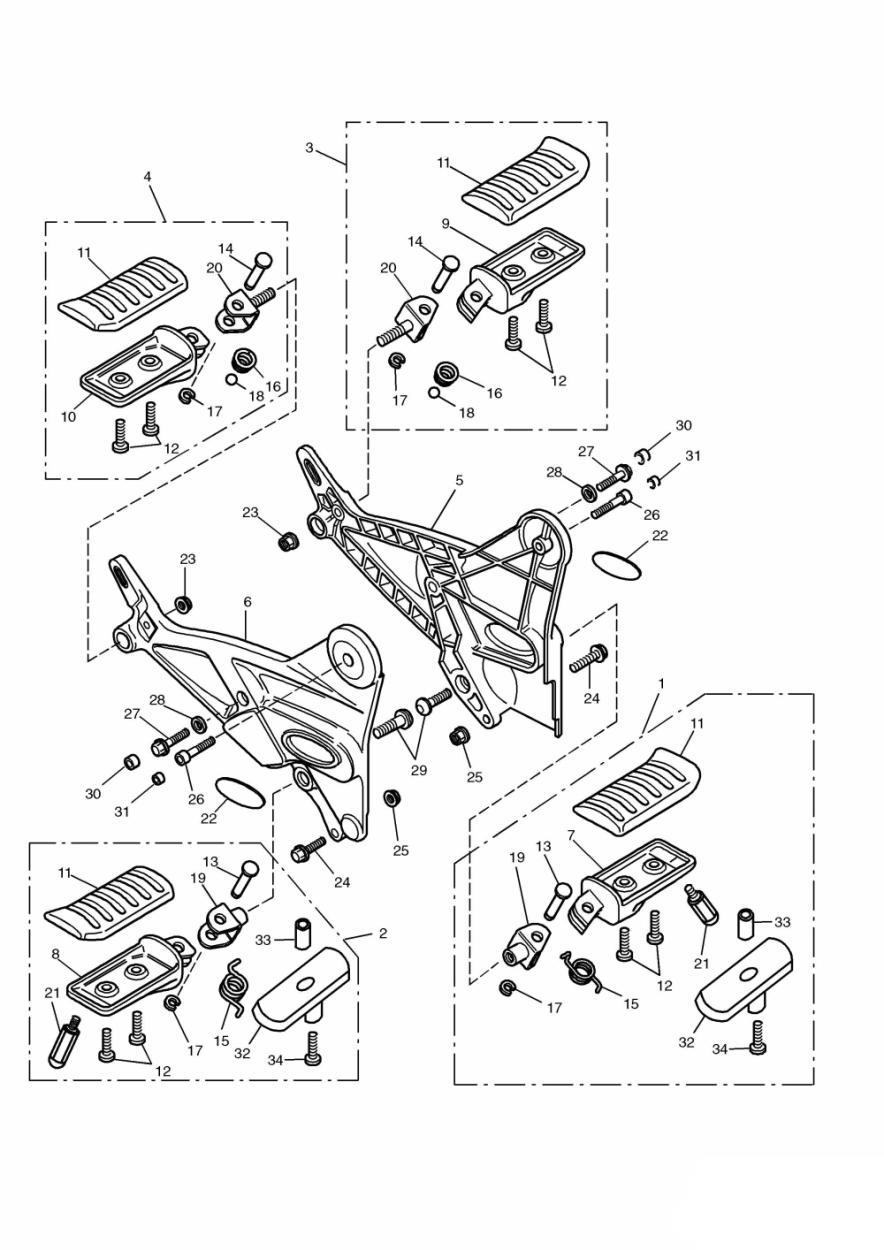

Footrests & Mountings
24 parts

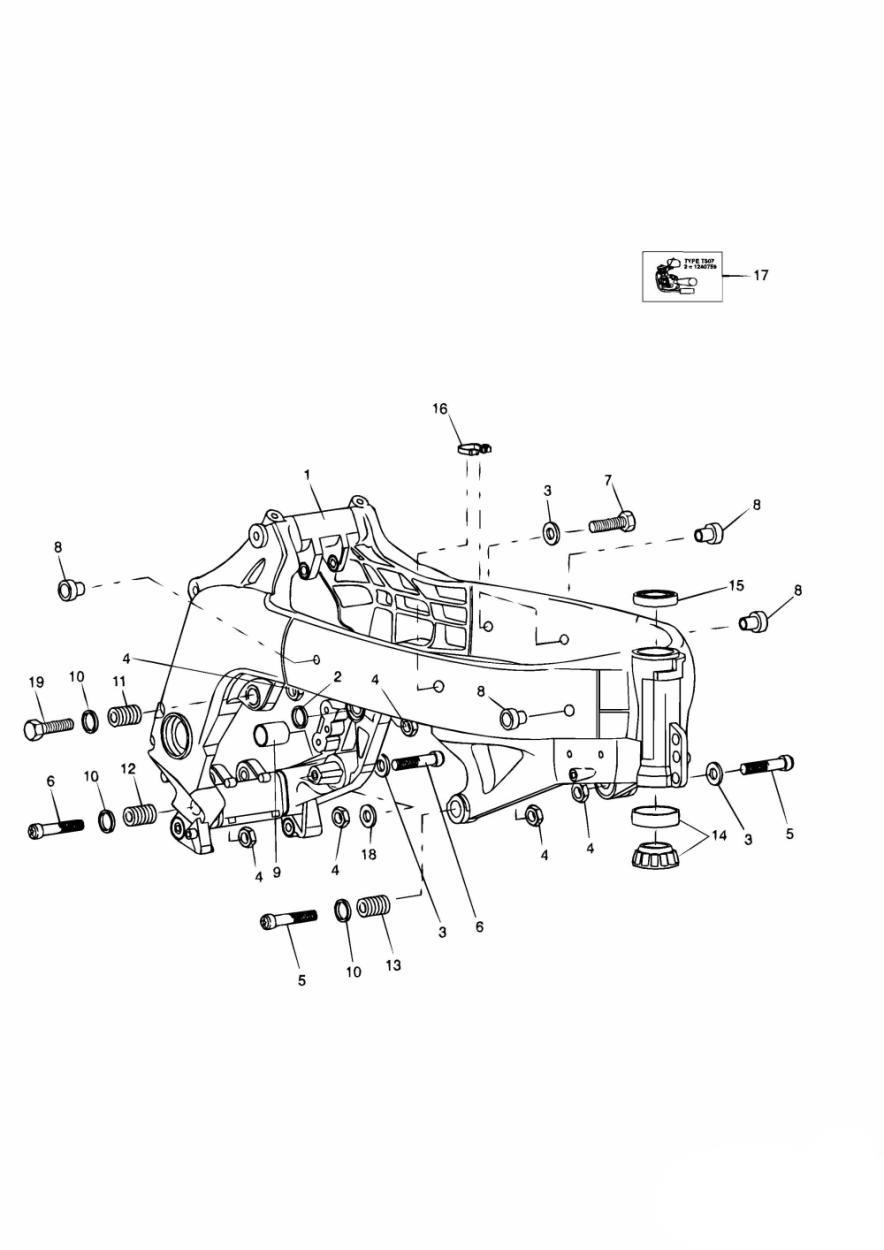

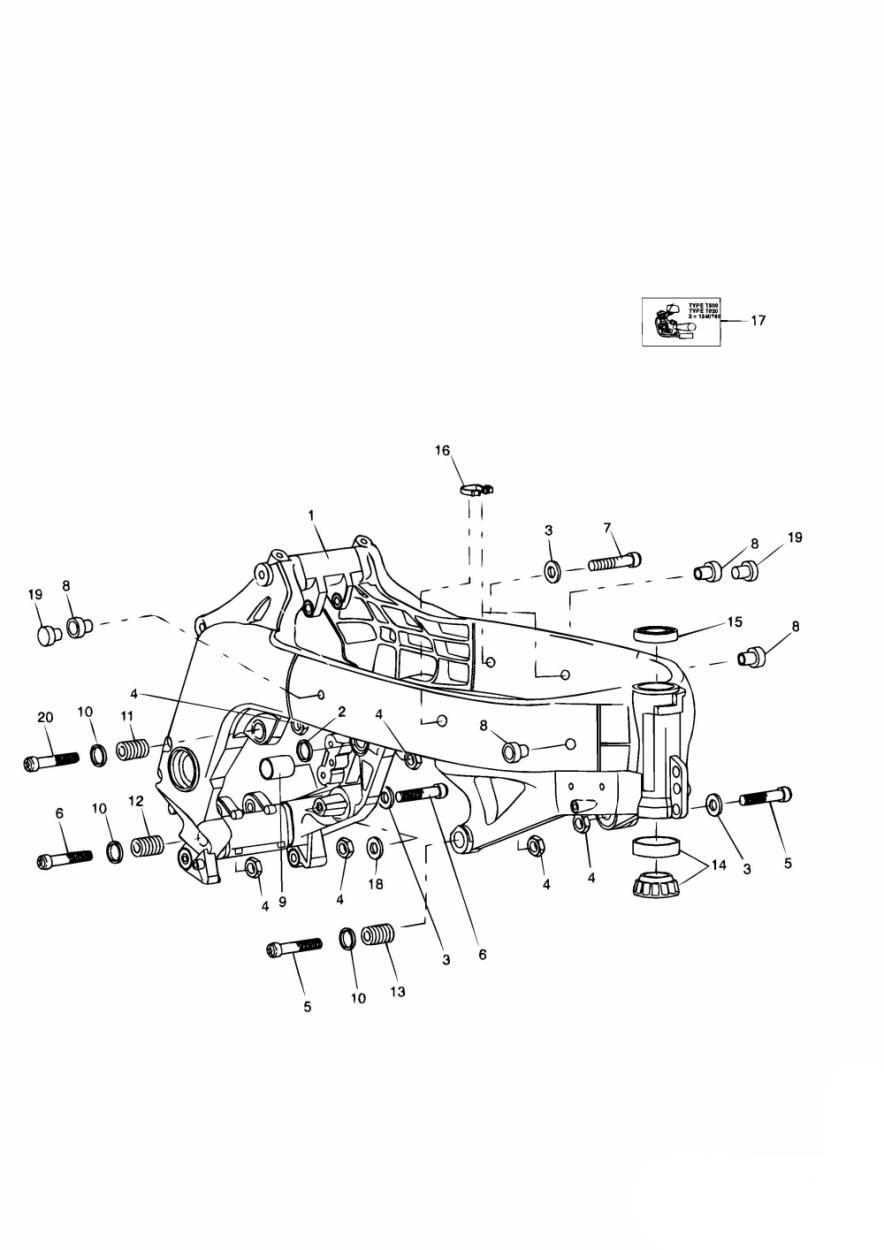

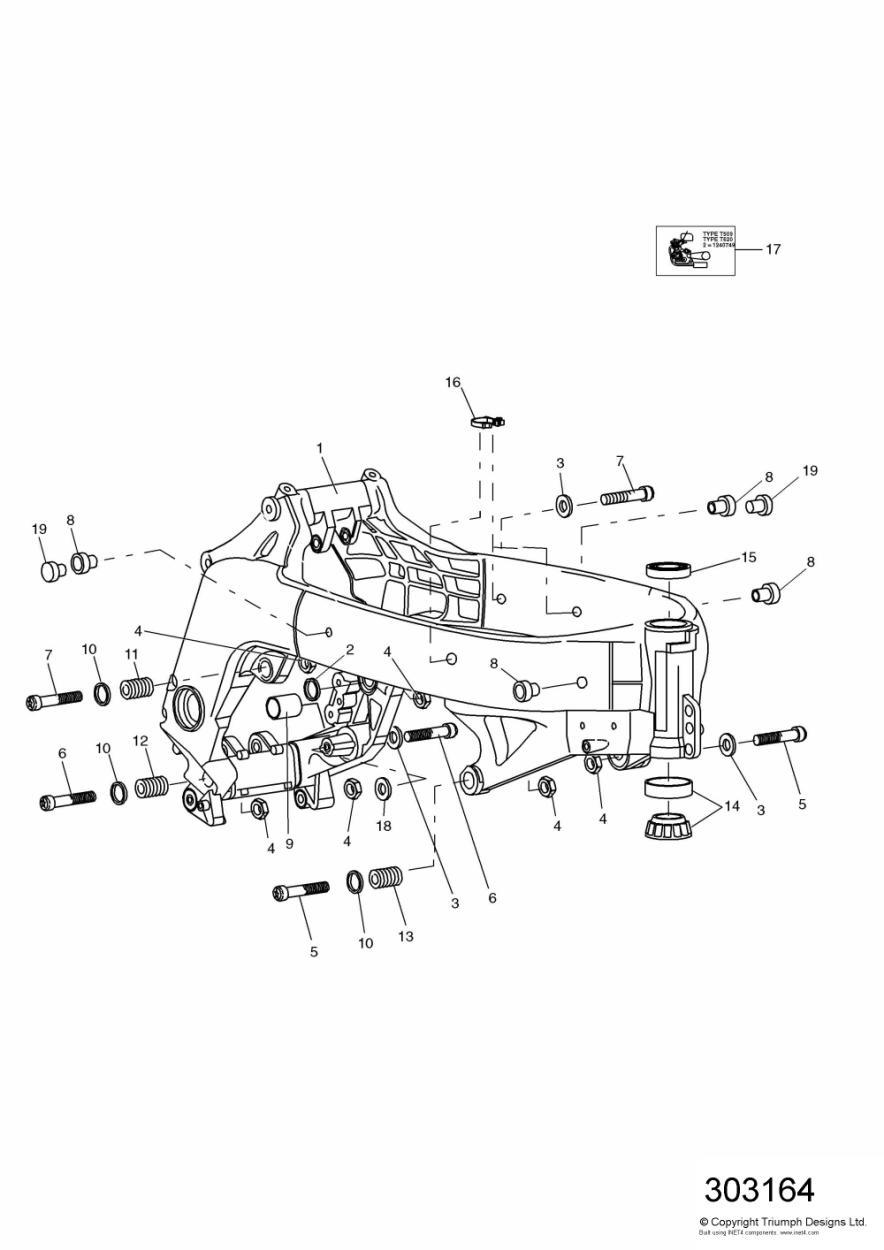

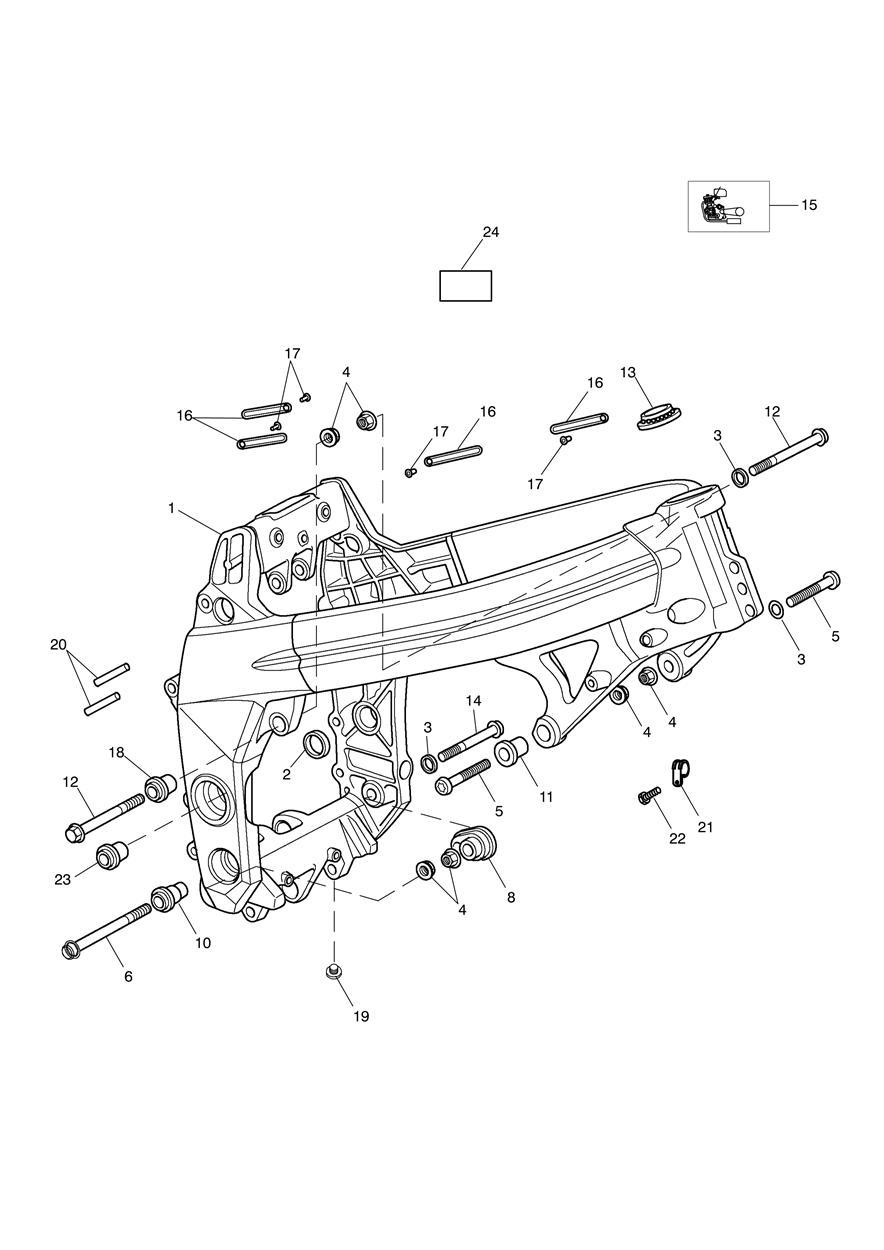

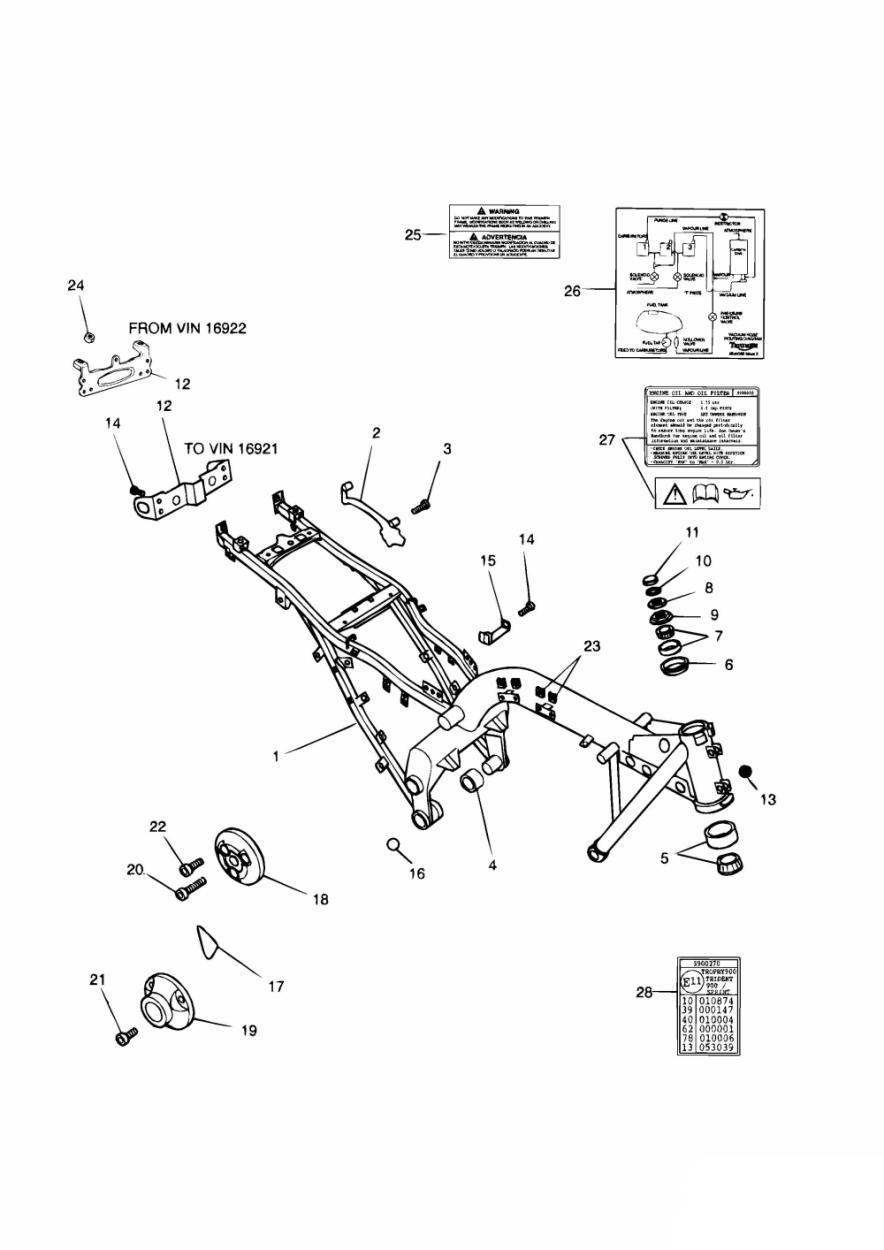

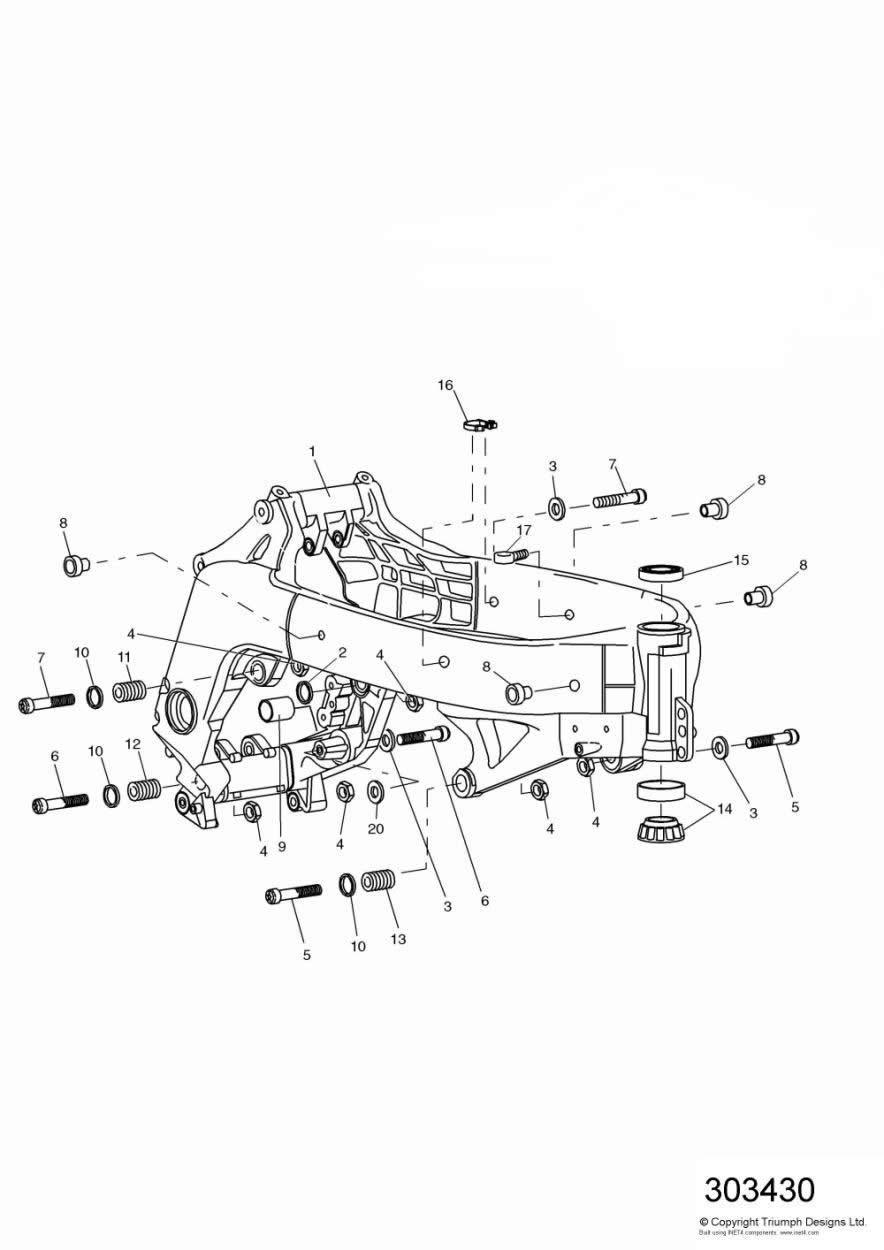

Main Frame & Fittings
23 parts

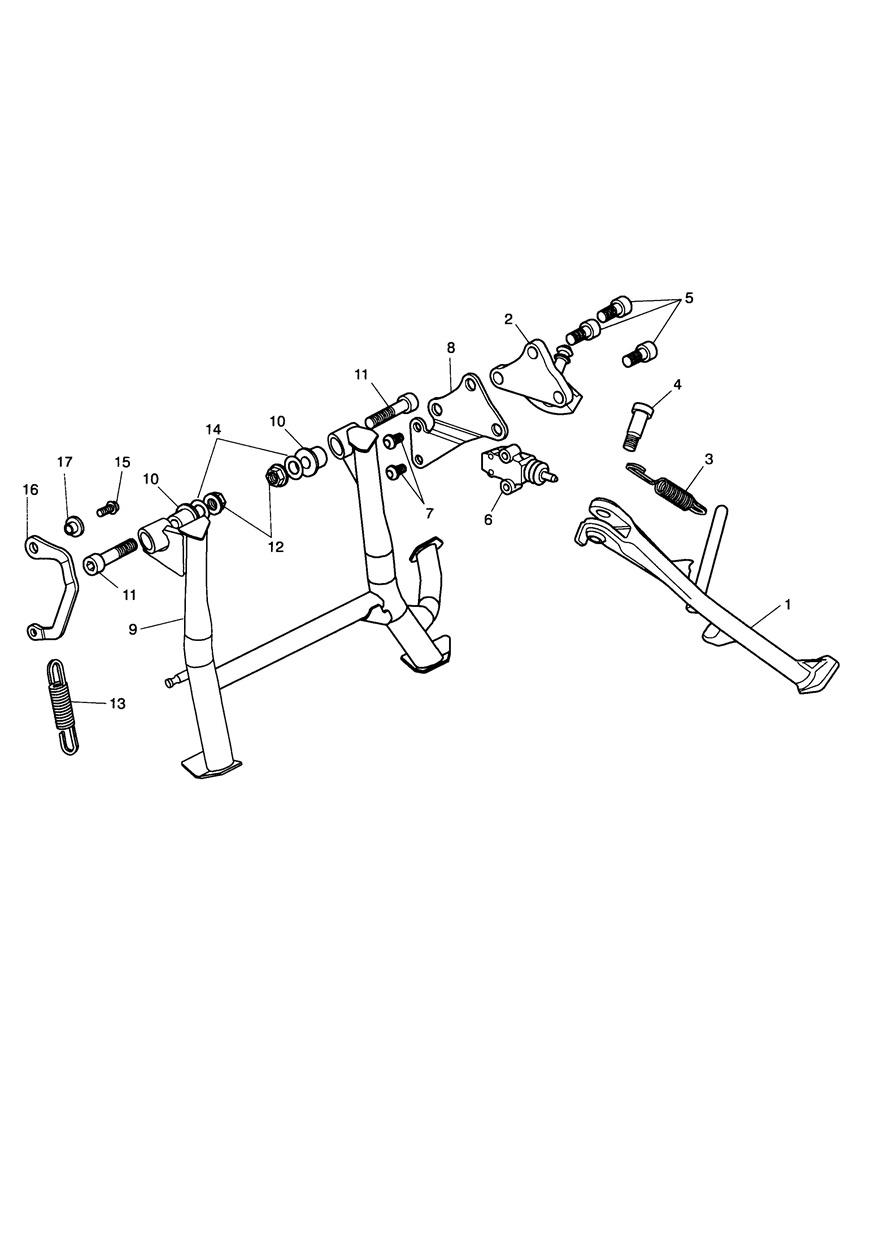

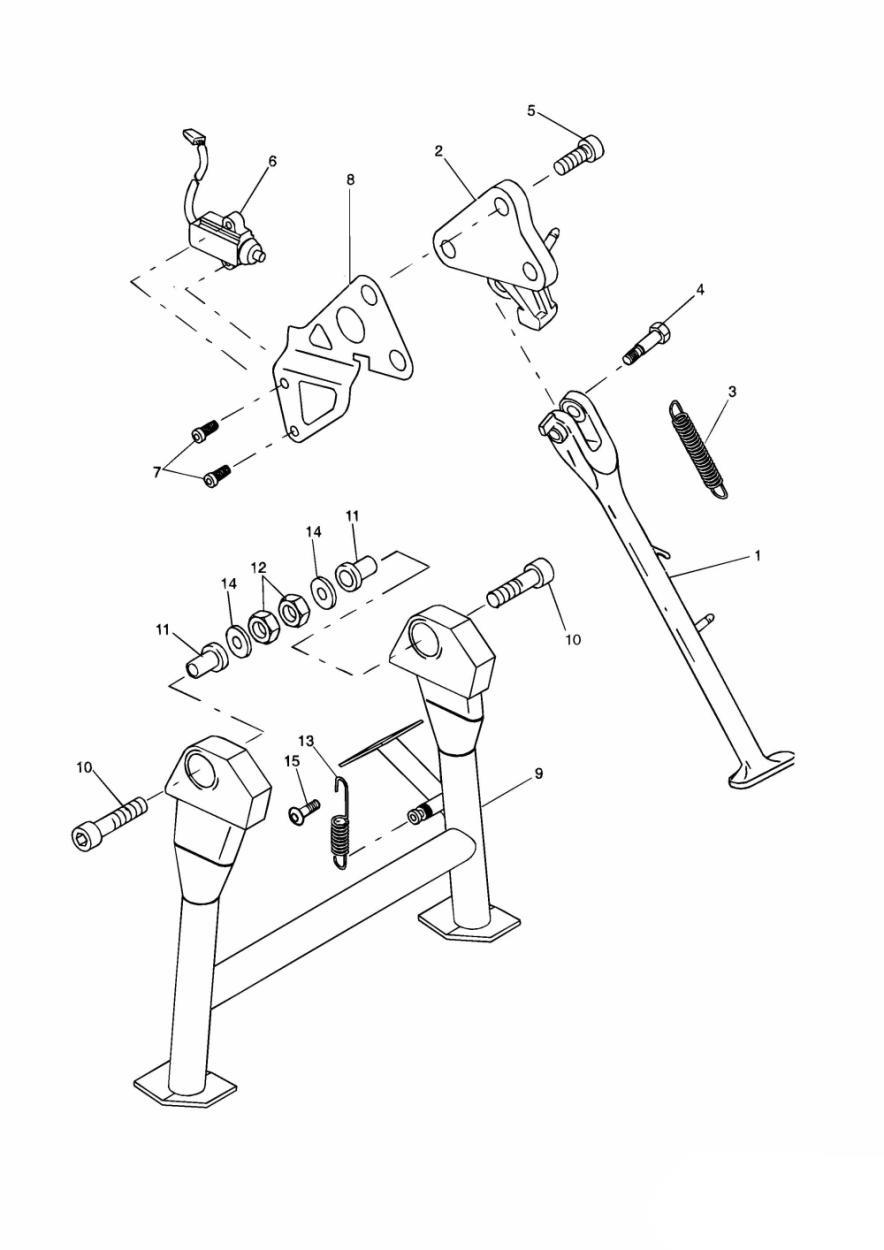

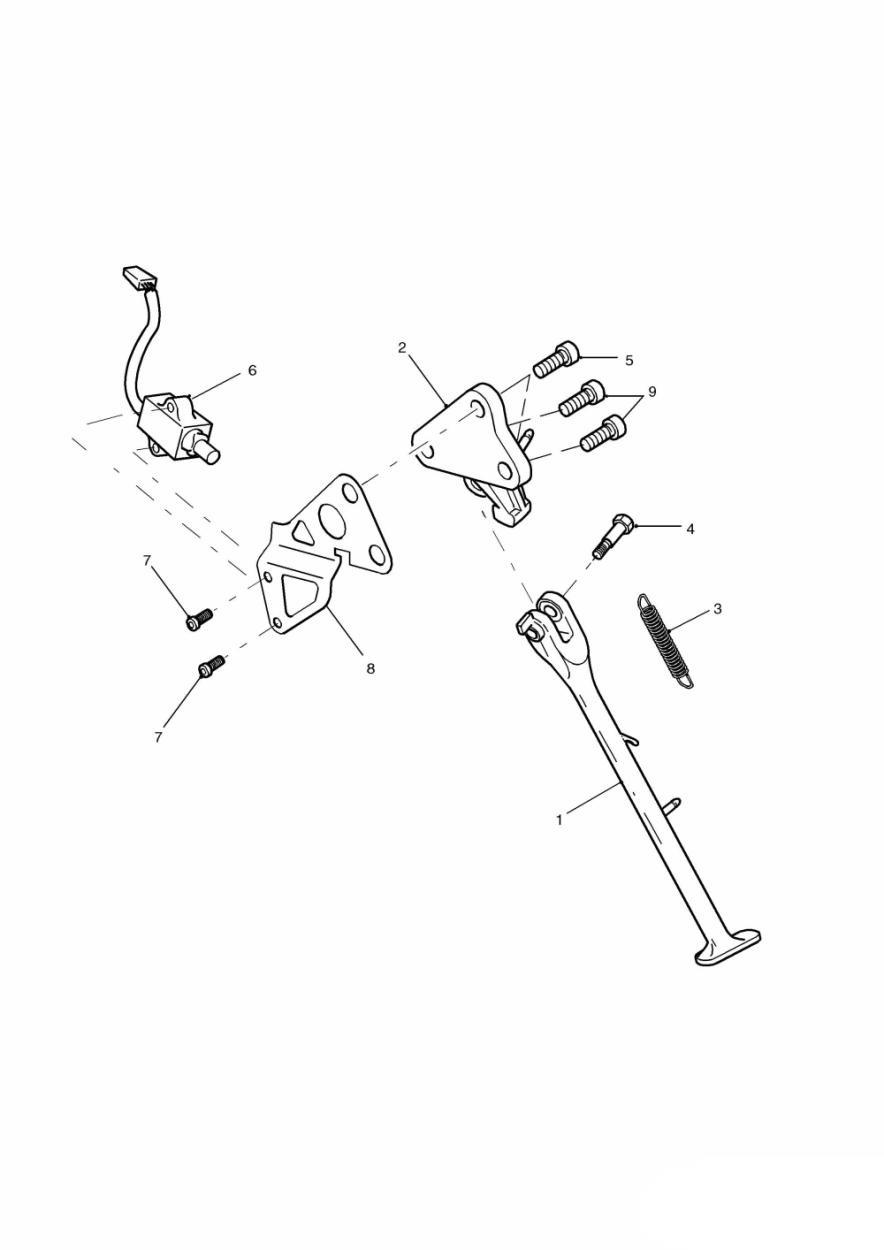

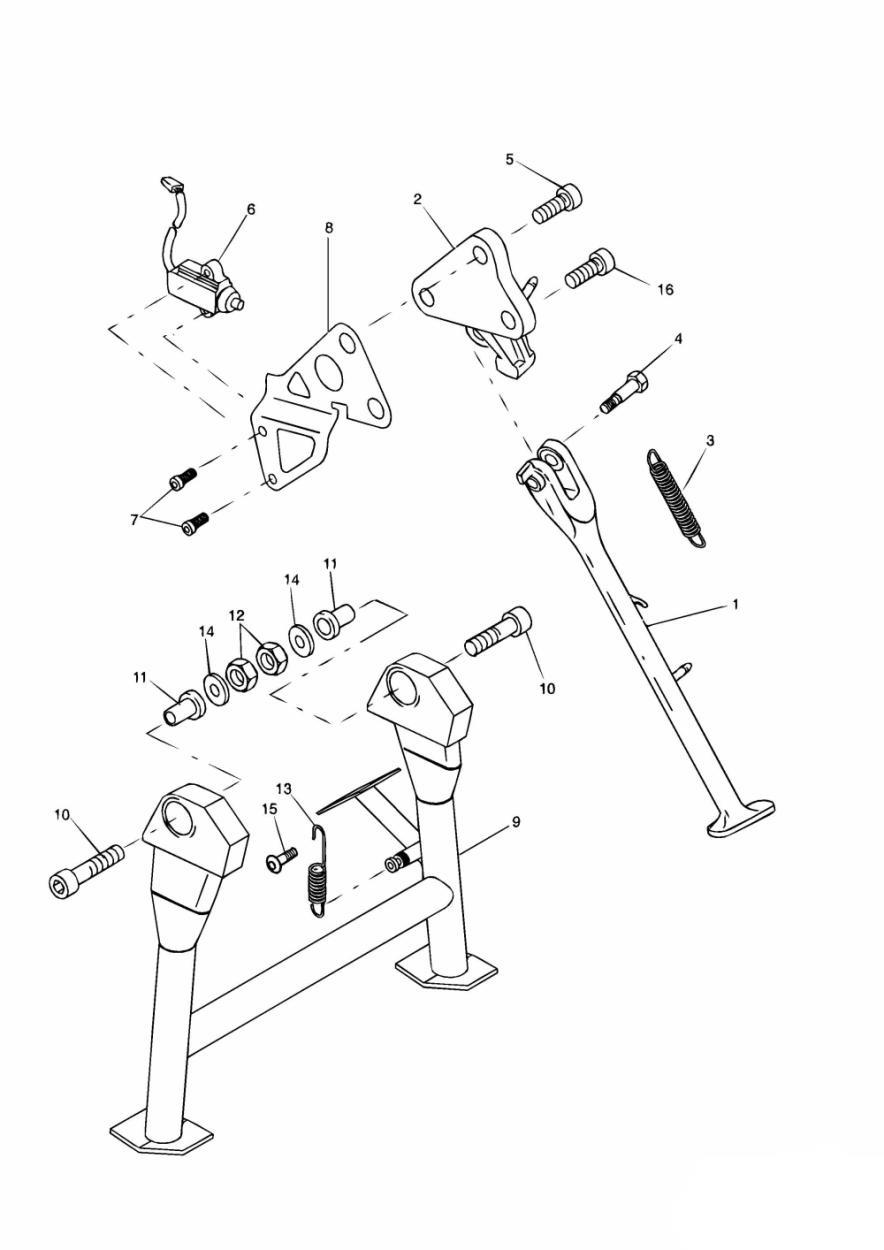

Sidestand & Centrestand
18 parts

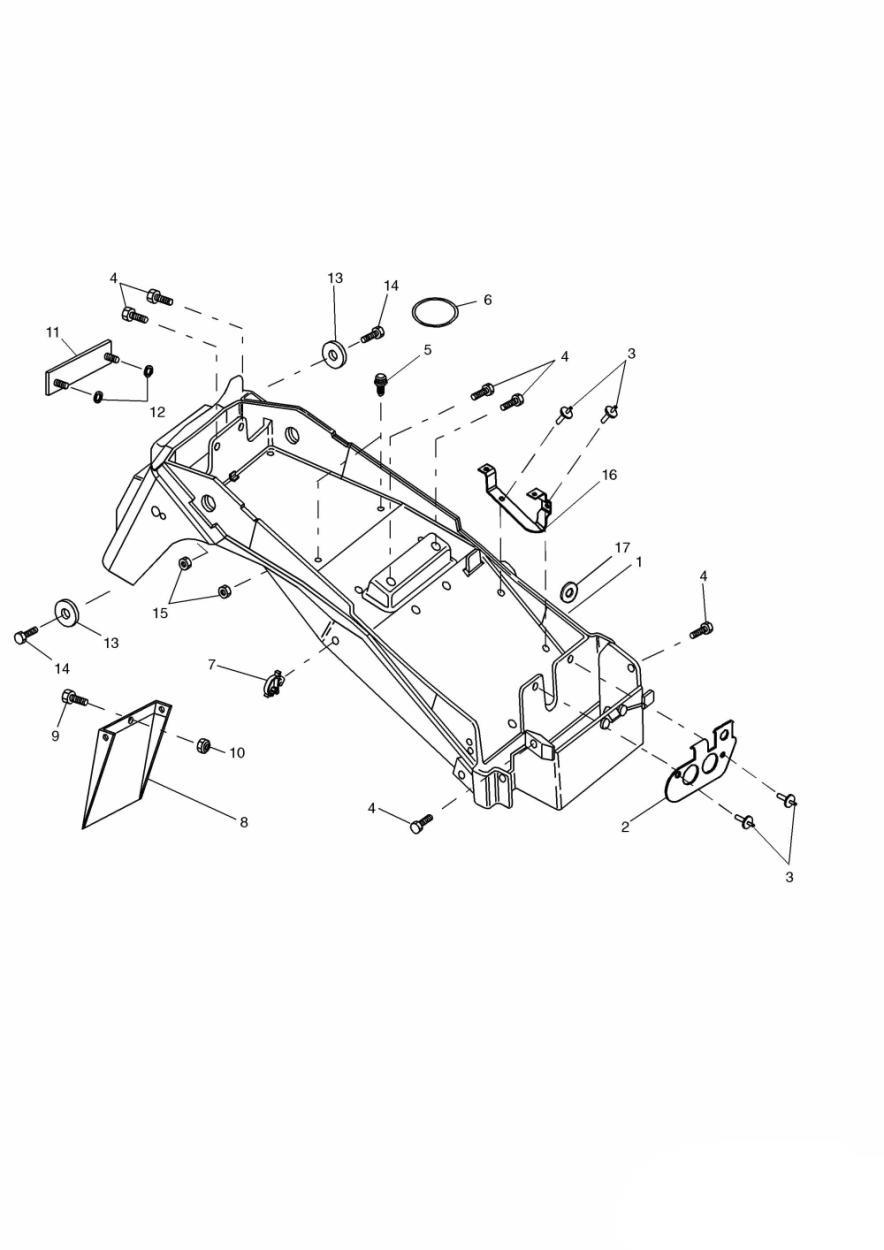

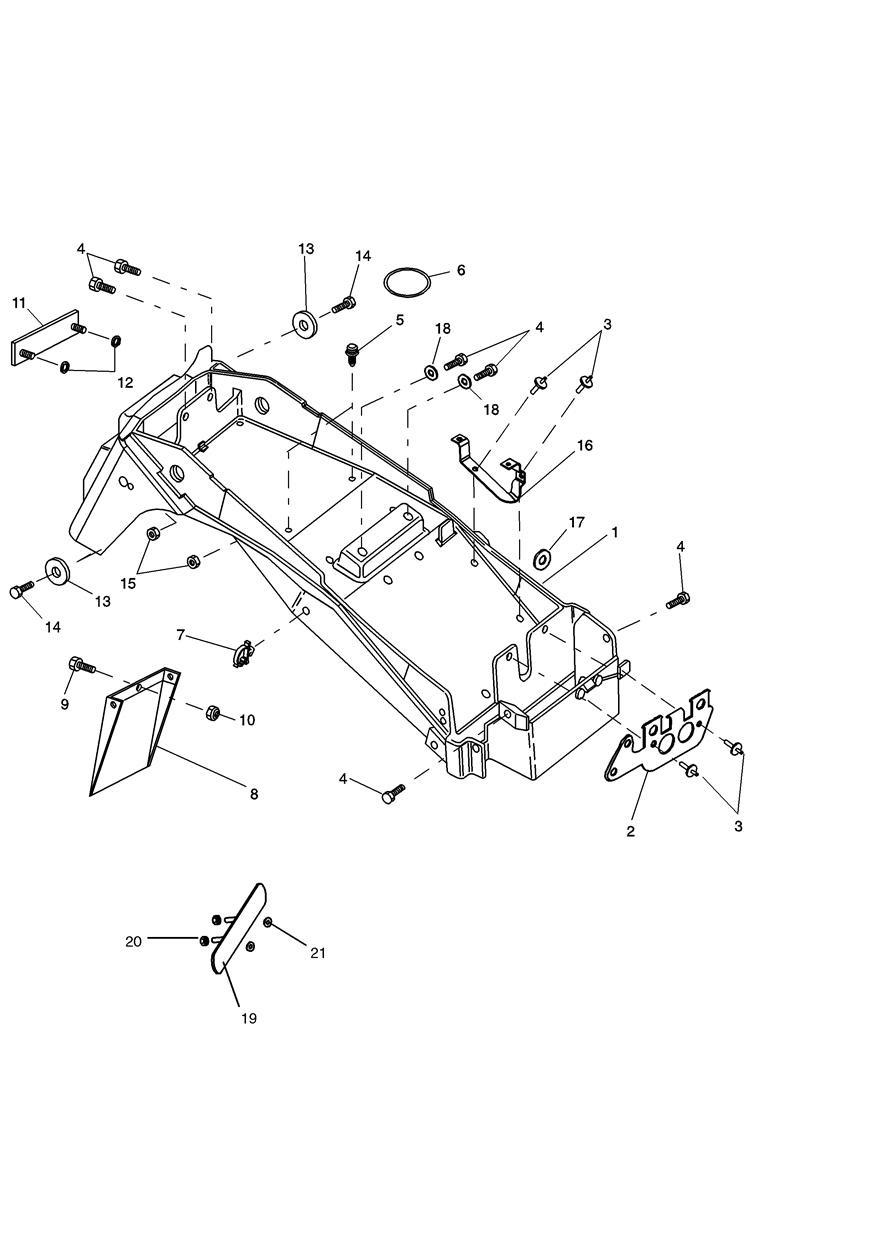

Rear Mudguard & Battery Box
26 parts

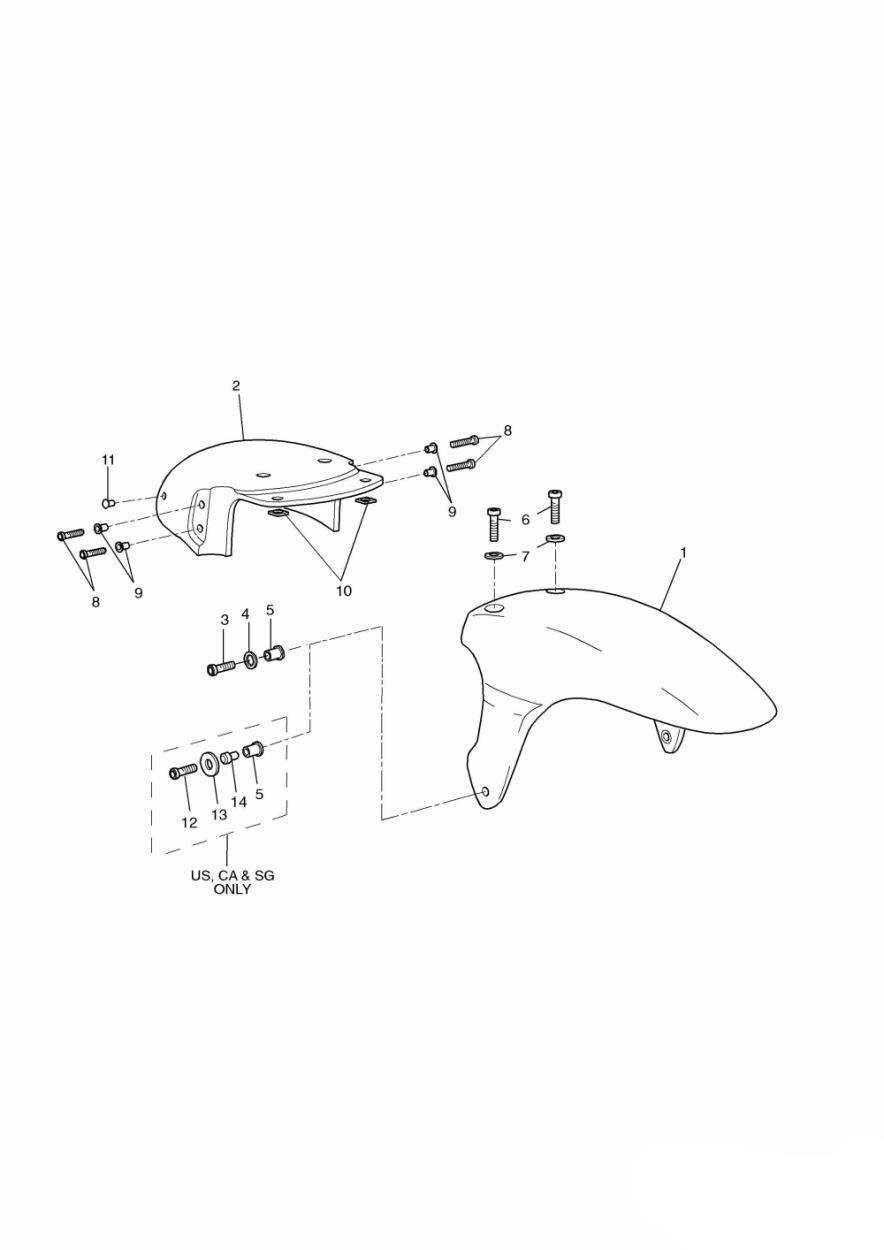

Front Mudguard
15 parts

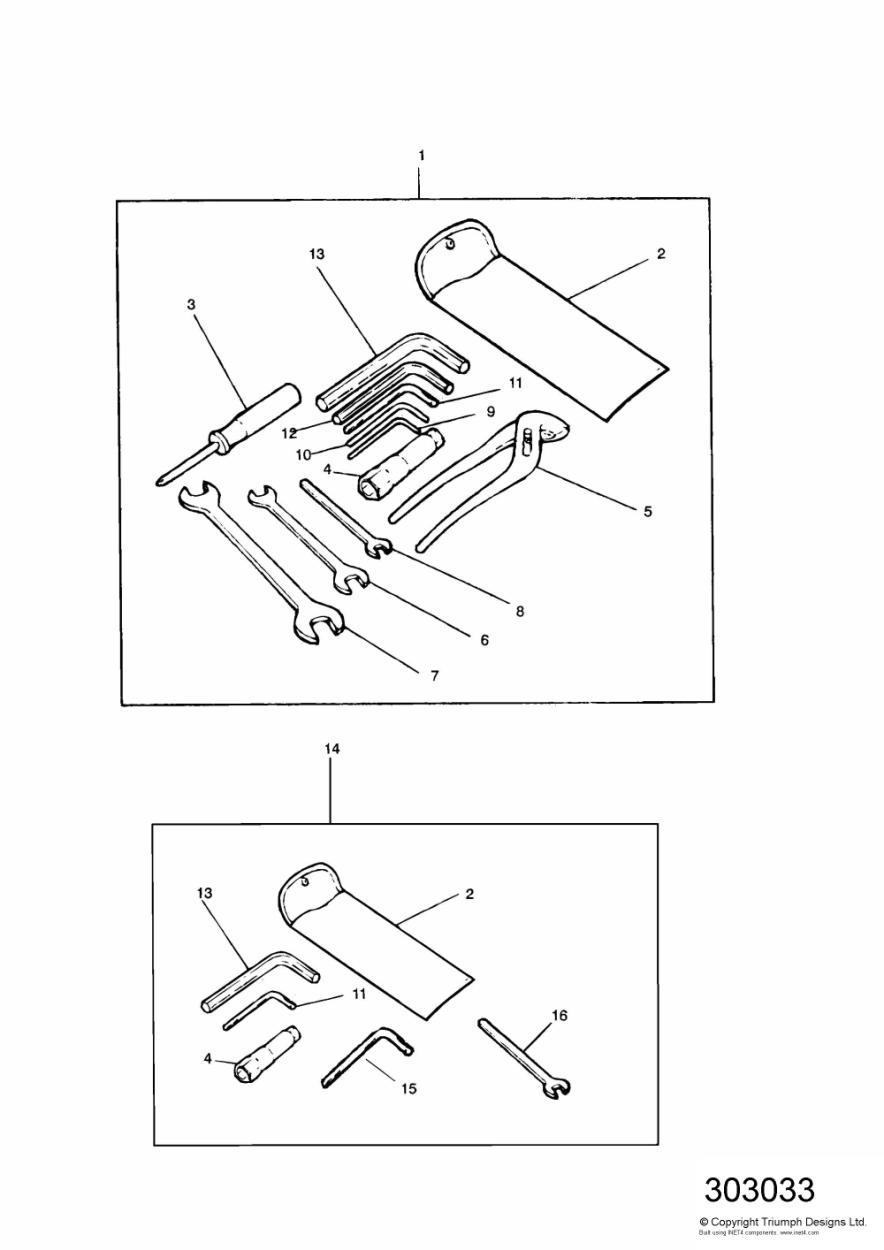

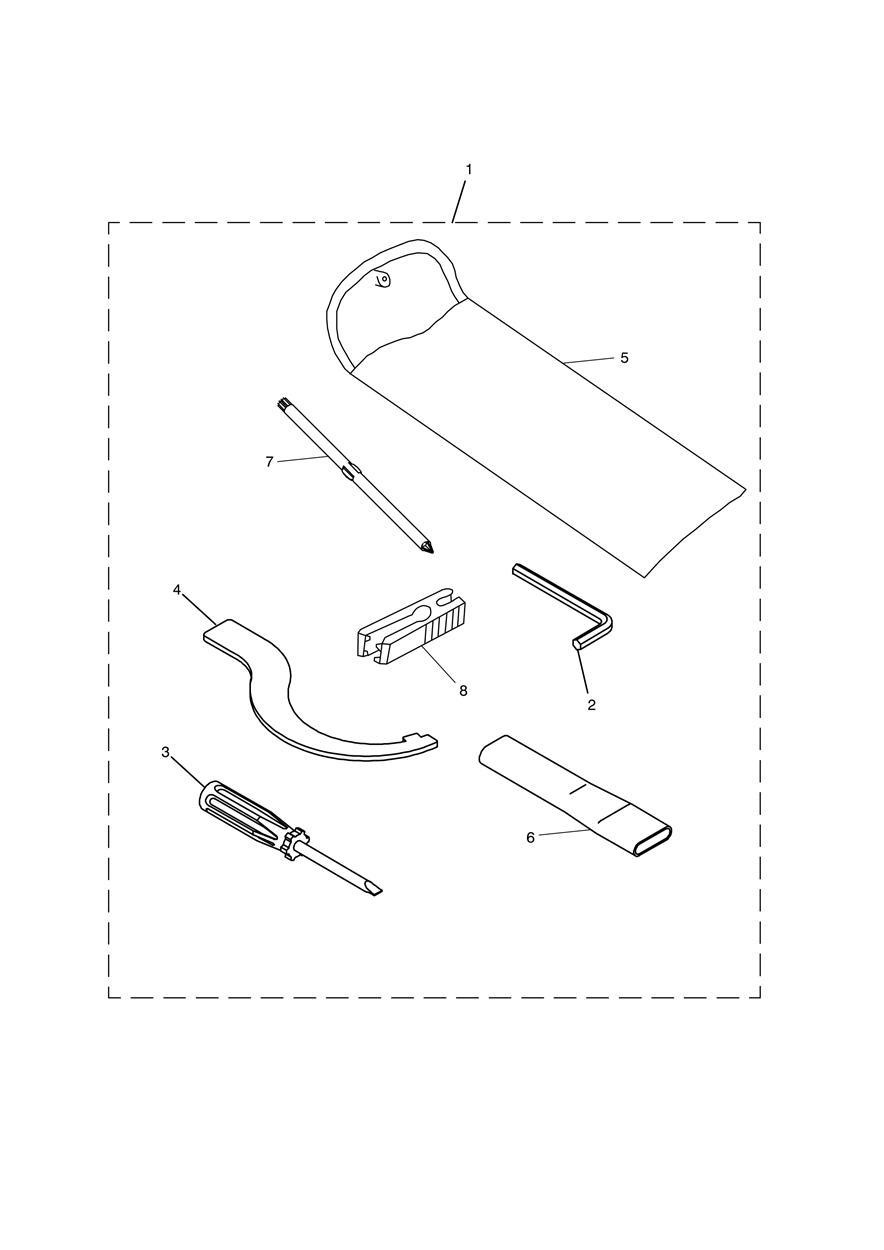

Tool Kit, Type X
8 parts

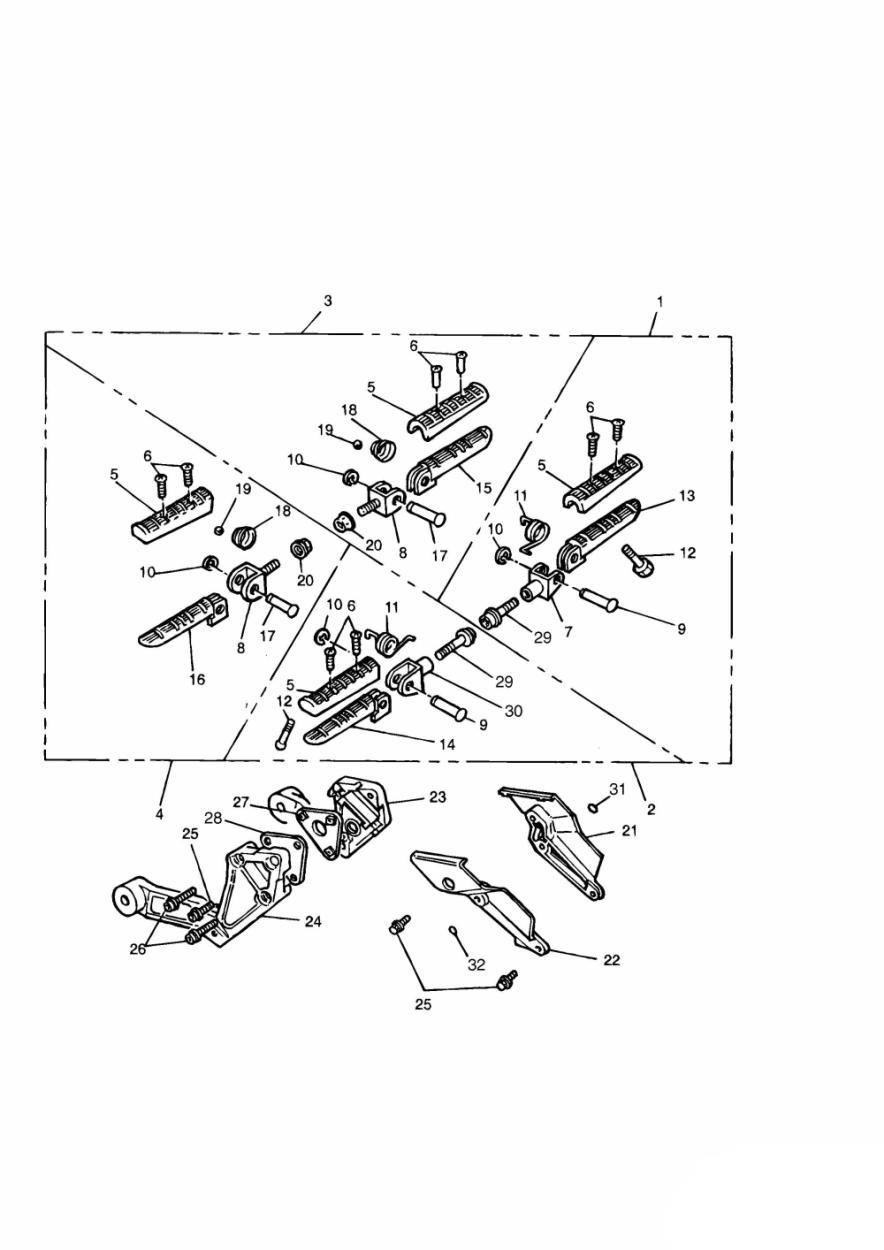

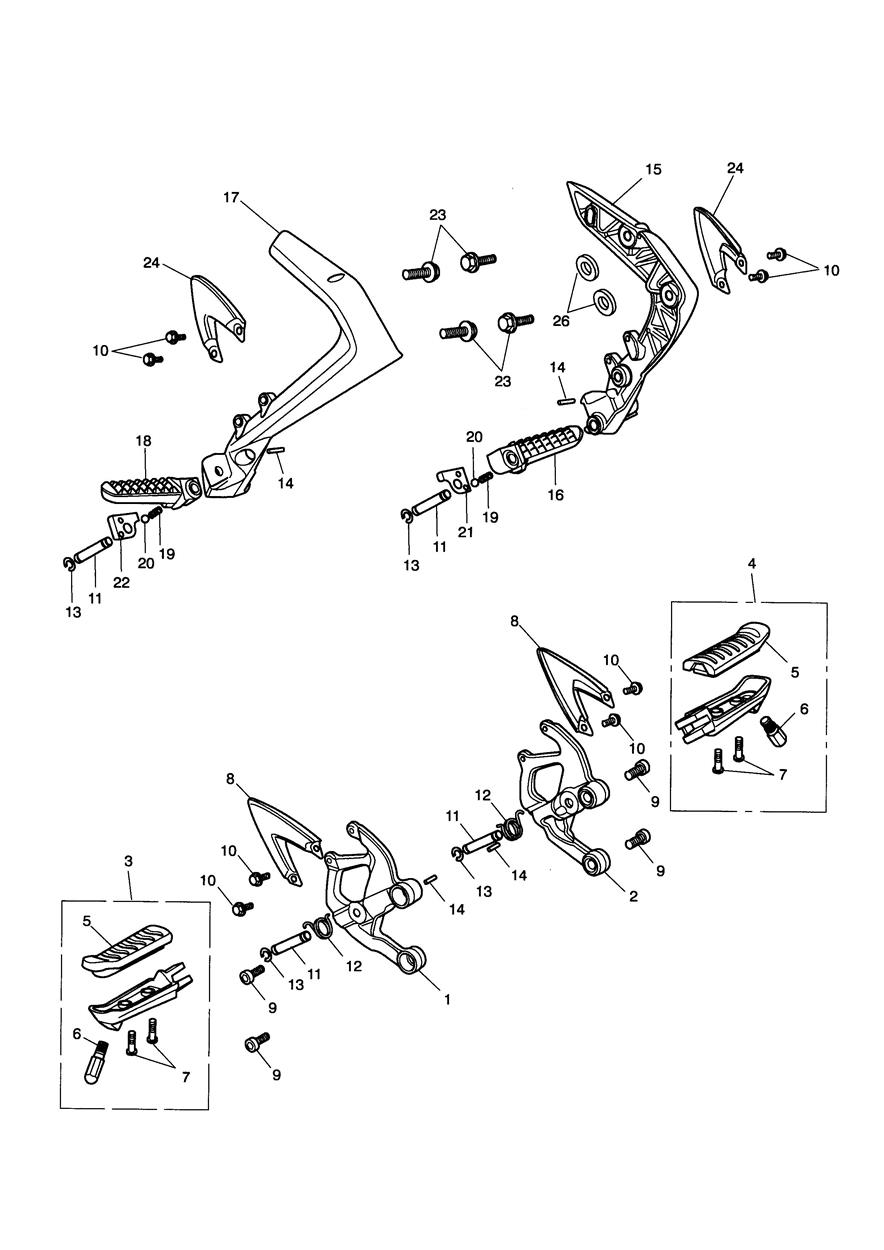

Footrests & Mountings
29 parts

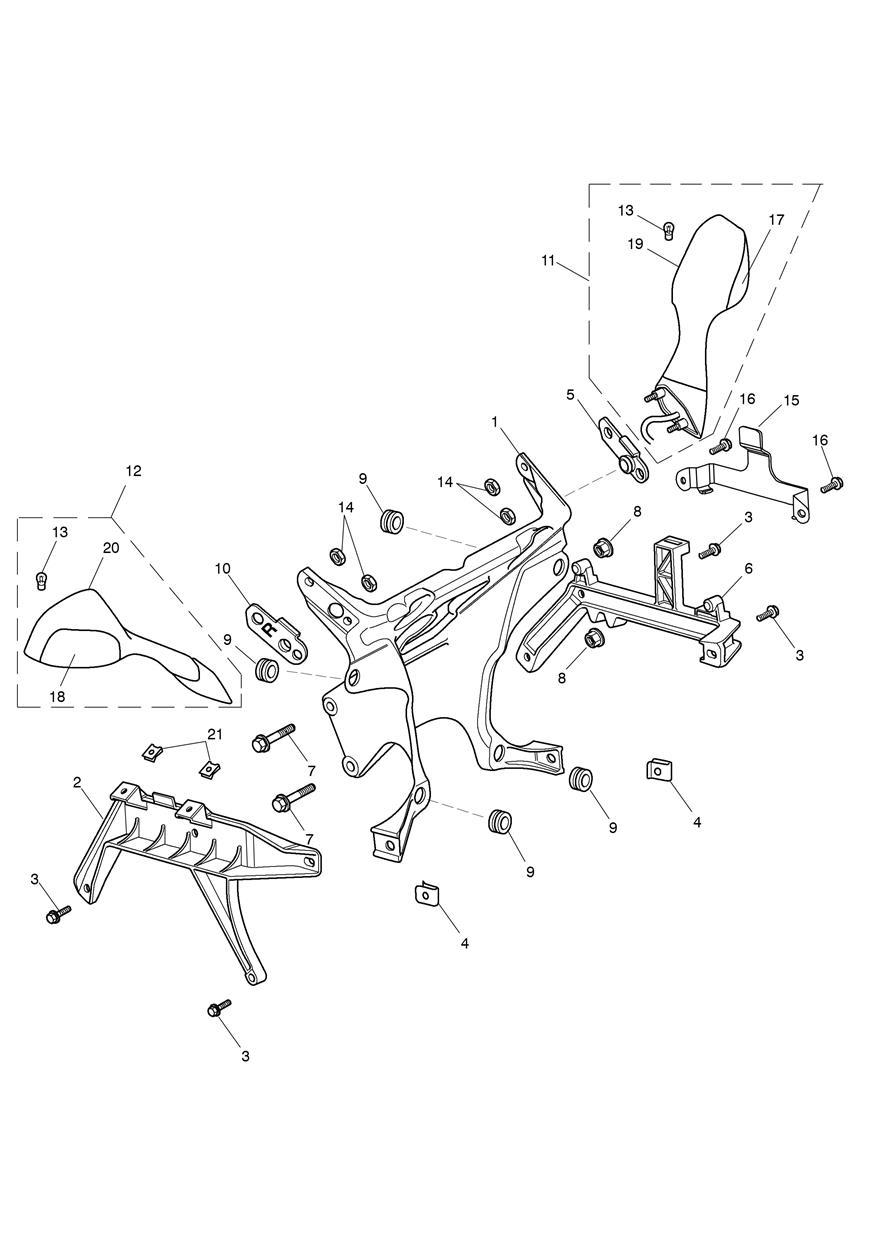

Front Sub-Frame & Fittings
22 parts

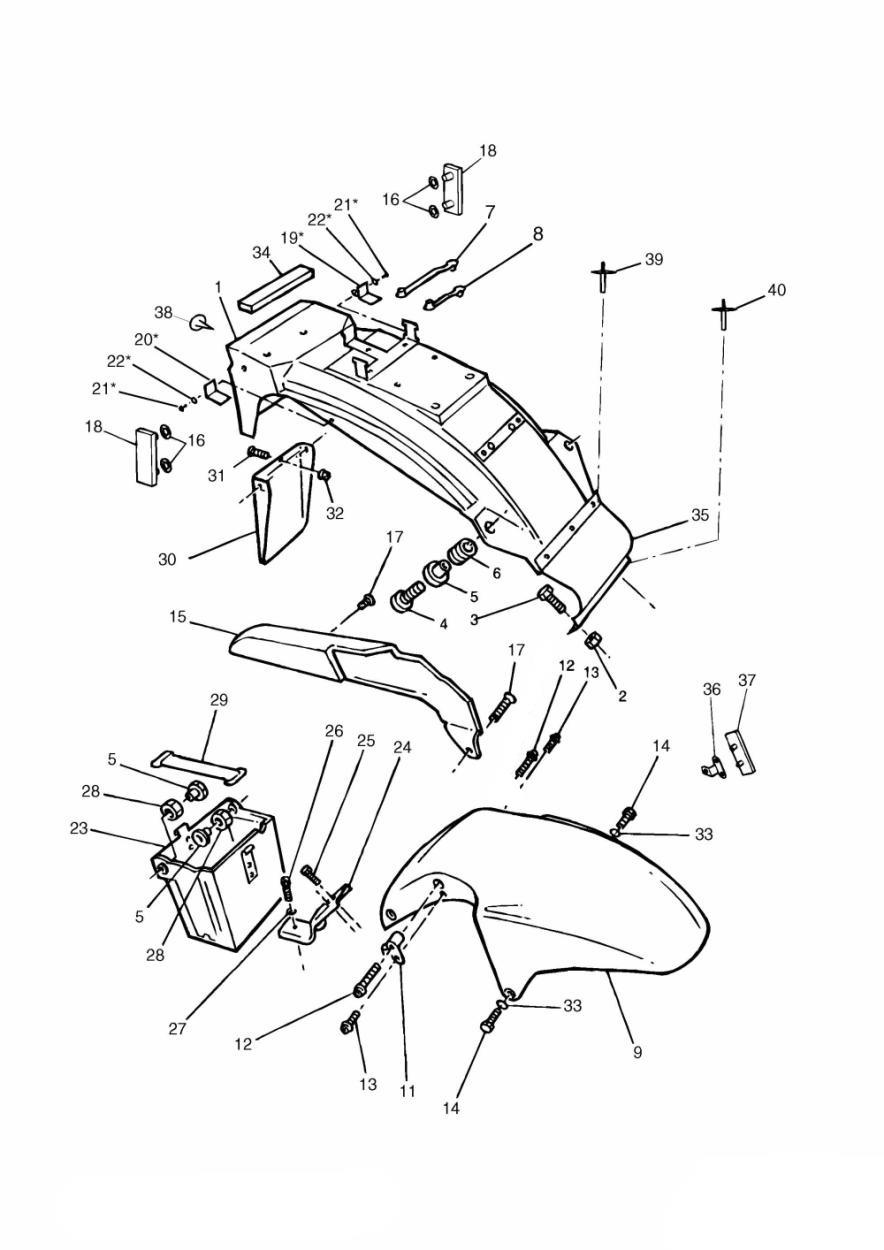

Mudguards/Chainguard/Battery Box Sprint/Sprint Sport
48 parts

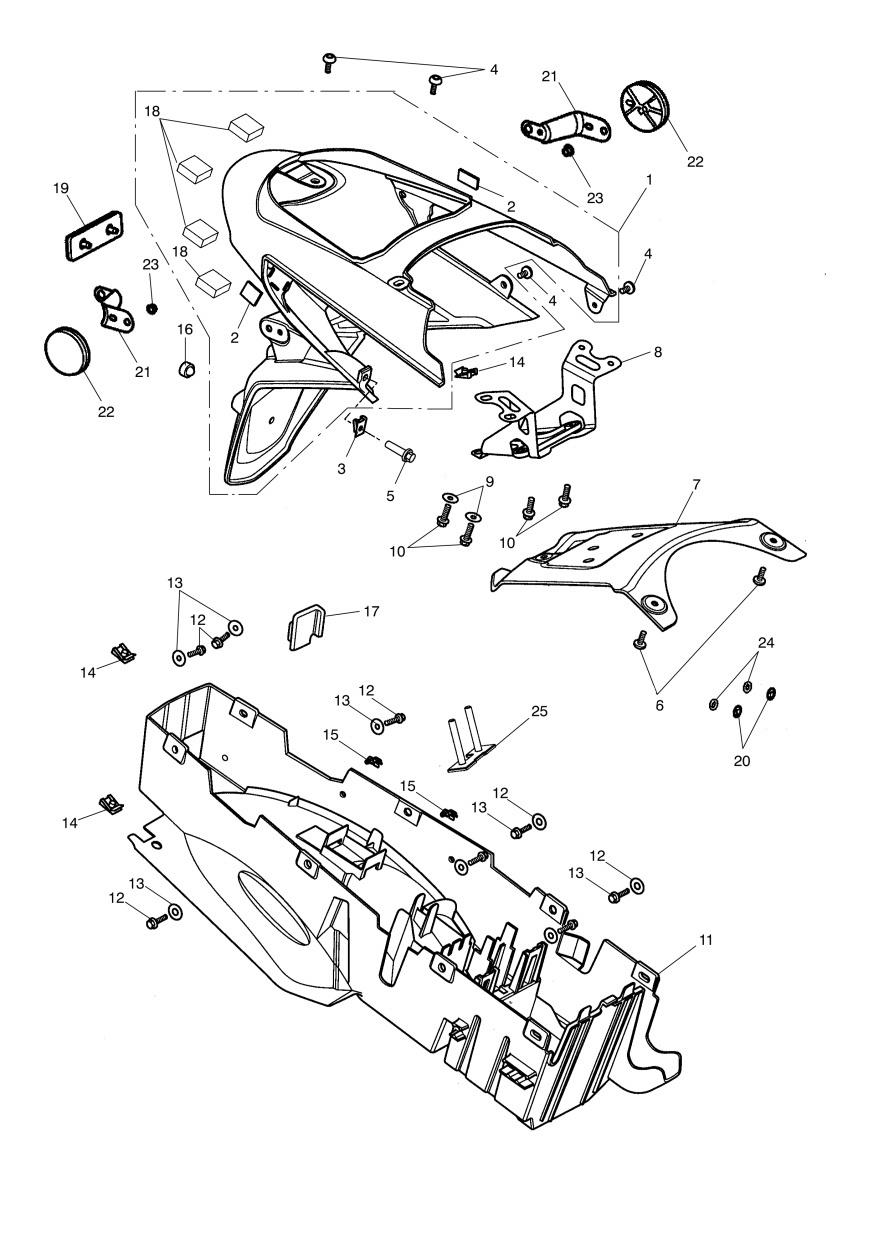

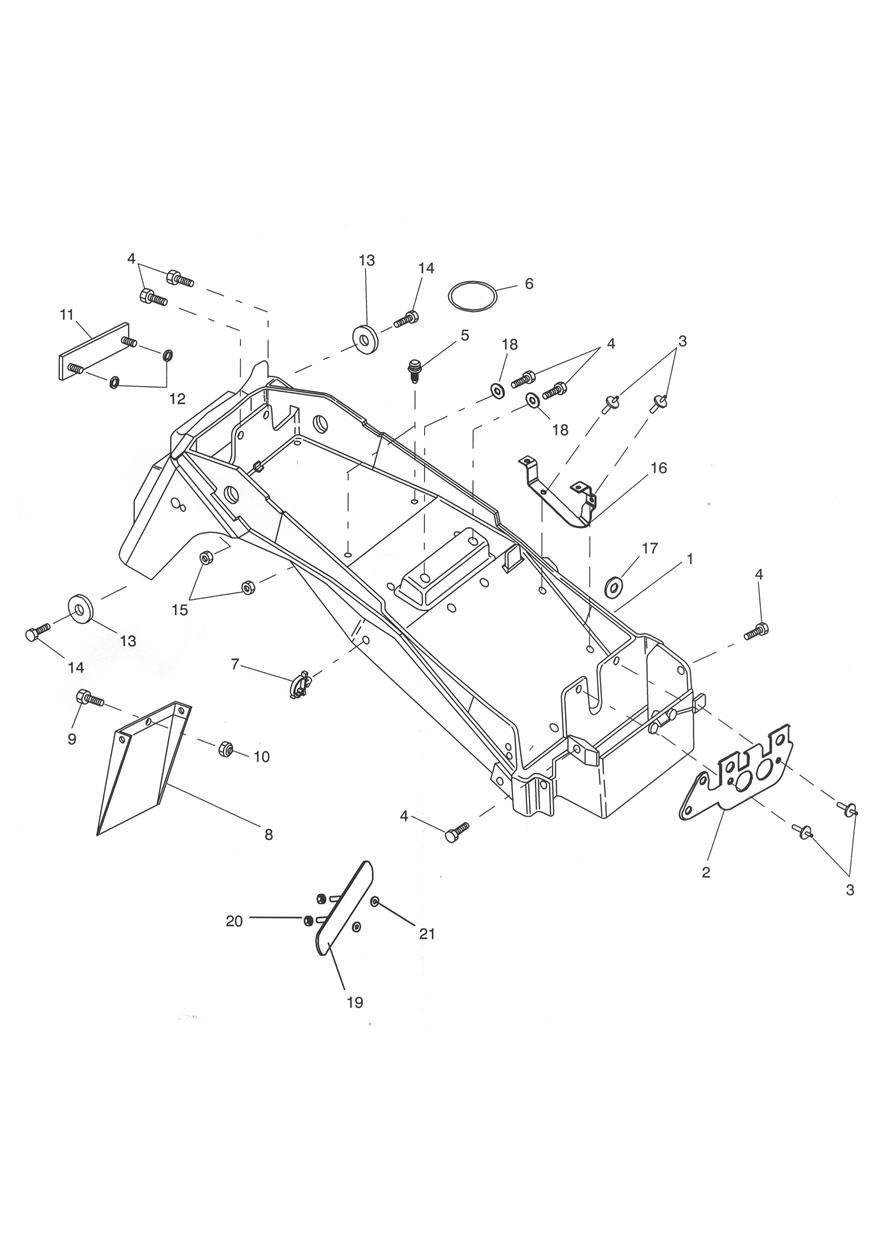

Rear Mudguard & Battery Box
21 parts

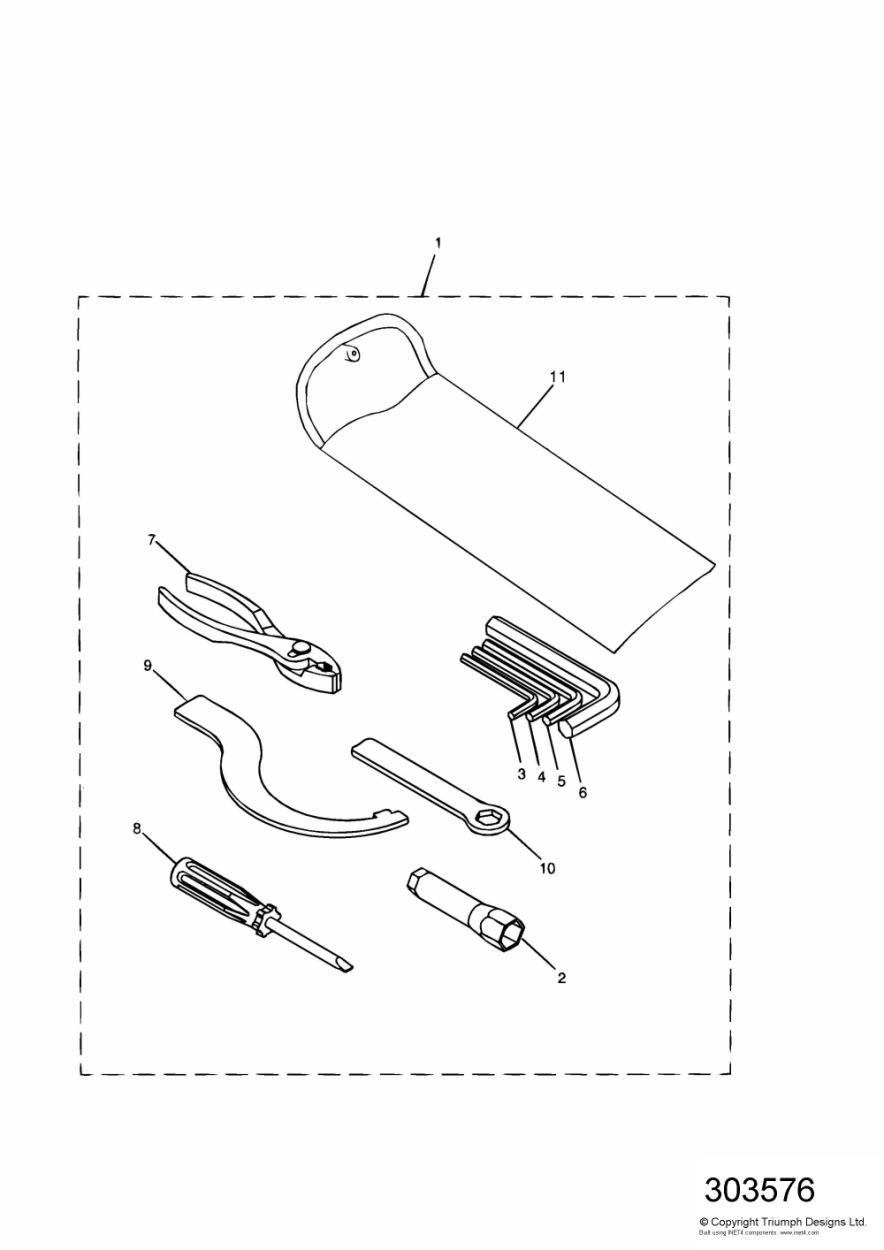

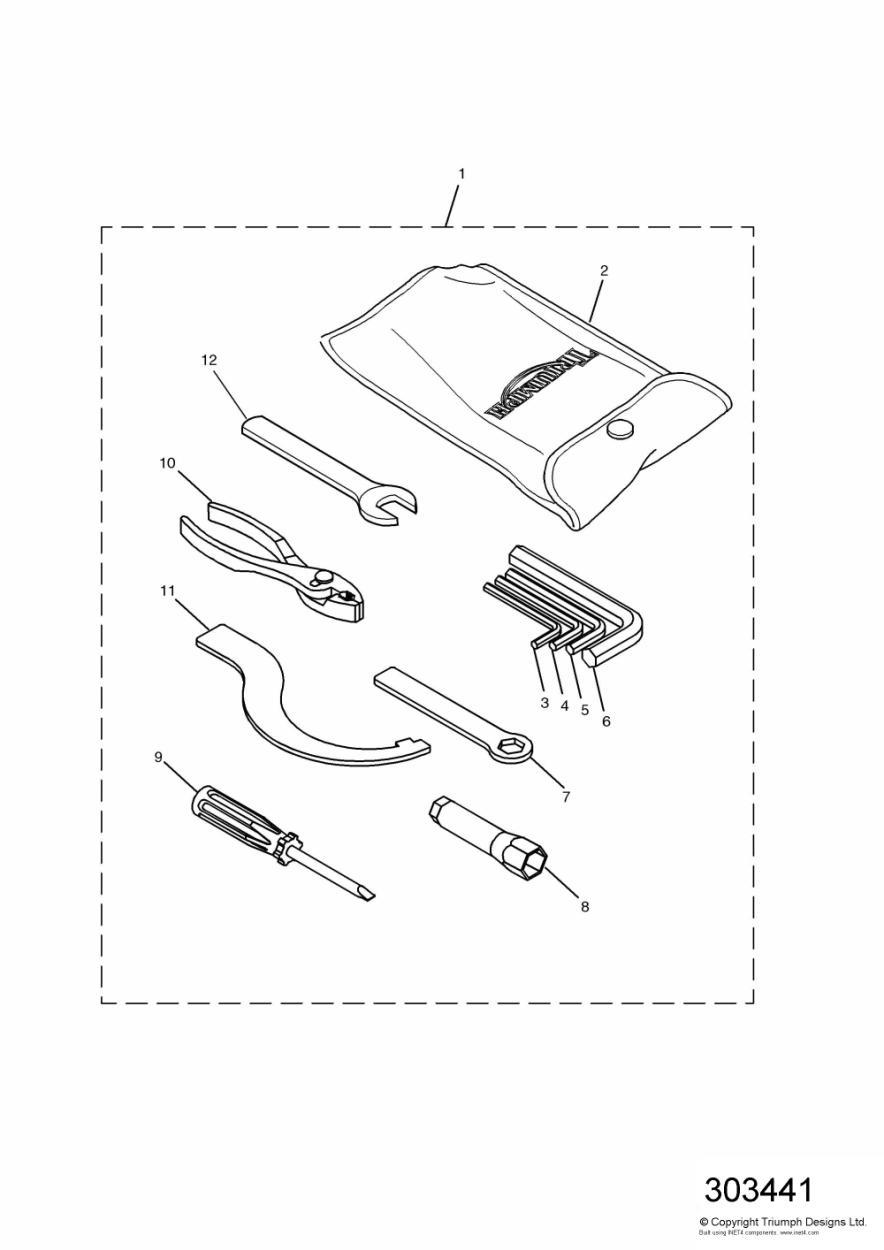

Tool Kit
12 parts

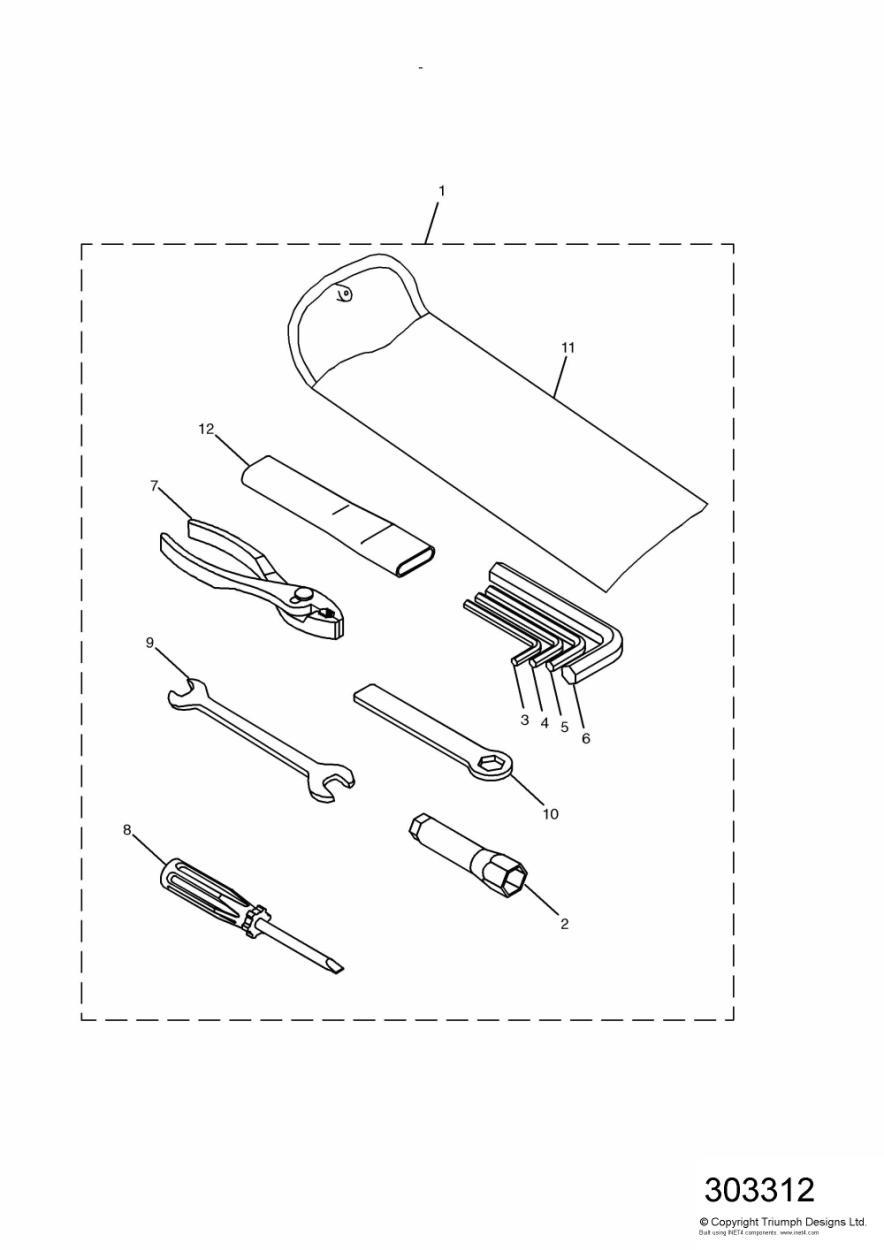

Tool Kit Double sided swingarm
12 parts

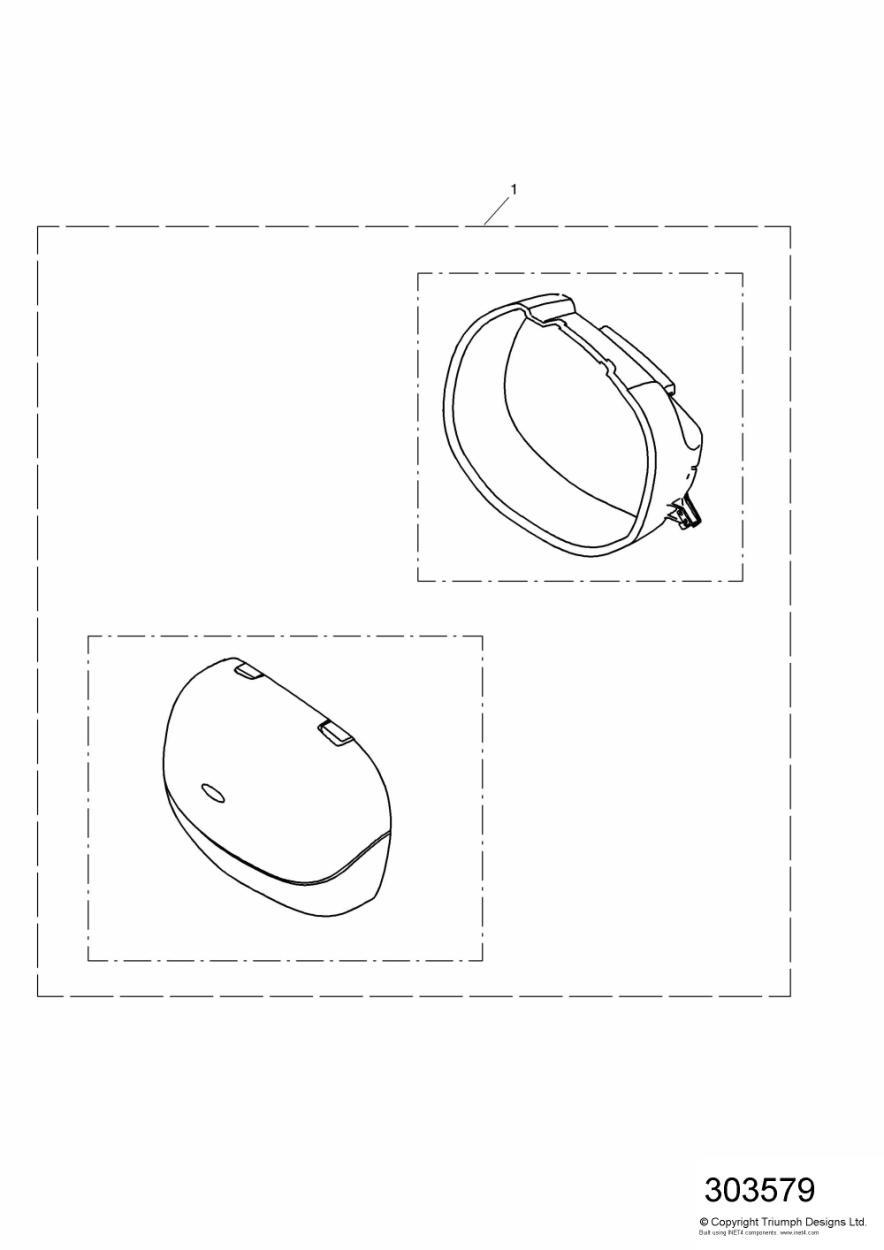

2 Box Pannier System CA,DE,ES,FR,IT,JP,NL,NZ,SE,TW,UK & US
3 parts

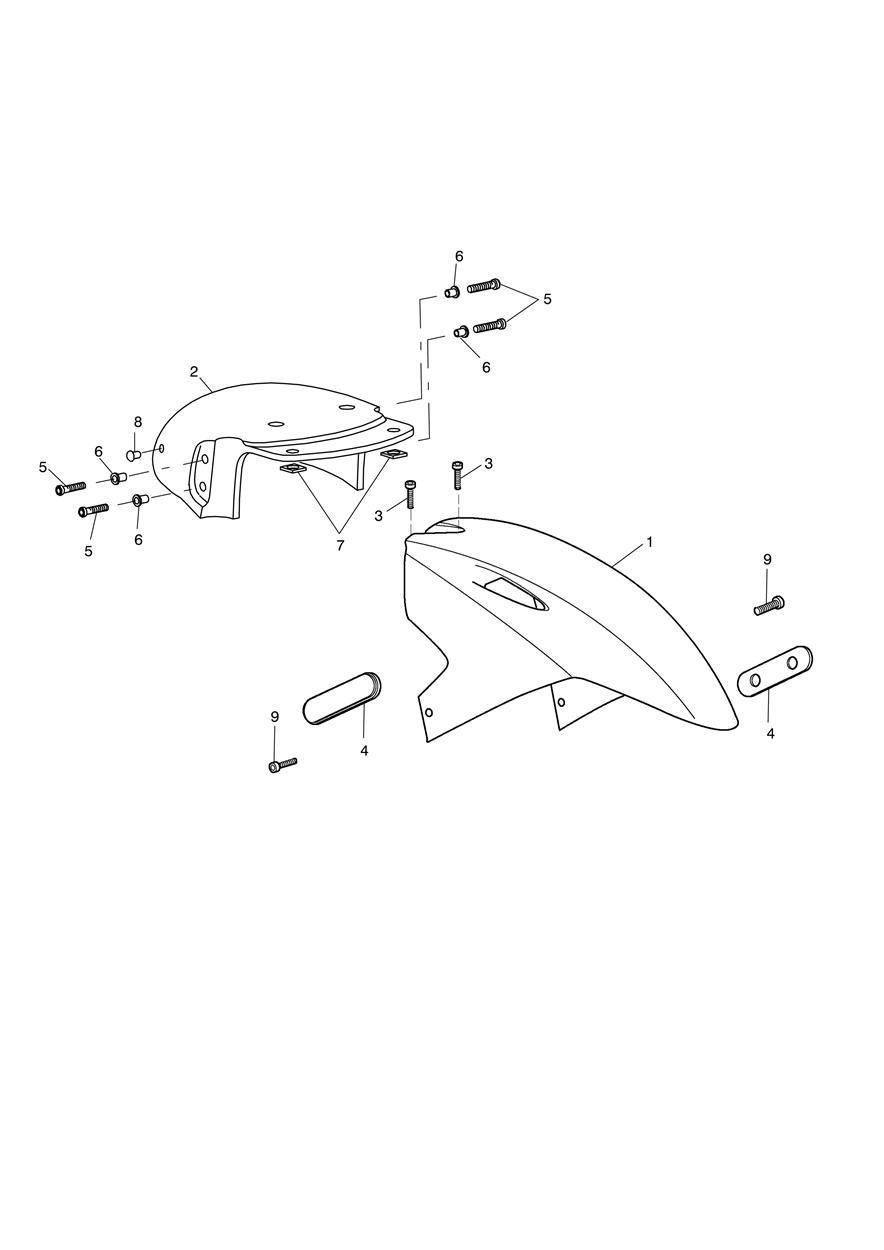

Front Mudguard
17 parts

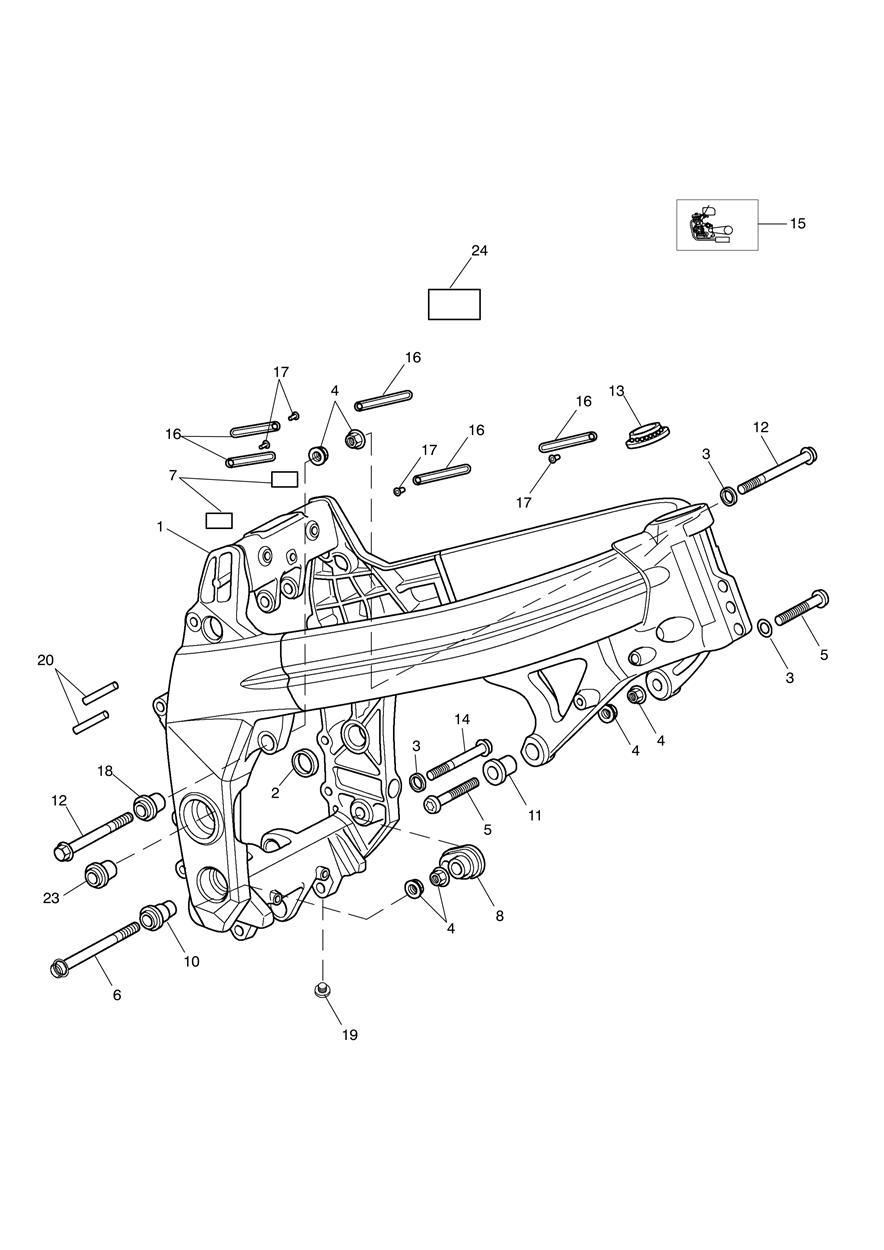

Main Frame & Fittings
21 parts

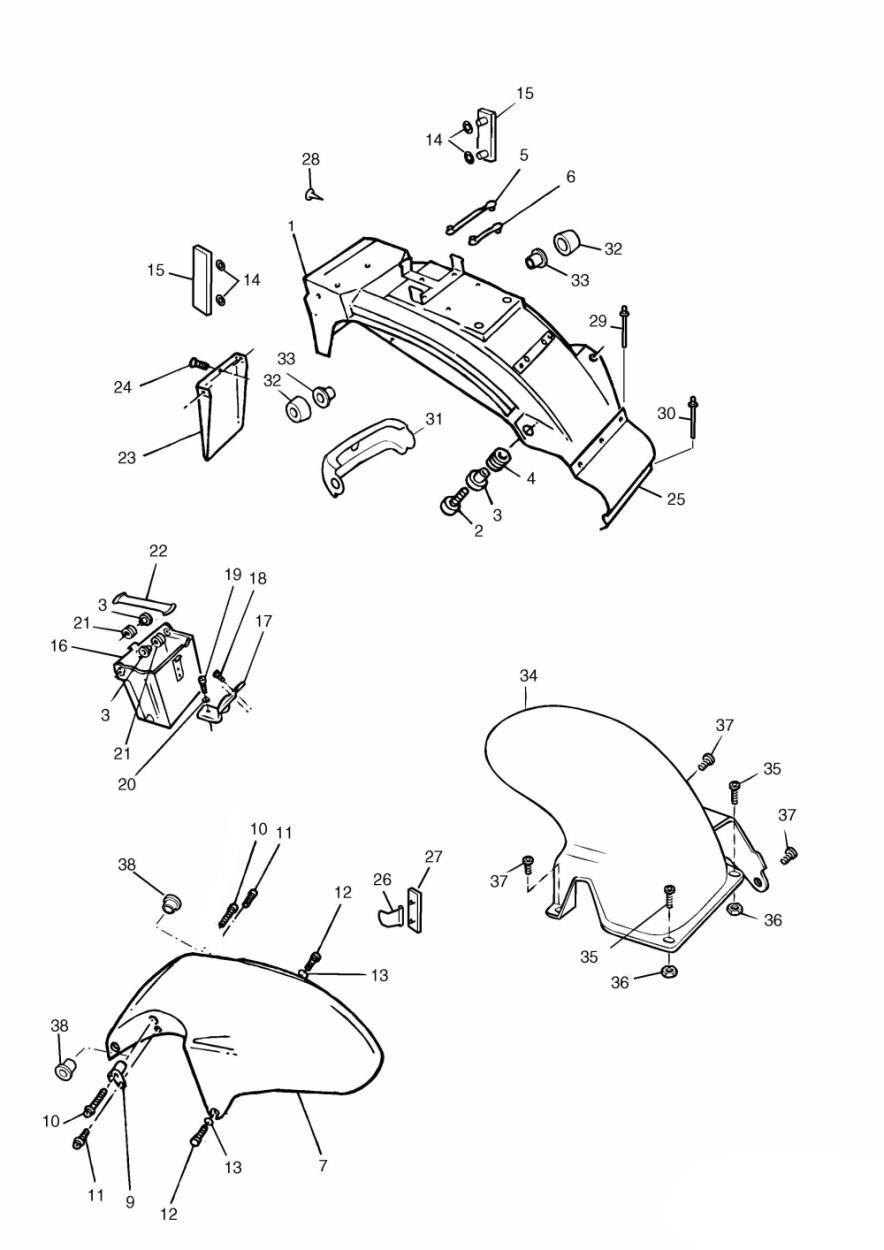

Mudguards/Chainguard/Battery Box Sprint Executive
40 parts

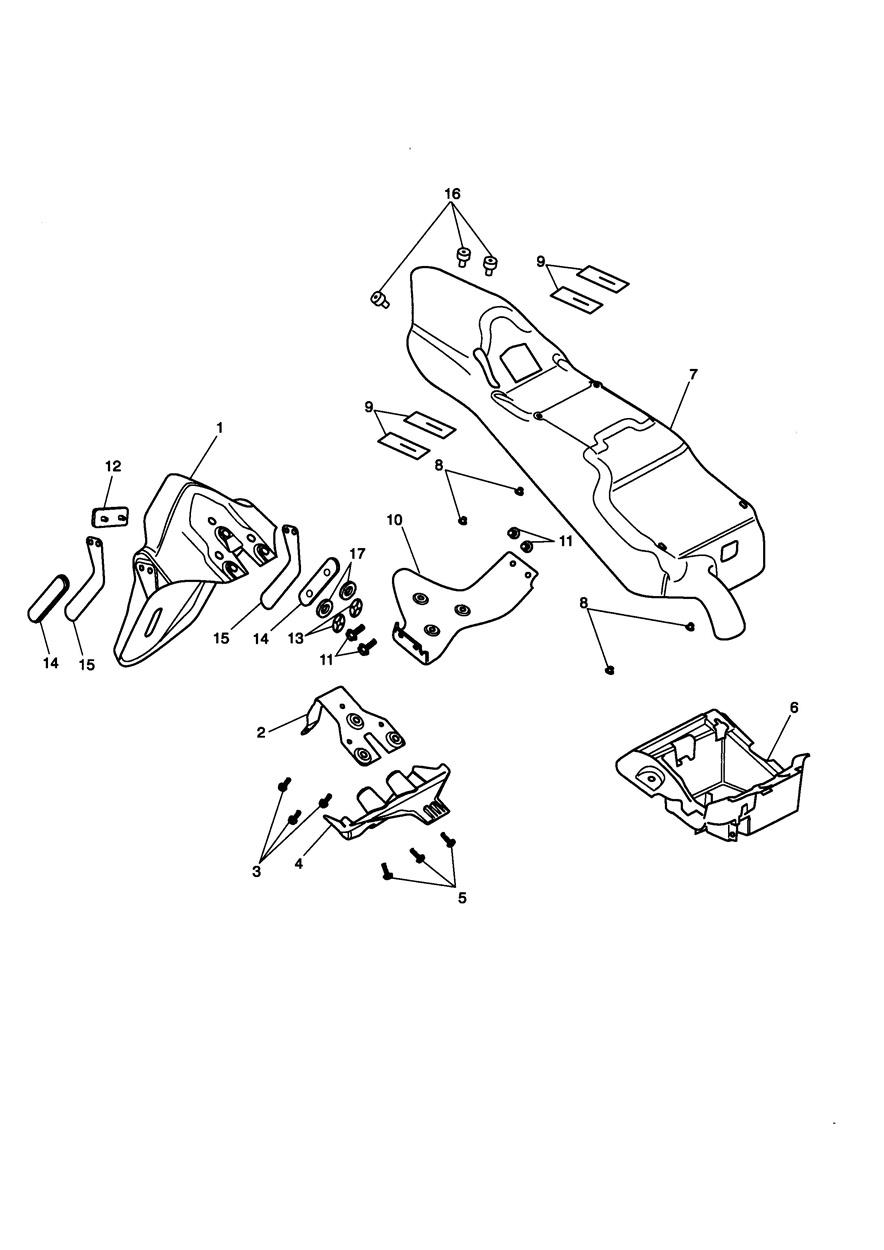

Rear Mudguard & Battery Box
17 parts

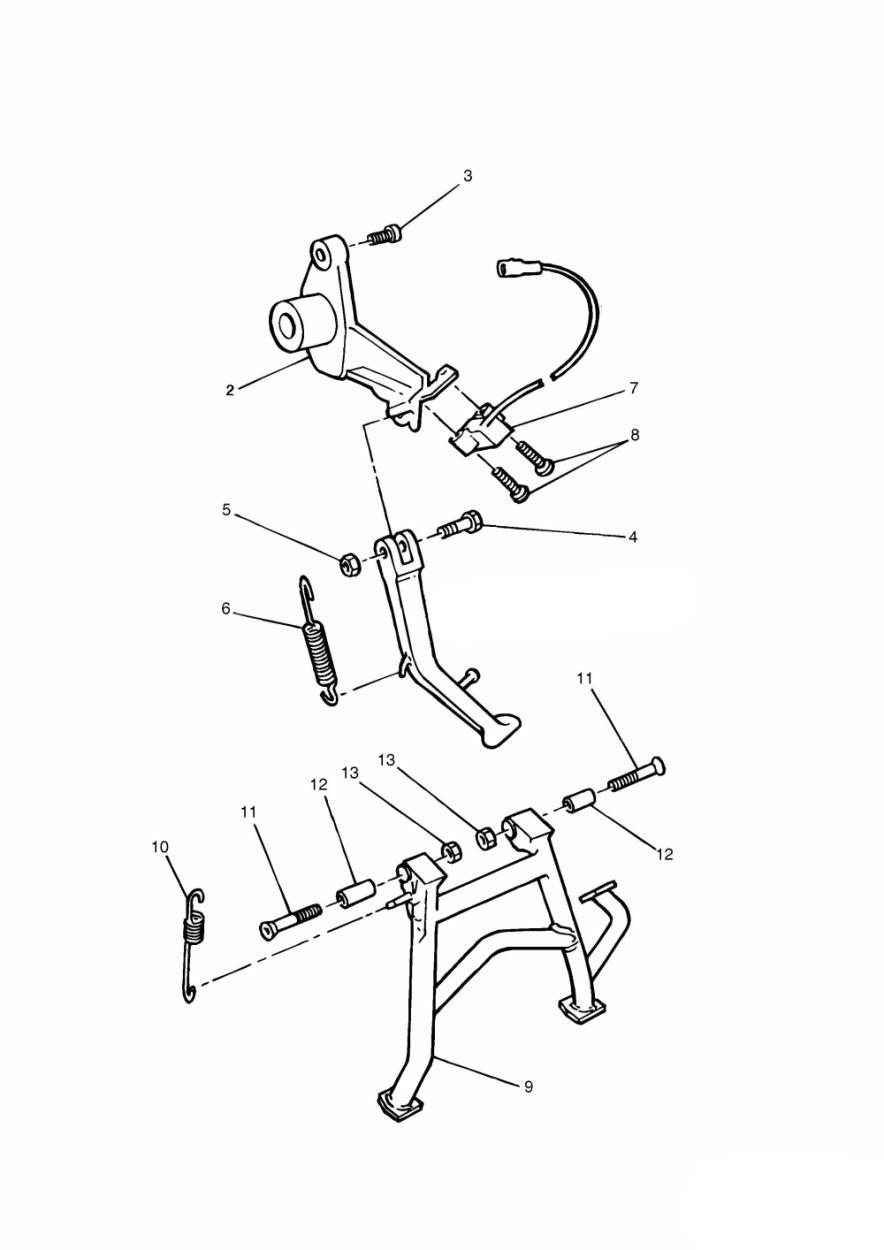

Side Stand
16 parts
Tool Kit
11 parts
Tool Kit Single sided swingarm
11 parts

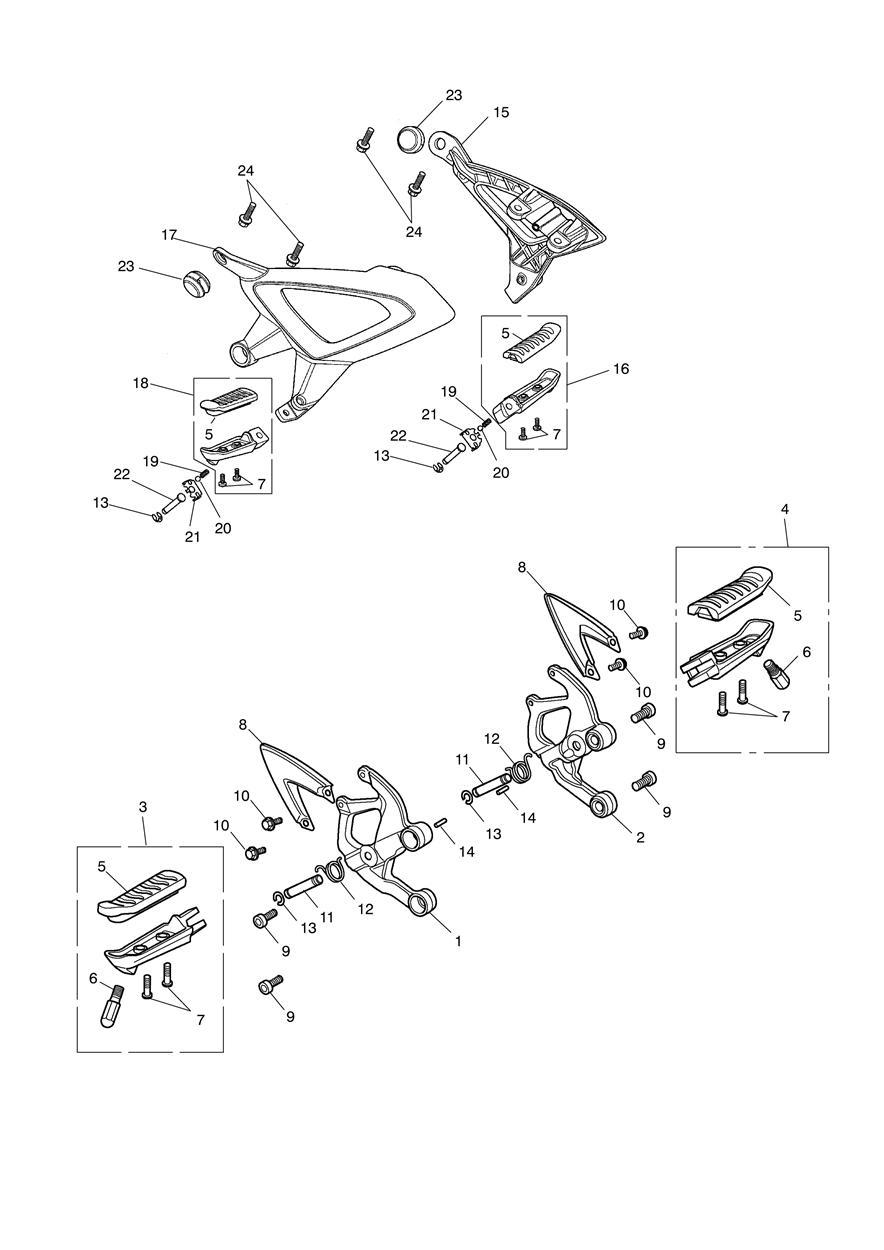

Footrests & Mountings
26 parts
Footrests & Mountings
29 parts
Front Mudguard
19 parts
Rear Mudguard & Battery Box
21 parts

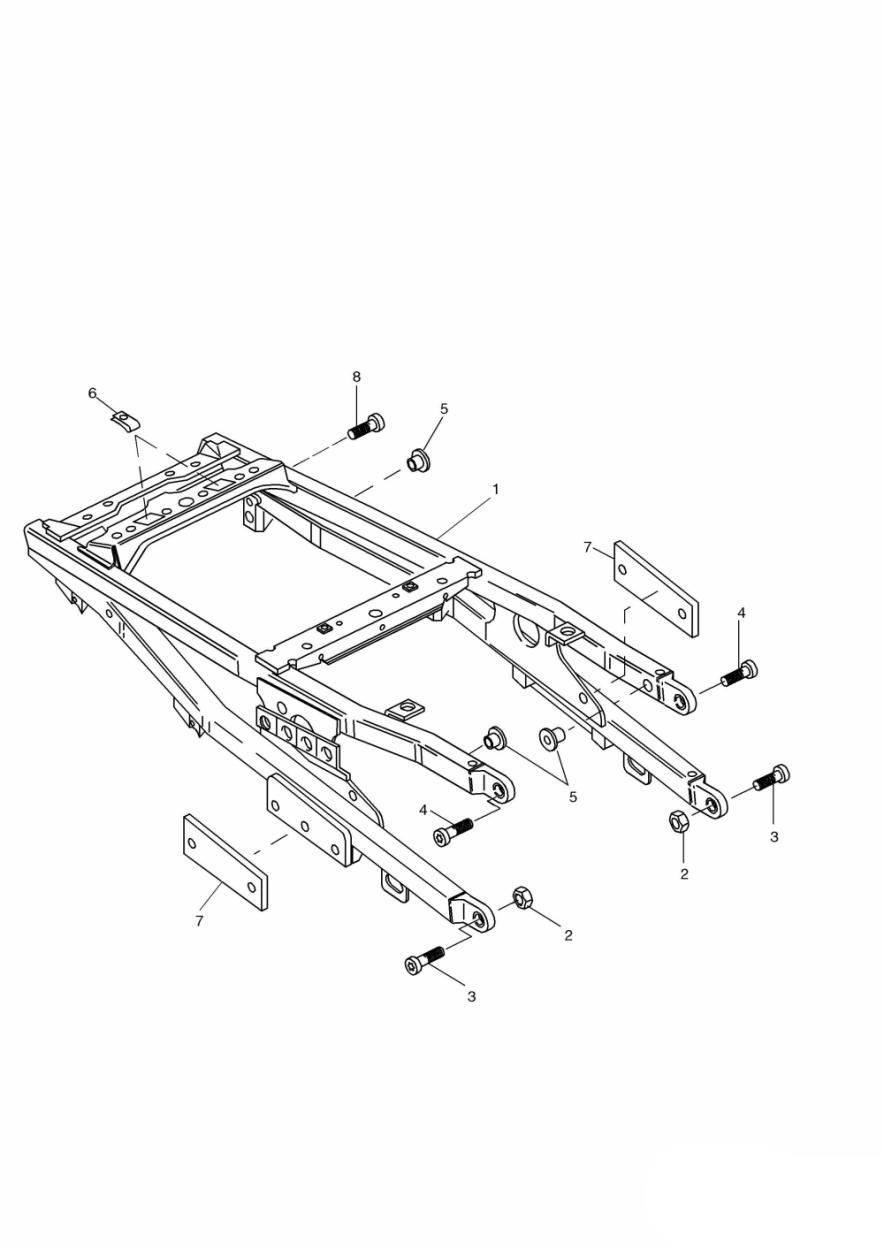

Rear Sub-Frame and Fittings
8 parts
Tool Kit
12 parts
Footrests & Mountings
32 parts
Front Mudguard
17 parts
Main Frame & Fittings
26 parts
Main Frame & Fittings
24 parts
Main Frame & Fittings
21 parts
Tool Kit
17 parts

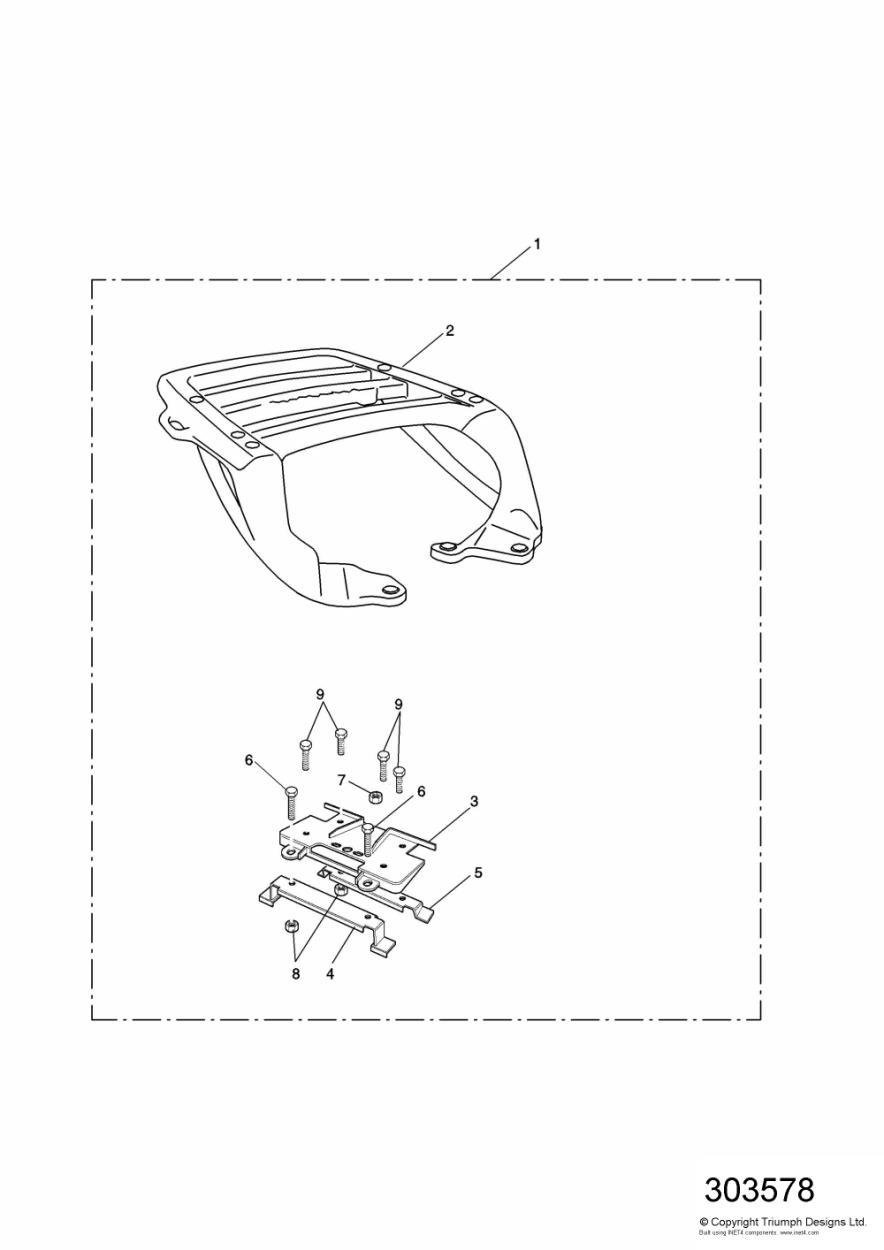

Top Rack Kit ES,IT,JP,NL,NZ,SE & UK
9 parts
Front Mudguard
20 parts

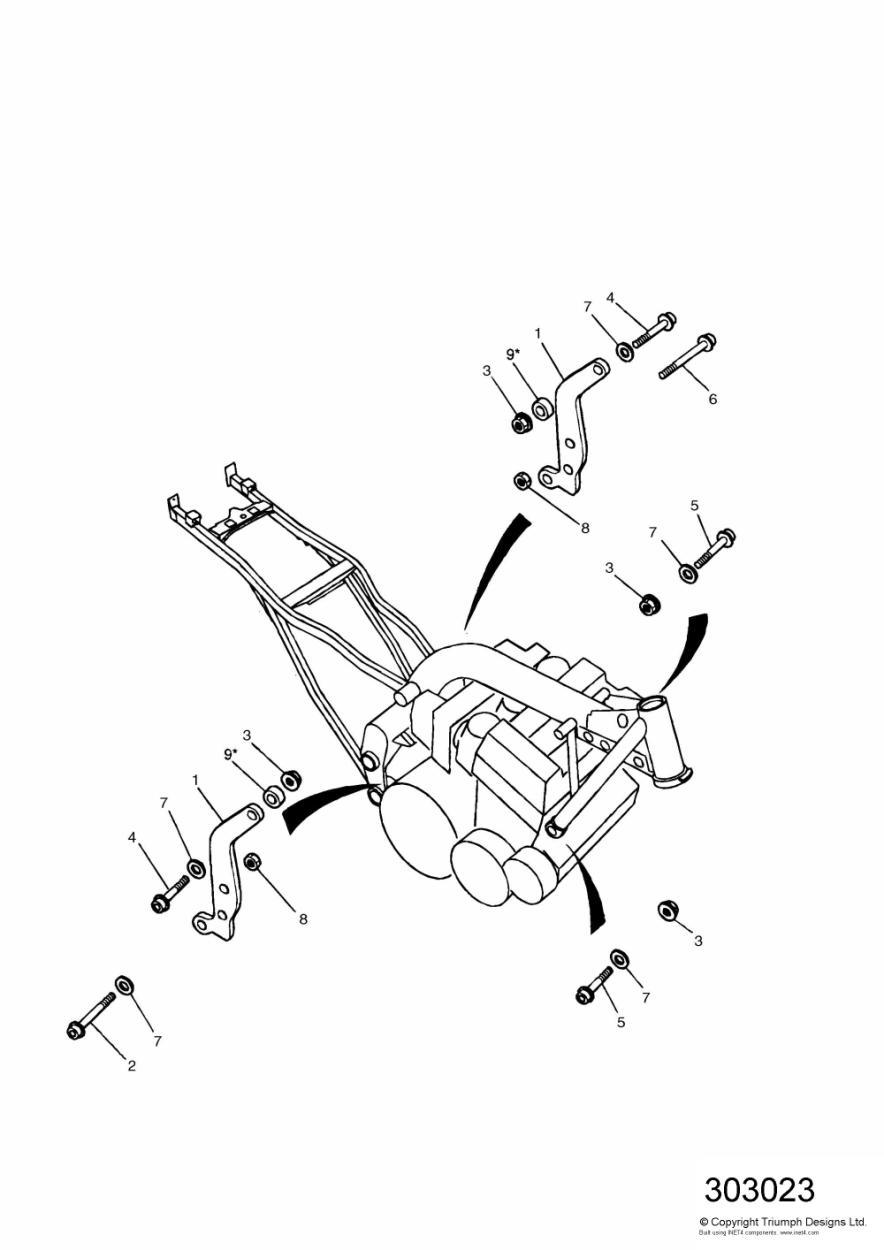

Linkage Carrier/Engine Mounting Bolts
13 parts
Rear Mudguard & Battery Box
19 parts
Rear Sub-Frame and Fittings
8 parts
Side Stand
9 parts
Side Stand & Centrestand
16 parts
Footrests & Mountings
32 parts
Front Mudguard
17 parts

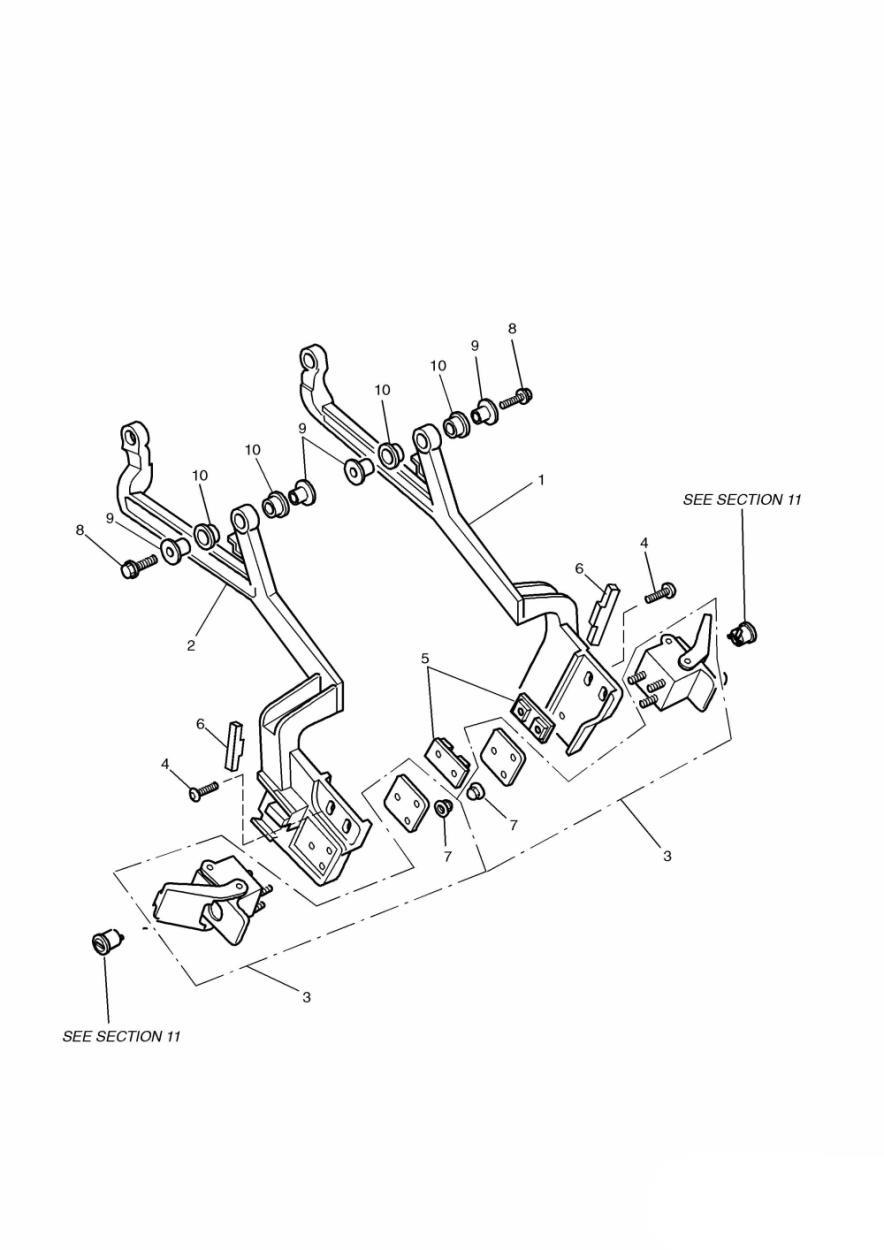

Luggage Mounting Rails Sprint Executive
10 parts

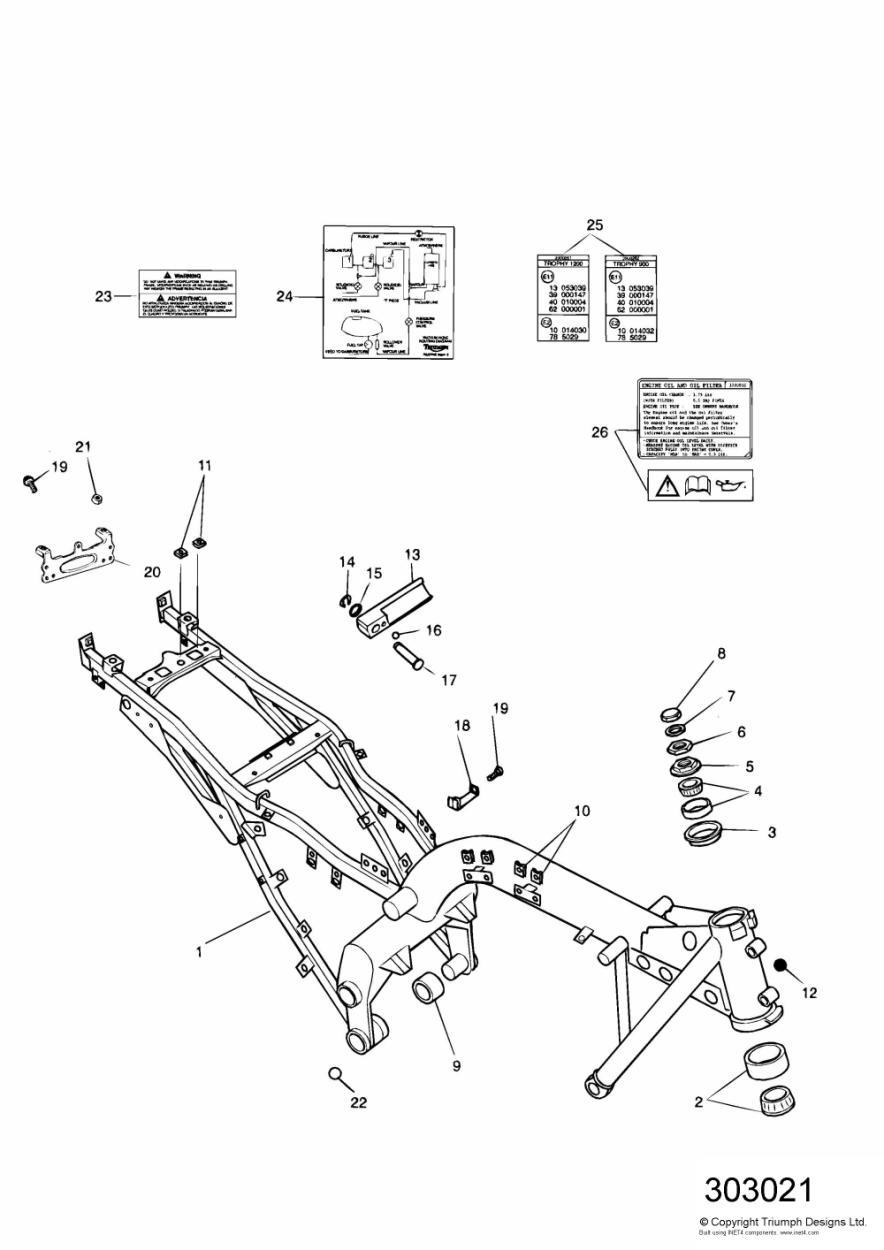

Main Frame & Fittings
20 parts
Rear Sub-Frame & Fittings
9 parts
Rear Sub-Frame and Fittings
8 parts
Rear Mudguard & Battery Box
17 parts
Rear Sub-Frame and Fittings
8 parts
Side Stand
18 parts
Side Stand
9 parts
Tool Kit
8 parts

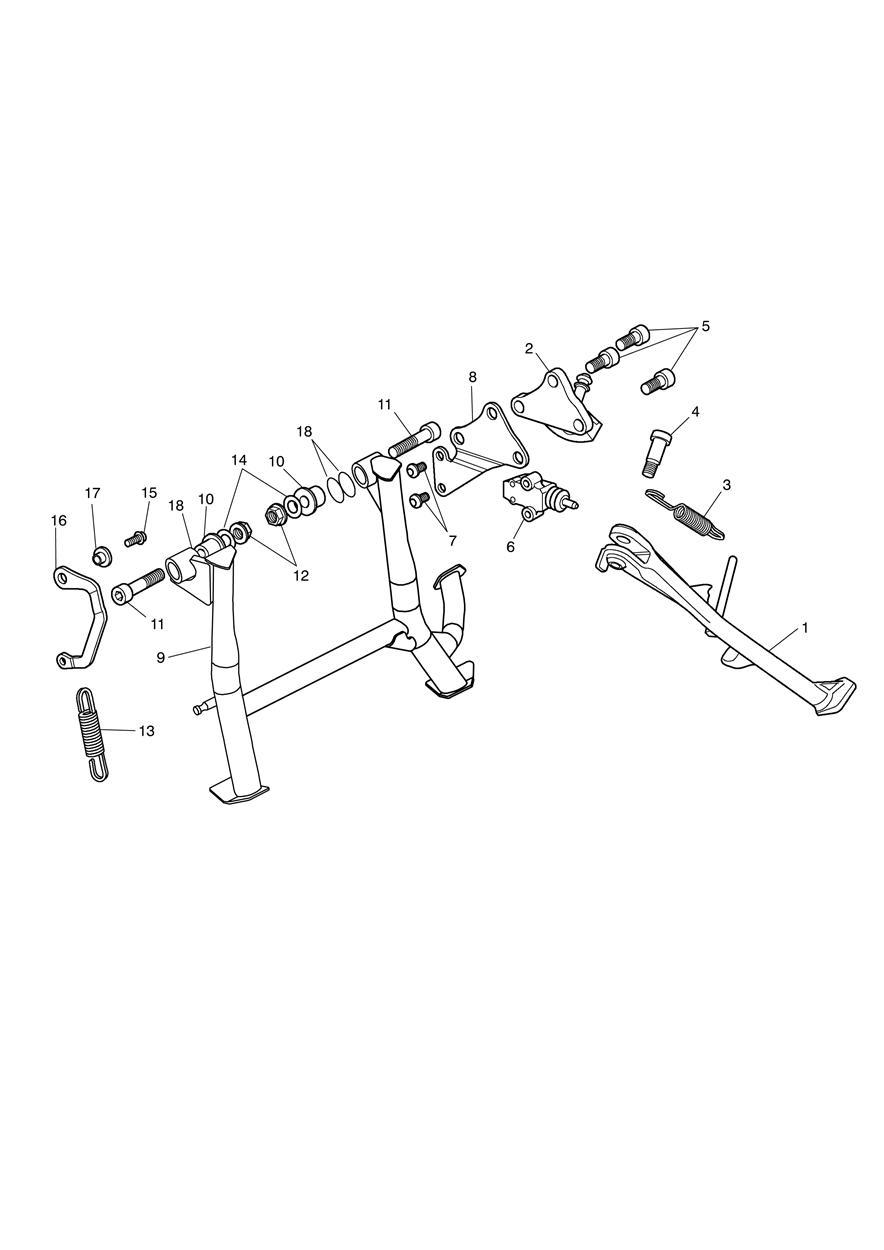

Sidestand & Centrestand
17 parts
