Front Suspension & Steering incl. Clutch Controls
Triumph Sprint · 3 diagrams
3 exploded diagrams for the front suspension & steering incl. clutch controls of the Triumph Sprint, covering the Sprint. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
59 parts you can order online
Every part below appears in Triumph’s Front Suspension & Steering incl. Clutch Controls diagrams for the Sprint and is priced and orderable online. Open a part to see what it fits and to buy it.

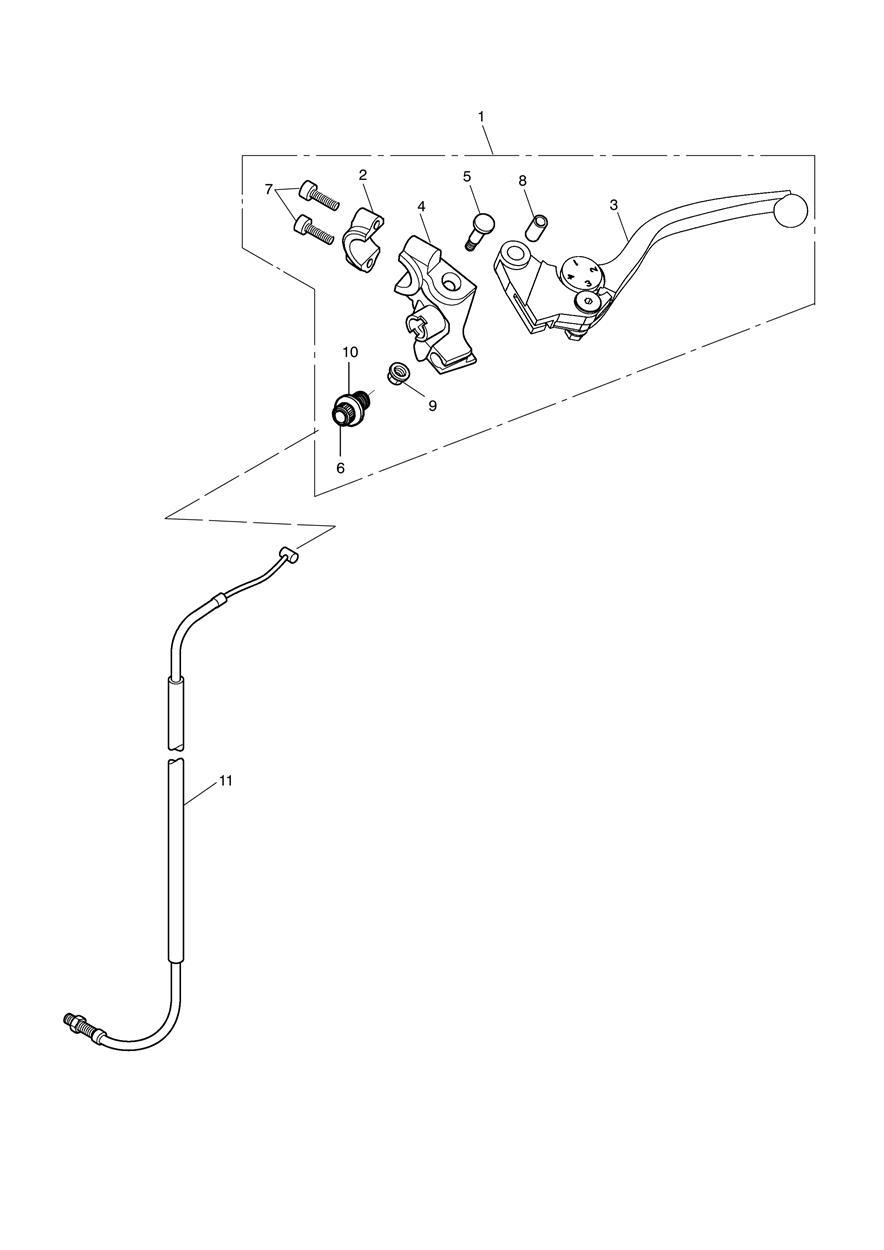

Clutch Controls
T2046592 Lever Assy, Clutch
$82.96
AvailableT2046510 Clamp, Clutch lever bracket
Low stock at Triumph
$14.86
Limited availabilityT2046021 Adjustable Clutch Lever
$81.41
AvailableT2046527 Clutch Lever Bracket
$36.08
AvailableT2046524 Pivot Bolt
$2.43
AvailableT2046520 Adjuster Screw
$7.90
AvailableT2046522 Bolt, Handlebar Clamp
$1.99
AvailableT2046526 Collar, Clutch Lever
$3.05
In stock in BreaT2046521 Nut, Pivot Bolt
Low stock at Triumph
$1.99

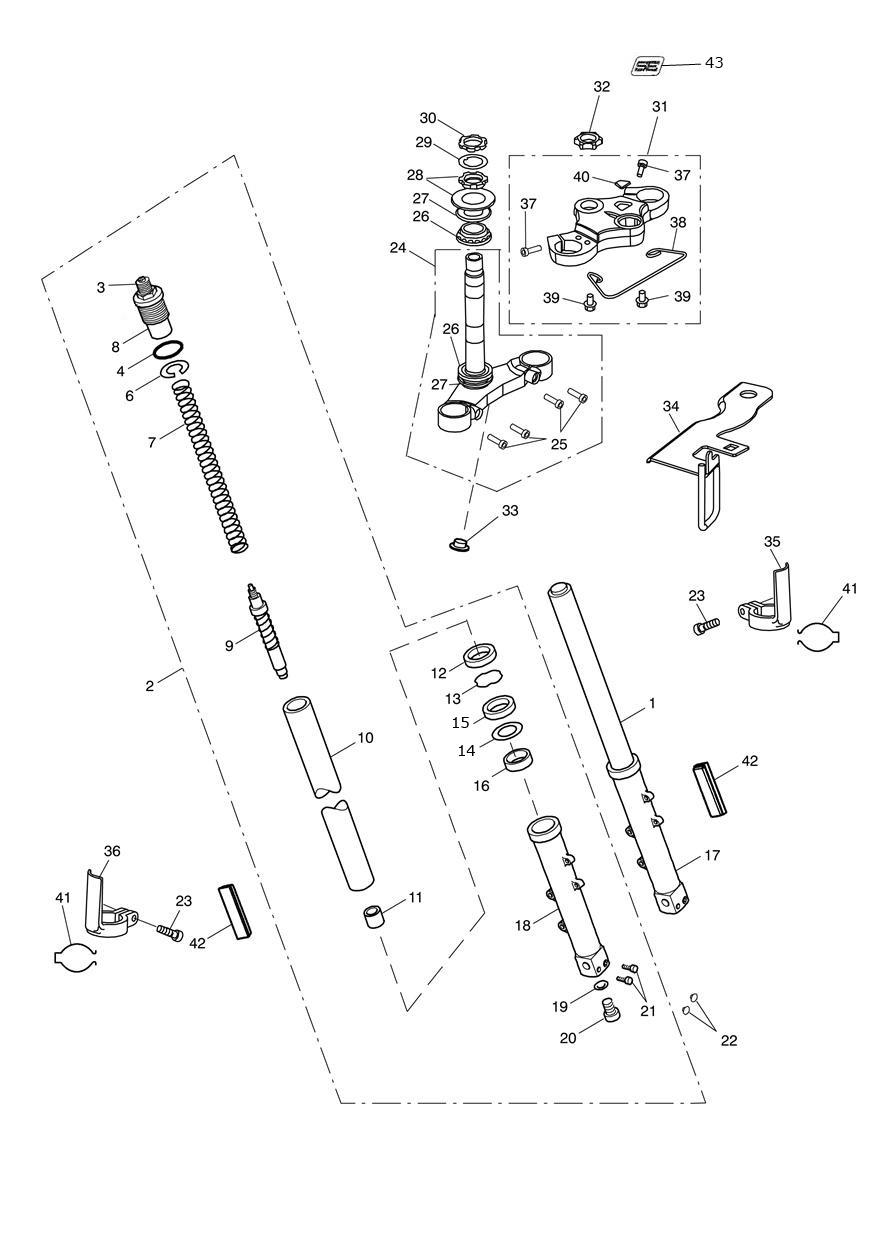

Limited availabilityFront Forks & Yokes
T2042932 Spring, Adj
$3.14
AvailableT2042905 O Ring, Fork Seal
Low stock at Triumph
$3.14
Limited availabilityT2042931 Spring, Guide
$11.88
AvailableT2042929 Spring, Fork
$98.58
AvailableT2042934 Fork, Bolt
$61.60
AvailableT2042935 Oil Lock, Cup
$9.52
AvailableT2041524 Kit, Dust Seals, Pair
$41.38
AvailableT2046248 Stop Ring
Low stock at Triumph
$6.33
Limited availabilityT2046246 Seal, Spacer
$5.54
AvailableT2048424 Oil Seal
$20.68
AvailableT2045862 Guide, Bush
$11.62
AvailableT2042763 Slider, Rh
$330.97
AvailableT2042907 Sealing washer
$1.99
AvailableT2042913 Bolt, Hex, Skt
$8.97
AvailableT2040429 Pinch Bolt, S6 Fork
$5.54
AvailableT3450200 Plug, Caphead, Chrome
$3.88
AvailableT3205062 Bolt, HHF, Lghtd, M6 x 12, Slv
Backordered at Triumph · expected Oct 23
$3.88
On backorderT3050132 Screw, Skt Hd, Ss
$3.24
AvailableT3800091 Bearing, Sac
$31.43
In stock in BreaT3600234 Dust Seal, Dia 55
Low stock at Triumph
$7.72
Limited availabilityT2040404 Cover Headstock Assy
$35.82
AvailableT2044183 Washer, Headstock
$7.68
AvailableT2040304 Locknut, M30
$19.08
AvailableT2040668 Upper Yoke Assembly
Backordered at Triumph · we’ll confirm the ship date after you order
$345.04
On backorderT2040442 Nut, Upper Yoke
$23.23
AvailableT3450250 Moss Plug
$1.99
AvailableT2020362 Bracket, Brake Hose
$8.62
AvailableT3050311 Screw, Skt, Cap, M8 x 30, S/S
$3.49
AvailableT3707676 Cable Guide
$3.88
AvailableT3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv
$1.99
AvailableT3900000 Upper Yoke Badge
$21.22
AvailableT3700025 Cable clip
$1.99
AvailableT2701237 Kit, Reflector, Amber
Low stock at Triumph
$26.31
Limited availabilityT2700332 Reflector, Amber, Oval
$5.92
AvailableT2304831 Badge, Fairing, SE
Backordered at Triumph · we’ll confirm the ship date after you order
$32.28

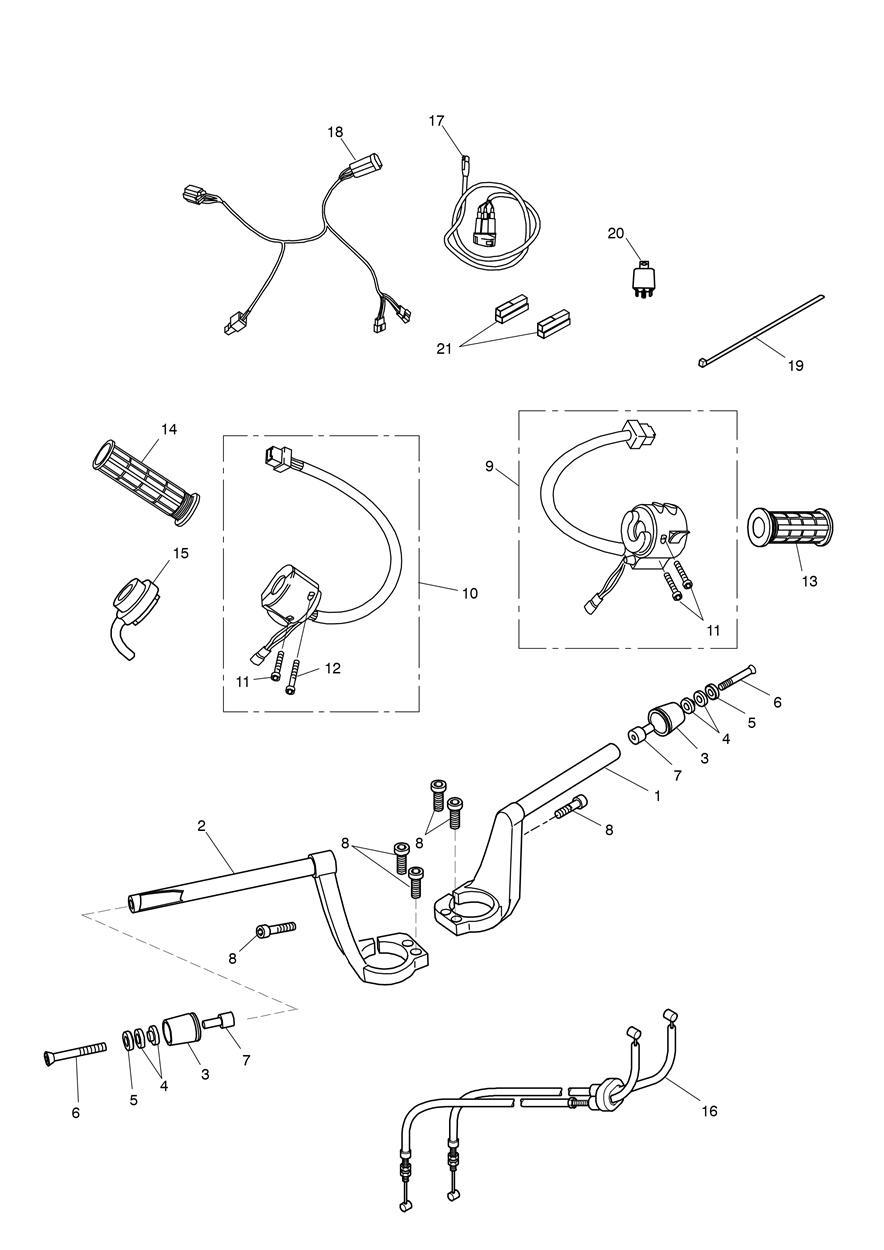

On backorderHandlebars & Switches
T2040651 Handlebar, LH
$170.73
AvailableT2040652 Handlebar, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$170.73
On backorderT2040975 Handlebar weight
$34.51
AvailableT2041030 Bush, Rubber, 27 x 10 x 21
$16.55
AvailableT2040969 Finisher, Handlebar
$16.38
AvailableT3330933 Screw, CSK, M6 x 60, Slv
$1.99
AvailableT2040977 Sleeve, Handlebar Weight
$8.24
AvailableT2040740 Handlebar Grip, LH
$16.81
AvailableT2040331 Grip, Handlebar, Rh
$16.81
AvailableT2040252 Throttle Actuator, Twin Cable
$59.83
AvailableT2040497 Throttle Cable Twin
$46.55
AvailableT2501493 Subharness
$36.05
AvailableT3700015 Cable Tie, 185.7 Long
$1.99
AvailableT2500155 Relay, 12V/30A
$25.84
AvailableT2506793 Terminal Block
$4.12
Available
