Bodywork & Bodywork Fixings
Triumph Street Scrambler & Scrambler 900 · 19 diagrams
19 exploded diagrams for the bodywork & bodywork fixings of the Triumph Street Scrambler & Scrambler 900, covering the Street Scrambler & Scrambler 900. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

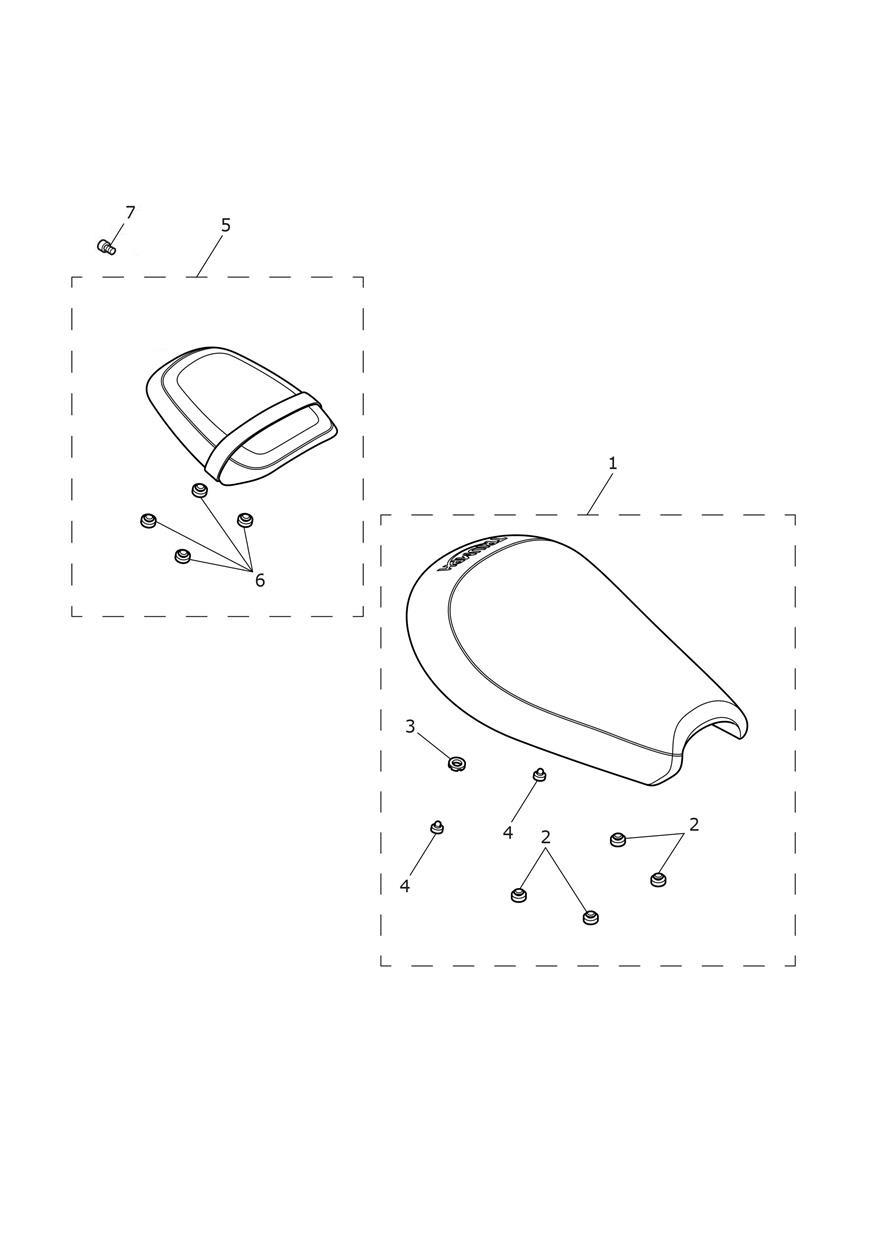

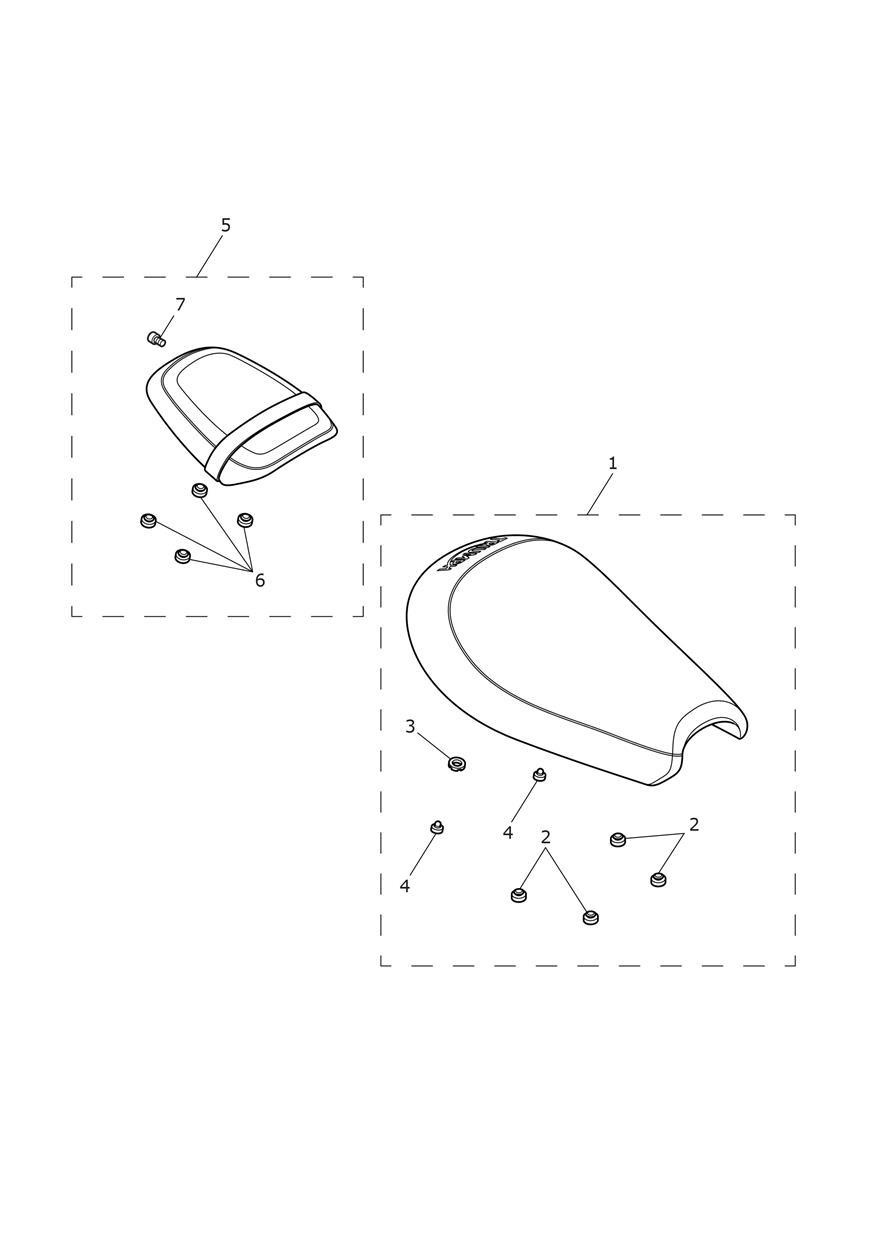

Seat Assembly
6 parts
VIN CM9964 and higher

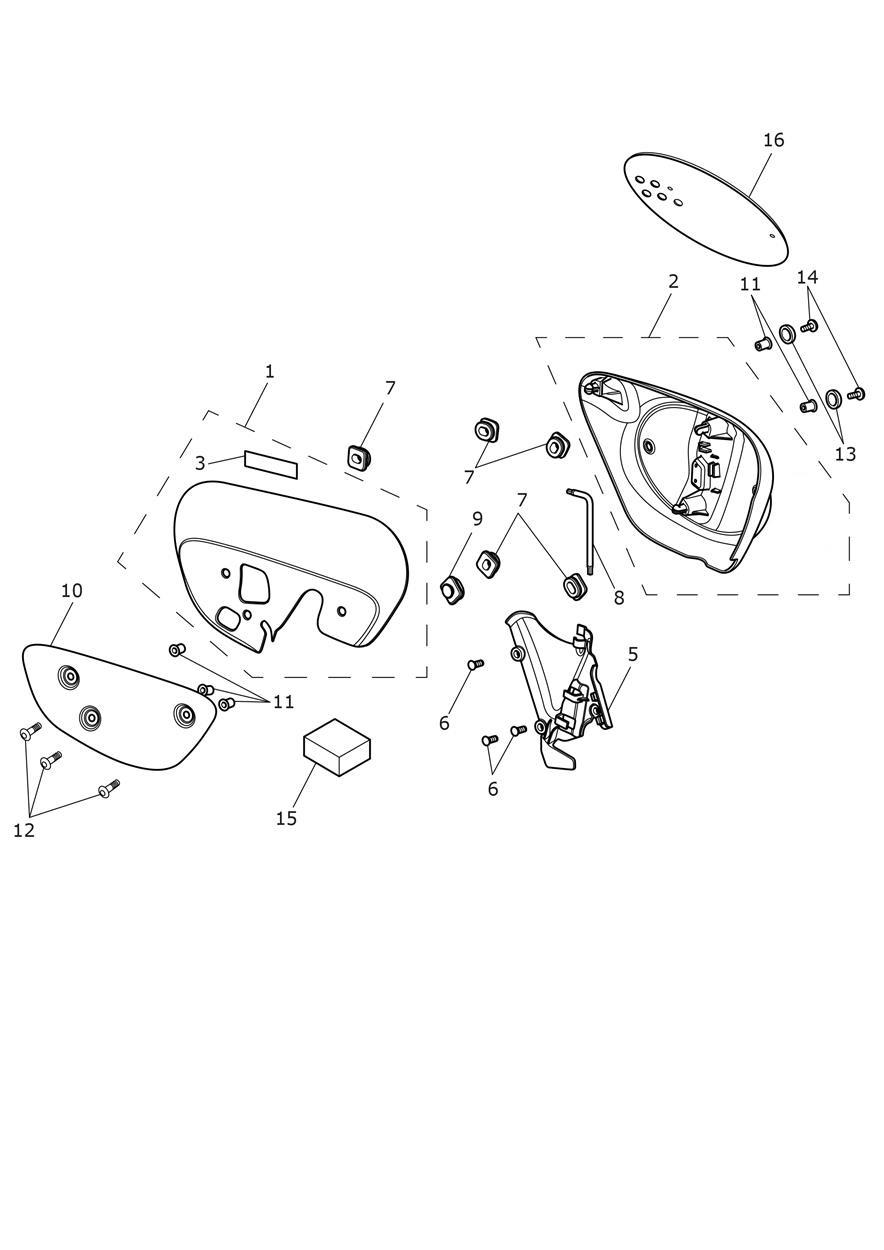

Side Fairing Panels
16 parts
VIN 914448 and higher

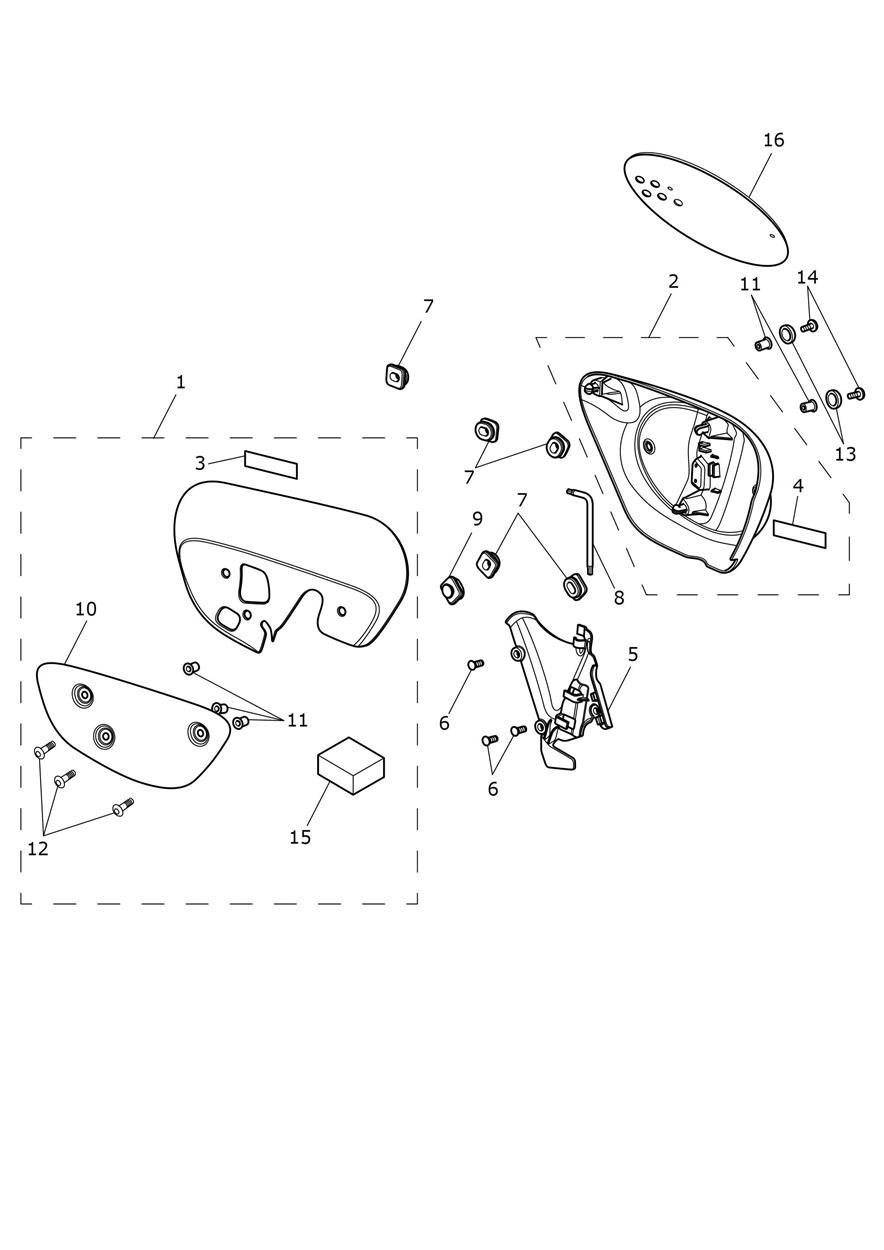

Side Fairing Panels - Cosmic Yellow/Graphite Bikes
15 parts
VIN CM9963 and lower

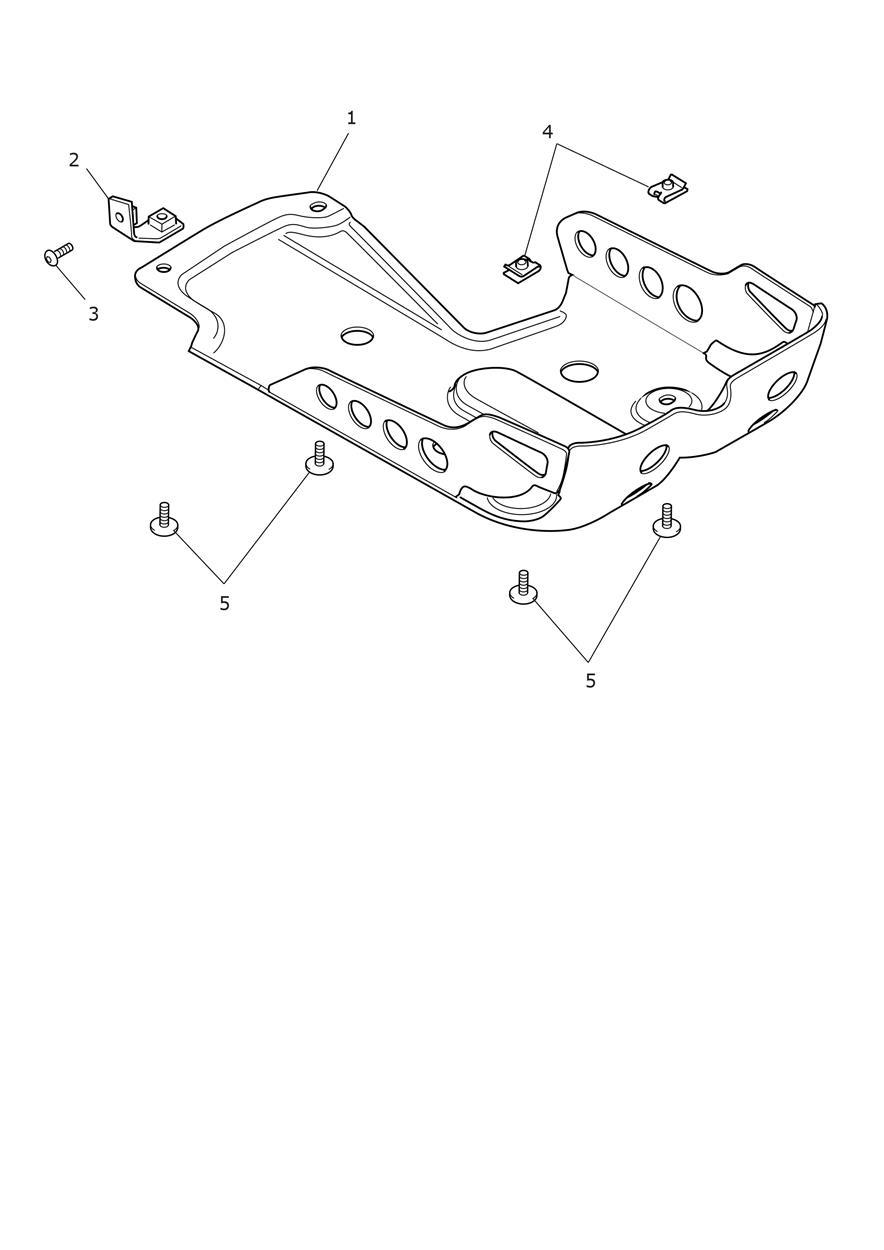

Sump Plate - Sandstorm Edition Only
5 parts
VIN AB9837 and higher

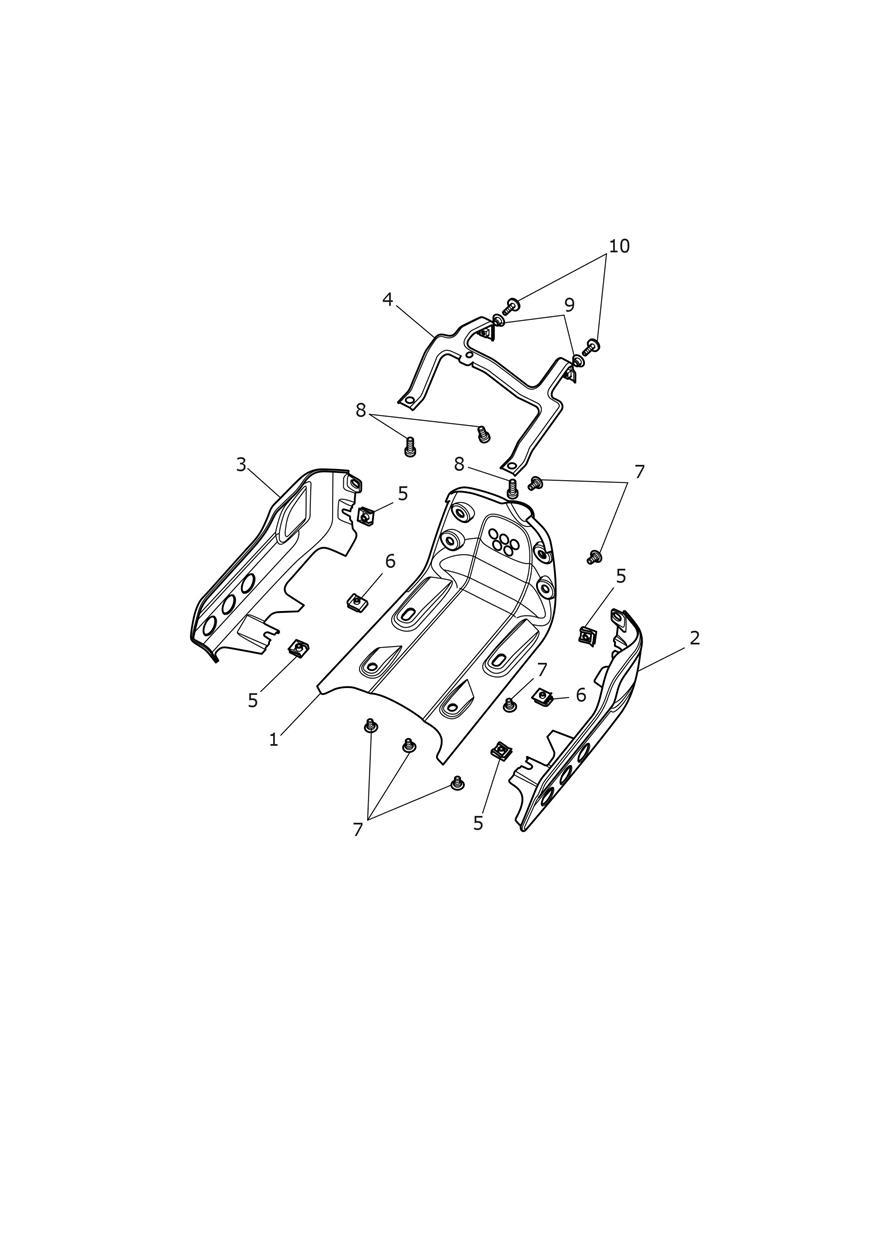

Bellypan
10 parts
VIN AB9836 and lower
Bellypan
10 parts
VIN CM9964 and higher
Bellypan - N/A to Sandstorm Edition
10 parts
VIN AB9837 and higher

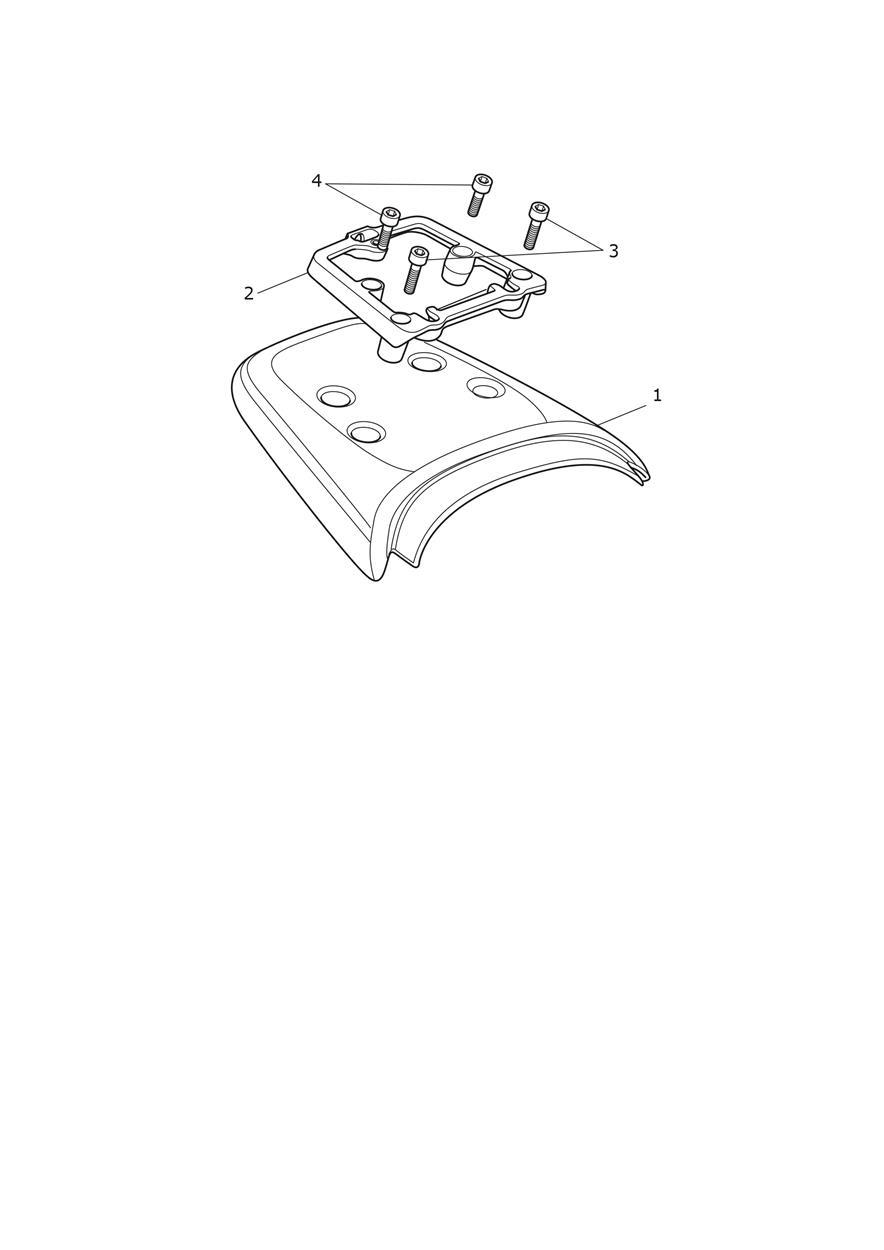

Rear Bodywork
6 parts
VIN CM9963 and lower
Seat Assembly
7 parts
VIN AB9837 and higher

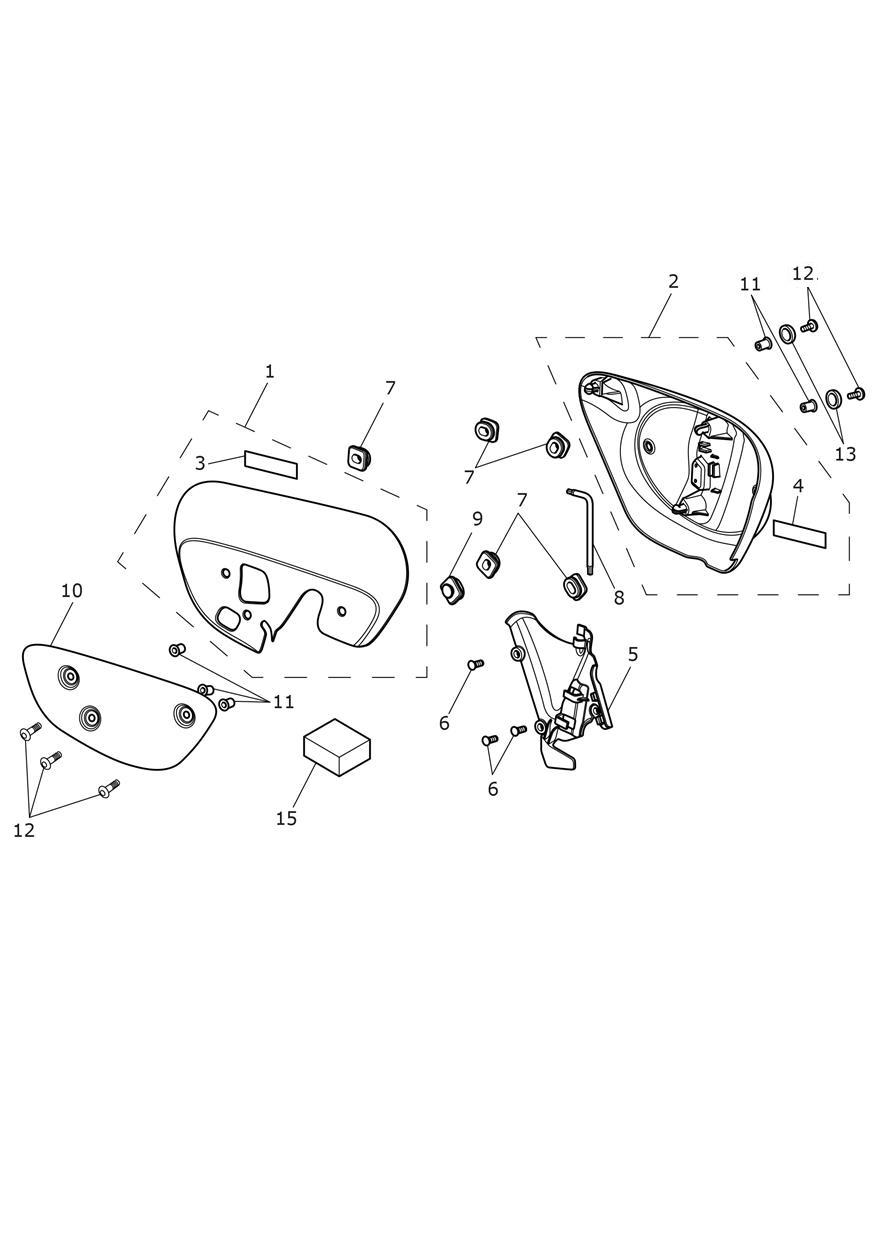

Side Fairing Panels
21 parts
VIN CM9963 and lower
Side Fairing Panels
21 parts
VIN 914447 and lower
Bellypan
10 parts
VIN CM9963 and lower

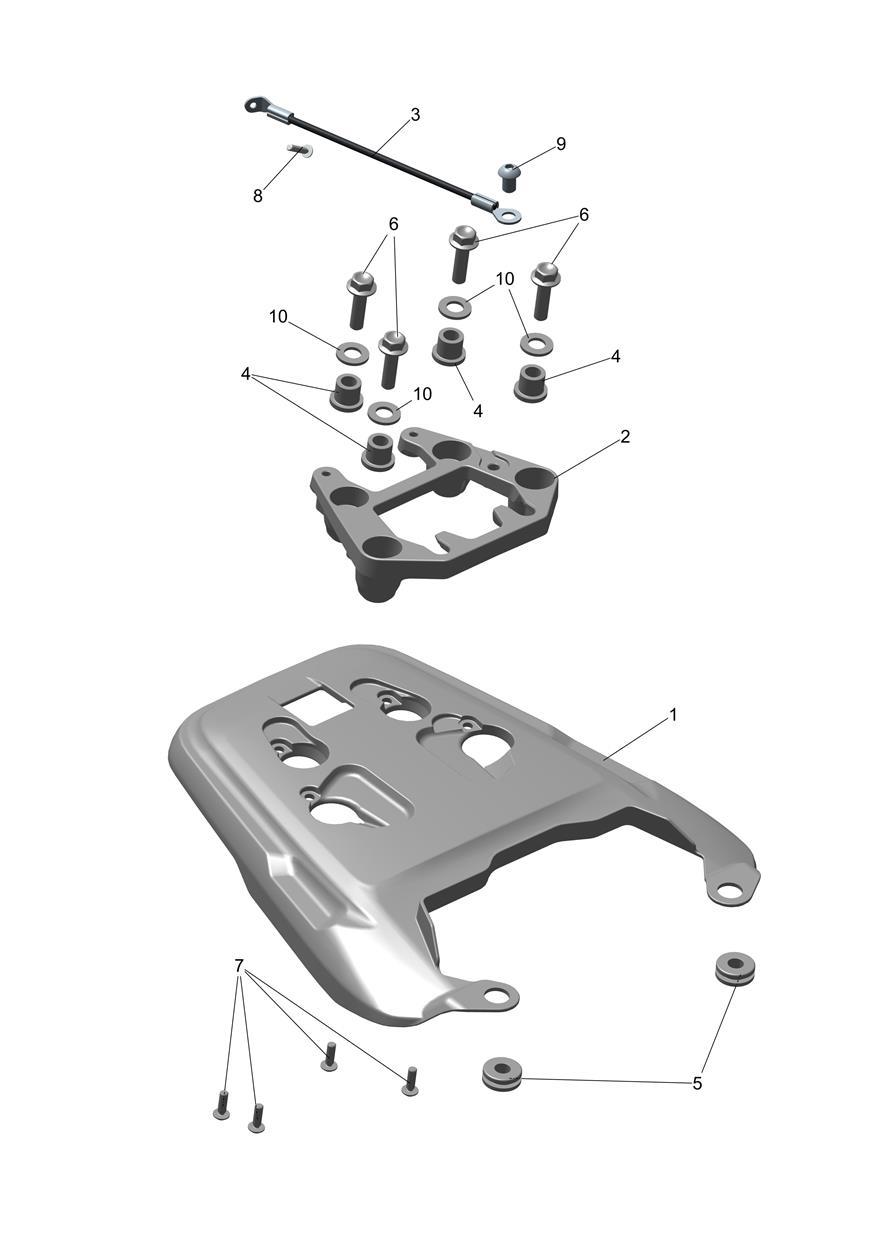

Rear Bodywork
10 parts
VIN AB9836 and lower
Side Fairing Panels
21 parts
VIN AB9837 and higher
Side Fairing Panels
37 parts
VIN CM9964 and higher
Rear Bodywork
6 parts
VIN AB9837 and higher
Rear Bodywork
12 parts
VIN CM9964 and higher
Seat Assembly
7 parts
VIN CM9963 and lower

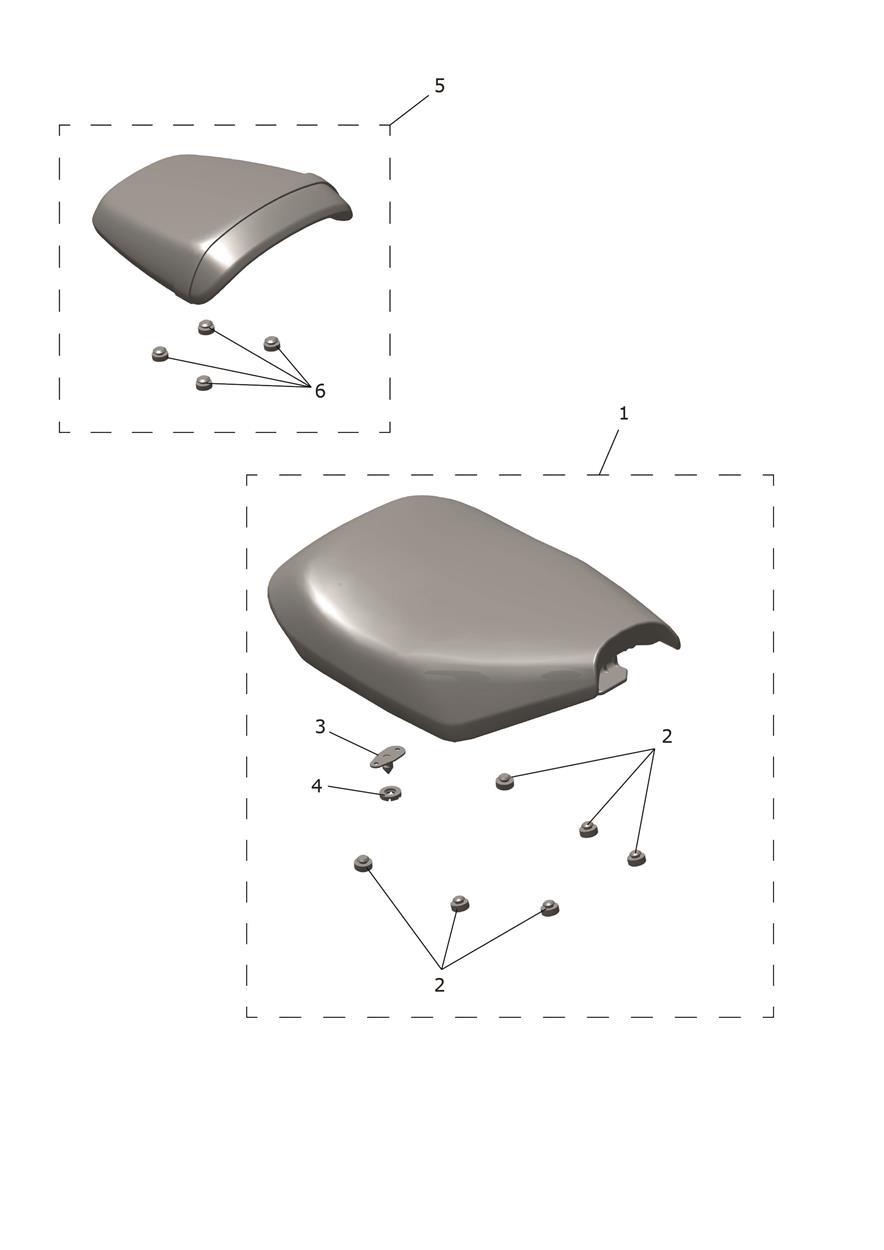

Seat Assembly
9 parts
VIN AB9836 and lower
84 parts you can order online
Every part below appears in Triumph’s Bodywork & Bodywork Fixings diagrams for the Street Scrambler & Scrambler 900 and is priced and orderable online. Open a part to see what it fits and to buy it.
Seat Assembly VIN CM9964 and higher
T2317095 Seat Assembly, Rider
Backordered at Triumph · we’ll confirm the ship date after you order
$392.47
On backorderT2307368 Rubber Foot, Seat
$3.42
In stock in BreaT2307365 Bayonet, Seat
Low stock at Triumph
$14.95
Limited availabilityT2307366 Spacer, Seat
Backordered at Triumph · we’ll confirm the ship date after you order
$2.20
On backorderT2317399 Rubber Foot, 6mm
$4.82
AvailableSide Fairing Panels VIN 914448 and higher
T2314108-PG Sidepanel, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$379.04
On backorderT2314108-PS Sidepanel, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$379.04
On backorderT2314107-PG Sidepanel, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$299.25
On backorderT2314107-PS Sidepanel, LH
$379.04
AvailableT2311905 Decal, Sidepanel, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$30.68
On backorderT2311908 Decal, Sidepanel, LH
$30.68
AvailableT2302776 Infill, Sidepanel, LH
$21.62
AvailableT3701098 Firtree, Dia 5 x 18
$4.85
In stock in BreaT3020054 Grommet, Sidepanel
Low stock at Triumph
$2.20
Limited availabilityT2305738 Allen Key, 4mm
$5.02
AvailableT3020106 Grommet, Frame, Mushroom
Backordered at Triumph · we’ll confirm the ship date after you order
$2.64
On backorderT3350050 Wellnut, M5
$6.16
AvailableT3330941 Screw, But/Hd, Skt, M5 x 16, Slv
$6.24
AvailableT3550249 Washer, 11 x 5.1 x 0.8
Low stock at Triumph
$2.09
Limited availabilityT3660174 Rubber Pad, 25 x 25 x 10mm
$5.92
AvailableSide Fairing Panels - Cosmic Yellow/Graphite Bikes VIN CM9963 and lower
T2311574-PG Sidepanel, RH, Jet Black
Backordered at Triumph · we’ll confirm the ship date after you order
$361.13
On backorderT2318611-PG Sidepanel, LH, Jet Black
$378.74
AvailableT3551290 Washer, Nylon, 14.0 x 6.4 x 1.2
$3.98
AvailableT3330696 Screw, But/Hd, M5 X 16, Slv
$5.27
AvailableT2311398 Board, Sidepanel, 900
Backordered at Triumph · we’ll confirm the ship date after you order
$109.49
On backorderSump Plate - Sandstorm Edition Only VIN AB9837 and higher
T9700371 Bracket, Sump Plate, RH
$13.39
AvailableT3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv
$1.99
In stock in BreaT3350111 Nut, Captive, M6
Low stock at Triumph
$4.56
Limited availabilityT3330727 Screw, But/Hd, M6 x 20, Slv
$3.14
AvailableBellypan VIN AB9836 and lower
T2309845 Bellypan, Front
$31.17
AvailableT2309867 Bellypan, RH
$31.17
AvailableT2309856 Bellypan, LH
$31.17
AvailableT2309823 Bracket, Bellypan
Backordered at Triumph · we’ll confirm the ship date after you order
$17.51
On backorderT3351021 Nut, Captive, M6, Slv
$1.99
AvailableT3330858 Bolt, But/Hd, M6 x 15, Shld, Slv
$2.36
AvailableT3050321 Screw, Cap/Hd, M8 x 20, Slv
$6.87
AvailableT3010707 Sleeve, Flanged, 6.4 x 10 x 6.5
$3.32
AvailableRear Bodywork VIN CM9963 and lower
T3050323 Screw, Cap/Hd, M8 x 30, Slv
$4.39
AvailableT3051097 Screw, Cap/Hd, M8 x 25, Silver
$3.81
AvailableSeat Assembly VIN AB9837 and higher
T2310271 Seat Assembly, Solo
$490.19
AvailableT2307367 Rubber Foot, Seat Base
Low stock at Triumph
$3.71
Limited availabilityT2310463 Seat Assembly, Pillion
$201.05
AvailableT3050341 Screw, Cap/Hd, M5 x 10, Slv
Low stock at Triumph
$3.51
Limited availabilitySide Fairing Panels VIN CM9963 and lower
T2318611-PS Sidepanel, LH, Matt Jet Black
$378.74
AvailableT2311524 Decal, Sidepanel, 900
Backordered at Triumph · we’ll confirm the ship date after you order
$36.11
On backorderSide Fairing Panels VIN 914447 and lower
T2306496-PG Sidepanel, RH, Painted
$379.04
AvailableT2306496-PS Sidepanel, RH, Painted
$379.04
AvailableT2306494-PG Sidepanel, LH, Painted
$379.04
AvailableT2306494-PS Sidepanel, LH, Painted
Backordered at Triumph · we’ll confirm the ship date after you order
$360.86
On backorderT2306462-PG Sidepanel, LH, Painted
$379.04
AvailableT2306467 Decal, Sidepanel, RH
$30.11
AvailableRear Bodywork VIN AB9836 and lower
T2309675 Luggage Rack
$181.31
AvailableT2310073 Bobbin, Luggage Rack
$29.90
AvailableT3330949 Screw, CSK, M6 x 14, Slv
$2.20
AvailableT3904075 Max Load Label 3KG
$5.27
AvailableT3600126 O Ring, ID 7.1 x 1.6
$2.81
AvailableSide Fairing Panels VIN AB9837 and higher
T2315027-LZ Sidepanel, RH
Backordered at Triumph · expected Nov 6
$359.12
On backorderT2314110-PS Sidepanel, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$379.04
On backorderT2318601-LZ Sidepanel, RH
$359.12
AvailableT2318591 Board, Sidepanel
$94.89
AvailableSide Fairing Panels VIN CM9964 and higher
T2312986-PD Sidepanel, RH, Matt Phantom Black
$365.87
AvailableT2317250 Sidepanel Assy, LH, Urban Grey
Backordered at Triumph · we’ll confirm the ship date after you order
$365.87
On backorderT2317260 Sidepanel Assy, LH, Matt Phantom Black
$365.87
AvailableT2315653 Decal, Sidepanel, RHS, 900, Empire Gold
Backordered at Triumph · expected Oct 30
$29.93
On backorderT2312988 Heatshield, Sidepanel
Backordered at Triumph · we’ll confirm the ship date after you order
$53.21
On backorderT3550253 Washer, Dia 5 mm, Retaining
$1.99
In stock in BreaT2314037 Finisher, HPDC, LH
Backordered at Triumph · expected Oct 23
$33.26
On backorderT2311746 Finisher, Support Mldg, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$5.77
On backorderT2313085 Clip, Bodywork
$2.26
AvailableT2314038 Finisher, HPDC, RH
$33.26
AvailableT2314088 Finisher, Support, Mldg, RH
$5.98
AvailableT3020131 Grommet, 9 x 2 x 6
$1.99
AvailableT3330957 Screw, But/Hd, M5 x 12, Slv
$7.83
AvailableT3331005 Screw, But/Hd, M5 x 14, Slv, Enc
$7.83
AvailableRear Bodywork VIN CM9964 and higher
T2309807 Seat Lanyard
$24.71
AvailableT3020188 Grommet, 16.5 x 3 x 9.5
$1.99
AvailableT3205653 Bolt, HHF, Lghtd, M8 x 30, Slv
$1.99
AvailableT3331414 Screw, S/Tap, Tx, 5 x 16
$1.99
In stock in BreaT3331432 Screw, Pan/Hd, Torx, M4 x 18, Slv
Low stock at Triumph
$1.99
Limited availabilityT3331625 Screw, Btn Hd, M8 x 12, Slv
$1.99
AvailableT3555041 Washer, 10.25 x 19.5 x 2
Low stock at Triumph
$2.62
Limited availability
