Cooling System
Triumph Street Scrambler & Scrambler 900 · 4 diagrams
4 exploded diagrams for the cooling system of the Triumph Street Scrambler & Scrambler 900, covering the Street Scrambler & Scrambler 900. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Cooling System
36 parts
VIN CM9963 and lower
Cooling System
36 parts
VIN AB9837 and higher
Cooling System
37 parts
VIN AB9836 and lower
Cooling System
36 parts
VIN CM9964 and higher
41 parts you can order online
Every part below appears in Triumph’s Cooling System diagrams for the Street Scrambler & Scrambler 900 and is priced and orderable online. Open a part to see what it fits and to buy it.
Most of these parts are shared with the Street Twin & Speed Twin 900 book. 2 parts are specific to the Street Scrambler & Scrambler 900.

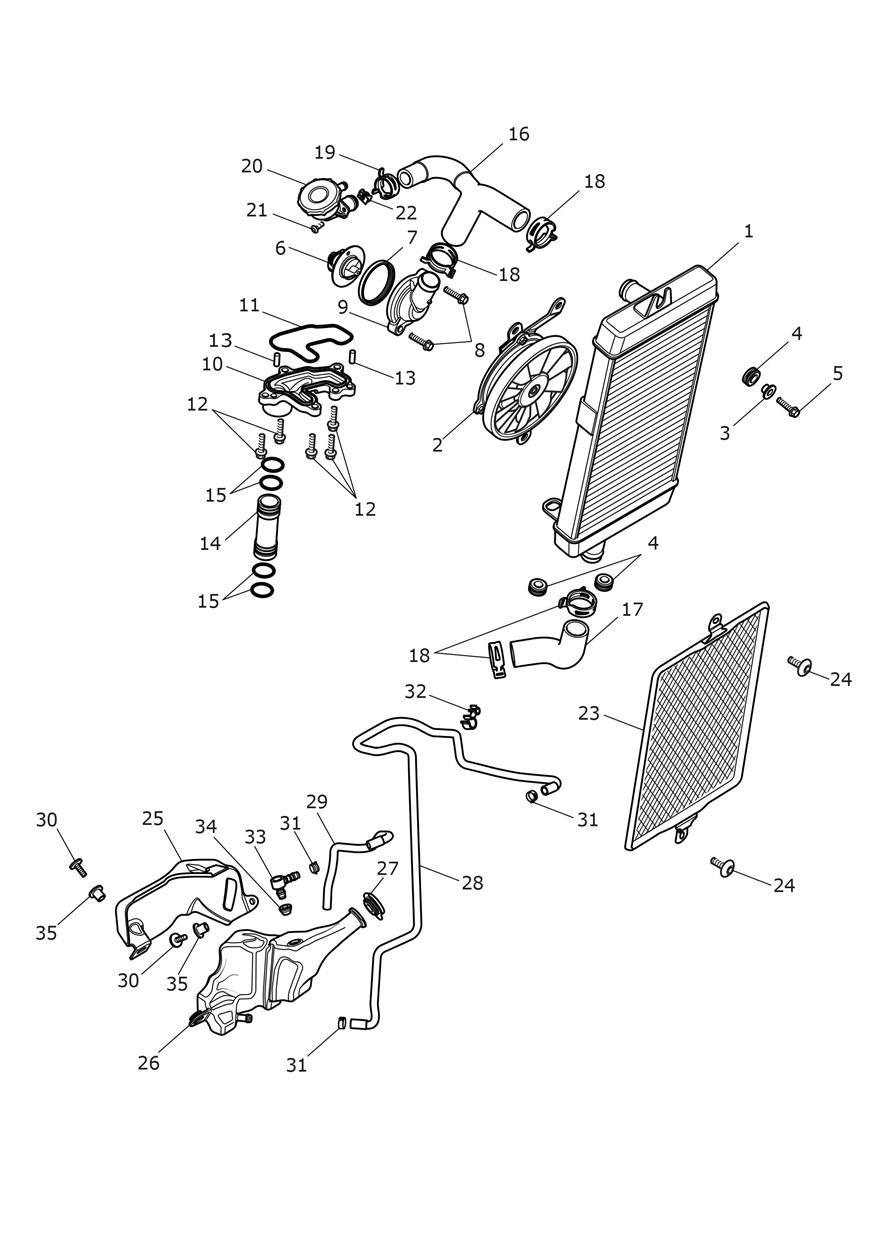

Cooling System VIN CM9963 and lower
T2101333 Radiator
$895.87
AvailableT2101668 Fan, Radiator
$475.29
AvailableT3010702 Flanged Sleeve, 6.4 x 10 x 8.5
$5.35
AvailableT3020153 Grommet, 13 x 3 x 10
$1.99
AvailableT3205067 Bolt, HHF, Lghtd, M6 x 25, Slv
$2.27
AvailableT2100676 Thermostat
Low stock at Triumph
$63.35
Limited availabilityT2100201 Seal, Thermostat
$6.61
In stock in BreaT3205083 Bolt, HHF, Lghtd, M6 x 28, Slv
$2.29
AvailableT2101255 Cover, Water Outlet
$51.04
AvailableT2101266 Coolant Manifold
$119.69
AvailableT3200134 Bolt, RHHF, M6x25, Encaps
$2.53
AvailableT3000005 Dowel, Dia 6 x 16.5
$1.99
AvailableT2101221 Pipe, Coolant
$27.46
AvailableT3600124 O Ring, ID 21.5 x 3
$3.14
In stock in BreaT2100877 T Piece Assy, Coolant
$35.04
AvailableT2101477 Hose, Coolant, Rad to Engine
Low stock at Triumph
$12.66
Limited availabilityT3706215 Clamp, Constant Tension, Dia 30
$12.95
AvailableT3706212 Clamp, Constant Tension, Dia 23
$12.95
AvailableT3330696 Screw, But/Hd, M5 X 16, Slv
$5.27
AvailableT3350129 Nut, Captive, M5
Low stock at Triumph
$3.14
Limited availabilityT2109602 Grill, Radiator
Backordered at Triumph · we’ll confirm the ship date after you order
$103.83
On backorderT3330958 Screw, But/Hd, M5 x 10, Blk, Enc
$1.99
In stock in BreaT2101144 Expansion Tank, Coolant
$88.00
AvailableT2101015 Cap, Expansion Tank
Low stock at Triumph
$1.99
Limited availabilityT2100886 Hose, Rad to Expansion Tank
$14.77
AvailableT2100687 Hose, Expansion Tank Overflow
$49.29
AvailableT3330727 Screw, But/Hd, M6 x 20, Slv
$3.14
AvailableT3700440 Clip, Hose, 11-12.5mm
$5.02
In stock in BreaT3700190 Clip, Rear Brake Hose
$2.81
AvailableT2100433 Elbow, Overflow, Quickfit
Low stock at Triumph
$6.33
Limited availabilityT3450141 Grommet, TPE, Quickfit
Low stock at Triumph
$2.01
Limited availabilityT3010707 Sleeve, Flanged, 6.4 x 10 x 6.5
$3.32
AvailableCooling System VIN AB9837 and higher
Cooling System VIN AB9836 and lower
T2101666 Fan, Radiator
$475.29
AvailableT2101233 Pipe, Coolant Feed, Internal
$27.46
AvailableT2101180 T-Piece, Coolant, Assy
$25.71
AvailableT2101499 Filler Neck, Coolant
Low stock at Triumph
$73.93
Limited availabilityT2100773 Hose, Rad to Expansion Tank
$15.42
Available
