Rear Swinging Arm & Rear Suspension
Triumph Street Triple from BF1297 · 9 diagrams
9 exploded diagrams for the rear swinging arm & rear suspension of the Triumph Street Triple from BF1297, covering the Street Triple 765 R, Street Triple 765 RS, Street Triple 765 RX. This book covers frames from VIN BF1297 onward. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

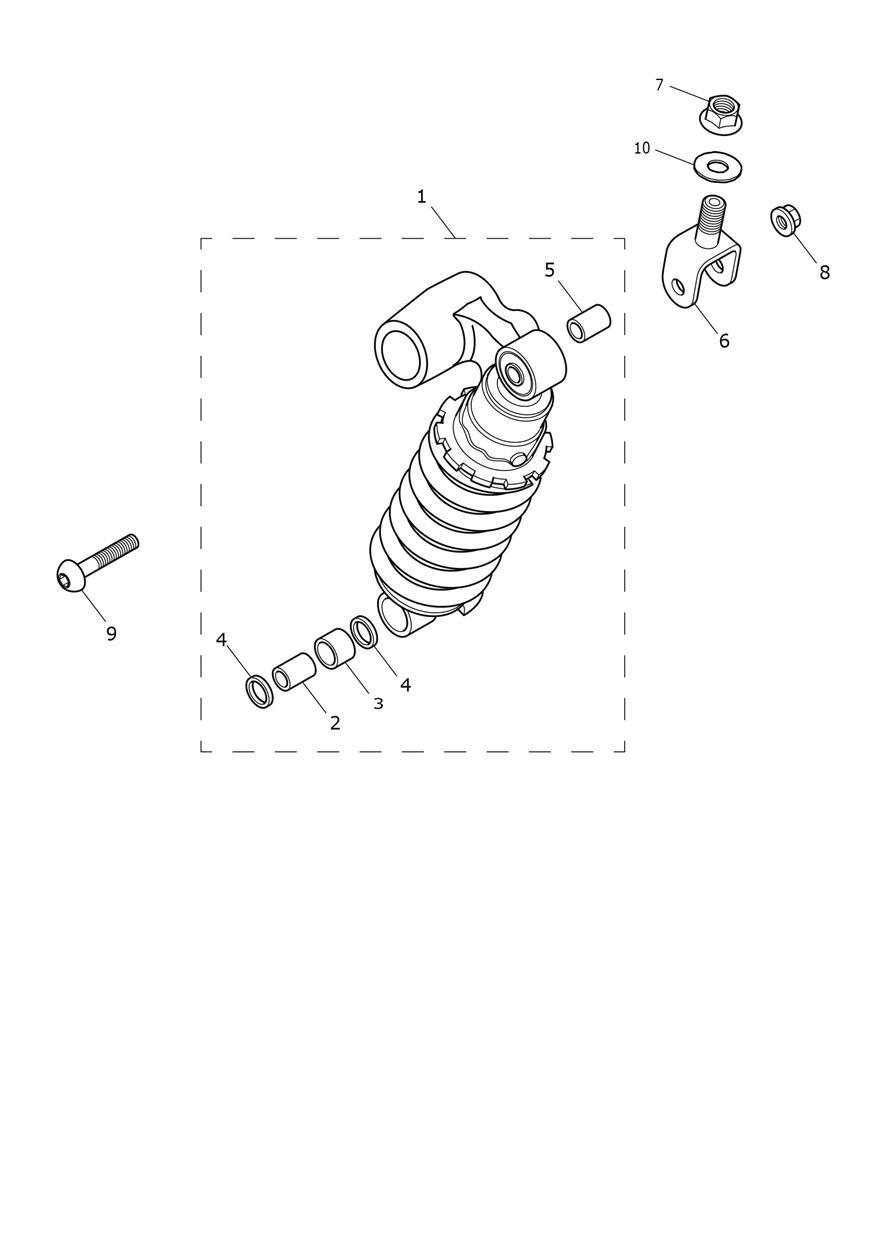

Rear Suspension Unit
10 parts

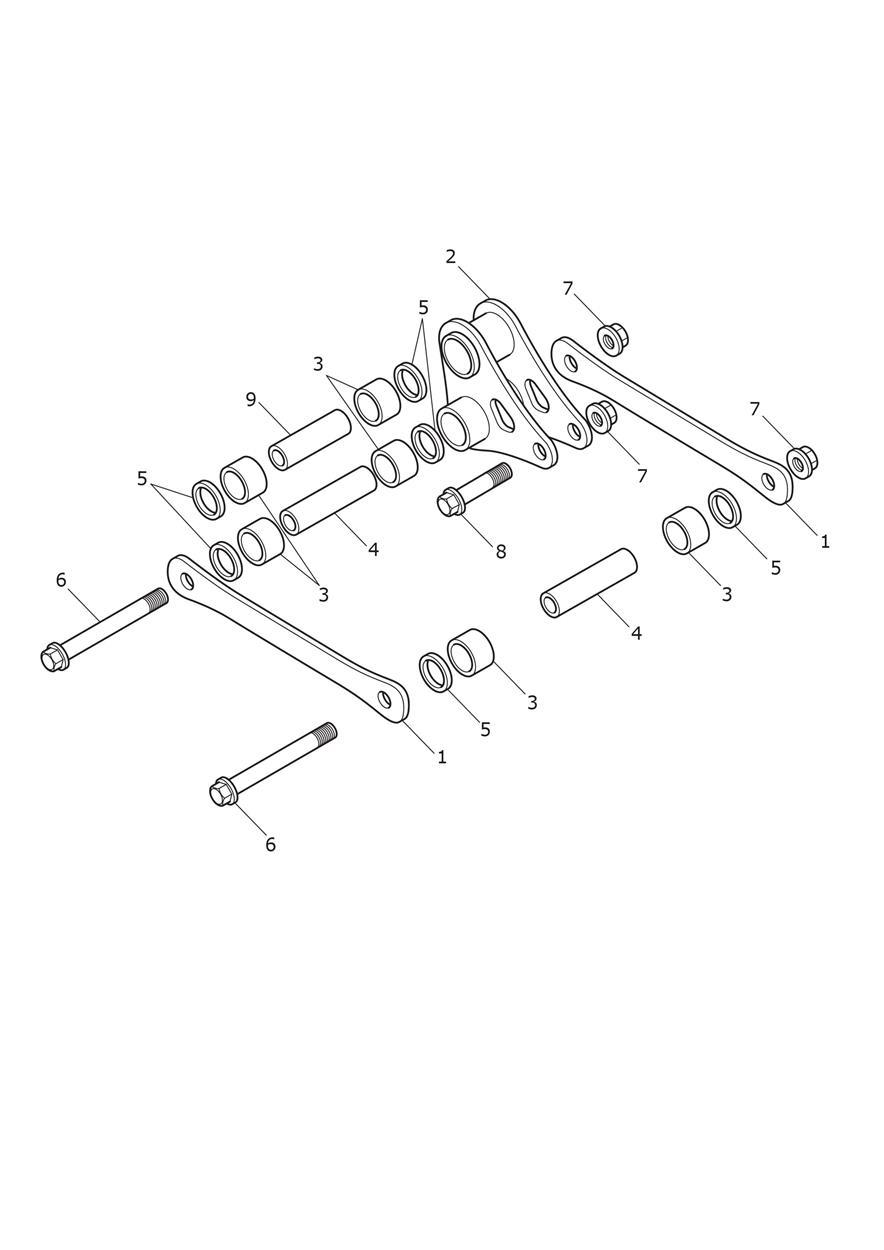

Rear Suspension Linkage
9 parts

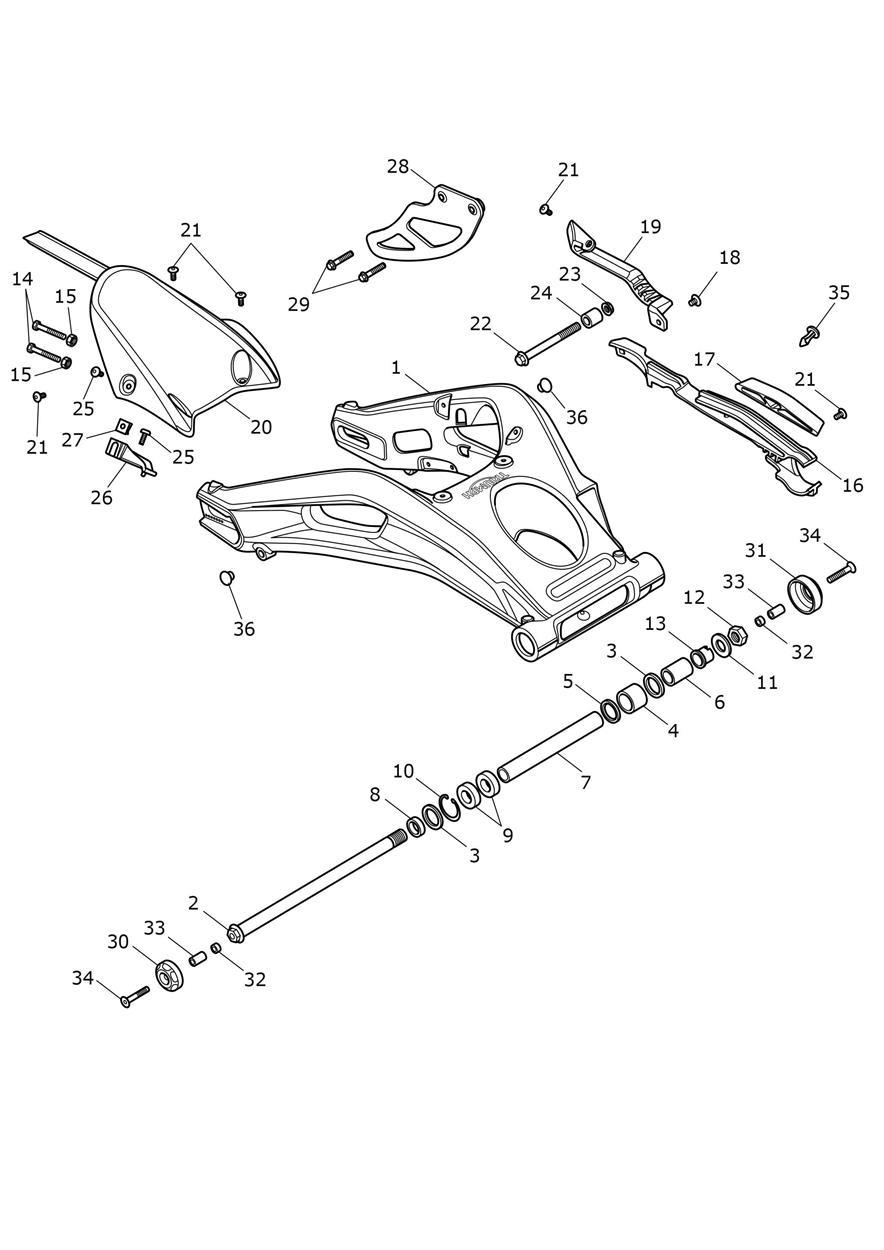

Rear Swingarm
36 parts
Rear Swingarm
36 parts
Rear Suspension Linkage
9 parts

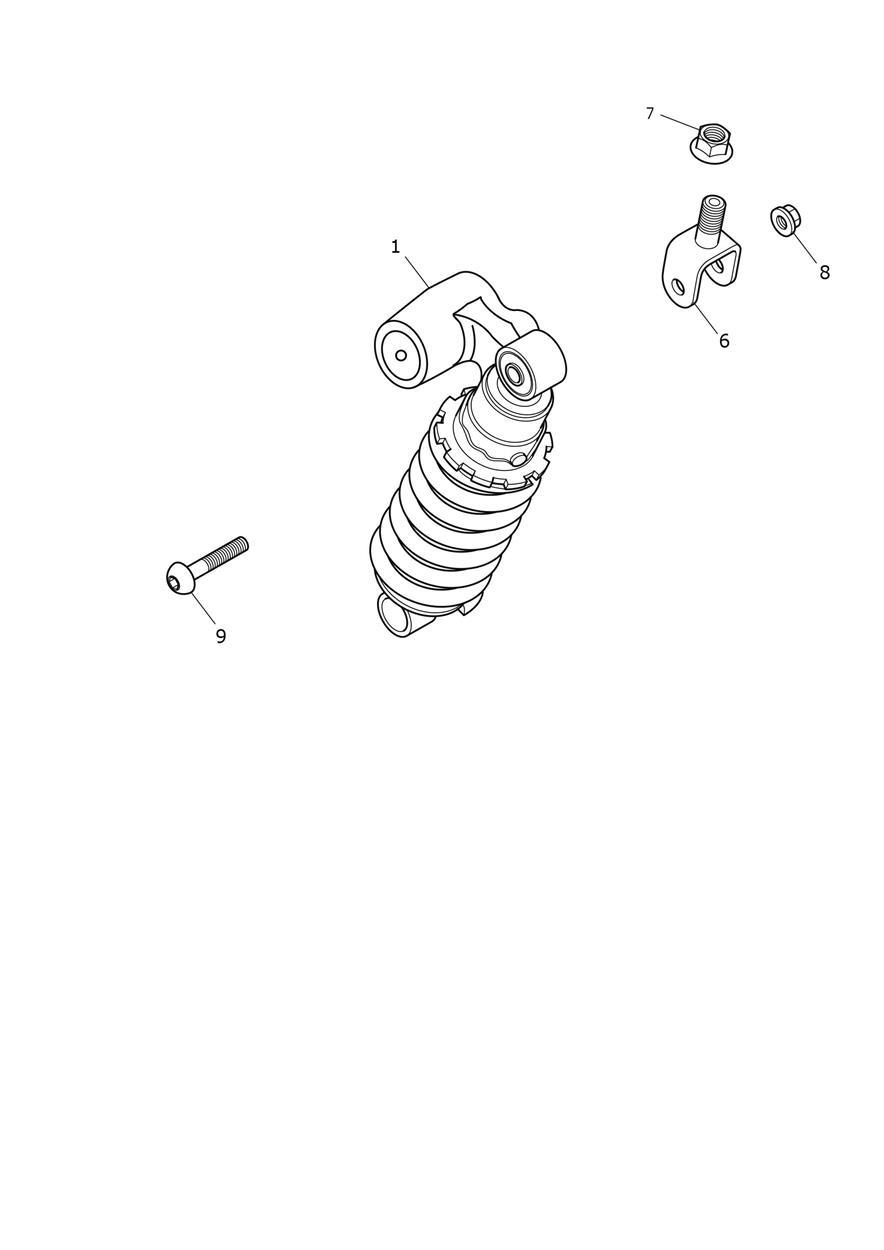

Rear Suspension Unit
10 parts

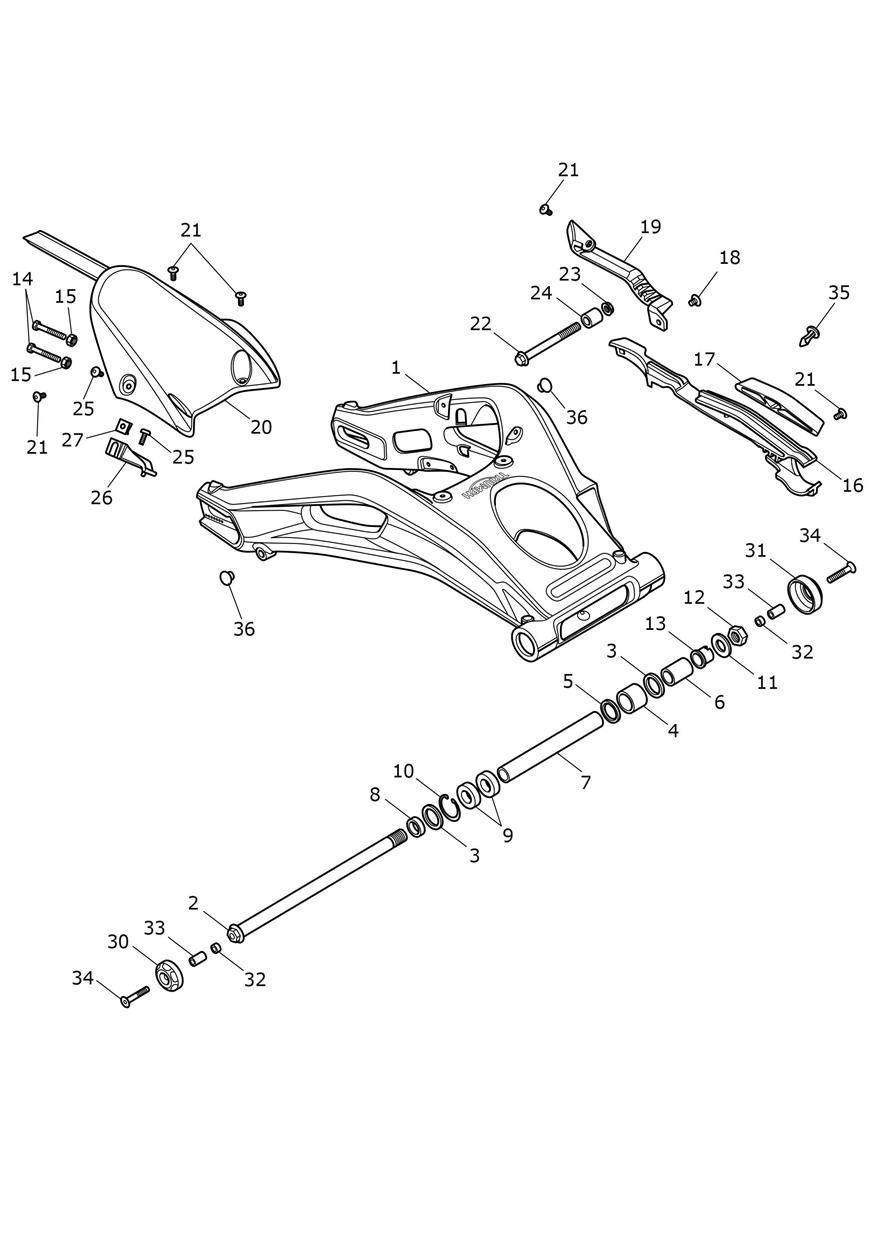

Rear Swingarm
34 parts
Rear Suspension Linkage
9 parts
Rear Suspension Unit
5 parts
50 parts you can order online
Every part below appears in Triumph’s Rear Swinging Arm & Rear Suspension diagrams for the Street Triple from BF1297 and is priced and orderable online. Open a part to see what it fits and to buy it.
Most of these parts are shared with the Street Triple Moto2 and Street Triple Moto2 Edition - BN4429 > books. 1 part is specific to the Street Triple from BF1297.
Rear Suspension Unit
T2050312 Rear Suspension Unit
$2182.86
AvailableT2050389 Sleeve, 10 x 17 x 25
Backordered at Triumph · we’ll confirm the ship date after you order
$5.35
On backorderT3801137 Bearing, Needle Roller
Backordered at Triumph · we’ll confirm the ship date after you order
$57.22
On backorderT2050915 Clevis, RSU Mount
$34.51
AvailableT3350099 Locknut, Flanged, M14
$4.56
AvailableT3350250 Locknut, Flanged, M10
$3.85
In stock in BreaT3332650 Bolt, TX, M10 x 52.5
$13.58
AvailableT2050786 Spacer, RSU, Upper
$6.53
AvailableRear Suspension Linkage
T2057973 Drag Link
Low stock at Triumph
$37.58
Limited availabilityT2057988 Drop Link, Fabricated
$26.82
AvailableT3800177 Bearing, Needle Roller, 17 24 15
$16.38
AvailableT2050282 Sleeve, Ground, 17 10 67
$18.29
AvailableT3600066 Oil Seal, 24 17 5
Low stock at Triumph
$7.90
Limited availabilityT3205854 Bolt, HHF, M10 x 90, Slv
$7.64
AvailableT3205825 Bolt, HHF, Lghtd, M10 x 45, Slv
$6.33
AvailableT2055588 Sleeve, Ground, 17 10 54
$8.82
AvailableRear Swingarm
T2050460 Spindle, Swingarm
$93.29
AvailableT3600044 Oil Seal, 35 25 4
Low stock at Triumph
$9.67
Limited availabilityT3800014 Roller bearing
Backordered at Triumph · expected Nov 20
$13.26
On backorderT3600170 Seal, SD 25 32 04
Backordered at Triumph · expected Nov 6
$12.51
On backorderT2053188 Sleeve, Ground, 25 x 17 x 37
Low stock at Triumph
$8.82
Limited availabilityT2051520 Spacer, Internal, 22 x184
$39.27
AvailableT2054063 Spacer, 25 x 17 x 8.5
$7.41
AvailableT3800506 Bearing, Ball, 17 x 35 x 10
$17.86
AvailableT3500204 Circlip, Int, 35 x 1.5
$1.99
AvailableT3551240 Washer, M16 x 34 x 3
Low stock at Triumph
$2.43
Limited availabilityT3350155 Locknut, Thin, M16
Low stock at Triumph
$8.71
Limited availabilityT3203204 Screw, H/Hd, M8 x 55, Slv
$2.17
AvailableT3350303 Nut, M8, Silver
$1.99
AvailableT2057441 Chain Rubbing Strip
Low stock at Triumph
$43.30
Limited availabilityT2057962 Rubber, Chain Rubbing Strip
Low stock at Triumph
$16.55
Limited availabilityT3450299 Firtree, M6
$3.08
AvailableT2050406 Rubbing Strip, Upper, Chain
$17.36
AvailableT2057949 Hugger, Chainguard
$76.60
AvailableT3331078 Bolt, But/Hd, M5 x 14, Shld, Slv
$8.01
AvailableT3205853 Bolt, HHF, M10 x 110, Slv
$7.64
AvailableT2050382 Sleeve, 10 x 20 x 21.5
$18.29
AvailableT3330941 Screw, But/Hd, Skt, M5 x 16, Slv
$6.24
AvailableT2308062 Hugger Mount Bracket
Backordered at Triumph · expected Nov 6
$11.98
On backorderT3351002 Nut, Captive, U-Type, M5, Slv
$2.20
AvailableT2052013 Chain Guard, Lower
Low stock at Triumph
$68.73
Limited availabilityT3330893 Bolt, RHHF, M5 x 25, S5041
$1.99
AvailableT2052066 Finisher, Spindle, Swingarm, RH
$20.50
AvailableT2052067 Finisher, Spindle, Swingarm, LH
$20.50
AvailableT3350196 Nut, M8, Cylindrical
$4.21
AvailableT2050376 Tube, ID 5.2, OD 7.5, 14 Long
$16.81
AvailableT3330678 Screw, Csk, M5 x 30, S/S
$3.08
AvailableT3701170 Plastic Rivet, Screw Type
$1.99
AvailableT3700180 Plug, Hole, Plastic
$2.36
