Electrical System

Triumph Street Triple Moto2 Edition - BN4429 > · 8 diagrams

8 exploded diagrams for the electrical system of the Triumph Street Triple Moto2 Edition - BN4429 >, covering the Street Triple Moto2 Edition. This book covers frames from VIN BN4429 onward. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

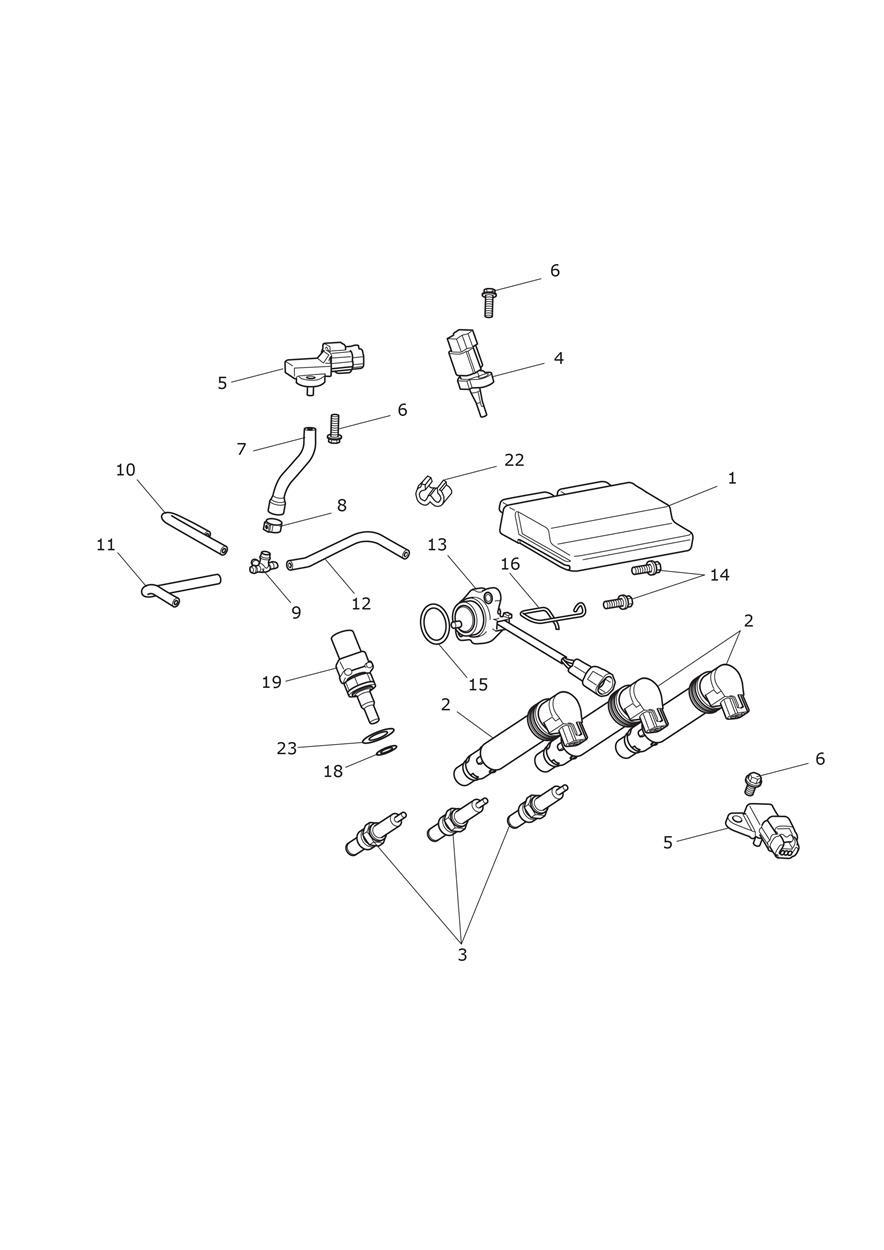

Engine Management System exploded diagram
Engine Management System
18 parts

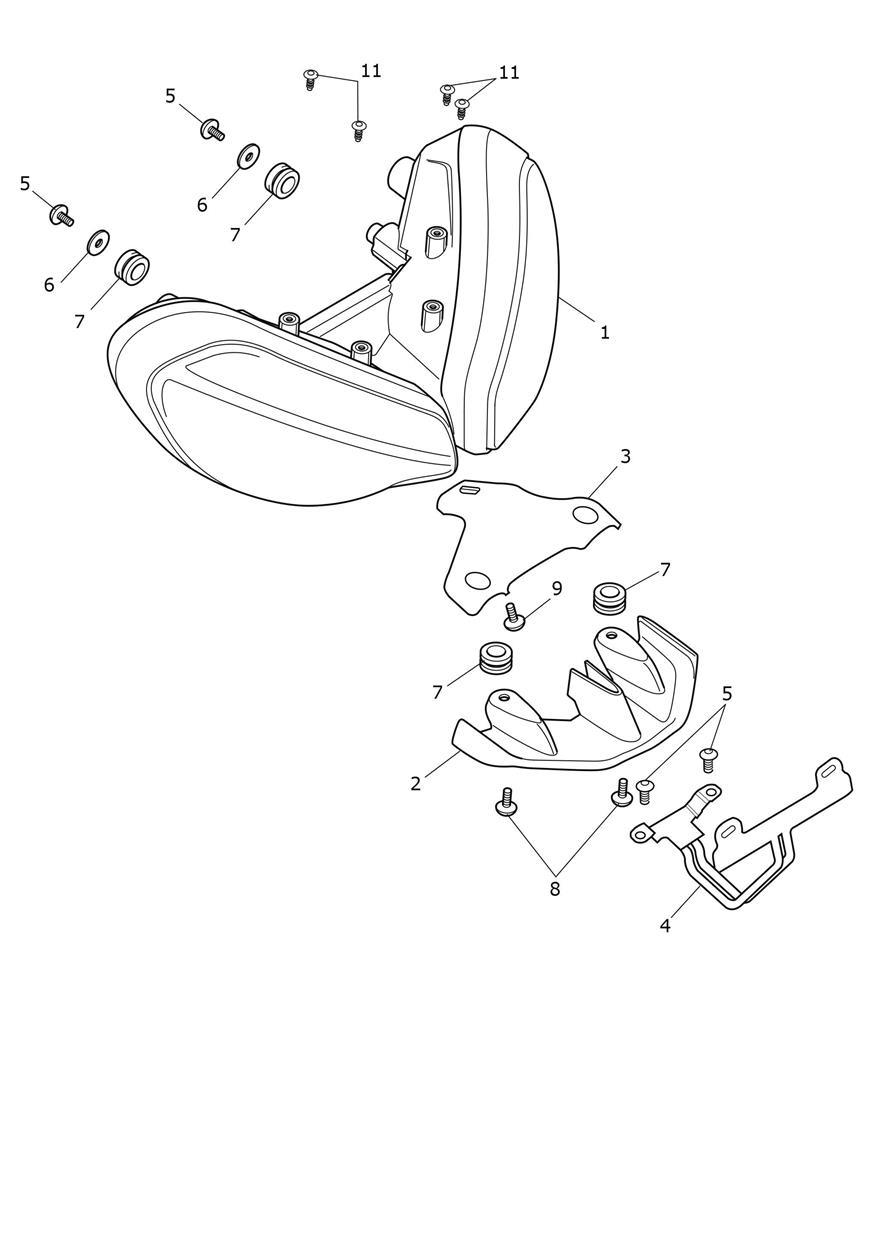

 Headlight exploded diagram
Headlight
10 parts

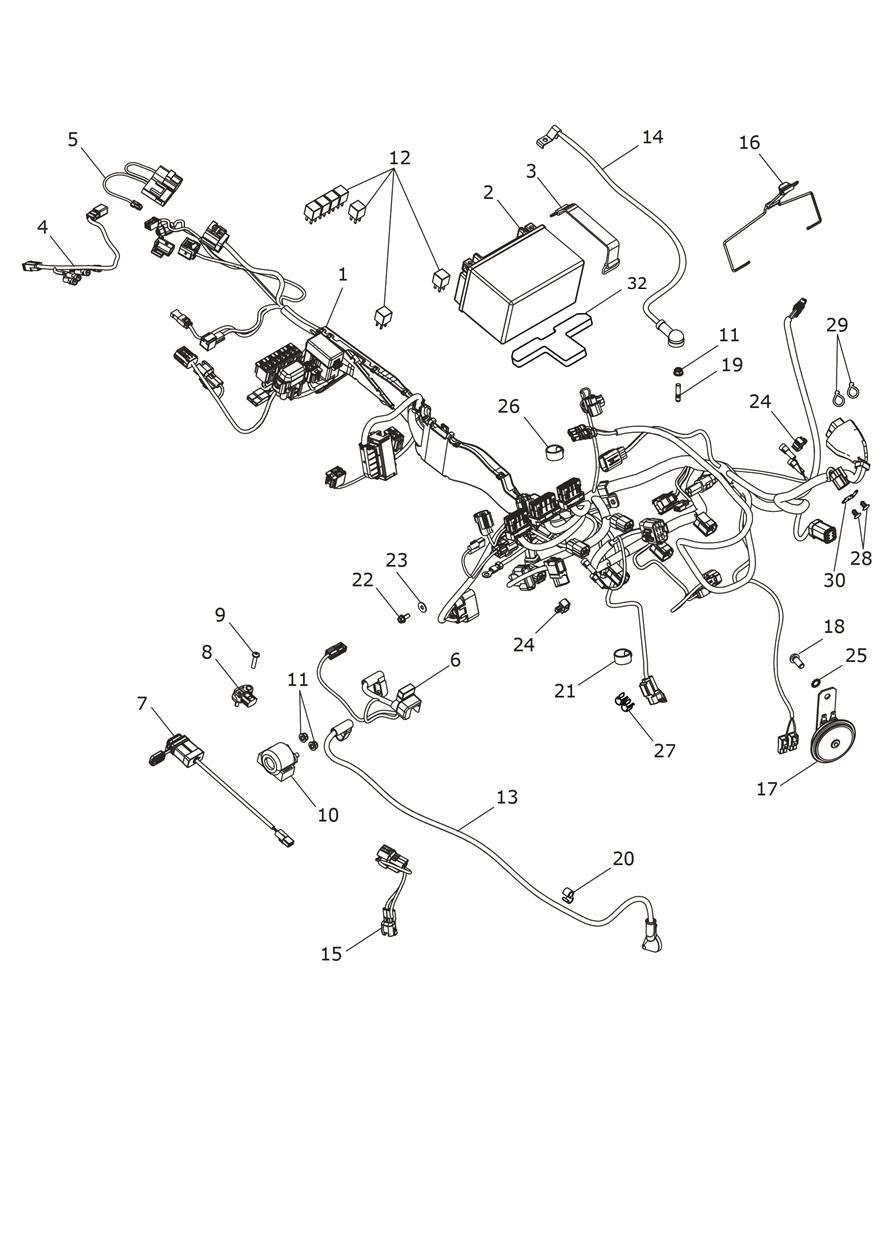

 Electrical System exploded diagram
Electrical System
32 parts

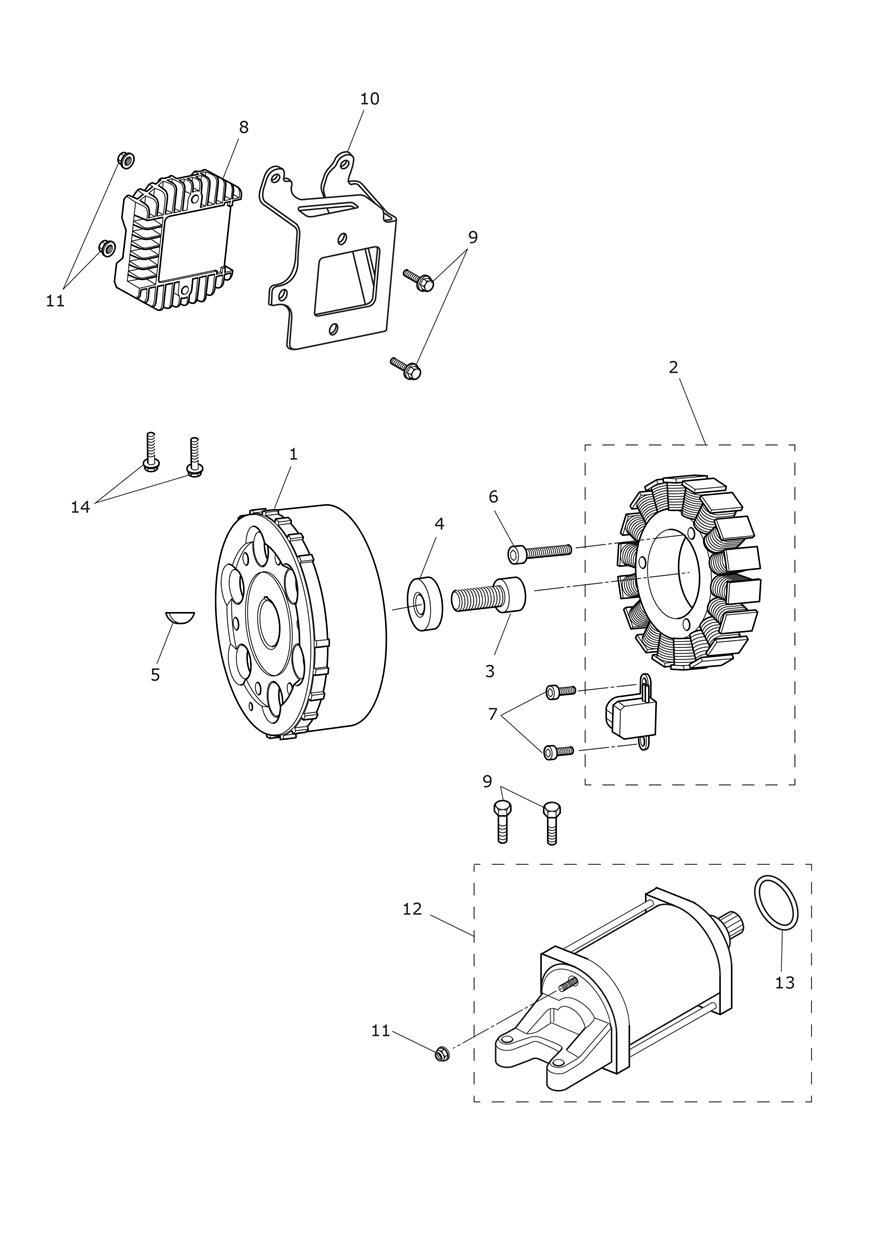

 Starter & Alternator exploded diagram
Starter & Alternator
14 parts

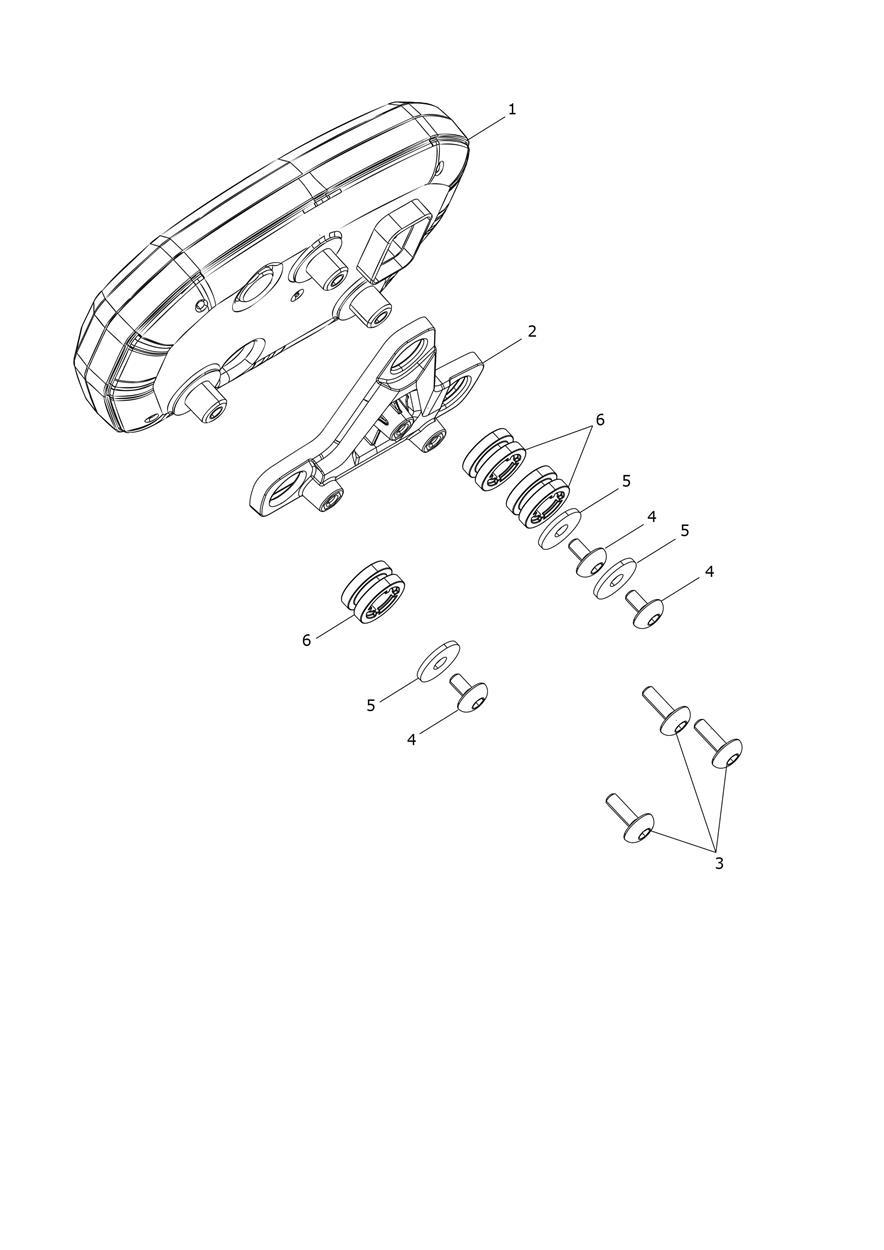

 Instruments exploded diagram
Instruments
8 parts

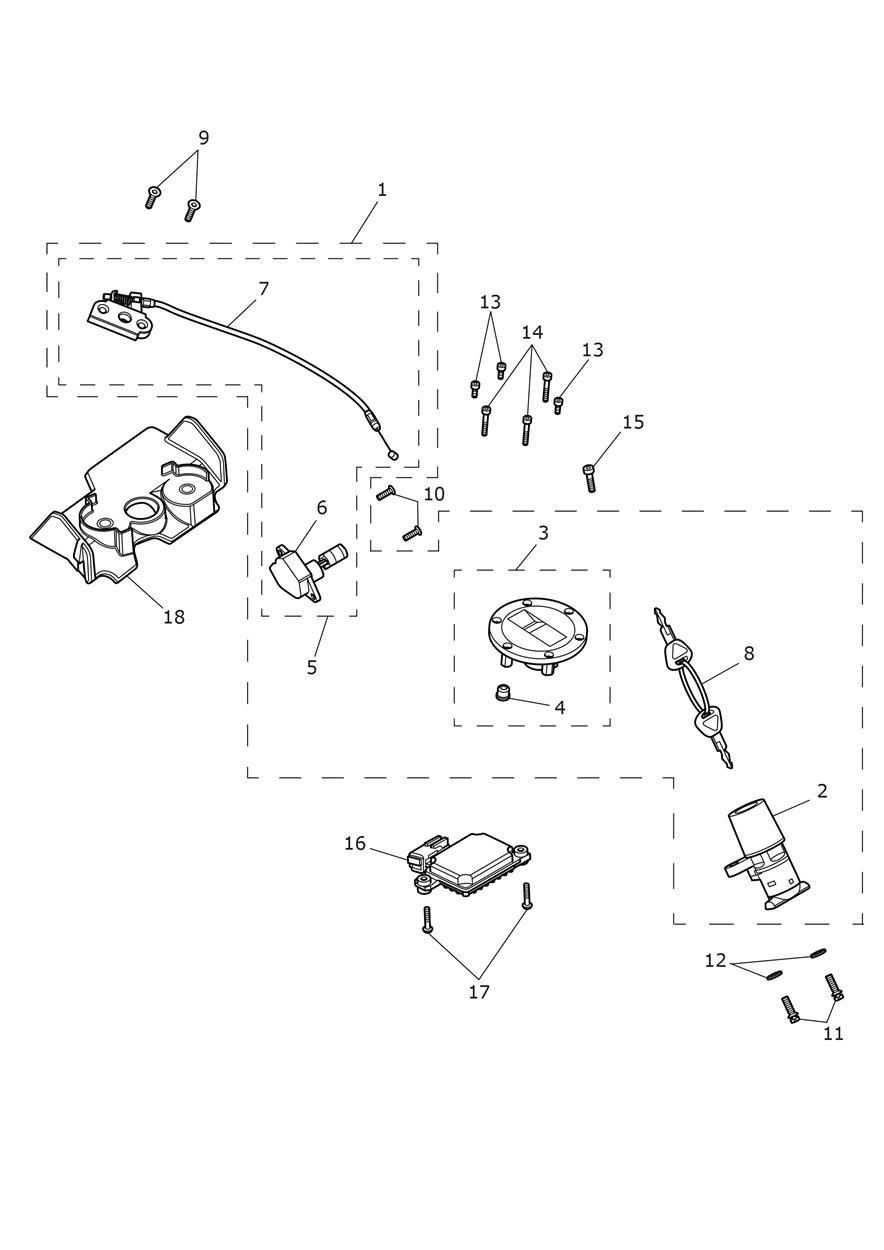

 Ignition Switch & Lockset exploded diagram
Ignition Switch & Lockset
19 parts

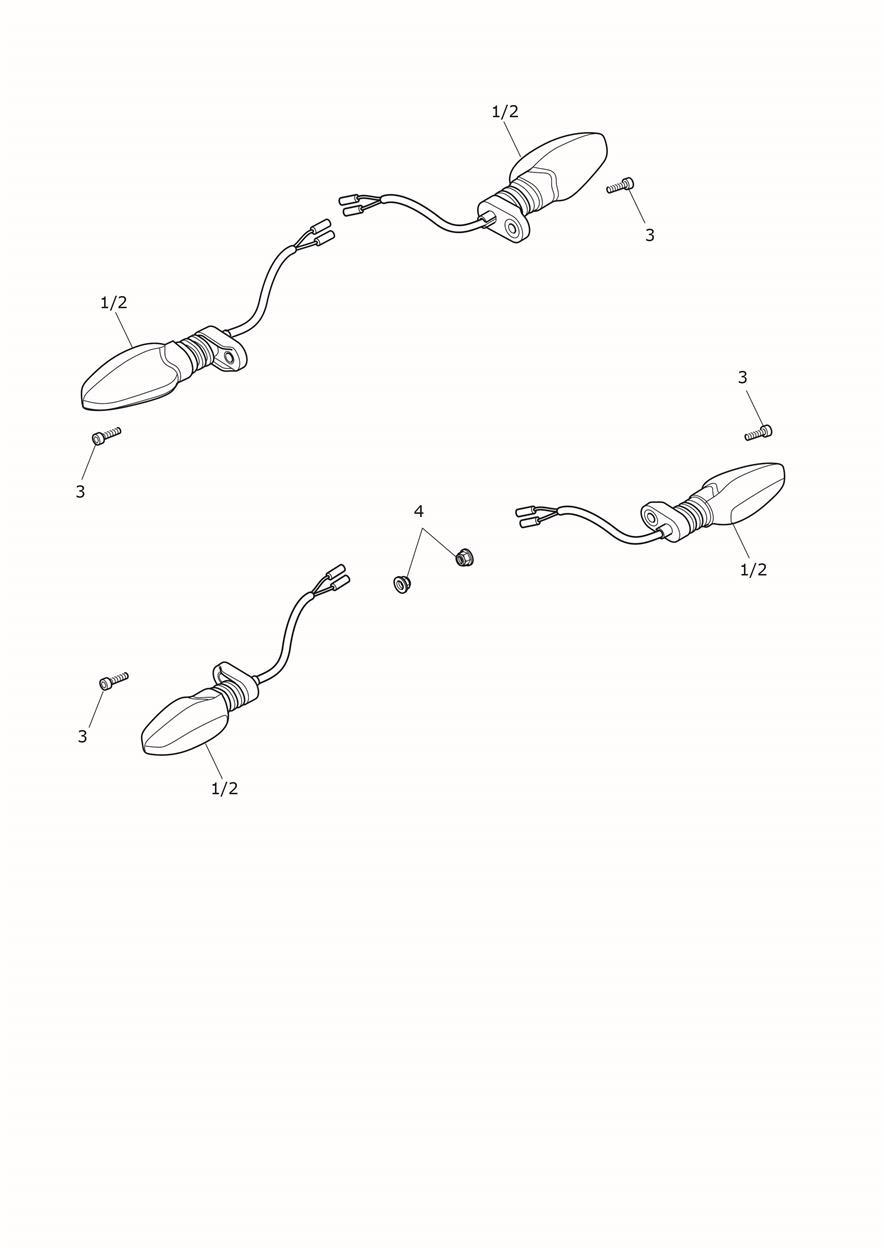

 Indicators exploded diagram
Indicators
4 parts

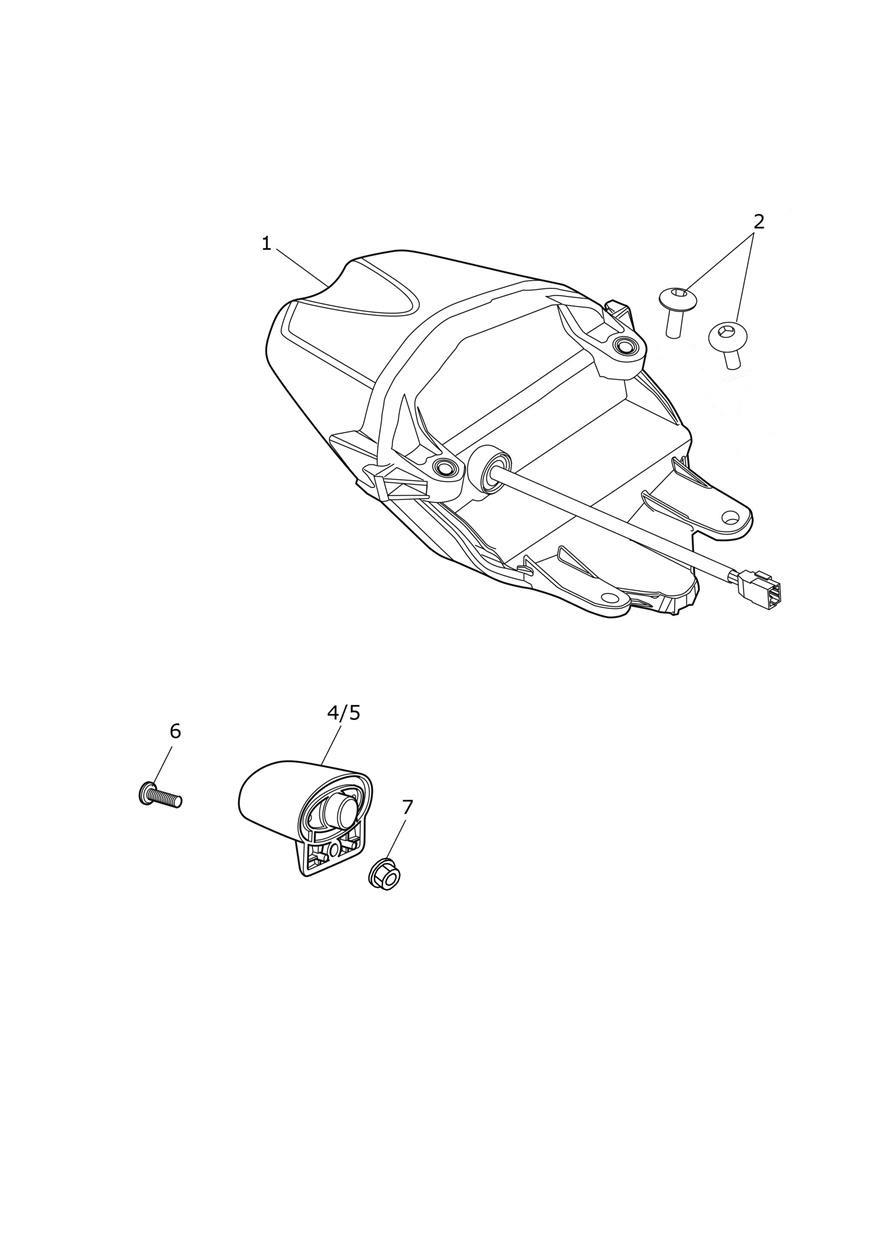

 Rear Light exploded diagram
Rear Light
6 parts
