Service Tools, Literature & Touch-Up Paint
Triumph Street Triple Moto2 Edition - BN4429 > · 7 diagrams
7 exploded diagrams for the service tools, literature & touch-up paint of the Triumph Street Triple Moto2 Edition - BN4429 >, covering the Street Triple Moto2 Edition. This book covers frames from VIN BN4429 onward. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
GASKET KITS
Zip Around Folder
1 part
Owners Handbooks
20 parts
Service Tools
38 parts
Engine Service Kit
13 parts
Warning Labels
10 parts
84 parts you can order online
Every part below appears in Triumph’s Service Tools, Literature & Touch-Up Paint diagrams for the Street Triple Moto2 Edition - BN4429 > and is priced and orderable online. Open a part to see what it fits and to buy it.
Most of these parts are shared with the Street Triple from BF1297 and Street Triple Moto2 books. 1 part is specific to the Street Triple Moto2 Edition - BN4429 >.
Gasket Kit, Cyl Head
T3990204 Gasket Kit, Head
$315.48
AvailableT1152502 Cyl Head Gasket, Dia 78.0
$59.08
AvailableT1130400 Seal, 4mm Stem
Low stock at Triumph
$6.42
Limited availabilityT3600188 O Ring, Fluorocarbon
$1.99
In stock in BreaT3600187 O Ring, 10 X 2.0
$2.42
In stock in BreaT1260309 Seal, Cam Cover, Screw, Twin Lip
$5.39
In stock in BreaT3600199 O Ring, 18.8 x Dia 1.9
$1.99
In stock in BreaT1140071 Gasket, Metal Tensioner
$3.05
In stock in BreaT1160978 Crankcase Gasket, Base
Low stock at Triumph
$20.05
Limited availabilityT1261765 Seal, Cam Cover
$31.09
In stock in BreaT1260437 Crank Cover Gasket
$16.27
In stock in BreaT3550146 Washer, 6.4 x 12 x 1, Copper
$1.99
AvailableT2200854 Header Gasket
$6.77
In stock in BreaT2100201 Seal, Thermostat
$6.61

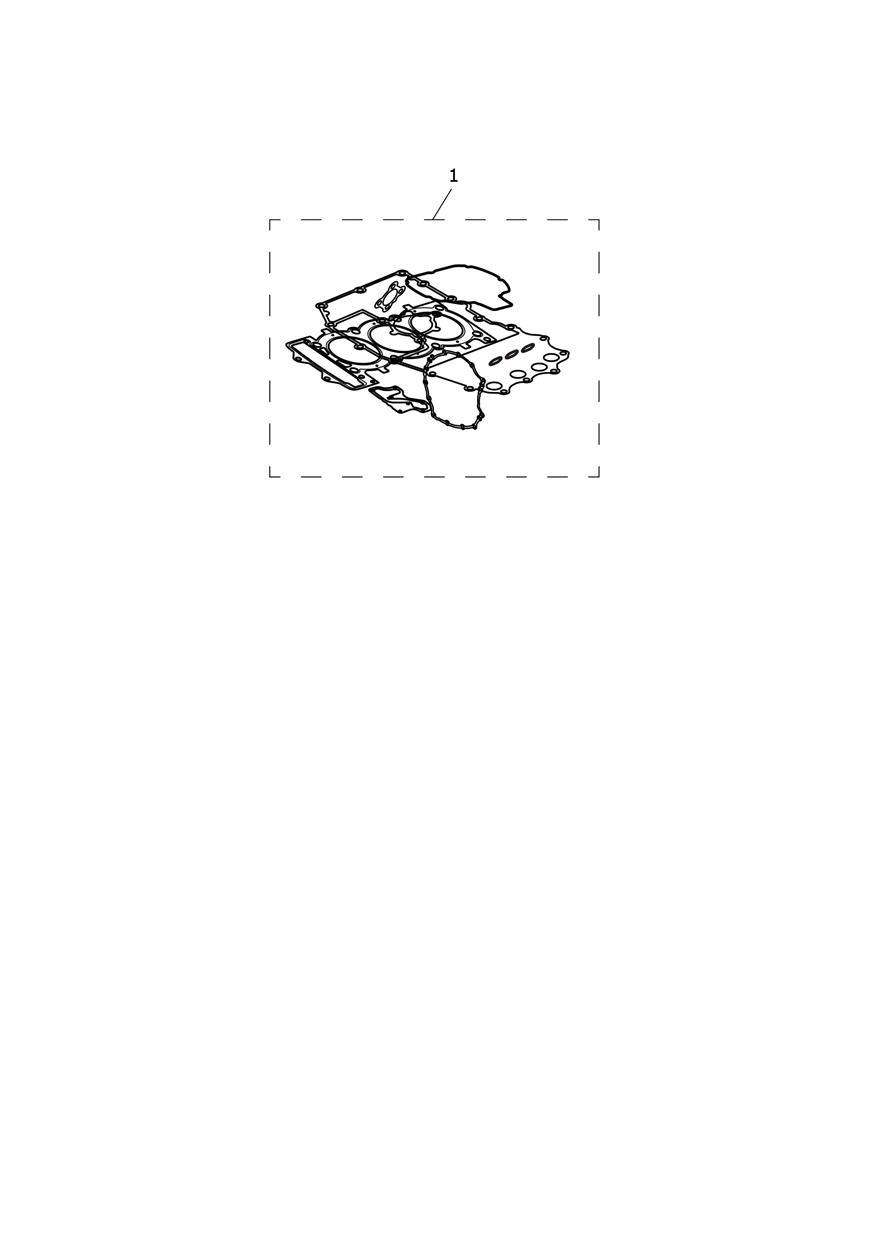

In stock in BreaGasket Kit, Full
T3990203 Gasket Kit, Full
$593.24
AvailableT1180328 Washer, Tab, Sprocket
Low stock at Triumph
$15.75
Limited availabilityT3600113 Seal, Oil 35 x 62 x 5
$22.78
AvailableT1260258 Clutch Cover Gasket
$20.75
In stock in BreaT1260838 Gasket, Alternator Cover
$33.85
In stock in BreaT1260267 Balancer Cover Gasket
$8.43
In stock in BreaT1260825 Breather Cover Gasket
Backordered at Triumph · we’ll confirm the ship date after you order
$24.22
On backorderT3600124 O Ring, ID 21.5 x 3
$3.14
In stock in BreaT1230129 Gasket, Sump
Low stock at Triumph
$27.02
Limited availabilityT3558989 Washer, Sealing, 14.4 x 23 x 3
$1.99
AvailableT1210626 Sealing Ring, Oil Feed Pipe
Low stock at Triumph
$5.62
Limited availabilityT3600106 O-Ring, 24 x 2.5
Low stock at Triumph
$1.99
Limited availabilityT3600127 O Ring, 31.6x2.4
$3.24
AvailableT1210625 Sealing Ring, Heat Exchanger
$47.51
AvailableT2102800 Gasket, Water Inlet
Low stock at Triumph
$3.42
Limited availabilityT3600290 O Ring, 23.7 x 2
$1.99
AvailableT2100435 Gasket, T-Piece, Water
$3.24
In stock in BreaT3600115 O Ring
$3.14
AvailableZip Around Folder

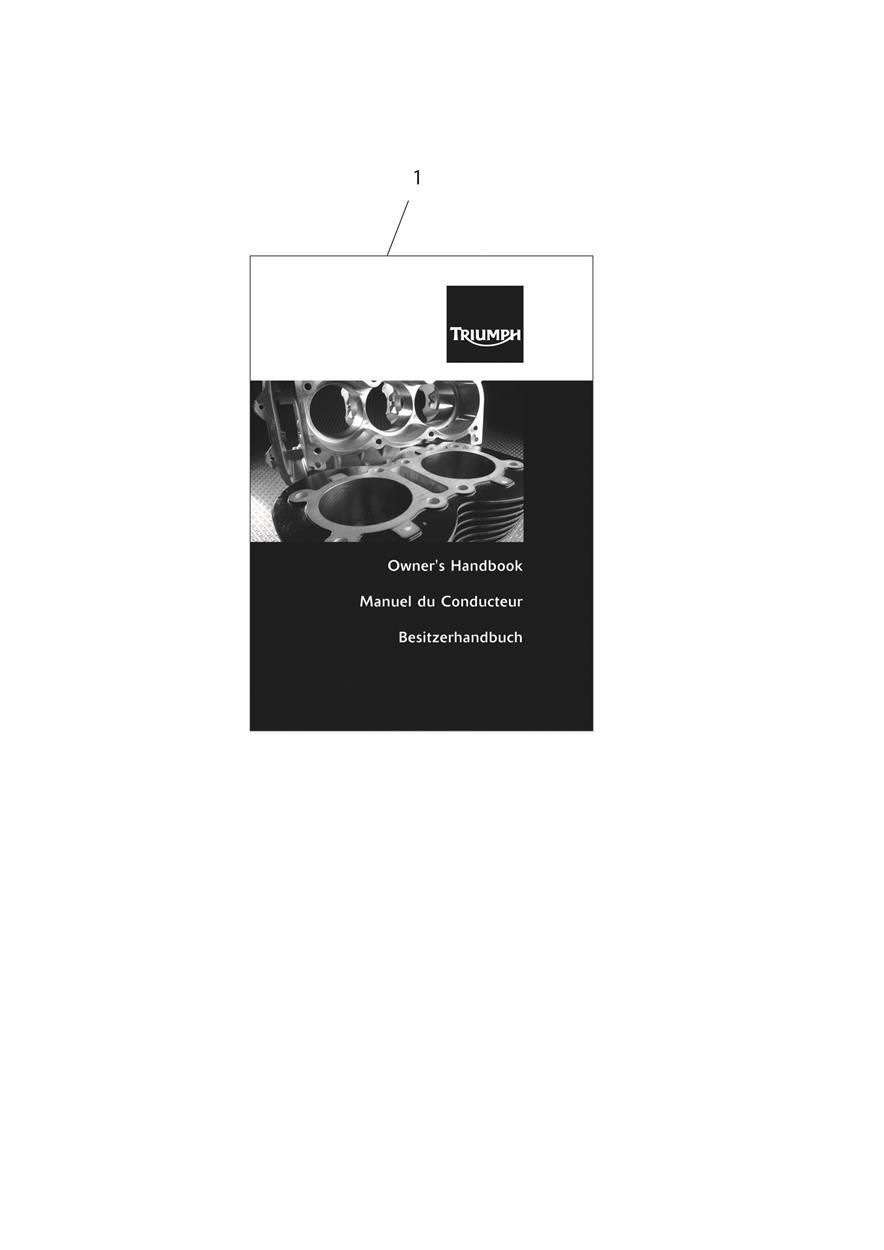

Owners Handbooks
T3850772-EN Handbook Assembly
$50.21
AvailableT3850329-EF Quickstart Guide Assy, European, 6K
Backordered at Triumph · we’ll confirm the ship date after you order
$30.82

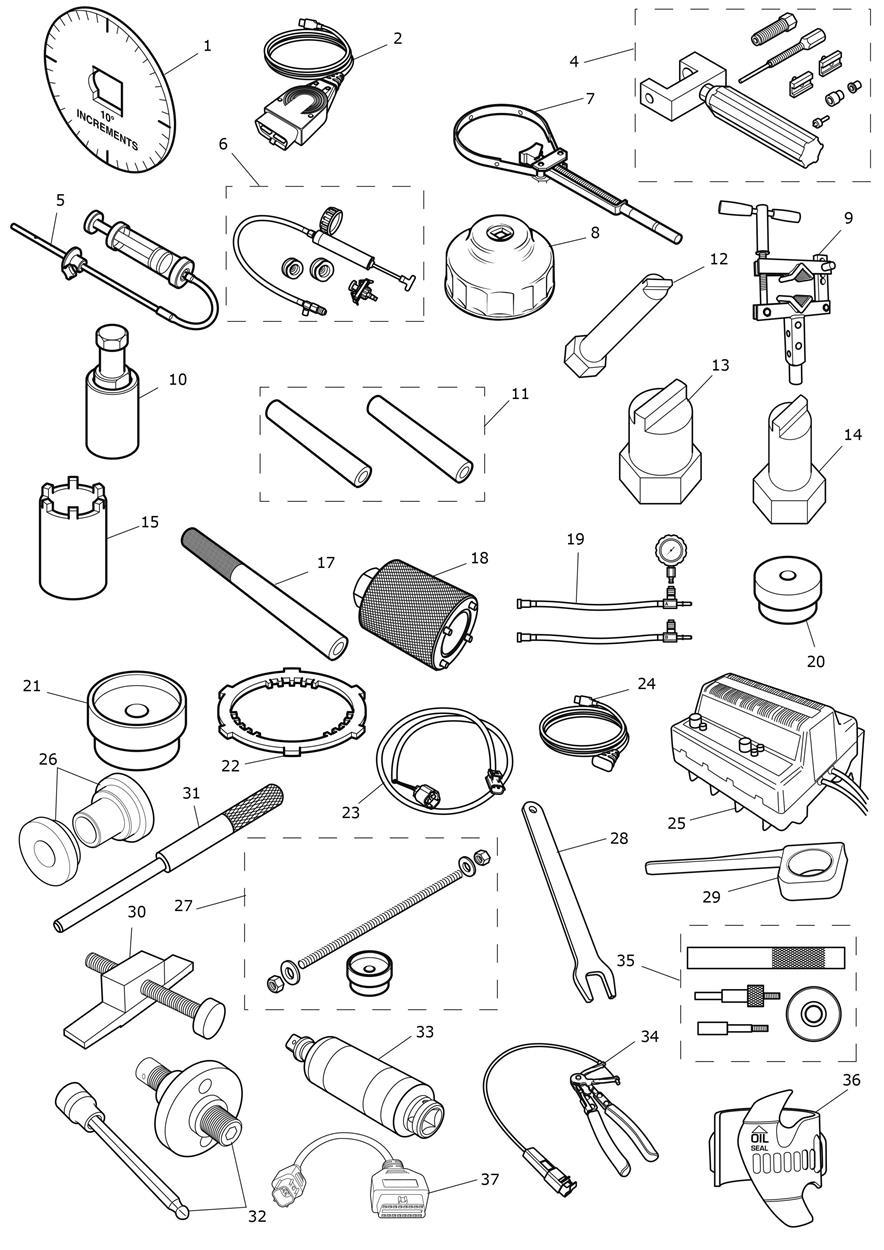

On backorderService Tools
T3880105 Angular Torque Gauge
$3.02
AvailableT3880057 Diagnostic Kit, PC Based
$1058.43
AvailableT3880027 Chain Link Tool Kit
Backordered at Triumph · expected Oct 30
$62.12
On backorderT3880160 Evacuator
$108.15
AvailableT3880147 Radiator and Cap Tester
$133.90
AvailableT3880375 Alternator Rotor Holder
Backordered at Triumph · we’ll confirm the ship date after you order
$27.26
On backorderT3880313 Oil Filter Wrench
$3.45
AvailableT3880171 Fork Holding Tool
$137.38
AvailableT3880365 Alternator Housing Puller
Backordered at Triumph · we’ll confirm the ship date after you order
$30.86
On backorderT3880308 Clamp, Cylinder Barrel
$9.49
AvailableT3880181 Wrench, Frame Adjuster
$8.60
AvailableT3880104 Swinging Arm Adjuster Wrench
$5.75
AvailableT3880103 Eng Mounting Adjuster Wrench
Low stock at Triumph
$6.07
Limited availabilityT3880023 Socket, 50 mm
Low stock at Triumph
$14.74
Limited availabilityT3880343 Rod, Pull Up
$17.79
AvailableT3880341 Socket, Pin Sleeve, Top Nut
$22.58
AvailableT3880001 Fuel Press, Gauge, Returnless
Backordered at Triumph · we’ll confirm the ship date after you order
$89.81
On backorder3880065-T0301 Bearing adaptor
$10.59
Available3880070-T0301 Bearing Installer
Backordered at Triumph · we’ll confirm the ship date after you order
$11.06
On backorderT3880307 Anti Rotation Jig, Clutch Assy
$17.79
AvailableT3880123 Extension Cable
$3.17
AvailableT3880059 Cable, Interface to PC
$160.14
AvailableT3880072 Battery Charger, 115V
$770.32
AvailableT3880368 Bearing Installer
$6.99
AvailableT3880053 Extraction Kit, Wheel Bearings
$15.93
AvailableT3880342 U Spanner, 17mm
$10.06
AvailableT3880369 Switch Housing Tool
$1.99
AvailableT3880640 Camshaft Timing Plate
$31.93
AvailableT3880601 Camshaft Timing Pin
Low stock at Triumph
$9.74
Limited availabilityT3880607 Camshaft Timing Tensioner
Low stock at Triumph
$19.32
Limited availabilityT3880609 Torque Limiter
$10.98
AvailableT3880207 Pliers, Hose Clip
$31.78
AvailableT3880636 Kit, Brake Lever Pivot Sleeve
$18.29
AvailableT3880215 Fork Seal Cleaner, Small
$16.51
AvailableT3880538 Diagnostic Interface Cable
$54.78
AvailableT3880115 Power Cord, USA/Canada
$28.42

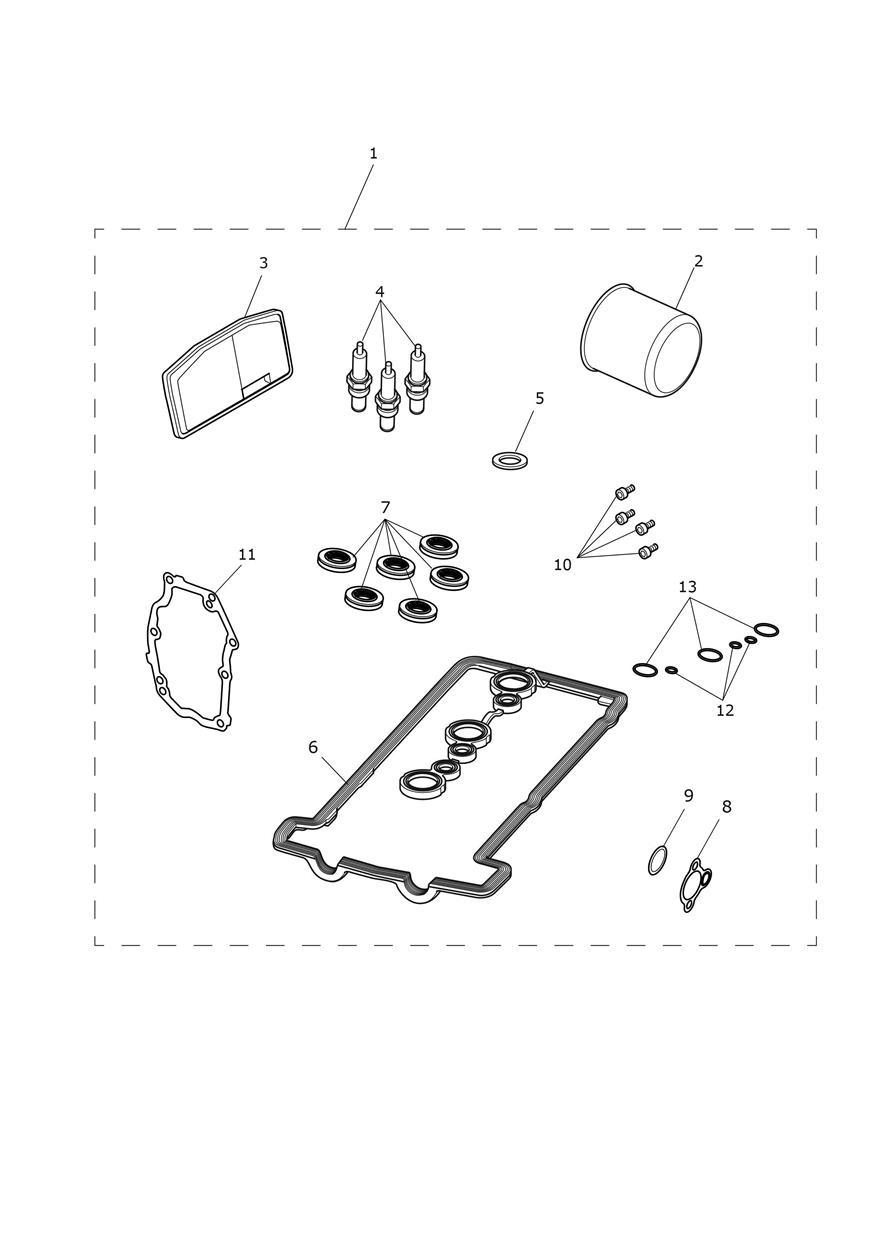

AvailableEngine Service Kit
T3990167 Engine Service Kit
$214.83
AvailableT1218001 Oil Filter, OES
$16.63
In stock in BreaT2200957 Air Filter
$39.88
In stock in BreaT1291023 Spark Plug
$16.20
In stock in BreaT3053035 Screw, Pan, M7 x 12
$1.99

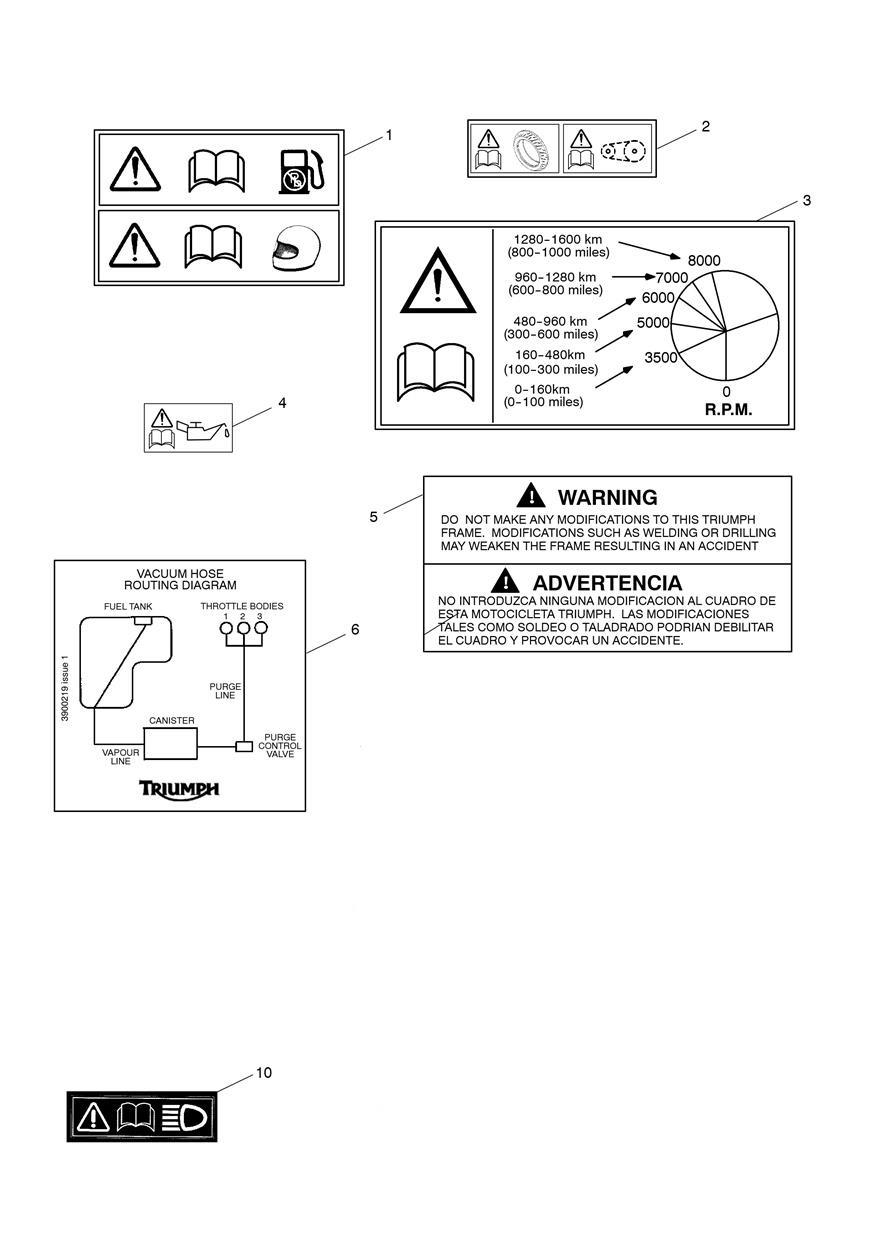

In stock in BreaWarning Labels
T3900194 Label, Fuel Tank, White Text
$5.27
AvailableT3900092 Label, Chain & Tyres
$5.27
AvailableT3900093 Label, Running In, White
$5.27
AvailableT3900390 Label, Running In, Black
$5.27
AvailableT3900302 Label, Oil & Filter
$5.27
AvailableT3900169 Label, Frame modification
$4.21
AvailableT3930083 Label, QR Code
$5.62
AvailableT3900495 Label, Headlight, Do Not Cover
$5.27
Available
