Clutch & Transmission incl. Gearchange Mechanism
Triumph Street Triple Moto2 · 5 diagrams
5 exploded diagrams for the clutch & transmission incl. gearchange mechanism of the Triumph Street Triple Moto2, covering the Street Triple Moto2. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Starter Drive Gears
6 parts
VIN BN4428 and lower
Gear Selector Drum
16 parts
VIN BN4428 and lower
Transmission
38 parts
VIN BN4428 and lower
Clutch
33 parts
VIN BN4428 and lower
Gearchange Mechanism
23 parts
VIN BN4428 and lower
114 parts you can order online
Every part below appears in Triumph’s Clutch & Transmission incl. Gearchange Mechanism diagrams for the Street Triple Moto2 and is priced and orderable online. Open a part to see what it fits and to buy it.
Triumph lists the same parts for this area in the Street Triple from BF1297 and Street Triple Moto2 Edition - BN4429 > books.

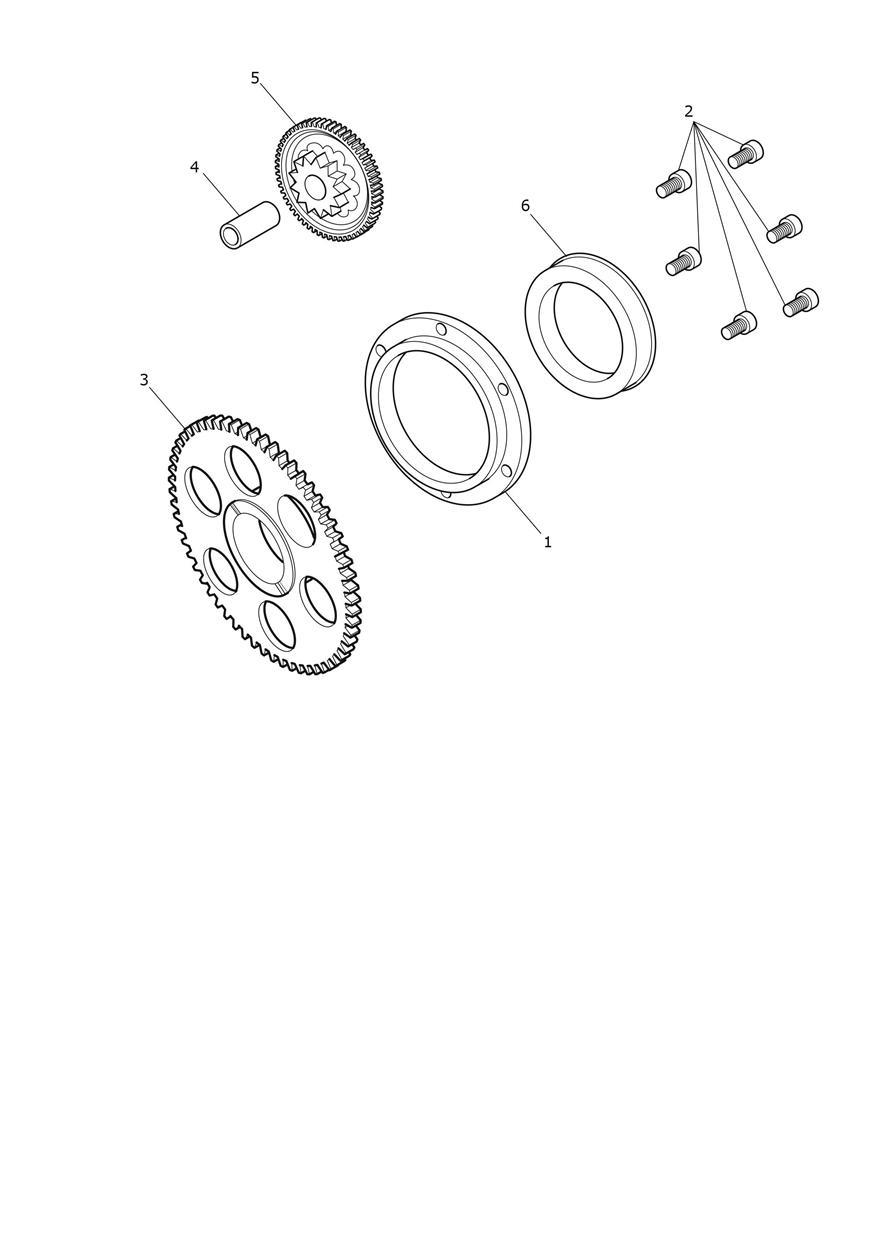

Starter Drive Gears VIN BN4428 and lower
T1220681 Housing, Sprag Clutch
$78.82
AvailableT3051063 Screw, Cap/Hd, M6 x 16, Enc, Raw
$1.99
AvailableT1220009 Starter Drive Gear, 70T
$214.77
AvailableT1220186 Spindle, Idler Gear
Backordered at Triumph · expected Nov 6
$12.66
On backorderT1220081 Gear, Starter Idler
$147.87
AvailableT1220567 Sprag Clutch
$147.87

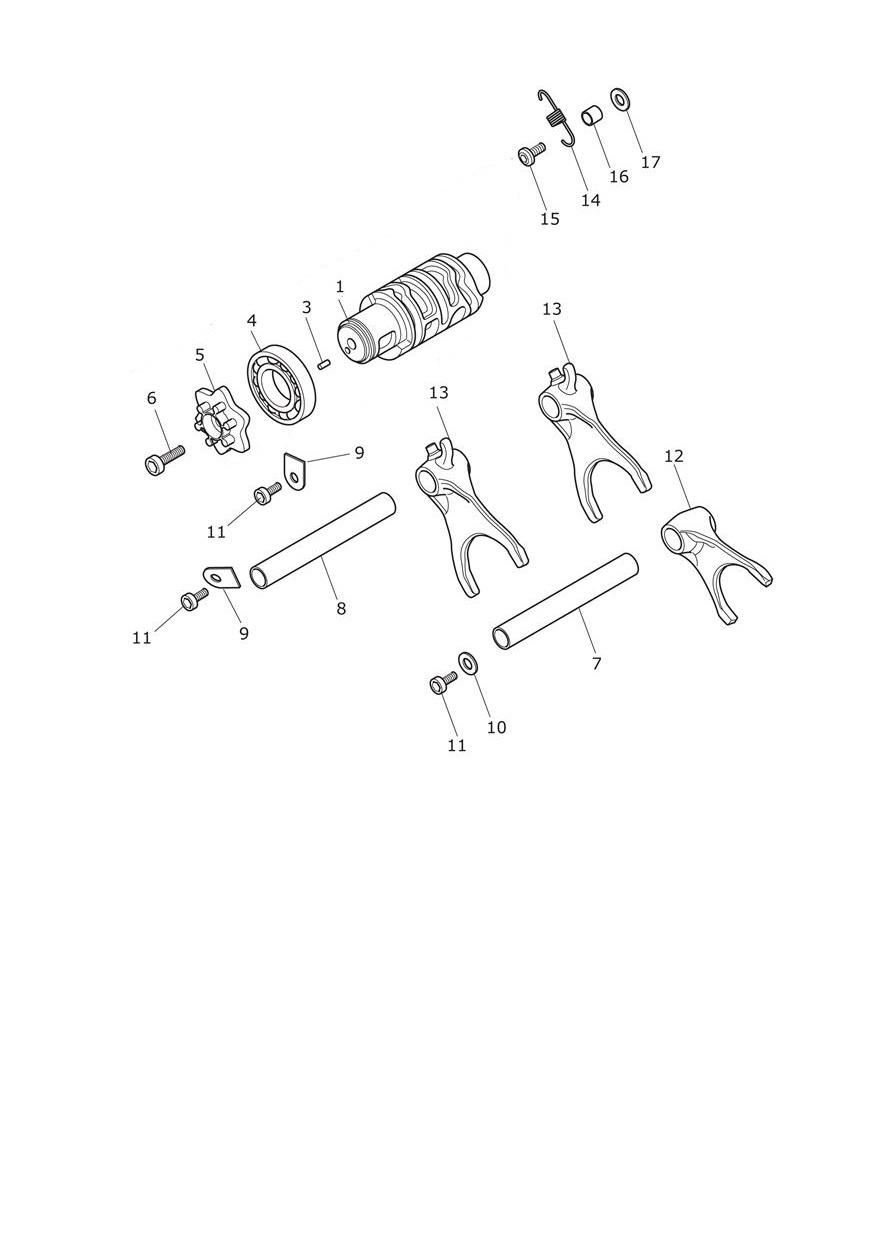

AvailableGear Selector Drum VIN BN4428 and lower
T1193334 Selector Drum
$363.25
AvailableT3000192 Dowel, 4mm
$1.99
AvailableT1190286 Bearing, Ball
$45.32
AvailableT1193335 Detent Wheel
$41.63
AvailableT3050302 Capscrew, Skt/Hd, M6 x 35
$1.99
AvailableT1197005 Selector Shaft, Input Gear
$141.48
AvailableT1197006 Selector Shaft, Output Gear
$139.13
AvailableT1190207 Keeper Plate
$19.08
AvailableT3555012 Washer, 6.4 x 16 x 2
$3.81
AvailableT3051069 Screw, Cap/Hd, M6 x 10, Enc, Raw
$1.99
AvailableT1192355 Selector Fork, Input, Moly
$99.91
AvailableT1192366 Selector Fork, Output
$89.61
AvailableT1190109 Spring, Linear, Detent Arm
$4.76
AvailableT3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc
$1.99
In stock in BreaT3000042 Spacer, Turned
$1.99
AvailableT3555004 Washer, 6.4 x 14 x 1.6
Low stock at Triumph
$1.99

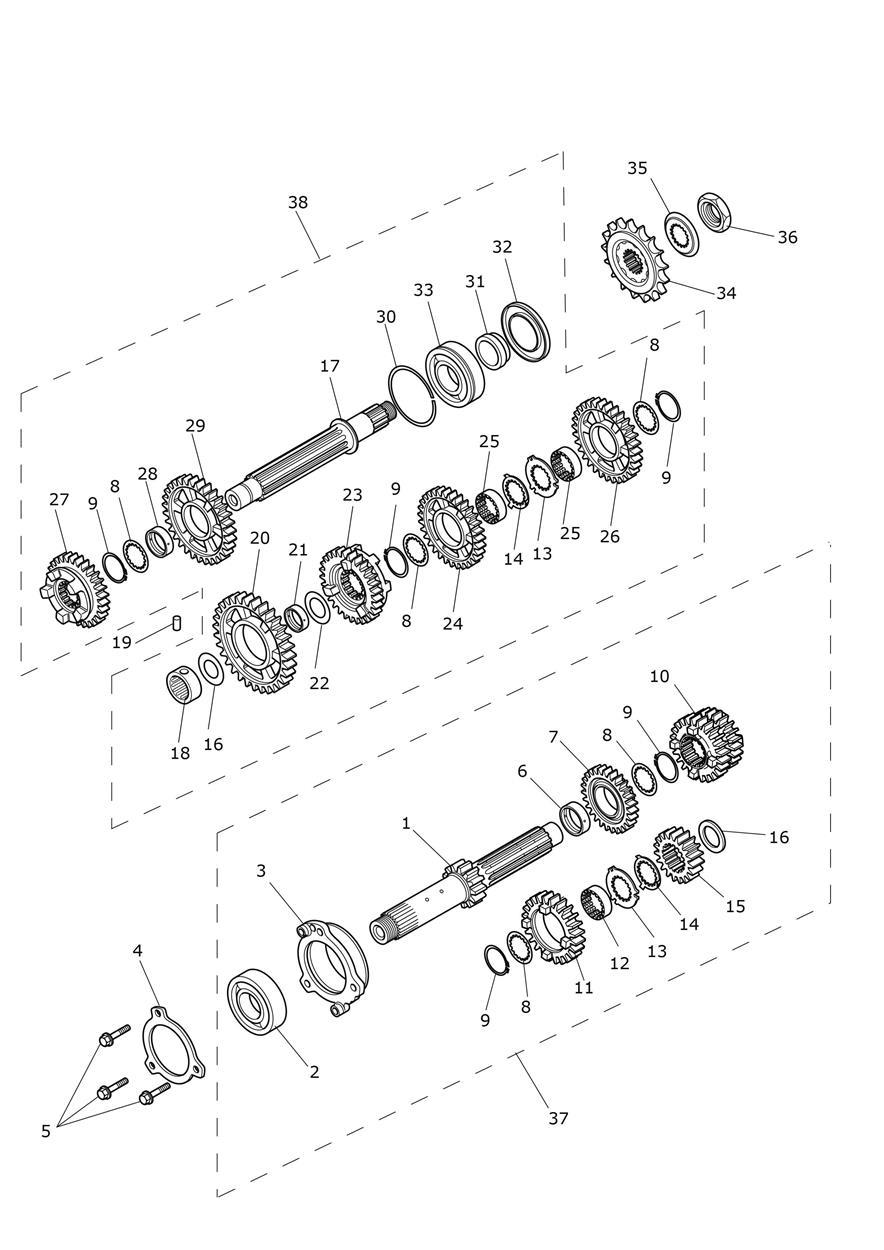

Limited availabilityTransmission VIN BN4428 and lower
T1180094 Gearbox Shaft, Input & 1st, 16t
$334.47
AvailableT1180383 Input Shaft Bearing Housing
Backordered at Triumph · we’ll confirm the ship date after you order
$21.83
On backorderT3800123 Bearing Ball, 25 x 62 x 17
$95.04
AvailableT1180297 Bearing Retainer Plate
$18.91
AvailableT3205065 Bolt, HHF, Lghtd, M6 x 20, Enc
$5.19
AvailableT1180354 Bush, 28 x 31 x 11.2, Input 5th
$50.18
AvailableT1180265 Gear, Input, 5th, 22T
$79.19
AvailableT1180331 Washer, Splined, 28 x 34 x 1.5
$5.54
AvailableT3500058 Circlip, 28mm
$7.52
AvailableT1180115 Gear, Input, 3rd/4th, 24T/21T
$117.94
AvailableT1180116 Gear, Input, 6th, 23T
$89.79
AvailableT1180357 Collar, Splined, 18x11.5, Input6
$58.98
AvailableT1180347 Washer, Splined, 28mm
$5.69
AvailableT1180348 Washer, Lock, 28mm
$5.83
AvailableT1180352 Gear, Input, 2nd, 21T
$58.98
AvailableT1180334 Washer, Thrust, 20mm
$5.69
AvailableT1180360 Shaft, Gearbox, Output
$404.89
AvailableT3800068 Bearing, Needle Roller, Dowel
$123.22
AvailableT3000032 Dowel, Dia 6 x 10.8
$5.98
AvailableT1180118 Gear, Output, 1st, 37T
$126.74
AvailableT1180359 Bush, 22 x 25 x 11, Output 1st
$58.98
AvailableT1180358 Washer, Thrust 22mm
$8.01
AvailableT1180274 Gear, Output, 5th, 25T
$121.46
AvailableT1180124 Gear, Output, 4th, 27T
$116.17
AvailableT1180368 Collar, Spline, 28 x 9, Output 3
$58.98
AvailableT1180123 Gear, Output, 3rd, 36T
$93.29
AvailableT1180121 Gear, Output, 6th, 24T
$95.04
AvailableT1180367 Bush, 28 x 31 x 8.4, Output, 2nd
$53.69
AvailableT1180362 Gear, Output 2nd, 39T
Low stock at Triumph
$117.94
Limited availabilityT3800094 Ring Bearing Retainer
$3.14
AvailableT1180369 Spacer, Sprocket
Low stock at Triumph
$10.57
Limited availabilityT3600113 Seal, Oil 35 x 62 x 5
$22.78
AvailableT1189915 Sprocket, Output, 15T
$34.87
AvailableT1180328 Washer, Tab, Sprocket
Low stock at Triumph
$15.75
Limited availabilityT1180183 Nut, M20 x 1.5, 6 Deep
Low stock at Triumph
$10.07
Limited availabilityT1185522 Gearbox, Input, Assy
$473.96
AvailableT1185533 Gearbox, Output, Assy
$473.96

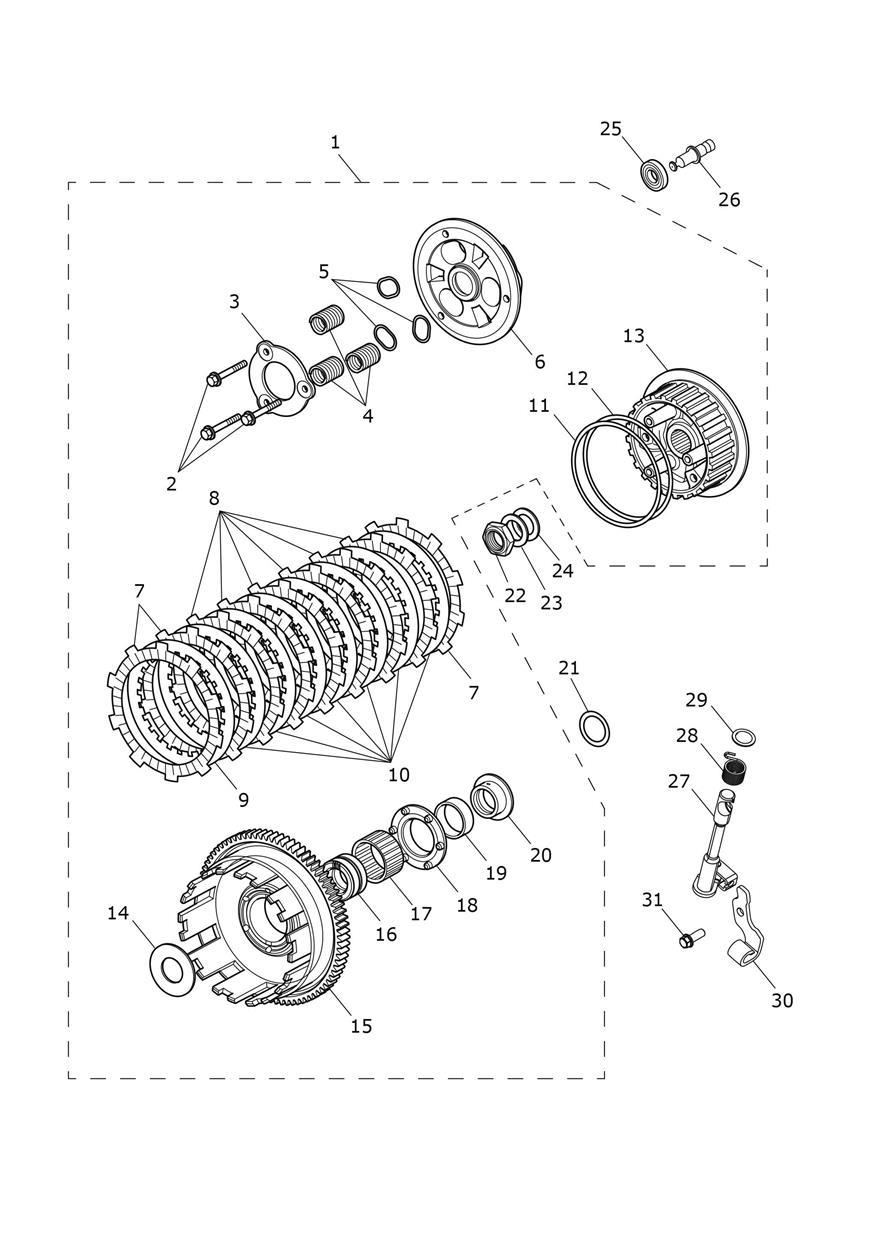

AvailableClutch VIN BN4428 and lower
T1171101 Clutch Assy, Grade B
Backordered at Triumph · we’ll confirm the ship date after you order
$1076.59
On backorderT1170804 Bolt, Hex Head, M6 x 50
$2.09
AvailableT1175575 Plate, Stopper
Backordered at Triumph · we’ll confirm the ship date after you order
$135.51
On backorderT1171564 Clutch Spring
Low stock at Triumph
$9.27
Limited availabilityT1170809 Seat, Clutch Spring
$6.61
AvailableT1170802 Plate, Clutch Pressure
Low stock at Triumph
$139.06
Limited availabilityT1175540 Friction Disk, Clutch
$18.85
AvailableT1175535 Friction Disk, Clutch
$18.85
AvailableT1175530 Clutch Plate, B
Low stock at Triumph
$48.42
Limited availabilityT1175525 Clutch Plate
$22.99
AvailableT1170172 Spring, Judder
$18.20
AvailableT1170173 Seat, Judder Spring
$19.91
AvailableT1170801 Centre, Clutch
$146.10
AvailableT1174700 Washer, 25.5 x 53 x 2
$9.43
AvailableT1171077 Clutch Outer Assembly
Backordered at Triumph · we’ll confirm the ship date after you order
$843.64
On backorderT1174800 Bush, Clutch
Backordered at Triumph · we’ll confirm the ship date after you order
$50.18
On backorderT1170193 Bearing, Needle, K40 x 45 x 22
$19.92
AvailableT1175200 Bearing, Needle, K32 x 37 x 13
Backordered at Triumph · expected Nov 20
$18.12
On backorderT1174900 Bush, Sprocket
$7.83
AvailableT3555018 Washer, 25 x 35 x 1.75
$14.45
AvailableT1170106 Nut, Clutch, 22mm
Low stock at Triumph
$12.51
Limited availabilityT1179999 Washer, C, Clutch
$10.84
AvailableT1171282 Washer, ID 22, OD 34
$4.30
AvailableT1170105 Bearing, Clutch Lifter
$31.53
AvailableT1175505 Lifter Piece, Clutch
$38.72
AvailableT1176199 Clutch Lifter Arm
$37.93
AvailableT1170666 Spring
$5.54
AvailableT3555014 Washer, 13 x 18 x 1
$1.99
In stock in BreaT1170182 Bracket, Clutch
$11.14
AvailableT3205063 Bolt, HHF, Lghtd, M6 x 16, Slv
Low stock at Triumph
$3.24
Limited availabilityT1171102 Clutch Plates Kit
$168.70
AvailableT1171103 Clutch Springs Kit
$55.88

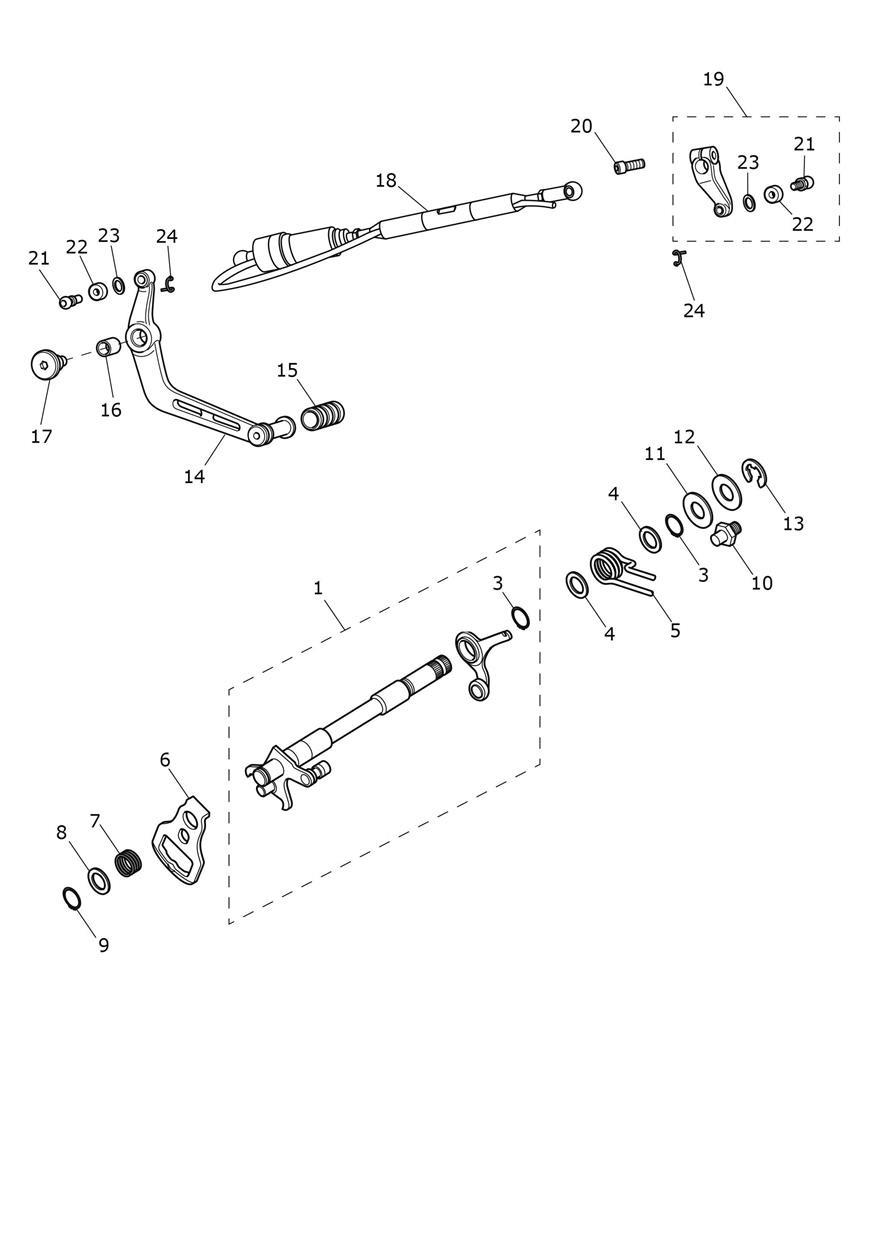

AvailableGearchange Mechanism VIN BN4428 and lower
T1190919 Gearchange Mechanism Assembly
Backordered at Triumph · expected Nov 20
$150.87
On backorderT3502535 Circlip, Din 471, Dia. 14.0
$1.99
AvailableT3550236 Washer, 14 x 20 x 1.6
$2.73
AvailableT1193333 Spring, Gearchange, Return
$4.39
AvailableT1194900 Pivot Plate
$43.37
AvailableT1190123 Spring, Pivot Plate
$12.04
AvailableT3555003 Washer, 12 x 18 x 1.2
Low stock at Triumph
$1.99
Limited availabilityT3500068 Circlip, Din 471, Dia 12
Low stock at Triumph
$1.99
Limited availabilityT3000205 Dowel, Solid, 8 x 35
$1.99
AvailableT3550444 Washer, 15.5 x 25
$1.99
AvailableT3553333 Thrust Washer, 12.25 x 28 x 1.2
$4.74
AvailableT3500044 E Circlip
$1.99
AvailableT2083349 Gearchange Pedal
$103.34
AvailableT2082789 Rubber, Gearchange Pedal
Backordered at Triumph · we’ll confirm the ship date after you order
$7.02
On backorderT3750020 Bush, PAP, 1215 P14
Low stock at Triumph
$6.76
Limited availabilityT3331520 Bolt, Shld, M8 x 1.25, Slv, Enc
$9.85
In stock in BreaT2089567 Quickshifter Assy, TSA
$575.54
In stock in BreaT2089739 Clamp Assy, Black
Low stock at Triumph
$53.66
Limited availabilityT3205066 Bolt, HHF, Lghtd, M6 x 20, Slv
$4.21
In stock in Brea · last onesT2086071 Knuckle, Ball Joint, M6, Enc
Backordered at Triumph · we’ll confirm the ship date after you order
$9.00
On backorderT2086072 Seal, Ball Joint
$7.09
AvailableT2082937 Washer, 6.4 x 11 x 1.6
$1.99
AvailableT2086073 Clip, Ball Joint
$2.20
Available
