Crankcase, Engine Covers, Lubrication System
Triumph Street Triple Moto2 · 6 diagrams
6 exploded diagrams for the crankcase, engine covers, lubrication system of the Triumph Street Triple Moto2, covering the Street Triple Moto2. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Crankcase & Fittings
22 parts
VIN BN4428 and lower
Engine Covers
30 parts
VIN BN4428 and lower
Crankcase Bolts
7 parts
VIN BN4428 and lower
Oil Pump Drive
40 parts
VIN BN4428 and lower
Cam Cover
6 parts
VIN BN4428 and lower

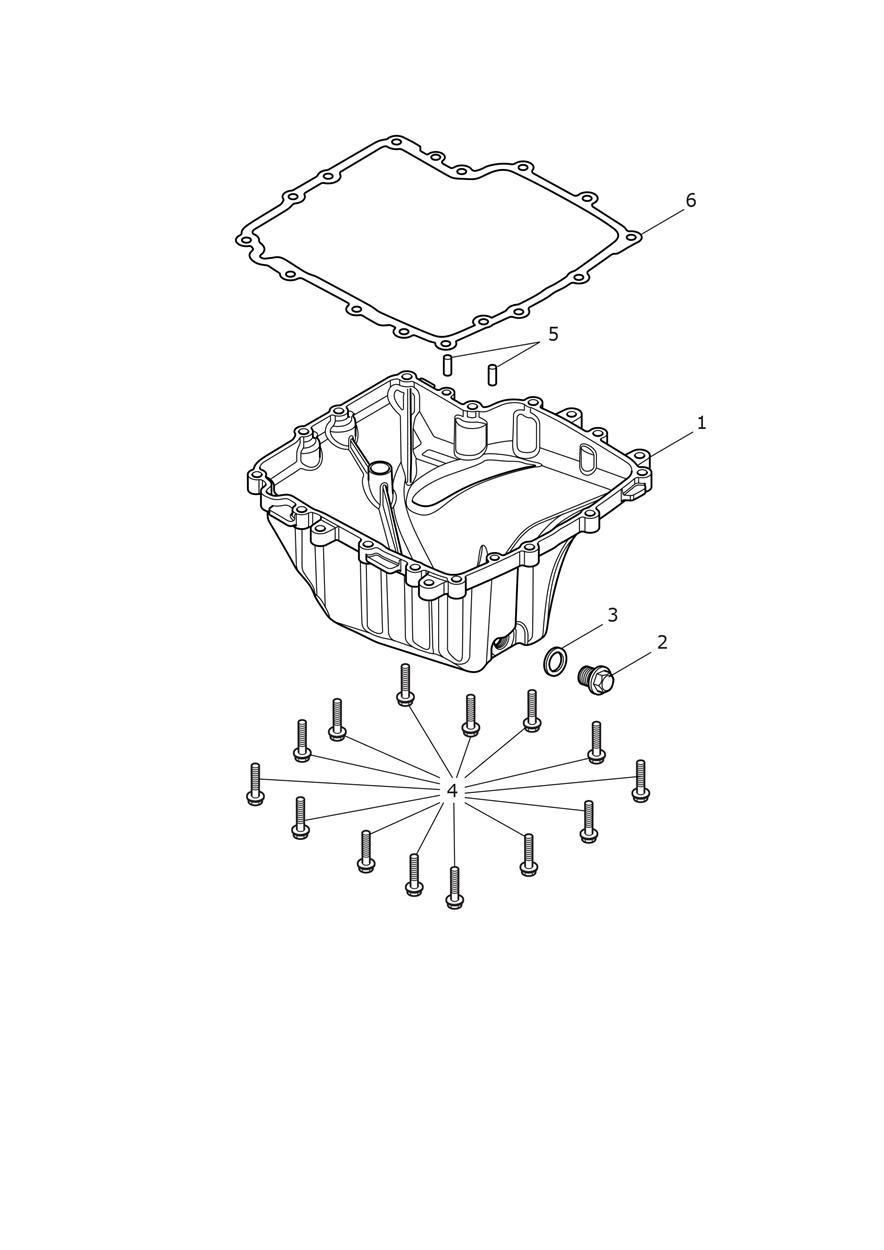

Sump & Fittings
6 parts
VIN BN4428 and lower
99 parts you can order online
Every part below appears in Triumph’s Crankcase, Engine Covers, Lubrication System diagrams for the Street Triple Moto2 and is priced and orderable online. Open a part to see what it fits and to buy it.
Triumph lists the same parts for this area in the Street Triple from BF1297 and Street Triple Moto2 Edition - BN4429 > books.

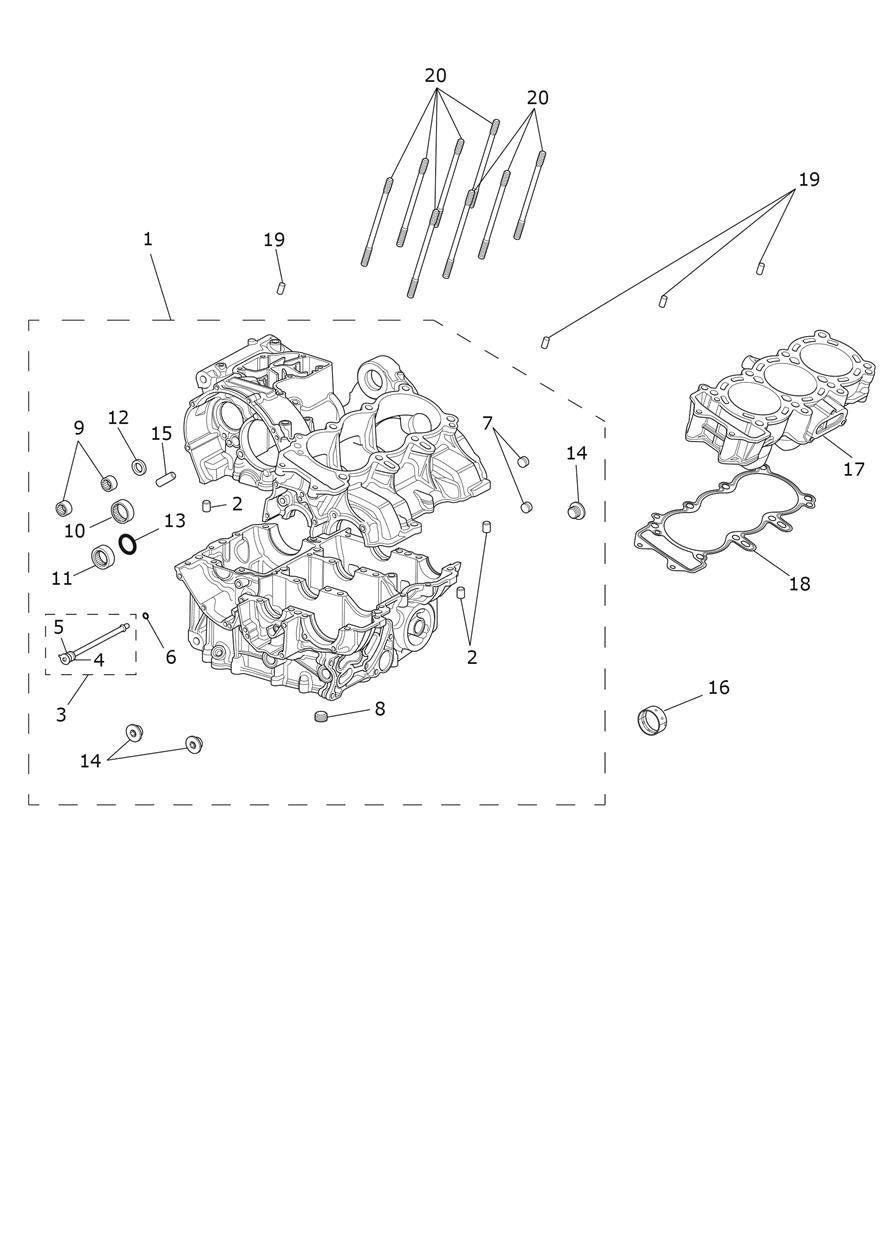

Crankcase & Fittings VIN BN4428 and lower
T1160523 Crankcase Assy, Spares Kit
$326.88
AvailableT3000102 Dowel, Hollow, 10 x 14
Backordered at Triumph · expected Nov 20
$1.99
On backorderT1210177 Pipe, Oil Feed, Gearbox
Backordered at Triumph · expected Nov 6
$27.87
On backorderT3600143 O Ring, ID 9.1 x 1.6, Viton
Low stock at Triumph
$1.99
Limited availabilityT3600252 O Ring, 10.1 Dia x 1.6
$2.64
AvailableT3600109 O Ring, ID 5.6 x 2.3
$4.91
AvailableT3450091 Plug, Dia 14, Alum
$2.29
AvailableT3450000 Plug, PTF-SAE Short, 3/8-18, Enc
Backordered at Triumph · we’ll confirm the ship date after you order
$6.16
On backorderT3800001 Bearing, Needle, 20 x 14 x 12
$7.96
AvailableT3802512 Bearing, Needle
Backordered at Triumph · we’ll confirm the ship date after you order
$10.39
On backorderT3800069 Bearing, Needle Roller
Low stock at Triumph
$116.17
Limited availabilityT3600088 Seal, Oil, 14 x 22 x 4.5
$5.92
In stock in BreaT1180101 Washer, Restrictor, Gearbox
$7.83
AvailableT3455016 Sealing Plug, Int Hex, M16 x 1.5
Backordered at Triumph · we’ll confirm the ship date after you order
$7.47
On backorderT3000205 Dowel, Solid, 8 x 35
$1.99
AvailableT1163101 Main Bearing Shell
$13.58
AvailableT1163102 Main Bearing Shell
$13.58
AvailableT1163103 Main Bearing Shell
$13.58
AvailableT1169005 Barrel, Dia 78.0
Backordered at Triumph · expected Nov 6
$255.38
On backorderT1160978 Crankcase Gasket, Base
Low stock at Triumph
$20.05
Limited availabilityT3000101 Dowel, Hollow, 8 x 14
$3.61
AvailableT1160982 Stud, Cylinder Head, M9
$9.77

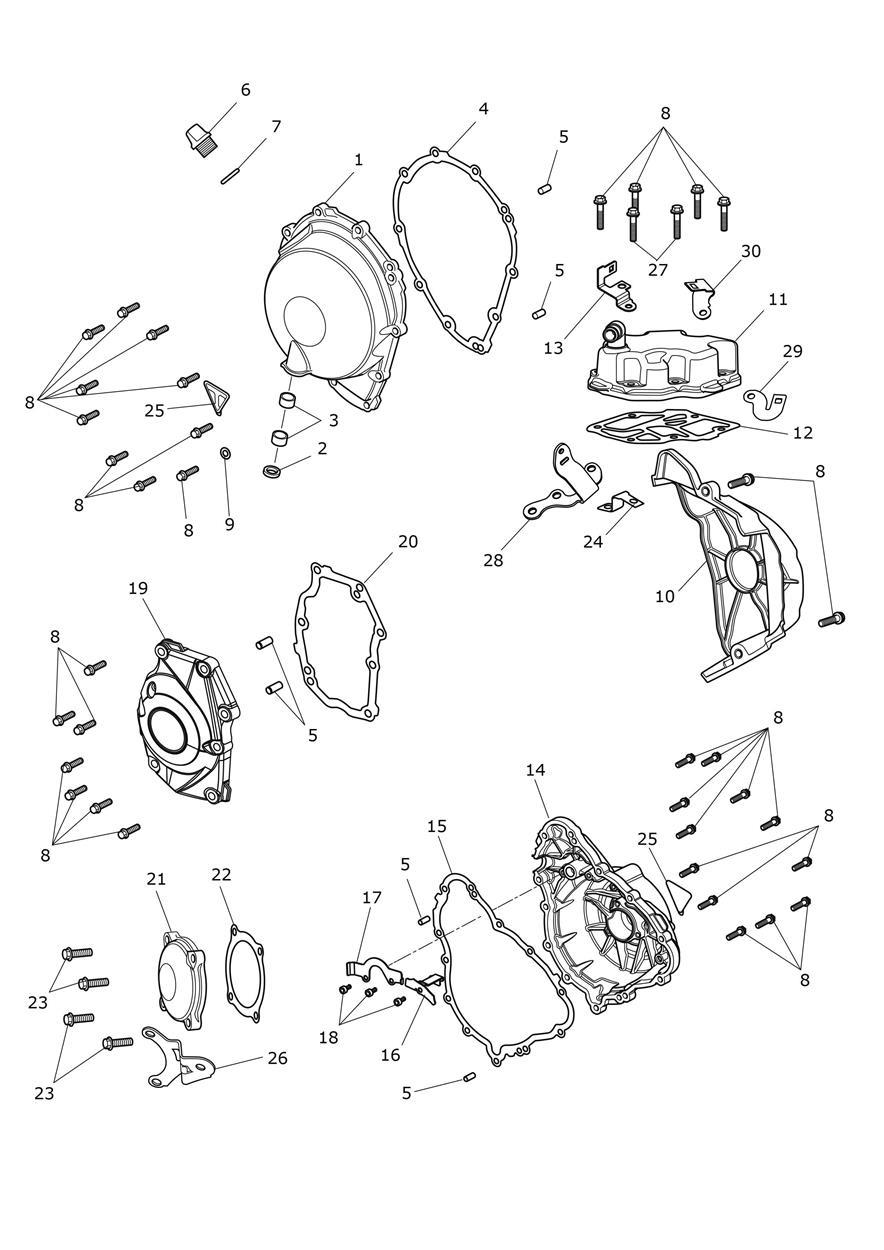

AvailableEngine Covers VIN BN4428 and lower
T1265491 Clutch Cover, Crinkle Black
$310.15
AvailableT3600095 Dust Seal
$2.09
AvailableT3800110 Roller Bearing, HK 1210
$6.16
AvailableT1260258 Clutch Cover Gasket
$20.75
In stock in BreaT3000005 Dowel, Dia 6 x 16.5
$1.99
AvailableT1260249 Oil Filler Cap
$19.80
In stock in BreaT3600124 O Ring, ID 21.5 x 3
$3.14
In stock in BreaT3205067 Bolt, HHF, Lghtd, M6 x 25, Slv
$2.27
AvailableT3550146 Washer, 6.4 x 12 x 1, Copper
$1.99
AvailableT1260824 Breather Cover
Backordered at Triumph · we’ll confirm the ship date after you order
$80.99
On backorderT1260825 Breather Cover Gasket
Backordered at Triumph · we’ll confirm the ship date after you order
$24.22
On backorderT1265492 Alternator Cover
$174.36
In stock in BreaT1260838 Gasket, Alternator Cover
$33.85
In stock in BreaT1260365 Bracket, Cable Guide, ACG Stator
Low stock at Triumph
$16.08
Limited availabilityT1260366 Bracket, Cable Guide, VR Sensor
Low stock at Triumph
$16.90
Limited availabilityT3051055 Screw, Cap/Hd, M5 x 10, Slv, Enc
$2.81
AvailableT1265494 Crank Cover, Crinkle Black
$179.36
AvailableT1260437 Crank Cover Gasket
$16.27
In stock in BreaT1260517 Balancer Cover, Crinkle Black
$170.73
AvailableT1260267 Balancer Cover Gasket
$8.43
In stock in BreaT3205066 Bolt, HHF, Lghtd, M6 x 20, Slv
$4.21
In stock in Brea · last onesT2508270 Tab, Engine Sub-Harness
Backordered at Triumph · we’ll confirm the ship date after you order
$8.79
On backorderT3951060 Badge, Flat, Type 1
$12.34
AvailableT1170263 Bracket, Clutch Cable
$6.64
AvailableT3205083 Bolt, HHF, Lghtd, M6 x 28, Slv
$2.29
AvailableT2505488 Bracket, O2 Connector
Backordered at Triumph · we’ll confirm the ship date after you order
$10.52

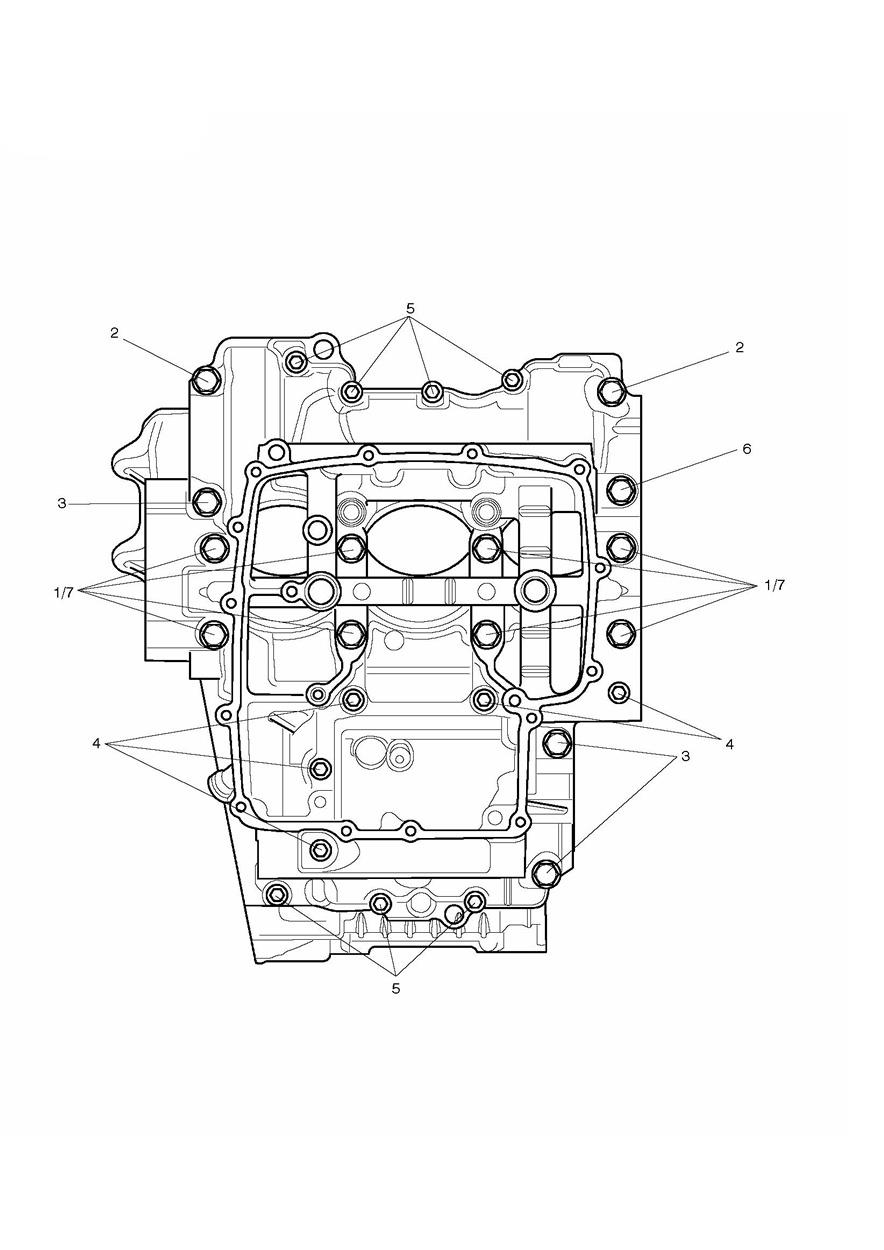

On backorderCrankcase Bolts VIN BN4428 and lower
T3202430 Bolt, HHF, M8 x 105, Slv
$6.16
AvailableT3202325 Bolt, HHF, M8 x 43, Slv
Low stock at Triumph
$1.99
Limited availabilityT3202315 Bolt, HHF, M8 x 65, Slv
$7.57
AvailableT3200195 Bolt, RHHF, M6 x 68, Slv
$4.04
AvailableT3202303 Bolt, RHHF, M6 x 28, Slv
$1.99
AvailableT3202323 Bolt, HHF, M8 x 80, Slv
$1.99
AvailableT3550184 Washer, Hardened, 8.2 x 18.7 x 2
$2.09

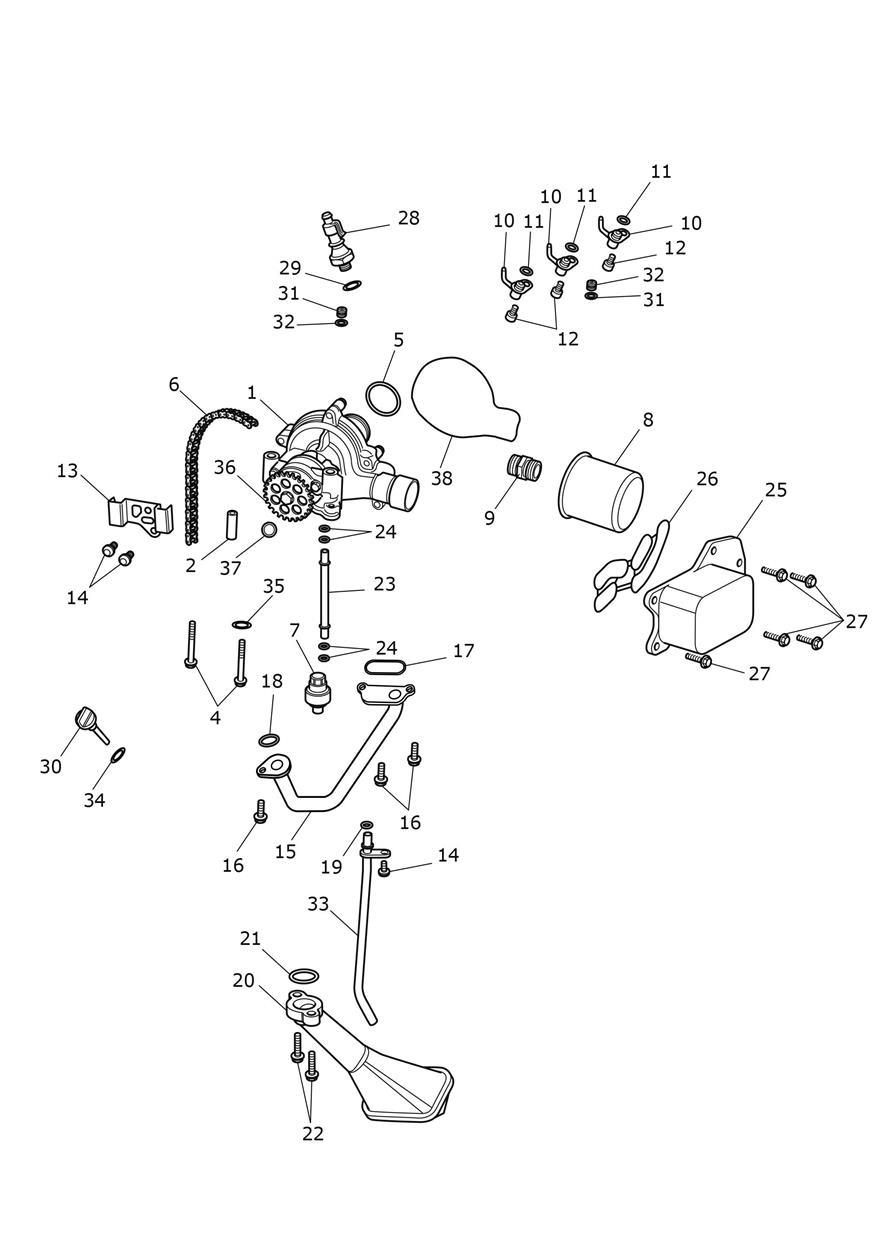

AvailableOil Pump Drive VIN BN4428 and lower
T1211460 Pump Assembly, Oil & Water
Low stock at Triumph
$303.45
Limited availabilityT3000034 Dowel, Hollow, Split Dia 8 x 30
Low stock at Triumph
$3.24
Limited availabilityT3200123 Bolt, RHHF, M6 x 50, Encaps
Low stock at Triumph
$2.93
Limited availabilityT3600127 O Ring, 31.6x2.4
$3.24
AvailableT1210121 Chain, 6.35 Pitch, 74 Link
$52.64
AvailableT1218001 Oil Filter, OES
$16.63
In stock in BreaT1210440 Oil Filter Multipack (24)
$379.33
AvailableT1210443 Oil Filter Multipack (80)
$1197.37
AvailableT1210438 Oil Filter Adaptor
Low stock at Triumph
$11.38
Limited availabilityT3600176 O Ring, 6.1 x 1.6
$2.73
AvailableT3051062 Screw, M6 x 12, Enc, Raw
$1.99
In stock in BreaT1210023 Retainer Plate, Aux Drive Chain
$10.10
AvailableT3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc
$1.99
In stock in BreaT1216508 Oil Feed Pipe
$78.90
AvailableT3205065 Bolt, HHF, Lghtd, M6 x 20, Enc
$5.19
AvailableT1210626 Sealing Ring, Oil Feed Pipe
Low stock at Triumph
$5.62
Limited availabilityT3600132 O Ring 20 x 2.62
$3.88
AvailableT3600153 O Ring, 7.6 x 2.4
Low stock at Triumph
$1.99
Limited availabilityT1210292 Oil, Pick Up
$36.08
AvailableT3600106 O-Ring, 24 x 2.5
Low stock at Triumph
$1.99
Limited availabilityT3200134 Bolt, RHHF, M6x25, Encaps
$2.53
AvailableT1210249 Pump Drain Tube
$5.54
AvailableT1210623 Heat Exchanger, Oil/Water, alu
$413.67
AvailableT1210625 Sealing Ring, Heat Exchanger
$47.51
AvailableT1210631 Sealing Ring, Heat Exchanger
$54.17
AvailableT3202304 Bolt, RHHF, M6 x 20, Slv
$4.91
AvailableT1210091 Oil Pressure Switch, M10
Low stock at Triumph
$46.64
Limited availabilityT3550546 Washer, Cu, OD 16 x ID 10.2/
$1.99
AvailableT1210304 Dipstick, Oil Level
$19.27
AvailableT1210000 Restrictor, Oil, Gearbox
$5.98
AvailableT3600126 O Ring, ID 7.1 x 1.6
$2.81
AvailableT1210309 Oil Pipe, Breather Drain
$11.76
AvailableT1210278 O Ring, Dipstick, Oil
$2.73
In stock in BreaT3550962 Washer, M6 x 13 x 1
$1.99
AvailableT1210171 Seal, O-Ring, Cover, Water Pump
Low stock at Triumph
$2.65

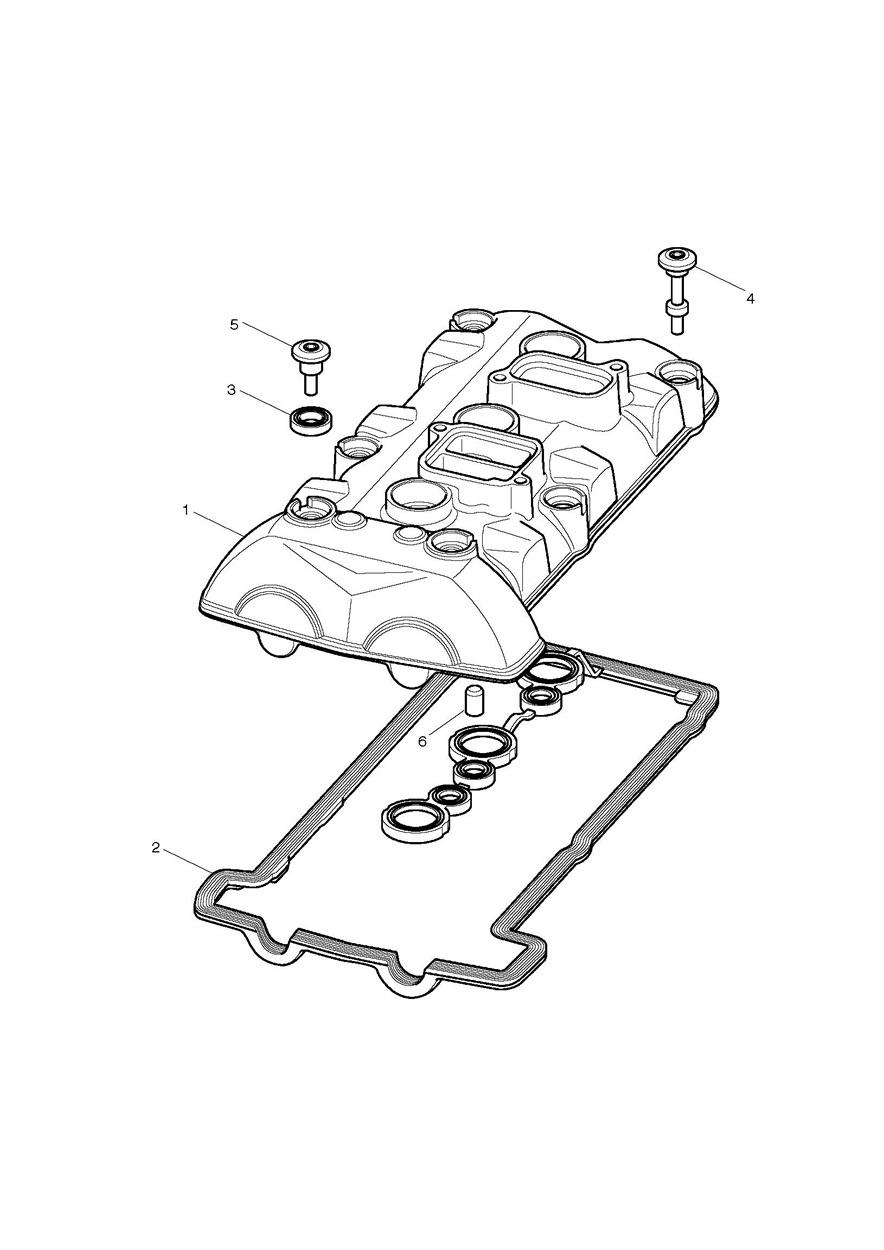

Limited availabilityCam Cover VIN BN4428 and lower
T1260848 Cam Cover, Machined, Sai, Crinkle Blk
$474.04
AvailableT1261765 Seal, Cam Cover
$31.09
In stock in BreaT1260309 Seal, Cam Cover, Screw, Twin Lip
$5.39
In stock in BreaT3332066 Bolt, Lge Skt HD, Shld, M6x42.5
Low stock at Triumph
$5.02
Limited availabilityT3330241 Bolt, Lge Skt Hd, Shld, M6 x 24.0
$10.84
Available
