Frame, Footrests, Engine Mountings & Stands
Triumph Street Triple Moto2 · 6 diagrams
6 exploded diagrams for the frame, footrests, engine mountings & stands of the Triumph Street Triple Moto2, covering the Street Triple Moto2. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Rear Mudguard & No Plate Brkt
24 parts
VIN BN4428 and lower
Main Frame & Fittings
15 parts
VIN BN4428 and lower
Front Mudguard
7 parts
VIN BN4428 and lower
Rear Sub-Frame & Fittings
11 parts
VIN BN4428 and lower
Footrests & Mountings
21 parts
VIN BN4428 and lower
Sidestand
12 parts
VIN BN4428 and lower
80 parts you can order online
Every part below appears in Triumph’s Frame, Footrests, Engine Mountings & Stands diagrams for the Street Triple Moto2 and is priced and orderable online. Open a part to see what it fits and to buy it.
Most of these parts are shared with the Street Triple from BF1297 and Street Triple Moto2 Edition - BN4429 > books. 3 parts are specific to the Street Triple Moto2.

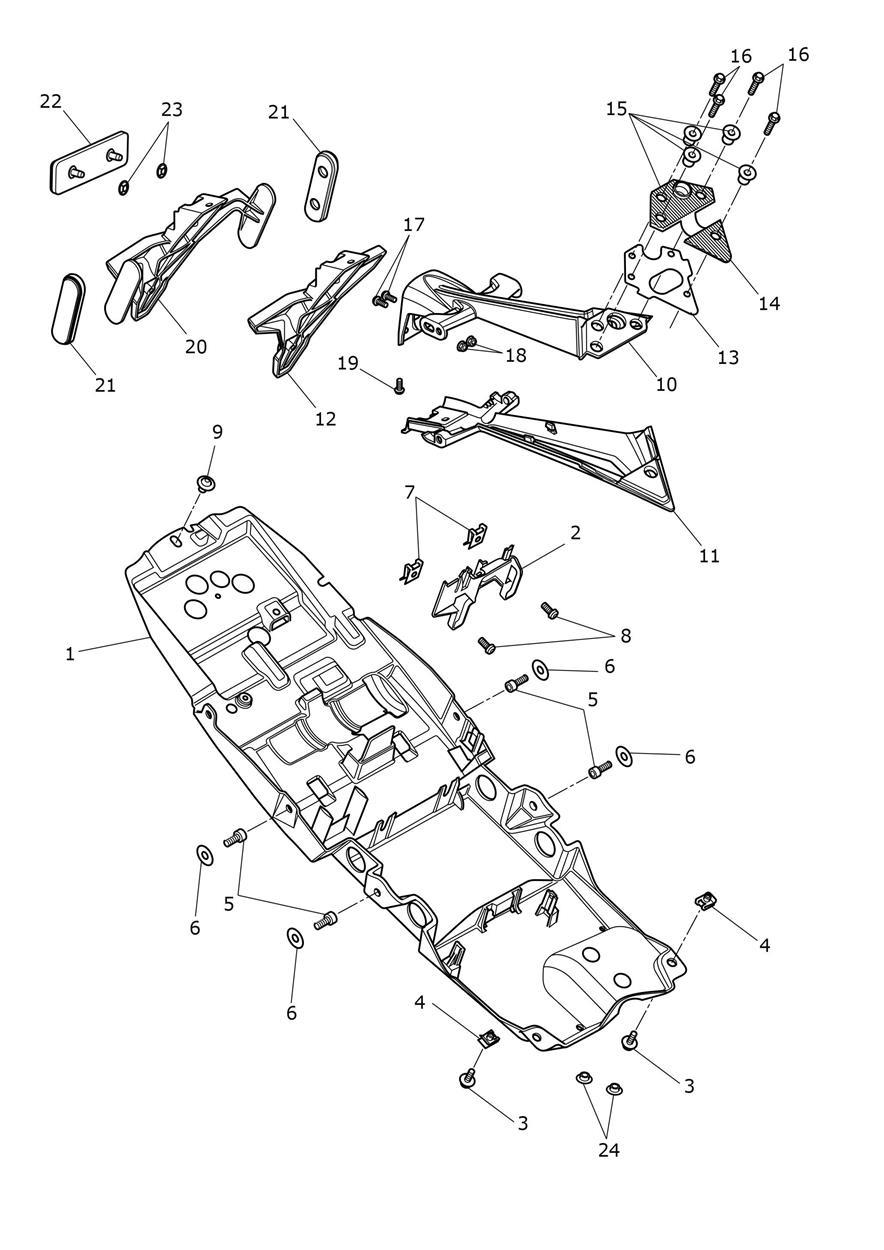

Rear Mudguard & No Plate Brkt VIN BN4428 and lower
T2318749 Battery Tray, Moulding
$56.87
AvailableT2315494 Bracket, Electrical, Moulding
$10.52
AvailableT3330955 Screw, But/Hd, M5 x 14, Slv, Enc
$7.83
AvailableT3350129 Nut, Captive, M5
Low stock at Triumph
$3.14
Limited availabilityT3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv
$1.99
In stock in BreaT3555026 Washer, 6.4 x 18 x 1.6
$1.99
In stock in BreaT3350123 Nut, Captive, M5, Non-Secured
$2.29
AvailableT3330356 Screw, M5 x 10, S/S, Enc
$5.62
AvailableT3701121 Rivet, Plastic, Screw Type
Low stock at Triumph
$1.99
Limited availabilityT2308677 Number Plate Hanger, Lower
$42.10
AvailableT2302225 Fixing Plate, No Plate Hanger
$43.14
AvailableT2302226 Spacer, Rubber, No Plate Hanger
$8.86
AvailableT3010713 Sleeve, Flgd, 6.4 x 11.5 x 11.5
$3.81
AvailableT3205067 Bolt, HHF, Lghtd, M6 x 25, Slv
$2.27
AvailableT3350010 Locknut, Flgd, M5
$2.09
AvailableT3330696 Screw, But/Hd, M5 X 16, Slv
$5.27
AvailableT2703122 Moulding, No Plate & Reflectors
$55.43
AvailableT2700443 Reflector, Oval, Red
$5.69
In stock in BreaT2707111 Reflex Reflector
$9.15
AvailableT3550253 Washer, Dia 5 mm, Retaining
$1.99
In stock in BreaT3450302 Plug, Dia 15
Backordered at Triumph · we’ll confirm the ship date after you order
$2.84

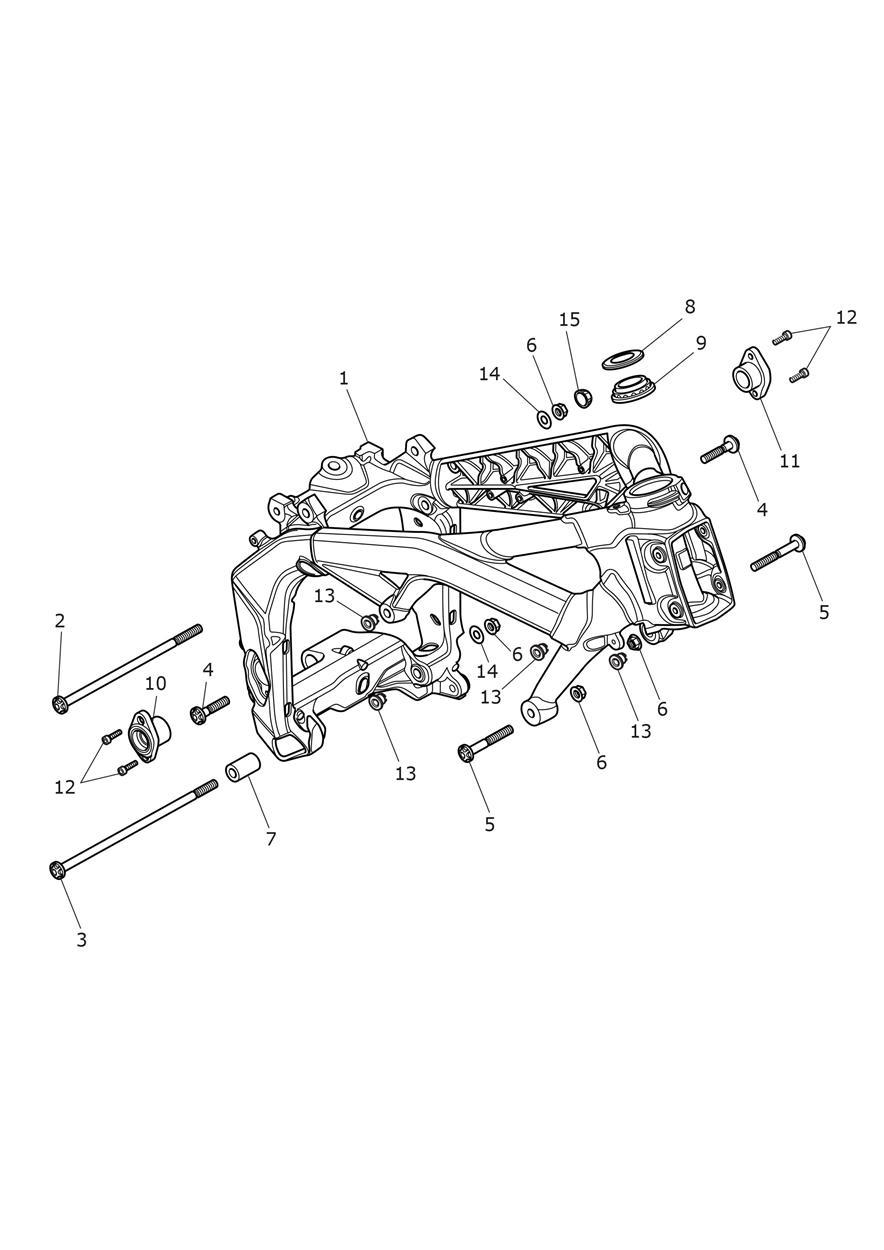

On backorderMain Frame & Fittings VIN BN4428 and lower
T3332692 Bolt, TX, M10, 238LG
$5.45
AvailableT3332694 Bolt, TX, M10 x 266LG
$5.35
AvailableT3332695 Bolt, TX, M10 x 48LG
Low stock at Triumph
$14.00
Limited availabilityT3332620 Bolt, TX, M10 x 75 LG
$4.91
AvailableT3350250 Locknut, Flanged, M10
$3.85
In stock in BreaT2071128 Spacer, Engine Mount
$6.24
AvailableT3600234 Dust Seal, Dia 55
Low stock at Triumph
$7.72
Limited availabilityT3800091 Bearing, Sac
$31.43
In stock in BreaT3050334 Screw, Cap/Hd, M6 x 20, Slv
$1.99
AvailableT3555029 Washer, 10.5 x 23 x 2
$2.53

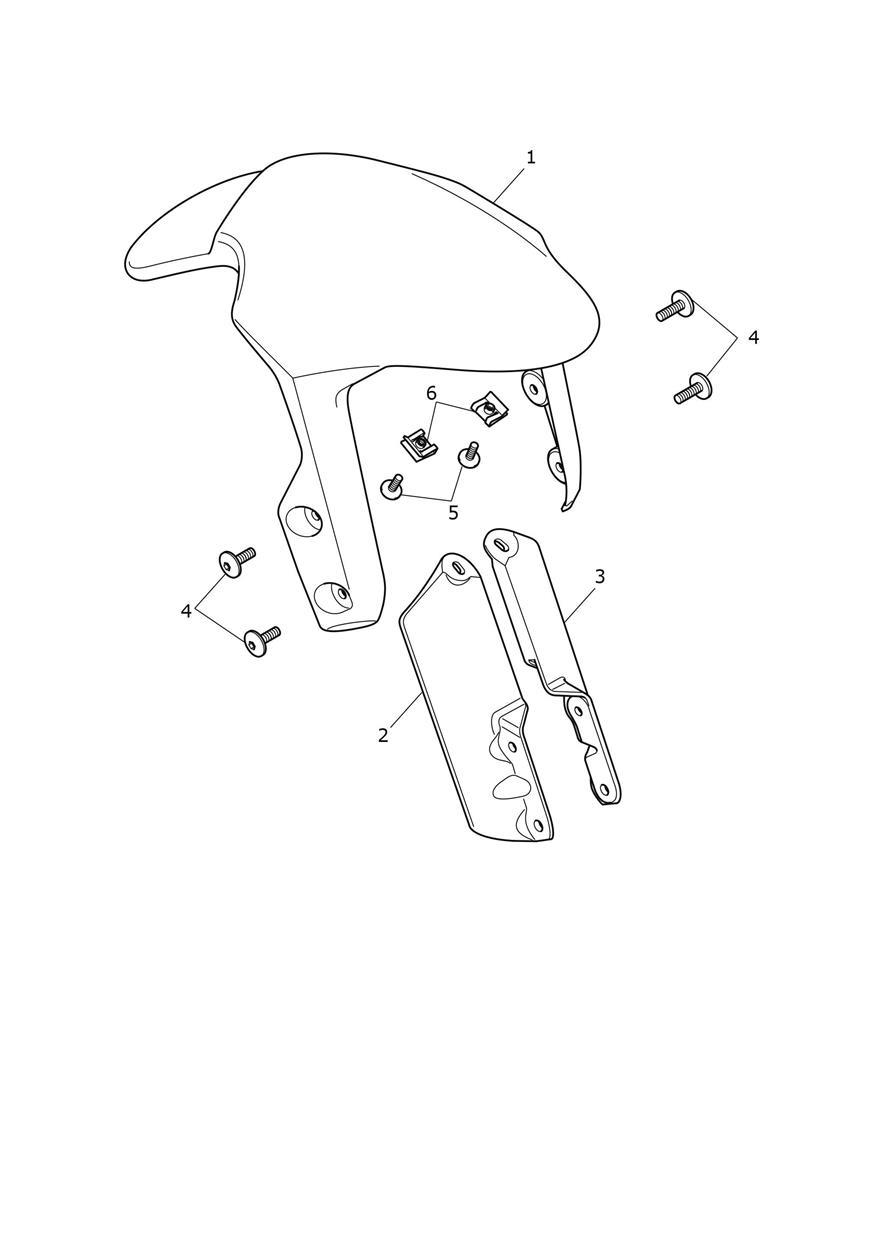

AvailableFront Mudguard VIN BN4428 and lower
T2311917 Front Mudguard, Carbon, Decal
$597.17
AvailableT2320003 Fork Protector, Fork, RH
$44.04
AvailableT2320002 Fork Protector, Fork, LH
$44.04
AvailableT3330312 Screw, But/Hd, M6 x 20, Slv
Backordered at Triumph · we’ll confirm the ship date after you order
$3.32
On backorderT3330945 Screw, But/Hd, M5 x 16, Blk
Low stock at Triumph
$7.83
Limited availabilityT3351002 Nut, Captive, U-Type, M5, Slv
$2.20
AvailableT2311949 Decal, Front Mudguard, Triumph Yellow
$52.14

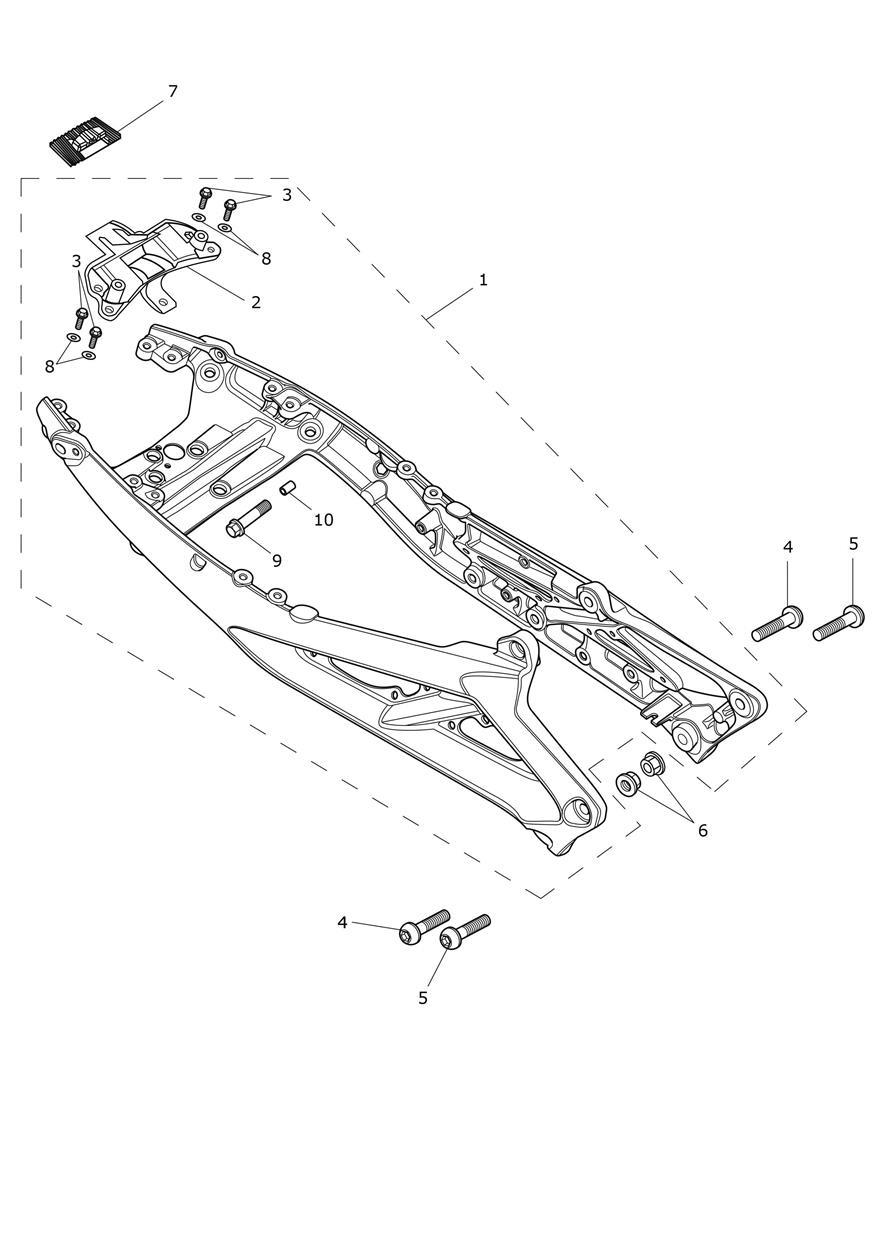

AvailableRear Sub-Frame & Fittings VIN BN4428 and lower
T2079480-FK Rear Subframe Assy, Triumph Yellow
$783.50
AvailableT2073626 Rear Subframe Assy, Matt Aluminium
$758.32
AvailableT2070577 Rear Bridge
Low stock at Triumph
$156.66
Limited availabilityT3205063 Bolt, HHF, Lghtd, M6 x 16, Slv
Low stock at Triumph
$3.24
Limited availabilityT3332670 Bolt, TX, M10 x 30
$4.56
AvailableT3332675 Bolt, TX, M10 x 40
$14.00
AvailableT2070651 Mounting Rubber
$3.88
AvailableT3552002 Washer, M6 x 14 x 1
$1.99
AvailableT3202319 Bolt, HHF, M8 x 35, Slv
$2.43
AvailableT3000102 Dowel, Hollow, 10 x 14
Backordered at Triumph · expected Nov 20
$1.99

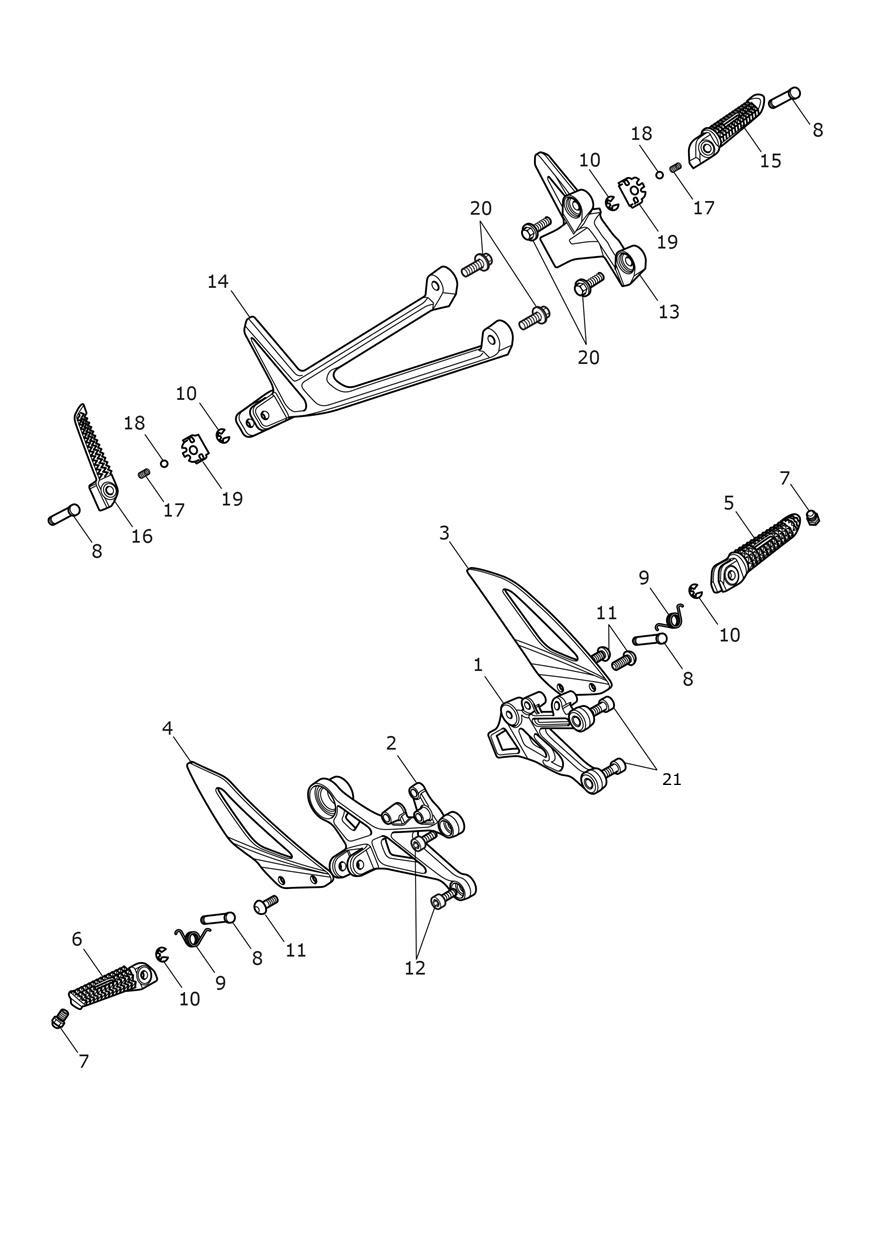

On backorderFootrests & Mountings VIN BN4428 and lower
T2088025 Control Plate, LH
$115.04
AvailableT2082980 Control Plate, RH
$115.04
AvailableT2082774 Heel Guard, LH
Low stock at Triumph
$45.19
Limited availabilityT2082773 Heel Guard, RH
$45.19
AvailableT2089803 Footrest, Front, LH
$72.94
AvailableT2089804 Footrest, Front, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$72.94
On backorderT2085164 Peg, Bank Angle, 9.2mm
$13.03
AvailableT2080546 Pin, Pivot, Footrest
$6.07
AvailableT2080819 Return Spring, Footrest
$5.83
AvailableT3500207 Circlip, Ext 8 X 0.89
$2.64
AvailableT3335011 Screw, But/Hd, Tx, M8 x 20
$3.24
AvailableT3050321 Screw, Cap/Hd, M8 x 20, Slv
$6.87
AvailableT2088256 Footrest Hanger, LH, Black
$175.07
AvailableT2088257 Footrest Hanger, RH, Blk
Low stock at Triumph
$175.07
Limited availabilityT2089505 Rear Footrest, LH
$62.88
AvailableT2089504 Rear Footrest, RH
Low stock at Triumph
$62.88
Limited availabilityT2081674 Spring, Detent
$5.92
AvailableT2081675 Detent Ball
$1.99
AvailableT2081672 Detent Plate
$4.91
AvailableT3205653 Bolt, HHF, Lghtd, M8 x 30, Slv
$1.99
AvailableT3051097 Screw, Cap/Hd, M8 x 25, Silver
$3.81

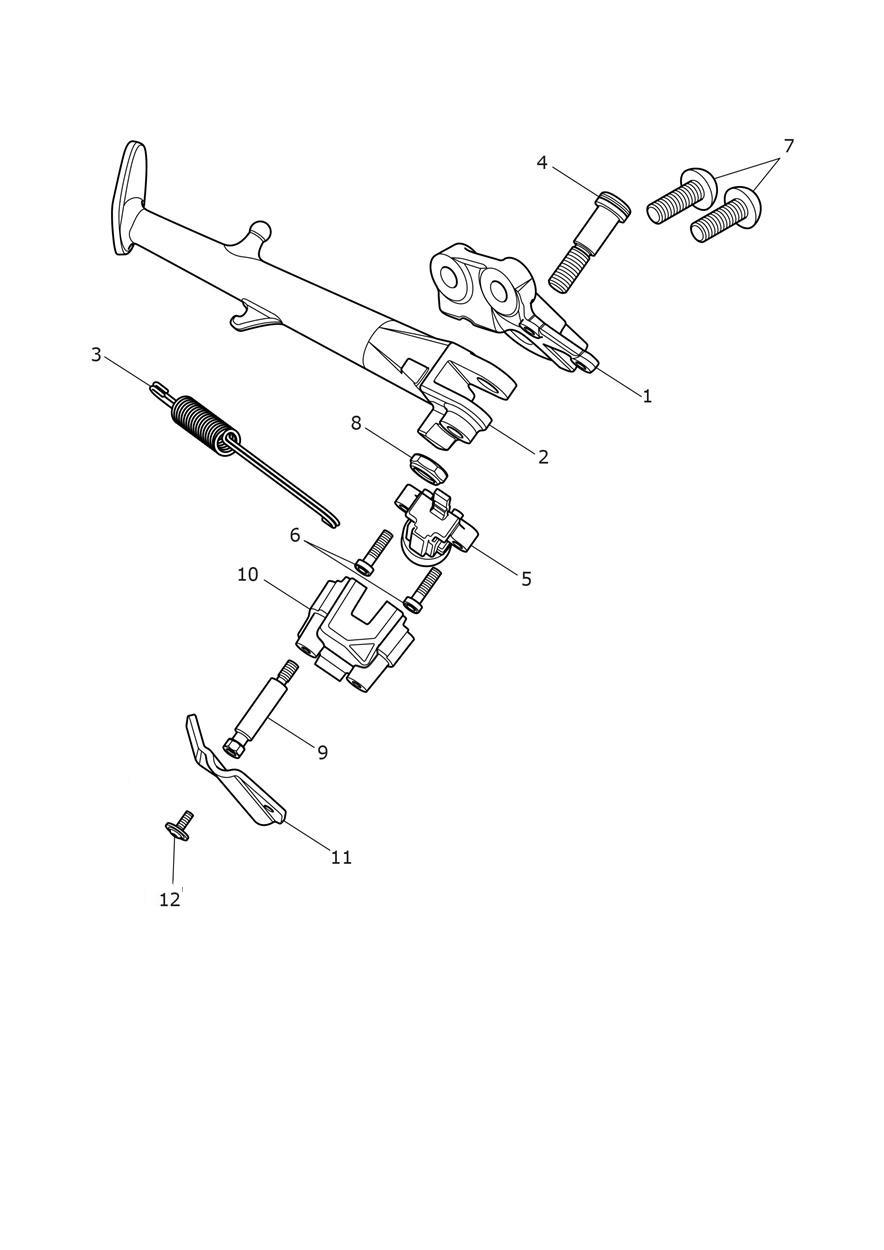

AvailableSidestand VIN BN4428 and lower
T2082117 Sidestand Bracket
Low stock at Triumph
$73.03
Limited availabilityT2082009 Sidestand Leg
Backordered at Triumph · we’ll confirm the ship date after you order
$103.83
On backorderT2085019 Sidestand Spring
$10.84
AvailableT3330867 Bolt, Shouldered, M10 x 1.25 x 53.1
$10.63
AvailableT2082290 Sidestand Switch
$56.36
AvailableT3330648 Screw, Pan/Hd, Tx, M5 x 20, Slv
$2.43
AvailableT3332559 Bolt, Skt Hd, M10 x L30
$4.03
AvailableT3350134 Locknut, M10 x 1.25
$2.35
AvailableT2082049 Peg, Spring Retainer
Backordered at Triumph · we’ll confirm the ship date after you order
$10.71
On backorderT2082294 Heat Shield, Nylon
$96.81
AvailableT2082295 Heat Shield
$60.76
Available
