Fuel & Exhaust Systems

Triumph Street Triple Moto2 · 7 diagrams

7 exploded diagrams for the fuel & exhaust systems of the Triumph Street Triple Moto2, covering the Street Triple Moto2. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

Fuel Tank & Fuel Pump

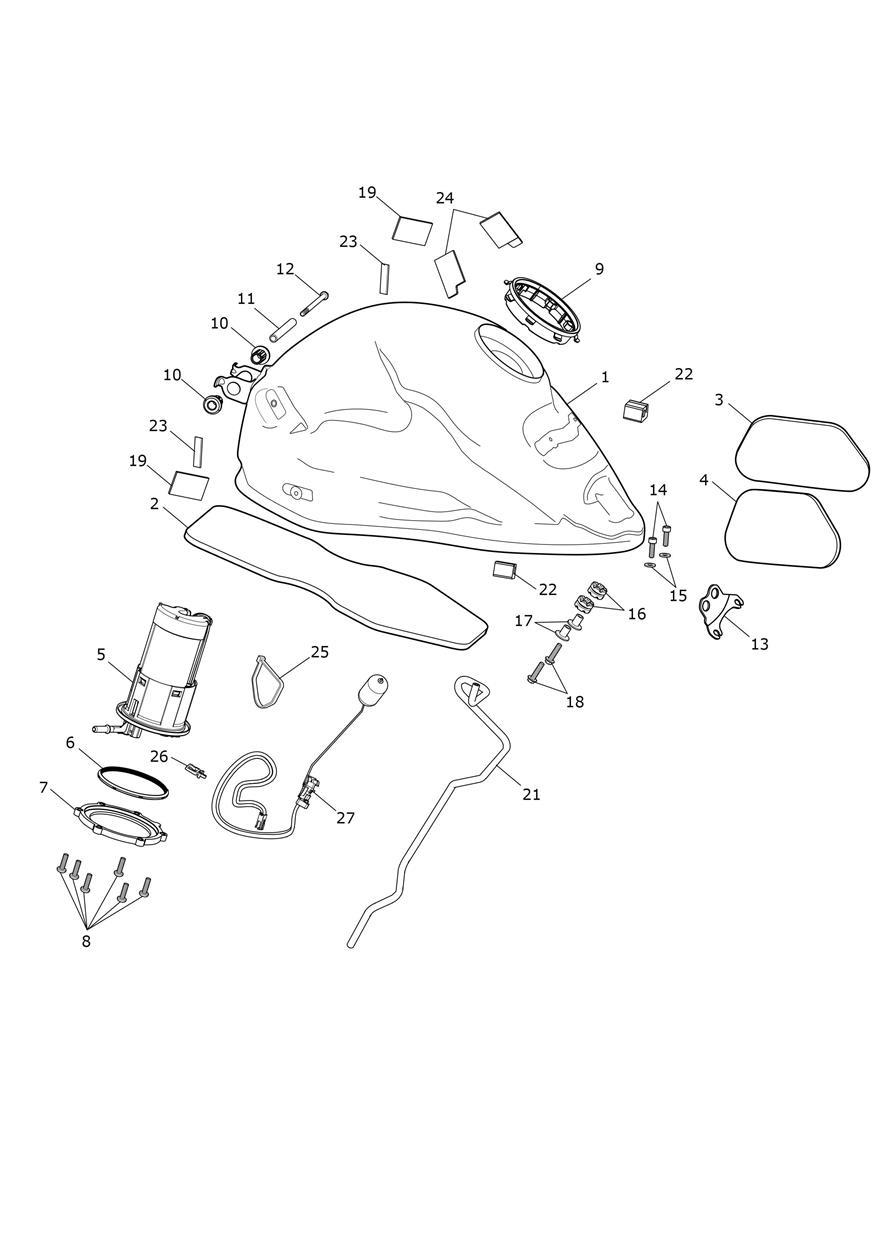

Fuel Pump & Fittings exploded diagram
Fuel Pump & Fittings
26 parts

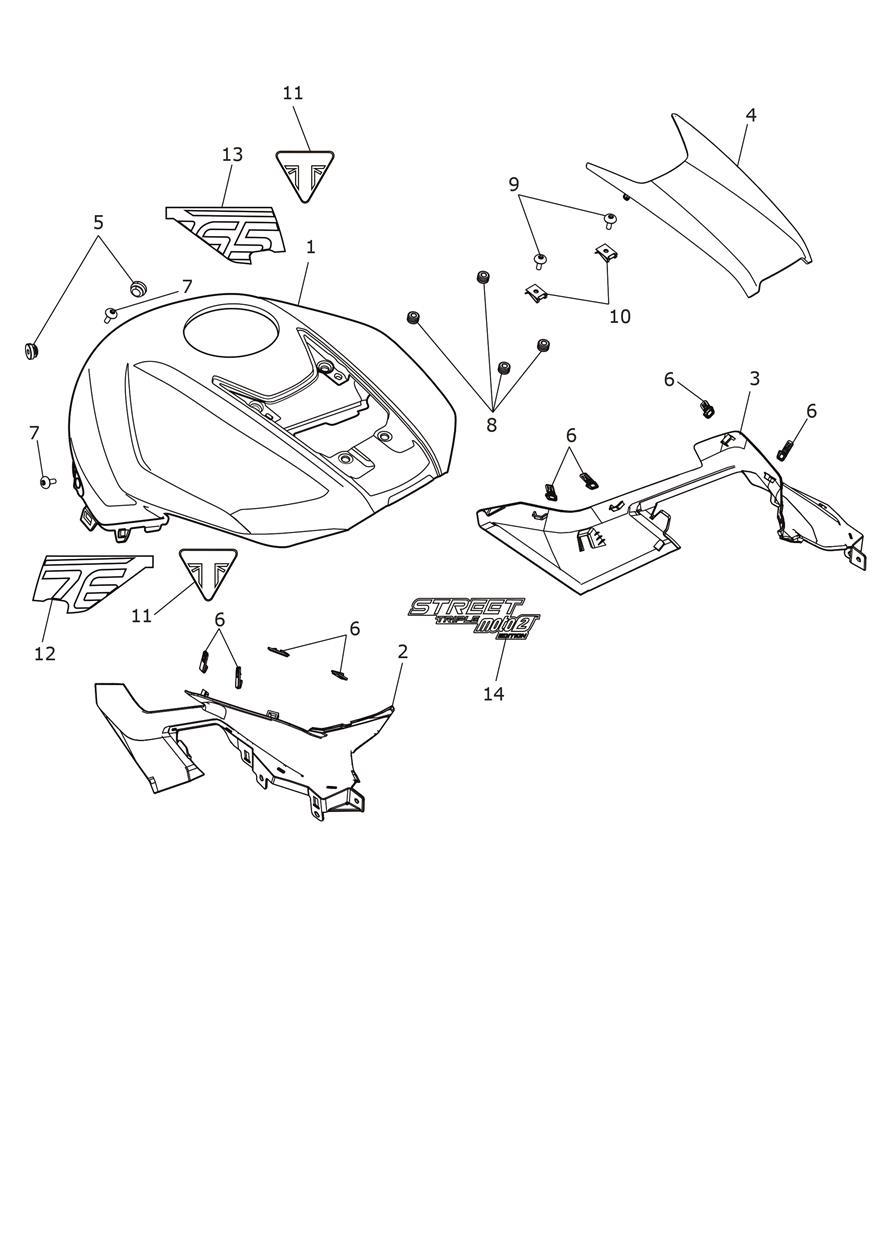

 Fuel Tank Bodywork exploded diagram
Fuel Tank Bodywork
18 parts

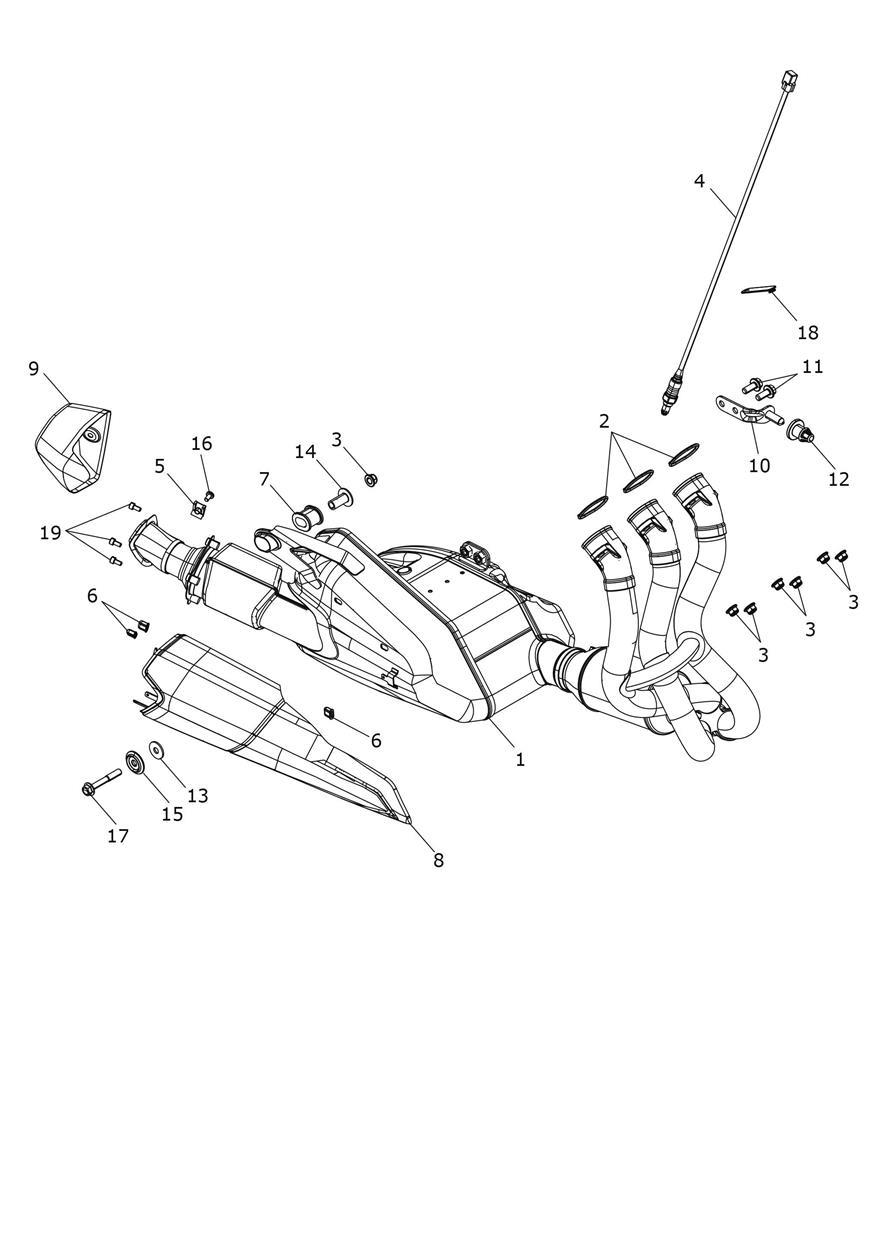

Exhaust System exploded diagram
Exhaust System
19 parts

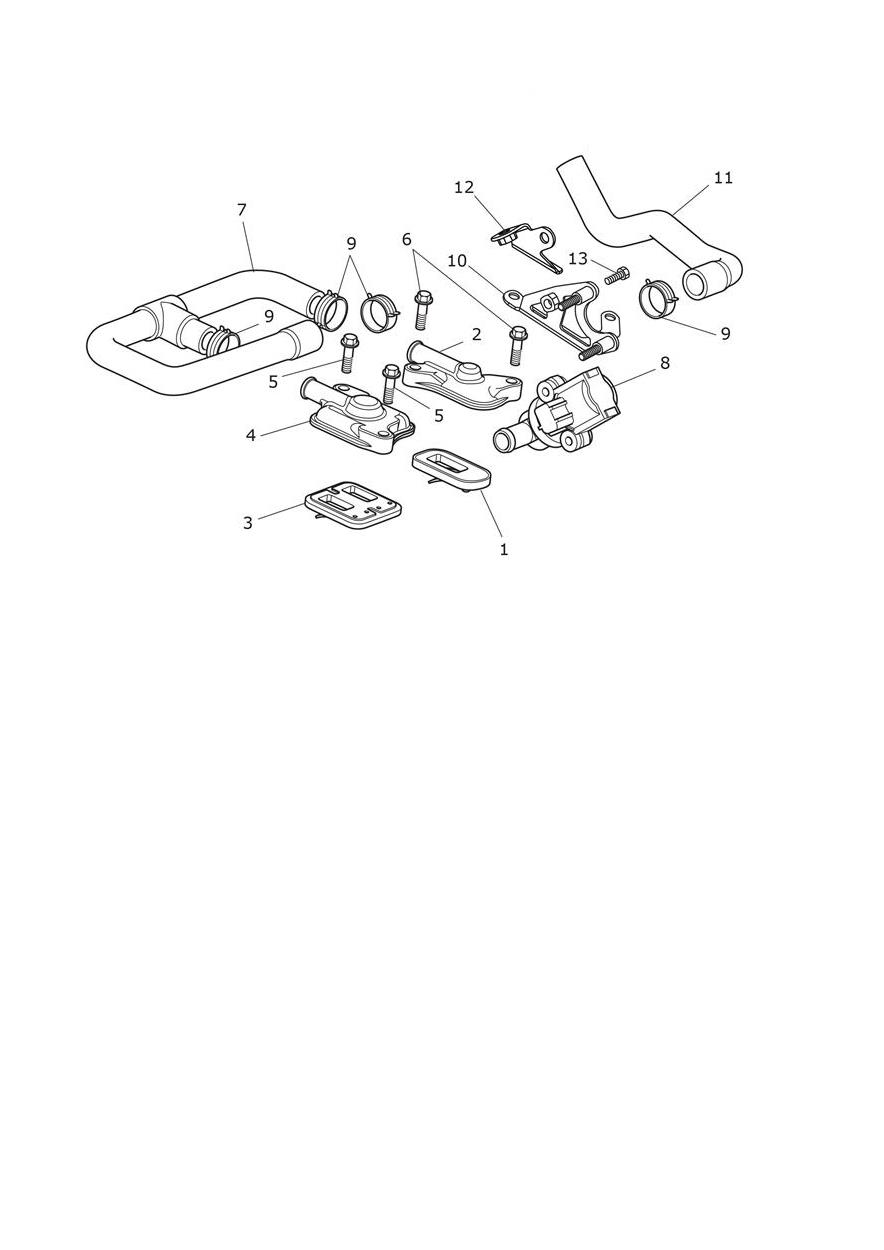

 Emissions Control exploded diagram
Emissions Control
13 parts

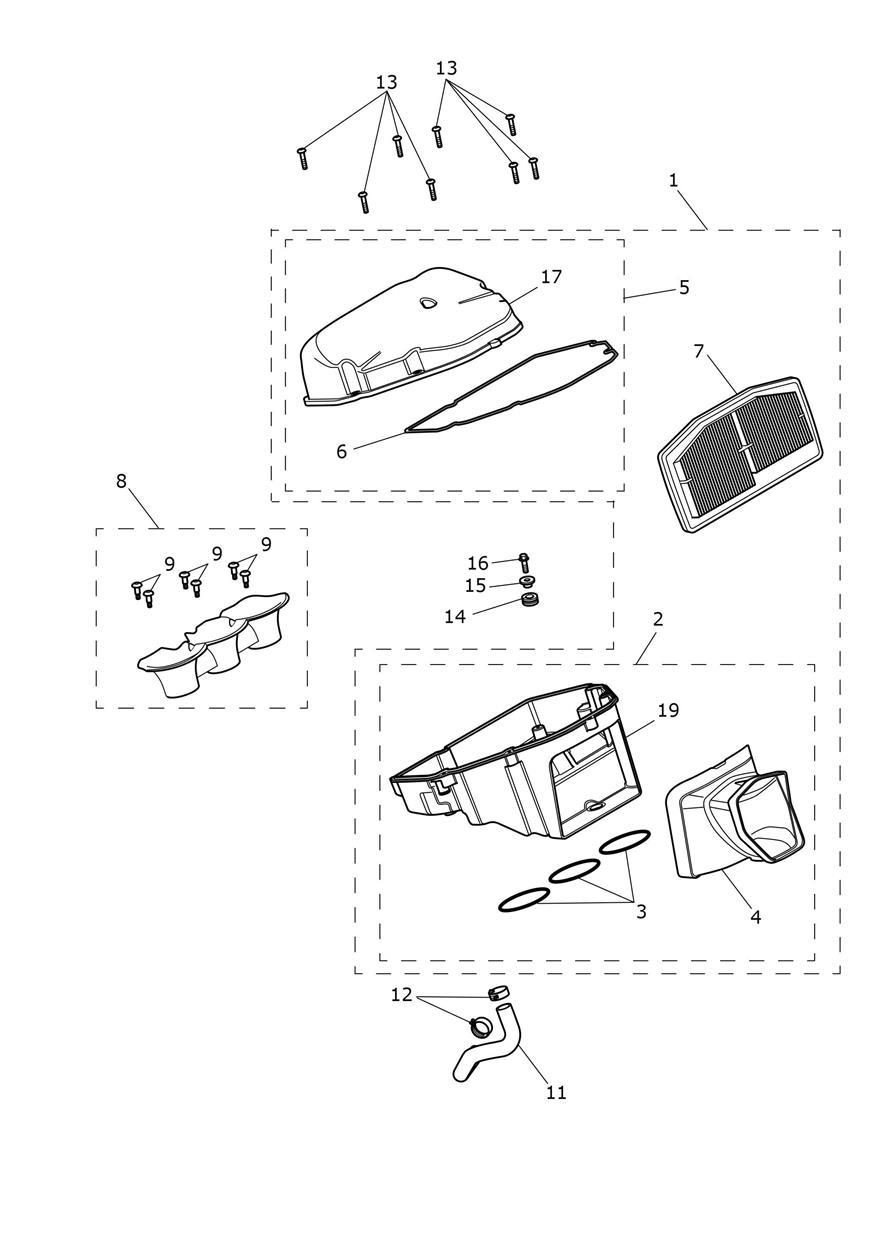

 Airbox exploded diagram
Airbox
18 parts

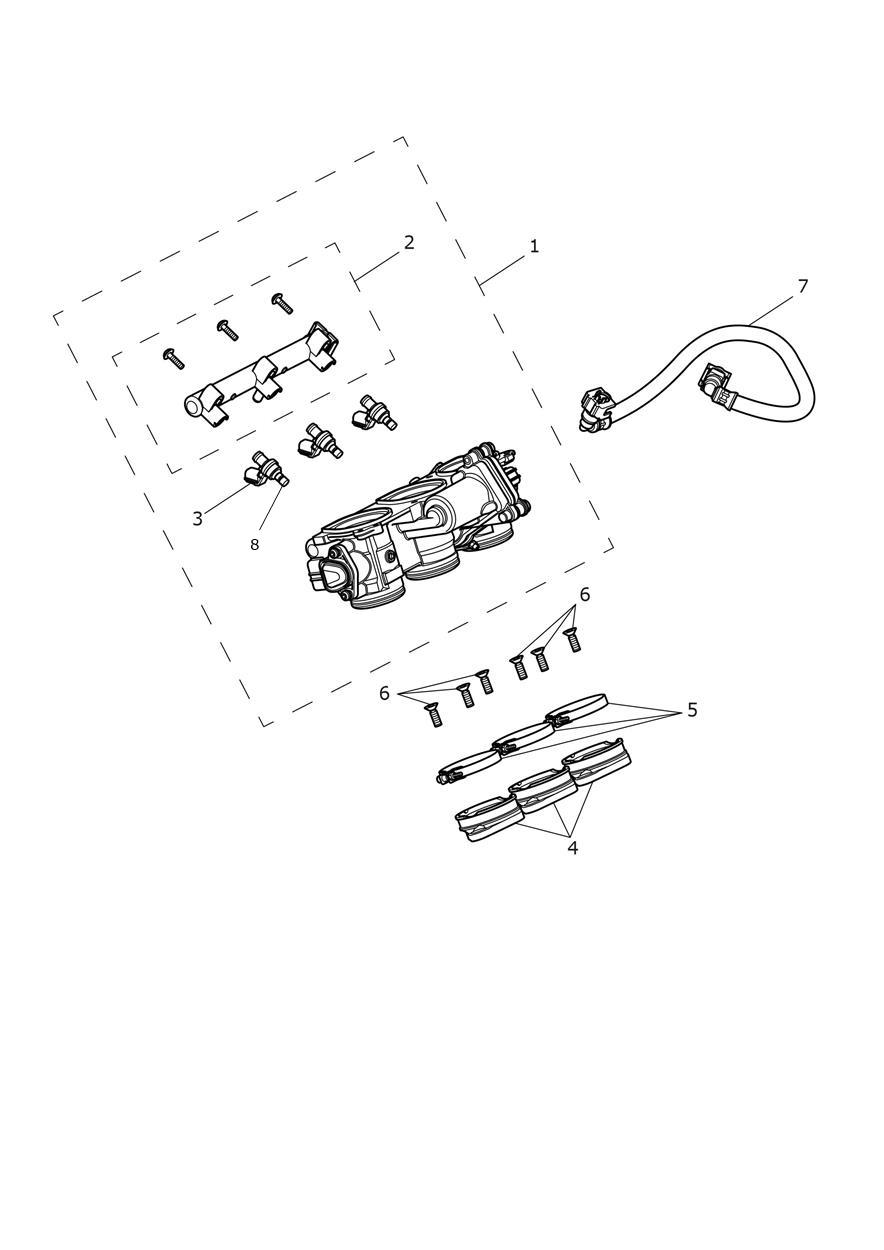

 Throttles, Injectors and Fuel Rail exploded diagram
Throttles, Injectors and Fuel Rail
8 parts

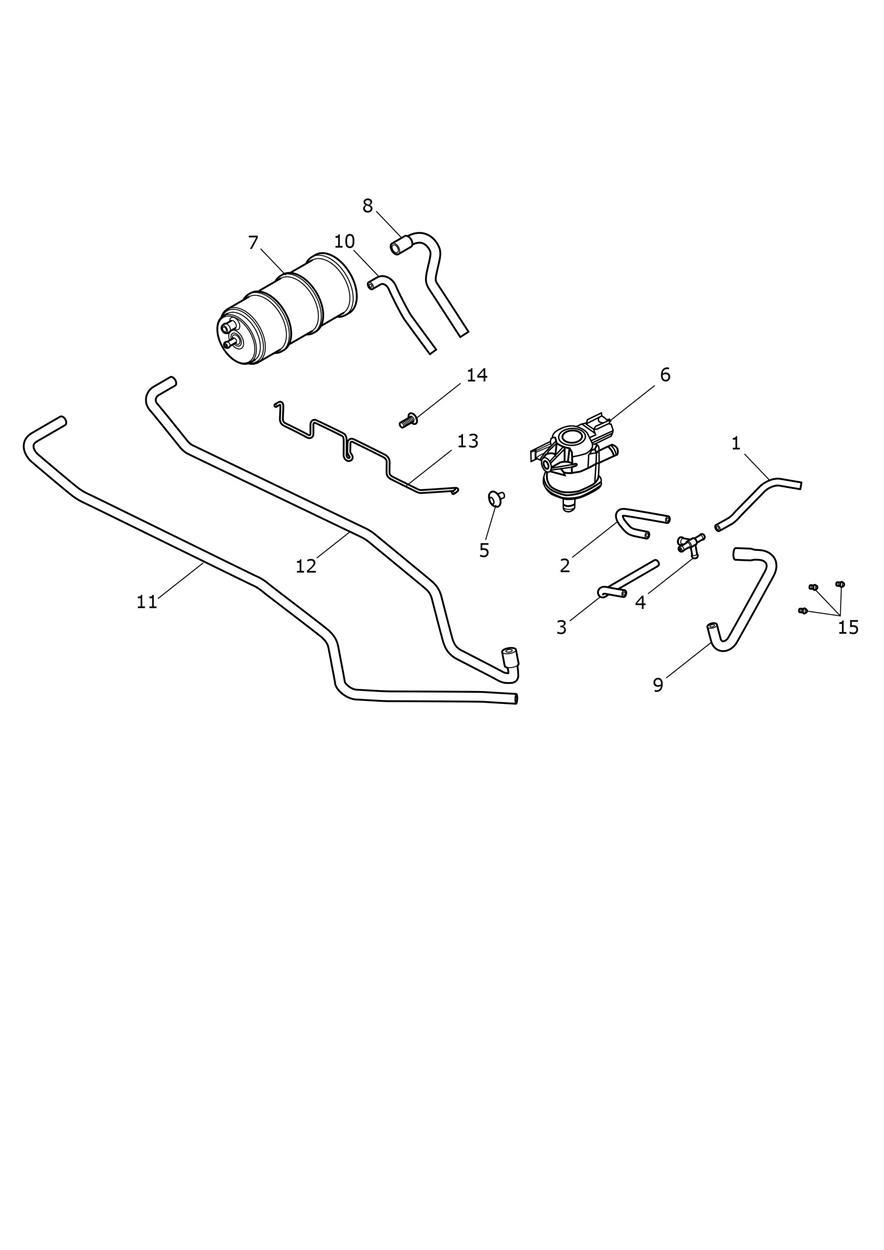

 Evaporative Loss Control System exploded diagram
Evaporative Loss Control System
16 parts

← All areas of the Street Triple Moto2
