Crankcase, Engine Covers & Eng. Lubrication Syst

Triumph Street Triple up to BF1182 · 6 diagrams

6 exploded diagrams for the crankcase, engine covers & eng. lubrication syst of the Triumph Street Triple up to BF1182, covering the Street Triple 675. This book covers frames up to VIN BF1182. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

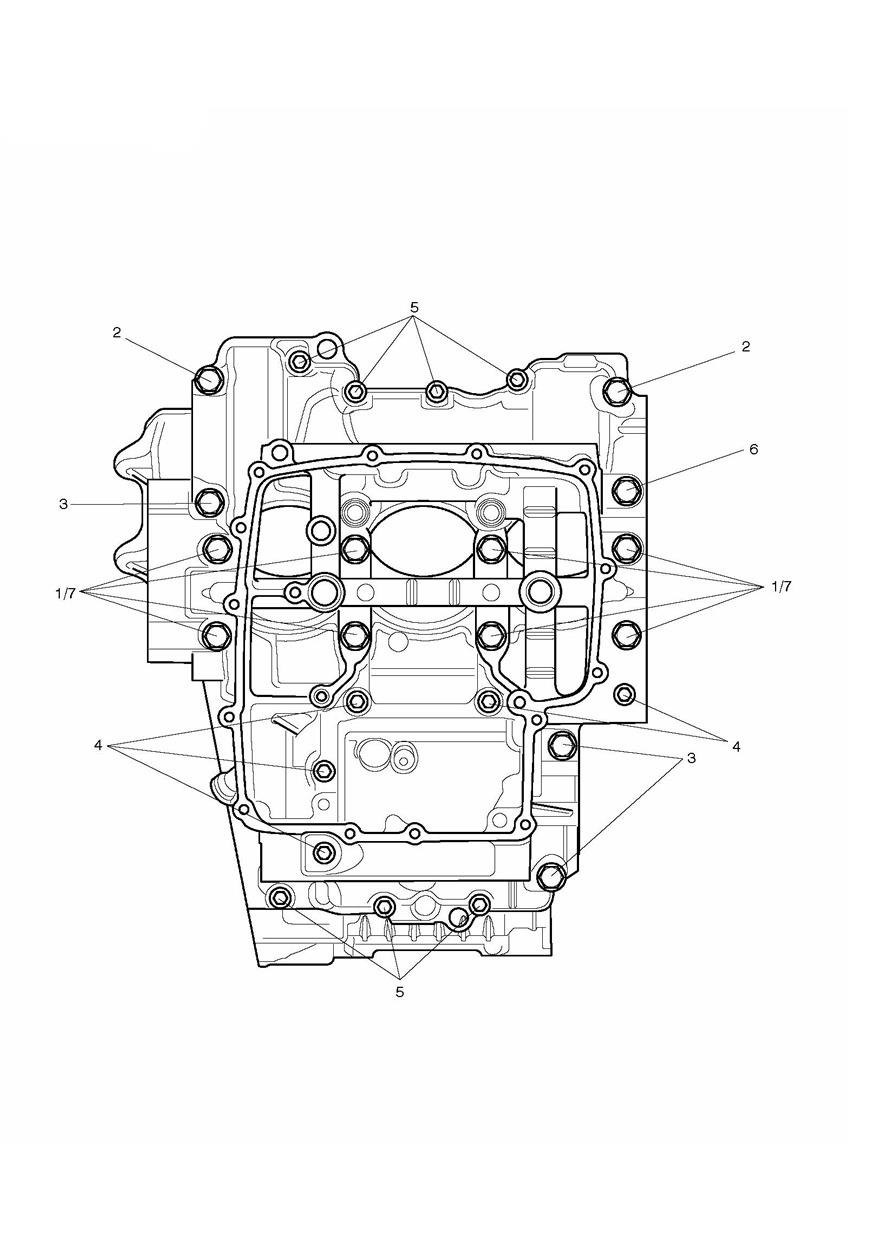

Crankcase Bolts exploded diagram
Crankcase Bolts
7 parts

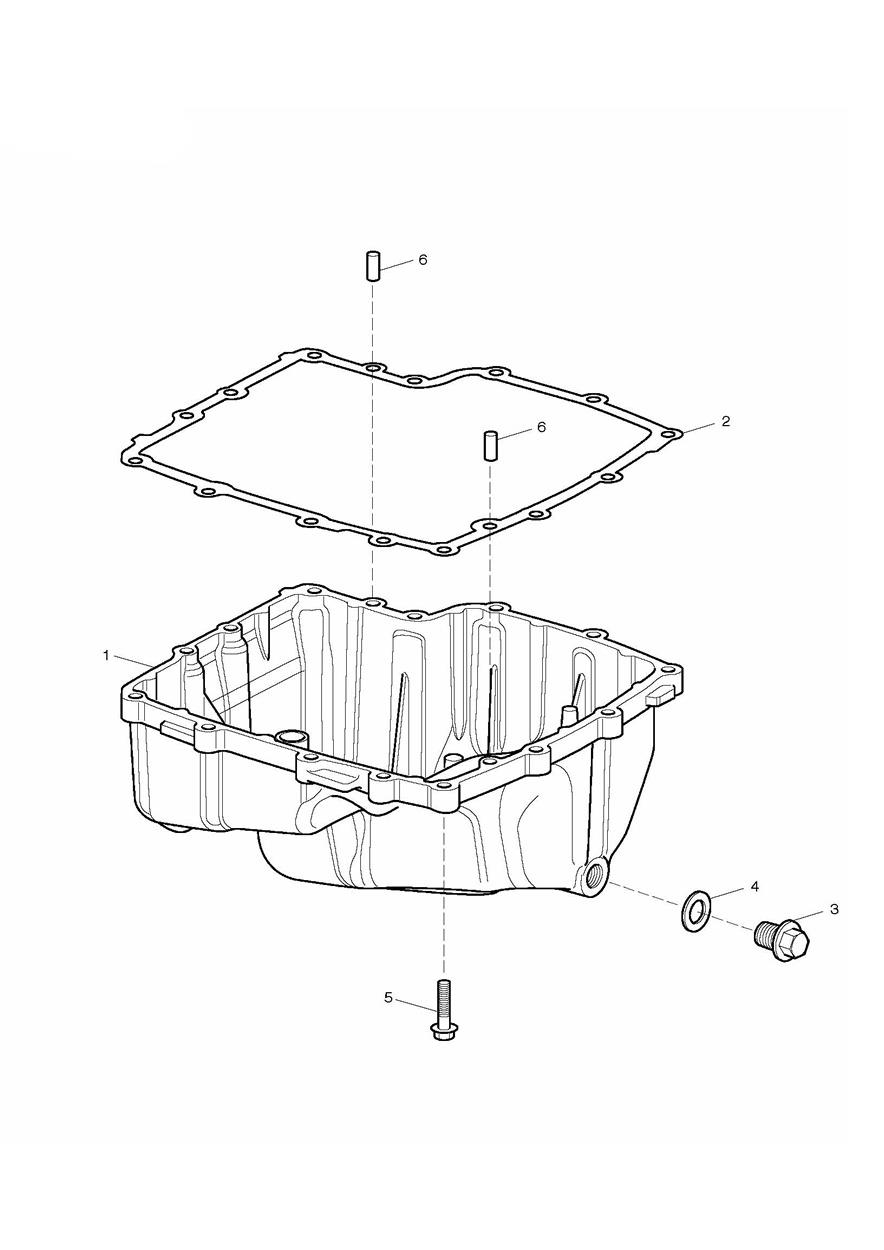

 Sump & Fittings exploded diagram
Sump & Fittings
8 parts

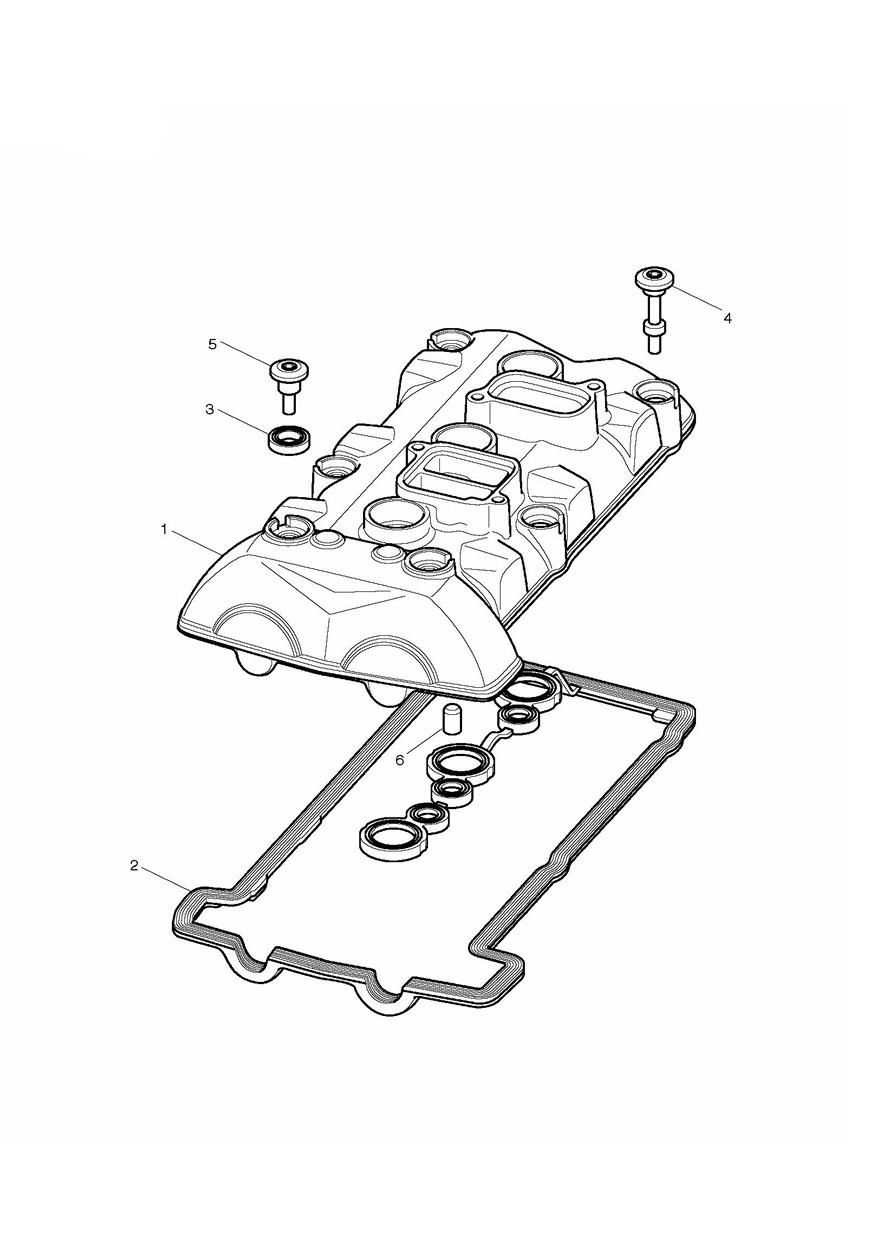

 Cam Cover exploded diagram
Cam Cover
6 parts

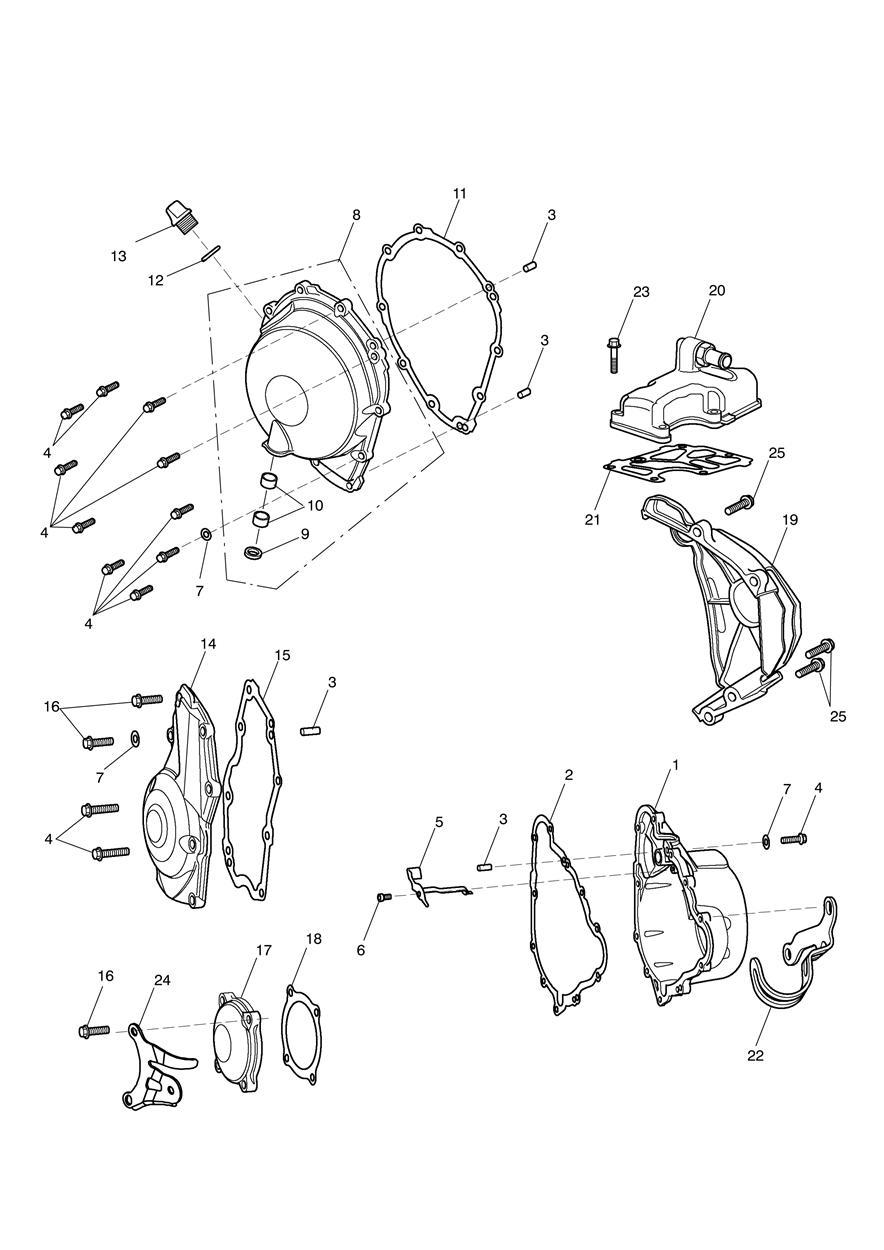

 Engine Covers exploded diagram
Engine Covers
30 parts

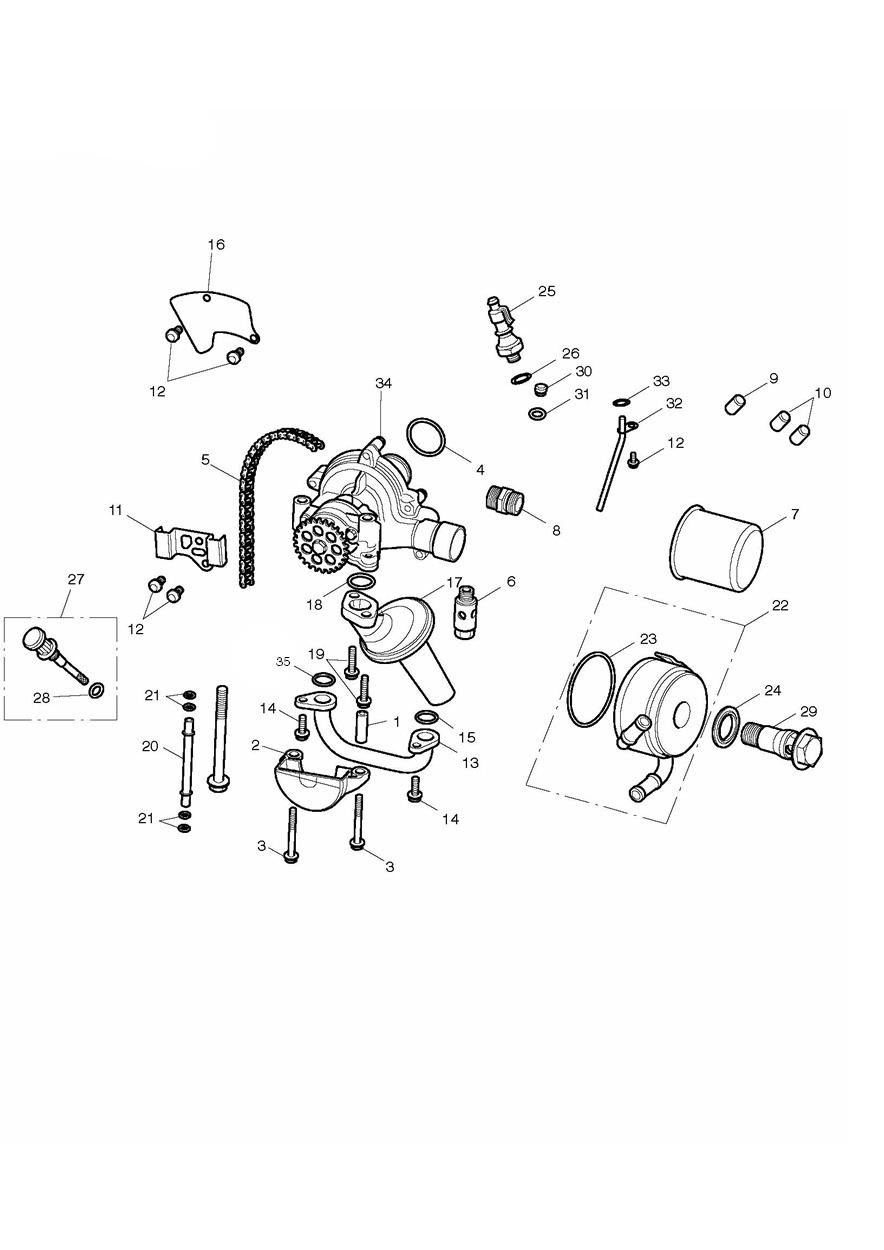

 Oil Pump Drive exploded diagram
Oil Pump Drive
41 parts

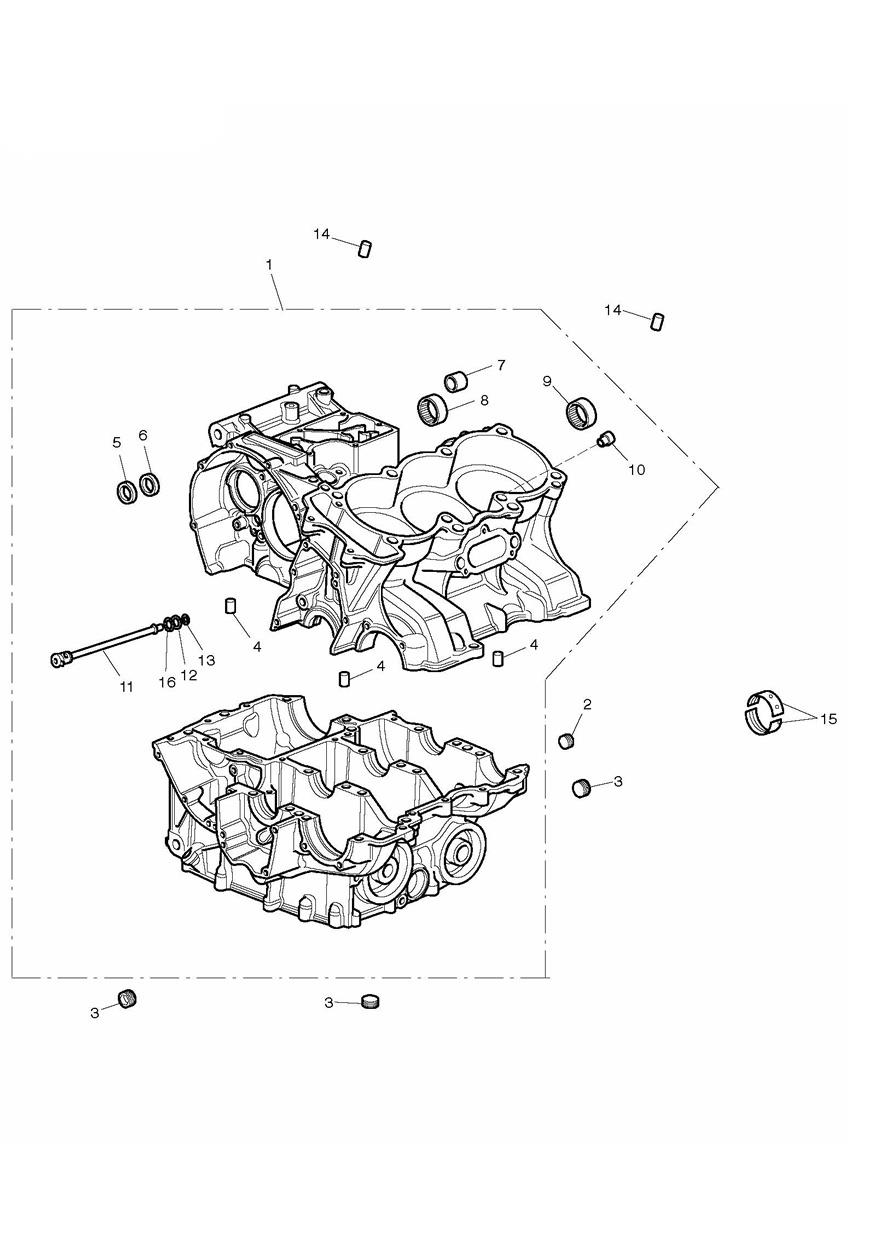

 Crankcase & Fittings exploded diagram
Crankcase & Fittings
20 parts

← All areas of the Street Triple up to BF1182
