Braking System
Triumph Street Twin & Speed Twin 900 · 23 diagrams
23 exploded diagrams for the braking system of the Triumph Street Twin & Speed Twin 900, covering the Speed Twin 900, Street Twin. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
ABS System All Expt BR & IN, BR & IN Only
37 parts

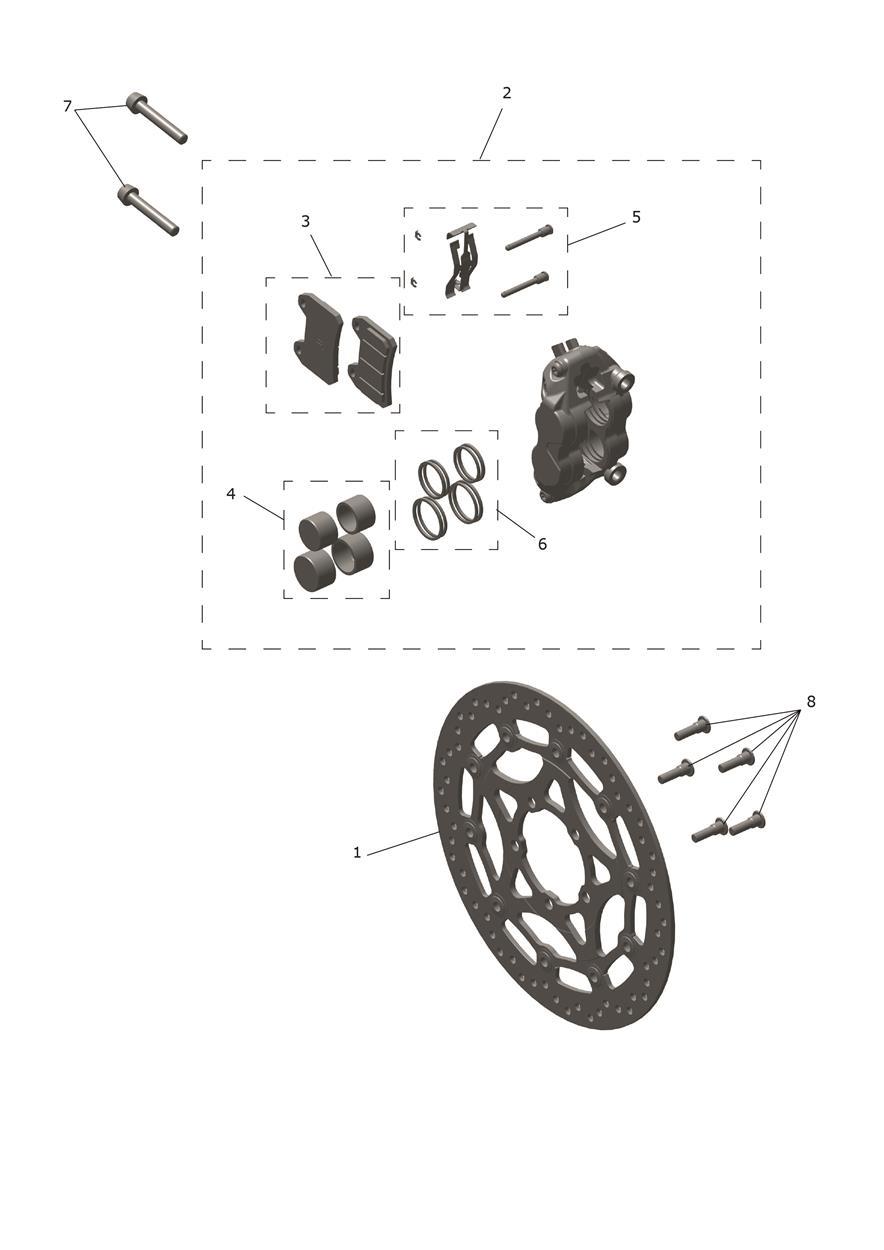

Front Brake Caliper & Disc
8 parts

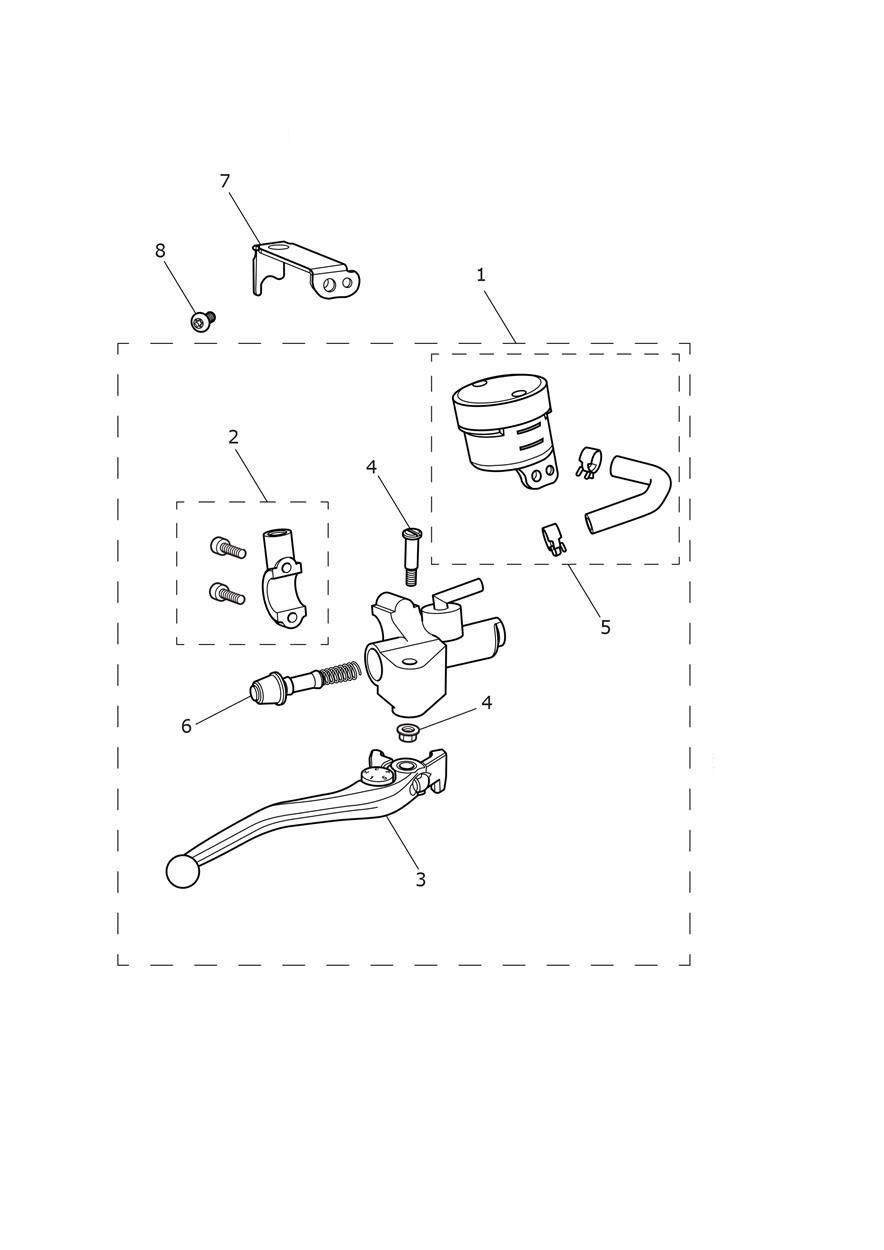

Front Master Cylinder Assy
8 parts

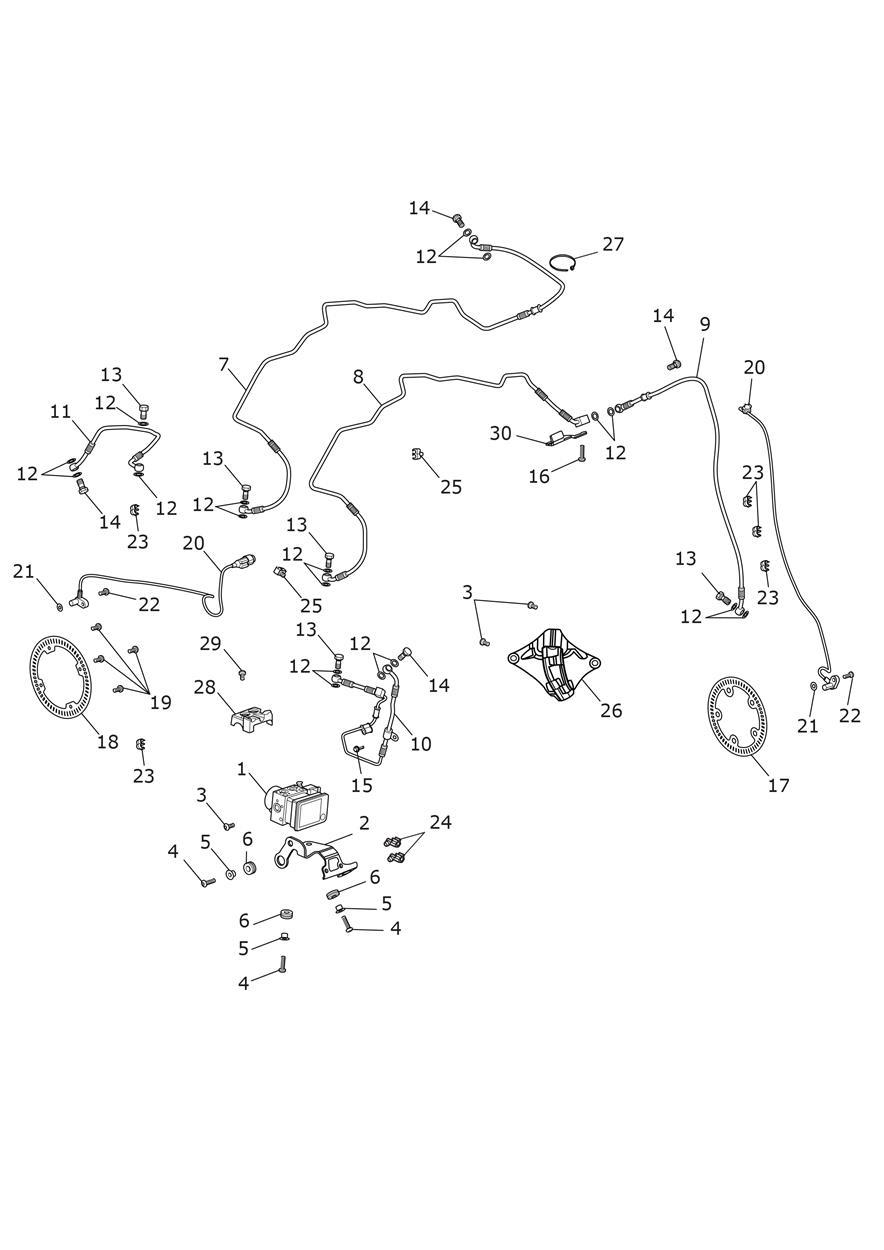

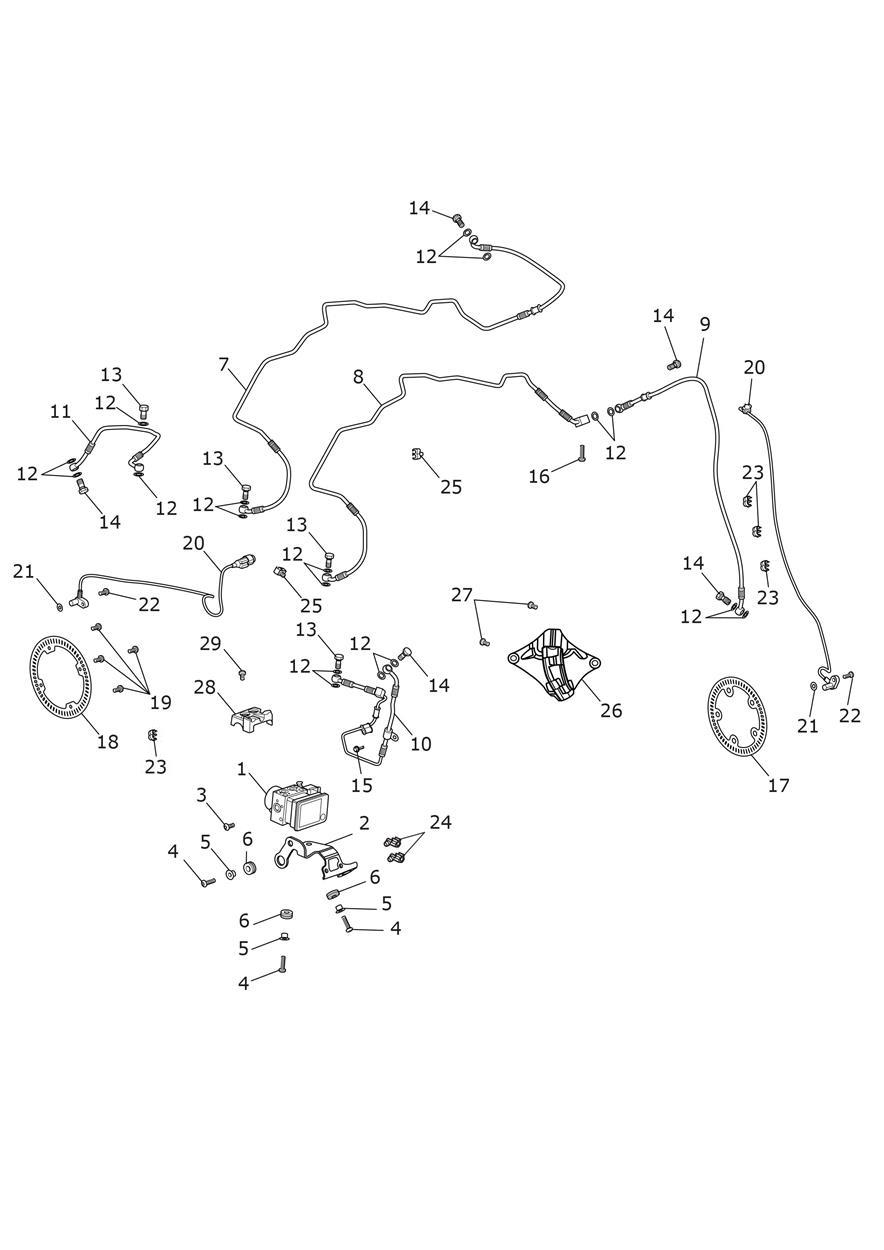

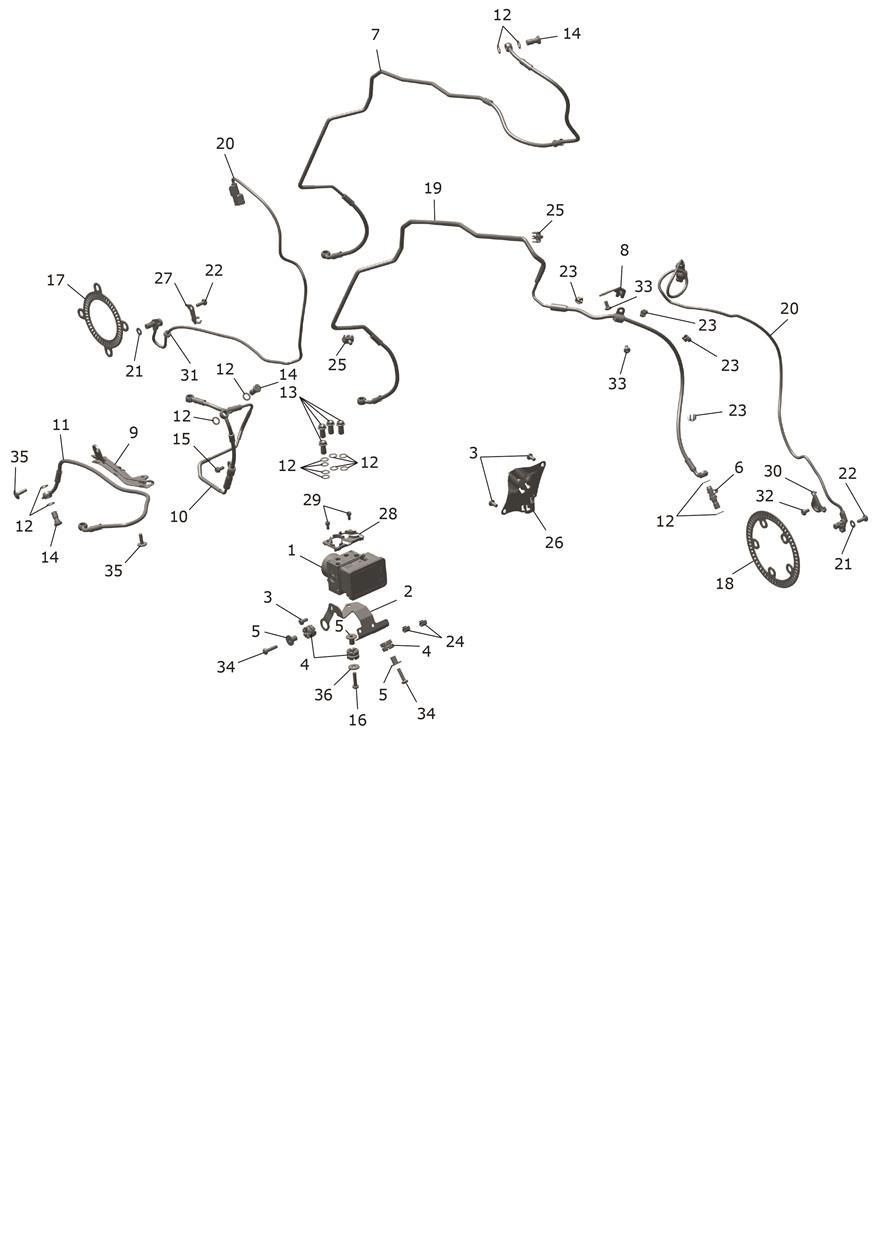

ABS System
39 parts
ABS System All Expt BR & IN, BR & IN Only
33 parts

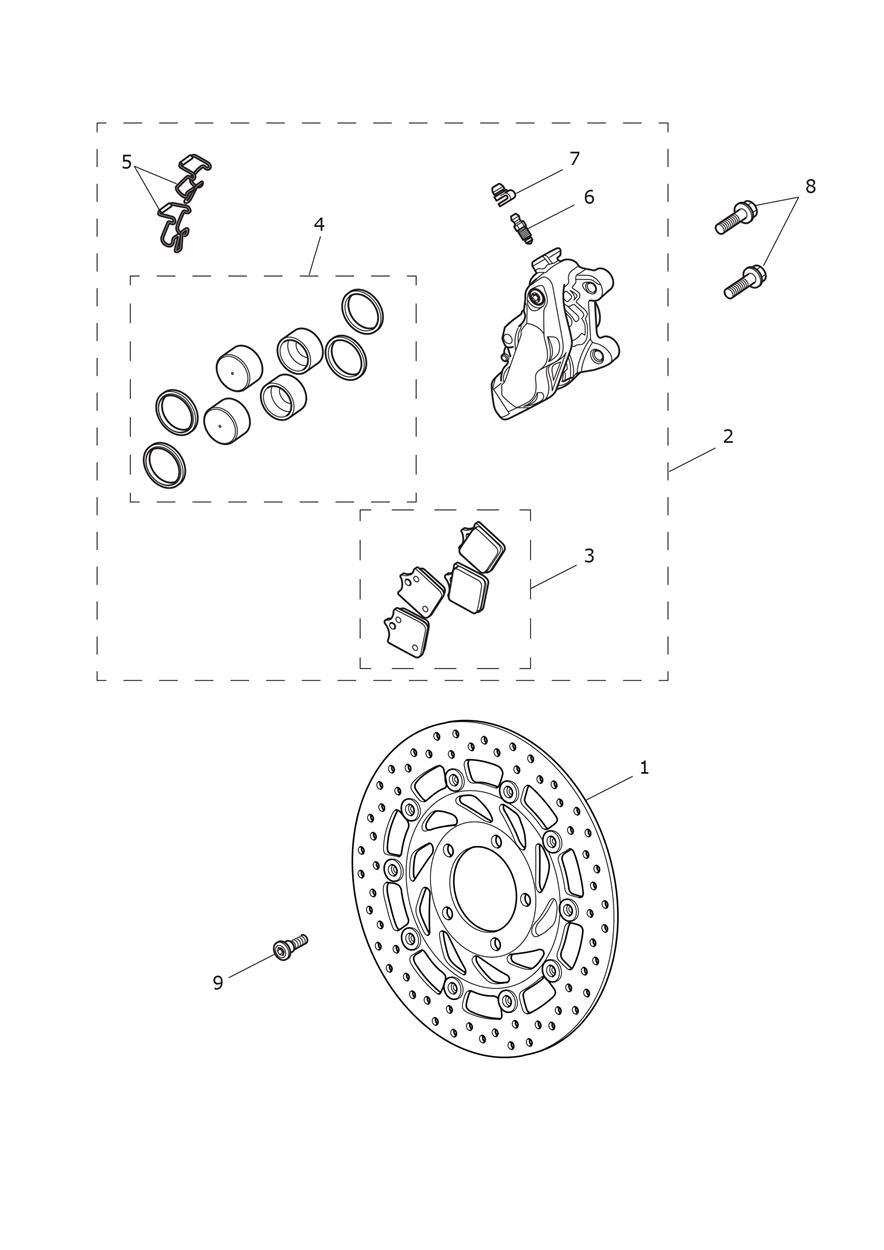

Front Brake Caliper & Disc
9 parts
ABS System
33 parts

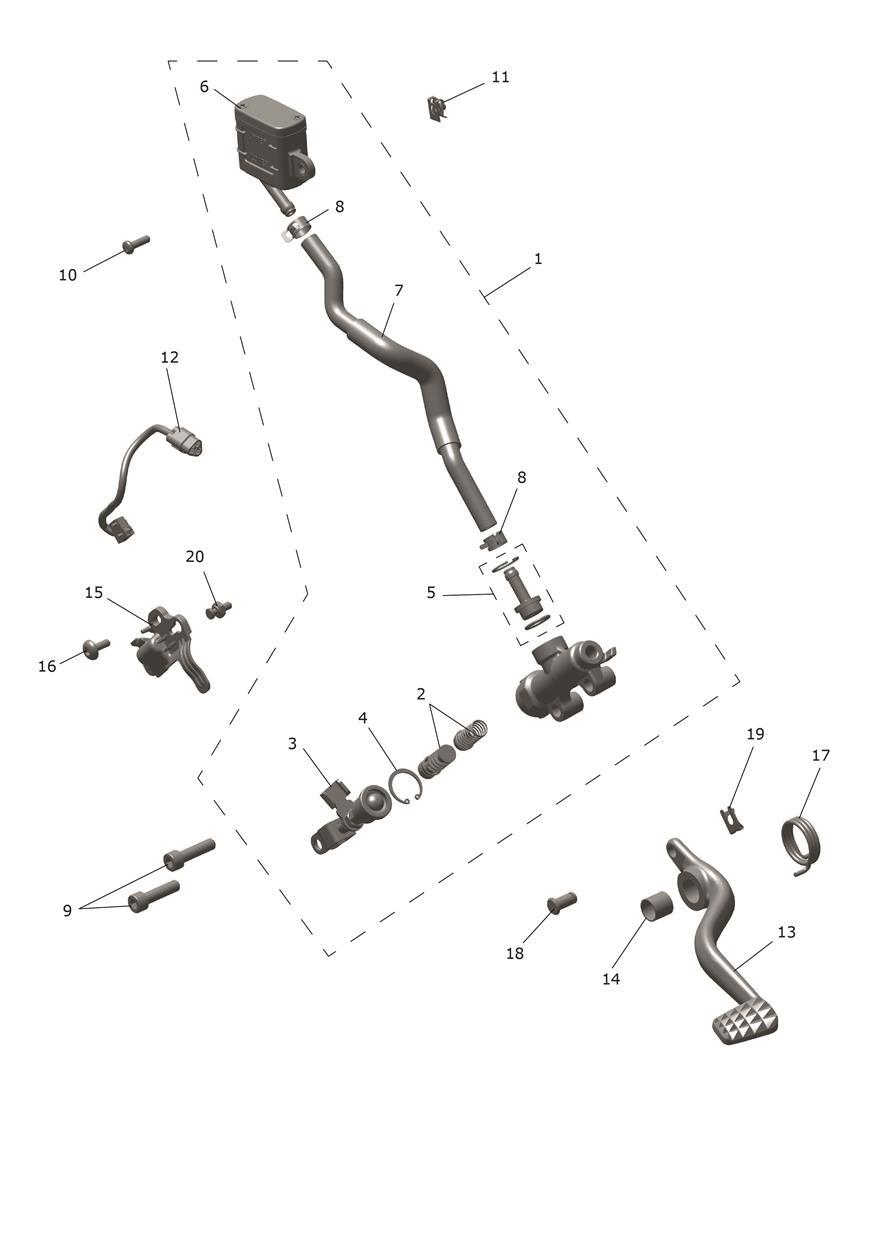

Rear Brake Master Cylinder, Reservoir & Pedal
20 parts

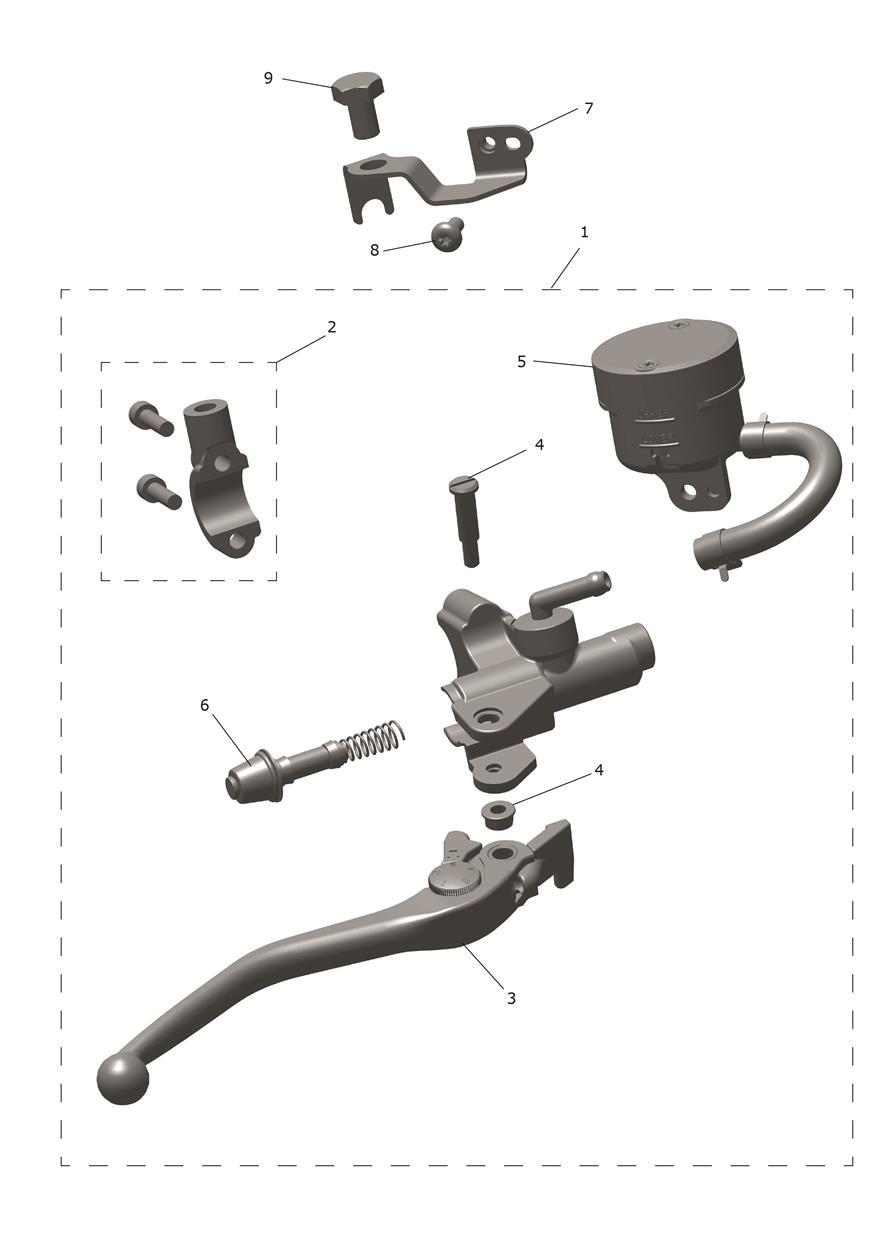

Front Master Cylinder Assy
9 parts

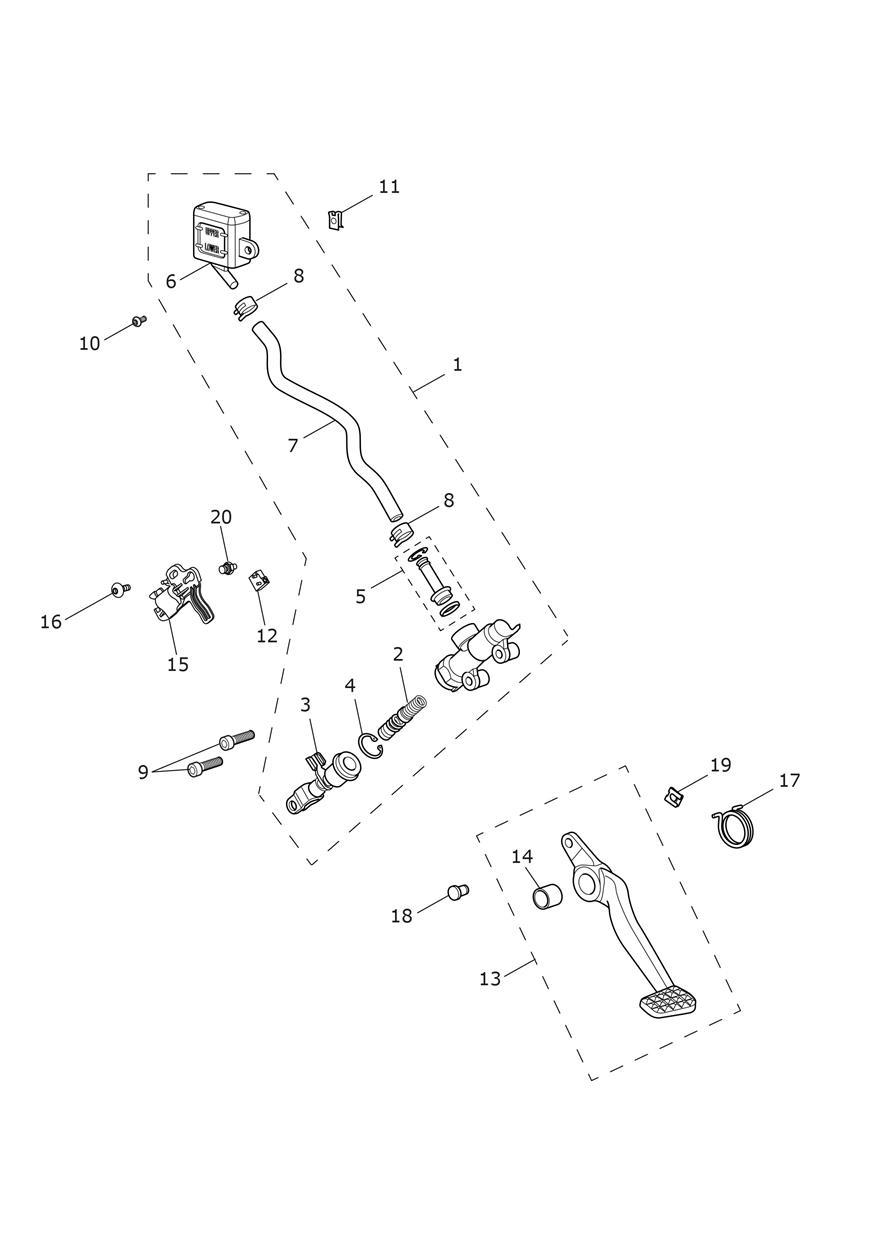

Rear Brake Master Cylinder, Reservoir & Pedal
21 parts
Rear Brake Master Cylinder, Reservoir & Pedal
20 parts

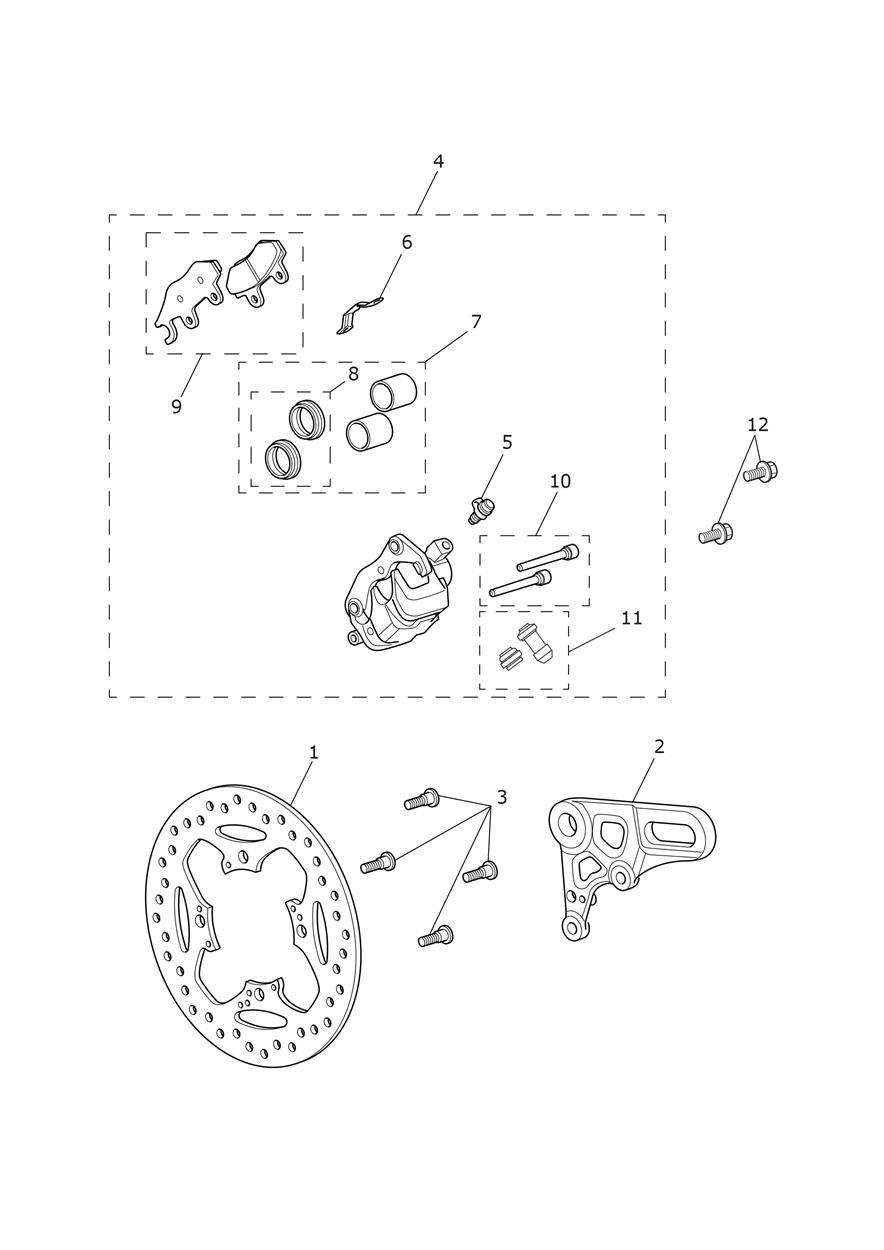

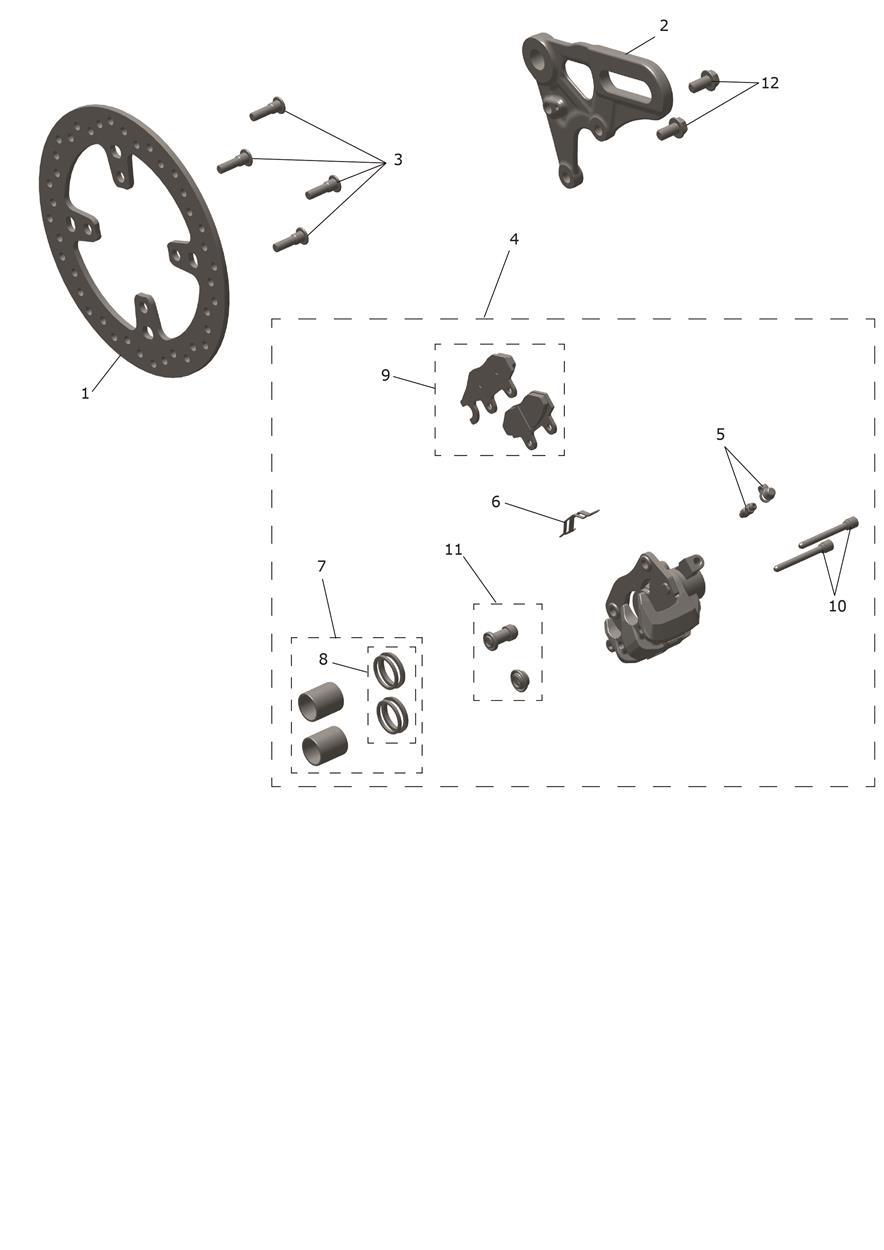

Rear Brake Caliper & Disc
12 parts
Rear Brake Caliper & Disc
12 parts
Rear Brake Caliper & Disc
12 parts
Front Master Cylinder Assy
8 parts
Front Brake Caliper & Disc
9 parts
ABS System
33 parts
Rear Brake Master Cylinder, Reservoir & Pedal
20 parts
Rear Brake Caliper & Disc
12 parts
Front Brake Caliper & Disc

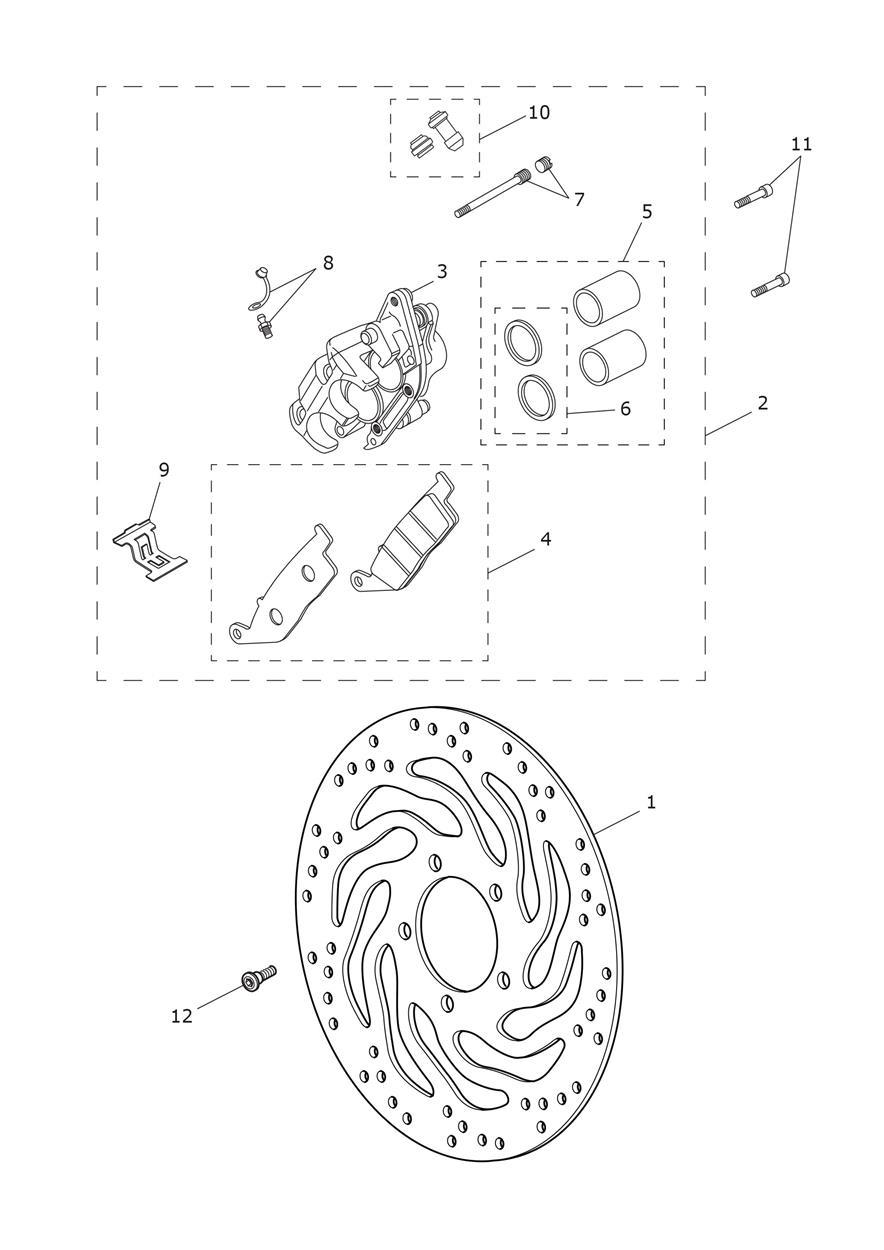

Front Brake Caliper & Disc All Expt BR & IN, BR & IN Only
12 parts
Front Brake Caliper & Disc All Expt BR & IN, BR & IN Only
9 parts
