Frame, Footrests, Engine Mountings & Stands

Triumph Thruxton 400 · 7 diagrams

7 exploded diagrams for the frame, footrests, engine mountings & stands of the Triumph Thruxton 400, covering the Thruxton 400. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

107 parts you can order online ↓

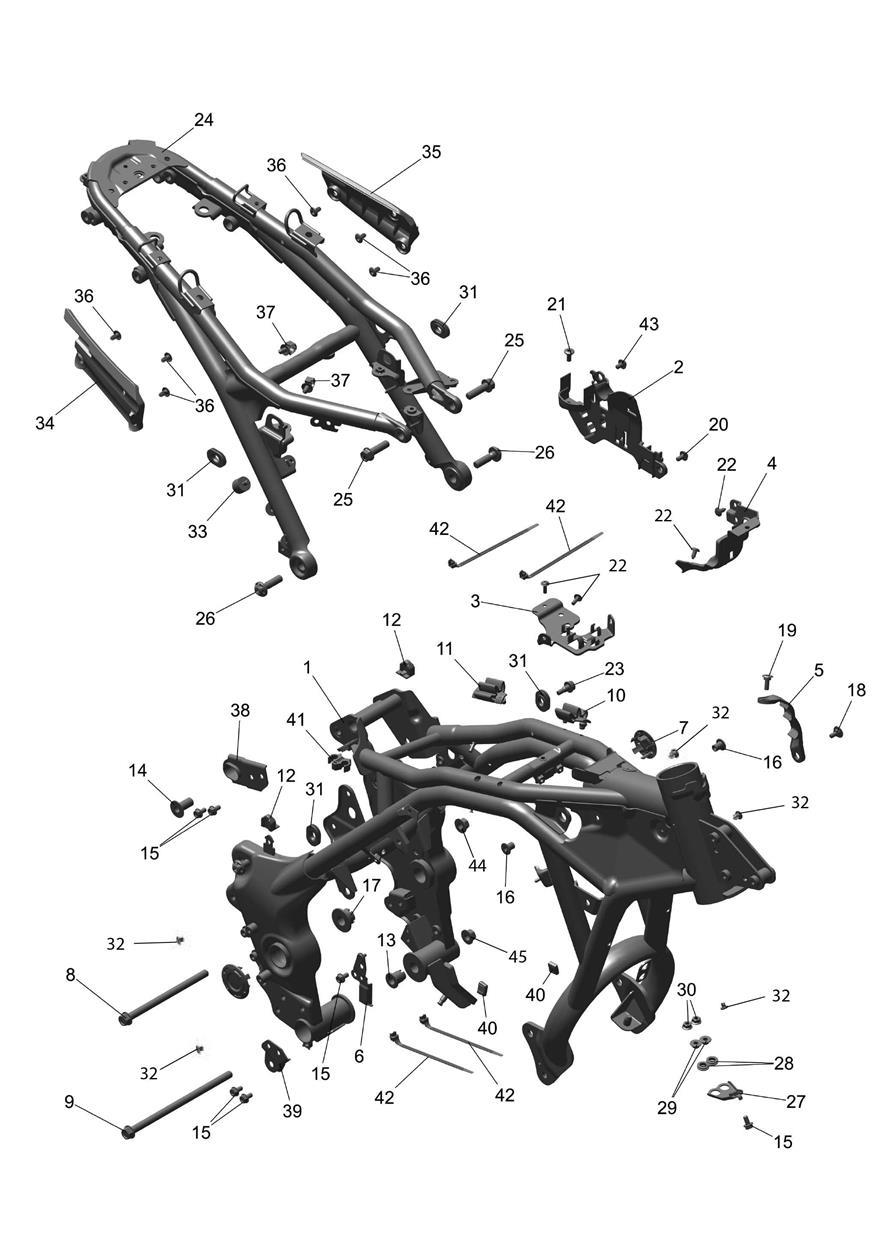

Frame & Rear Subframe exploded diagram

Frame & Rear Subframe

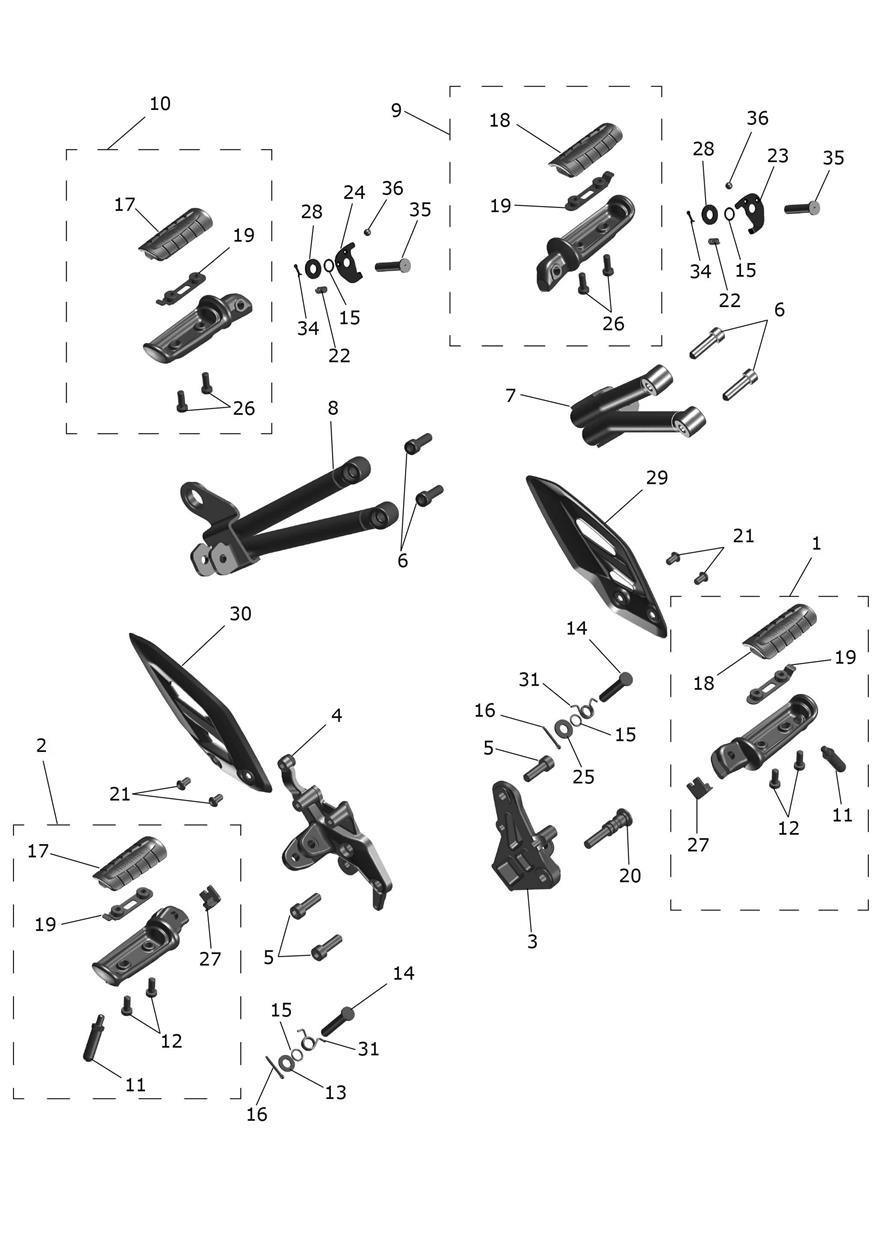

Footrests exploded diagram

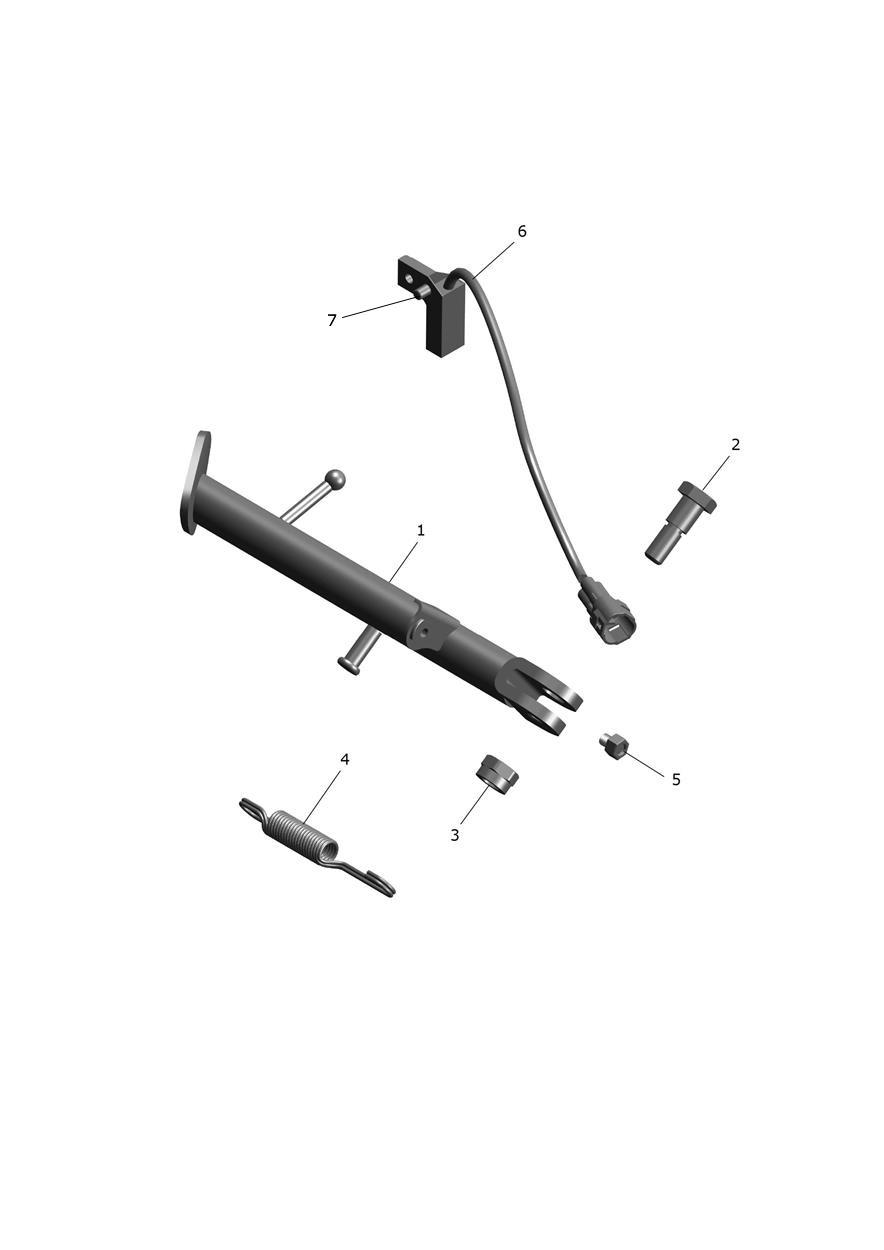

Sidestand exploded diagram

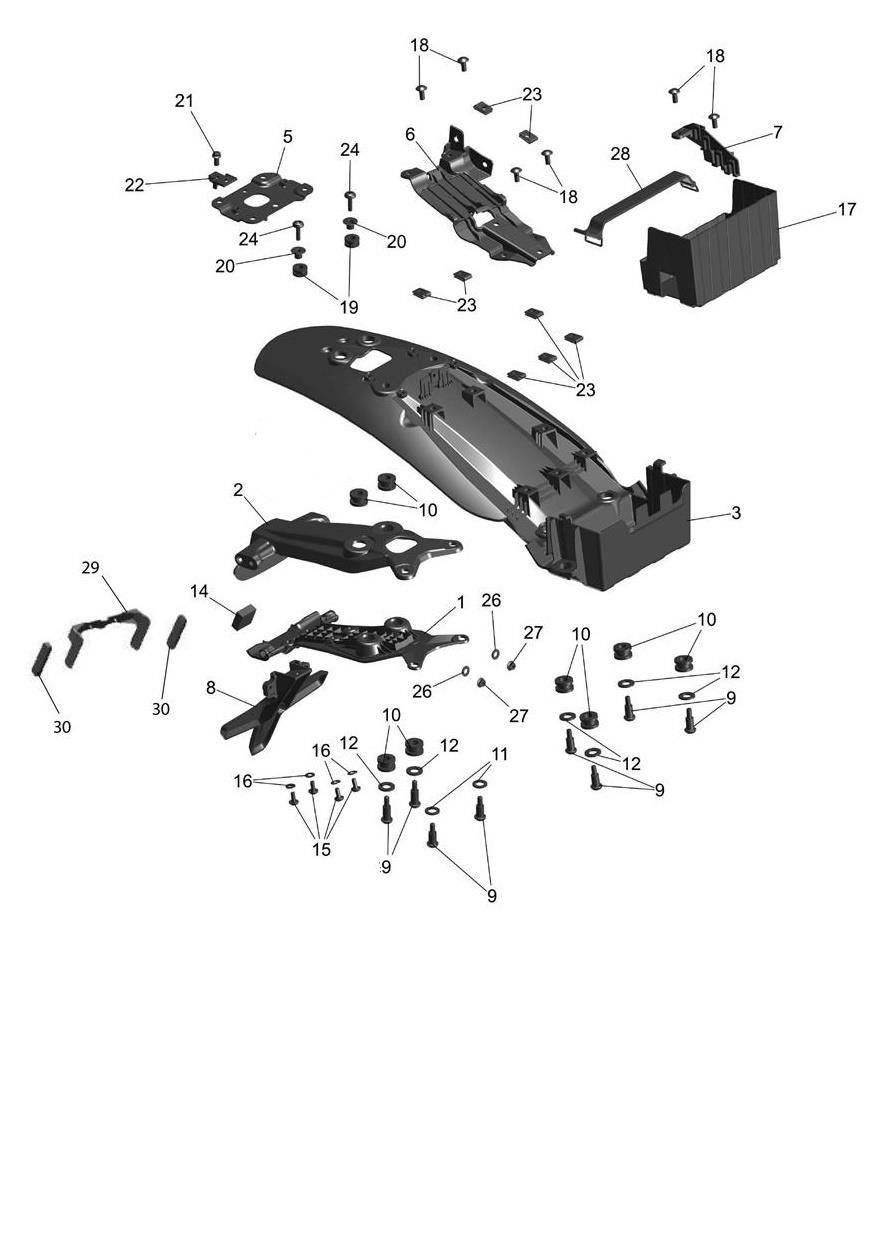

Rear Mudguard exploded diagram

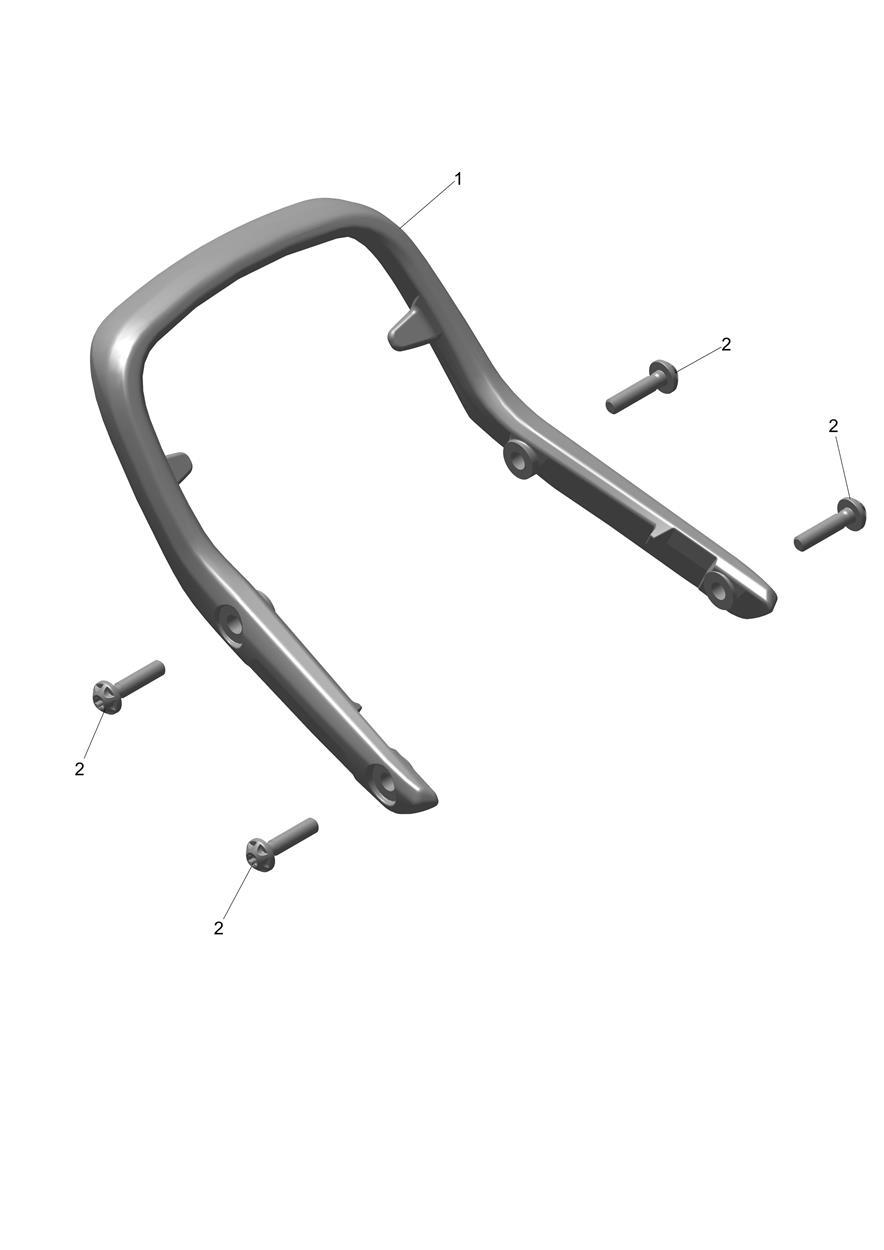

Grab Handle exploded diagram

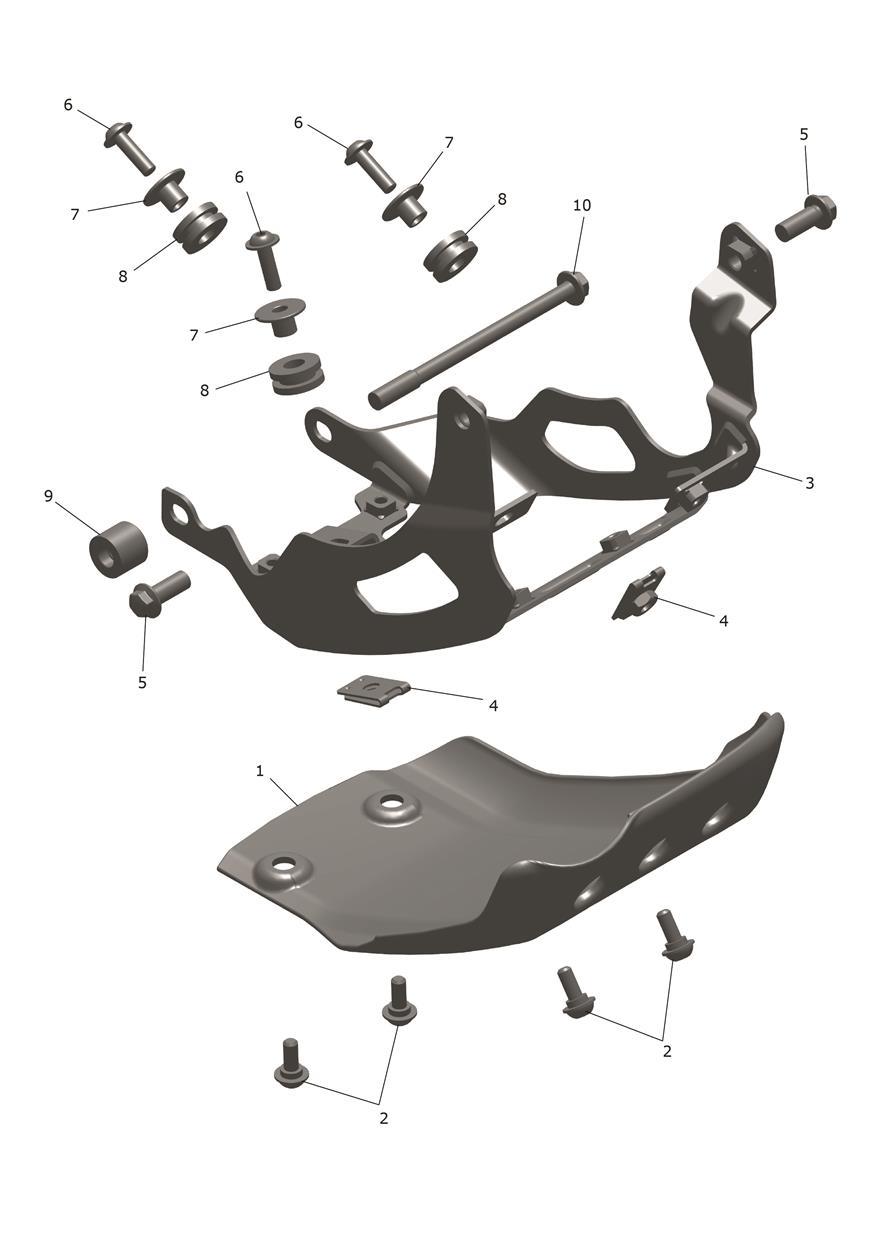

Sumpguard exploded diagram

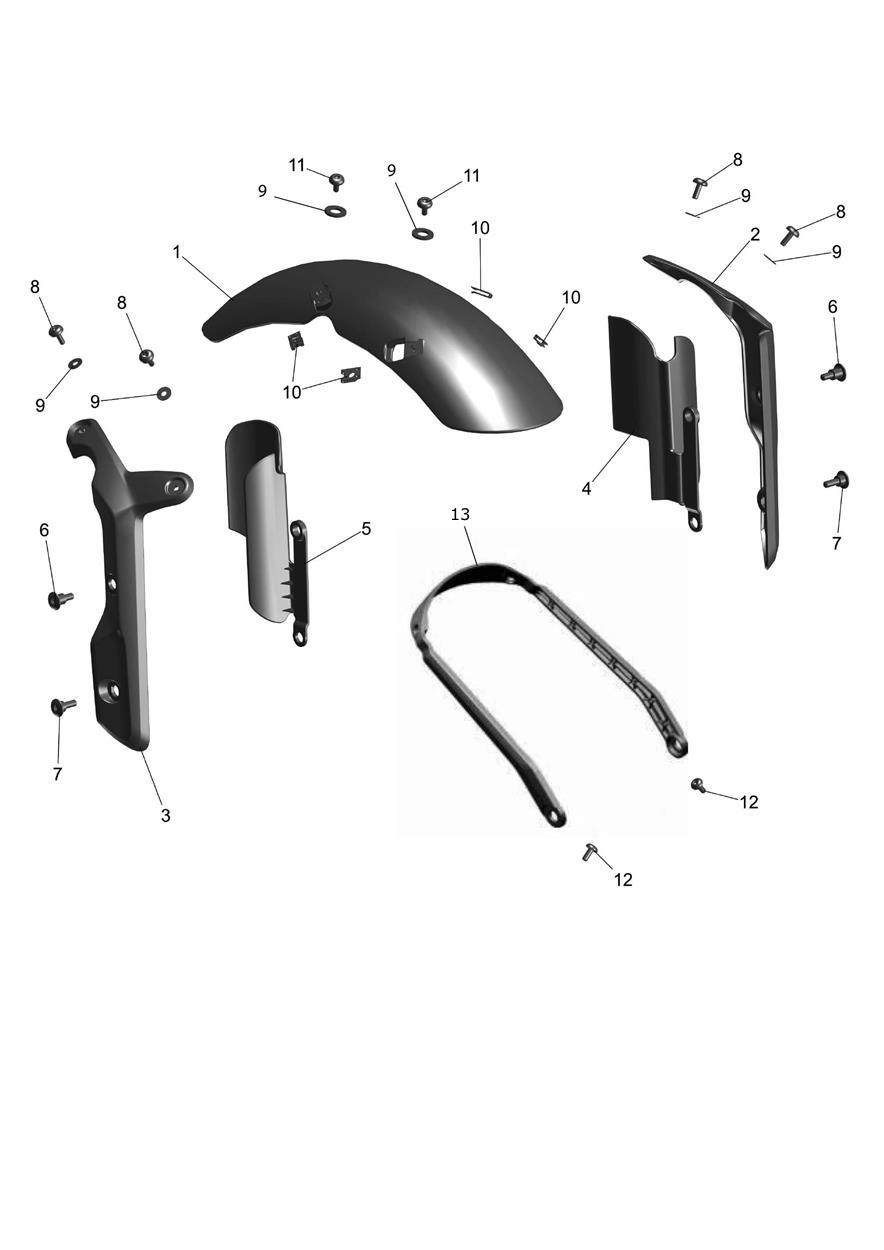

Front Mudguard exploded diagram

107 parts you can order online

Every part below appears in Triumph’s Frame, Footrests, Engine Mountings & Stands diagrams for the Thruxton 400 and is priced and orderable online. Open a part to see what it fits and to buy it.

Most of these parts are shared with the Tracker 400 book. 4 parts are specific to the Thruxton 400.

Frame & Rear Subframe

TA113806 Holder, Relay

TA113841 Holder, Connector Harness

TA351212 Cover, Coil Ignition

TA113840 Bracket, Harness

TA113210 Bracket, Switch

LAD00287 Bolt, Flanged, M10 x 1.25

LAD00286 Bolt, Flanged, M10 x 1.25

TA171035 Damper, LH

TA171052 Damper, RH

JZ181322 Grommet, Side Cover

Backordered at Triumph · expected Oct 23

TA113810 Bolt Adjuster

TA181240 Collar

KADD0612 Bolt, Flanged, M6 x 1

GL113811 Collar

TA122016 Bolt, Adjuster

LBU00182 Screw, Socket, Step, M6 x 1

LBU00168 Screw, Socket, Step, M6 x 1

LBU00131 Screw, Btn Hd, M6 x 1

BF185019 Clip, Plastic

LAD00307 Bolt, Flanged, M8 x 1.25

LAD00308 Bolt, Flanged, M10 x 1.25

LBU00137 Screw, Torx, M10 x 1.25

TA113827 Bracket, Sensor, Roll Over

Backordered at Triumph · expected Oct 23

LLA00003 Grommet, ID 9.3 x OD 16 x HT 5

Backordered at Triumph · expected Nov 6

JP181014 Collar Tail Lamp Mounting

Backordered at Triumph · expected Nov 6

KCGA0606 Nut, Hex, Flanged

JZ171124 Grommet

Backordered at Triumph · we’ll confirm the ship date after you order

JG581058 Silent Bush

TA181461 Cover Frame LH

Backordered at Triumph · we’ll confirm the ship date after you order

JG181259 Rivet, Snap

TA113828 Bracket, Muffler

JY591303 Grommet Shield Muffler

JG131857 Clip, Separator

60111420 Cable Tie Lock

KCLA1011 Nut, U Flgd

Backordered at Triumph · we’ll confirm the ship date after you order

JG561204 Bolt Stopper Drum

TA191040 Damper

AA201387 Clamp, Cable

Footrests

36TA0197 Step Assembly Rider, RH

TA113047 Holder Step Rider LH

Backordered at Triumph · we’ll confirm the ship date after you order

TA113049 Holder Step Rider RH

Low stock at Triumph

Limited availability

LAC00234 Bolt, Socket, M8 x 1.25

Low stock at Triumph

Limited availability

TA113052 Holder Step Pillion LH

36TA0109 Step Assy, Pillion, LH

36TA0110 Step Assy, Pillion, RH

KDAB0816 Washer, Plain

30141031 O Ring

TA113012 Damper Step, RH

TA113008 Damper Step, LH

TA113019 Plate, Step, Pillion

LBU00214 Screw, Gear Change Lever, M8 x 1.25

GF161143 Compression Spring

TA113021 Lock Plate, LH

TA113033 Lock Plate, RH

KDBA0818 Washer, Plain

DH151040 Bolt, Socket, M6 x 1

TA113032 Stopper Step

JP113035 Torsion Spring

Low stock at Triumph

Limited availability

KHAA2015 Pin Cotter

Low stock at Triumph

Limited availability

Sidestand

DG161129 Bolt, Step, M10 x 1.25

Backordered at Triumph · expected Nov 6

DD161071 Nut, U, M10 x 1.25

Backordered at Triumph · expected Nov 13

TA113211 Spring, Tension

JG401411 Magnet Holder

TA401412 Sidestand Switch

KADD0510 Bolt, Flanged, M5 x 0.8

Rear Mudguard

56TA40BA Undertray, Phantom Blk Gloss

JG171031 Nut, Clip, M5

TA181436 Bracket, Fender

TA111034 Bracket, Cannister

TA113801 Bracket, Relay

TA181426 Structure, Plate

LBU00208 Screw, Btn Hd, M6 x 1

JG171022 Grommet, Tank Mounting Rear

KDAB1018 Washer, Plain, Small

39258811 Plain Washer

Low stock at Triumph

Limited availability

KDBB0512 Plain Washer

TA181313 Damper, Battery

KBUA0614 Screw, Truss, M6 x 1

JP181279 Grommet

JP181280 Collar

KAED0612 Bolt, Flanged, M6 x 1

TA181450 Bracket, Connector

LBU00190 Screw, Btn Hd, M6 x 1

Low stock at Triumph

Limited availability

TA181447 Bracket, Reflex Reflector

TA401016 Reflex Reflector

Grab Handle

56TA1B4X Grab Handle

Backordered at Triumph · we’ll confirm the ship date after you order

LBU00193 Screw, Torx, M8 x 1.25

Sumpguard

TA541233 Sumpguard

TA231217 Bracket Assembly, Sumpguard

JW171006 Nut Clip, M6

LAD00326 Bolt, Flgd, M8

JP171053 Collar

LAD00327 Bolt, Flgd, M8 x 1.25

Backordered at Triumph · we’ll confirm the ship date after you order

Front Mudguard

TA181419 Fork Protector, LH

TA181420 Fork Protector, RH

LBU00180 Screw, Socket Step, M6 x 1

LBU00188 Screw, Btn Hd Step, M6 x 1

LBU00177 Screw, Btn Hd, M5 x 0.8

LDB00025 Washer, Plain

LAC00189 Bolt, Socket Step, M6 x 1

LBU00191 Screw, Button Head, M5 x 0.8
