Braking System
Triumph Thruxton · 23 diagrams
23 exploded diagrams for the braking system of the Triumph Thruxton, covering the Thruxton 1200, Thruxton 900. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

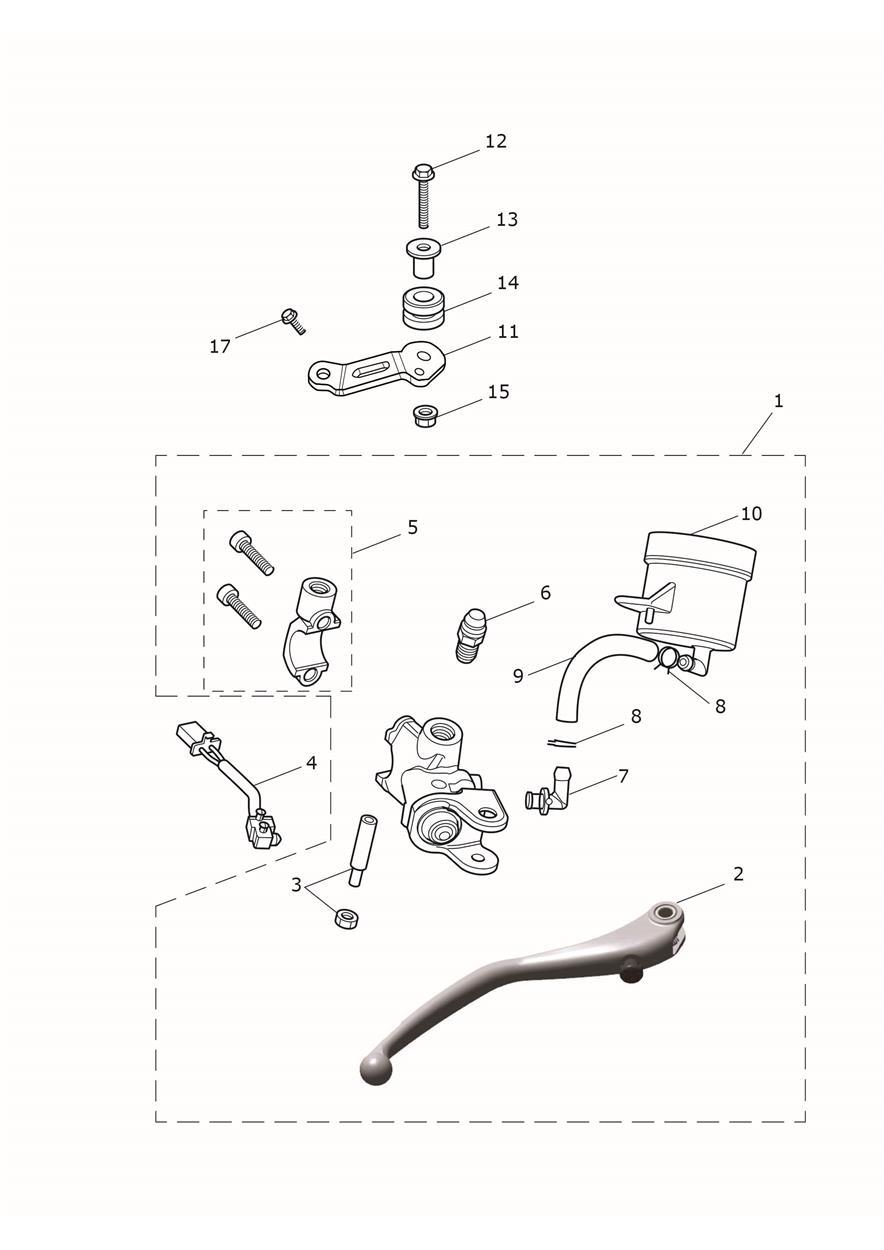

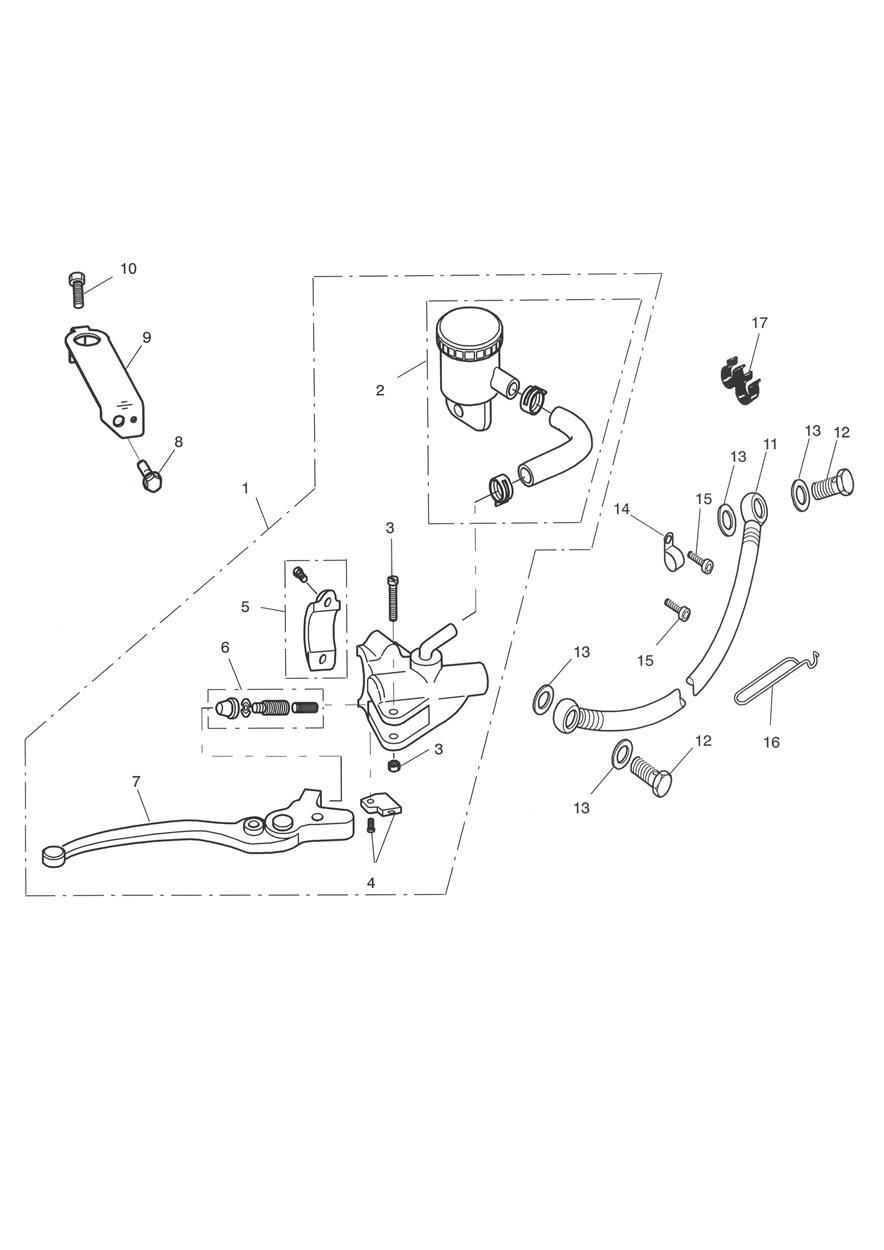

Front Brake Master Cylinder & Hoses
17 parts

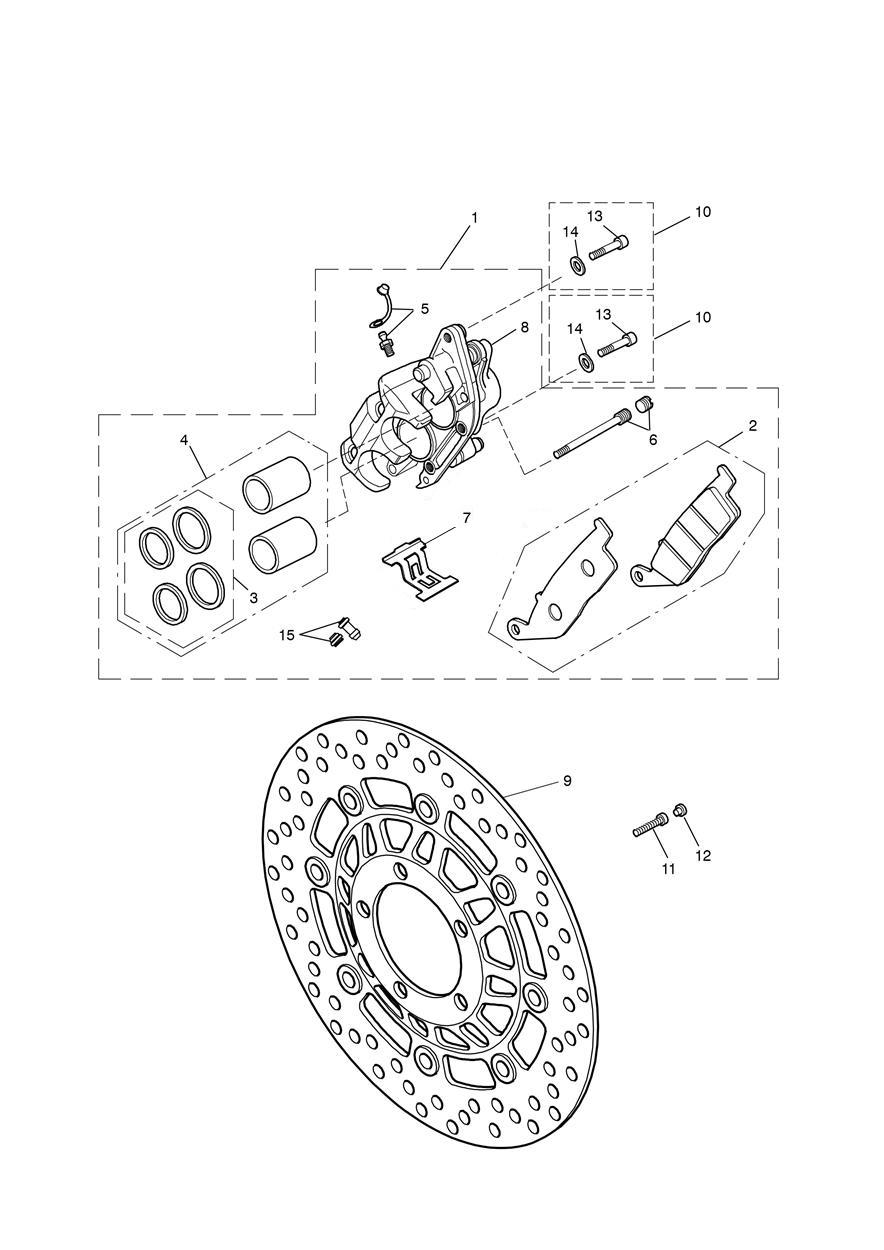

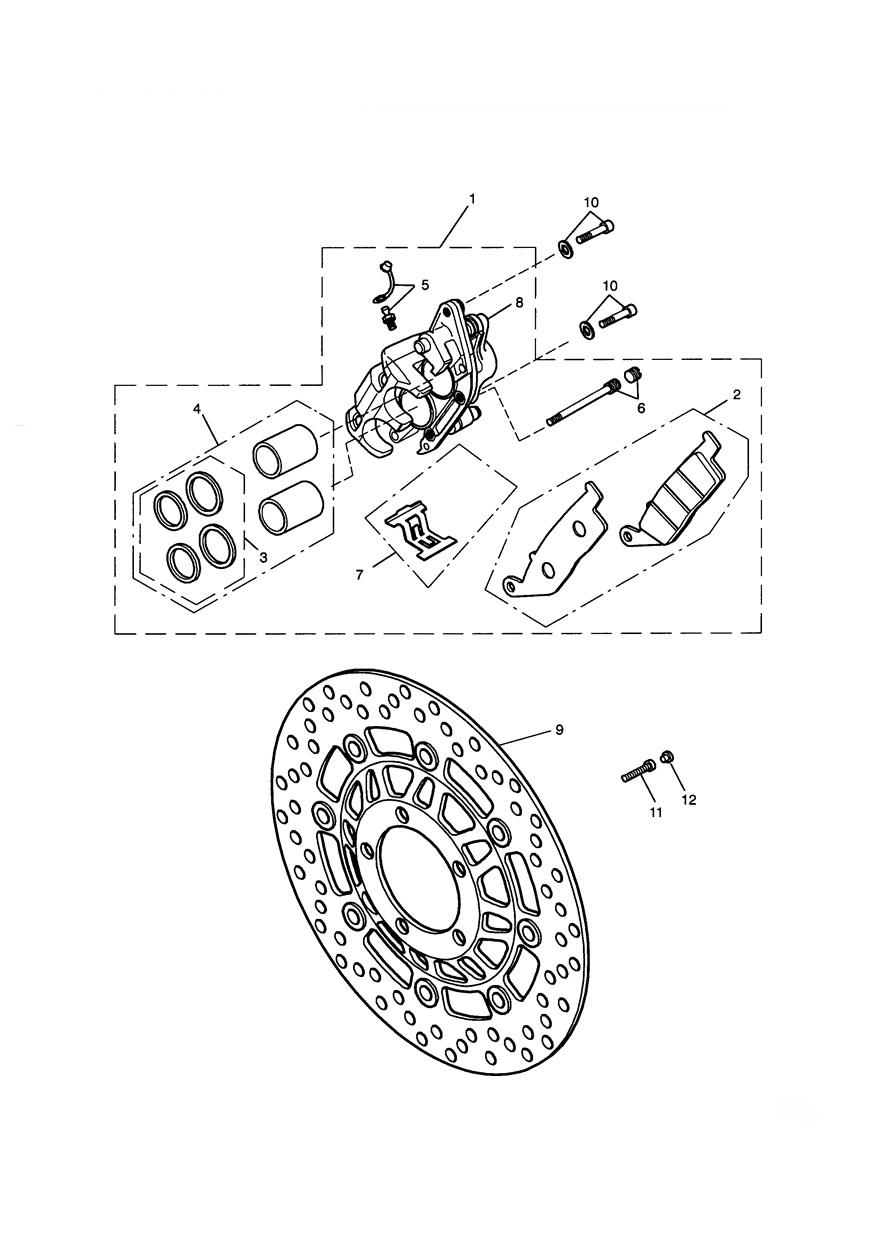

Front Brake Caliper & Discs
13 parts

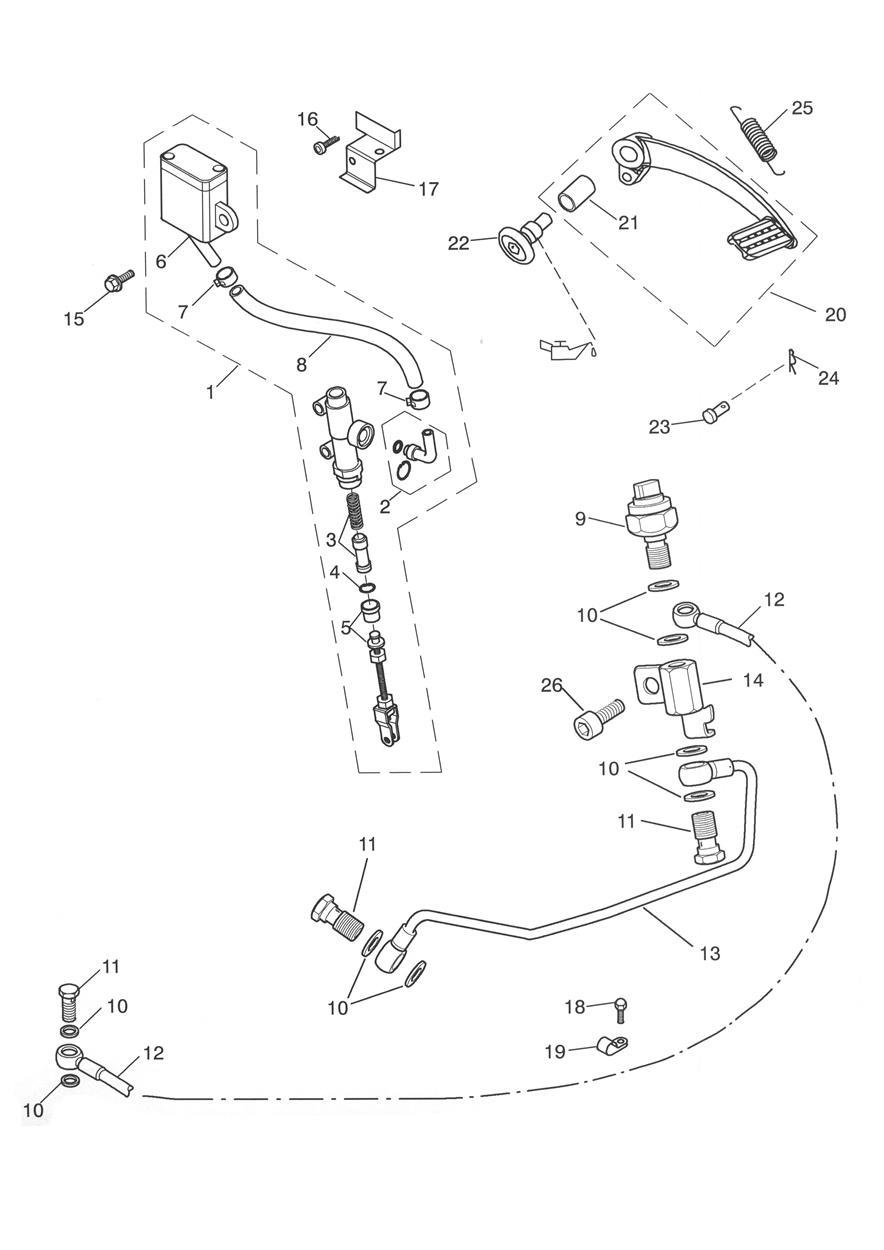

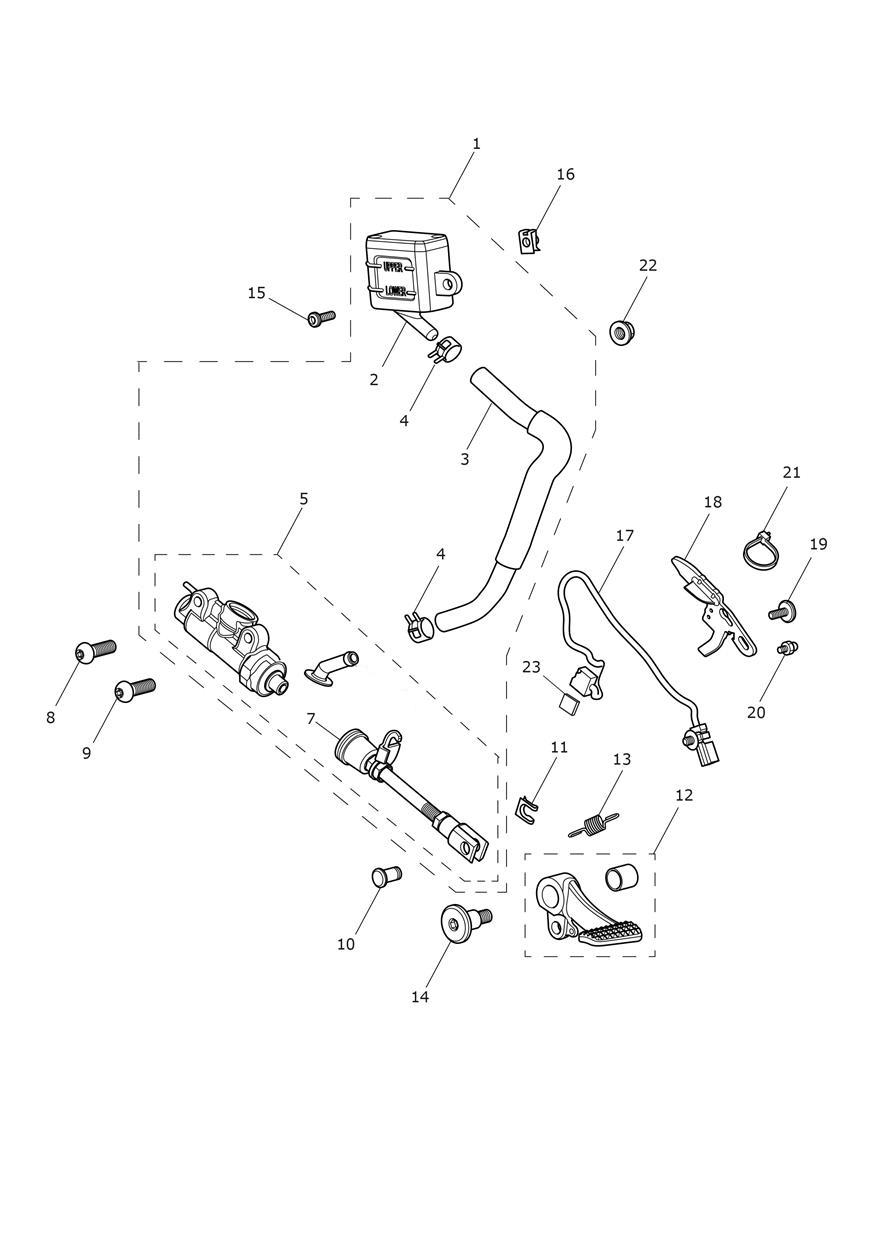

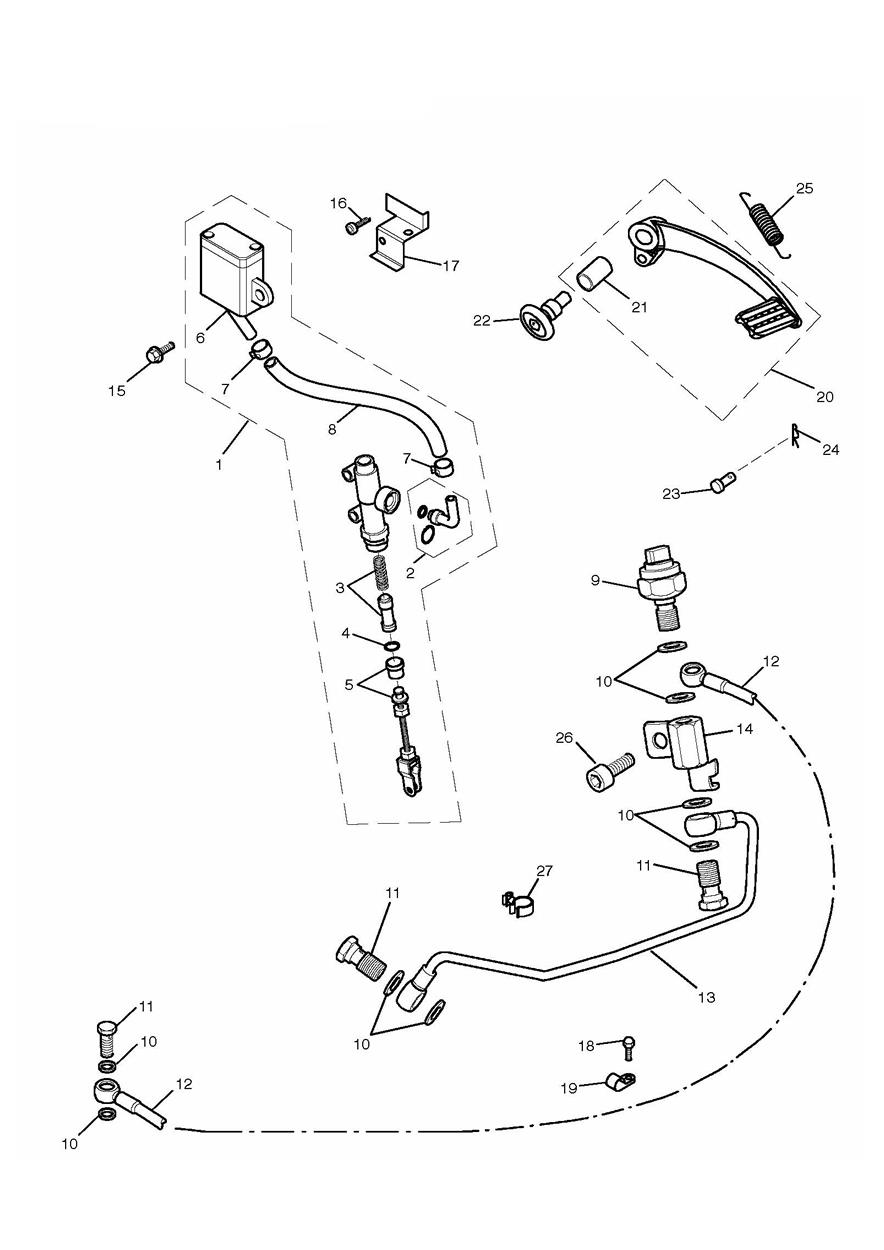

Rear Brake Master Cylinder, Reservoir & Pedal
26 parts

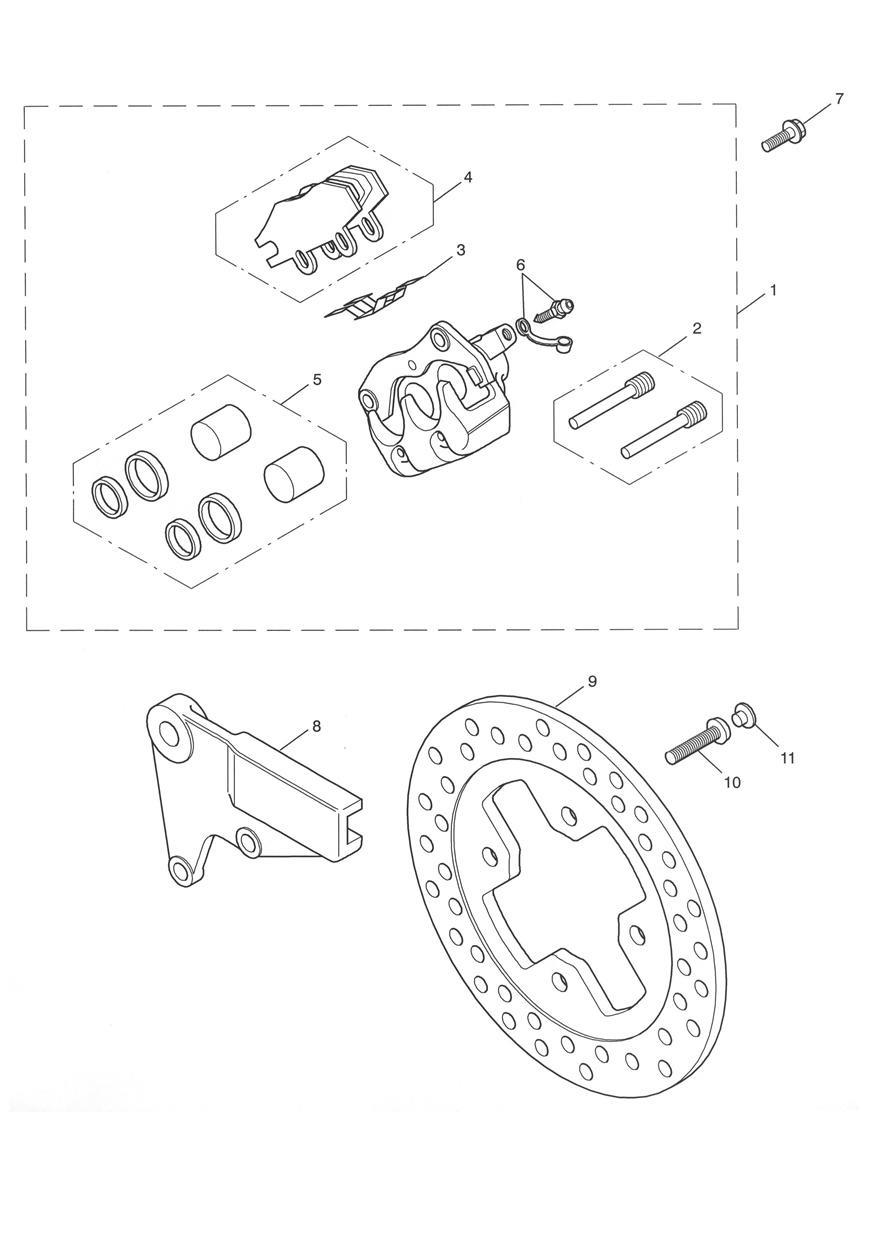

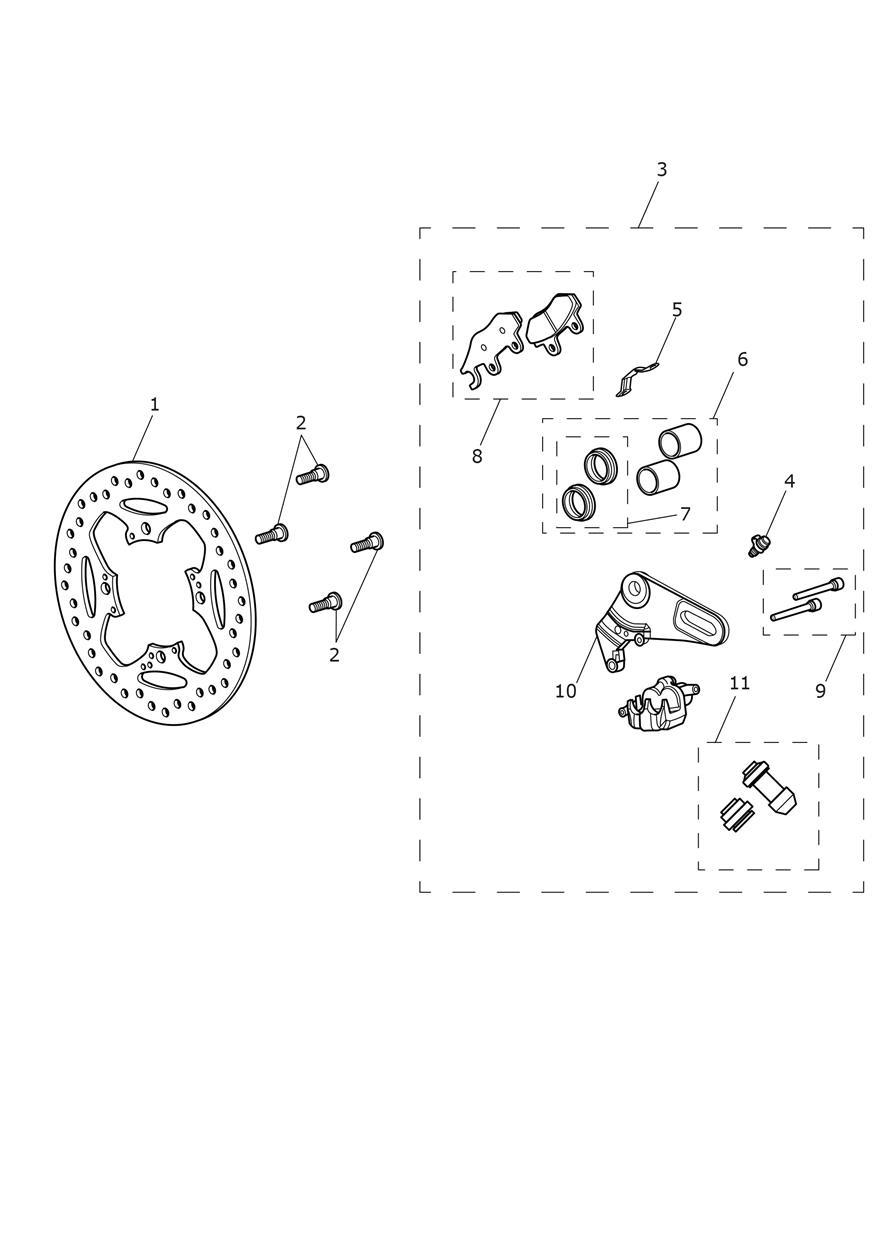

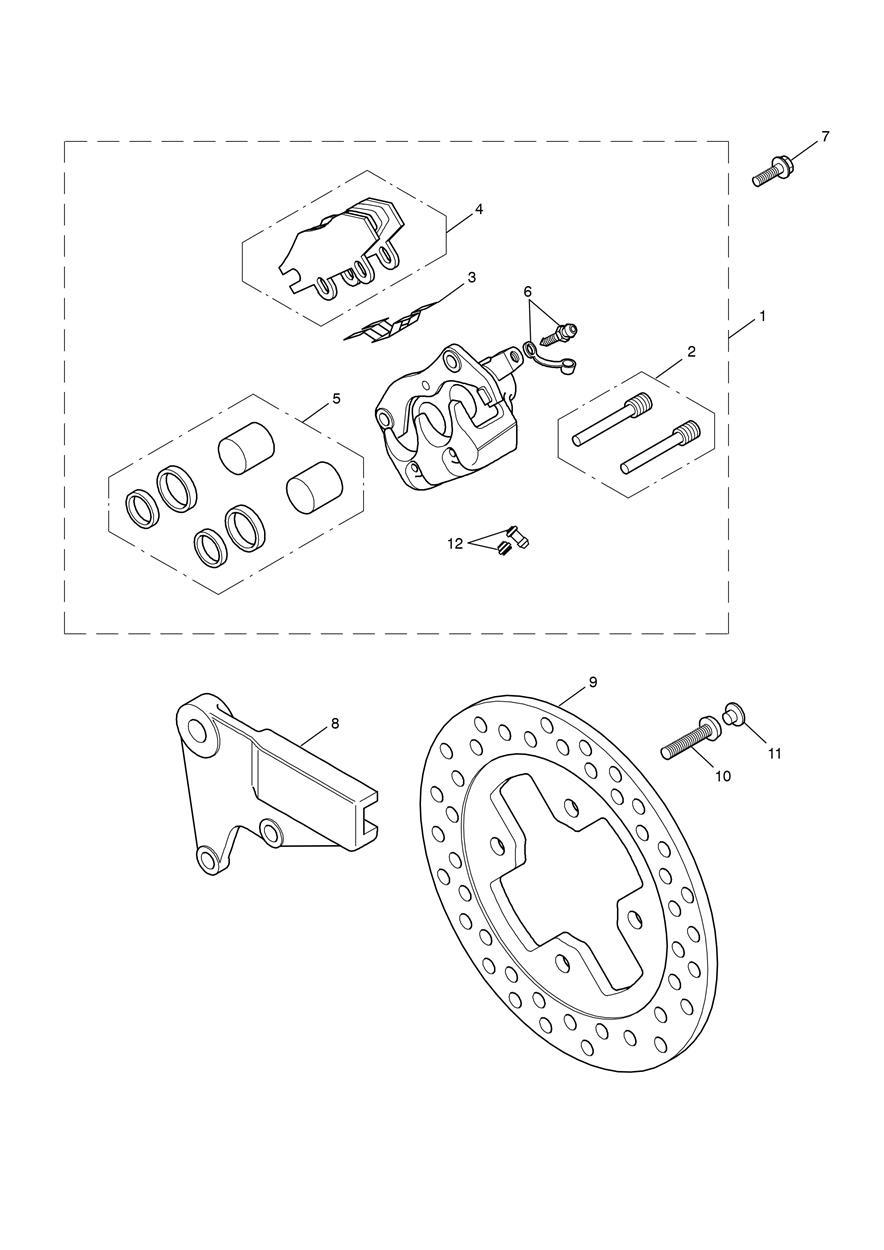

Rear Brake Caliper & Disc
11 parts

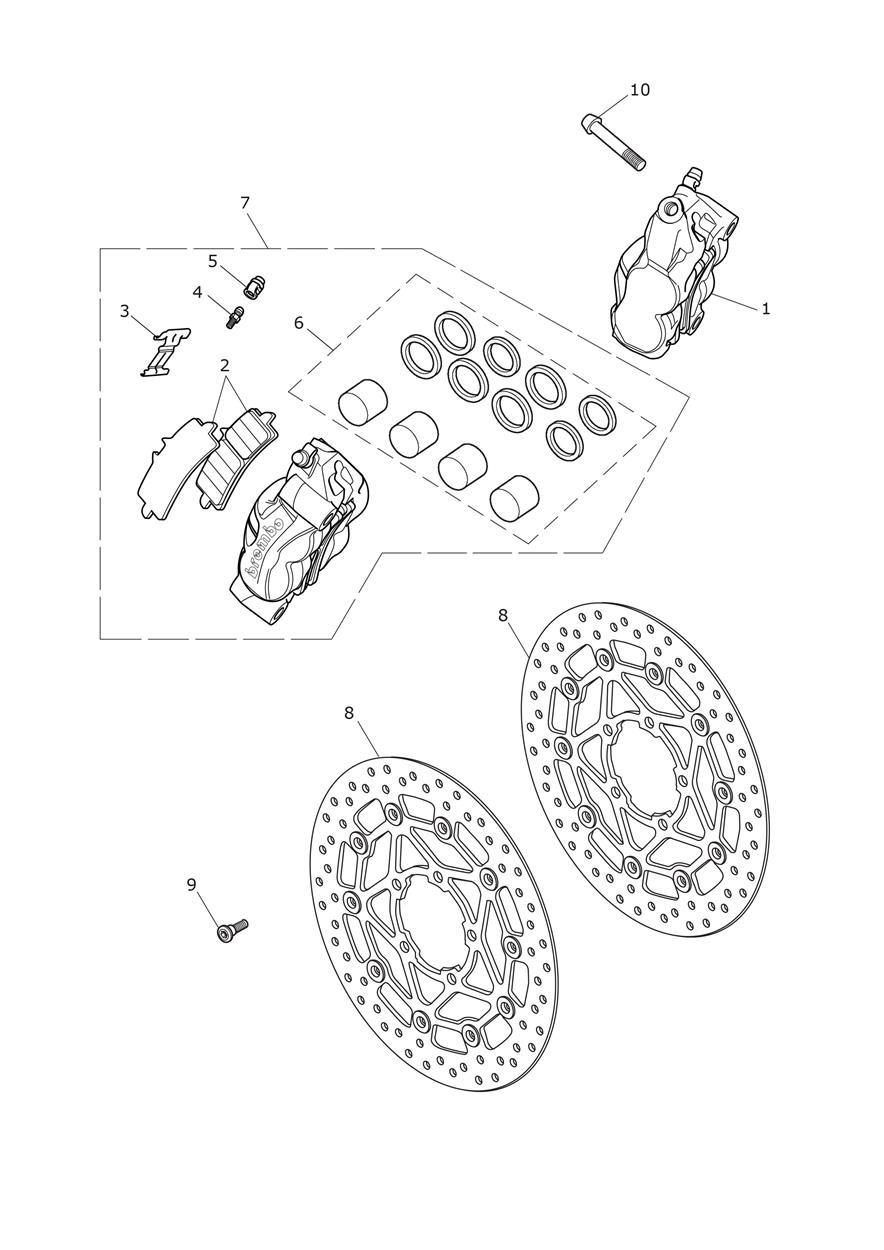

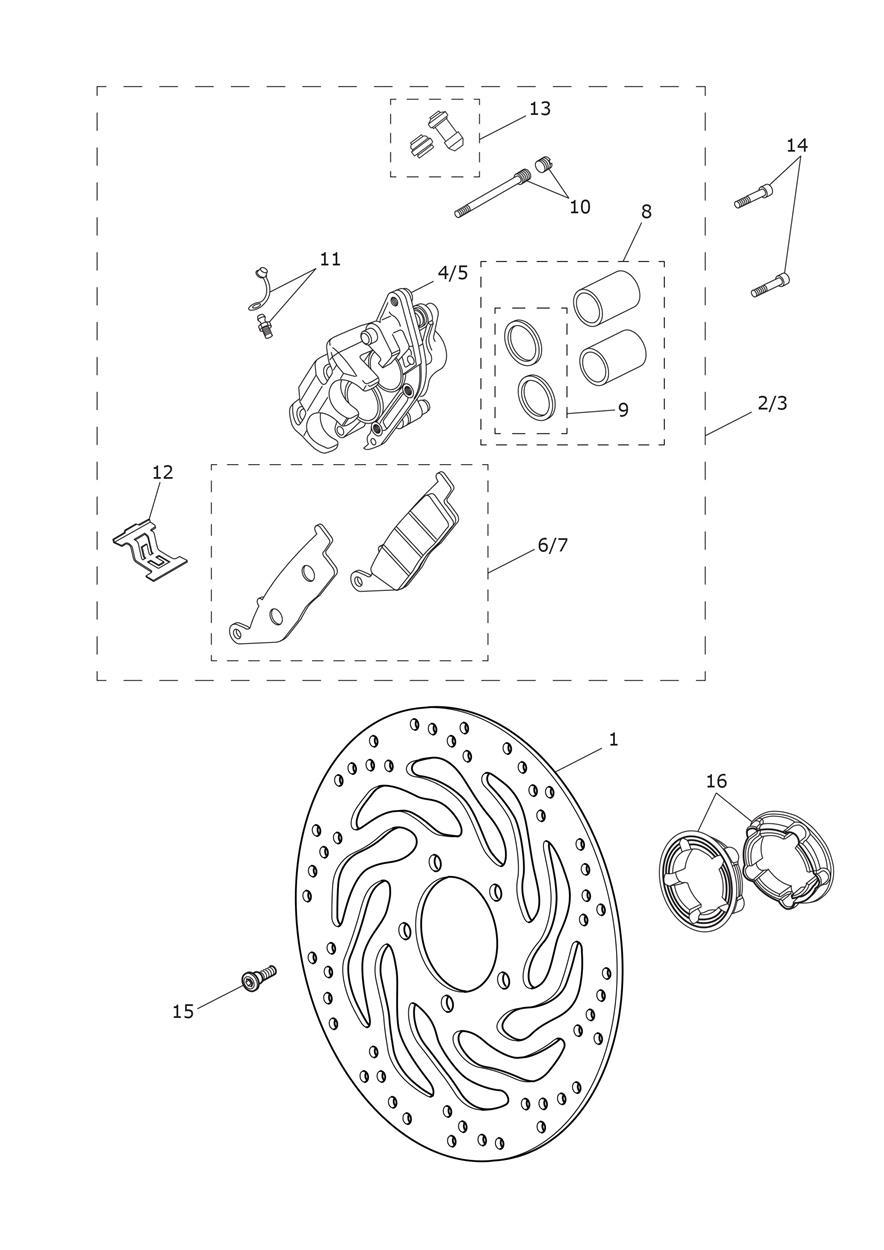

Front Brake Caliper & Disc
16 parts

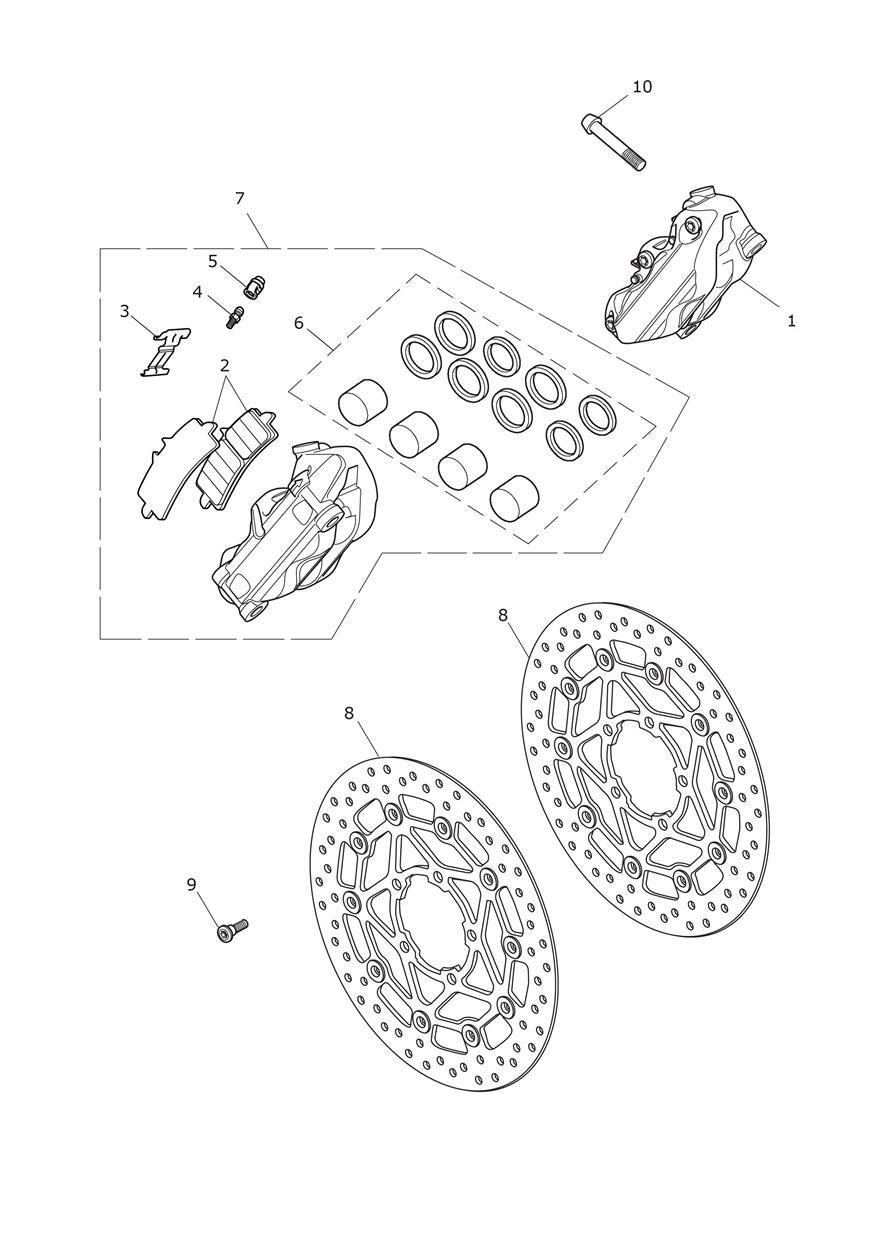

Front Brake Caliper & Disc
10 parts
Front Brake Caliper & Disc
10 parts

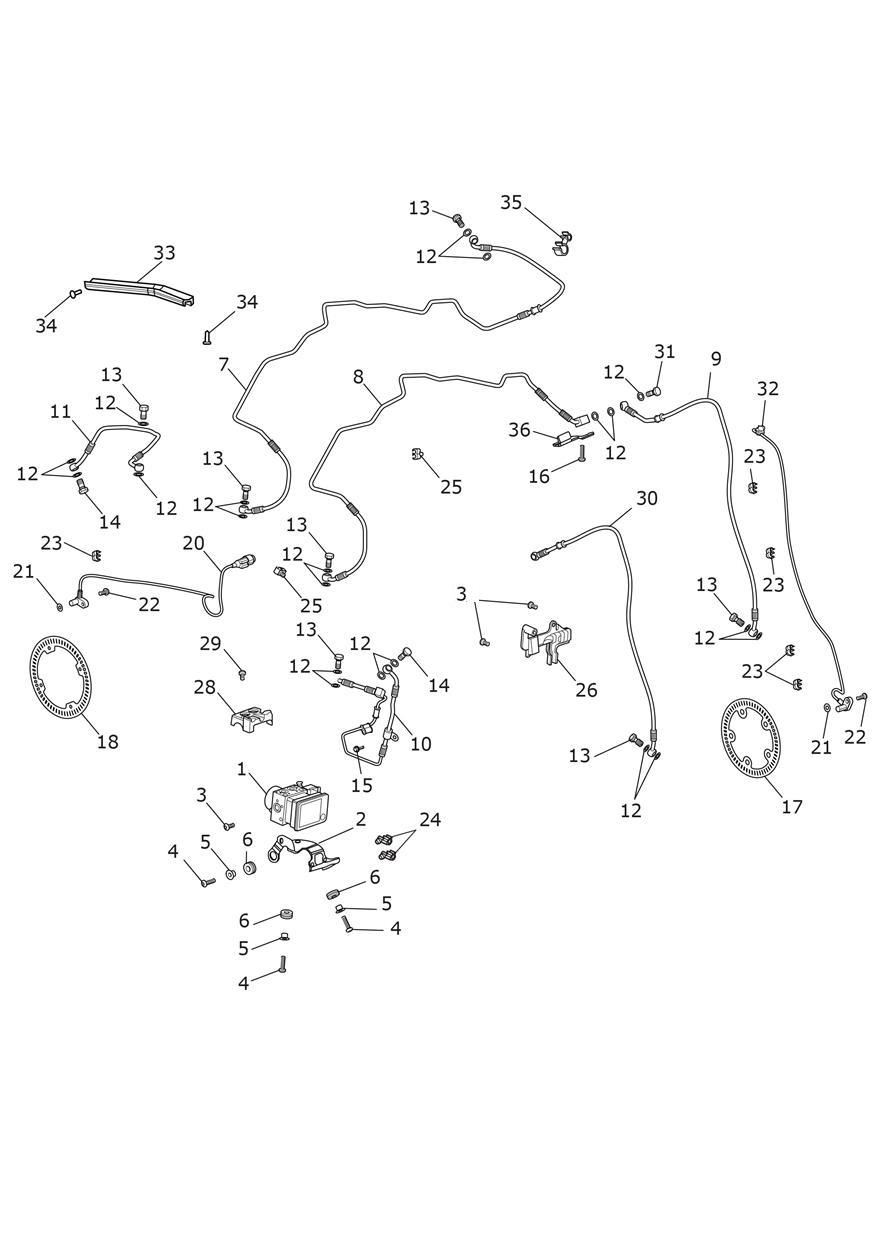

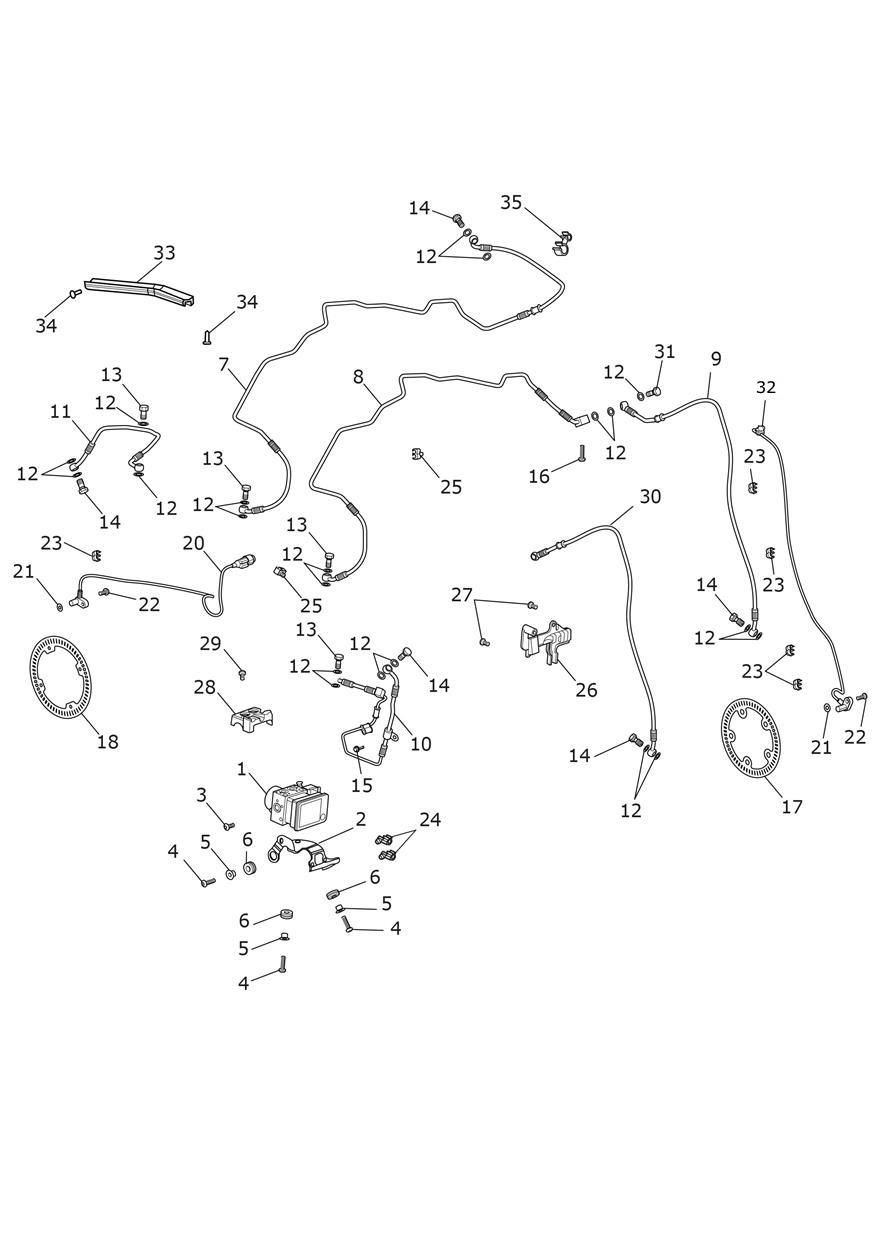

ABS System
39 parts
ABS System
37 parts
Rear Brake Master Cylinder, Reservoir & Pedal
22 parts
Front Brake Master Cylinder & Hoses
17 parts
Front Brake Master Cylinder & Hoses
17 parts
Rear Brake Caliper & Disc
11 parts
ABS System
39 parts
Rear Brake Master Cylinder, Reservoir & Pedal
22 parts
Rear Brake Master Cylinder, Reservoir & Pedal
22 parts

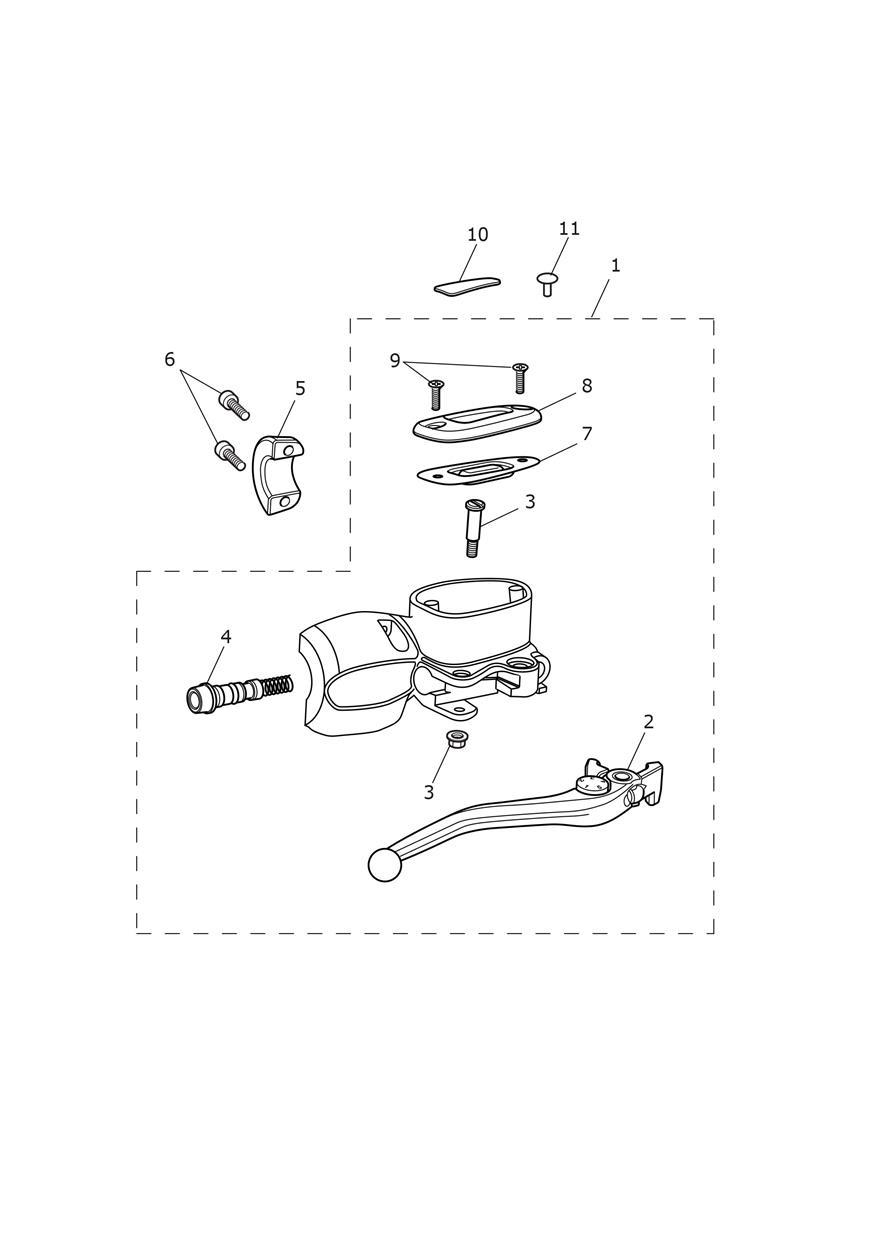

Front Master Cylinder Assy
11 parts
Rear Brake Caliper & Disc
11 parts
Rear Brake Caliper & Disc
11 parts

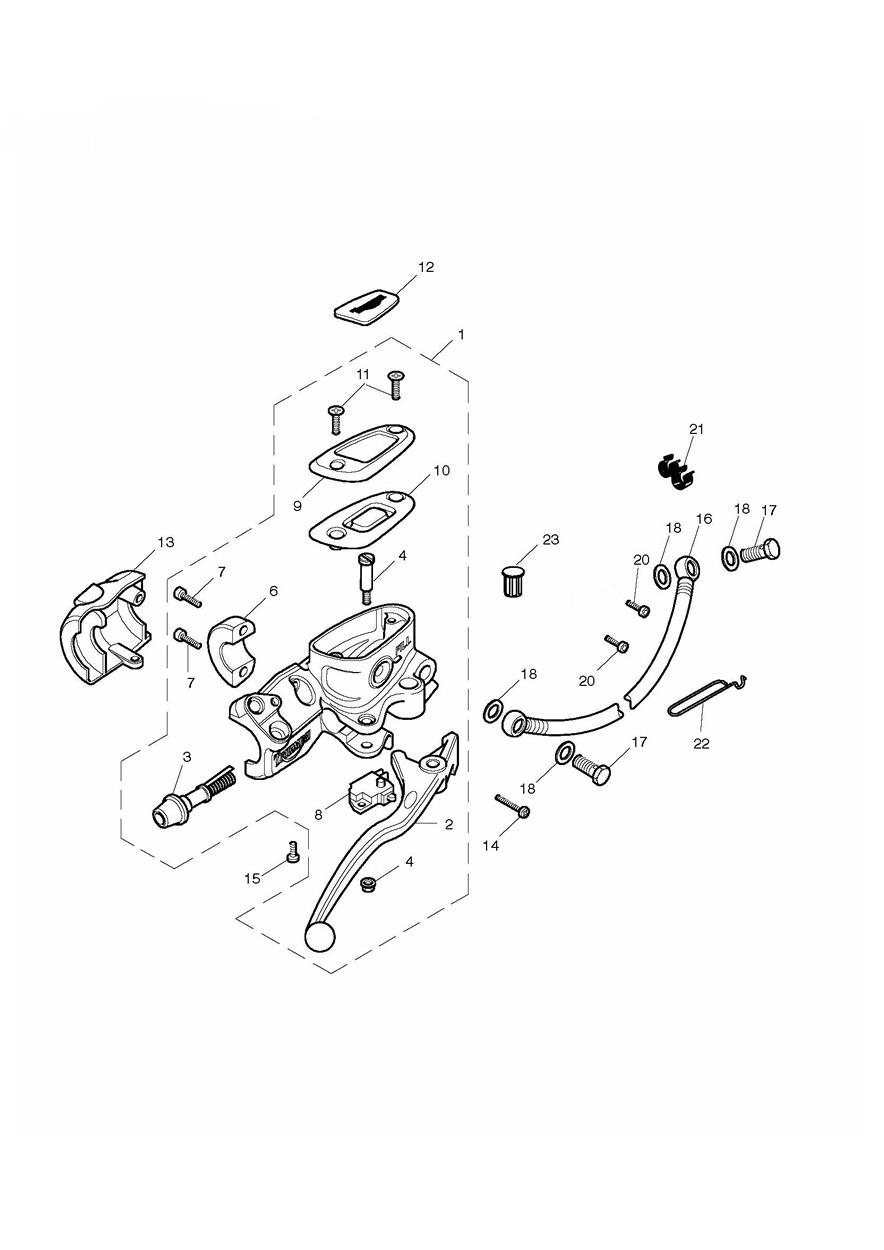

Front Brake Master Cylinder & Hoses
23 parts
Front Brake Caliper & Discs
19 parts
Rear Brake Master Cylinder, Reservoir & Pedal
29 parts
Rear Brake Caliper & Disc
16 parts
