Cooling System
Triumph Thruxton · 4 diagrams
4 exploded diagrams for the cooling system of the Triumph Thruxton, covering the Thruxton 1200, Thruxton 900. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
48 parts you can order online
Every part below appears in Triumph’s Cooling System diagrams for the Thruxton and is priced and orderable online. Open a part to see what it fits and to buy it.

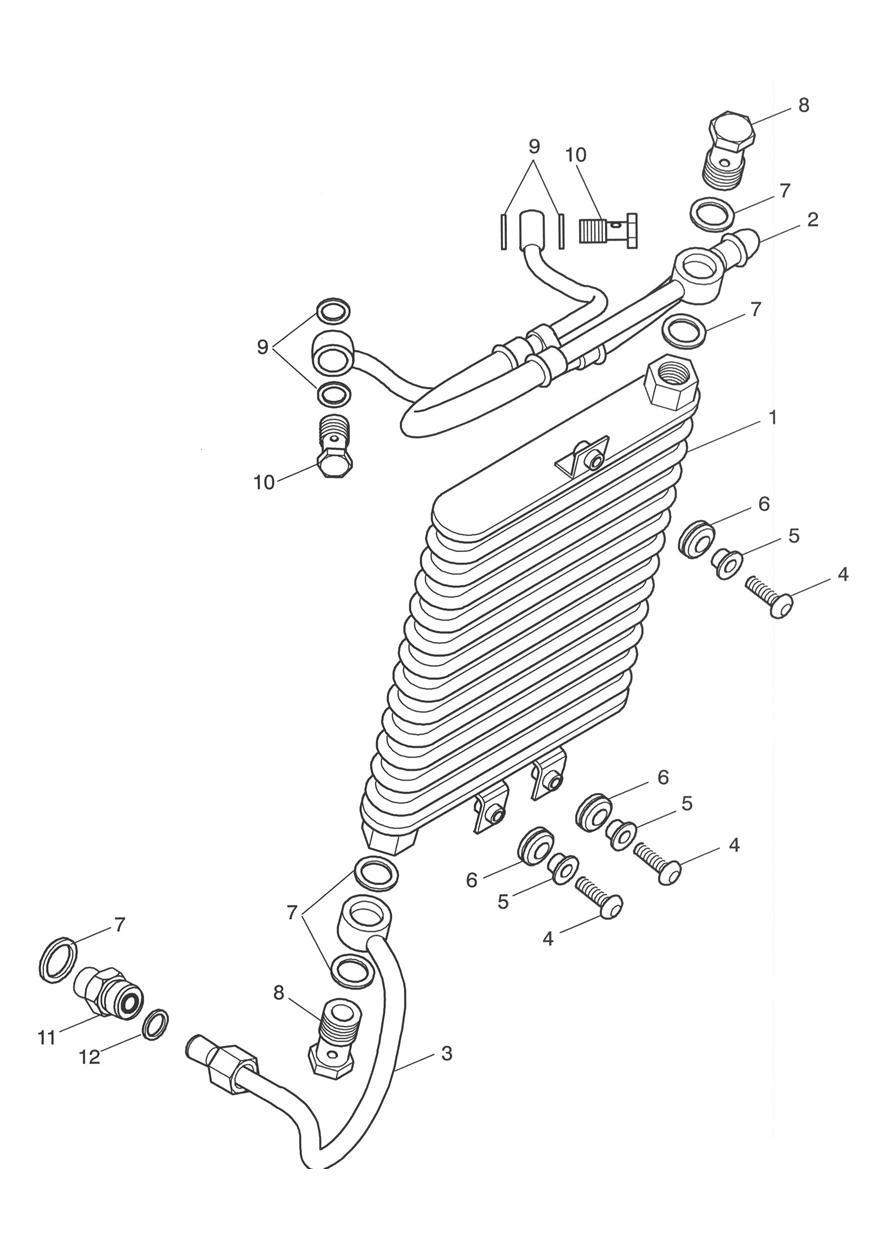

Cooling System
T1210228 Oil Cooler, 13 Row
$730.56
AvailableT2101685 Kit, Oil Feed/Return
$234.10
AvailableT2101480 Pipe return
$94.76
AvailableT3203025 Bolt, RHHF, Domed, M6 x 25, S/S
$1.99
AvailableT3010702 Flanged Sleeve, 6.4 x 10 x 8.5
$5.35
AvailableT3021100 Grommet, Dia 13 x 1.8
$2.64
AvailableT3550905 Washer, M18 x 21.9 OD, Copper
$2.29
AvailableT2100227 Banjo Bolt, M18 x 31
$12.34
AvailableT3550547 Washer, Cu, OD19 x ID14.2
$4.00
AvailableT1210241 Banjo Bolt, M14 x 28
$12.20
AvailableT2101600 Adaptor, Male
$11.69
AvailableT2101380 O Ring
$3.81

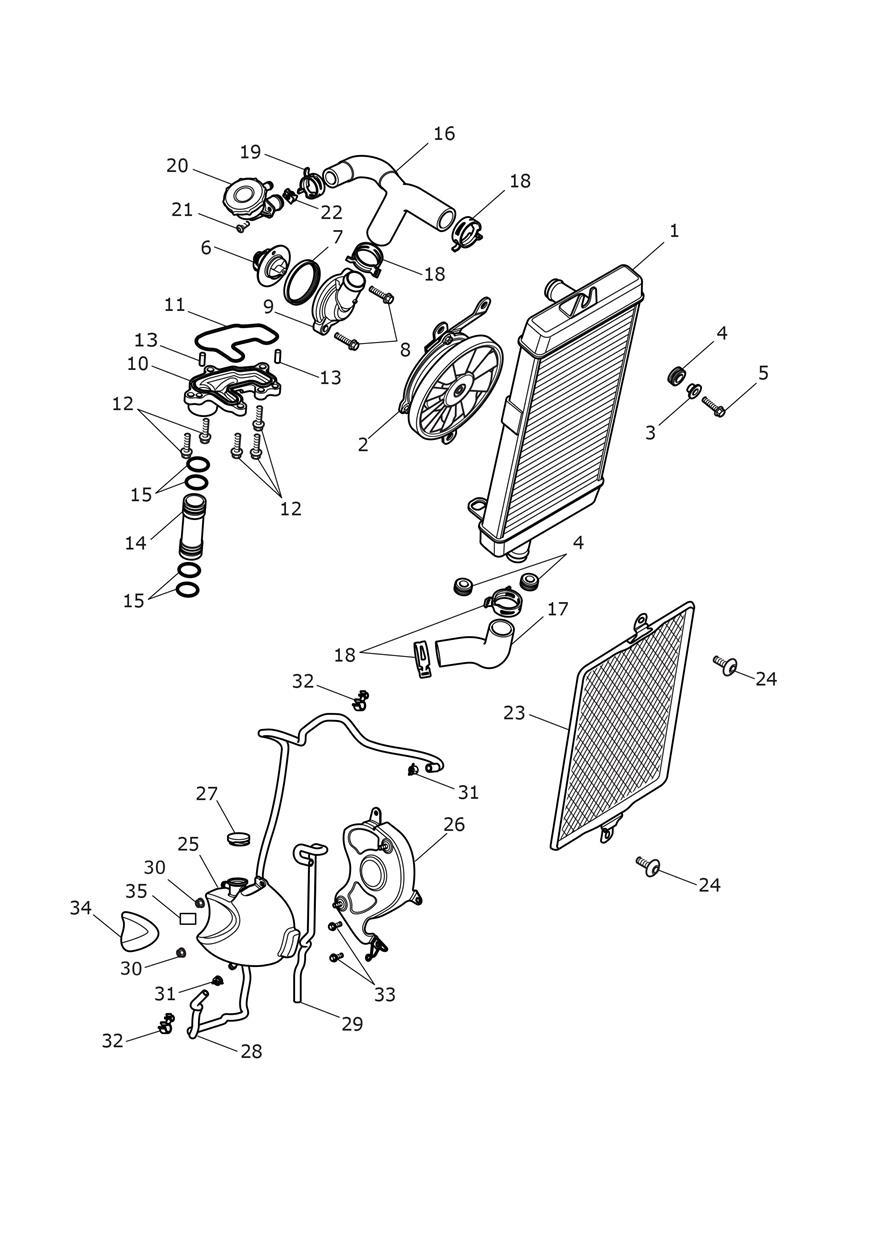

AvailableCooling System
T2101333 Radiator
$895.87
AvailableT2101666 Fan, Radiator
$475.29
AvailableT3020153 Grommet, 13 x 3 x 10
$1.99
AvailableT3205067 Bolt, HHF, Lghtd, M6 x 25, Slv
$2.27
AvailableT2100676 Thermostat
Low stock at Triumph
$63.35
Limited availabilityT2100201 Seal, Thermostat
$6.61
In stock in BreaT3205083 Bolt, HHF, Lghtd, M6 x 28, Slv
$2.29
AvailableT2101255 Cover, Water Outlet
$51.04
AvailableT2101266 Coolant Manifold
$119.69
AvailableT3200134 Bolt, RHHF, M6x25, Encaps
$2.53
AvailableT3000005 Dowel, Dia 6 x 16.5
$1.99
AvailableT2101233 Pipe, Coolant Feed, Internal
$27.46
AvailableT3600124 O Ring, ID 21.5 x 3
$3.14
In stock in BreaT2101180 T-Piece, Coolant, Assy
$25.71
AvailableT2101477 Hose, Coolant, Rad to Engine
Low stock at Triumph
$12.66
Limited availabilityT3706215 Clamp, Constant Tension, Dia 30
$12.95
AvailableT3706212 Clamp, Constant Tension, Dia 23
$12.95
AvailableT2101499 Filler Neck, Coolant
Low stock at Triumph
$73.93
Limited availabilityT3330627 Screw, Pan/HD, TPT, Tx, M5 x 12
$1.99
AvailableT3350129 Nut, Captive, M5
Low stock at Triumph
$3.14
Limited availabilityT2109602 Grill, Radiator
Backordered at Triumph · we’ll confirm the ship date after you order
$103.83
On backorderT3330958 Screw, But/Hd, M5 x 10, Blk, Enc
$1.99
In stock in BreaT2101175 Expansion Tank, Coolant
$77.47
AvailableT2101176 Mount, Expansion Tank
$38.20
AvailableT2101015 Cap, Expansion Tank
Low stock at Triumph
$1.99
Limited availabilityT2100787 Hose, Expansion, Coolant
$55.43
AvailableT2100779 Hose, Expansion Tank Overflow
$47.51
AvailableT3350003 Locknut, Flanged, M6 x 1
$1.99
AvailableT3700440 Clip, Hose, 11-12.5mm
$5.02
In stock in BreaT3700190 Clip, Rear Brake Hose
$2.81
AvailableT3205063 Bolt, HHF, Lghtd, M6 x 16, Slv
Low stock at Triumph
$3.24
Limited availabilityT2101177 Cosmetic Cover, Expansion Tank
$2.73
AvailableT3650201 Adhesive Tape, 19mm x 25mm
Backordered at Triumph · expected Oct 23
$11.88
On backorder
