Rear Swinging Arm & Rear Suspension
Triumph Thruxton · 2 diagrams

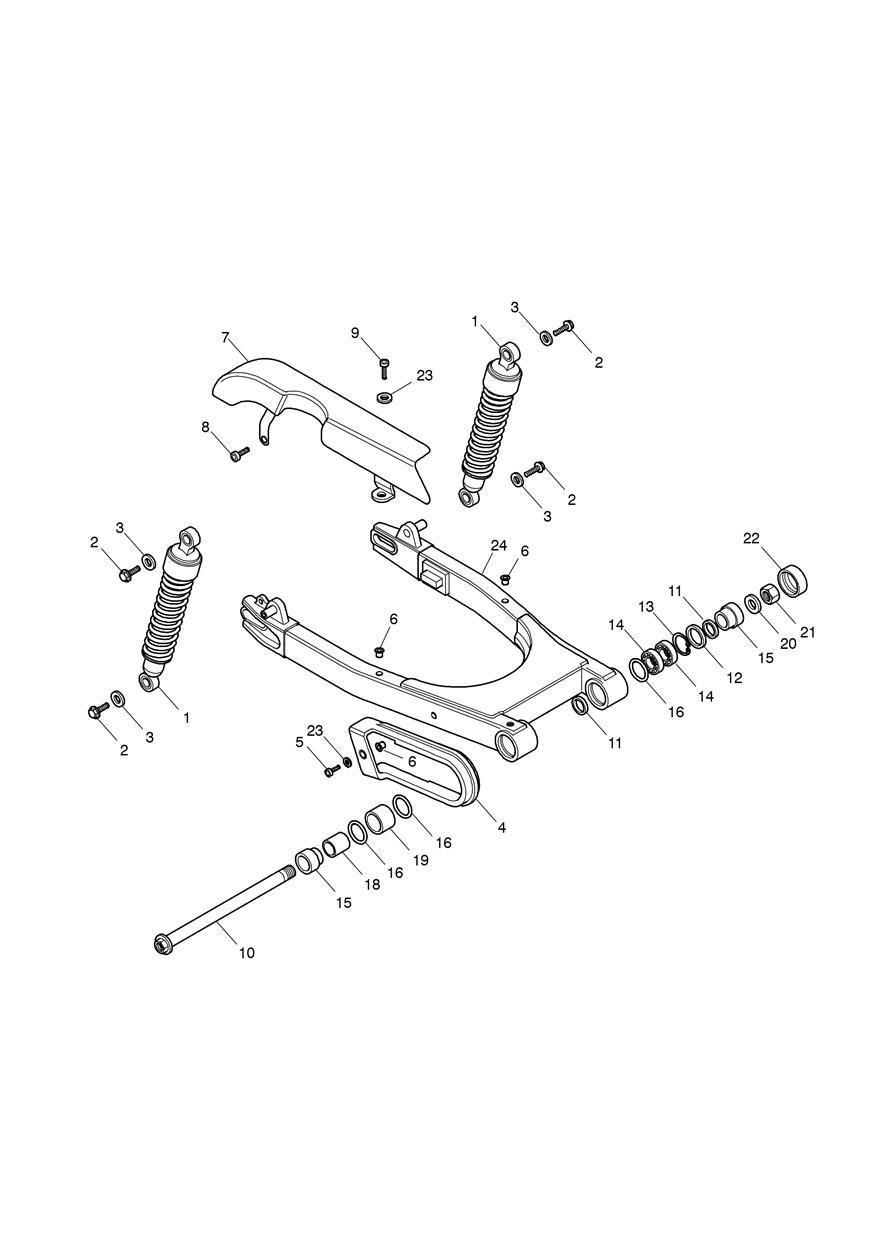

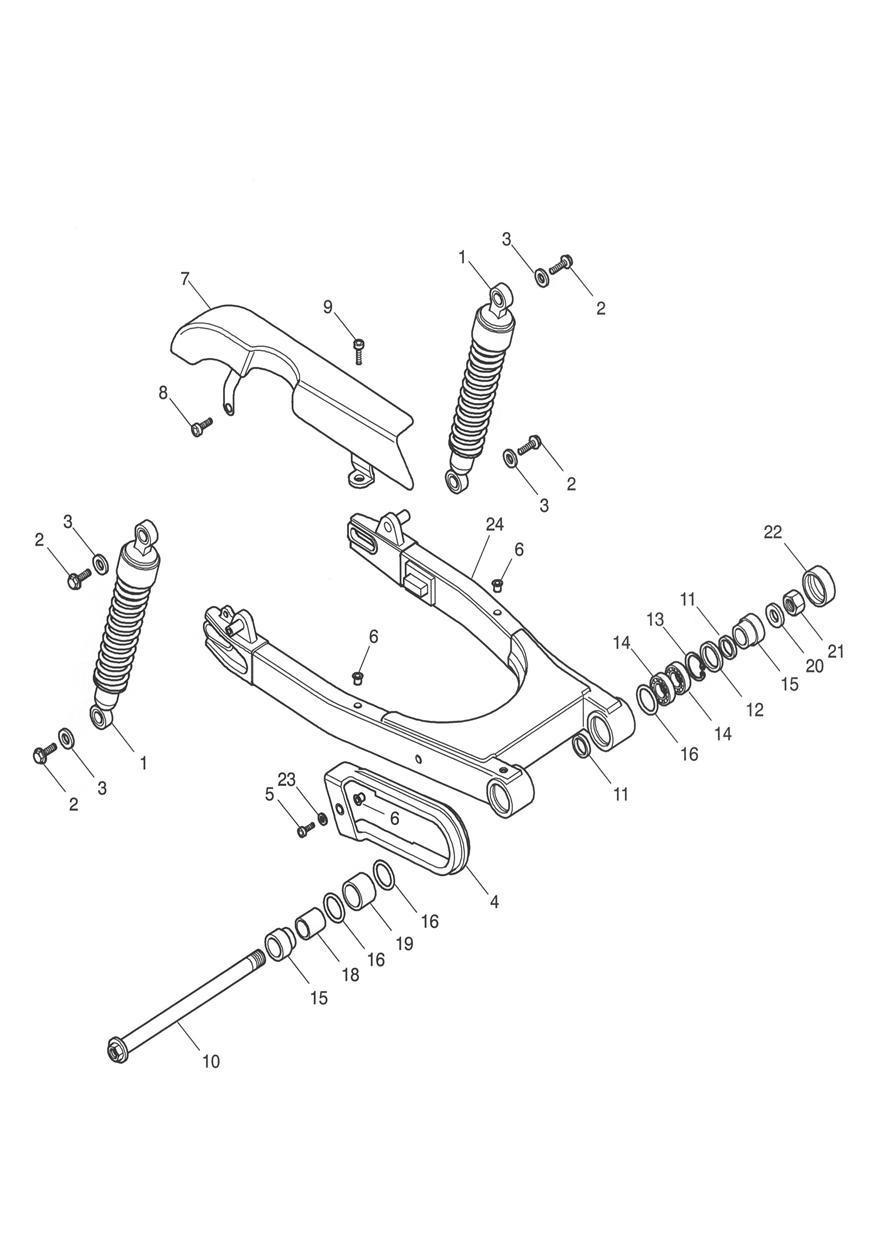

2 exploded diagrams for the rear swinging arm & rear suspension of the Triumph Thruxton, covering the Thruxton 1200, Thruxton 900. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
28 parts you can order online
Every part below appears in Triumph’s Rear Swinging Arm & Rear Suspension diagrams for the Thruxton and is priced and orderable online. Open a part to see what it fits and to buy it.
Most of these parts are shared with the Air Cooled Scramblers book. 4 parts are specific to the Thruxton.
Rear Suspension
T2057985 Rear Suspension Unit
$660.14
AvailableT2057986 Rear Suspension Unit
$660.14
AvailableT2057979 Rear Suspension Unit
Backordered at Triumph · expected Oct 23
$660.14
On backorderT3205457 Bolt, HHF, Lghtd, M8 x 20, Enc
$1.99
AvailableT3555033 Washer, 8.4 x 24 x 2
$2.53
AvailableT2057367 Rubbing strip
$63.81
AvailableT3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc
$1.99
In stock in BreaT3350216 Threaded Insert, M6
$3.14
AvailableT2057388 Chainguard, Steel, Trimmed
$80.99
AvailableT2057402 Chainguard, Steel, Chrome
$85.42
AvailableT3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc
$1.99
In stock in BreaT3330231 Screw, Lge Skt Hd, M6 X 1 X 25
Low stock at Triumph
$12.51
Limited availabilityT2054050 Spindle
$69.55
AvailableT2054063 Spacer, 25 x 17 x 8.5
$7.41
AvailableT3600044 Oil Seal, 35 25 4
Low stock at Triumph
$9.67
Limited availabilityT3500204 Circlip, Int, 35 x 1.5
$1.99
AvailableT3800506 Bearing, Ball, 17 x 35 x 10
$17.86
AvailableT2054115 Bush
$11.00
AvailableT3600170 Seal, SD 25 32 04
Backordered at Triumph · expected Nov 6
$12.51
On backorderT2053188 Sleeve, Ground, 25 x 17 x 37
Low stock at Triumph
$8.82
Limited availabilityT3800014 Roller bearing
Backordered at Triumph · expected Nov 20
$13.26
On backorderT3555032 Washer, 17 x 30 x 3
Low stock at Triumph
$2.93
Limited availabilityT3350155 Locknut, Thin, M16
Low stock at Triumph
$8.71
Limited availabilityT3450028 Moulding Cap 24 A/F
Low stock at Triumph
$2.93
Limited availabilityT3555004 Washer, 6.4 x 14 x 1.6
Low stock at Triumph
$1.99
Limited availabilityT2050298 Swinging Arm Assy, 90% Gloss
$1249.83
Available
