Cooling System
Triumph Thunderbird 1600 & 1700 · 8 diagrams
8 exploded diagrams for the cooling system of the Triumph Thunderbird 1600 & 1700, covering the Thunderbird 1600 & 1700. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

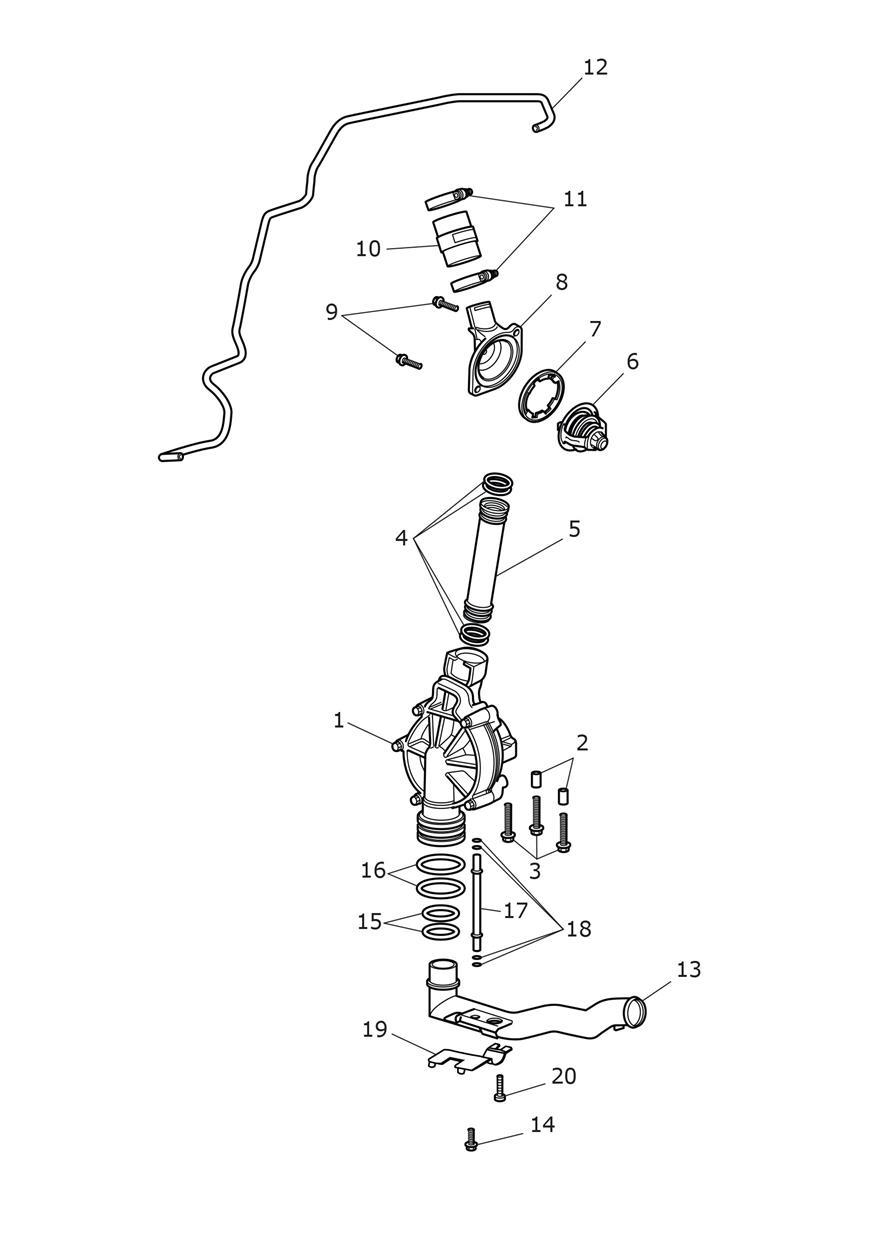

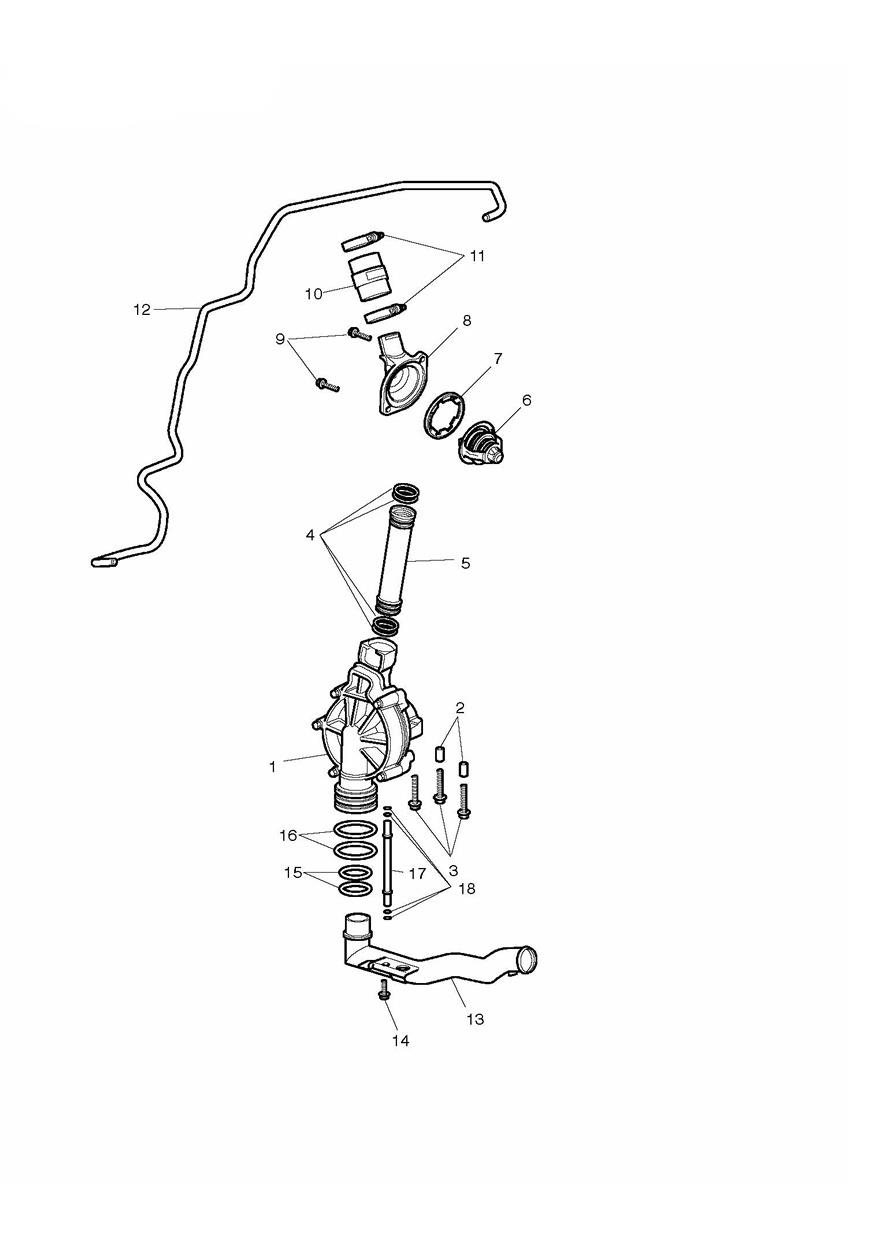

Cooling System - continued
25 parts

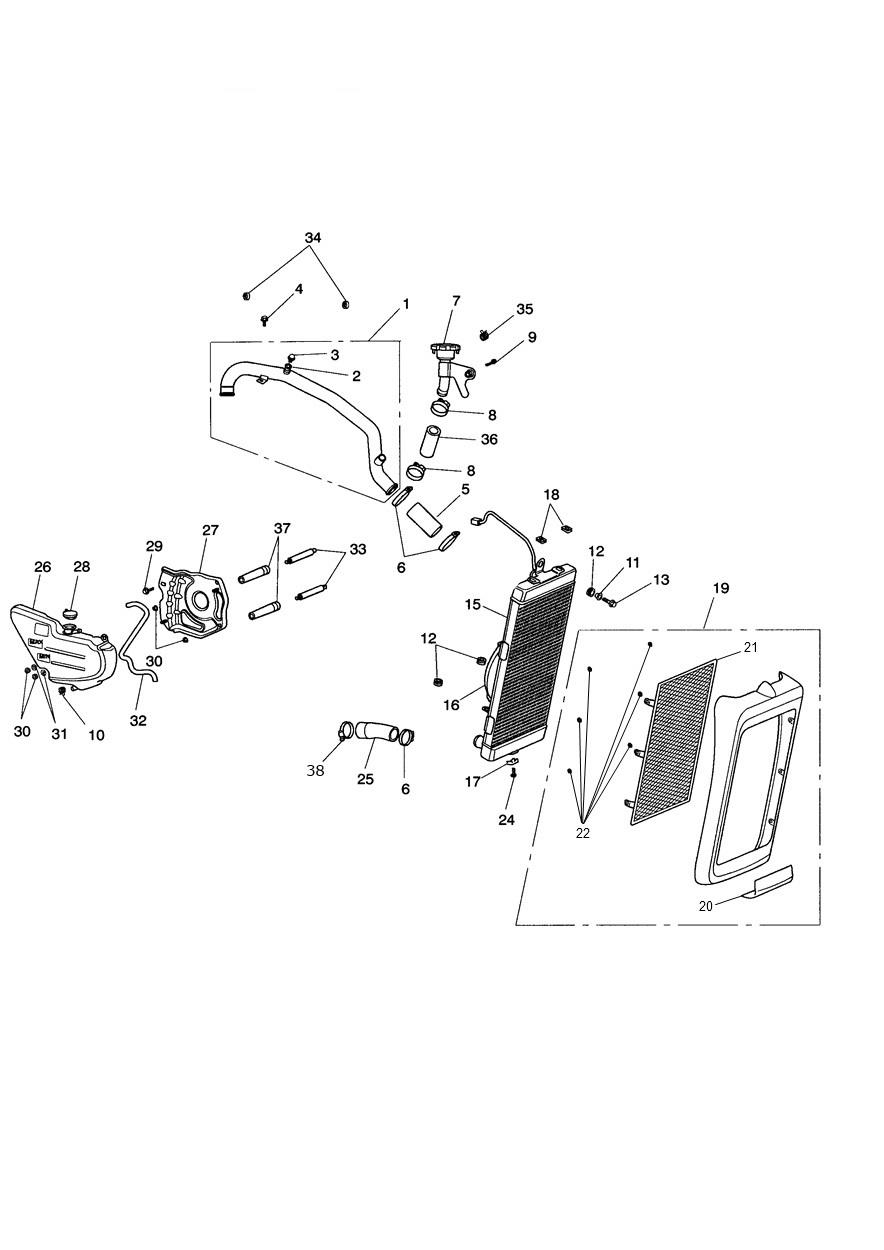

Cooling System
42 parts
Cooling System
45 parts
Cooling System - continued
30 parts
Cooling System
36 parts
Cooling System
39 parts
Cooling System - continued
19 parts
Cooling System - continued
20 parts
59 parts you can order online
Every part below appears in Triumph’s Cooling System diagrams for the Thunderbird 1600 & 1700 and is priced and orderable online. Open a part to see what it fits and to buy it.
Cooling System - continued
T3000101 Dowel, Hollow, 8 x 14
$3.61
AvailableT3051135 Screw, Cap/Hd, M6 x 30, Enc
$1.99
AvailableT3600124 O Ring, ID 21.5 x 3
$3.14
In stock in BreaT2100678 Thermostat
$63.35
AvailableT2107104 Seal, Thermostat, Rubber
$7.21
AvailableT2100766 Coolant Elbow, Large
$27.37
AvailableT2100655 Coolant Elbow, Large
$26.31
AvailableT3205066 Bolt, HHF, Lghtd, M6 x 20, Slv
$4.21
In stock in Brea · last onesT2105103 Hose, Coolant, Thermo Housing
$12.34
AvailableT3707585 Clip, Hose, Dia 27-35
$4.30
AvailableT3706216 Clamp, Constant Tension, Dia 32
$12.95
AvailableT2100104 Expansion Hose, Rubber
$11.08
AvailableT2101986 Pipe, Coolant, Steel
$25.93
AvailableT3205063 Bolt, HHF, Lghtd, M6 x 16, Slv
Low stock at Triumph
$3.24
Limited availabilityT3600129 O-Ring, 28.17 x 3.53
$1.99
AvailableT3600133 O-Ring, 37.69 x 3.53
$1.99
AvailableT1210128 Pump Drain Tube
$5.27
AvailableT3600109 O Ring, ID 5.6 x 2.3
$4.91
In stock in BreaT3330648 Screw, Pan/Hd, Tx, M5 x 20, Slv
$2.43
AvailableCooling System
T2107011 Kit, Top Rad Assy
$105.63
AvailableT2107001 Pipe, Coolant, Steel
Backordered at Triumph · expected Oct 23
$23.42
On backorderT3550146 Washer, 6.4 x 12 x 1, Copper
$1.99
AvailableT3203222 Bolt, HHF, M6 x 12, Slv
$1.99
AvailableT3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc
$1.99
In stock in BreaT2105204 Hose, Coolant, Top Rad
Low stock at Triumph
$9.52
Limited availabilityT3707590 Hose Clip, 30-38
$9.15
AvailableT2107002 Filler Neck Coolant
$73.93
AvailableT3706212 Clamp, Constant Tension, Dia 23
$12.95
AvailableT3700440 Clip, Hose, 11-12.5mm
$5.02
In stock in BreaT3010702 Flanged Sleeve, 6.4 x 10 x 8.5
$5.35
AvailableT3020153 Grommet, 13 x 3 x 10
$1.99
AvailableT3205067 Bolt, HHF, Lghtd, M6 x 25, Slv
$2.27
AvailableT2100771 Radiator, Core, 400 x 200
$809.77
AvailableT2100780 Fan, Dia 180, Cowled
$457.68
AvailableT3020027 Grommet, Rubber
$1.99
AvailableT2108701-PS Cover Assy, Radiator, Black
$336.75
AvailableT2100328 Film, Protective, Rad Cowl
$10.10
AvailableT2100121 Grill Assembly, Radiator
$126.74
AvailableT3550182 Washer, Retaining, Dia 11.5
Low stock at Triumph
$1.99
Limited availabilityT3331517 Screw, P/HD Tx, Shld, M6 x 16, S
$1.99
AvailableT2105101 Hose, Coolant, Rad to Pump
$26.06
AvailableT2100149 Tank, Expansion, Coolant
$77.47
AvailableT2100152 Bracket, Expansion Tank
$19.01
AvailableT2101015 Cap, Expansion Tank
Low stock at Triumph
$1.99
Limited availabilityT3010059 Flanged Sleeve, M6 x 9 x 3.2
Low stock at Triumph
$2.53
Limited availabilityT3350003 Locknut, Flanged, M6 x 1
$1.99
AvailableT2101371 Spacer, Threaded, M6
$8.43
AvailableT3700108 Clip, Cable, 14.3 x 10
$3.00
AvailableT3700840 Clip, Water Pipe
$1.99
AvailableT2105202 Hose, Coolant, Filler Neck
$12.51
AvailableT2016102 Runner, Anti Ratchet
$9.77
AvailableT3706217 Clamp, Constant Tension, Dia 36
Low stock at Triumph
$12.95
Limited availabilityCooling System
T2101995-PG Cover Assy, Radiator, Black
Backordered at Triumph · we’ll confirm the ship date after you order
$336.75
On backorderT2100199-PU Cover Assembly, Radiator
$191.88
AvailableT2100199-PV Cover Assembly, Radiator
Backordered at Triumph · we’ll confirm the ship date after you order
$336.75
On backorderT3350012 Locknut, Flgd, M6, Black, Zinc
$1.99
Available
