Crankcase, Engine Covers, Lubrication System
Triumph Thunderbird 1600 & 1700 · 25 diagrams
25 exploded diagrams for the crankcase, engine covers, lubrication system of the Triumph Thunderbird 1600 & 1700, covering the Thunderbird 1600 & 1700. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

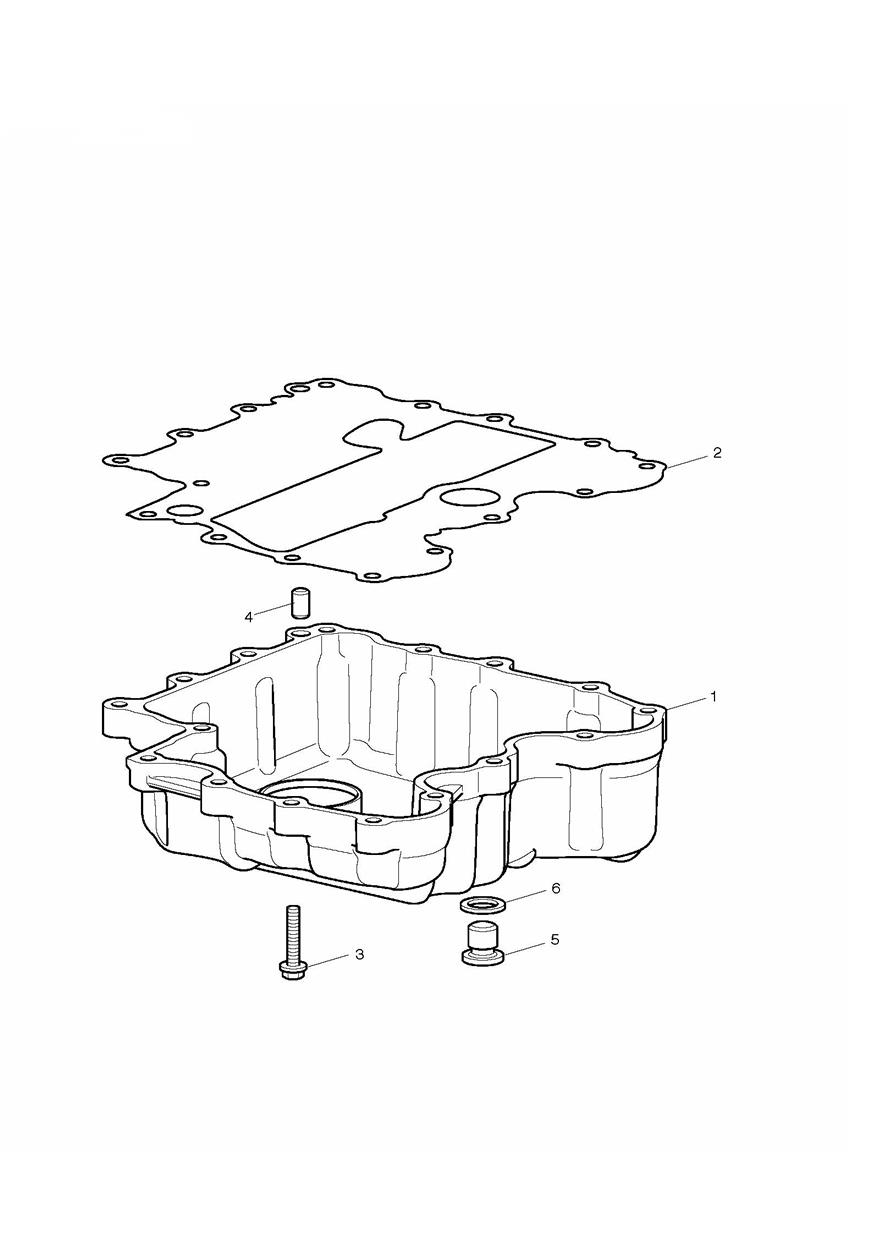

Sump & Fittings
6 parts
Sump & Fittings
6 parts

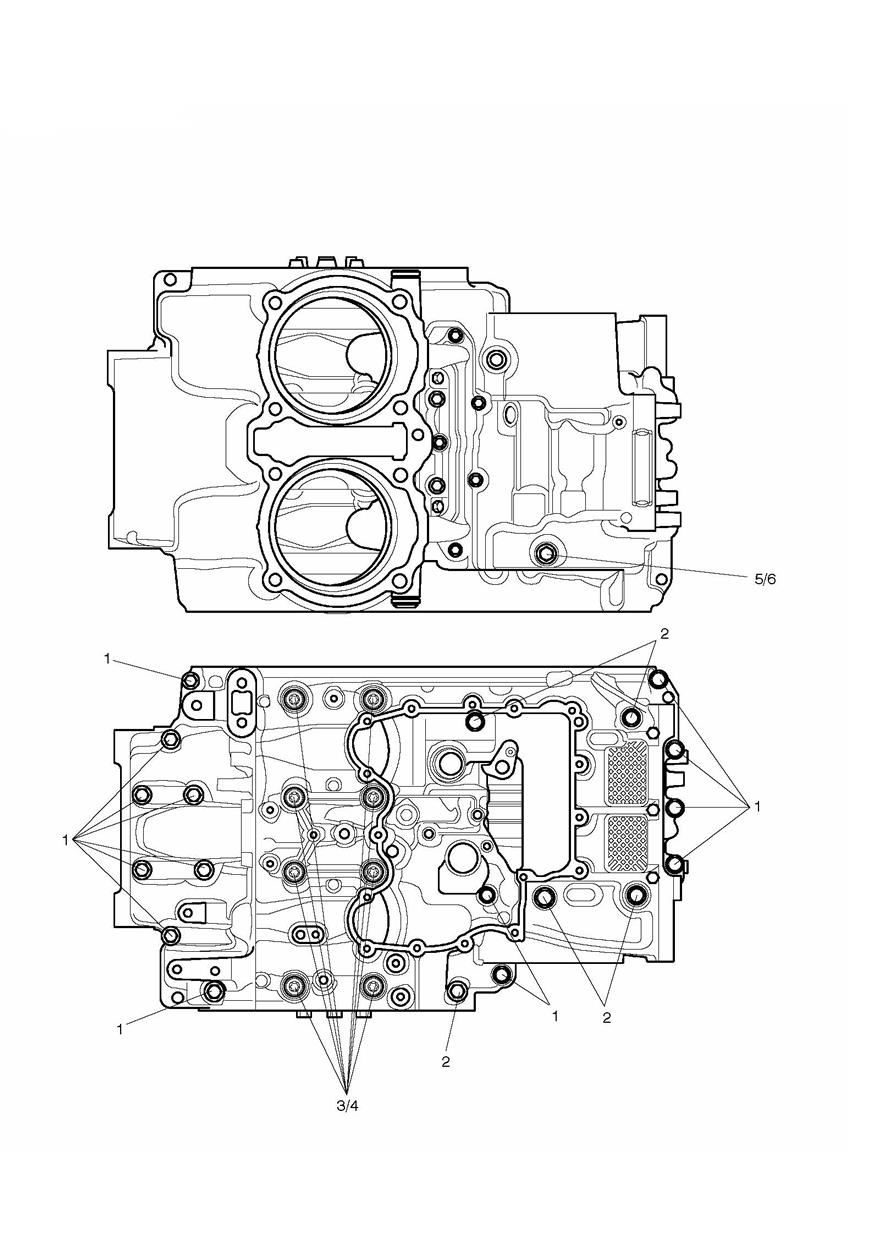

Crankcase Bolts
6 parts
Crankcase Bolts
6 parts

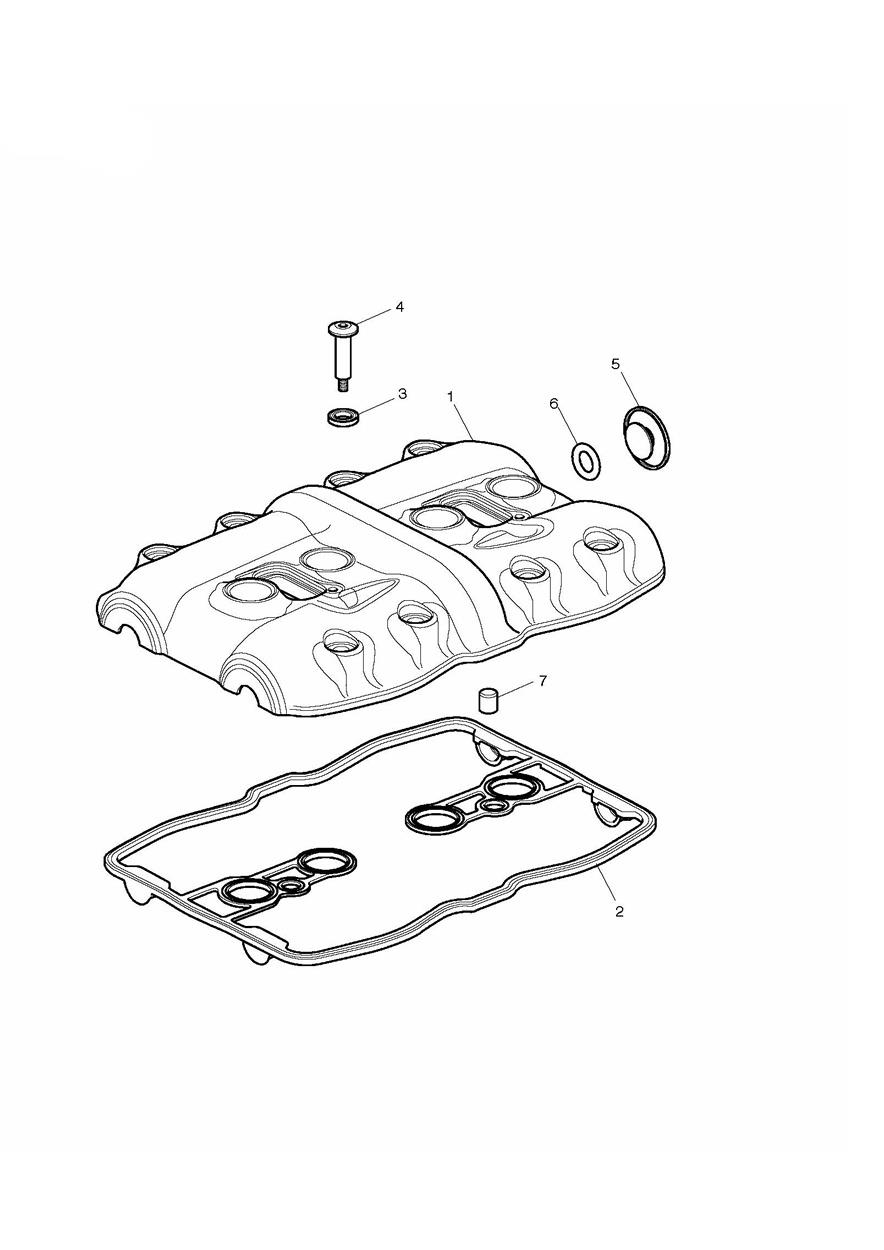

Cam Cover
7 parts
Cam Cover
7 parts

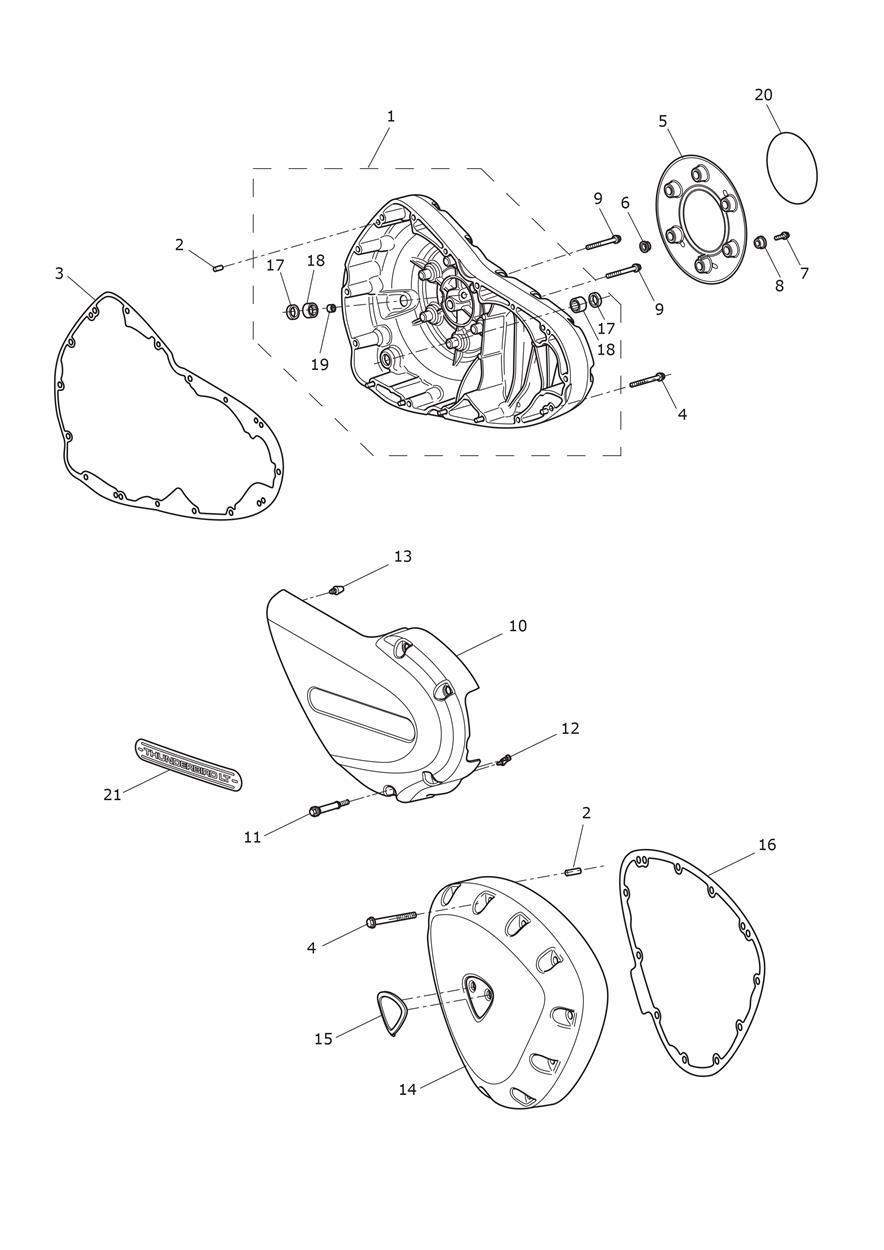

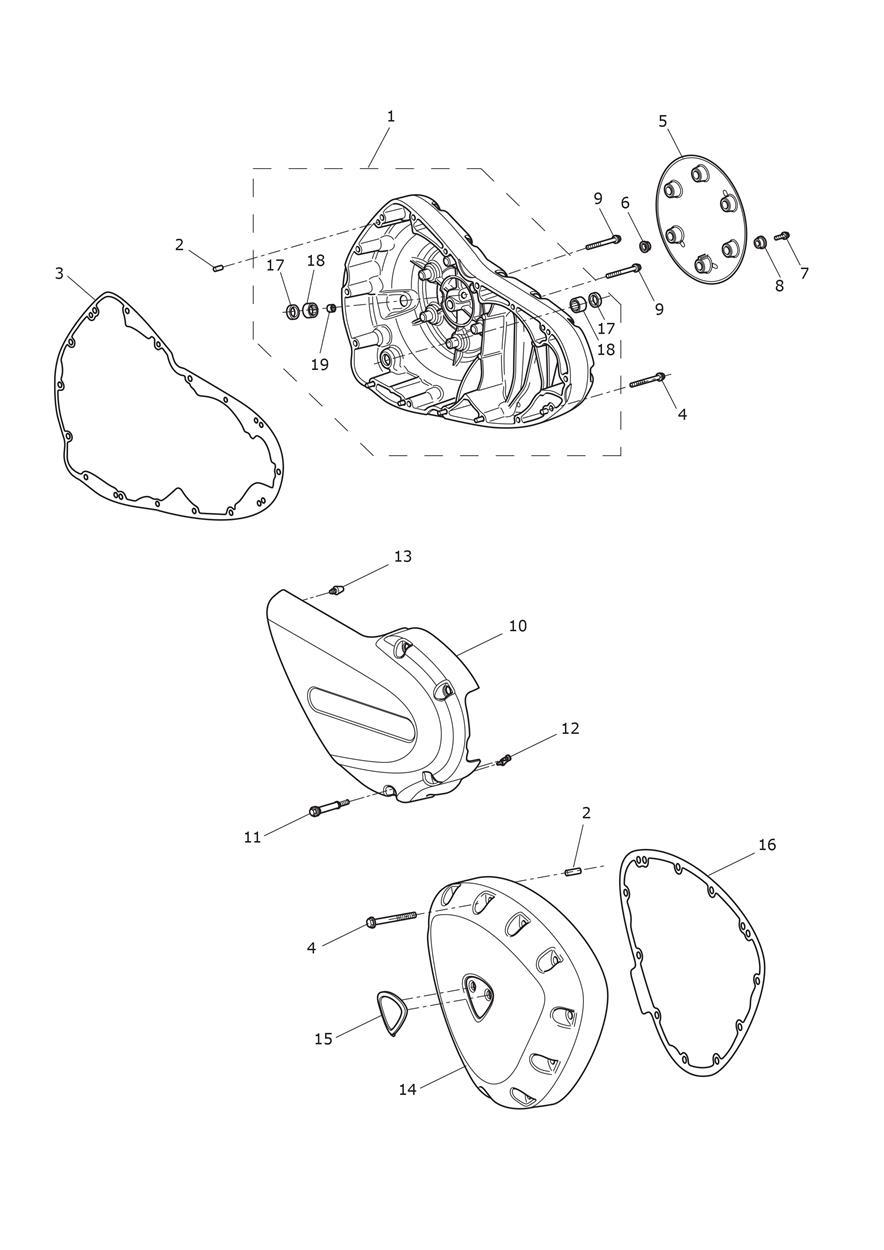

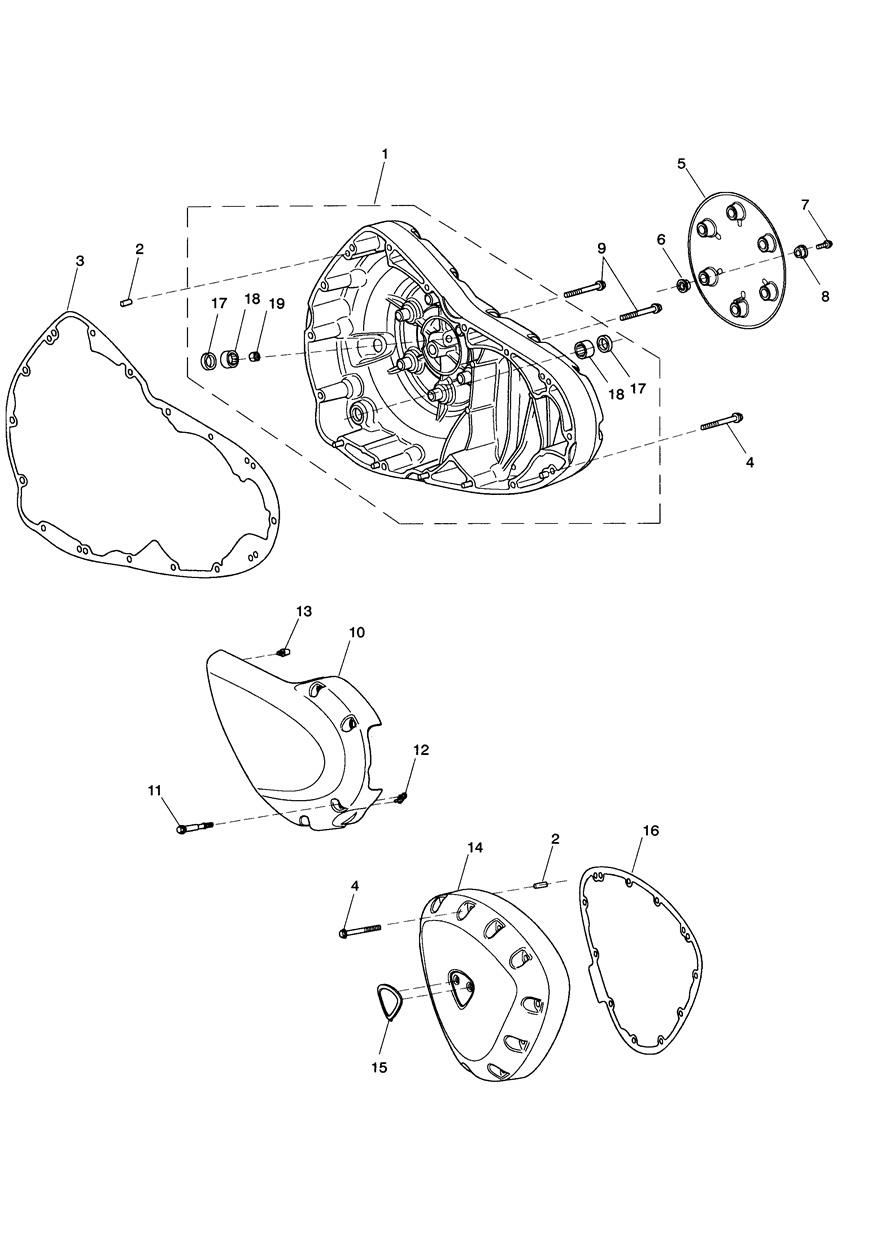

Engine Covers
21 parts
Engine Covers
21 parts

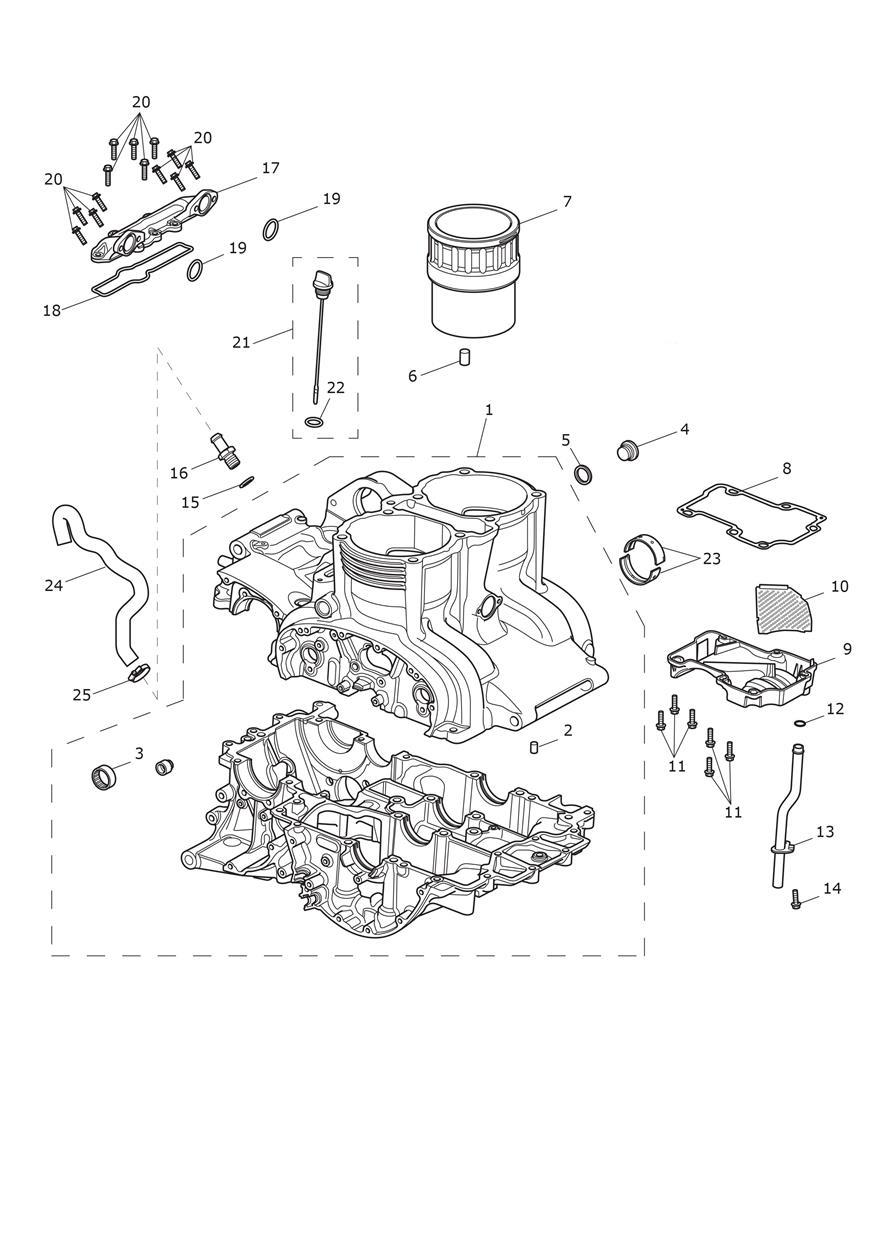

Crankcase & Fittings
30 parts
Crankcase & Fittings
30 parts

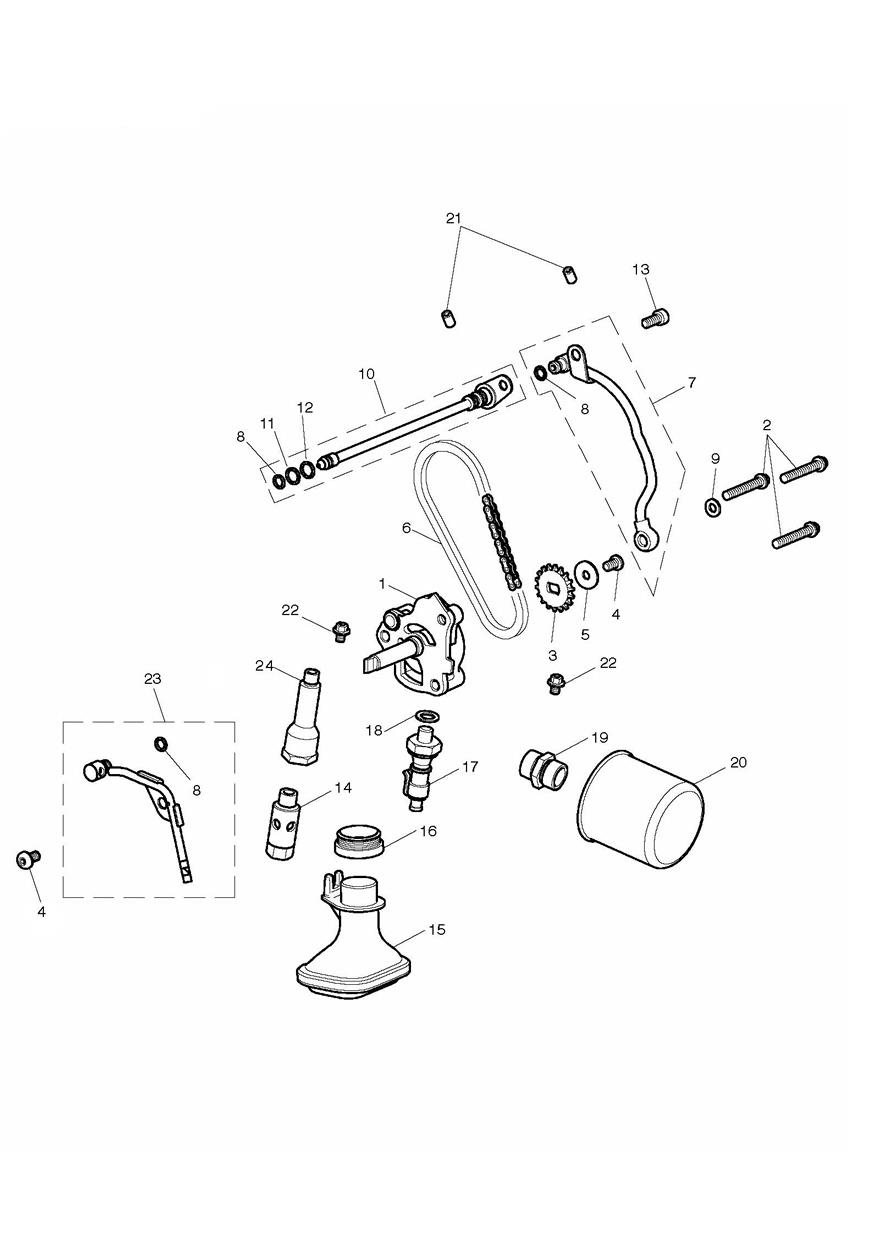

Lubrication System
25 parts
Lubrication System
25 parts
Crankcase Bolts
6 parts
Sump & Fittings
6 parts
Cam Cover
8 parts
Lubrication System
26 parts
Crankcase & Fittings
29 parts
Cam Cover
8 parts
Engine Covers
24 parts
Lubrication System
26 parts
Crankcase & Fittings
30 parts
Crankcase Bolts
6 parts
Sump & Fittings
6 parts
