Braking System

Triumph Thunderbird & Thunderbird Sport · 8 diagrams

8 exploded diagrams for the braking system of the Triumph Thunderbird & Thunderbird Sport, covering the Thunderbird & Thunderbird Sport. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

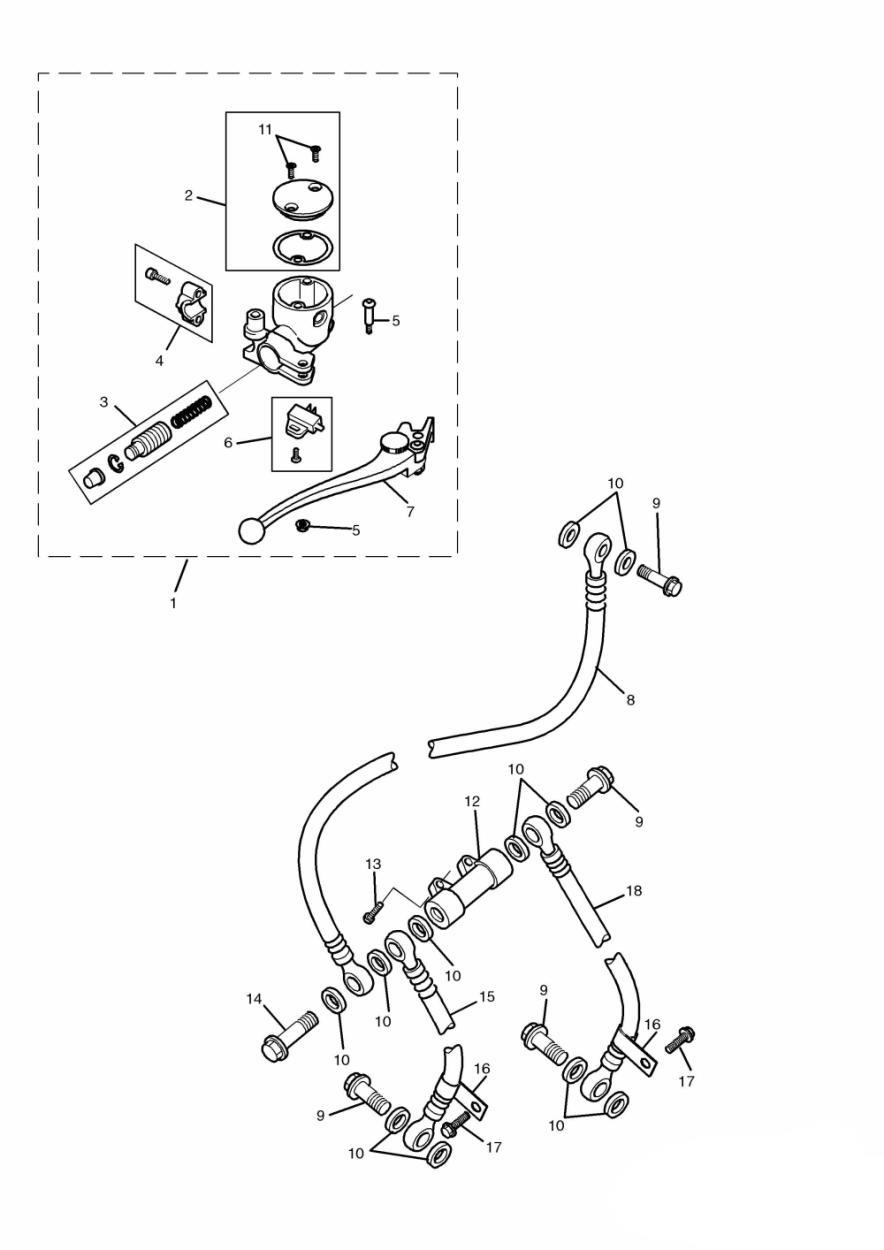

Front Brake Master Cylinder exploded diagram
Front Brake Master Cylinder
18 parts

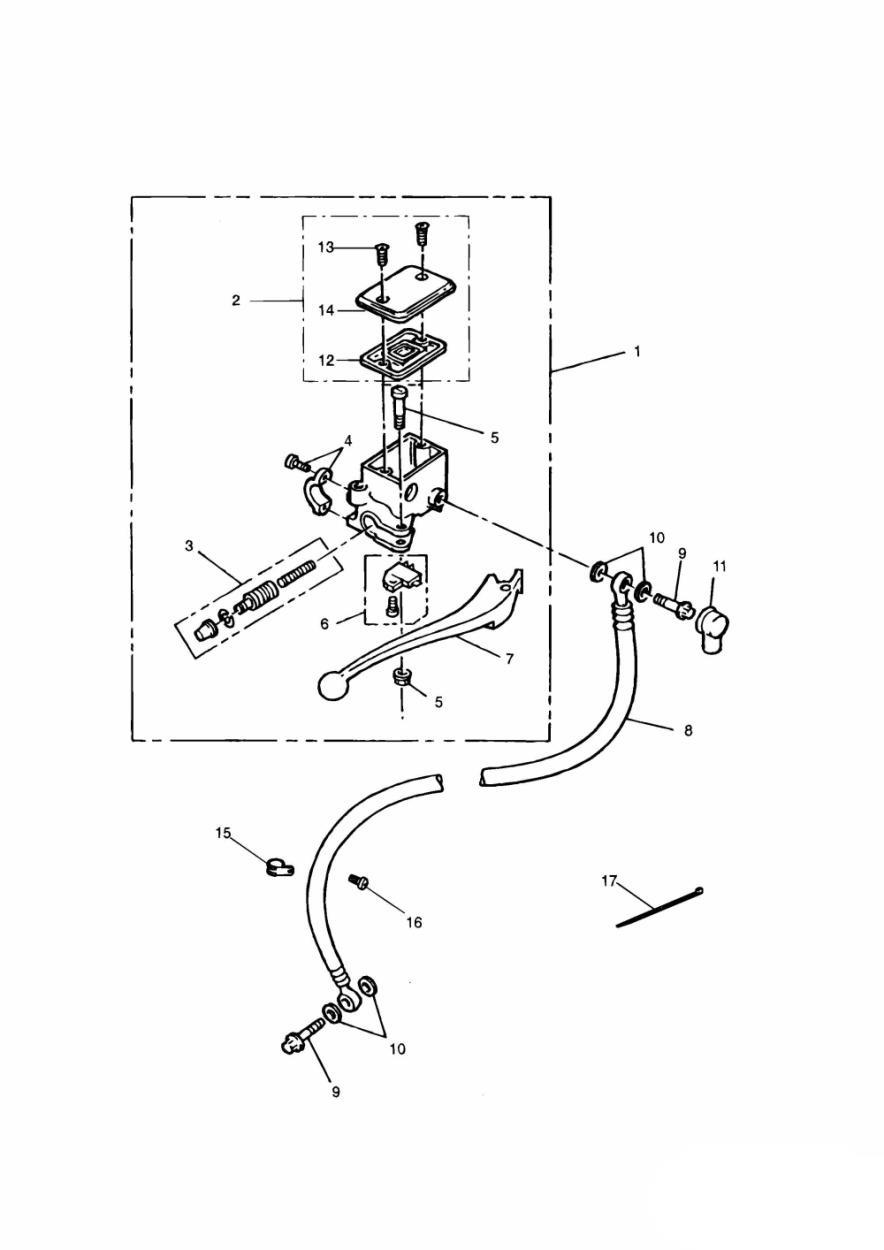

 Front Brake Master Cylinder exploded diagram
Front Brake Master Cylinder
18 parts

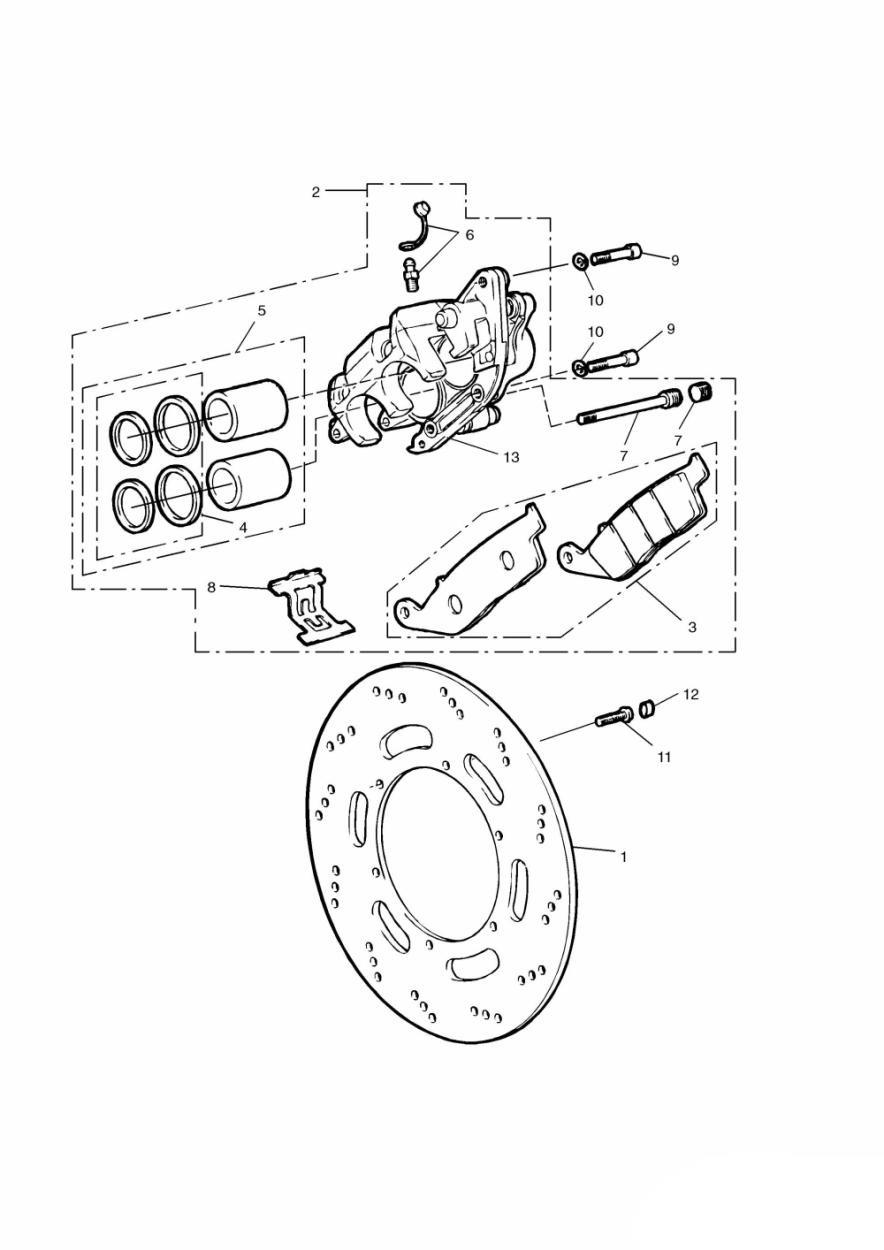

 Front Brake Caliper and Disc exploded diagram
Front Brake Caliper and Disc
15 parts

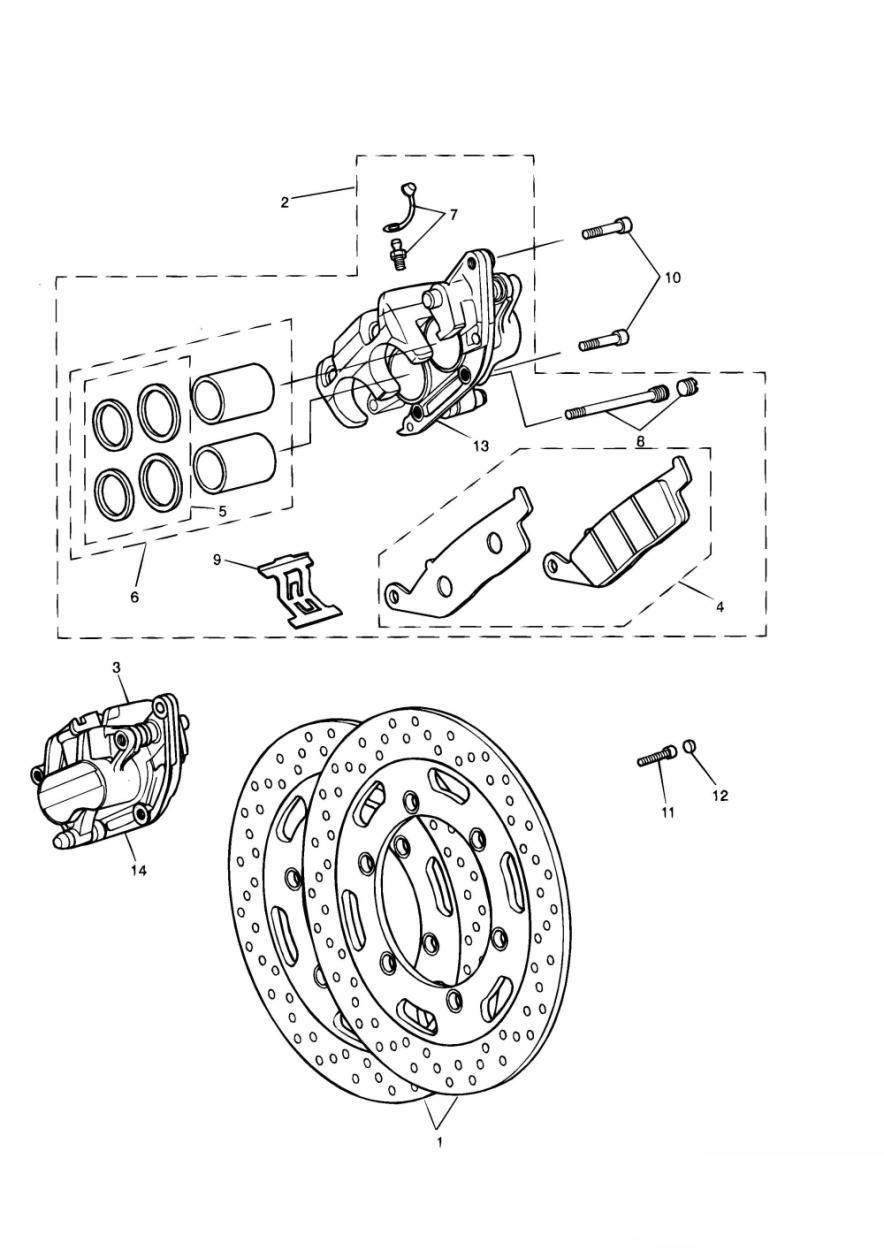

 Front Brake Caliper and Disc exploded diagram
Front Brake Caliper and Disc
15 parts

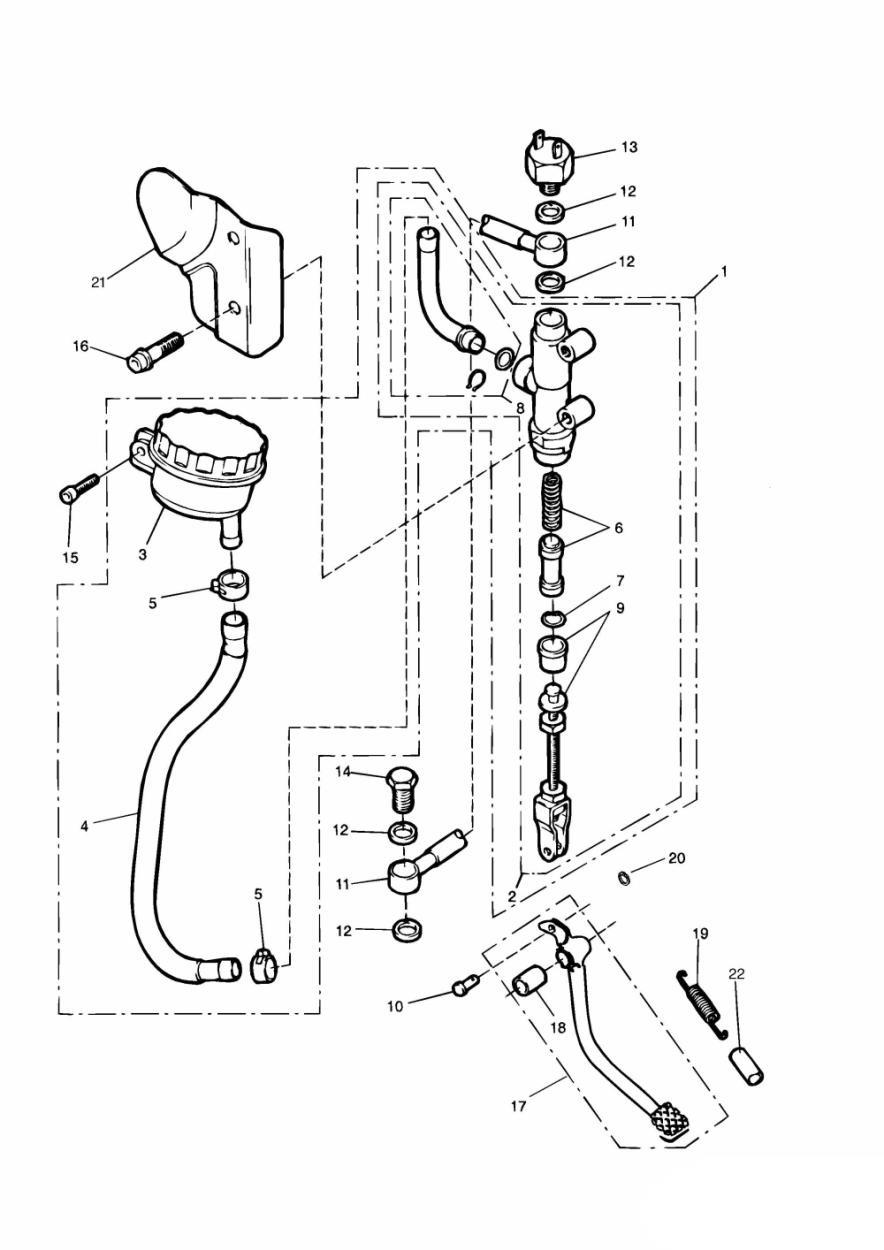

 Rear Brake Master Cylinder exploded diagram
Rear Brake Master Cylinder
27 parts

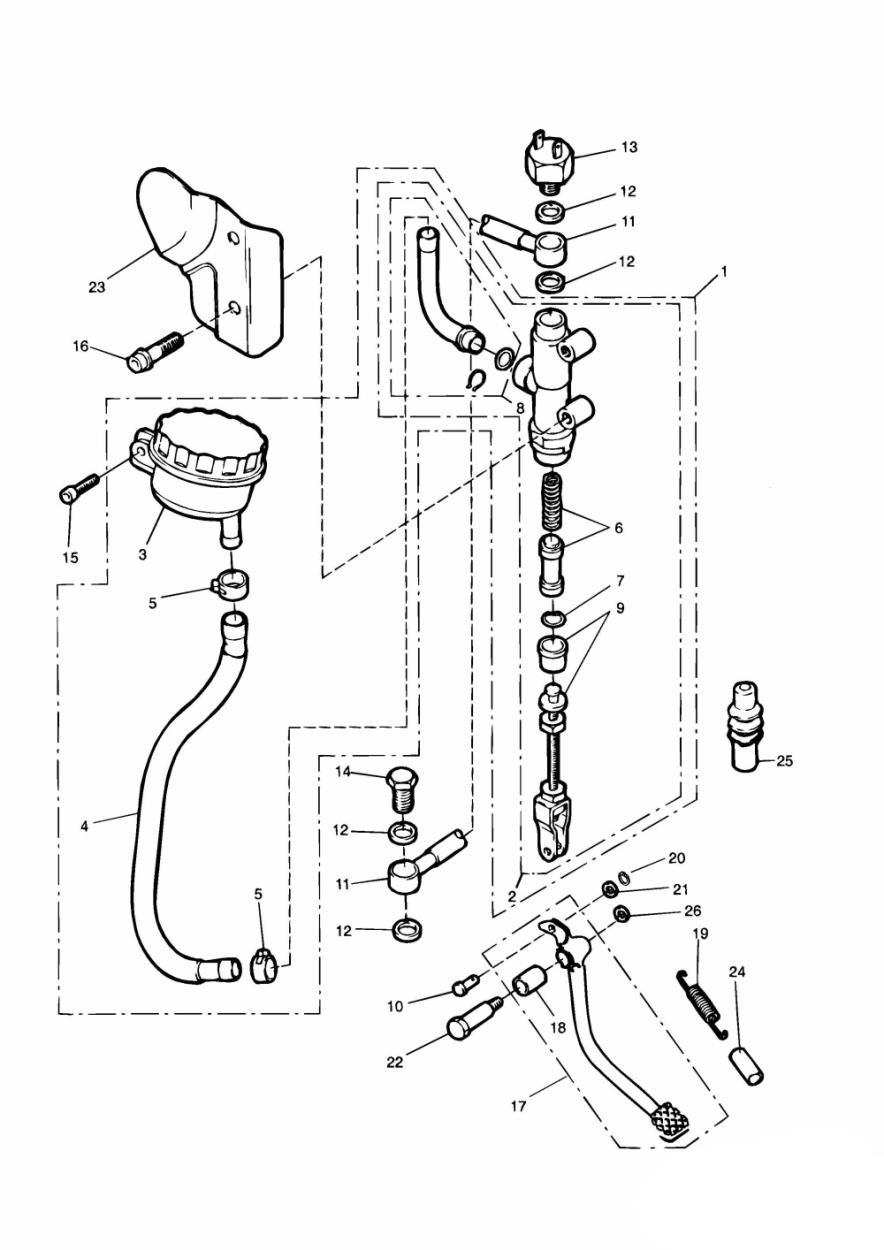

 Rear Brake Master Cylinder exploded diagram
Rear Brake Master Cylinder
22 parts

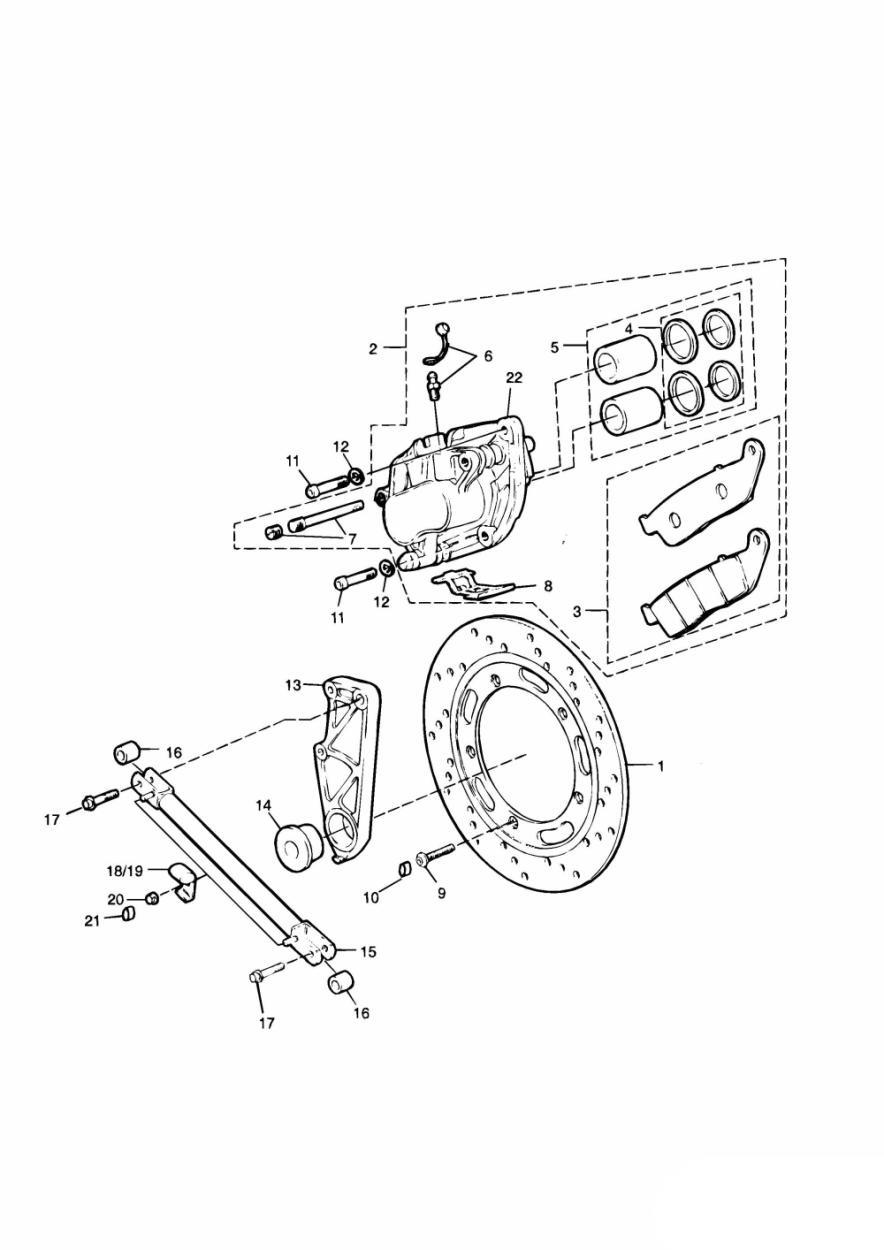

 Rear Brake Disc and Caliper exploded diagram
Rear Brake Disc and Caliper
26 parts

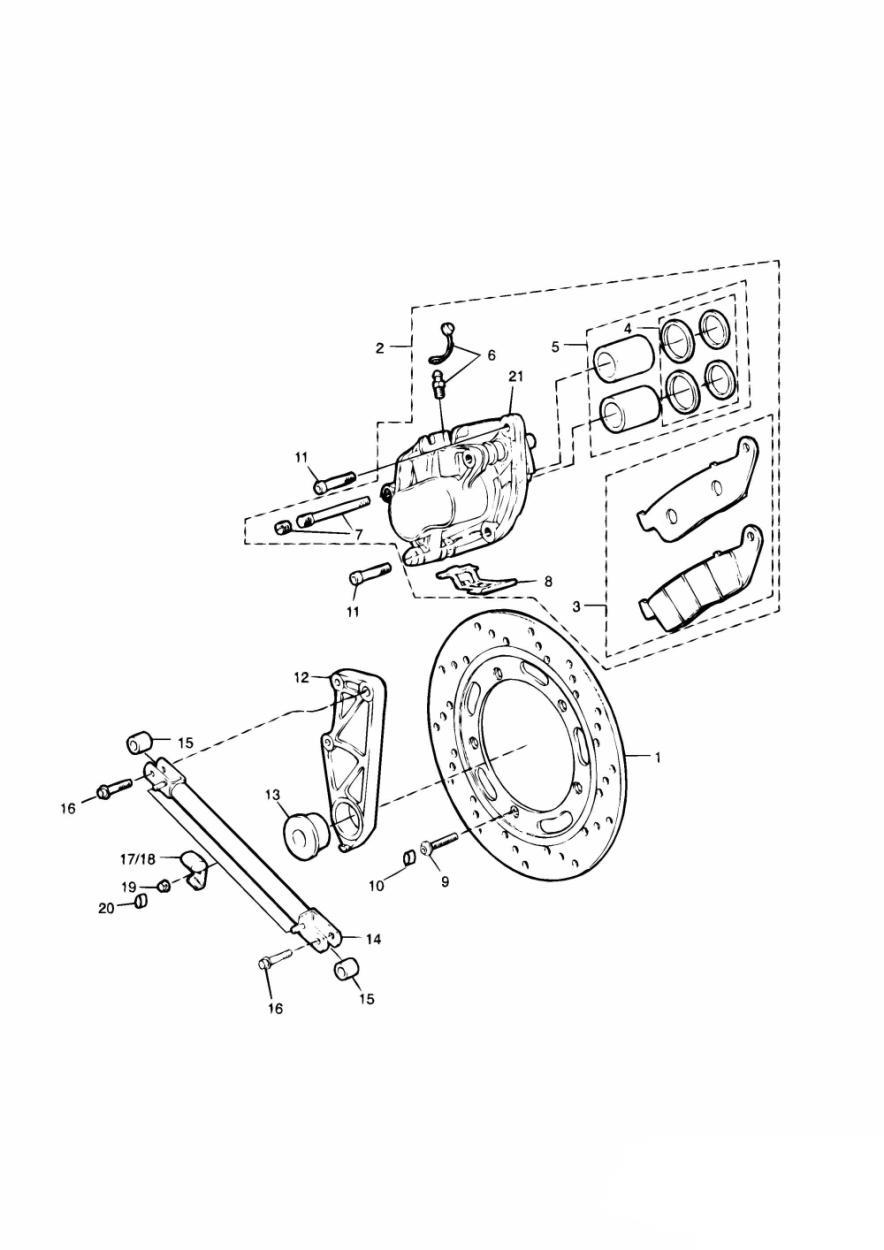

 Rear Brake Disc and Caliper exploded diagram
Rear Brake Disc and Caliper
23 parts
