Triumph Thunderbird & Thunderbird Sport · 8 diagrams

8 exploded diagrams for the cylinder head, valves, pistons, liners, camshaft & balancers of the Triumph Thunderbird & Thunderbird Sport, covering the Thunderbird & Thunderbird Sport. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

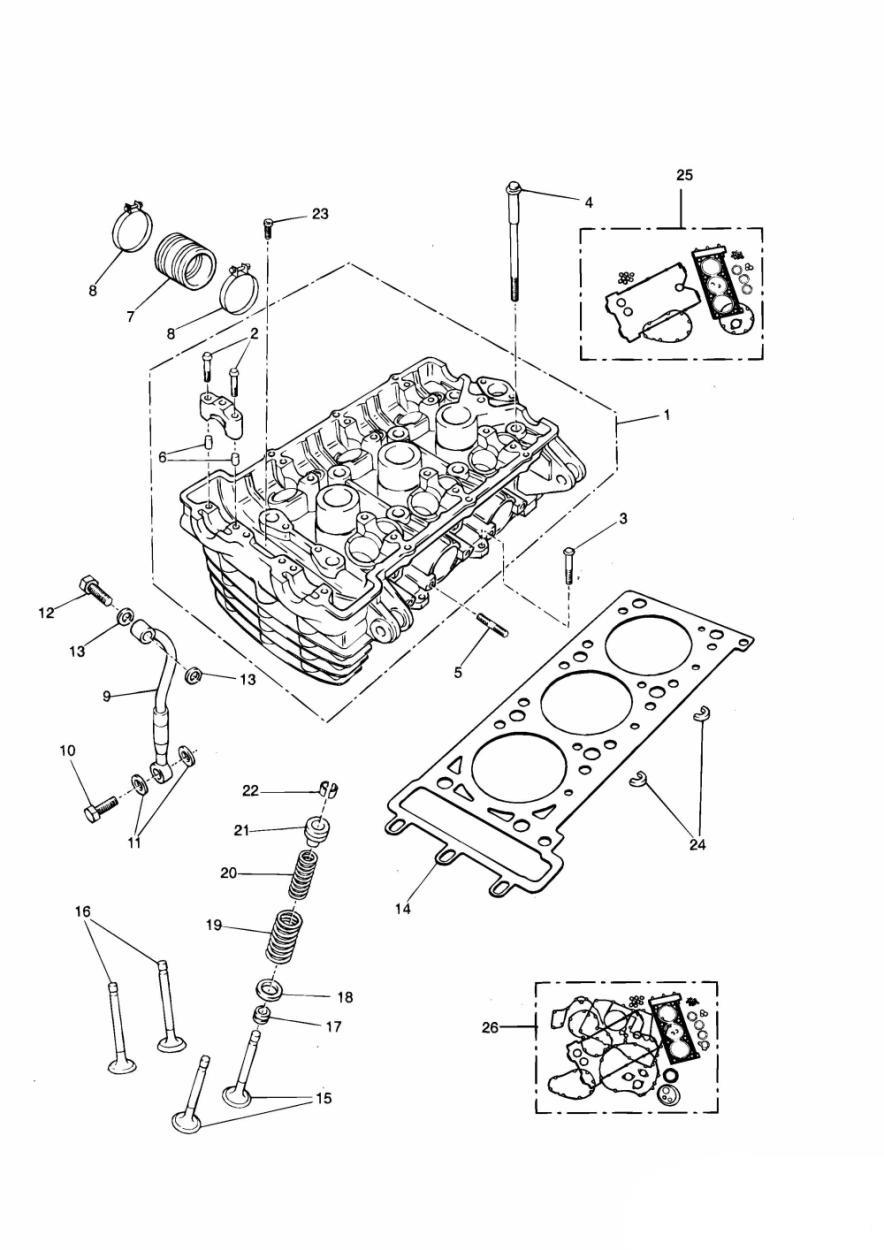

Cylinder Head and Valves exploded diagram
Cylinder Head and Valves
35 parts
 Cylinder Head and Valves exploded diagram
Cylinder Head and Valves
28 parts

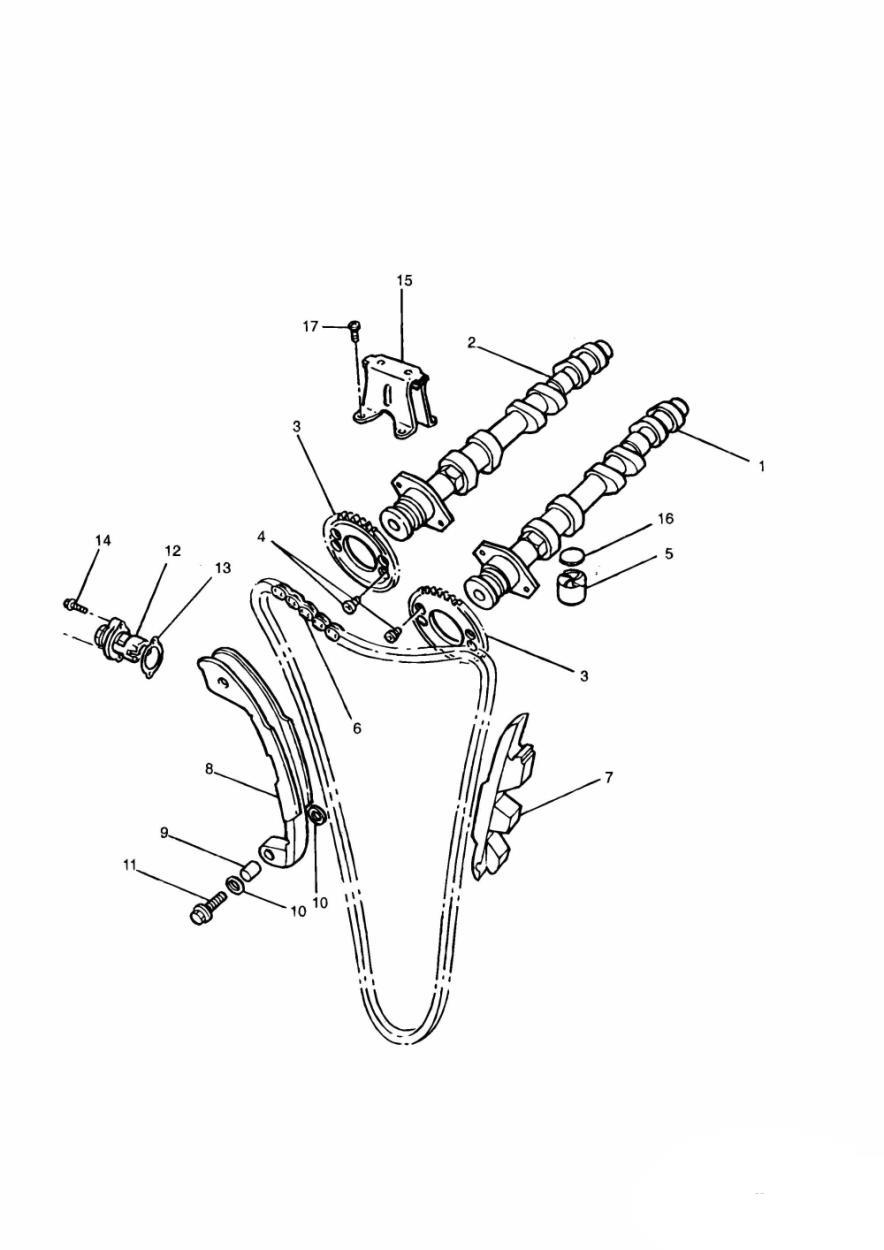

 Camshaft and Drive exploded diagram
Camshaft and Drive
66 parts
 Camshaft and Drive exploded diagram
Camshaft and Drive
65 parts

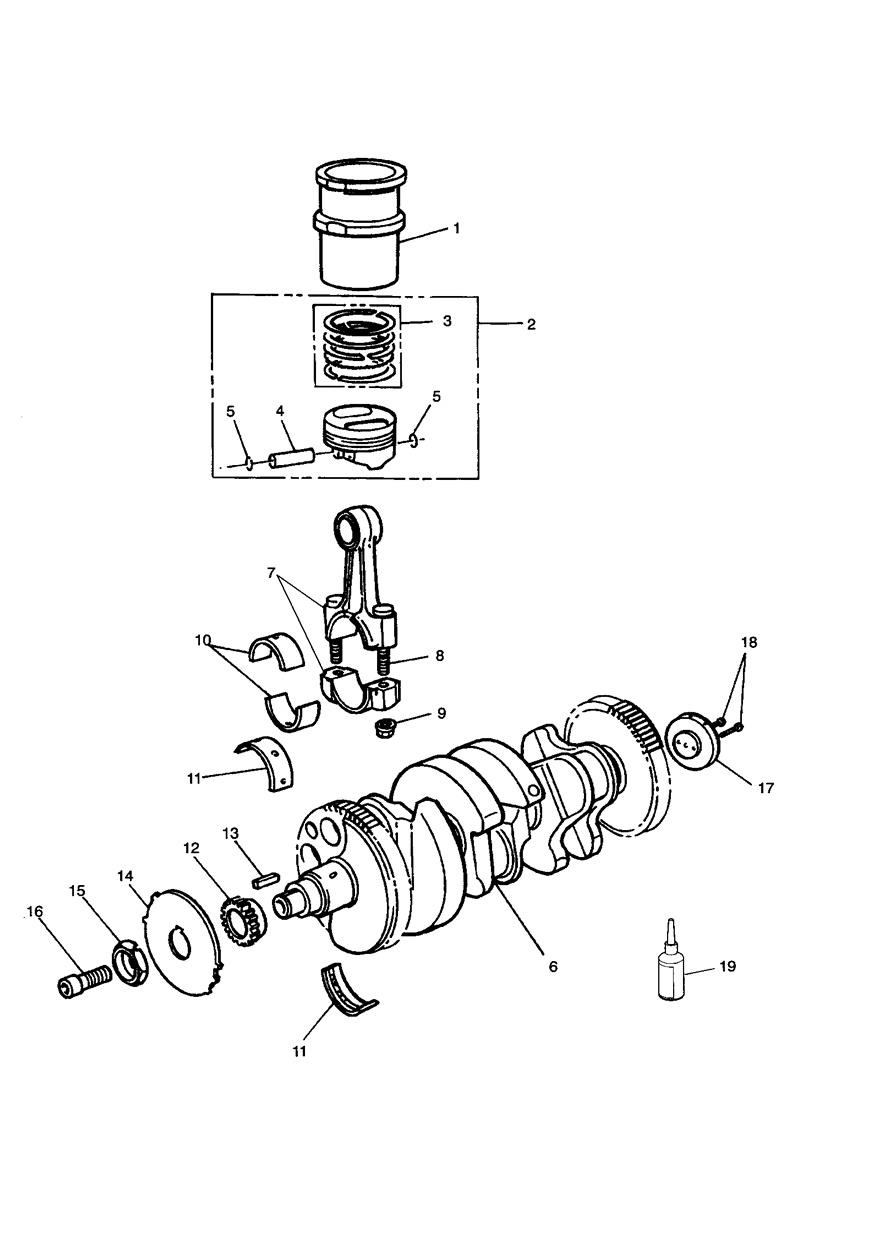

 Crankshaft/Conn Rod/Pistons and Liners exploded diagram
Crankshaft/Conn Rod/Pistons and Liners
31 parts

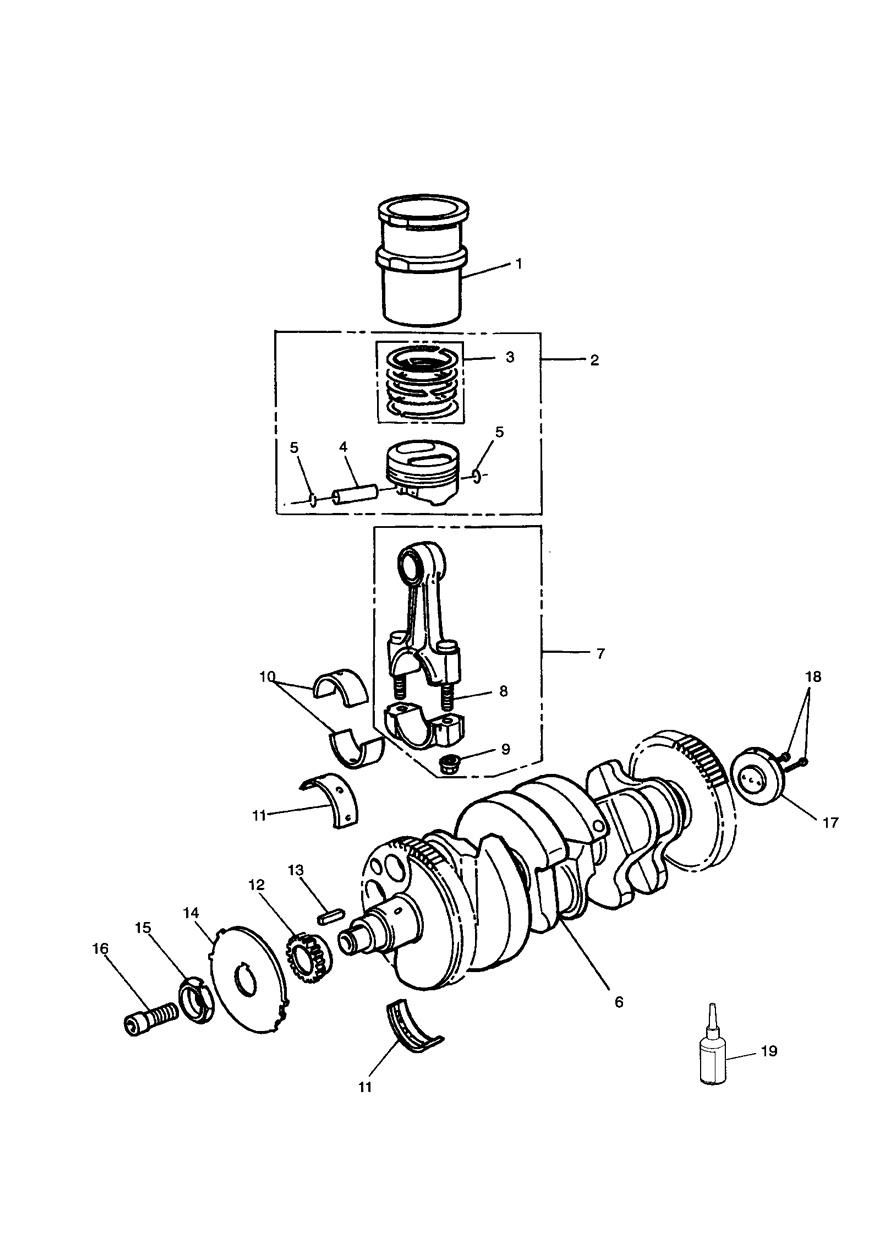

 Crankshaft/Conn Rod/Pistons and Liners exploded diagram
Crankshaft/Conn Rod/Pistons and Liners
31 parts

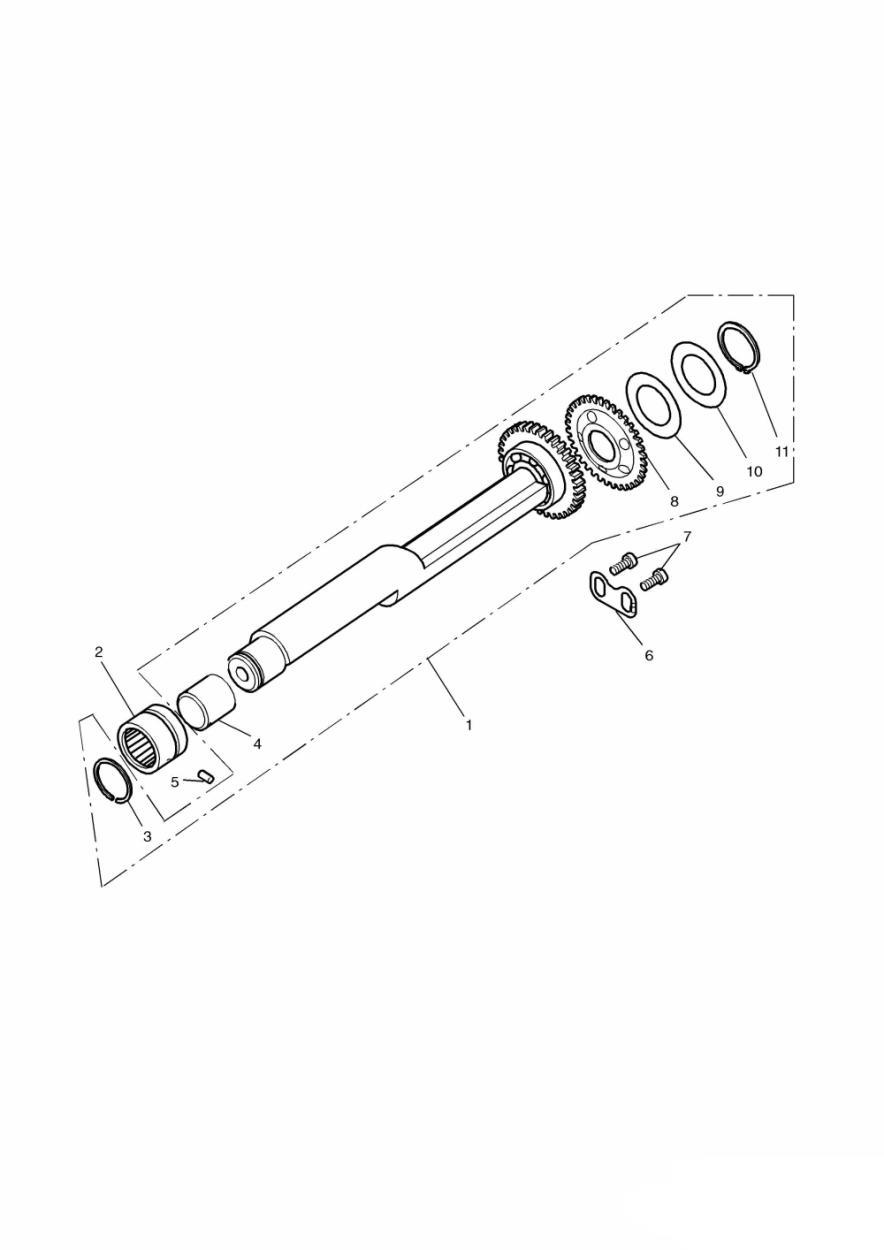

 Balancer exploded diagram
Balancer
13 parts
 Balancer exploded diagram
Balancer
13 parts
