Frame/Footrests/Eng Mtgs/Stands/Luggage/Tool Kit
Triumph Thunderbird & Thunderbird Sport · 14 diagrams
14 exploded diagrams for the frame/footrests/eng mtgs/stands/luggage/tool kit of the Triumph Thunderbird & Thunderbird Sport, covering the Thunderbird & Thunderbird Sport. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

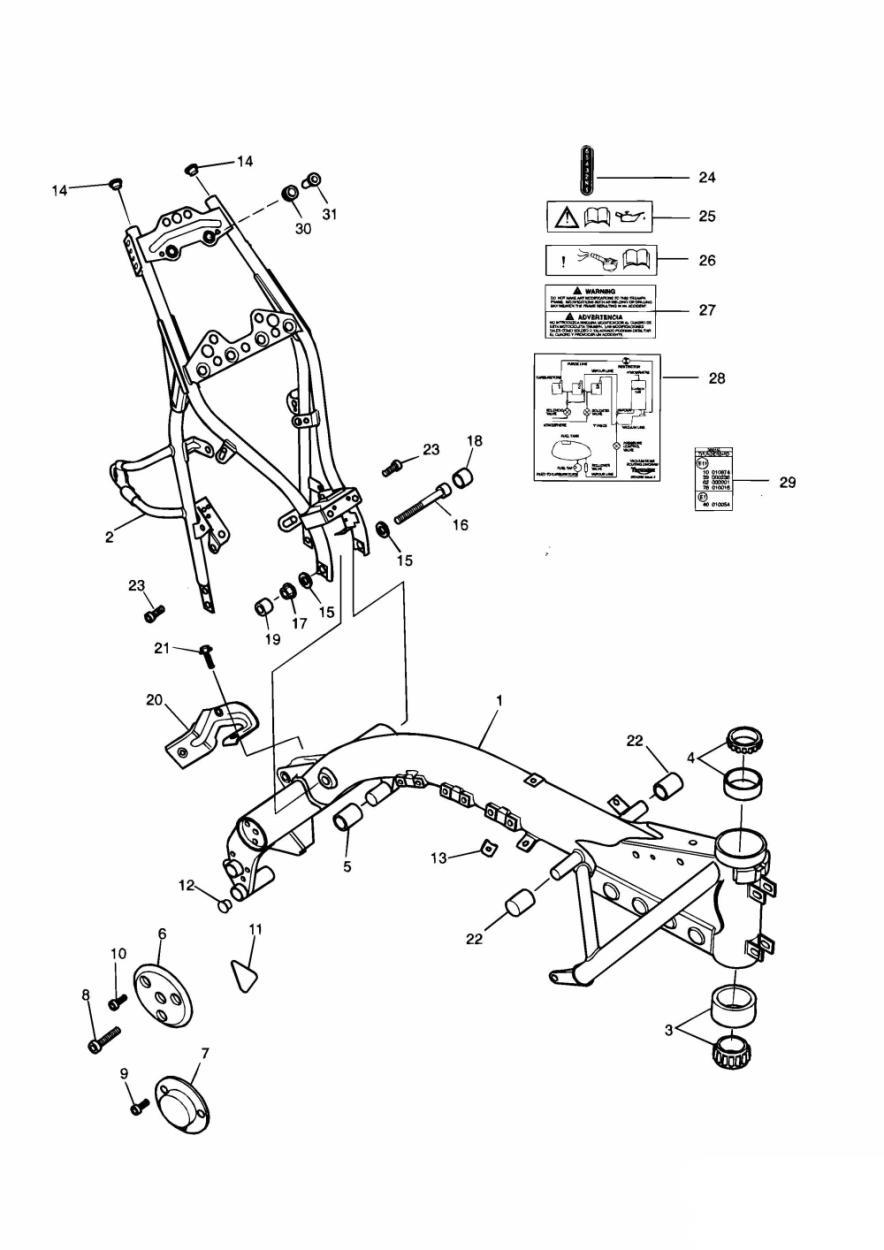

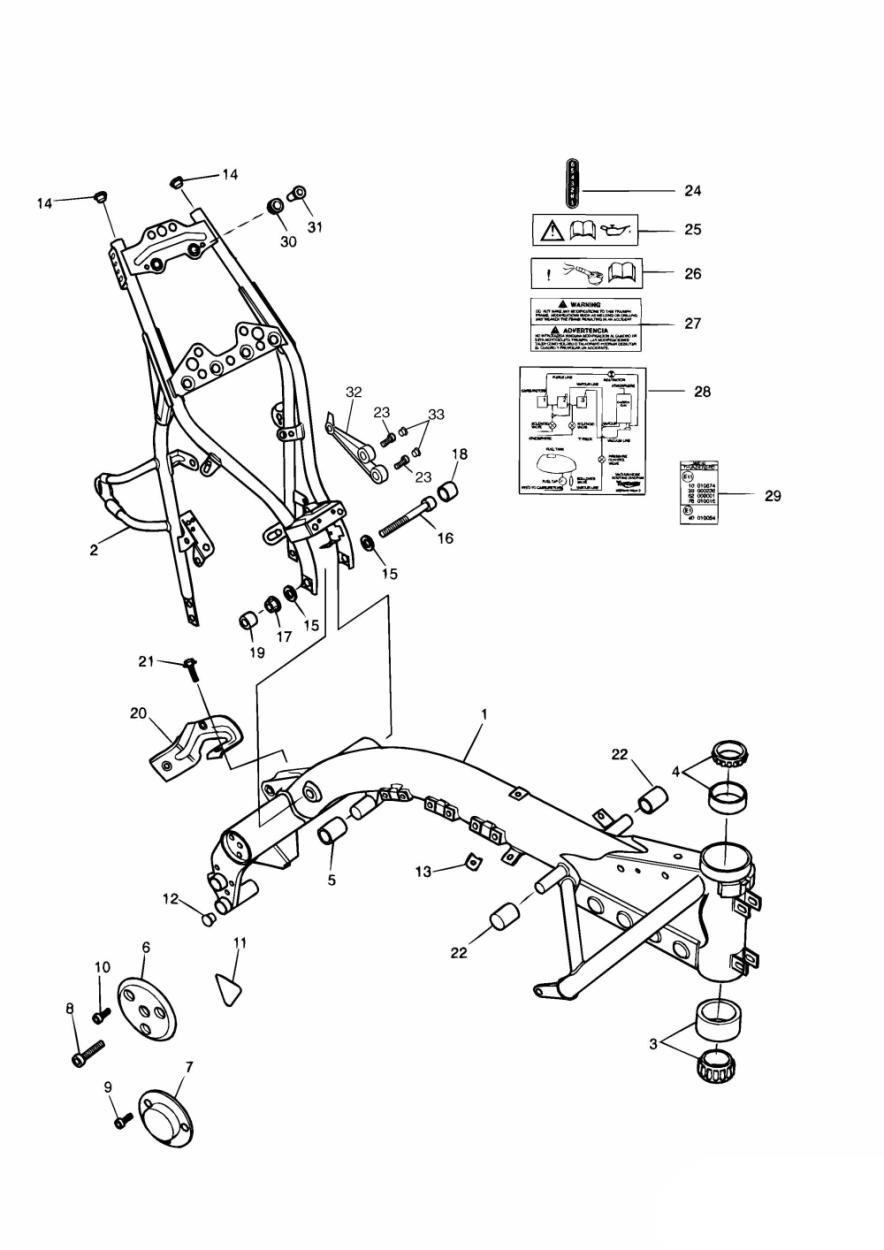

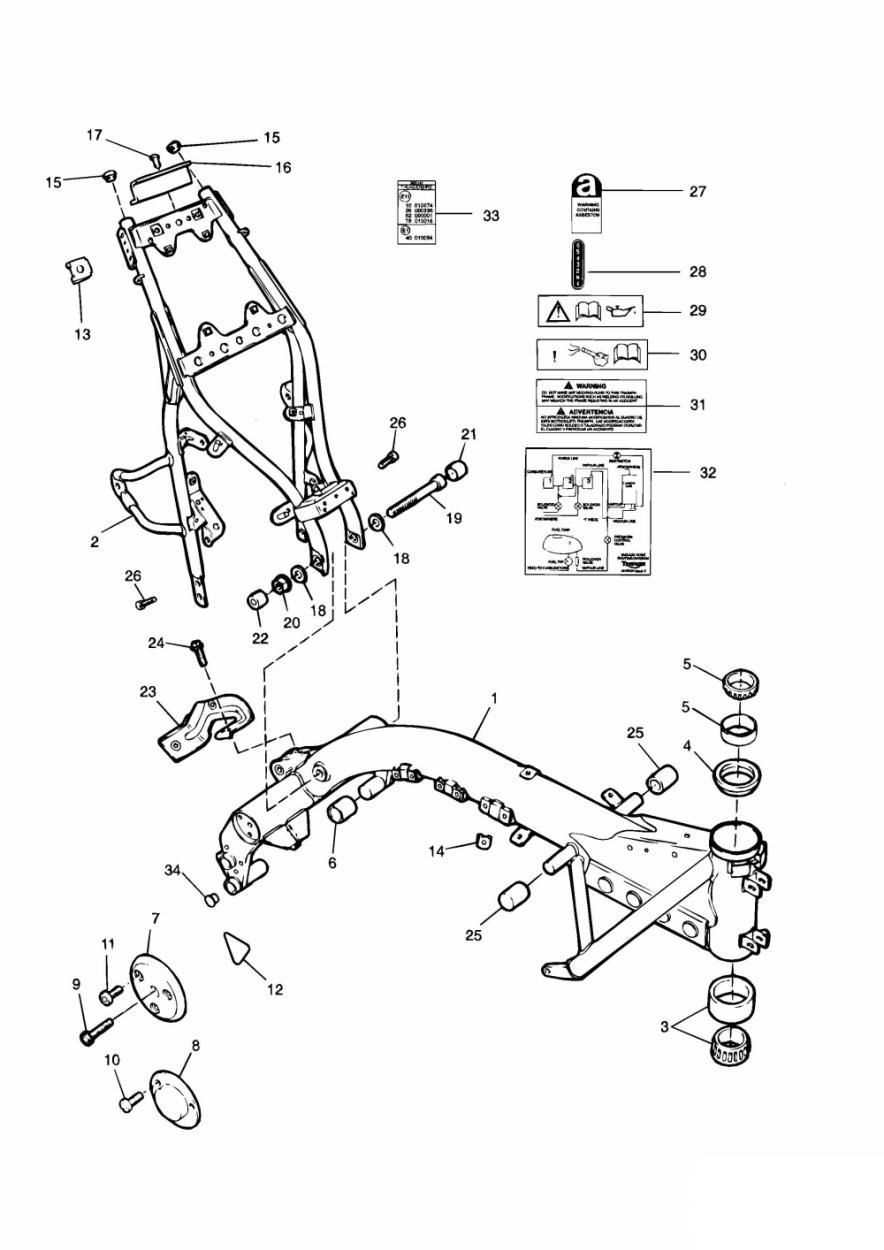

Main Frame & Fittings
42 parts

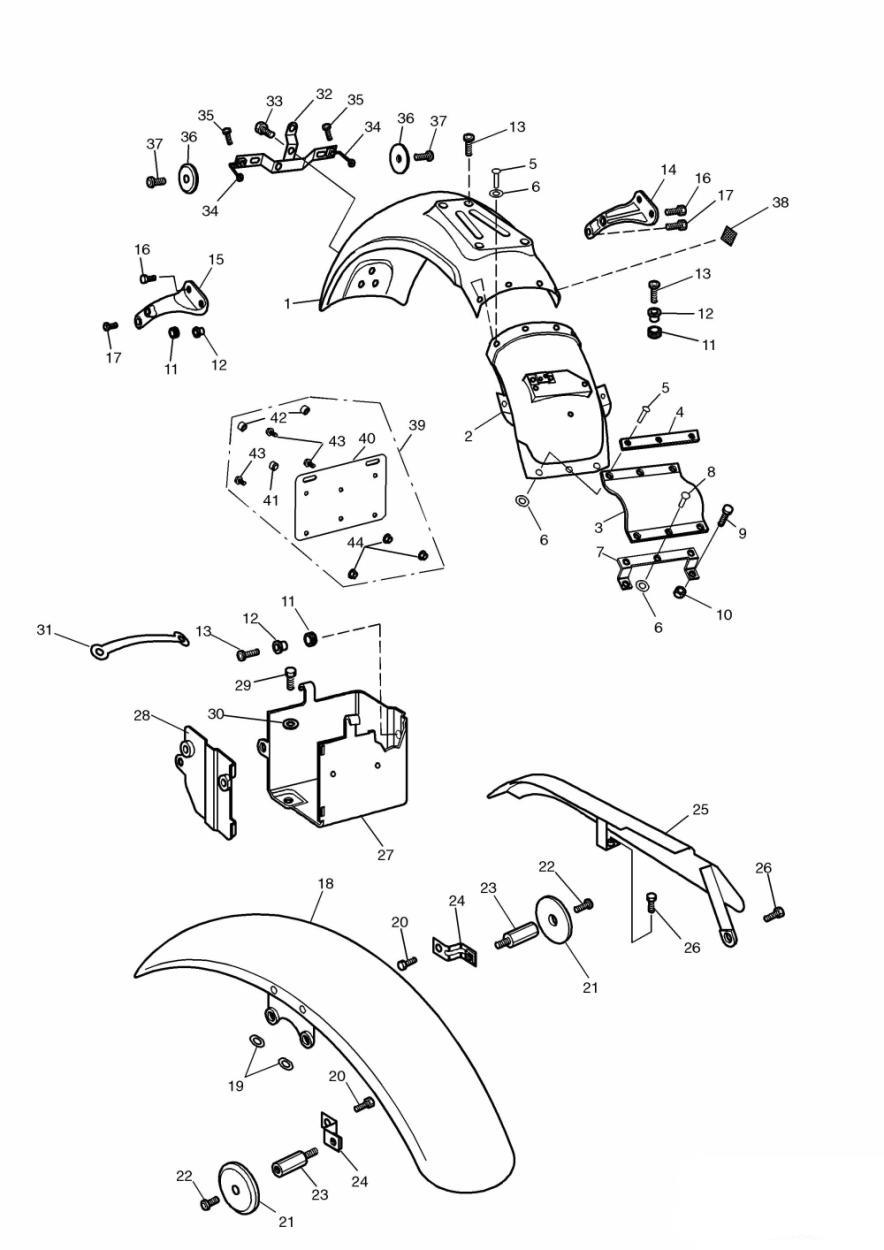

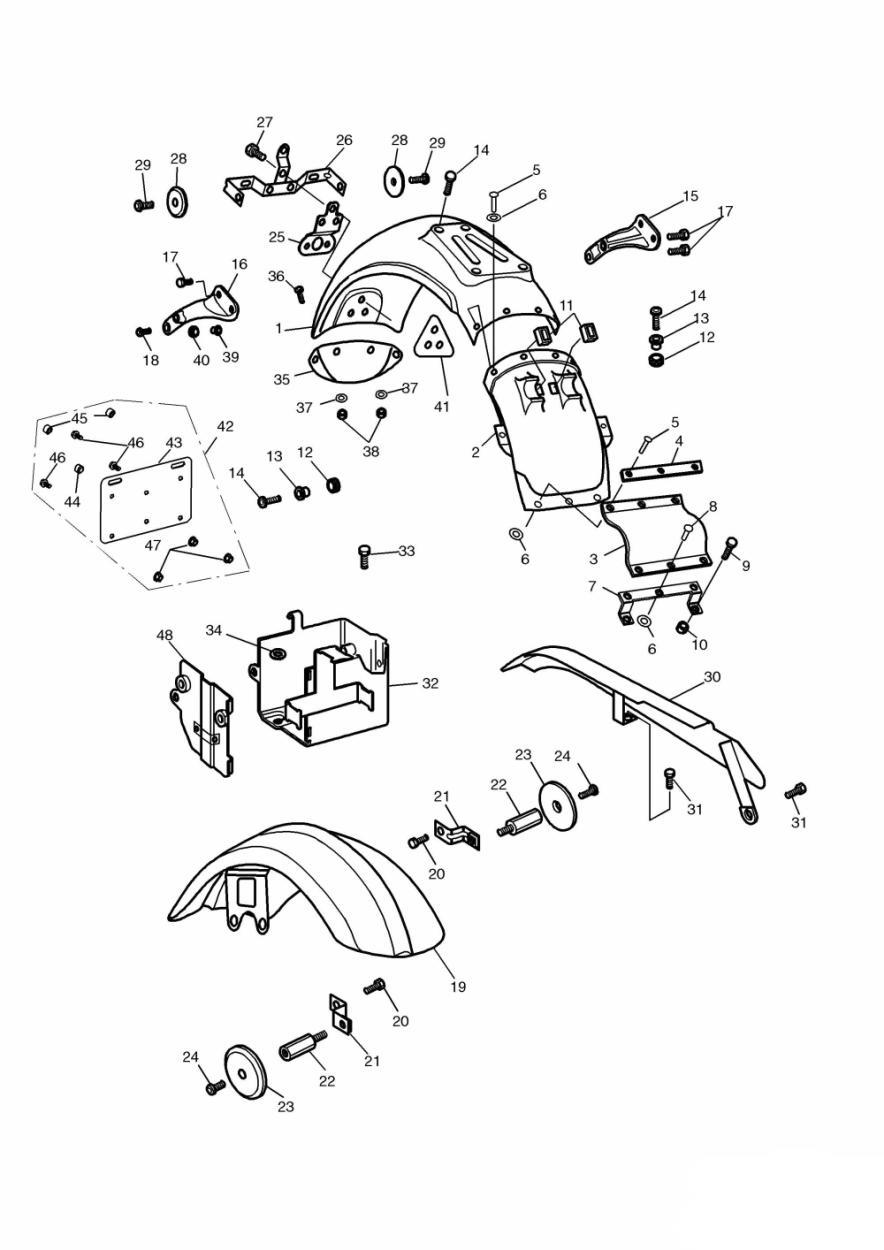

Mudguards/Chainguard/Battery Box
65 parts

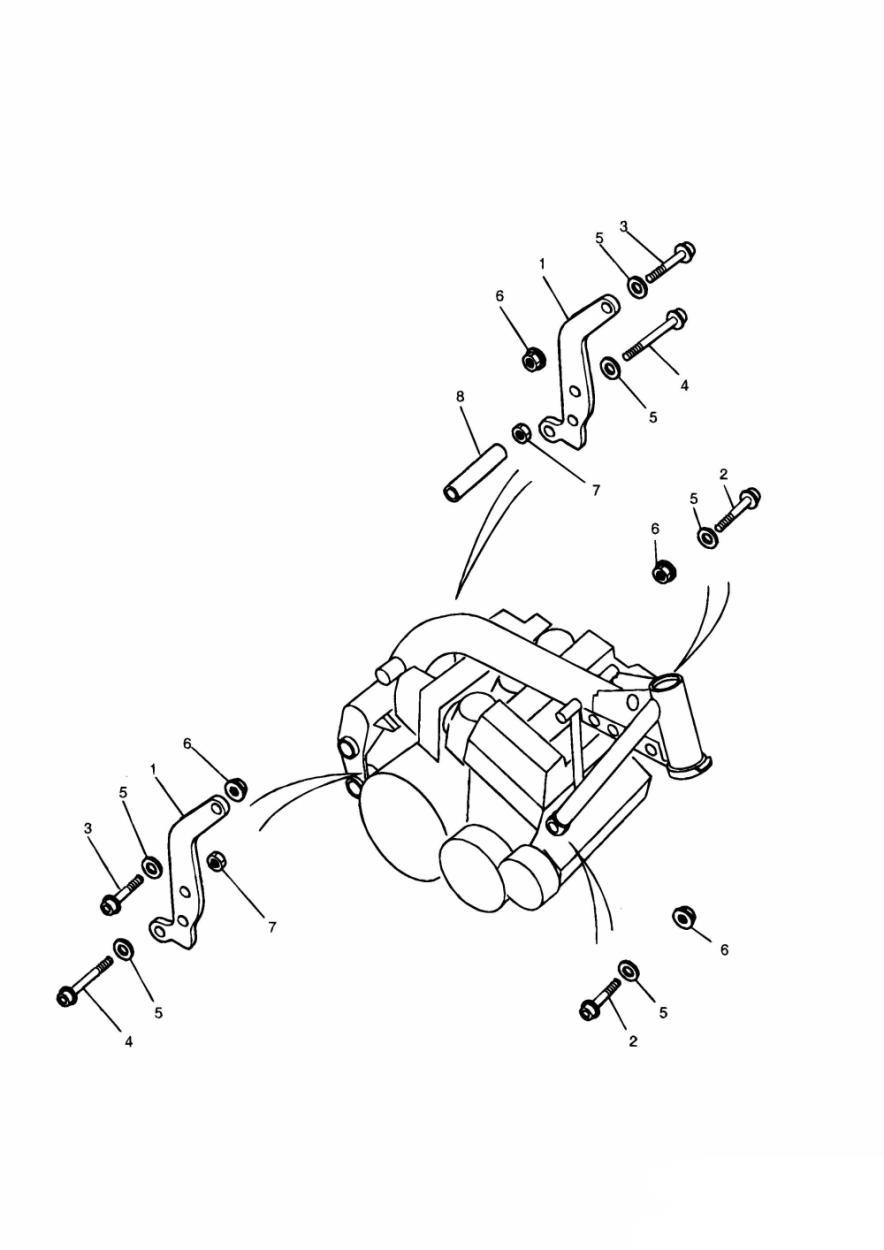

Linkage Carrier/Engine Mounting Bolts
8 parts

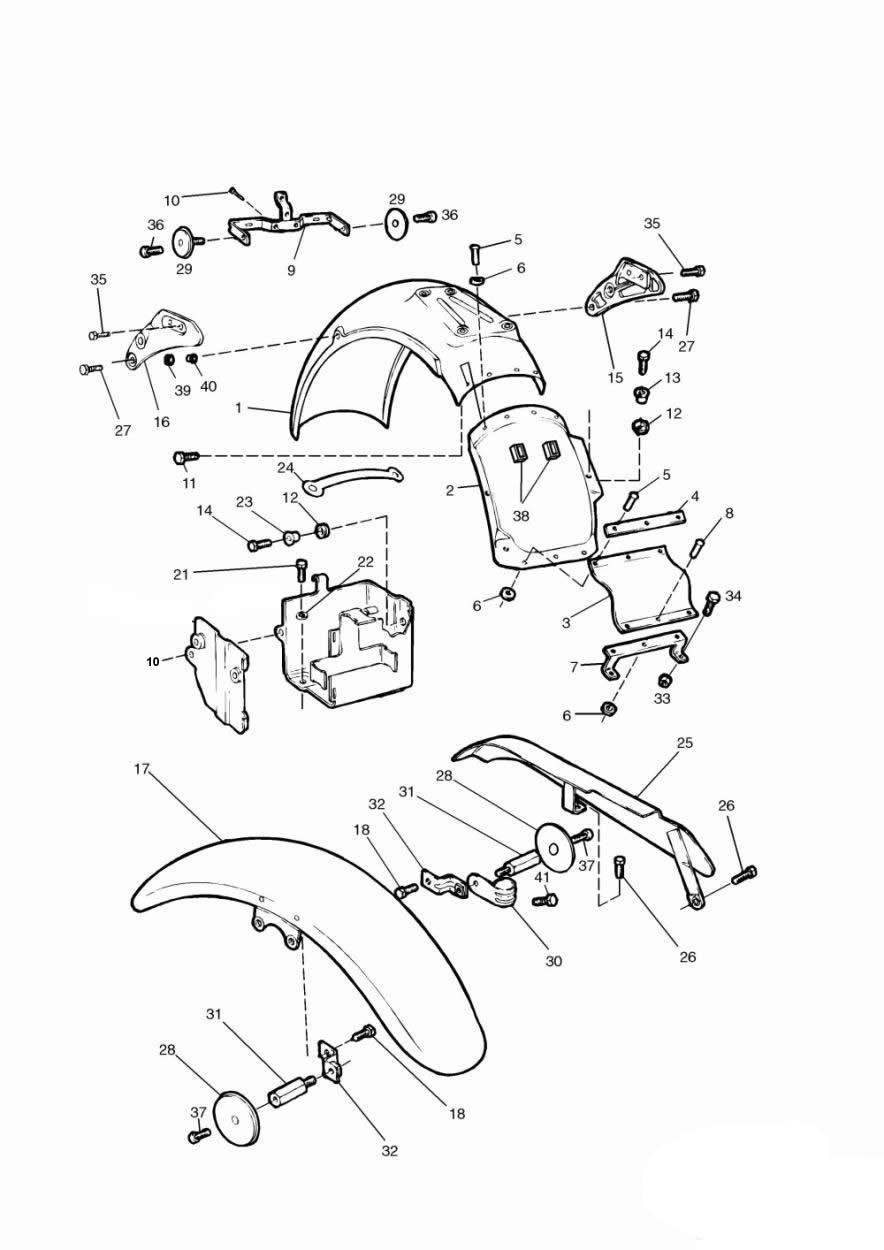

Mudguards/Chainguard/Battery Box
55 parts

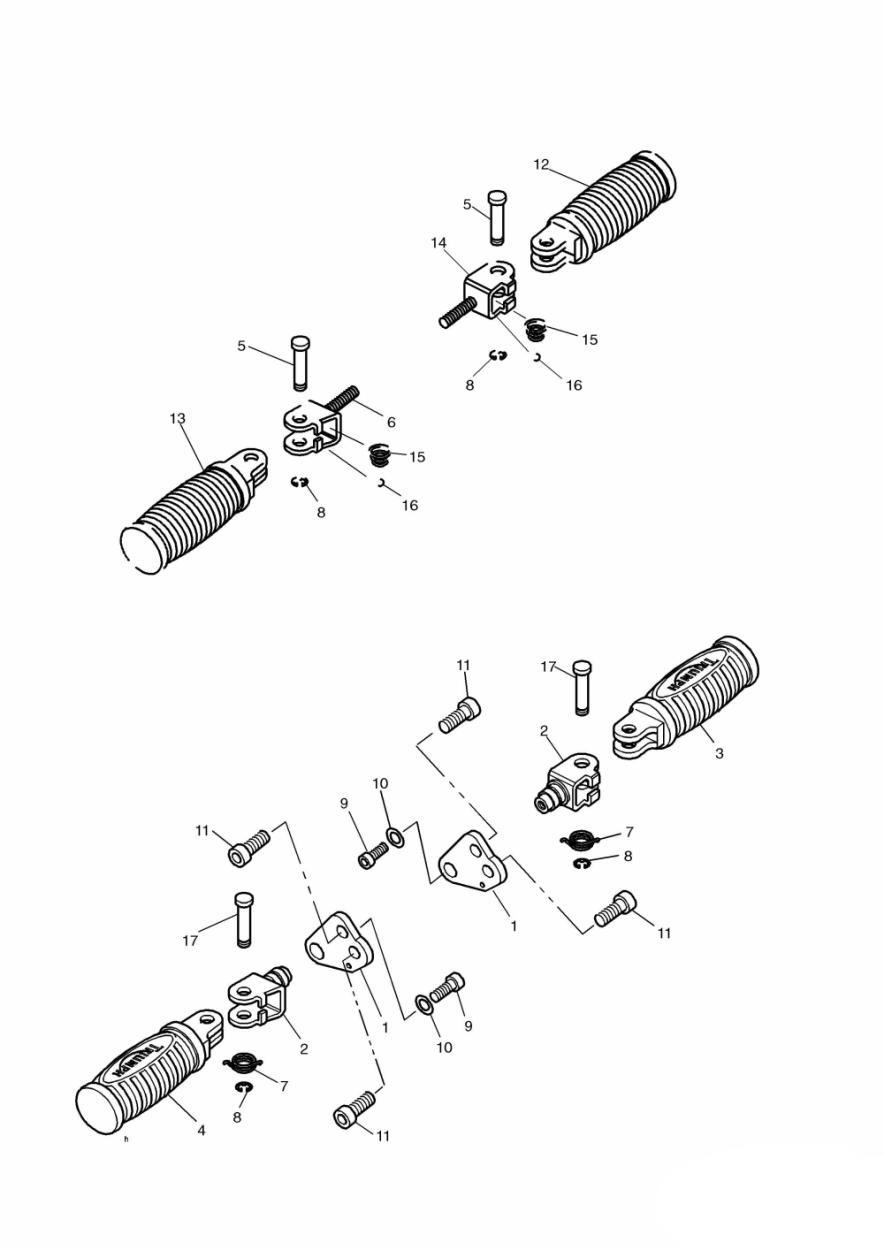

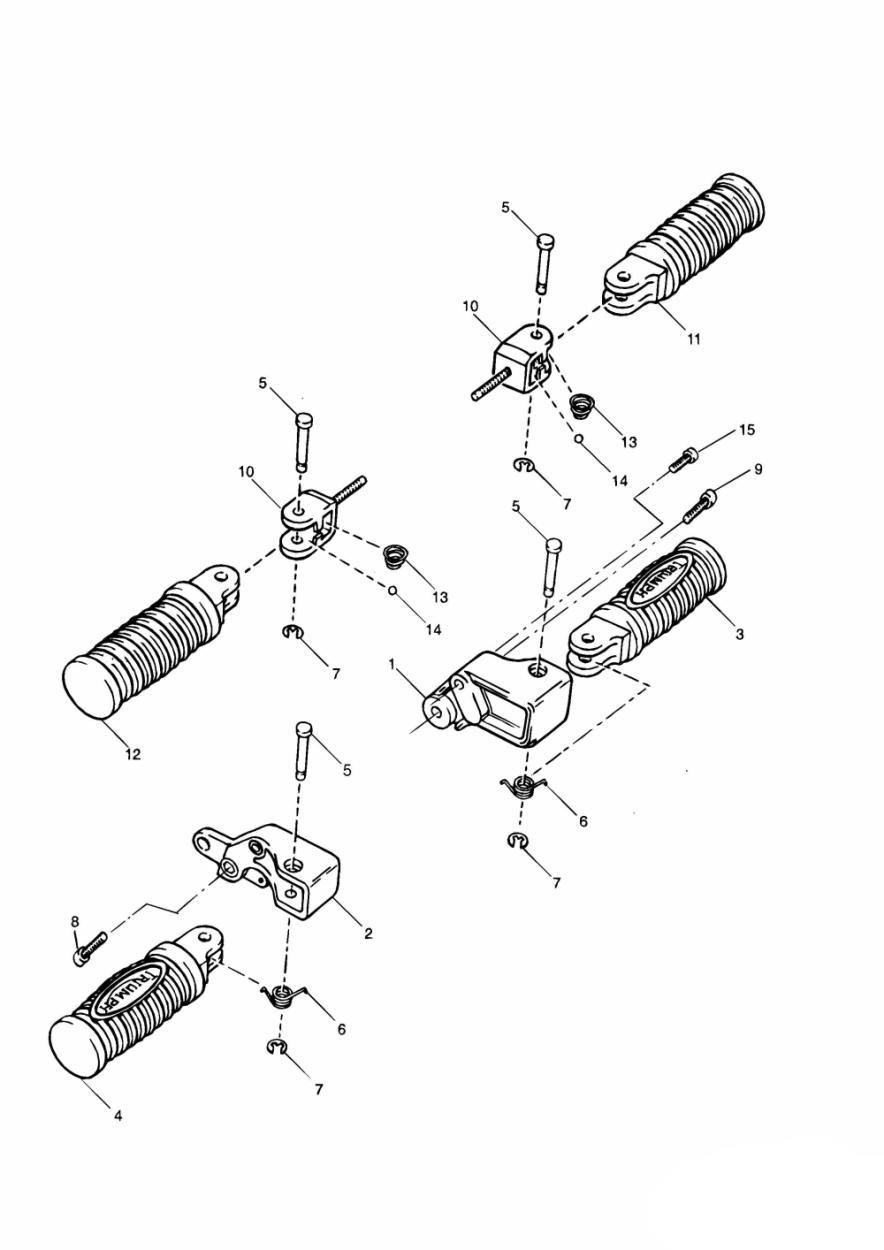

Footrests & Mountings
18 parts
Linkage Carrier/Engine Mounting Bolts
8 parts
Footrests & Mountings
15 parts
Mudguards/Chainguard/Battery Box
60 parts

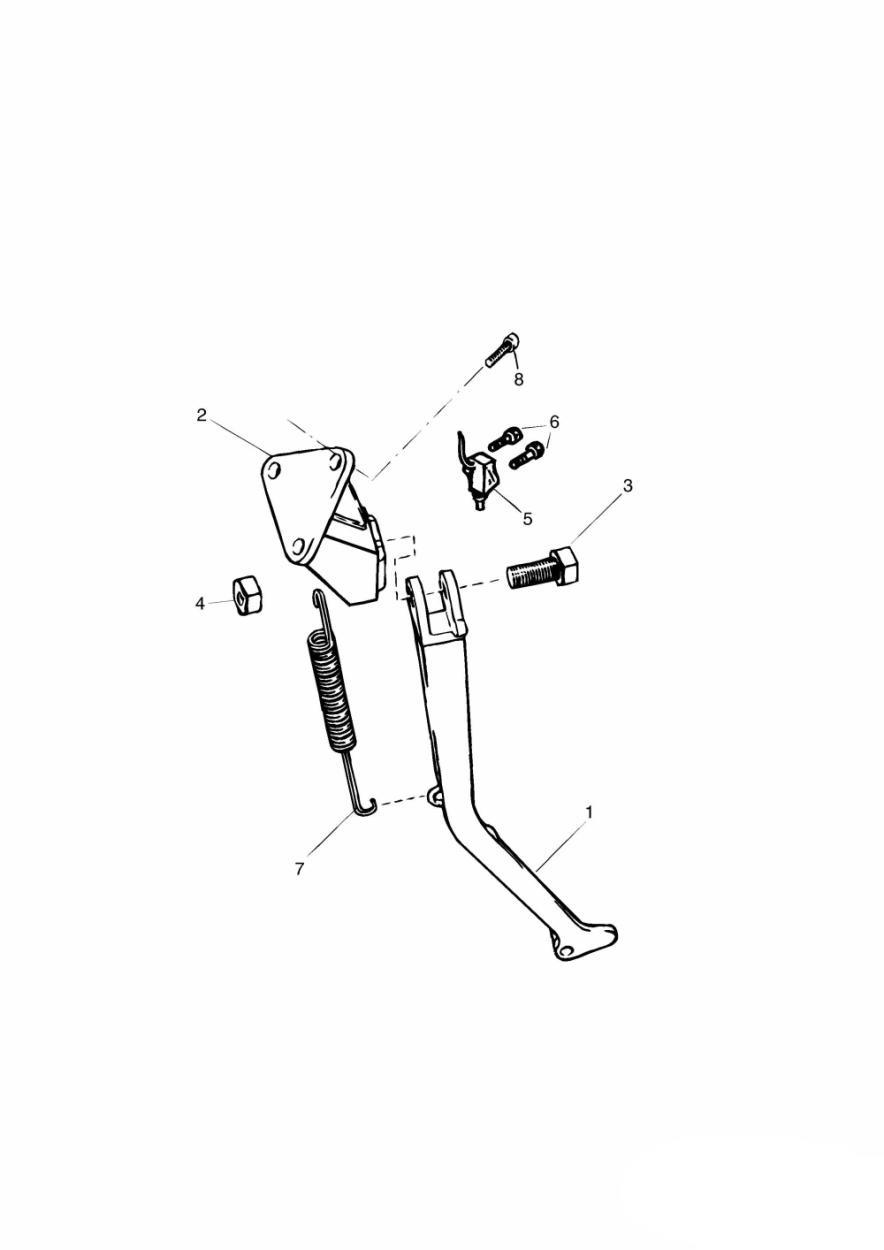

Side Stand
9 parts
Side Stand
9 parts

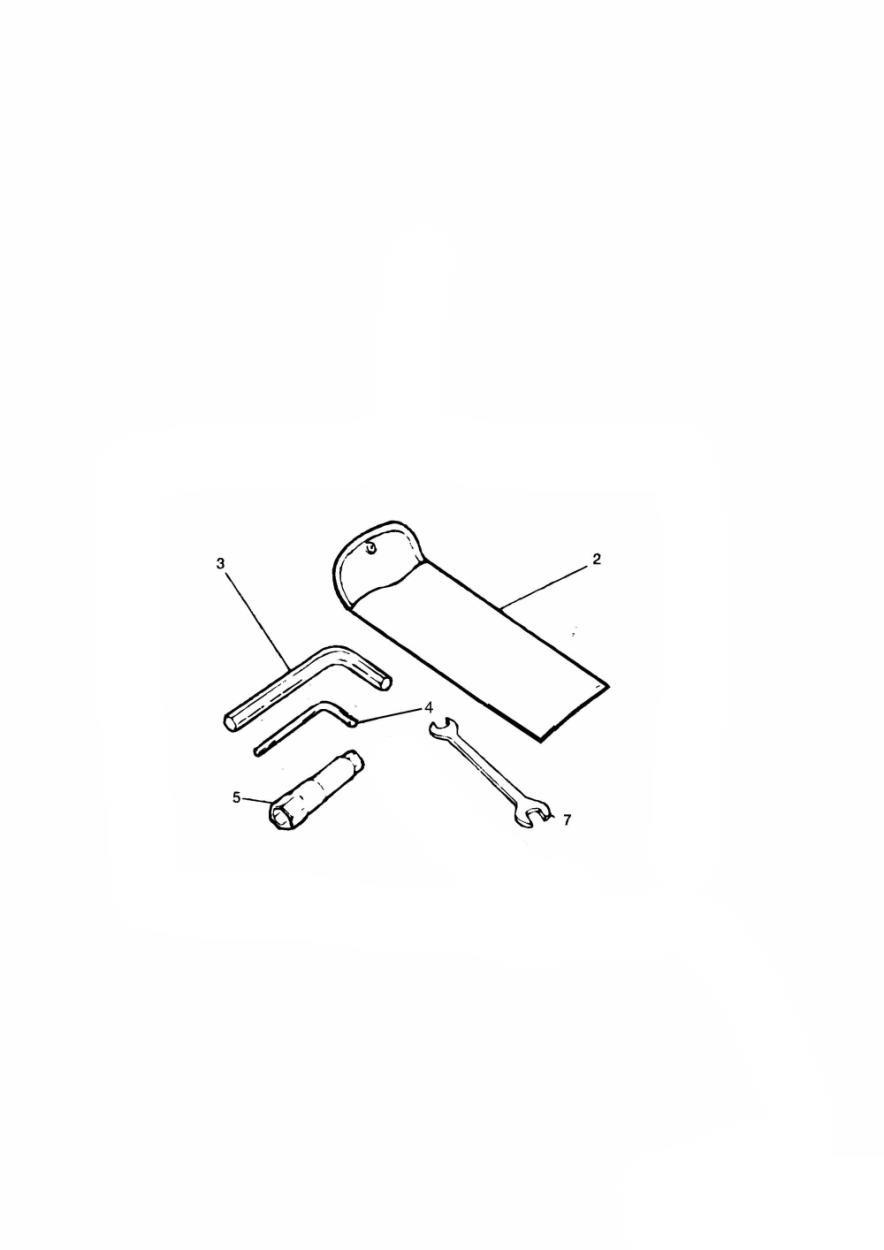

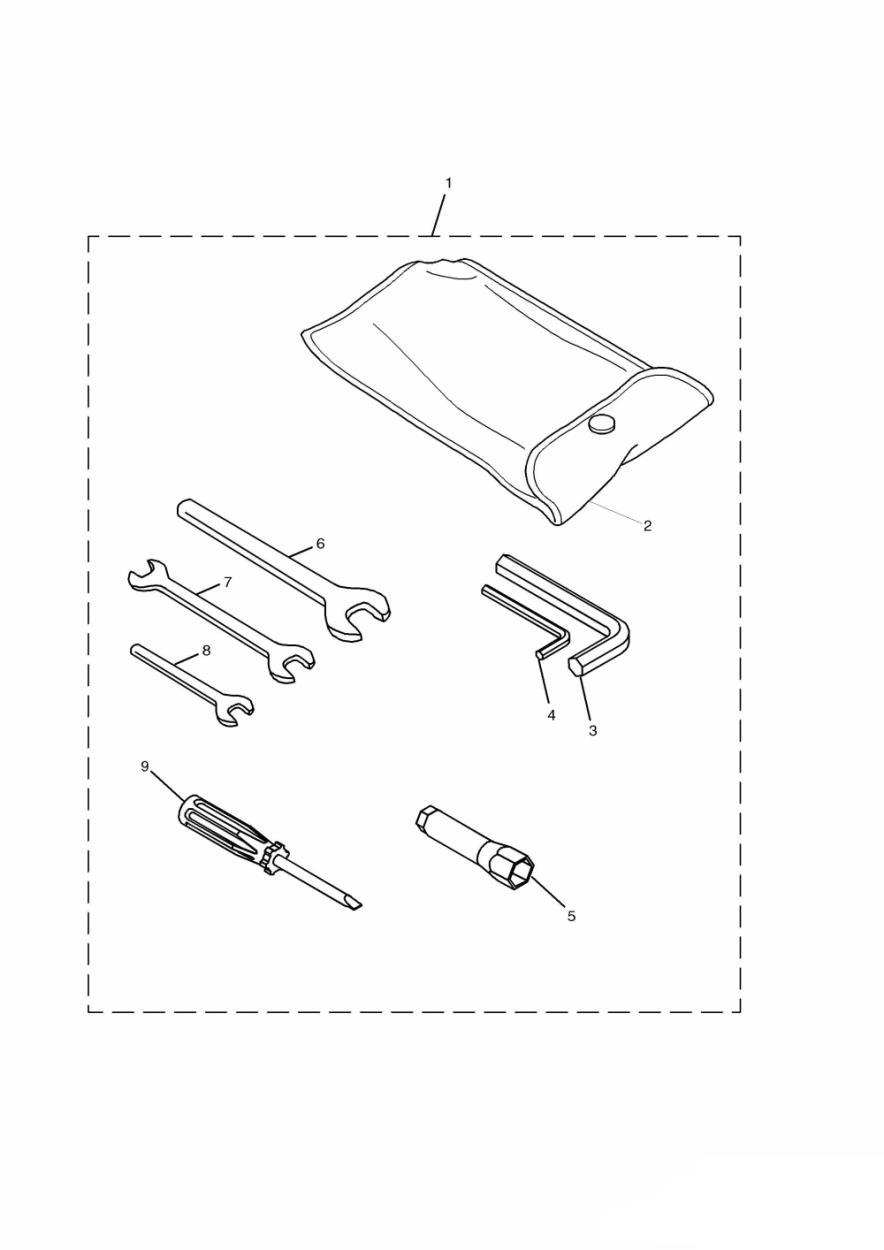

Tool Kit
5 parts
Tool Kit
11 parts
