Bodywork, Bodywork Fixings & Decals
Triumph Tiger 1200 up to AV5526 · 34 diagrams
34 exploded diagrams for the bodywork, bodywork fixings & decals of the Triumph Tiger 1200 up to AV5526, covering the Tiger 1200 XC, Tiger 1200 XR. This book covers frames up to VIN AV5526. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Rear Rack
12 parts
Rear Rack
13 parts
Rear Rack
13 parts
Seat
18 parts
Seat
15 parts
Cockpit Fairings
66 parts
Cockpit Fairings
76 parts
Rear Rack
12 parts
Rear Rack
14 parts
Sumpguard
9 parts
Cockpit Fairings
66 parts
Cockpit Fairings
73 parts
Cockpit Fairings
61 parts
Seat
18 parts
Sumpguard
10 parts
Fairings, RH
37 parts
Fairings, RH
33 parts
Handguards
11 parts
Seat
17 parts
Sumpguard
10 parts
Fairings, LH
36 parts
Fairings, RH
37 parts
Fairings, RH
42 parts
Seat
18 parts
Sumpguard
10 parts
Fairings, LH
36 parts
Fairings, LH
41 parts
Fairings, LH
32 parts
Fairings, RH
44 parts
Sumpguard
8 parts
Fairings, LH
43 parts
Handguards
11 parts
Handguards
11 parts
Handguards
11 parts
205 parts you can order online
Every part below appears in Triumph’s Bodywork, Bodywork Fixings & Decals diagrams for the Tiger 1200 up to AV5526 and is priced and orderable online. Open a part to see what it fits and to buy it.

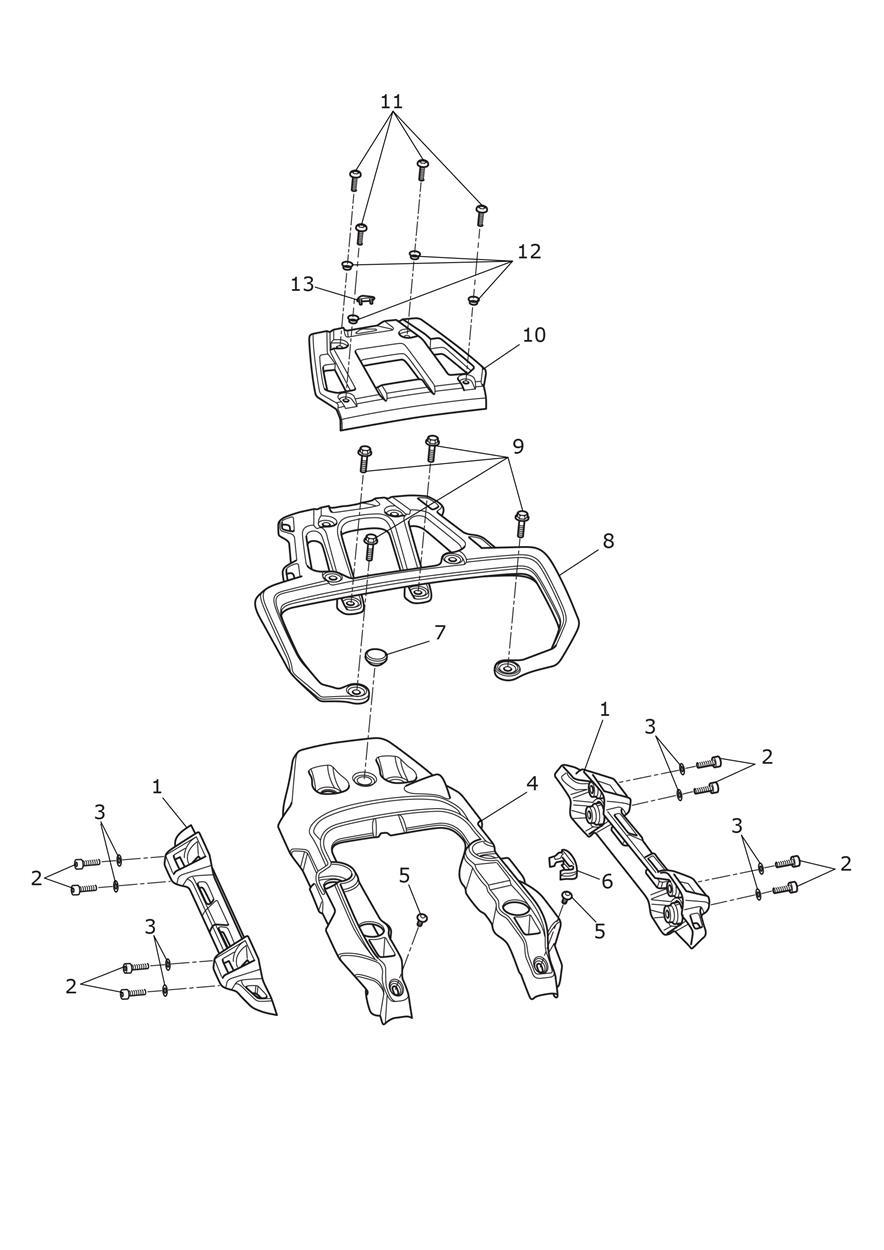

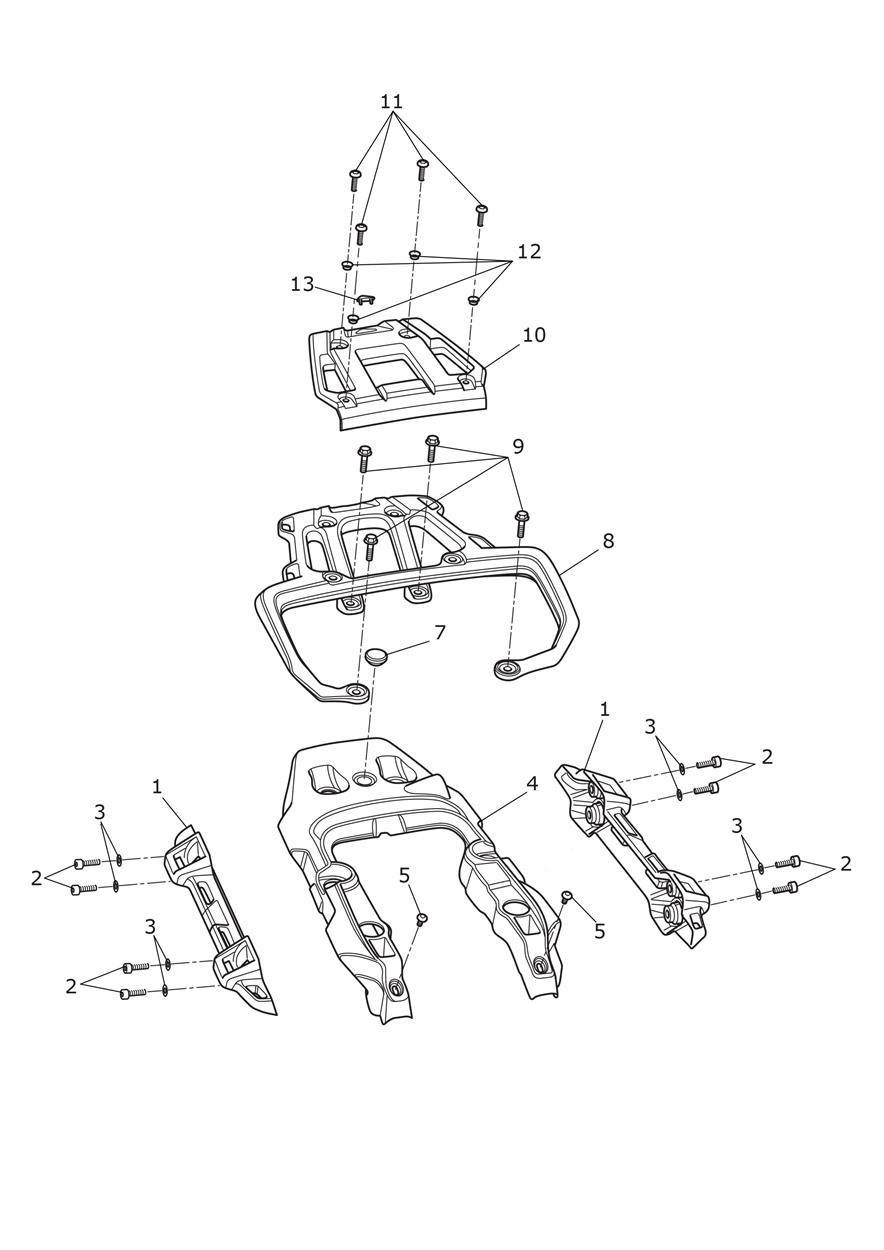

Rear Rack
T2303911 Pannier Rail, Black
$68.63
AvailableT3051097 Screw, Cap/Hd, M8 x 25, Silver
$3.81
AvailableT3551282 Washer, M8, 8.4 x 15 x 1.6, Slv
$3.14
In stock in BreaT2303355 Tail Panel Moulding
$360.86
AvailableT3330941 Screw, But/Hd, Skt, M5 x 16, Slv
$6.24
AvailableT3450067 Bung
Low stock at Triumph
$9.67
Limited availabilityT2303912 Luggage Rack, Black
$235.88
AvailableT3205781 Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv
$1.99
AvailableT2304993 Cover Panel, Rack, Moulding
$63.35
AvailableT3330231 Screw, Lge Skt Hd, M6 X 1 X 25
Low stock at Triumph
$12.51
Limited availabilityT3350003 Locknut, Flanged, M6 x 1
$1.99
AvailableT3951015 Badge, Symbol, Type 1
$16.81
AvailableRear Rack

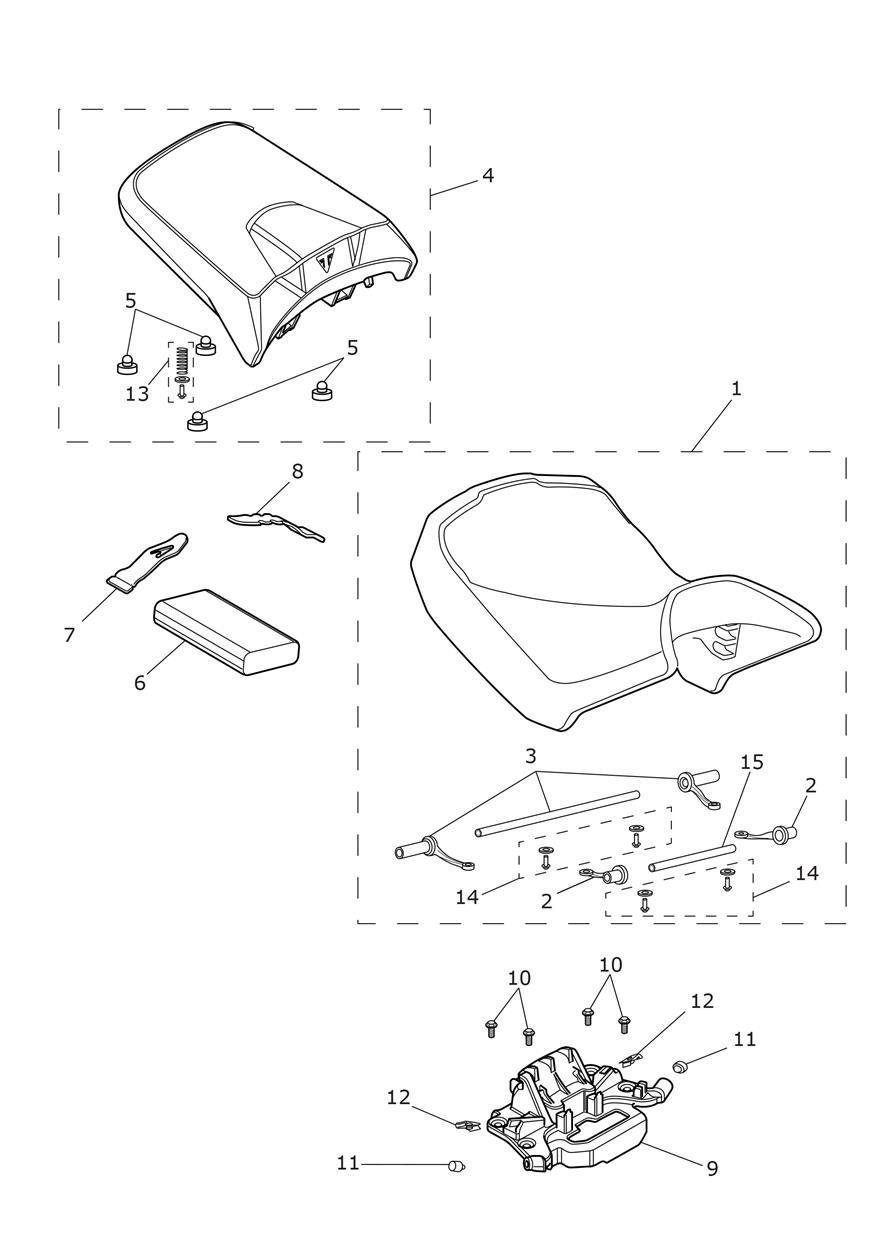

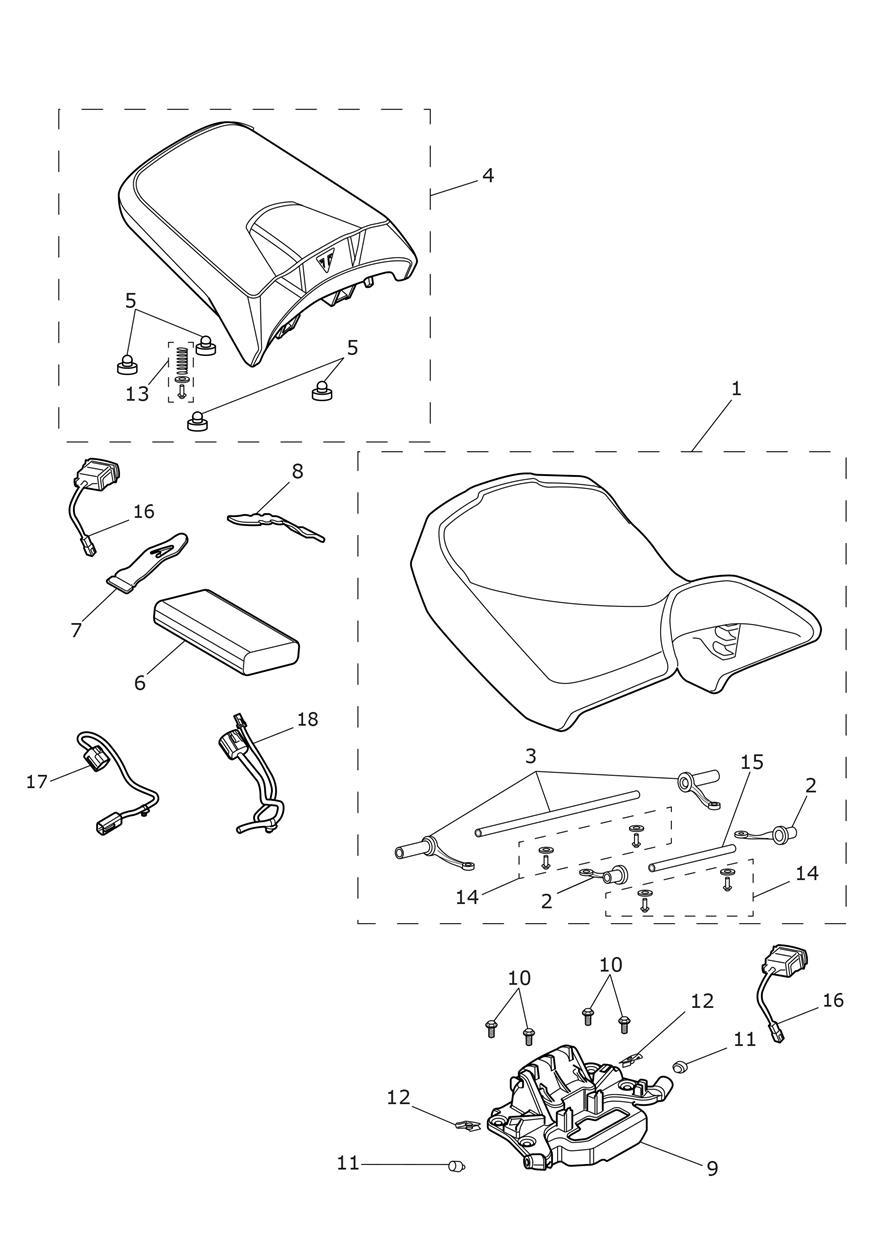

Seat
T2307243 Rider Seat Assembly, Heated
Low stock at Triumph
$387.29
Limited availabilityT2304379 Seat, Rubber, Front
$7.57
AvailableT2303066 Seat Rubber Assy
$28.51
AvailableT2307877 Pillion Seat Assembly, Heated
$293.96
AvailableT2307367 Rubber Foot, Seat Base
Low stock at Triumph
$3.71
Limited availabilityT2303605 Toolkit, Type W
$105.63
AvailableT2305682 Strap, Tool Kit, Female
$10.71
AvailableT2305683 Strap, Tool Kit, Male
$10.71
AvailableT3203222 Bolt, HHF, M6 x 12, Slv
$1.99
AvailableT3021161 Rubber Foot, Dia 14.22 x 7.1
$2.01
AvailableT3350129 Nut, Captive, M5
Low stock at Triumph
$3.14
Limited availabilityT2302609 Kit, Pillion Seat
$10.57
AvailableT2309777 Kit, Rider Seat, Spares
$6.18
AvailableT2303777 Bar, Front, Rider Seat
$28.42
AvailableT2501446 Harness, Rider Seat
$23.05
AvailableT9701284 Harness, Pillion Seat
$22.96
AvailableSeat

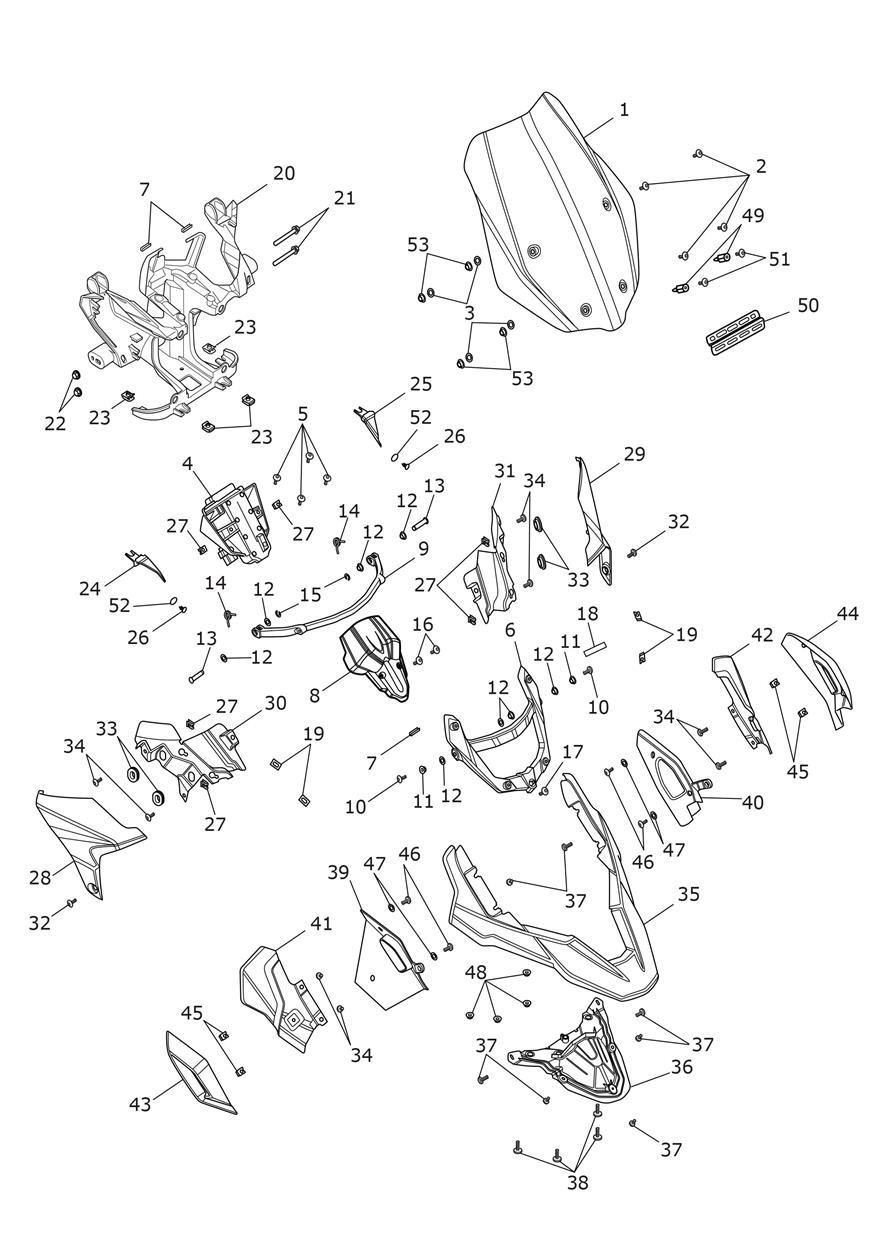

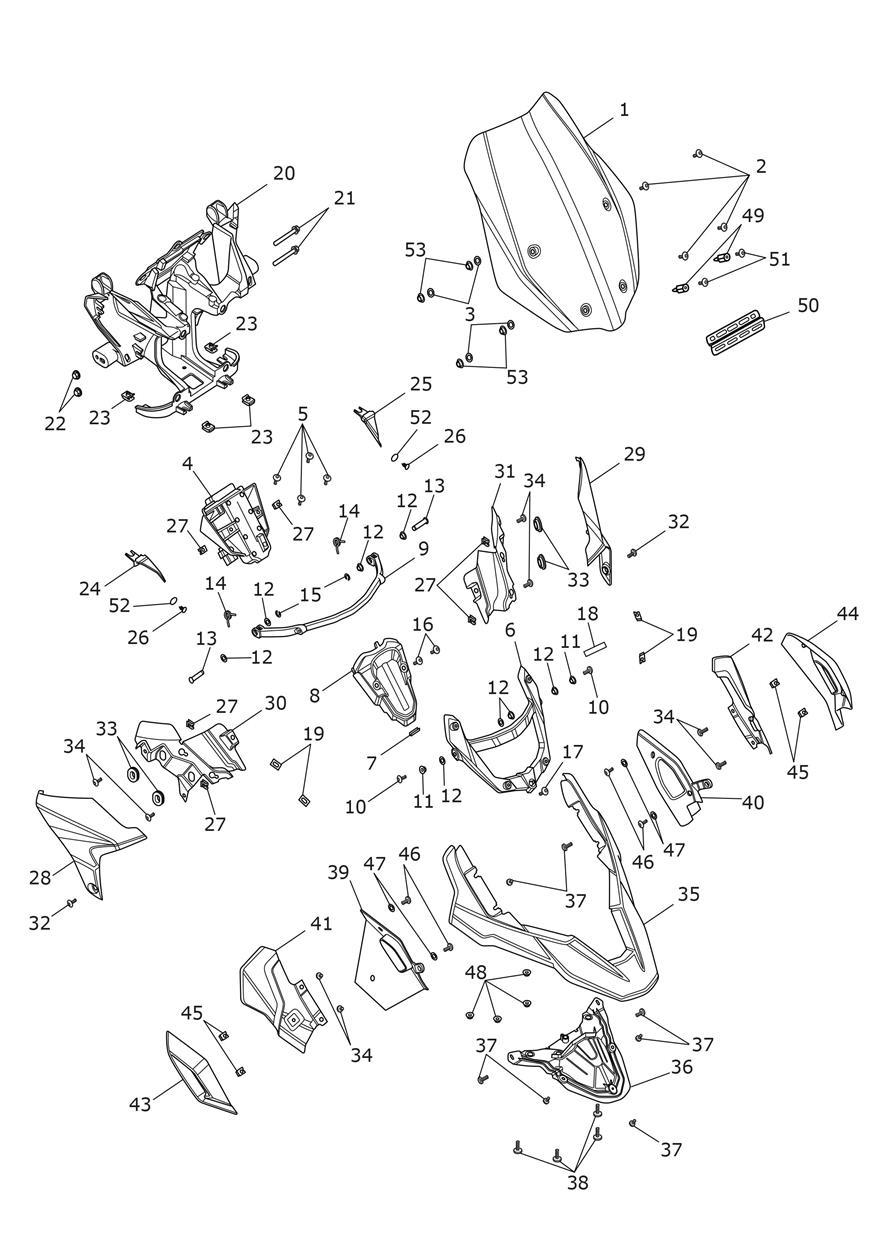

Cockpit Fairings
T2308559 Screen, Moulding, High
$387.29
AvailableT2310037 Spares Kit, Screen Mounts
$50.18
AvailableT3550288 Washer, Foam
Backordered at Triumph · we’ll confirm the ship date after you order
$3.98
On backorderT2309085 Screen Adjustment Mechanism
$651.31
AvailableT3330858 Bolt, But/Hd, M6 x 15, Shld, Slv
$2.36
AvailableT2309052 Screen Support
$123.22
AvailableT3020330 Grommet, Rectangular
$2.73
AvailableT2309031 Screen Support, Pivoting
$158.43
AvailableT3330429 Screw, Skt Hd, M5 x 25, SS
$2.04
AvailableT3010084 Flanged Sleeve, 5 x 8 x 5.5
$5.92
AvailableT3750011 Bush, Flanged, 8 x 10 x 4
$6.50
AvailableT2080954 Pivot Pin, Rear Footrest
$8.10
AvailableT2302514 Torsion Spring
$3.24
AvailableT3500207 Circlip, Ext 8 X 0.89
$2.64
AvailableT3330945 Screw, But/Hd, M5 x 16, Blk
Low stock at Triumph
$7.83
Limited availabilityT2309280 Badge, Screen Support
$36.88
AvailableT3020027 Grommet, Rubber
$1.99
AvailableT2309127 Front Subframe
$329.18
AvailableT3202315 Bolt, HHF, M8 x 65, Slv
$7.57
AvailableT3350004 Locknut, Flanged, M8 x 1.25
$2.27
In stock in BreaT3350111 Nut, Captive, M6
Low stock at Triumph
$4.56
Limited availabilityT2309344 Infill, RH, Front Subframe
$10.57
AvailableT2309346 Infill, LH, Front Subframe
$10.57
AvailableT3450290 Fir Tree, M5, Dia 12.1 x 15
Low stock at Triumph
$1.99
Limited availabilityT3350161 Nut, Captive, M5
$4.21
AvailableT2310016-NW Cockpit, RH
$193.24
AvailableT2310016-LK Cockpit, RH
$193.24
AvailableT2310016-LI Cockpit, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$193.24
On backorderT2310016-HS Cockpit, RH
$193.24
AvailableT2310005-NW Cockpit, LH
$193.24
AvailableT2310005-LK Cockpit, LH
$193.24
AvailableT2310005-LI Cockpit, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$193.24
On backorderT2310005-HS Cockpit, LH
$193.24
AvailableT2302893 Wind Deflector, RH
$38.20
AvailableT2302892 Wind Deflector, LH
$38.20
AvailableT3020029 Grommet, Side Panel
$2.36
In stock in BreaT3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT
$1.99
In stock in BreaT2302472 Infill, Cockpit, RH
$117.94
AvailableT2302471 Infill, Cockpit, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$117.94
On backorderT2310040-PS Finisher, RH
$119.44
AvailableT3330943 Screw, But/Hd, M5 x 14, Slv
$4.56
AvailableT3550957 Washer. M6 x 13
$1.99
In stock in BreaT3010714 Flanged Sleeve, 6 x 11 x 2.5
$18.96
AvailableT3600109 O Ring, ID 5.6 x 2.3
$4.91
In stock in BreaT3010706 Flanged Sleeve, 5.2 x 7 x 6.3
$4.91
In stock in BreaCockpit Fairings
T2308558 Screen, Moulding
$387.29
AvailableT2310016-PS Cockpit, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$193.24
On backorderT2310016-JF Cockpit, RH
$193.24
AvailableT2311058-NM Cockpit, RH
$193.24
AvailableT2310005-PG Cockpit, LH
$193.24
AvailableT2310005-PS Cockpit, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$193.24
On backorderT2310005-AB Cockpit, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$193.24
On backorderT2310005-JF Cockpit, LH
$193.24
AvailableT2310005-NM Cockpit, LH
$193.24
AvailableT3330727 Screw, But/Hd, M6 x 20, Slv
$3.14
AvailableT2311057 Decal, Alpine Edition
Backordered at Triumph · we’ll confirm the ship date after you order
$34.58
On backorderRear Rack

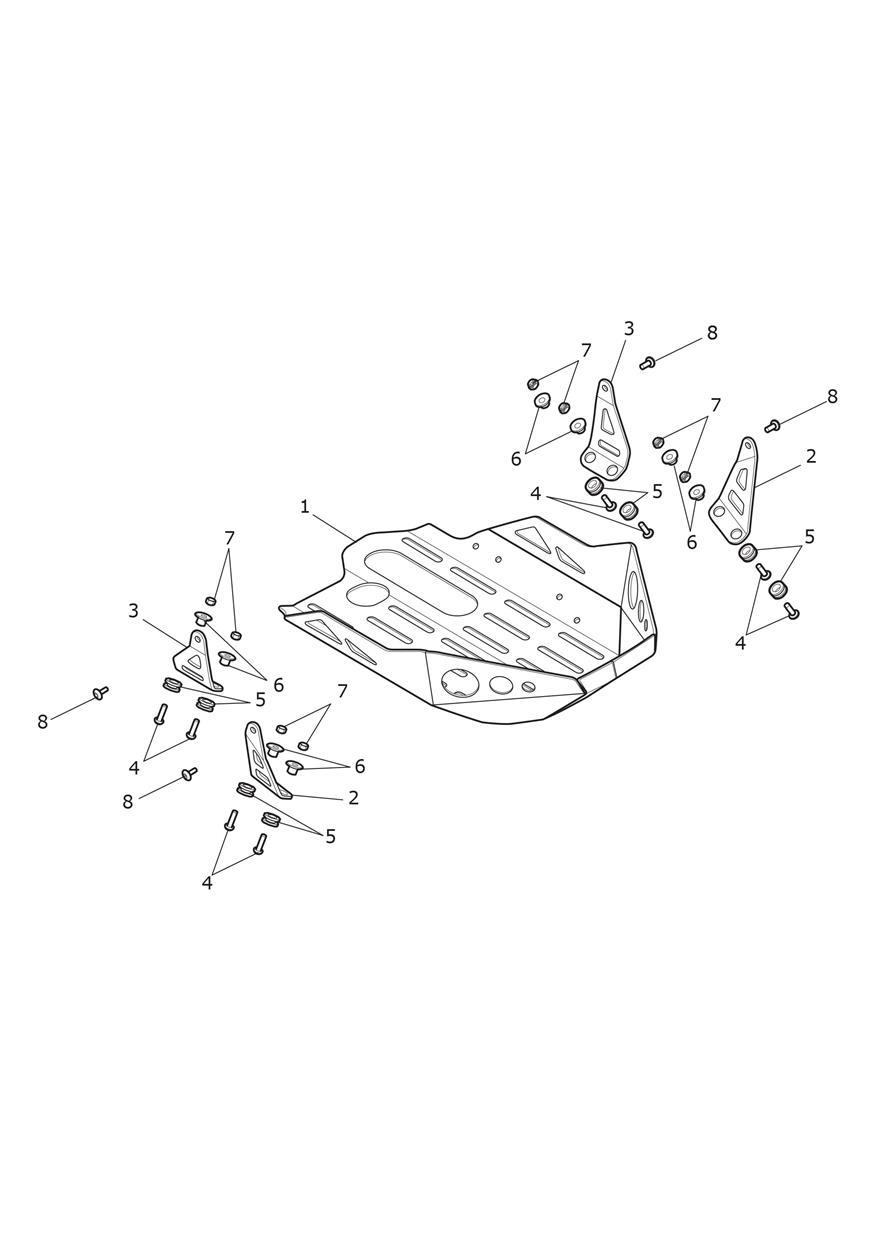

Sumpguard
T2307149 Sumpguard, Aluminium
$239.39
AvailableT2316025 Sumpguard, Black
$301.51
AvailableT2308377 Bracket, Front, Guard
$63.35
AvailableT2308378 Bracket, Rear, Guard
$63.35
AvailableT3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc
$1.99
In stock in BreaT3020153 Grommet, 13 x 3 x 10
$1.99
AvailableT3010702 Flanged Sleeve, 6.4 x 10 x 8.5
$5.35
AvailableT3350300 Nut, M6 x 1.0, Slv
$1.99
In stock in BreaT3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc
$1.99
In stock in BreaCockpit Fairings
Cockpit Fairings
T2311996-GN Cockpit, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$193.24
On backorderT2310005-GN Cockpit, LH
$193.24
AvailableT2311063 Decal, Desert Edition
$34.58
AvailableT2310908 Decal, High Mudguard, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$34.58
On backorderT2310912 Decal, High Mudguard, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$34.58
On backorderCockpit Fairings

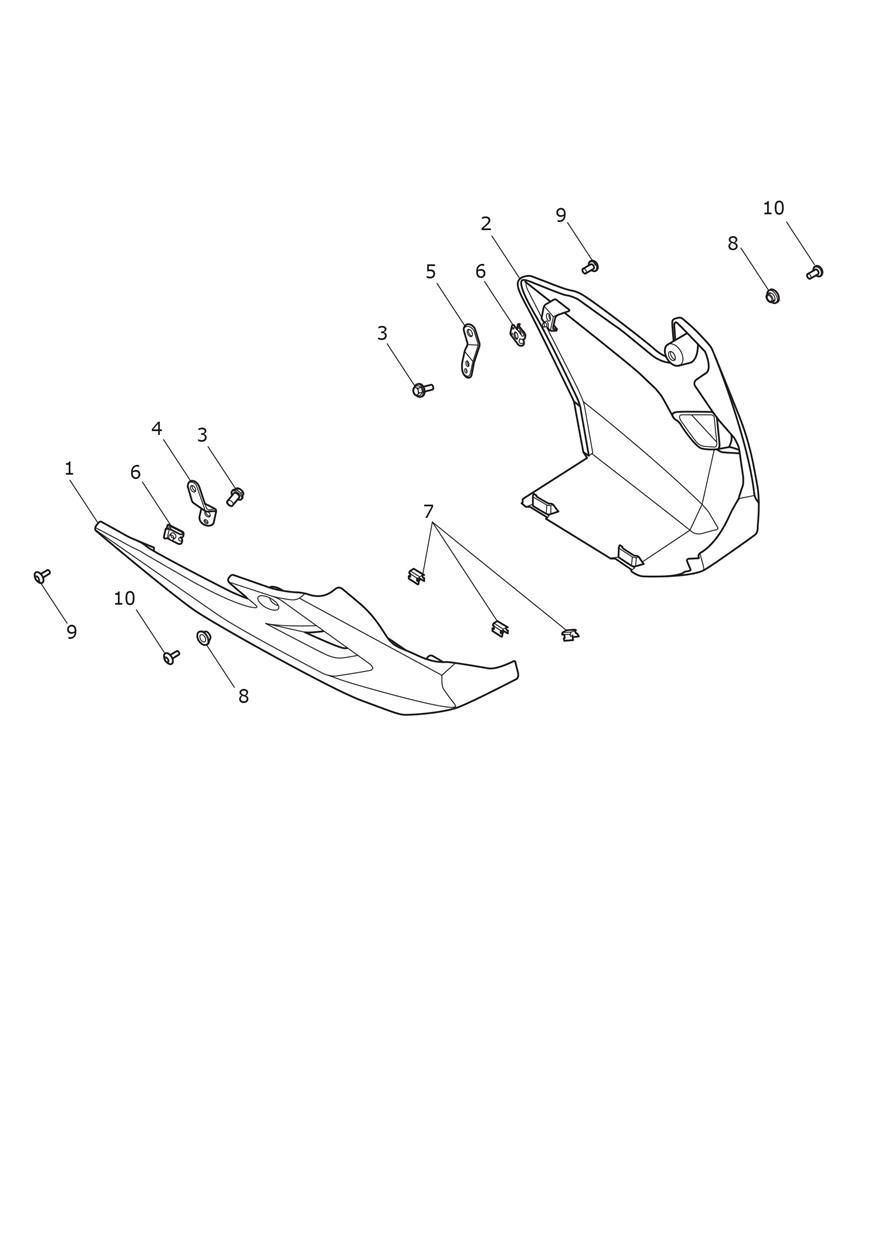

Sumpguard
T2303665 Sumpguard Moulding, RH
$43.37
AvailableT2303883 Sumpguard Moulding, LH
$43.37
AvailableT3330894 Bolt, RHHF, M5 x 10
$6.16
AvailableT2303667 Bracket, Sumpguard, Rear, RH
$12.80
AvailableT2303668 Bracket, Sumpguard, Rear, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$12.51
On backorderT3700299 Fastener, Edge Panel
$3.14
AvailableT3010061 Flanged Sleeve, M6 x 9 x 3.25
$6.68
AvailableT3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv
$1.99

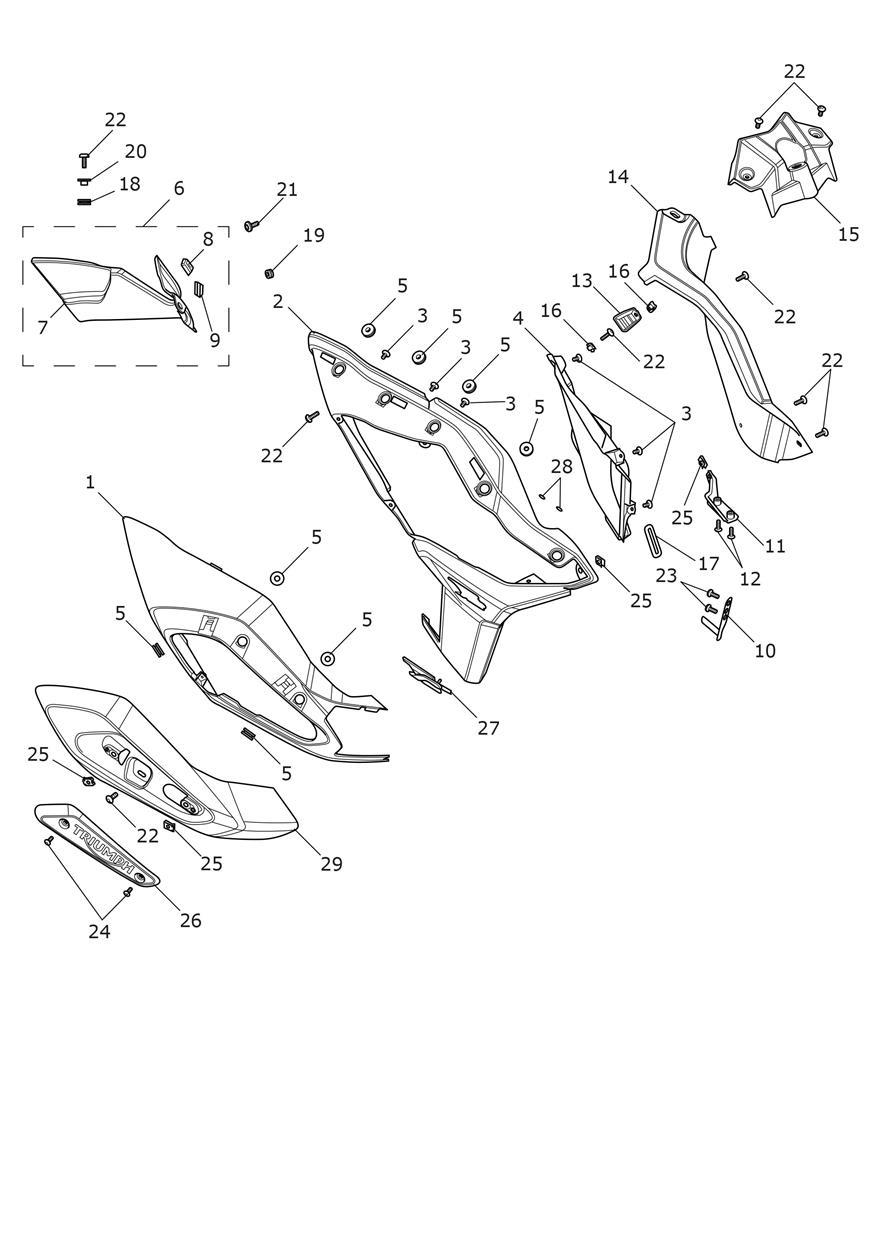

In stock in BreaFairings, RH
T2307269-NW Panel, Tank, RH
$336.75
AvailableT2307269-LK Panel, Tank, RH
$336.75
AvailableT2307269-NK Panel, Tank, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$253.14
On backorderT2307269-LI Panel, Tank, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$336.75
On backorderT2307269-HS Panel, Tank, RH
$336.75
AvailableT2308253-NW Cover, Rad, RH
$193.24
AvailableT2308253-LK Cover, Rad, RH
$193.24
AvailableT2308253-NK Cover, Rad, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$193.24
On backorderT2308253-LI Cover, Rad, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$168.96
On backorderT2308253-HS Cover, Rad, RH
$193.24
AvailableT2310036-PS Duct, RH
$119.44
AvailableT3020003 Grommet
$1.99
In stock in BreaT2309036 Seat Infill, Spares Kit, RHS
$36.69
AvailableT2309022 Seat Infill, Moulding, RHS
$36.69
AvailableT2309034 Ribber Stand Off, Seat
$3.32
AvailableT2303045 Rubber, Stand Off, Seat
$3.32
AvailableT2303149 Bracket, Side Panel, Right
$18.20
AvailableT2303197 Bracket, Tank Infill, RH
$10.84
AvailableT3331414 Screw, S/Tap, Tx, 5 x 16
$1.99
In stock in BreaT2306048 Bracket, Bodywork, Moulded
Backordered at Triumph · expected Oct 23
$2.09
On backorderT2303738 Tank Infill, Mldg, RH
$45.75
AvailableT3020390 Rubber Grommet
Backordered at Triumph · we’ll confirm the ship date after you order
$3.08
On backorderT3020031 Grommet; 11.8 x 2.5 x 10
$2.93
AvailableT3020131 Grommet, 9 x 2 x 6
$1.99
AvailableT3010704 Sleeve, Flanged, 5.3 x 9 x 6.5
$2.01
AvailableT3331517 Screw, P/HD Tx, Shld, M6 x 16, S
$1.99
AvailableT3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv
$1.99
AvailableT2307169 Badge, Tank, RHS
$86.24
AvailableT2309285 Badge, 1200 XCA
$52.81
AvailableT3551139 Washer, Retaining, 3.18 x 9.50, Slv
$2.64
AvailableT2318068 Finisher, Fuel Tank, Spares Kit
$385.78
AvailableFairings, RH

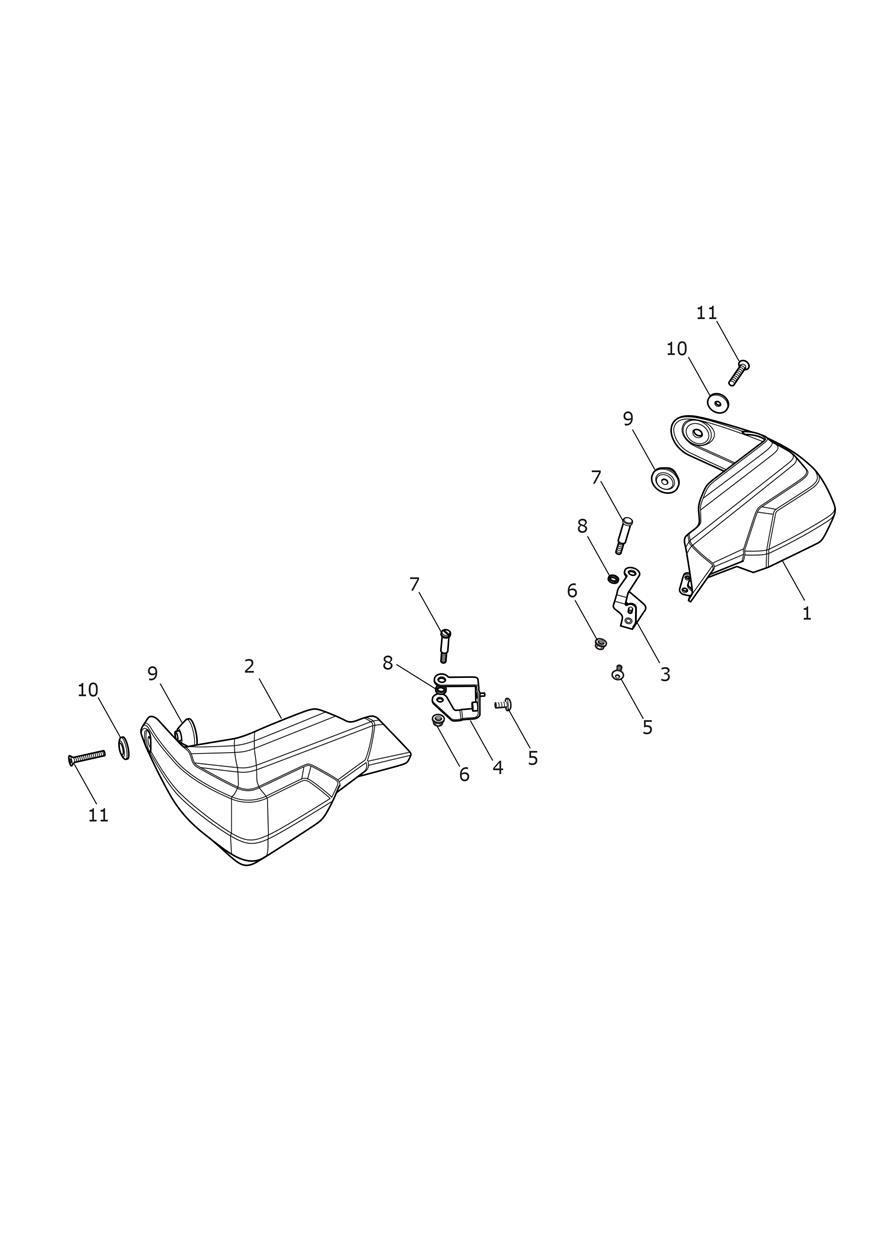

Handguards
T2308505 Handguard Moulding, LH
$51.92
AvailableT2308506 Handguard Moulding, RH
$51.92
AvailableT2307908 Bracket, Handguard, LH
Backordered at Triumph · expected Nov 6
$21.22
On backorderT2306728 Bracket, Handguard, RH
$21.13
AvailableT2021568 Bolt, Pivot, M6, Dia 7.9
$11.62
AvailableT2309027 Sleeve, 8.2 x 11.0 x 2.3
$12.34
AvailableT2308477 Spacer, Handguard, Knurled
$8.35
AvailableT2308627 Spacer, Csk
$8.35
AvailableT3331890 Screw, Csk, Skt, M6 x 40, Enc
$3.98
AvailableSeat
T2310563 Rider Seat, Assembly, Desert
Backordered at Triumph · we’ll confirm the ship date after you order
$327.43
On backorderT2314513 Pillion Seat, Assembly, Desert
$196.75

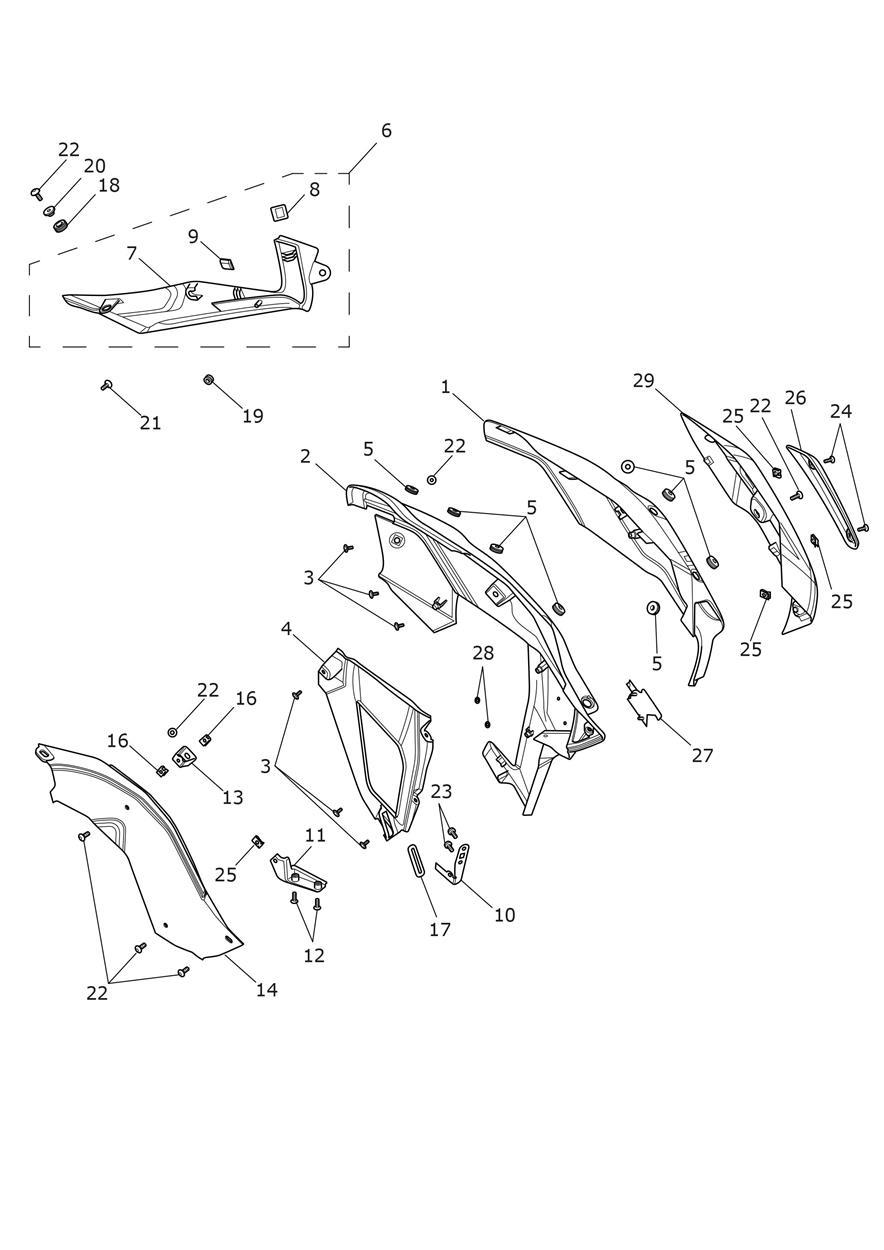

AvailableFairings, LH
T2307268-NW Panel, Tank, LH
Low stock at Triumph
$336.75
Limited availabilityT2307268-LK Panel, Tank, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$336.75
On backorderT2307268-NK Panel, Tank, LH
Backordered at Triumph · expected Oct 23
$336.75
On backorderT2307268-LI Panel, Tank, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$336.75
On backorderT2307268-HS Panel, Tank, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$336.75
On backorderT2308254-NW Cover, Rad, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$193.24
On backorderT2308254-LK Cover, Rad, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$193.24
On backorderT2308254-LI Cover, Rad, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$193.24
On backorderT2308254-HS Cover, Rad, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$193.24
On backorderT2310020-PS Duct, LH
$119.44
AvailableT2309037 Seat Infill, Spares, LHS
$36.69
AvailableT2309023 Seat Infill, Moulding, LHS
$36.69
AvailableT2303142 Bracket, Side Panel, LH
$18.20
AvailableT2303187 Bracket, Tank Infill, LH
Low stock at Triumph
$10.84
Limited availabilityT2303739 Tank Infill, Mldg, LH
$45.75
AvailableT2307168 Badge, Tank, LHS
$86.24
AvailableFairings, RH
T2307269-DG Panel, Tank, RH
$336.75
AvailableT2307269-PS Panel, Tank, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$299.25
On backorderT2307269-JF Panel, Tank, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$336.75
On backorderT2308253-DG Cover, Rad, RH
$193.24
AvailableT2308253-PS Cover, Rad, RH
$193.24
AvailableT2308253-JF Cover, Rad, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$193.24
On backorderT2309283 Badge, 1200 XRT
$52.81
AvailableFairings, RH
T2311062-PS Panel, Tank, RH
$336.75
AvailableT2309284 Badge, 1200 Xcx
$52.81
AvailableT2311937 Badge, SE
$32.28
AvailableT2311073-PS Finisher, Tank, RH, Matt Jet Black
$336.75
AvailableSeat
T2307772 Rider Seat Assembly, Low
$278.16
AvailableT2312011 Pillion Seat, Assembly, Alpine
$196.75
AvailableFairings, LH
T2307268-PS Panel, Tank, LH
$336.75
AvailableT2307268-JF Panel, Tank, LH
Backordered at Triumph · expected Nov 6
$336.75
On backorderT2308254-DG Cover, Rad, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$193.24
On backorderT2308254-PS Cover, Rad, LH
$193.24
AvailableT2308254-JF Cover, Rad, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$193.24
On backorderFairings, LH
T2311078-PS Panel, Tank, LH
$336.75
AvailableT2308254-PG Cover, Rad, LH
$193.24
AvailableT2311060-PS Finisher, Tank, LH, Matt Jet Black
Low stock at Triumph
$336.75
Limited availabilityT2317053 Decal, Tank Panel, LH
$54.36
AvailableFairings, RH
T2307269-AB Panel, Tank, RH
Backordered at Triumph · expected Dec 11
$336.75
On backorderT2311062-NM Panel, Tank, RH
$336.75
AvailableT2308253-AB Cover, Rad, RH
$193.24
AvailableT2308253-NM Cover, Rad, RH
$193.24
AvailableT2309282 Badge, 1200 Xrx
$52.81
AvailableFairings, LH
T2307268-AB Panel, Tank, LH
$336.75
AvailableT2311078-NM Panel, Tank, LH
$336.75
AvailableT2308254-AB Cover, Rad, LH
Backordered at Triumph · expected Oct 30
$193.24
On backorderT2308254-NM Cover, Rad, LH
$193.24
AvailableT2314116 Decal, Tank Panel, LH
Backordered at Triumph · expected Nov 6
$54.36
On backorder
