Clutch & Transmission incl. Gearchange Mechanism
Triumph Tiger 1200 up to AV5526 · 27 diagrams
27 exploded diagrams for the clutch & transmission incl. gearchange mechanism of the Triumph Tiger 1200 up to AV5526, covering the Tiger 1200 XC, Tiger 1200 XR. This book covers frames up to VIN AV5526. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

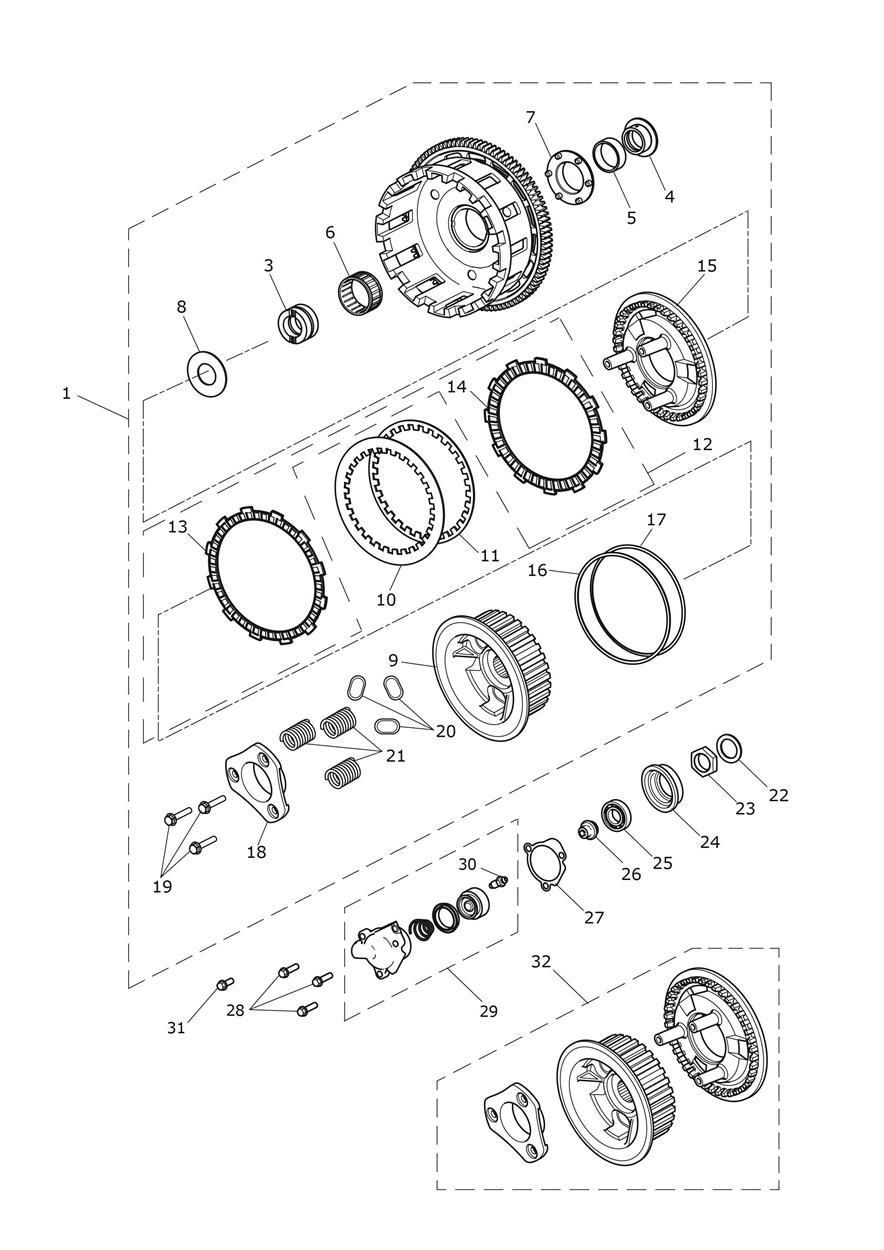

Clutch
33 parts

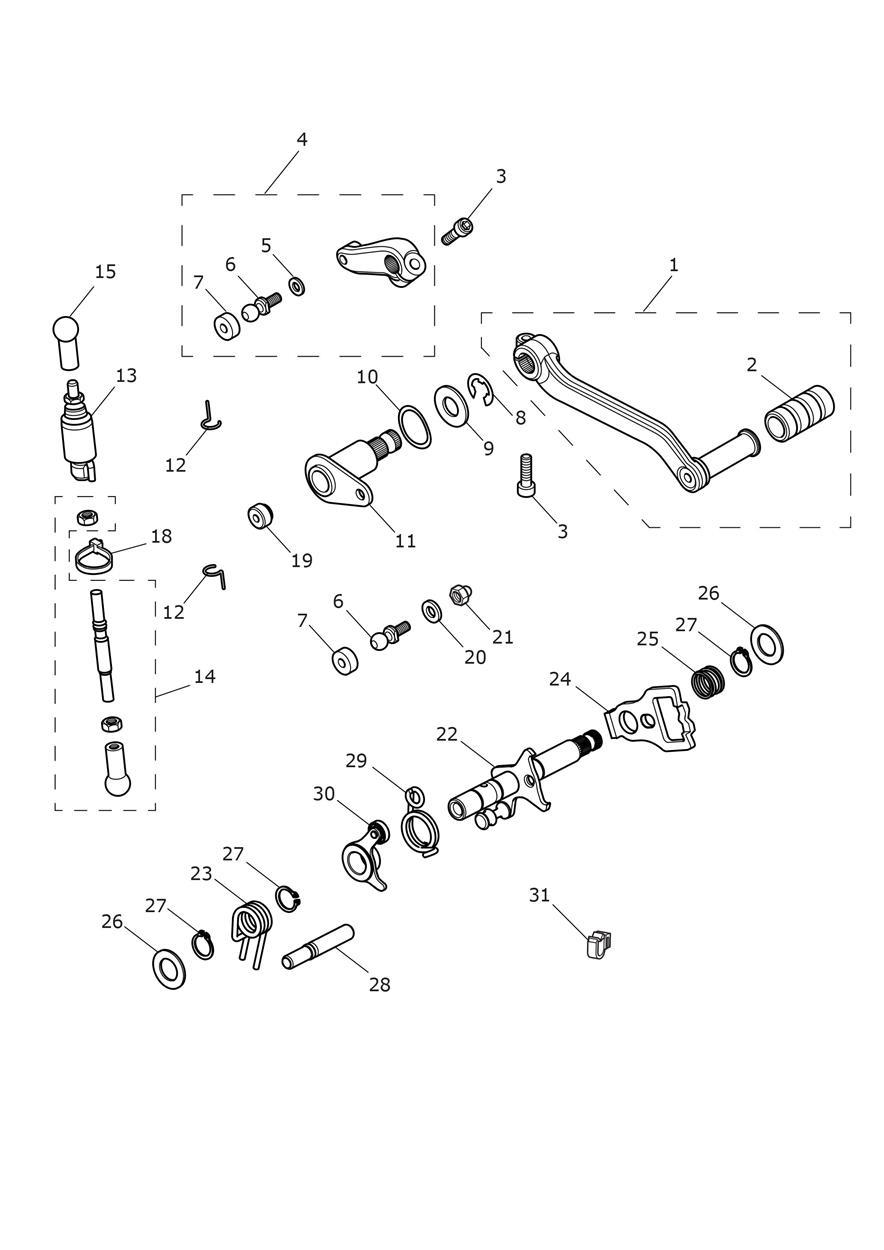

Gear Change Mechanism
27 parts

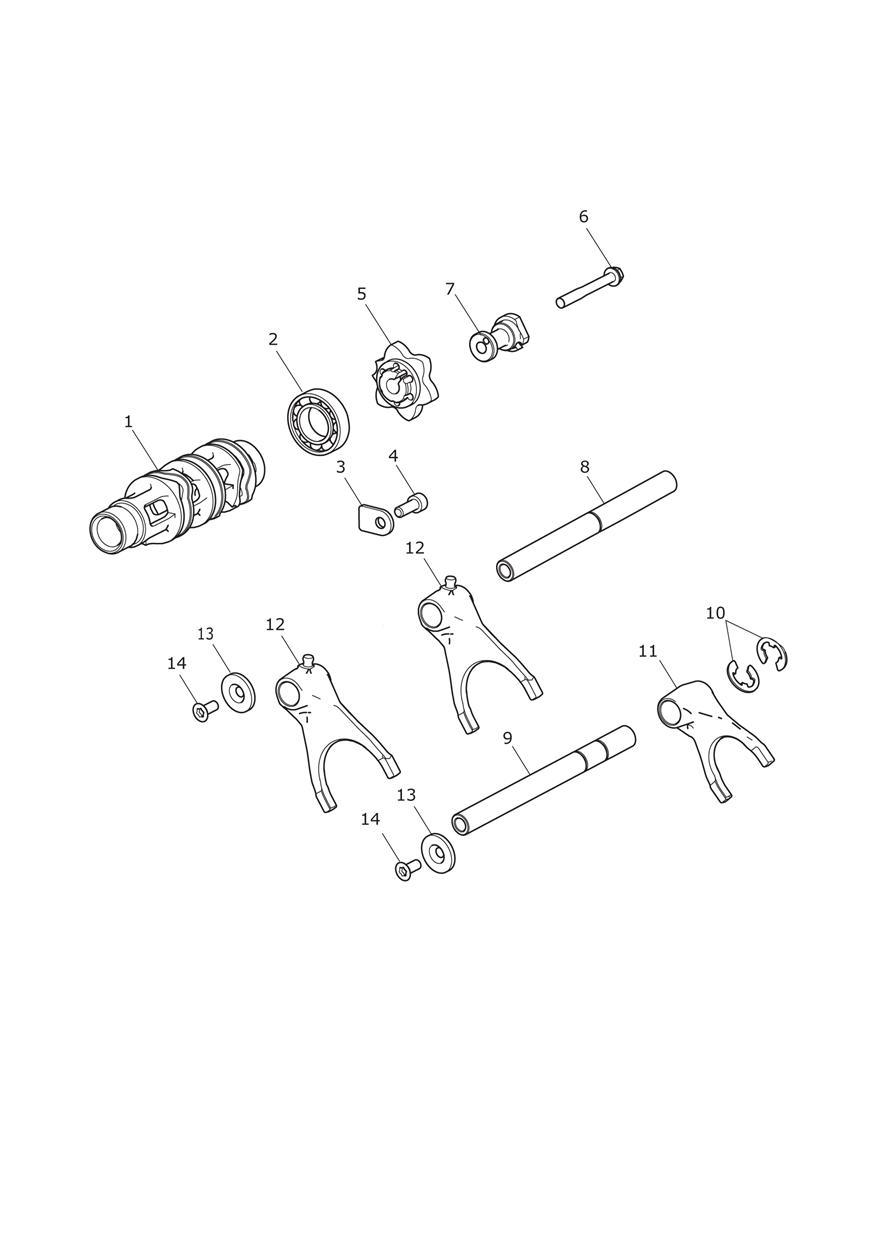

Gear Selector Drum
14 parts
Gear Selector Drum
14 parts

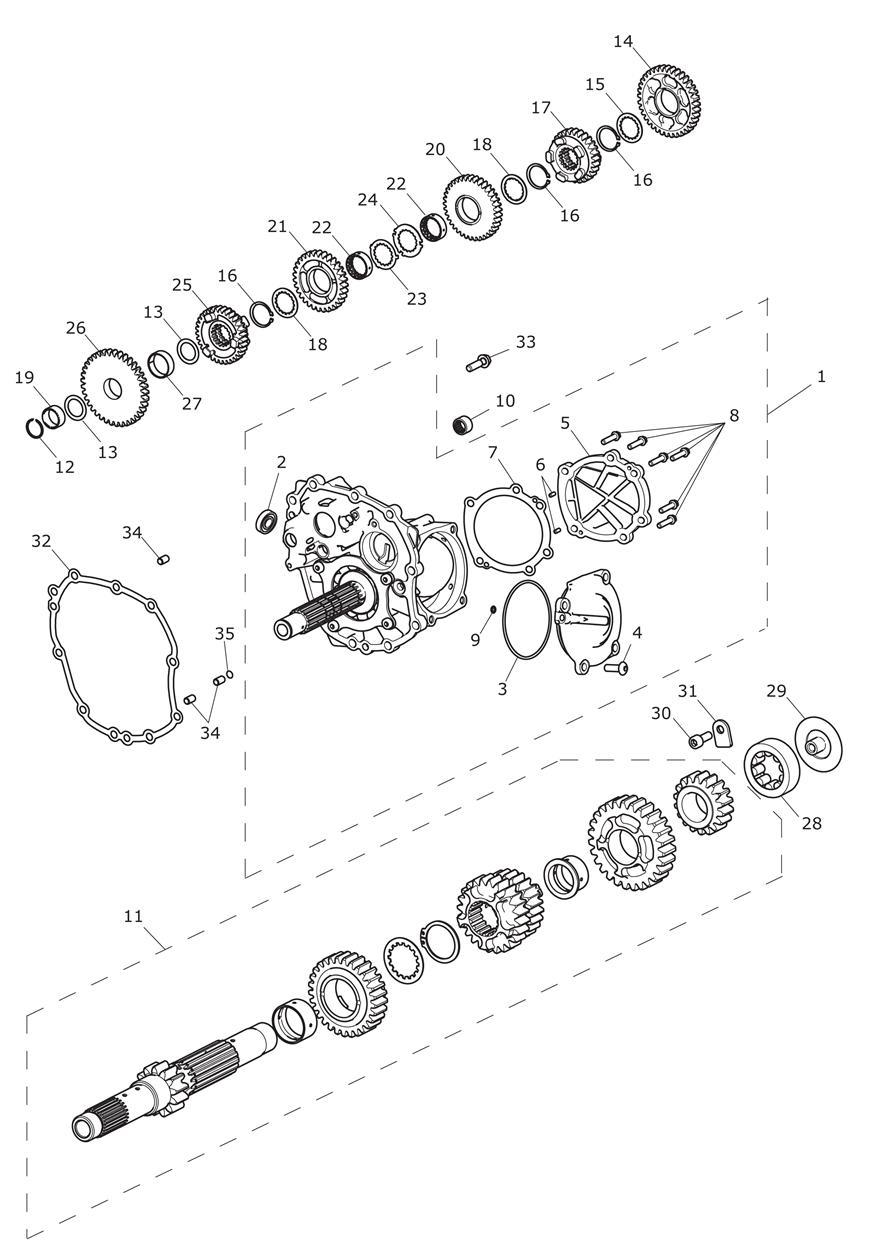

Transmission
35 parts

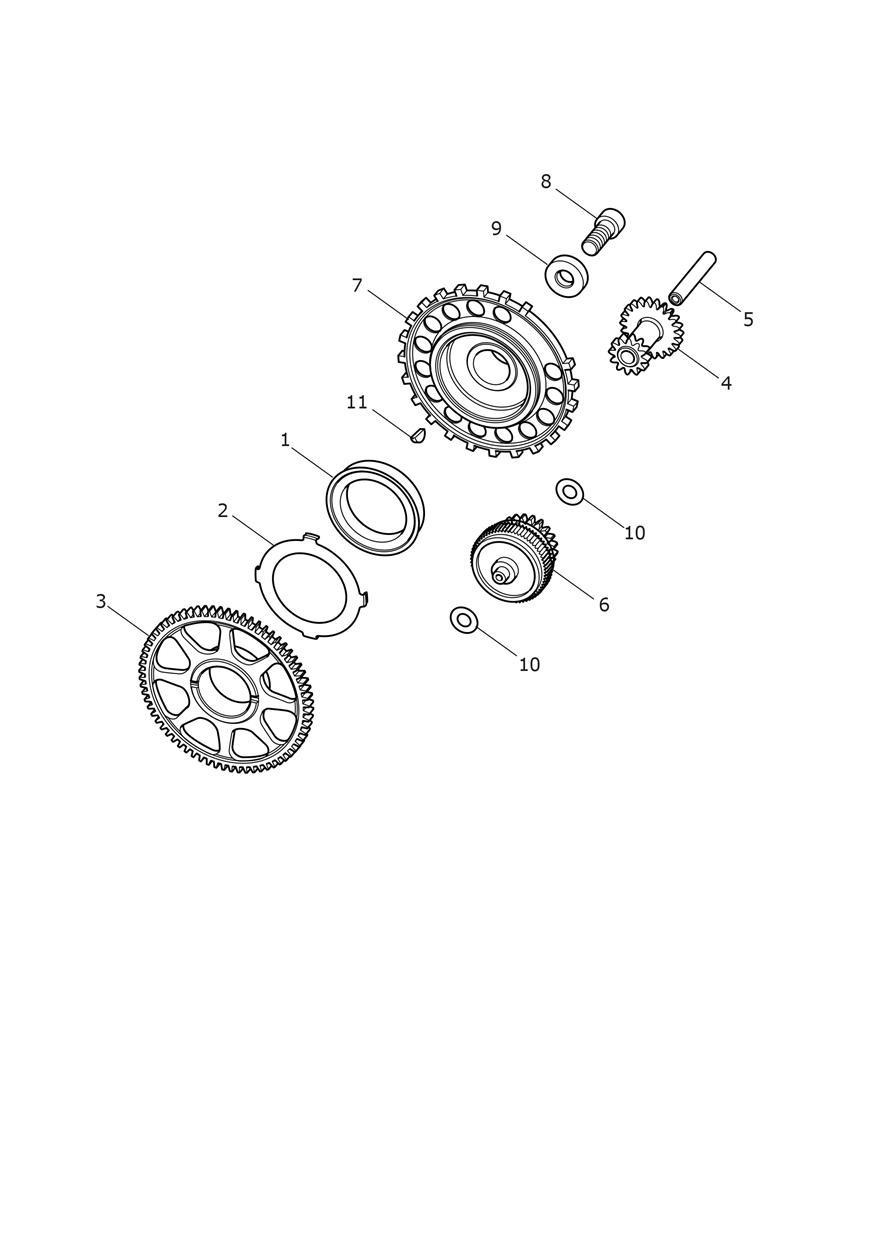

Starter Drive Gears
11 parts
Starter Drive Gears
11 parts
Clutch
33 parts
Transmission
35 parts
Gear Selector Drum
14 parts
Transmission
35 parts
Starter Drive Gears
11 parts
Clutch
33 parts
Gear Selector Drum
14 parts
Transmission
35 parts
Starter Drive Gears
11 parts

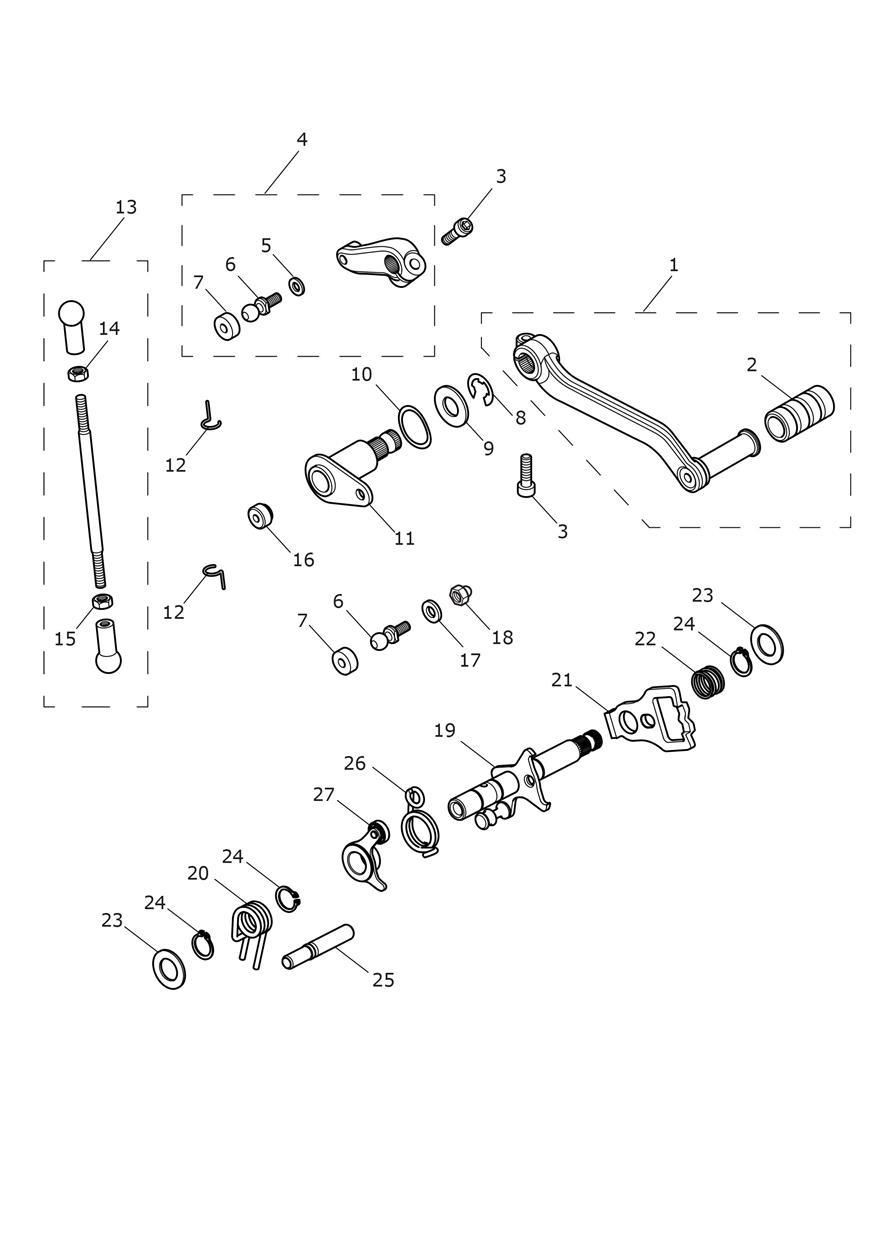

Gear Change Mechanism
29 parts
Clutch
33 parts
Gear Selector Drum
14 parts
Transmission
35 parts
Starter Drive Gears
11 parts
Gear Change Mechanism
29 parts
Clutch
33 parts
