Cooling System
Triumph Tiger 1200 up to AV5526 · 5 diagrams
5 exploded diagrams for the cooling system of the Triumph Tiger 1200 up to AV5526, covering the Tiger 1200 XC, Tiger 1200 XR. This book covers frames up to VIN AV5526. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

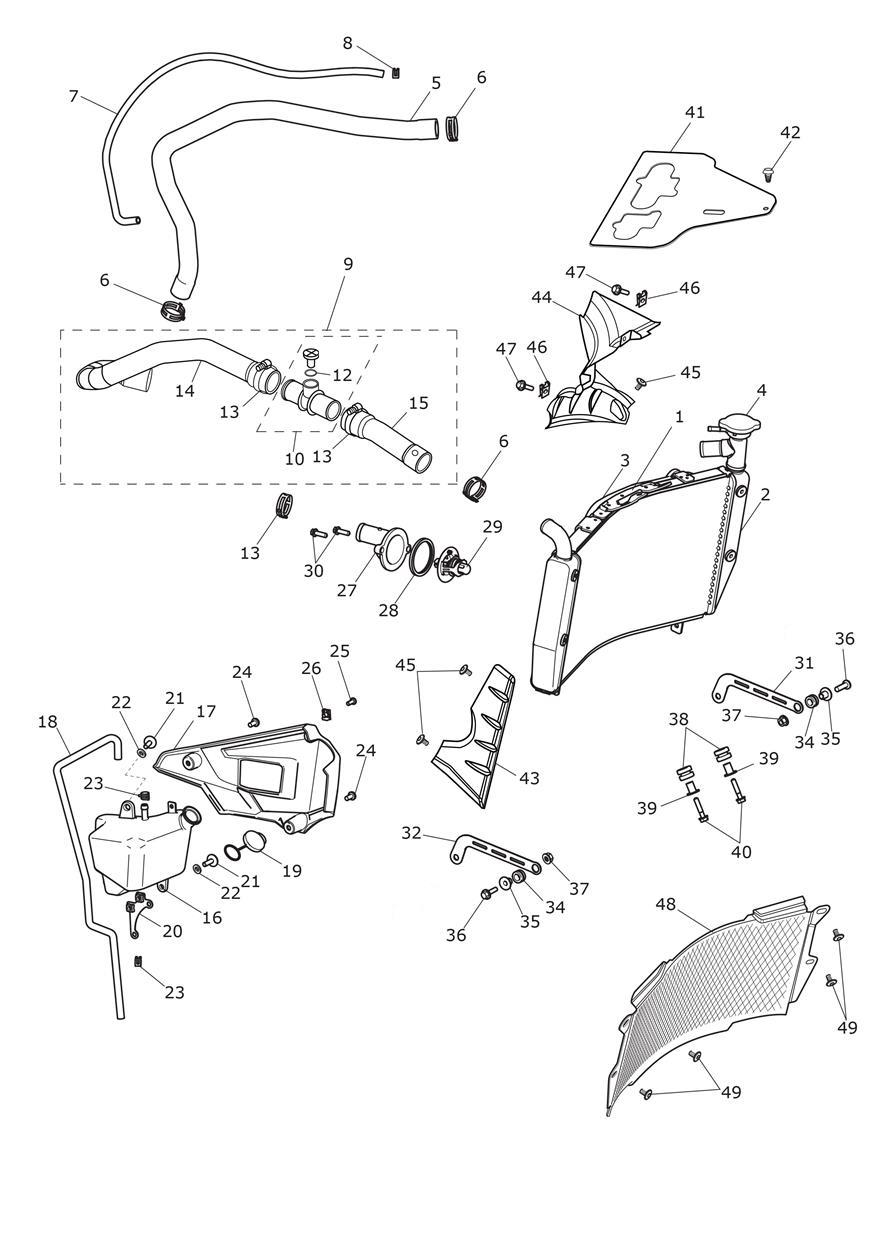

Cooling System
48 parts

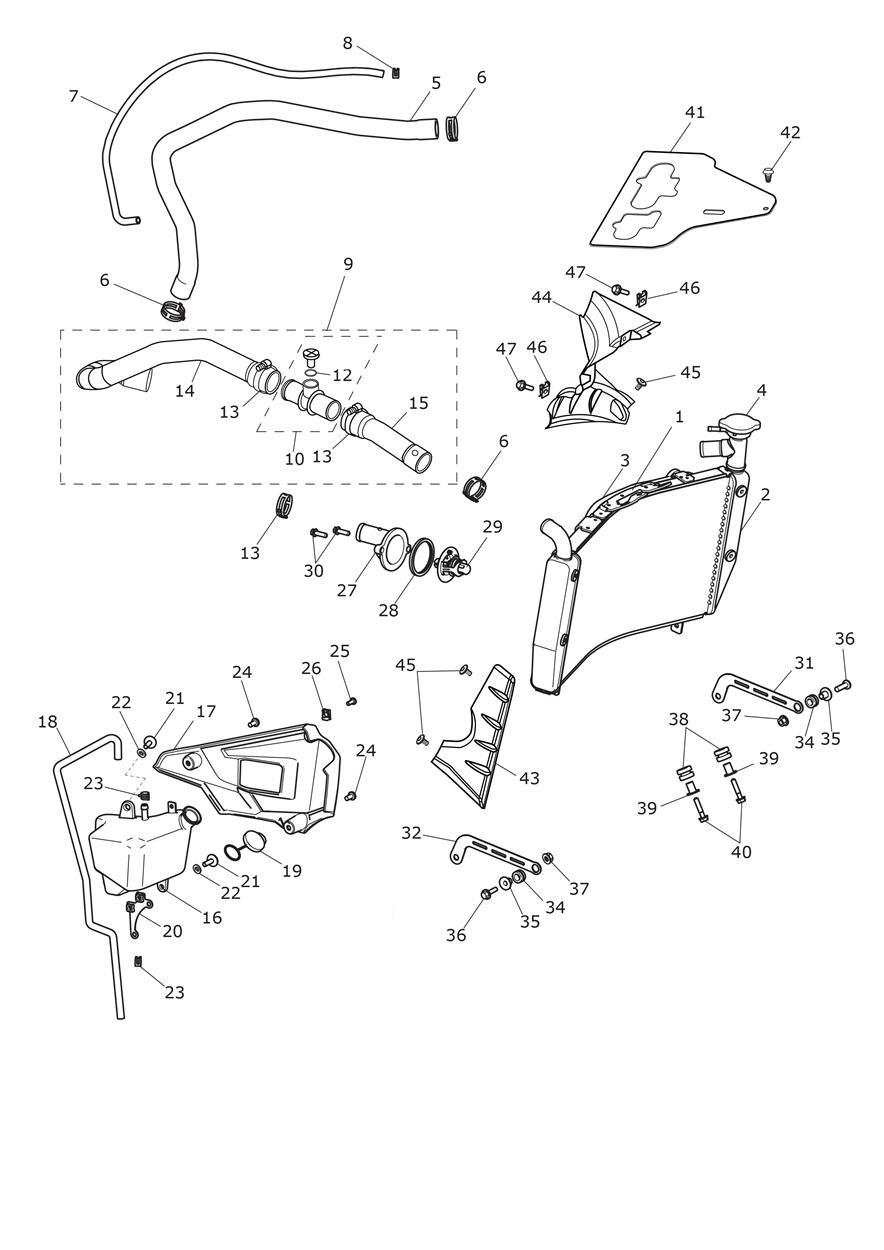

Cooling System
46 parts
Cooling System
48 parts
Cooling System
47 parts
Cooling System
46 parts
44 parts you can order online
Every part below appears in Triumph’s Cooling System diagrams for the Tiger 1200 up to AV5526 and is priced and orderable online. Open a part to see what it fits and to buy it.
Triumph lists the same parts for this area in the Tiger Explorer book.
Cooling System
T2100855 Cowl, Fan
$66.90
AvailableT2100854 Radiator, Curved
$862.09
AvailableT2100856 Fan, Cooling
$396.11
AvailableT2100081 Cap Assy, Radiator
$12.51
AvailableT2100544 Hose, Radiator to Pump
$45.75
AvailableT3706214 Clamp, Constant Tension, Dia 29
$12.95
AvailableT2100636 Pipe, Radiator to Expansion Tank
$46.64
AvailableT3700077 Clip, 10.5 Rer Oetiker
$3.71
AvailableT2100910 Hose, Thermostat to Radiator
$73.03
AvailableT2100905 Spigot, Coolant Bleed
$17.05
AvailableT2100909 O Ring, 11.20 x 1.78 Dia
$3.81
AvailableT3706216 Clamp, Constant Tension, Dia 32
$12.95
AvailableT2100906 Hose, T'Stat to Bleed Spigot
$73.03
AvailableT2100907 Hose, Bleed Spigot to Rad
$73.03
AvailableT2108355 Expansion Tank
$102.11
AvailableT2100461 Cover, Expansion Tank
$52.81
AvailableT2100637 Pipe, Expansion Tank Overflow
$22.08
AvailableT2101015 Cap, Expansion Tank
Low stock at Triumph
$1.99
Limited availabilityT3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv
$2.43
AvailableT3555026 Washer, 6.4 x 18 x 1.6
$1.99
In stock in BreaT3700440 Clip, Hose, 11-12.5mm
$5.02
AvailableT3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv
$1.99
AvailableT3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv
$5.25
AvailableT3350161 Nut, Captive, M5
$4.21
AvailableT2100479 Cover, Water Outlet
$46.64
AvailableT2100201 Seal, Thermostat
$6.61
In stock in BreaT2100676 Thermostat
Low stock at Triumph
$63.35
Limited availabilityT3205066 Bolt, HHF, Lghtd, M6 x 20, Slv
$4.21
In stock in Brea · last onesT2100914 Bracket, LH, Radiator
$34.40
AvailableT2100915 Bracket, RH, Radiator
$34.40
AvailableT3020030 Grommet, Rubber
$8.10
AvailableT3010052 Flanged Sleeve, M6 x 12 x 10.75
Backordered at Triumph · expected Oct 30
$4.65
On backorderT3205067 Bolt, HHF, Lghtd, M6 x 25, Slv
$2.27
AvailableT3350305 Locknut, Flgd, M6 x 1.0, Slv
$1.99
AvailableT3021200 Grommet, Dia 14x4, Panel
$2.93
AvailableT3010701 Flanged Sleeve, 6.4 x 10 x 14.5
$4.91
AvailableT3200148 Bolt, RHHF, M6 x 30, Slv
$4.12
AvailableT2100980 Sheet, Heat Shield
Backordered at Triumph · we’ll confirm the ship date after you order
$43.98
On backorderT3450299 Firtree, M6
$3.08
AvailableT3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT
$1.99
In stock in BreaT3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041
$3.00
AvailableT2100898 Stoneguard, Radiator
$102.11
AvailableT3330726 Screw, Btn/Hd, M6 x 12, Slv
$4.09
Available
