Rear Swinging Arm & Rear Suspension
Triumph Tiger 1200 up to AV5526 · 15 diagrams
15 exploded diagrams for the rear swinging arm & rear suspension of the Triumph Tiger 1200 up to AV5526, covering the Tiger 1200 XC, Tiger 1200 XR. This book covers frames up to VIN AV5526. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

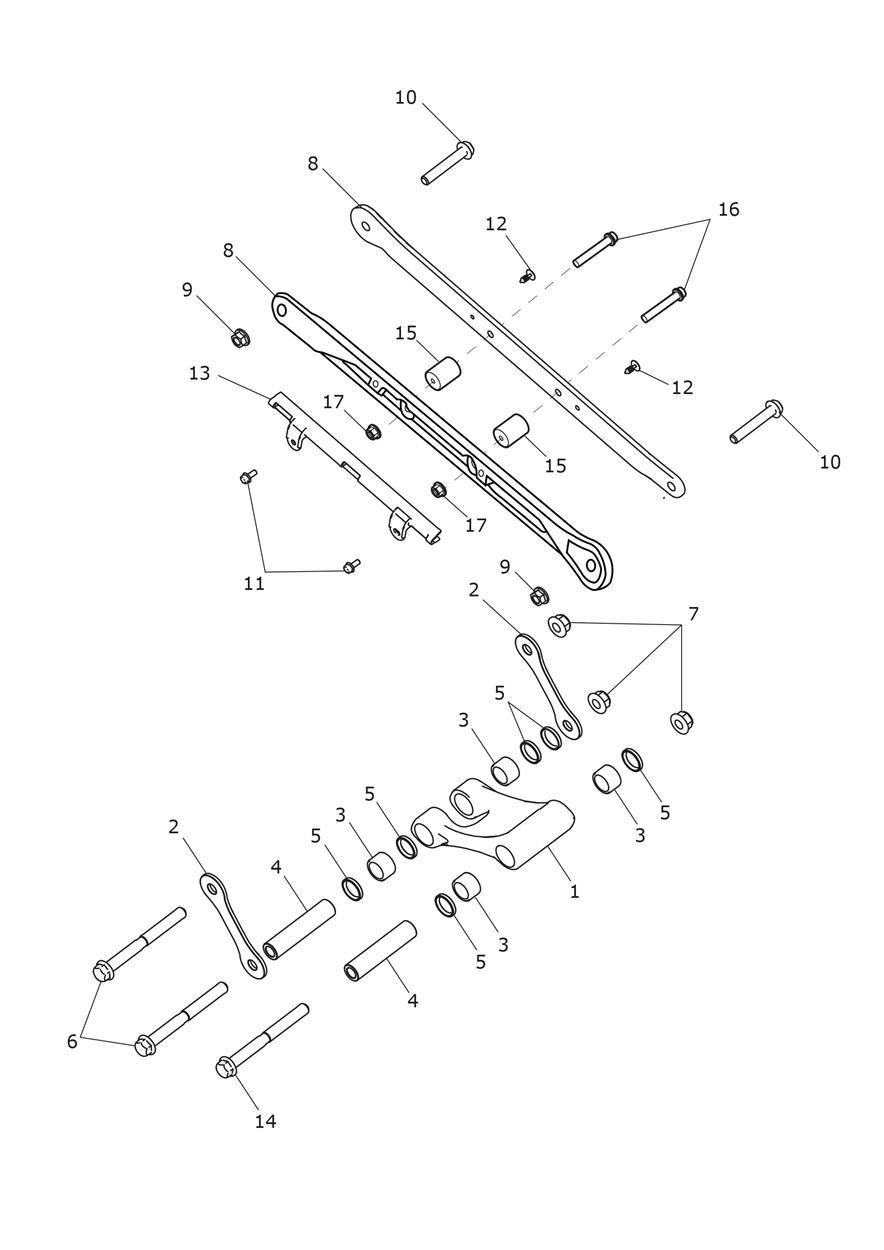

Rear Suspension Linkage
17 parts
Rear Suspension Linkage
17 parts

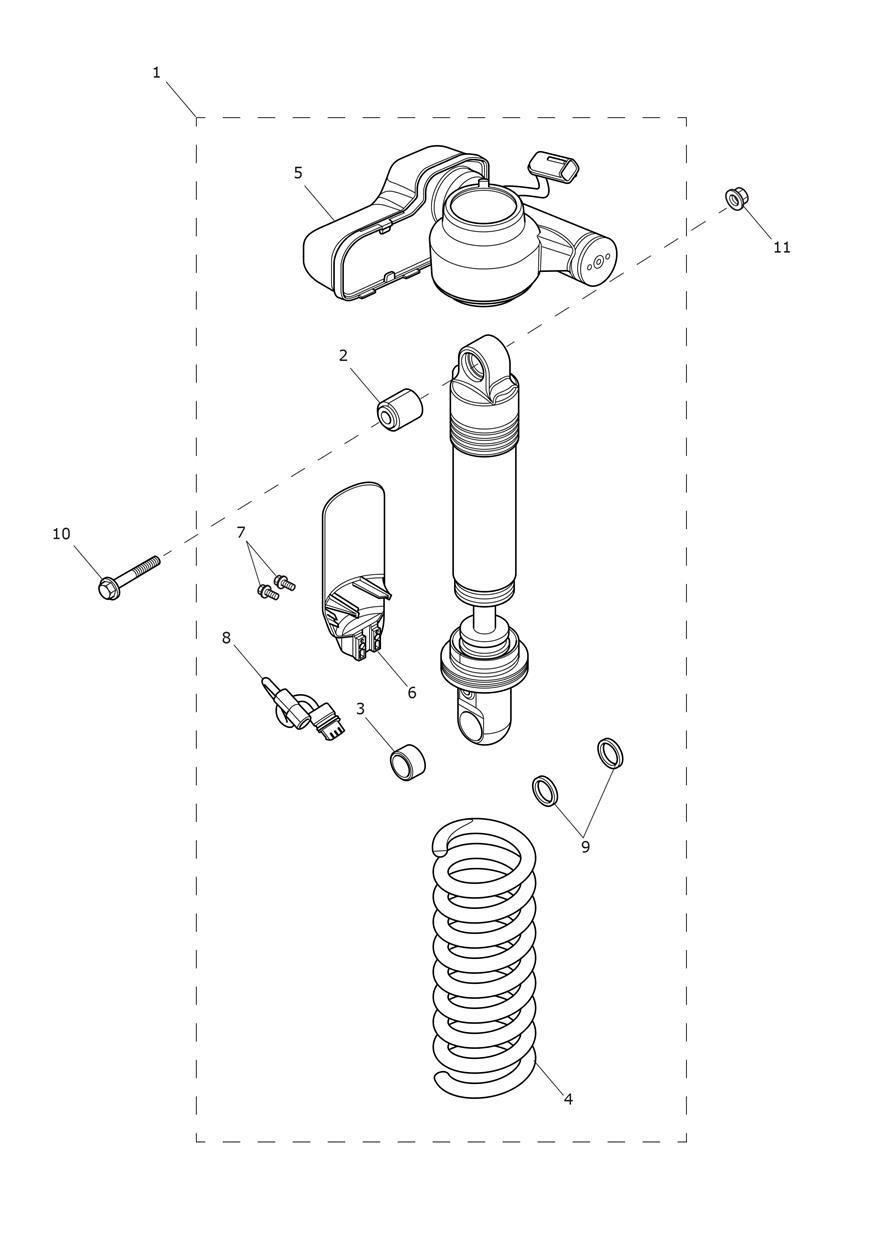

Rear Suspension Unit
11 parts
Rear Suspension Unit
11 parts

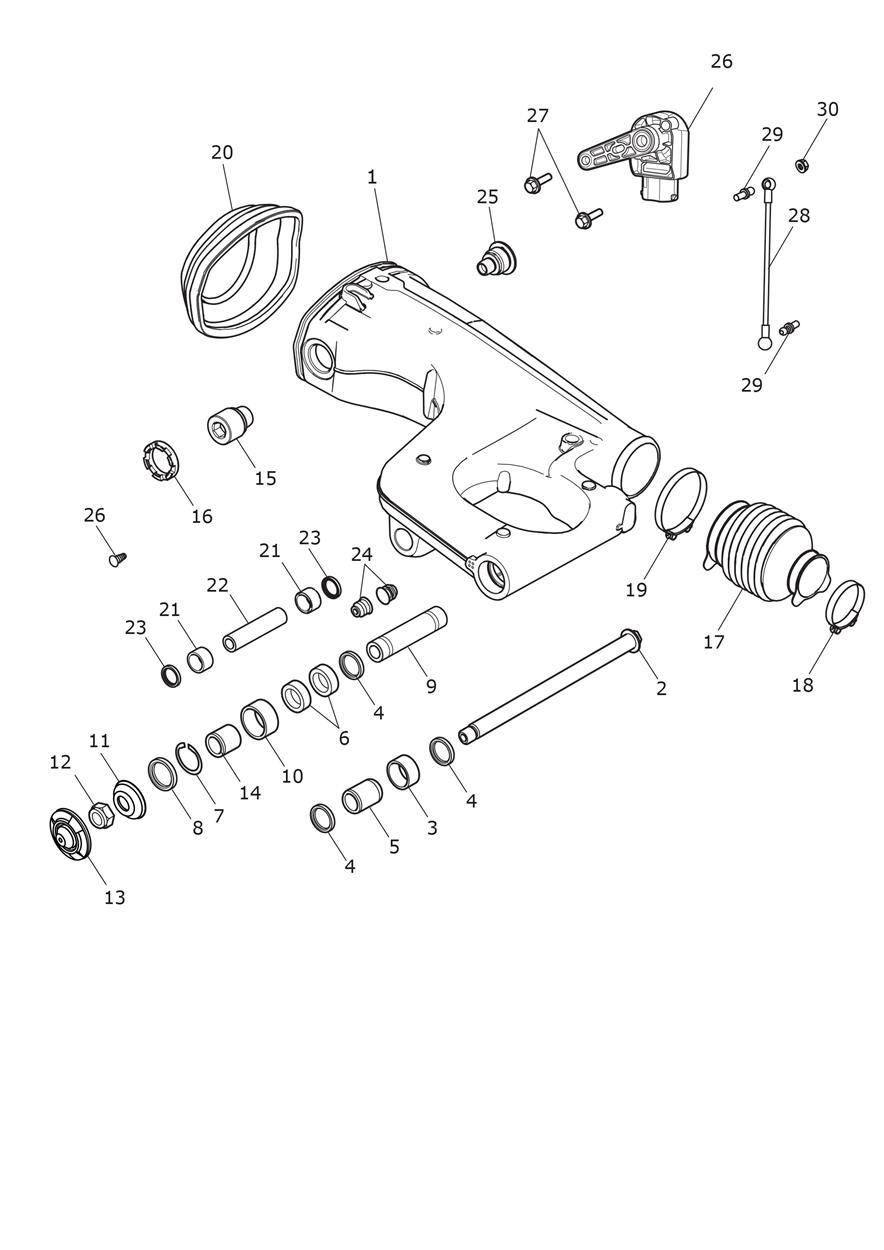

Rear Swingarm
30 parts

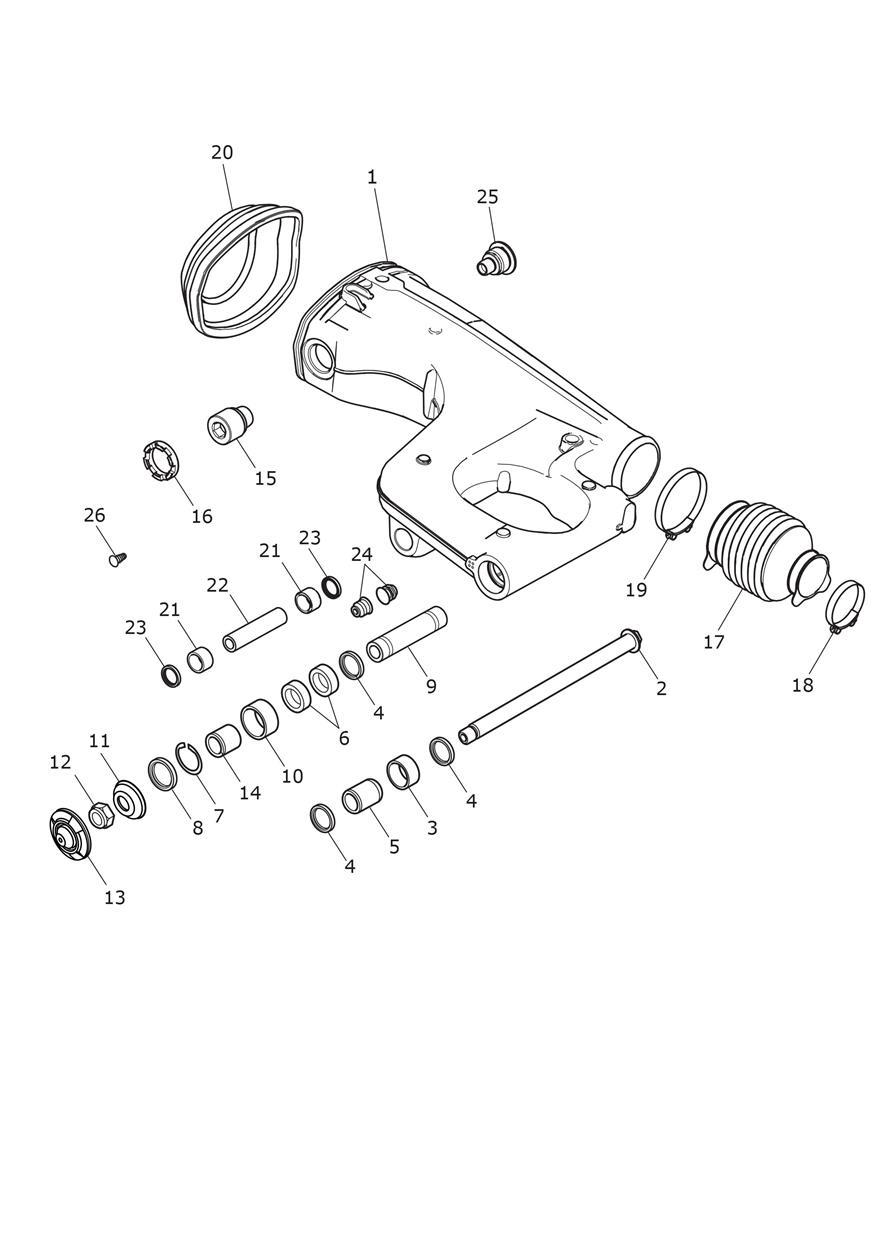

Rear Swingarm
30 parts
Rear Suspension Linkage
17 parts
Rear Suspension Unit
11 parts
Rear Swingarm
30 parts
Rear Suspension Linkage
17 parts
Rear Suspension Linkage
17 parts

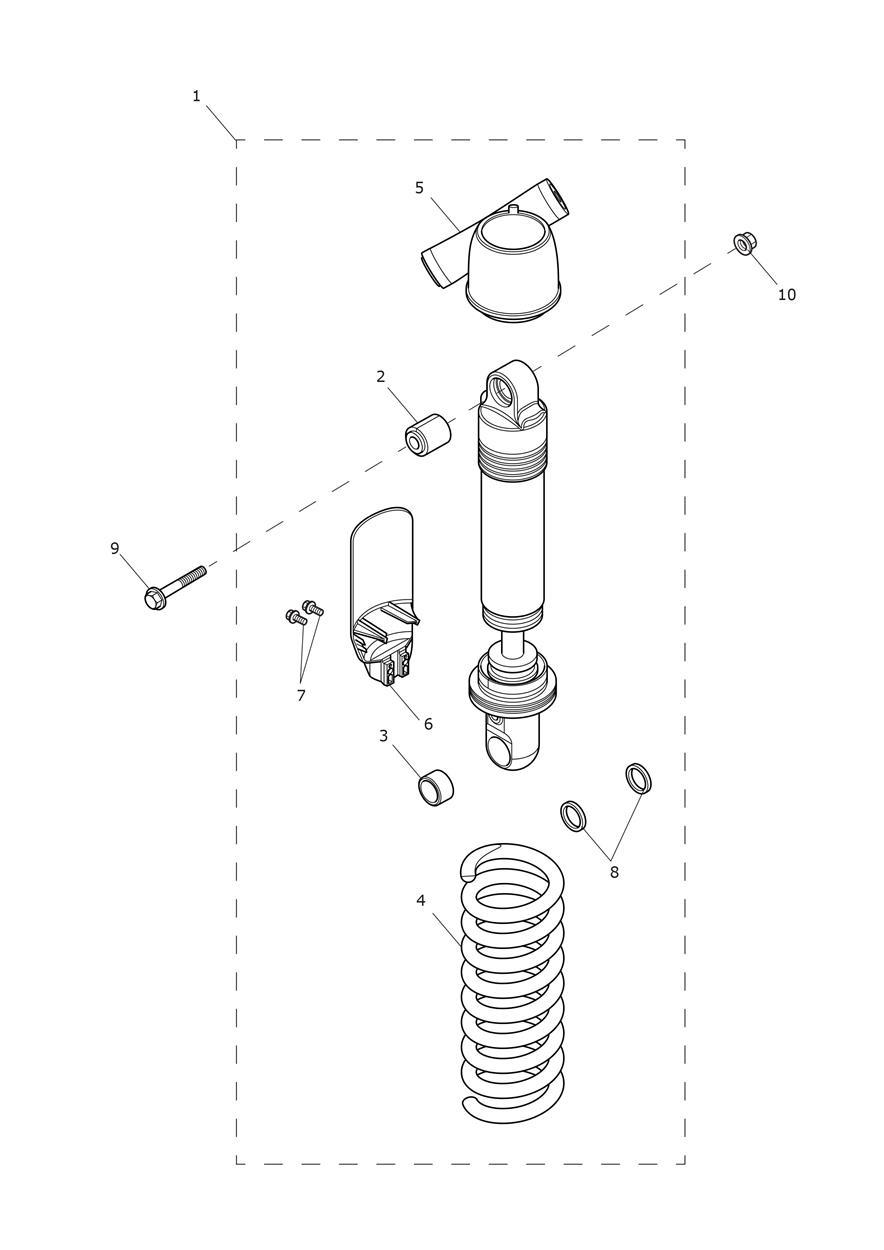

Rear Suspension Unit
13 parts
Rear Suspension Unit
10 parts
Rear Swingarm
30 parts
Rear Swingarm
26 parts
