Wheels, Tyres & Final Drive
Triumph Tiger 1200 up to AV5526 · 15 diagrams
15 exploded diagrams for the wheels, tyres & final drive of the Triumph Tiger 1200 up to AV5526, covering the Tiger 1200 XC, Tiger 1200 XR. This book covers frames up to VIN AV5526. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

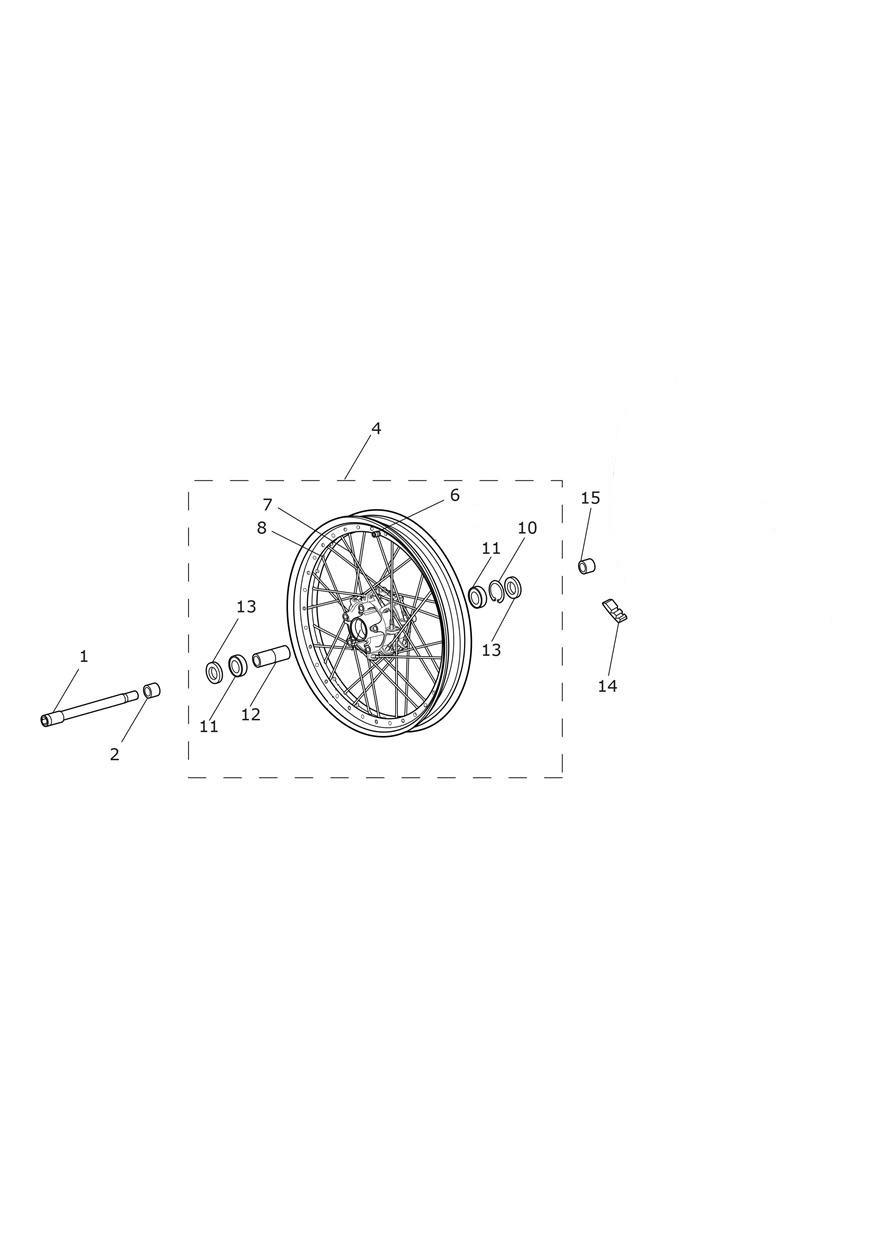

Front Wheel
12 parts
Front Wheel
12 parts

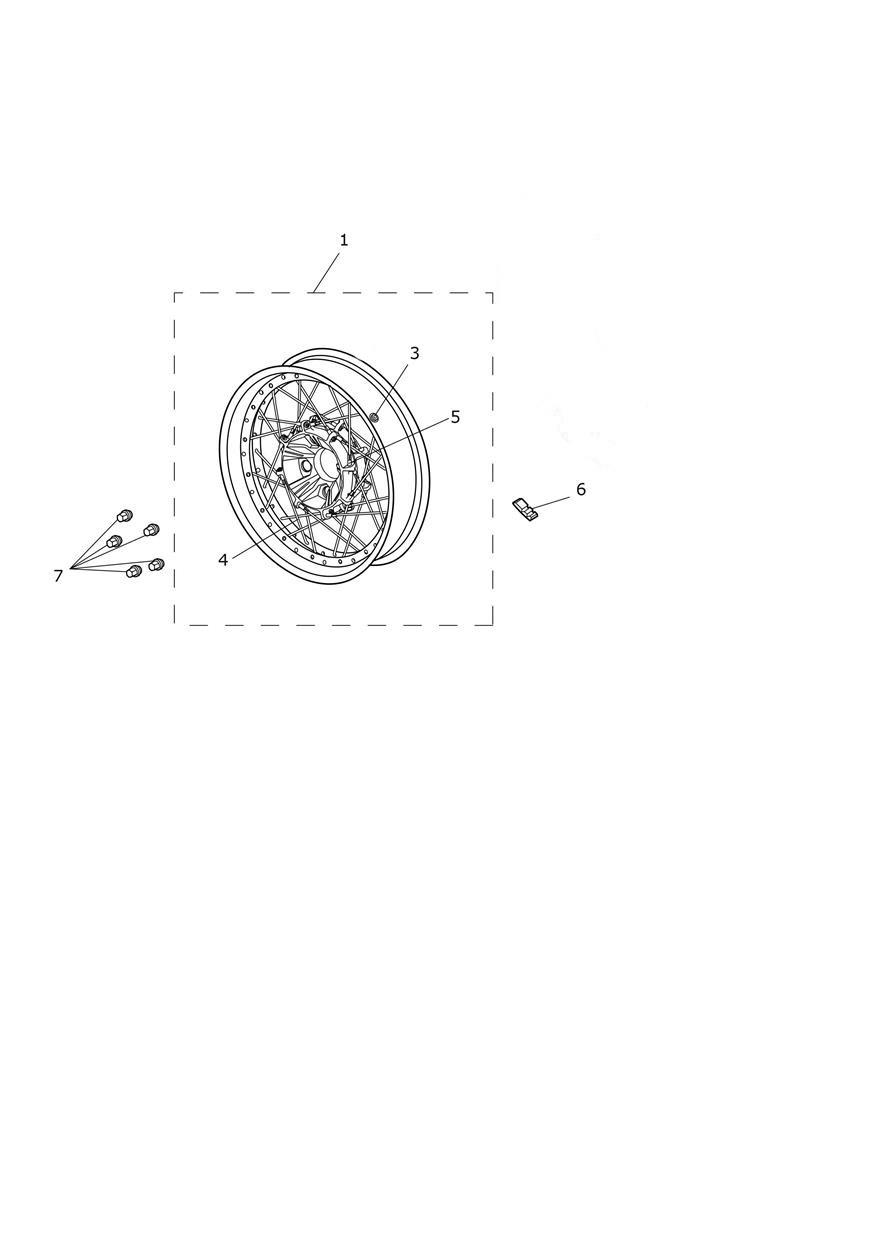

Rear Wheel
6 parts
Rear Wheel
6 parts

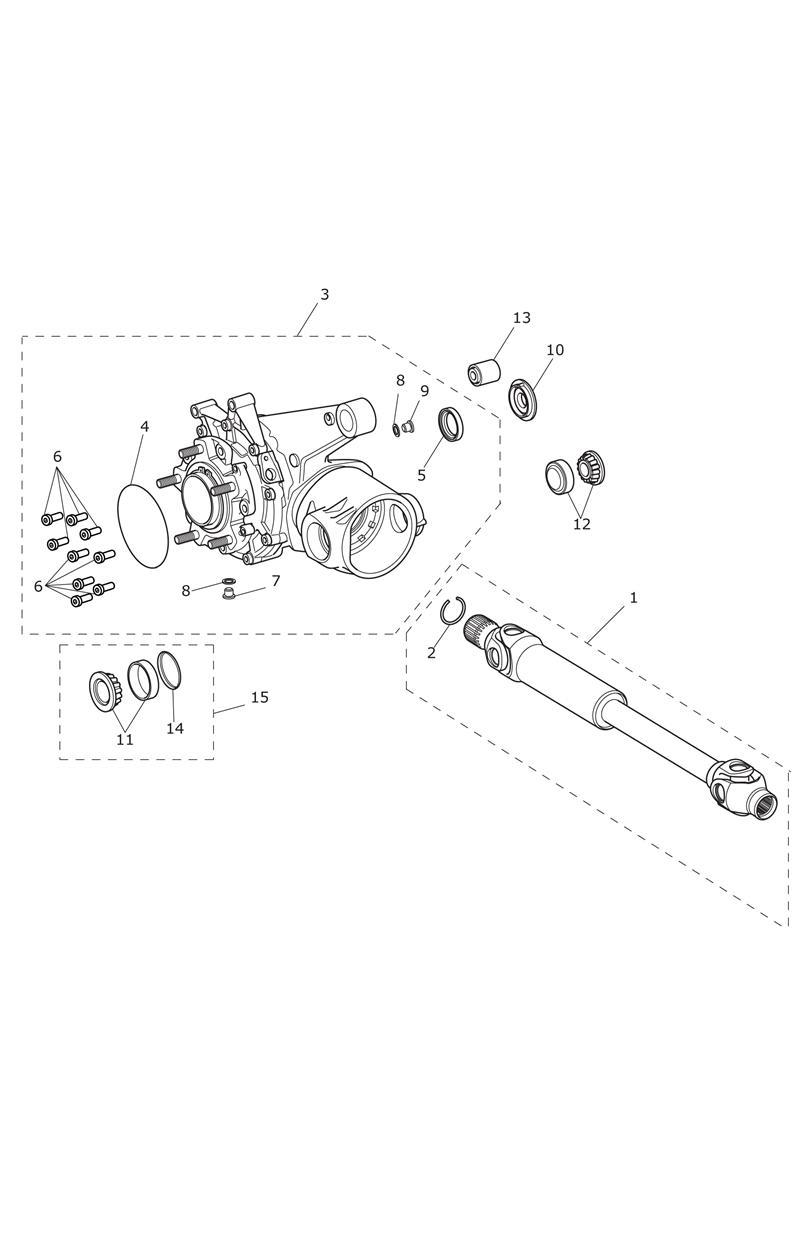

Final Drive Unit
16 parts
Final Drive Unit
16 parts
Final Drive Unit
16 parts

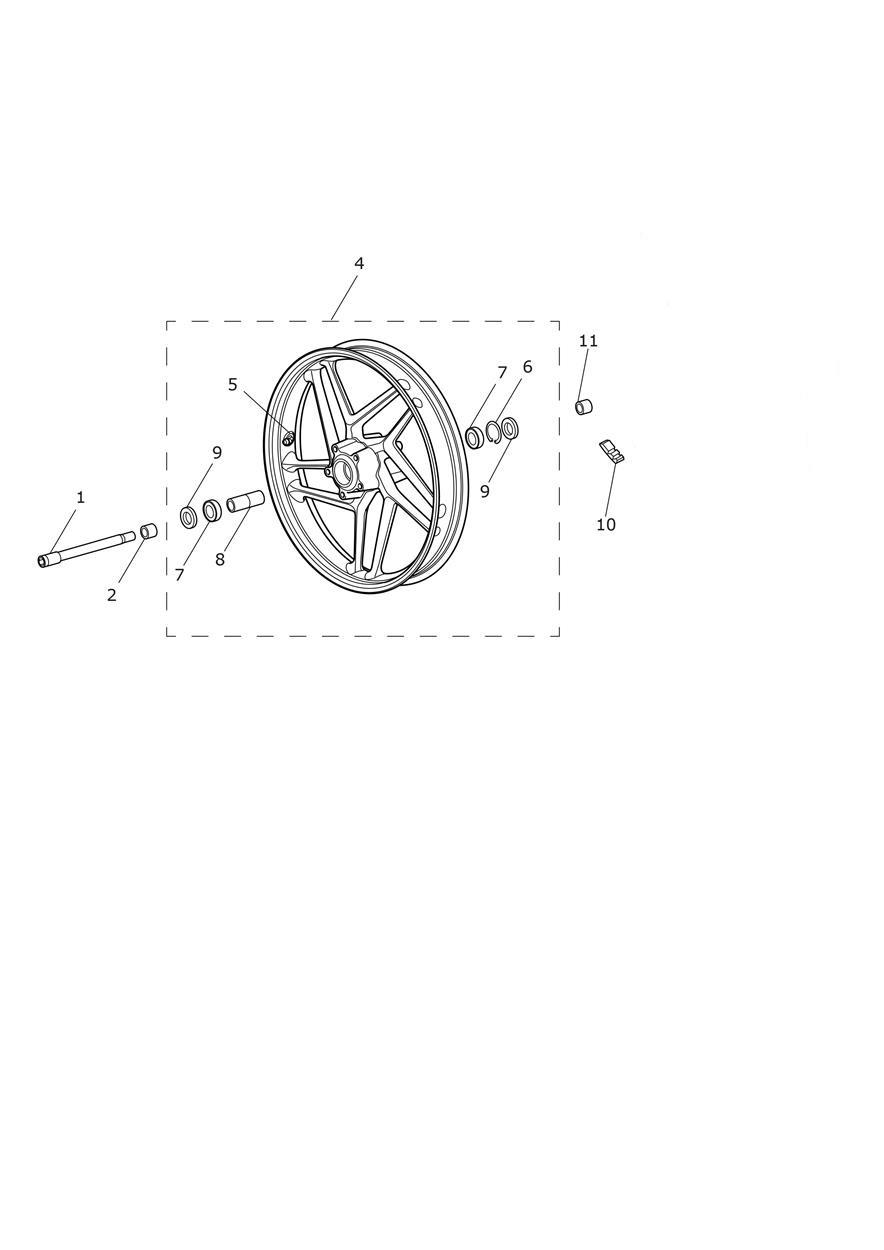

Front Wheel
10 parts

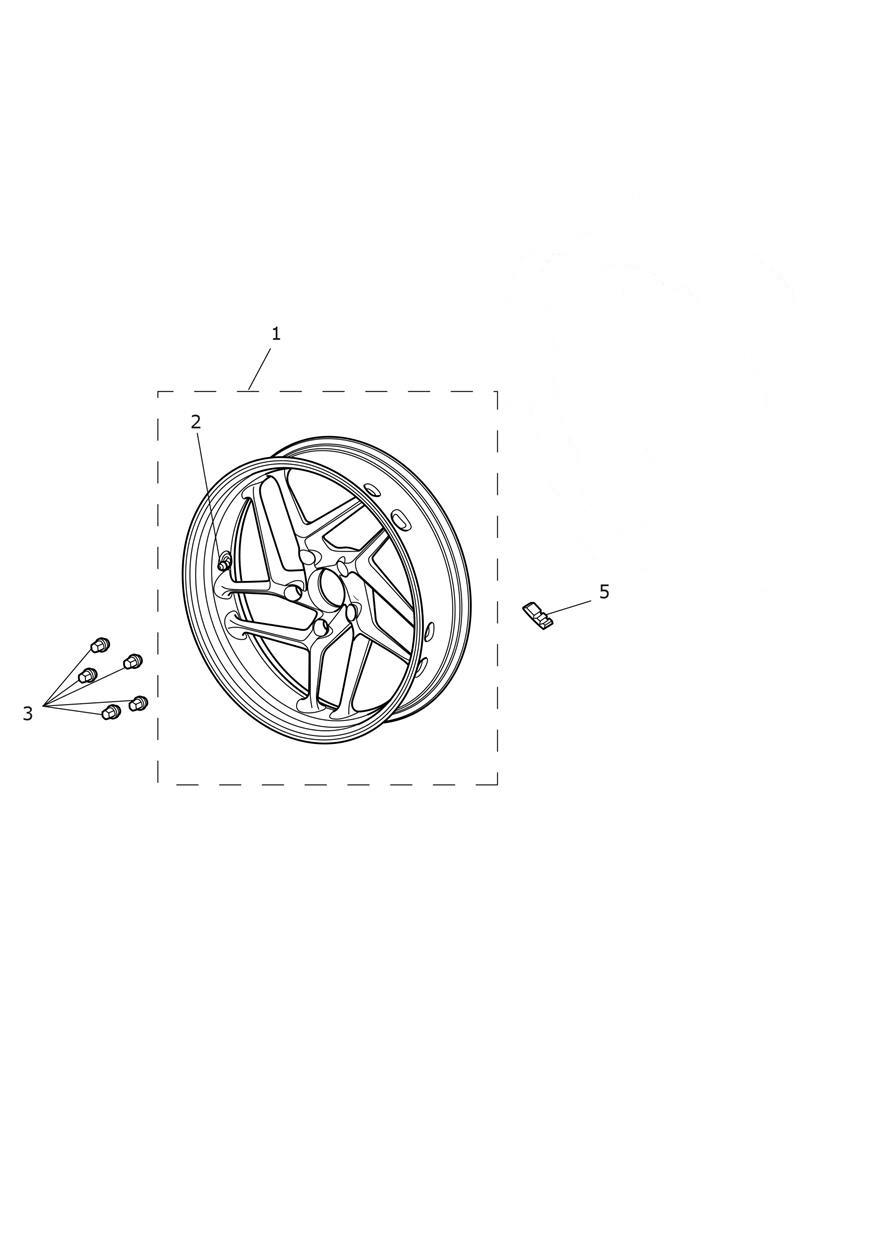

Rear Wheel
4 parts
Final Drive Unit
16 parts
Front Wheel
10 parts
Rear Wheel
4 parts
Front Wheel
10 parts
Rear Wheel
4 parts
Final Drive Unit
16 parts
33 parts you can order online
Every part below appears in Triumph’s Wheels, Tyres & Final Drive diagrams for the Tiger 1200 up to AV5526 and is priced and orderable online. Open a part to see what it fits and to buy it.
Front Wheel
T2000700 Spindle, Front, M18 x 30
Backordered at Triumph · expected Dec 4
$84.50
On backorderT2002105 Spacer, OD28, ID 20, LG 25
$27.99
AvailableT2000666 Front Wheel Assy, Spoked, 19 x 3
$1012.21
AvailableT2000576 Valve Assy, Rubber
$14.86
AvailableT2000499 Spoke, 229.4mm, Bent, Black
$6.24
AvailableT2000598 Nipple, Spoke, Locking, Slv
$6.42
AvailableT3800703 Bearing, Ball, 20 47 14
$42.41
AvailableT2000615 Spacer, Internal, Front Wheel
$38.89
AvailableT3600701 Oil Seal, DC 28 47 7
$20.85
In stock in BreaT2006688 Wheel Weight, 5 Gram, Black
$10.20
AvailableT2002100 Spacer, OD28, ID 20, LG20
$27.99
AvailableRear Wheel
T2010691 Rear Wheel Assy, Spoked, 17 x 4.5
$1012.21
AvailableT2011118 Spoke, 171.8mm, Bent, Black
$6.68
AvailableT2010176 Nut, M10, Wheel
$4.30
AvailableFinal Drive Unit
T1270070 Drive Shaft, Metalastic
Low stock at Triumph
$545.70
Limited availabilityT3501274 Snap Ring, Int, OD 32 x Dia 2.5
Low stock at Triumph
$4.12
Limited availabilityT1270058 Rear Bevel Box Assembly
$2288.51
AvailableT3601271 O Ring, ID 143 x Dian 2.5
$15.84
AvailableT3601273 Oil Seal, 28 x 40 x 7
$27.09
AvailableT3331279 Bolt, Cap/Hd, TX, M8 x 30
$4.91
AvailableT3331271 Bolt, Cap Hd, M14 x 12, Magnet
$5.62
AvailableT3551272 Washer, Sealing, 14.5 x 20 x 1.4
$2.45
In stock in BreaT1270052 Cap, Rear Bevel Box, Slotted
$7.57
AvailableT3800420 Bearing/Seal, Taper Roller, 254715
$62.47
AvailableT3800062 Bearing/Seal, Taper Roller,174013
$64.23
AvailableT2056500 Bush, Rubber Mount, 10.2 x 27 x 32
$17.13
AvailableT3800450 Cap, Bearing, 254715
$9.85
AvailableT3800440 Bearing/Seal, Taper Roller, Spares
$72.14
AvailableFront Wheel
T2000553 Front Wheel Assembly, 19 x 3
Backordered at Triumph · we’ll confirm the ship date after you order
$941.81
On backorderT2006615 Valve Assy, aluminium, 90, Slv
$14.86
AvailableT3500402 Circlip, Int Dia 47
$1.99
AvailableT2004201 Spacer, Wheel, 20 81
$36.11
Available
