Bodywork, Bodywork Fixings & Decals
Triumph Tiger 900 & 850 · 78 diagrams
78 exploded diagrams for the bodywork, bodywork fixings & decals of the Triumph Tiger 900 & 850, covering the Tiger 850 Sport, Tiger 900 GT, Tiger 900 GT Pro, Tiger 900 Rally, Tiger 900 Rally Pro. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

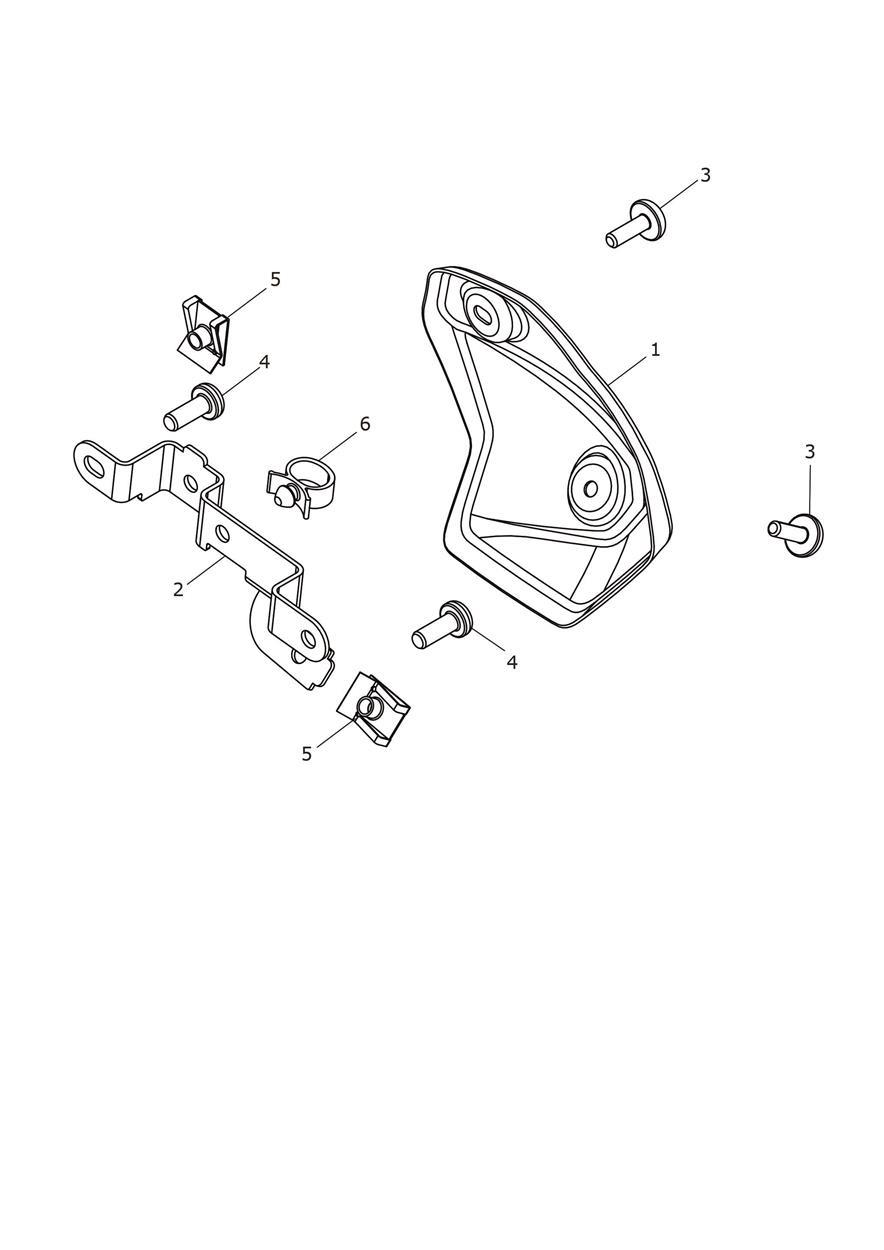

Cover O2 Sensor
6 parts
Handguards - TH Only
8 parts

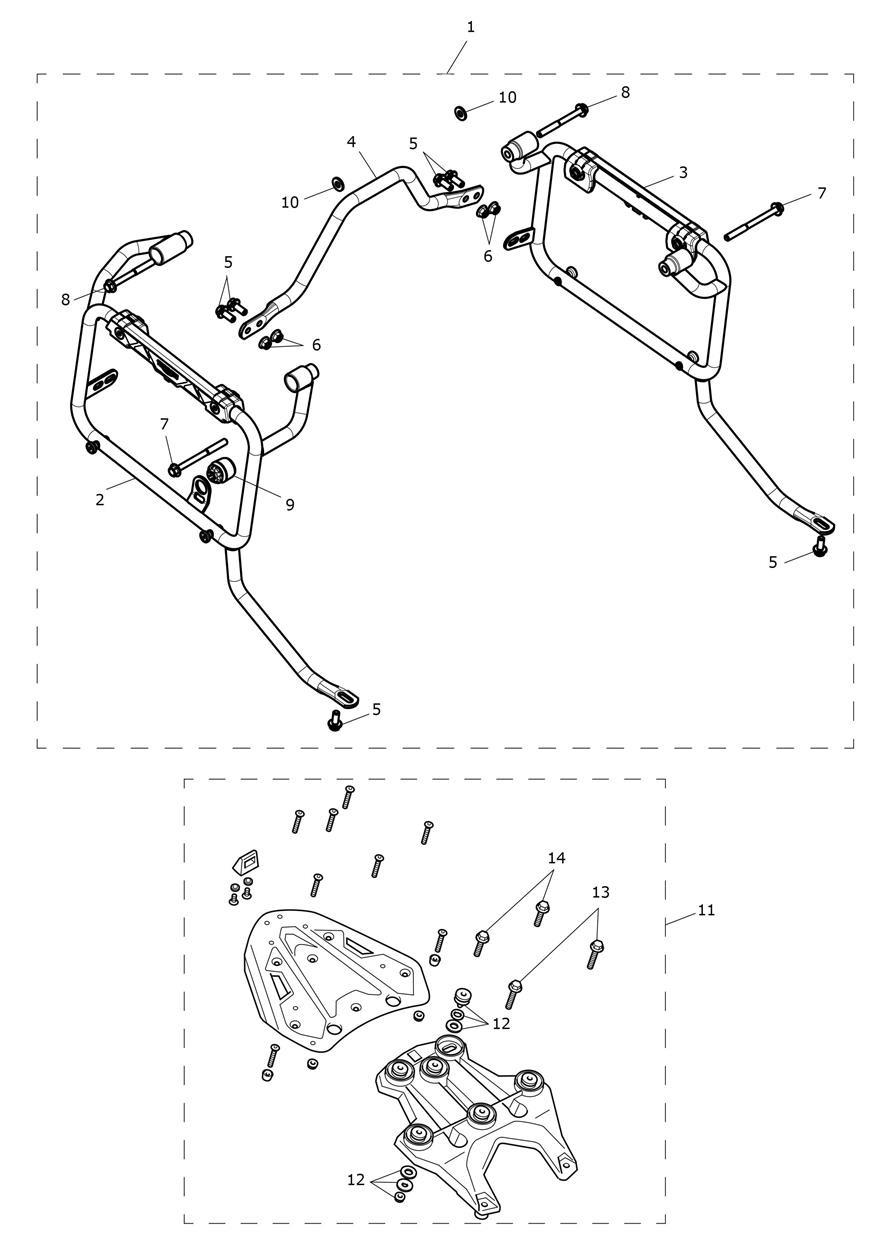

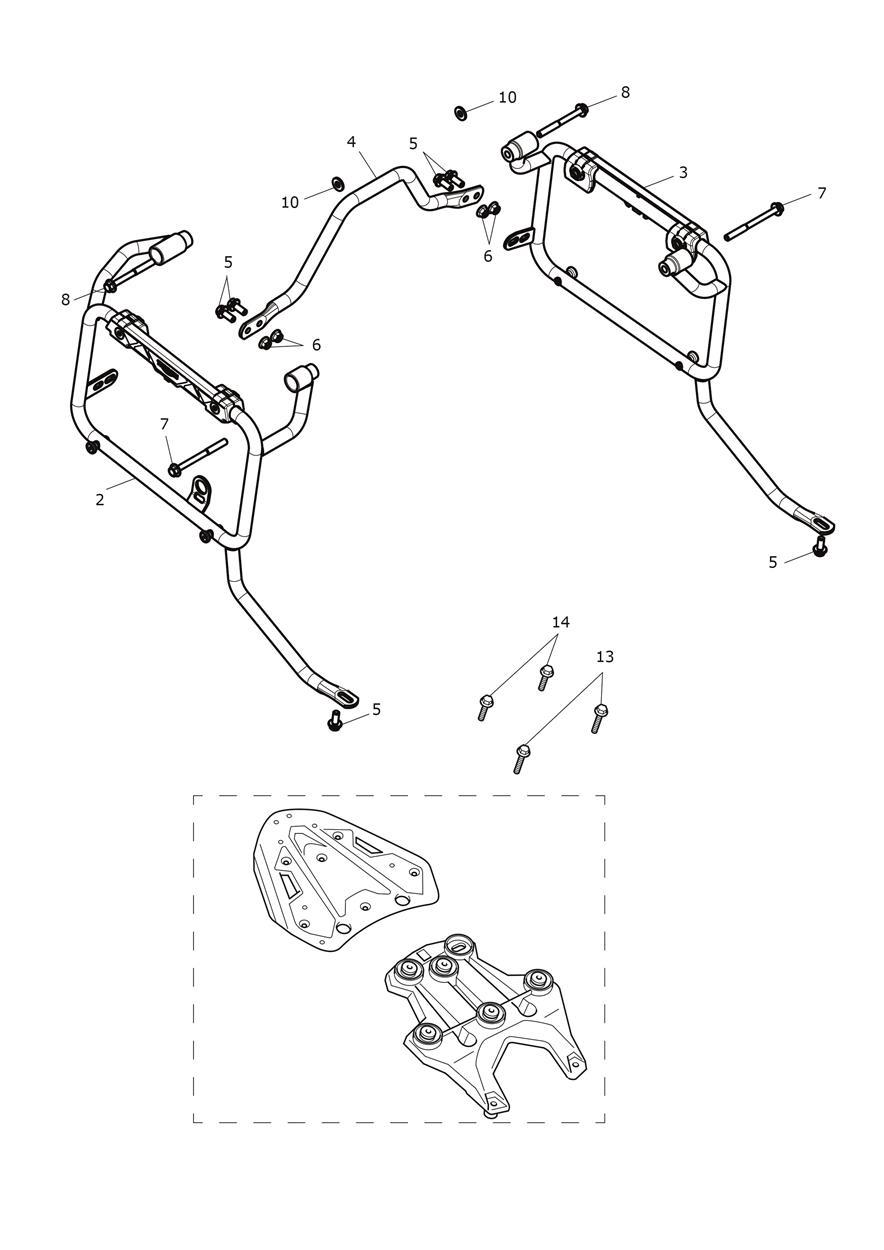

Luggage Mounting System - BR Only
10 parts
Luggage Mounting System - BR Only
10 parts
Luggage Mounting System - BR Only
10 parts

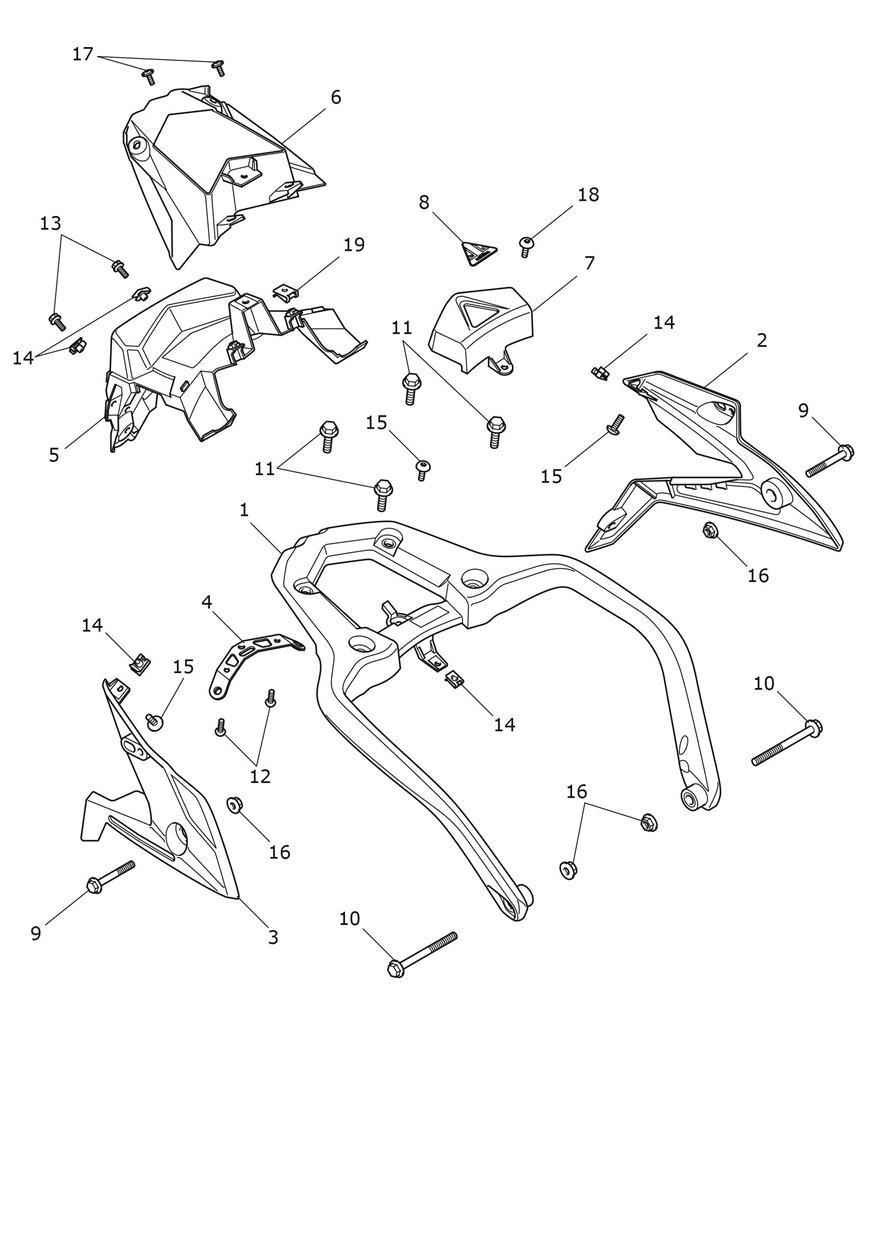

Rear Bodywork
19 parts

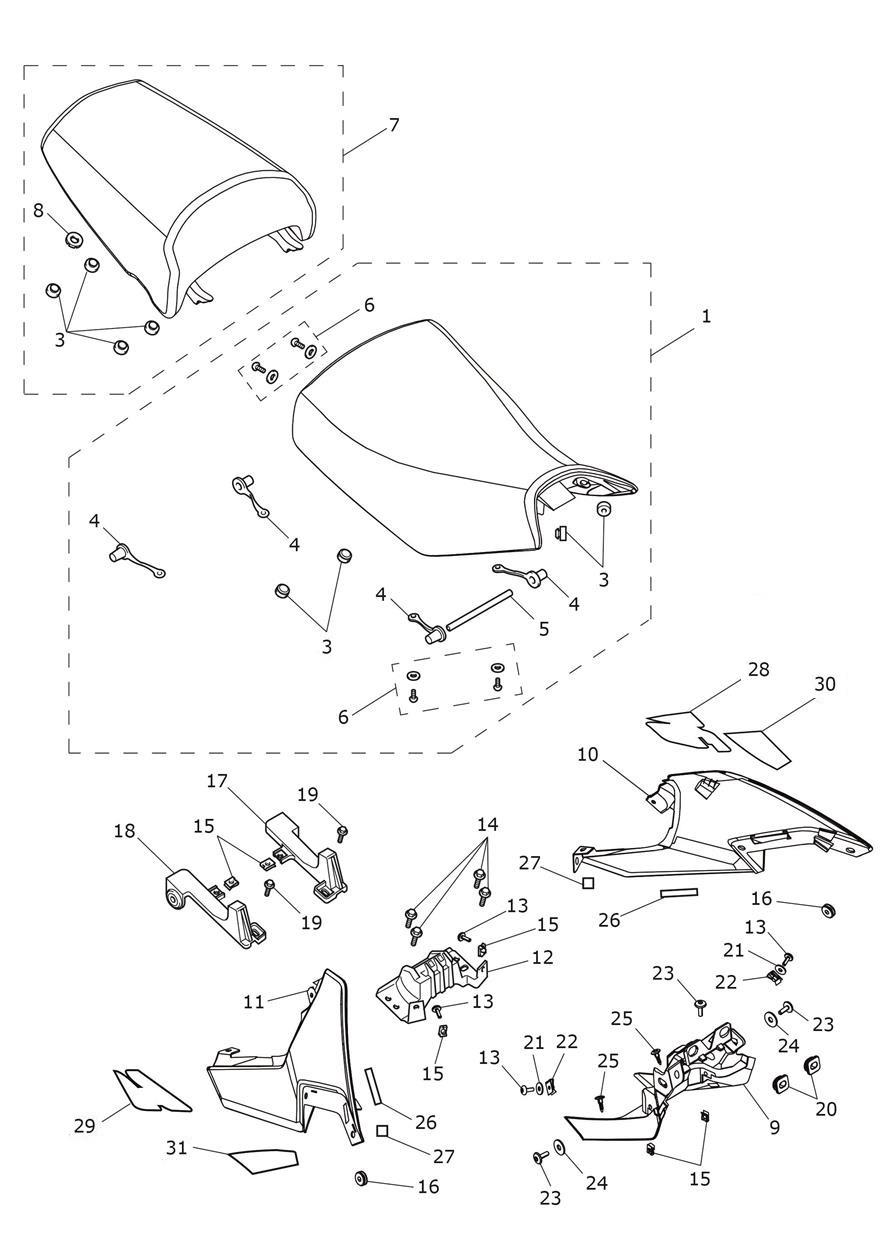

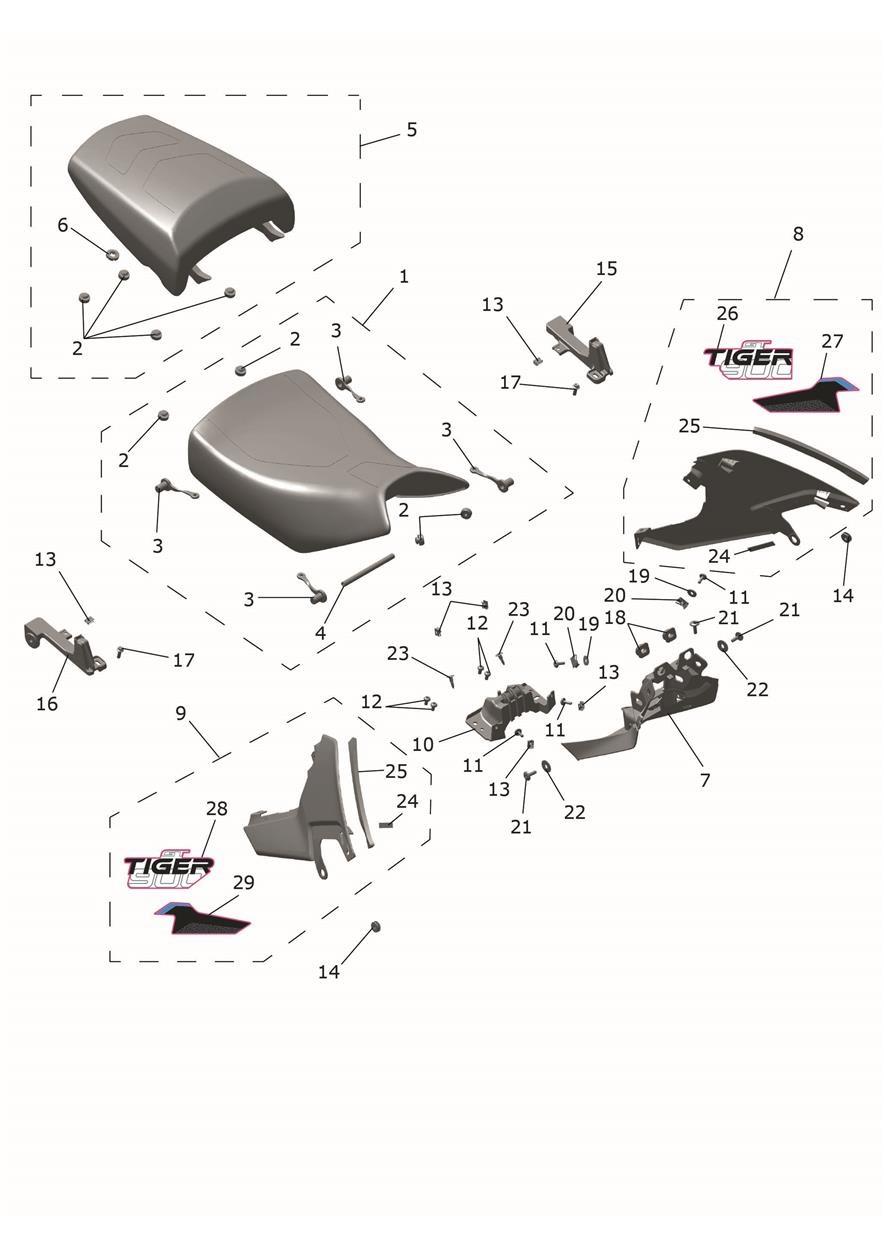

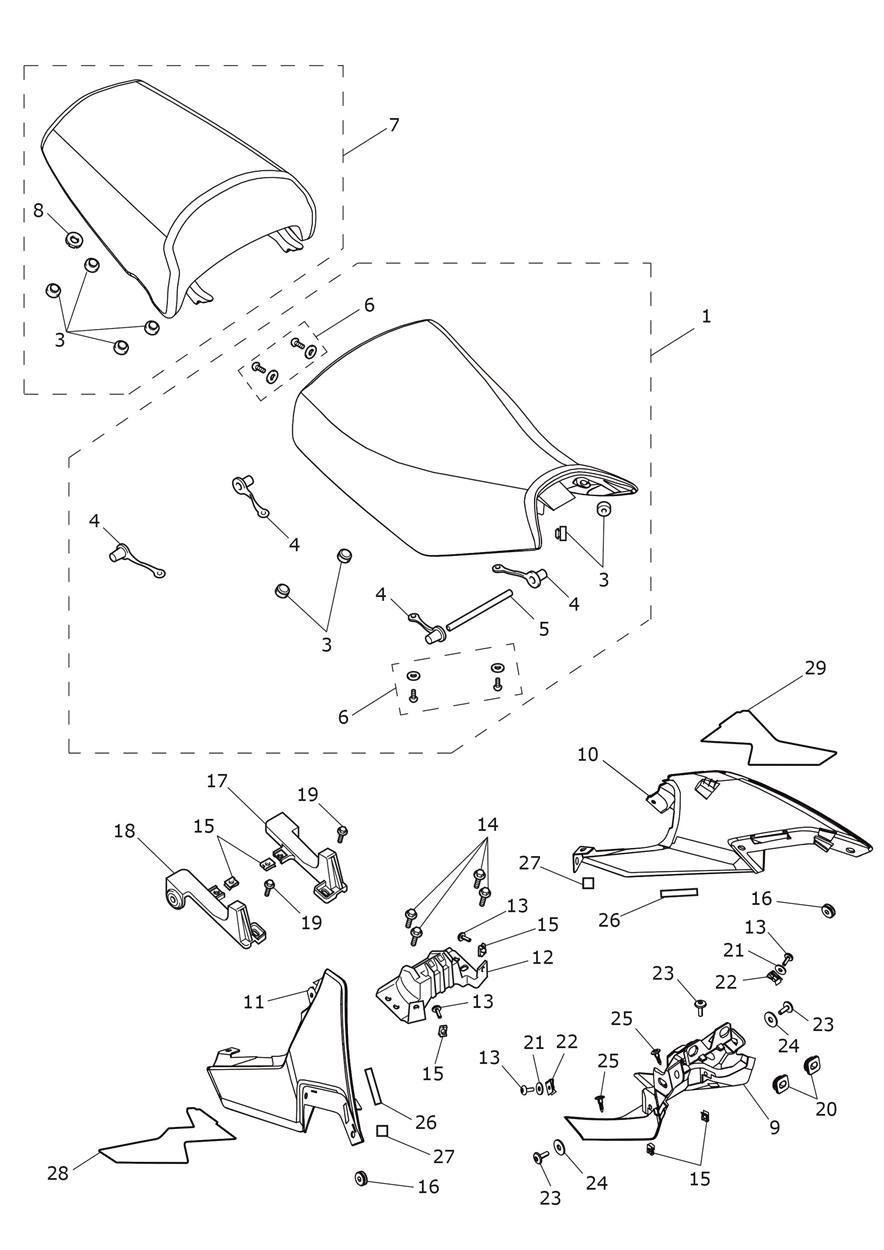

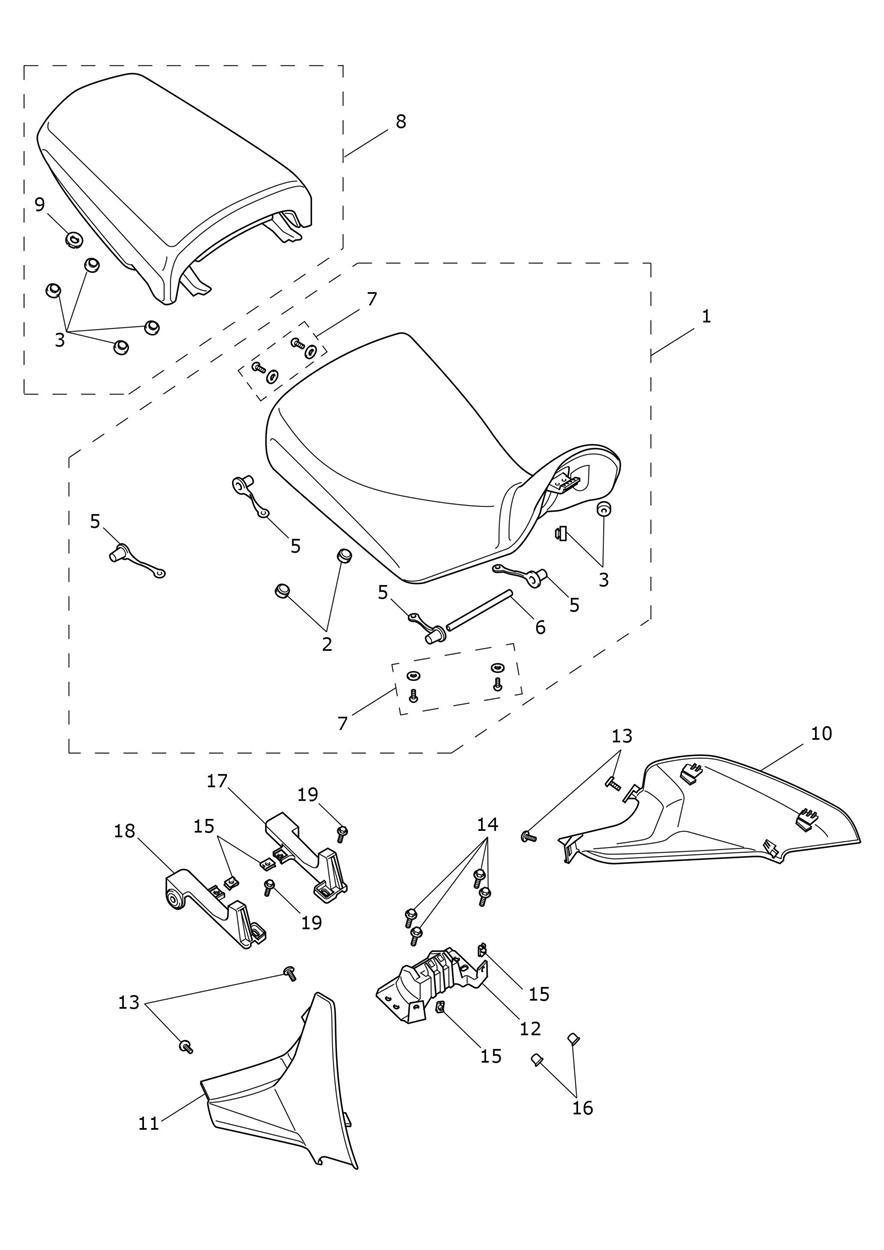

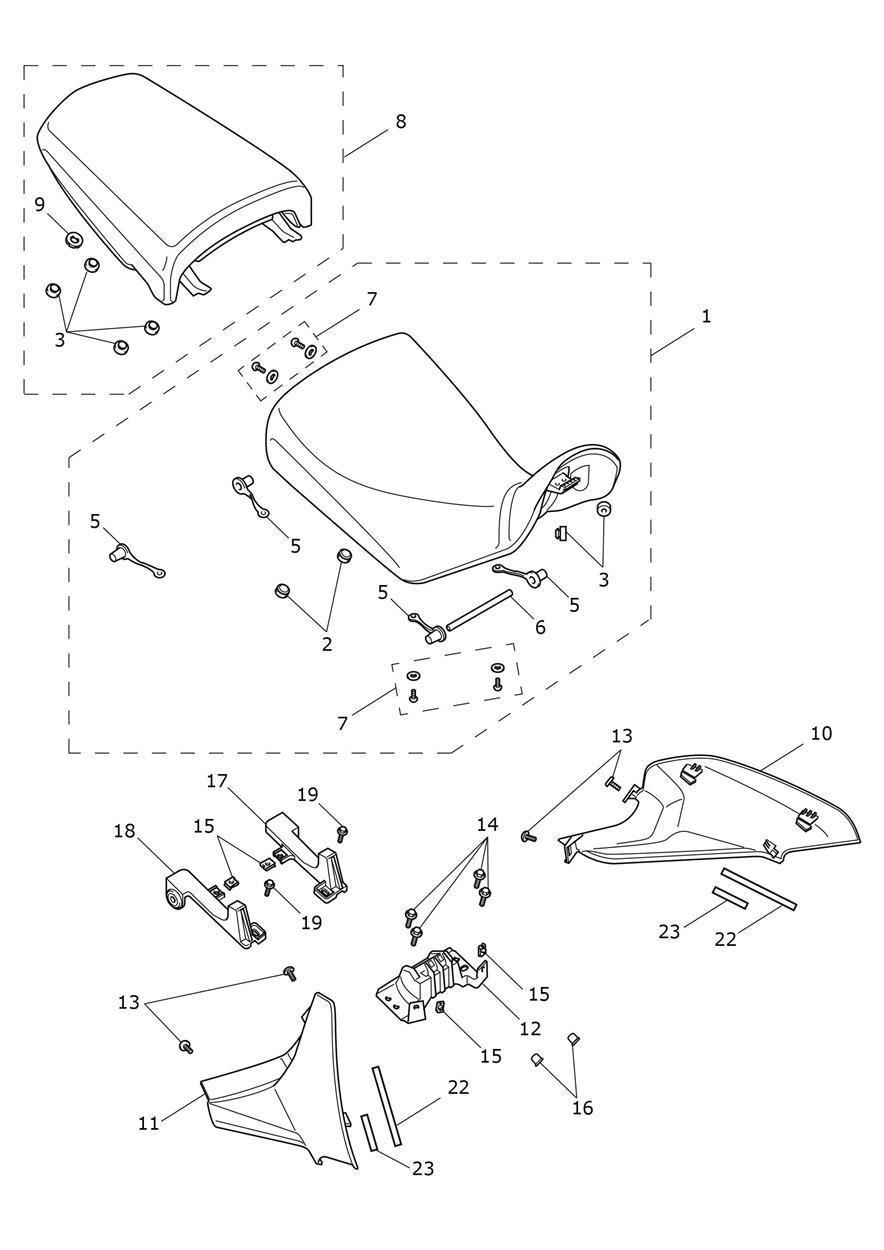

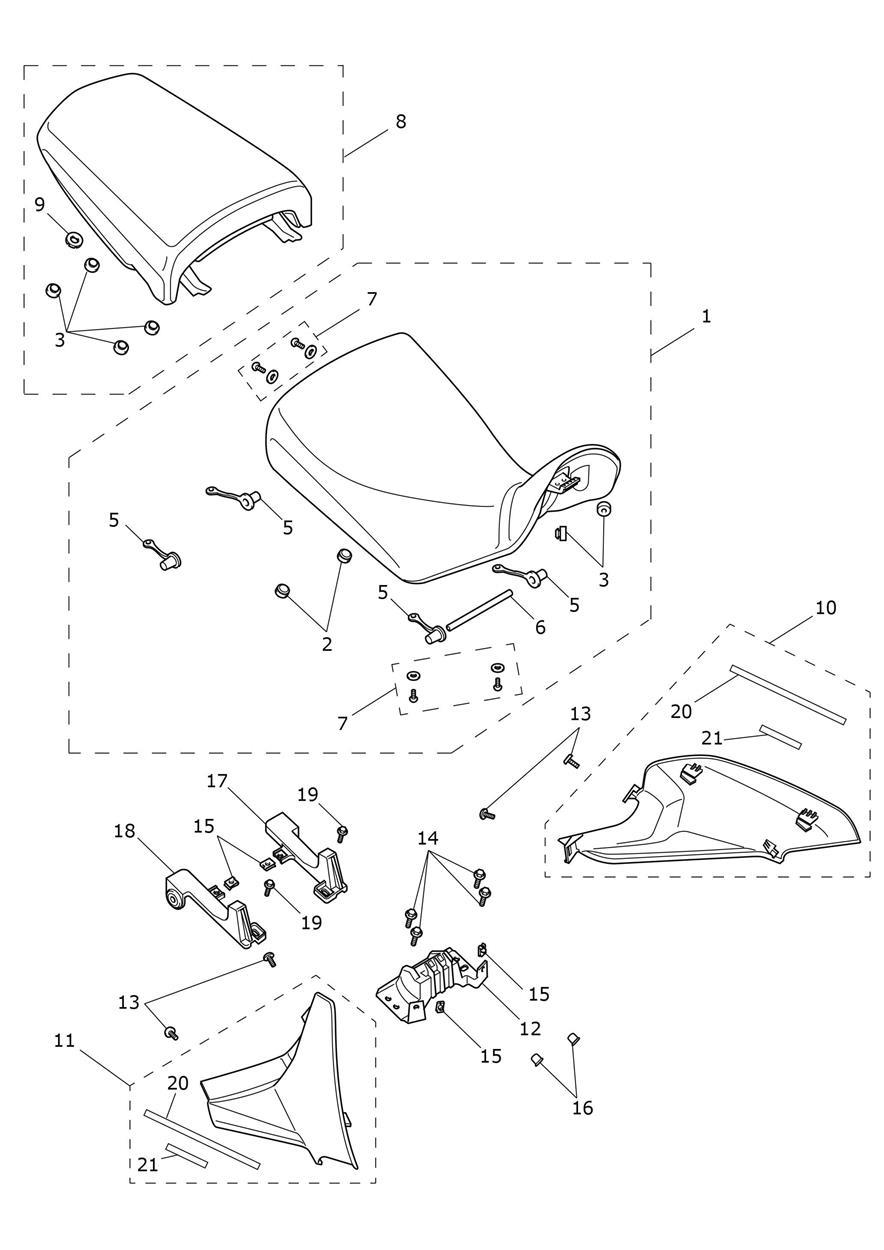

Seats
30 parts
Seats
18 parts
Seats
29 parts

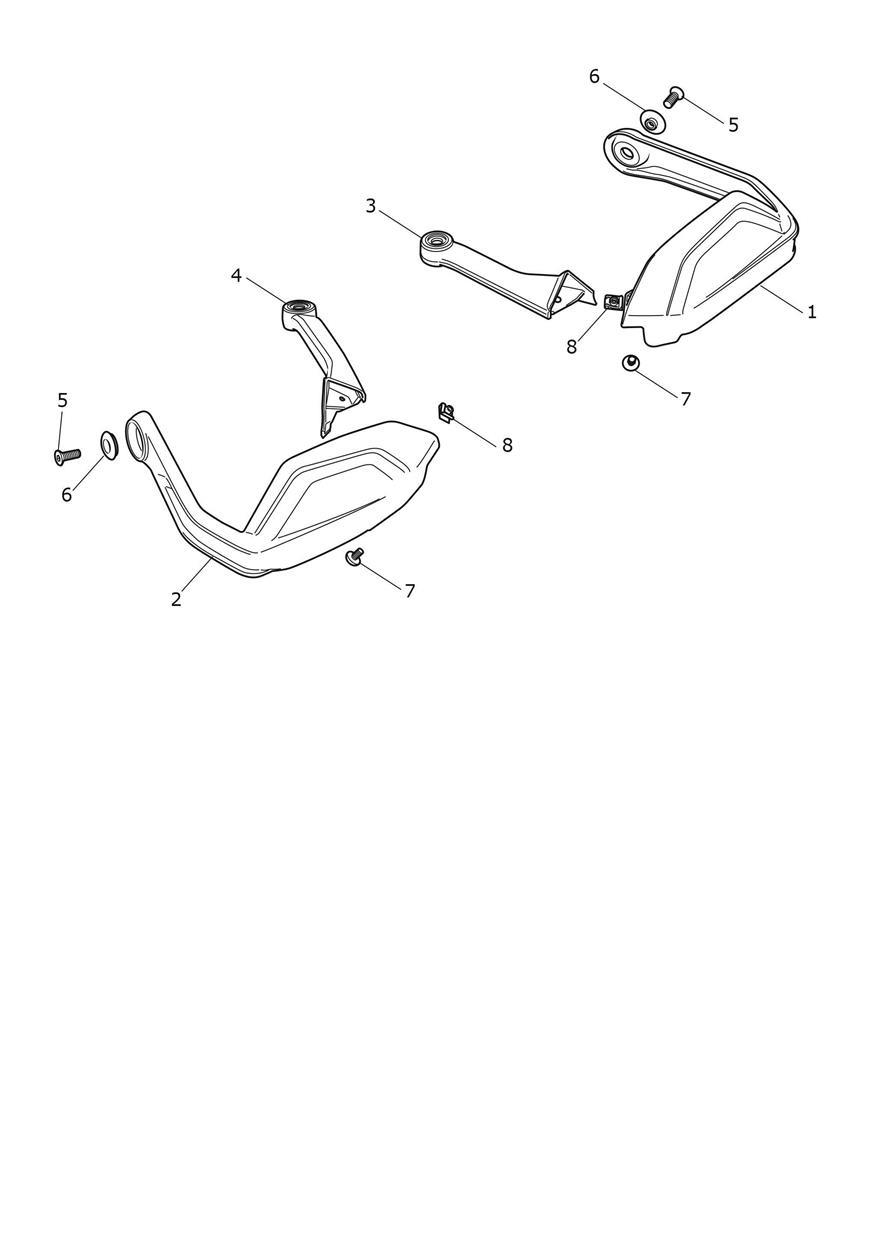

Handguards
8 parts
Luggage Mounting System - BR Only
10 parts
Luggage Mounting System BR Only
14 parts
Luggage Mounting System BR Only
14 parts
Rear Bodywork
19 parts
Rear Bodywork
19 parts
Rear Bodywork
19 parts
Rear Bodywork
19 parts

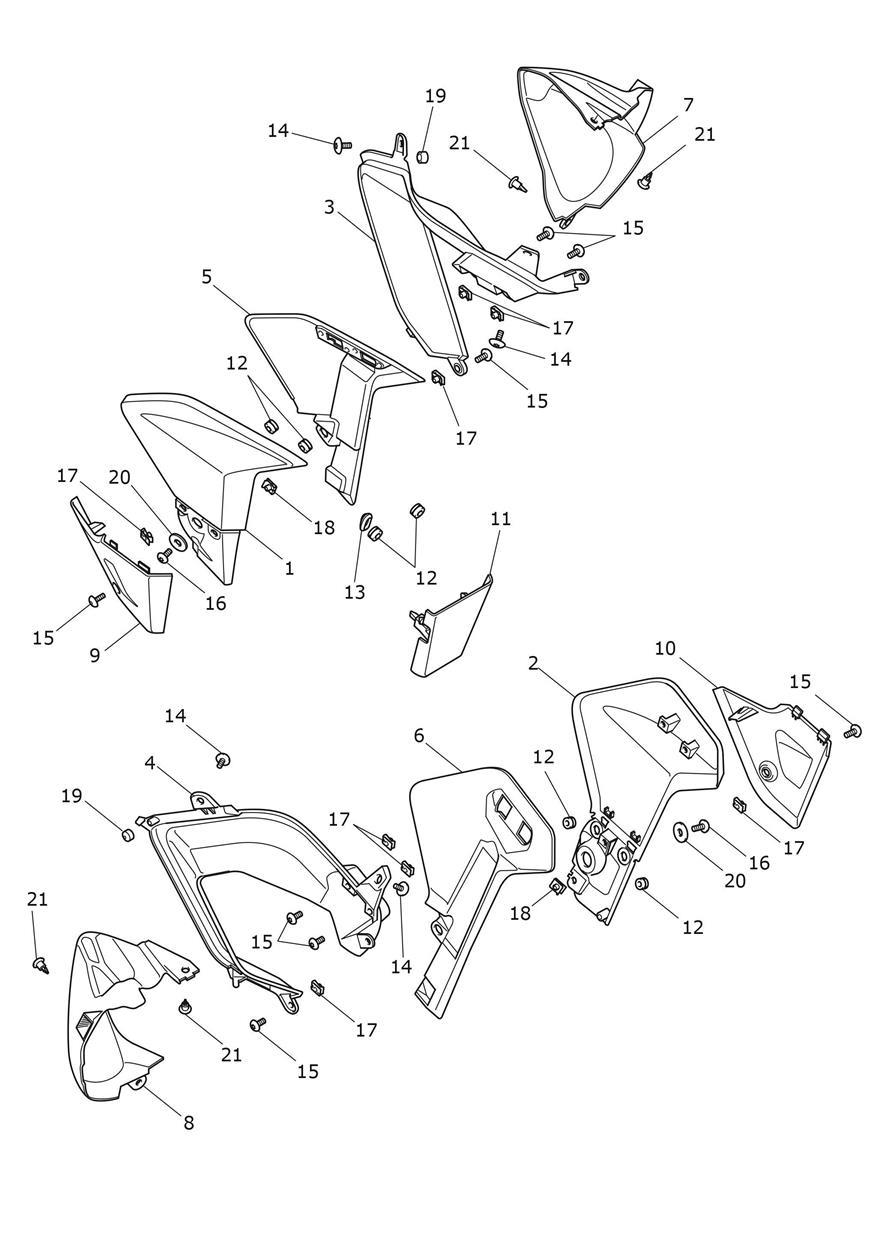

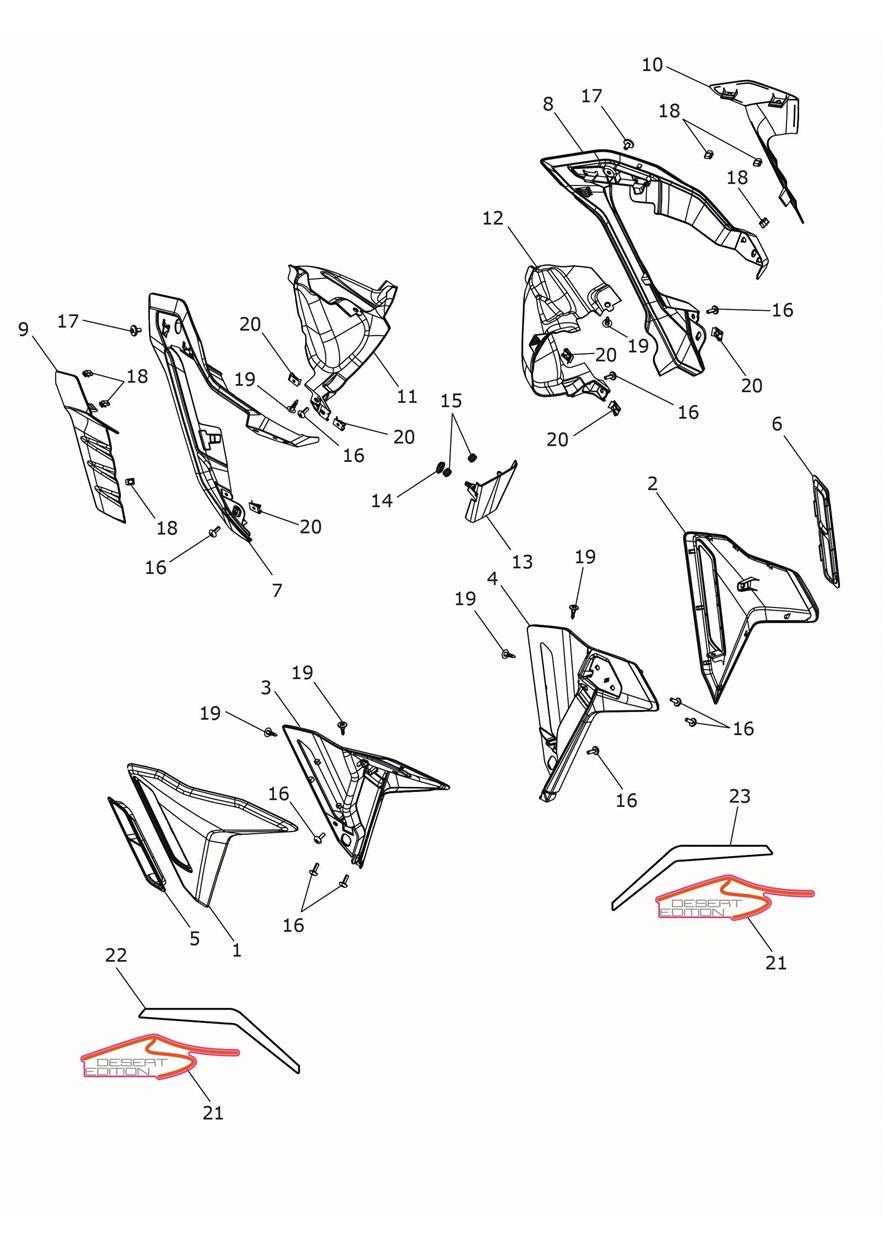

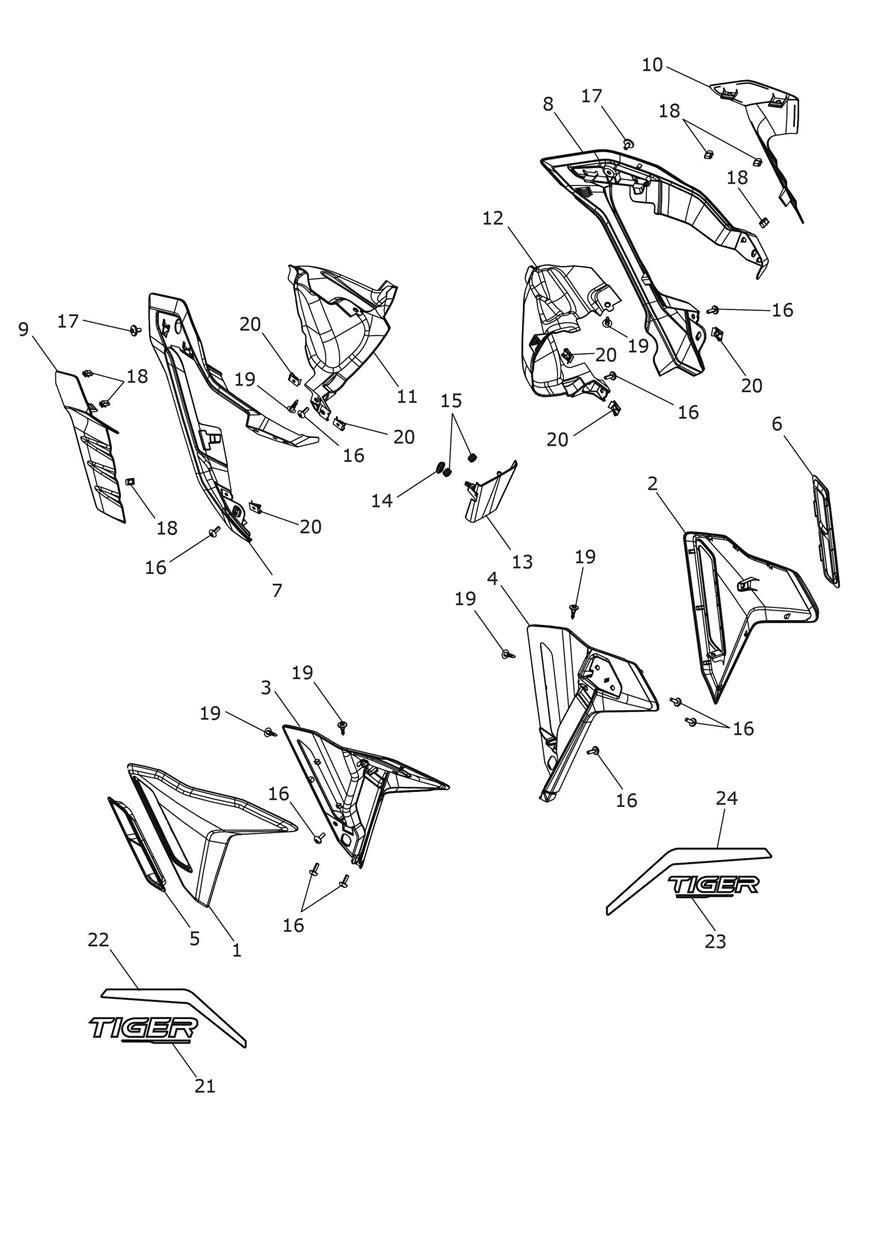

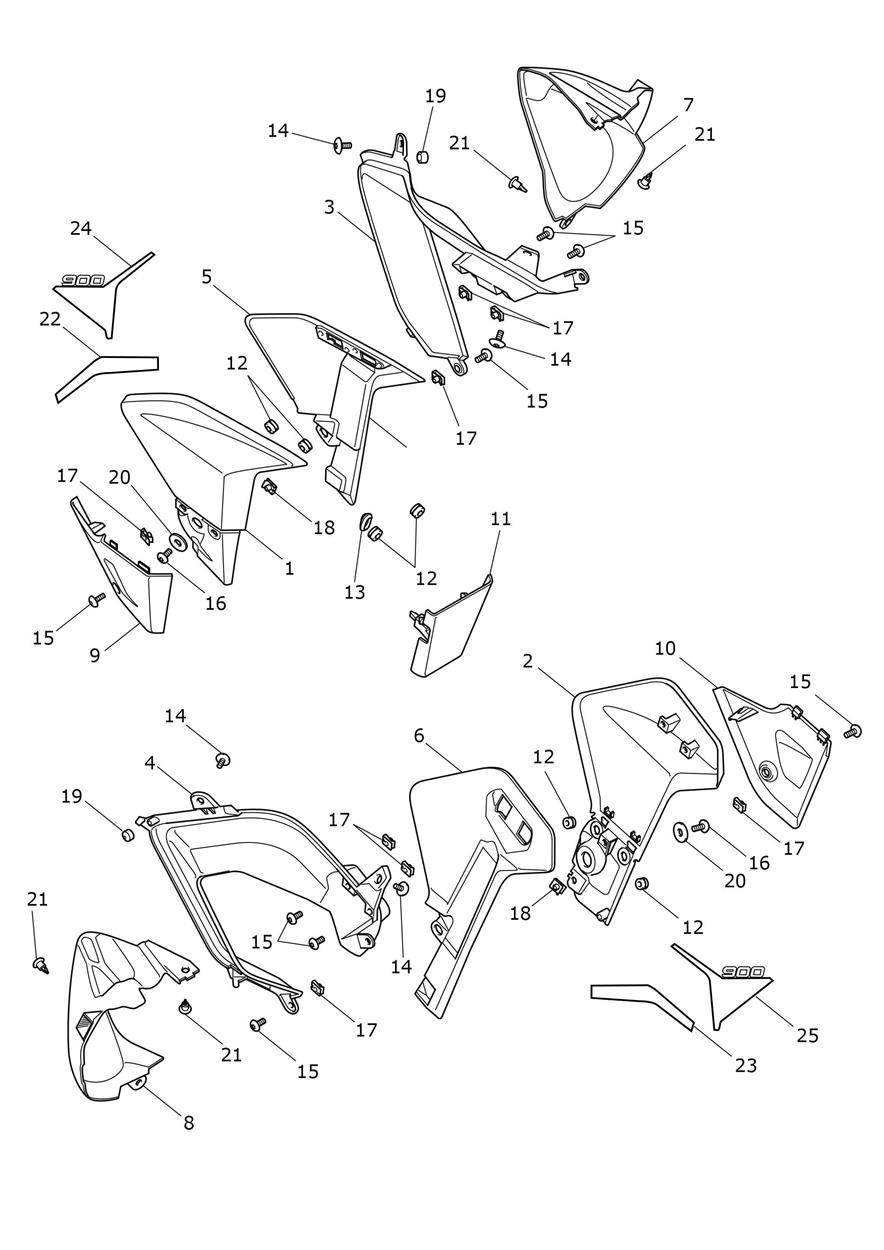

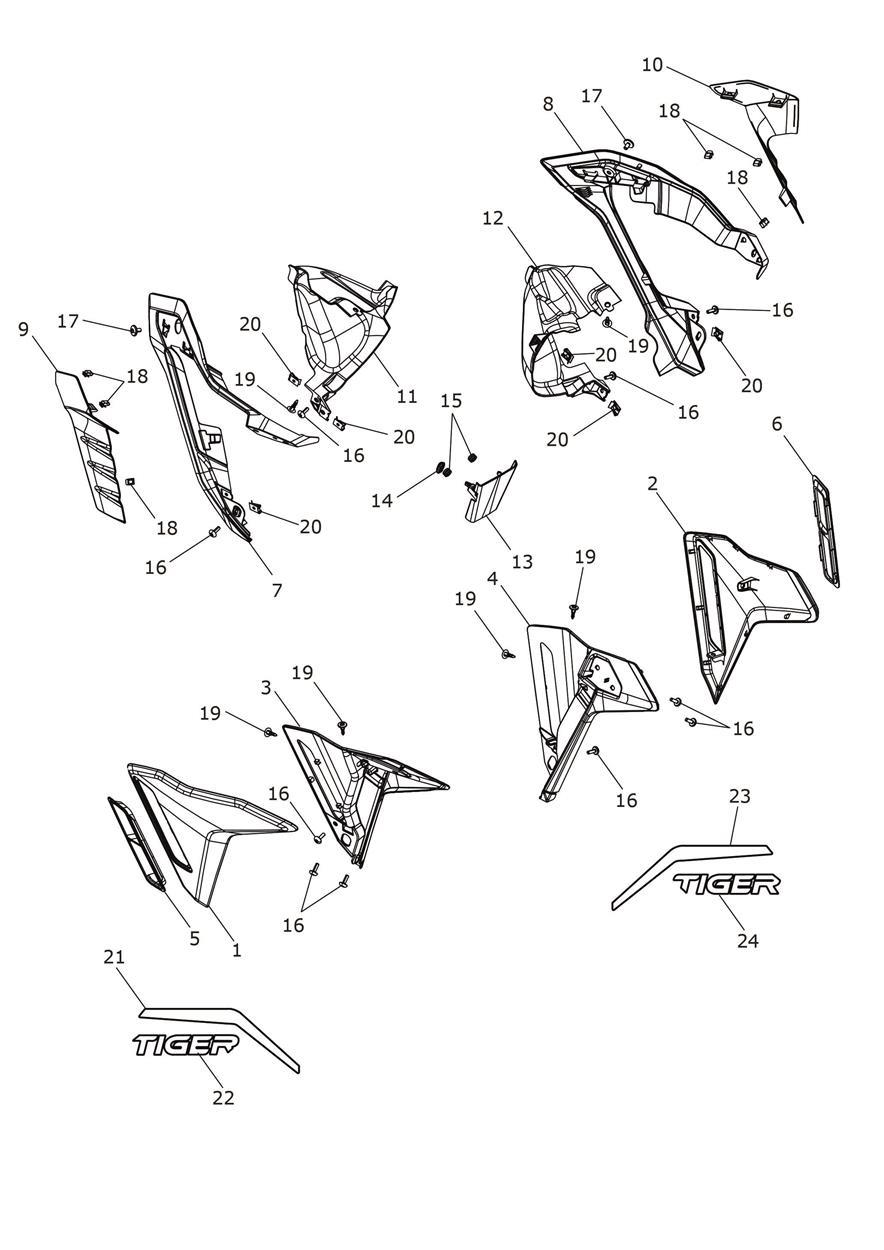

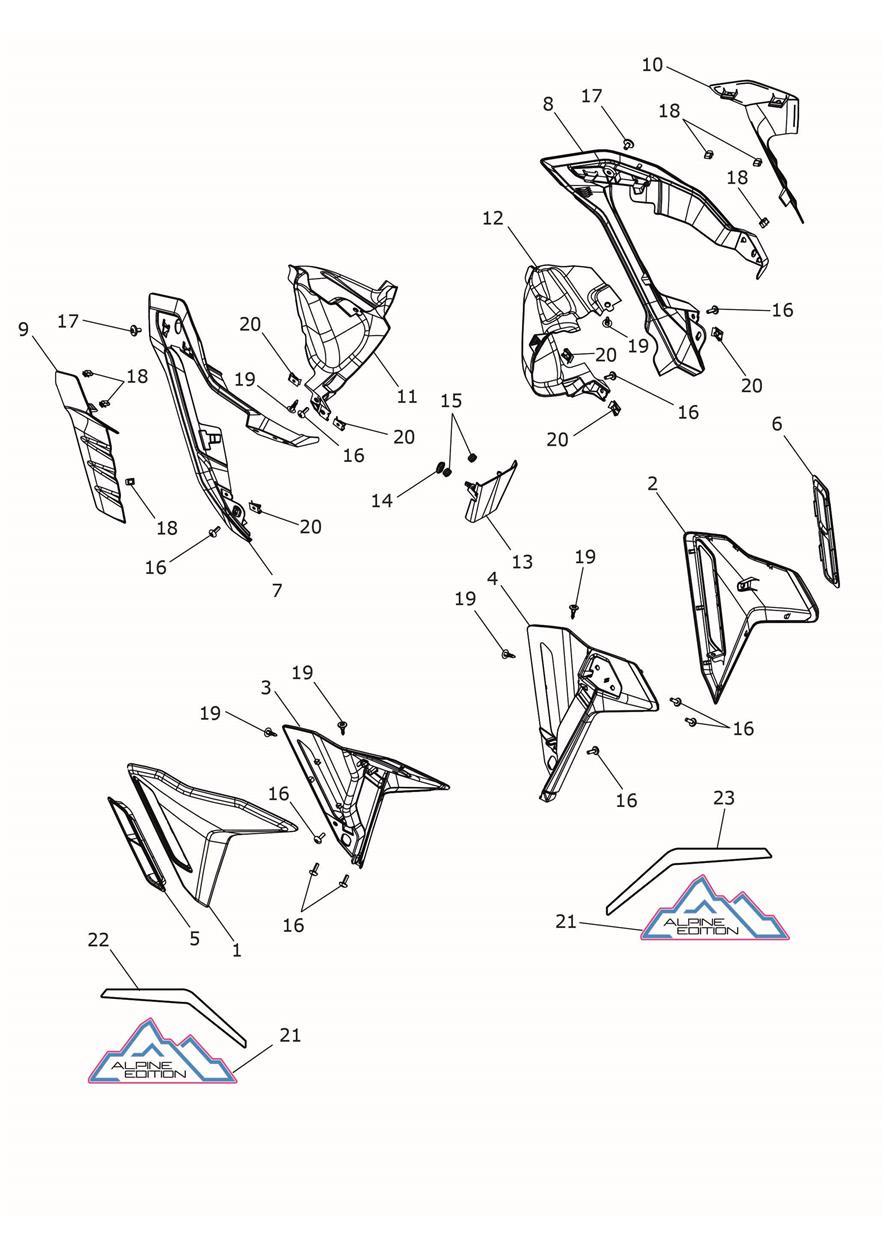

Side Panels
43 parts
Side Panels
22 parts

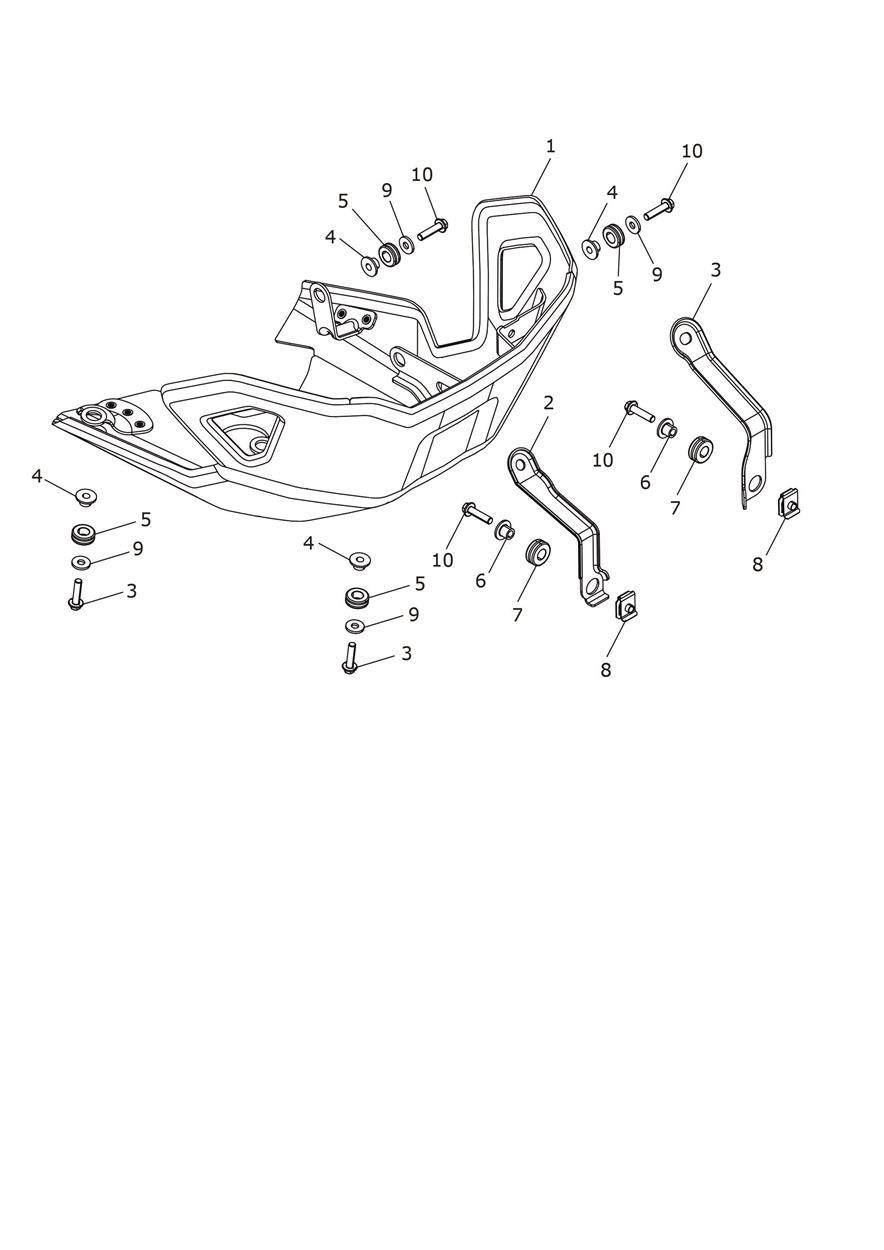

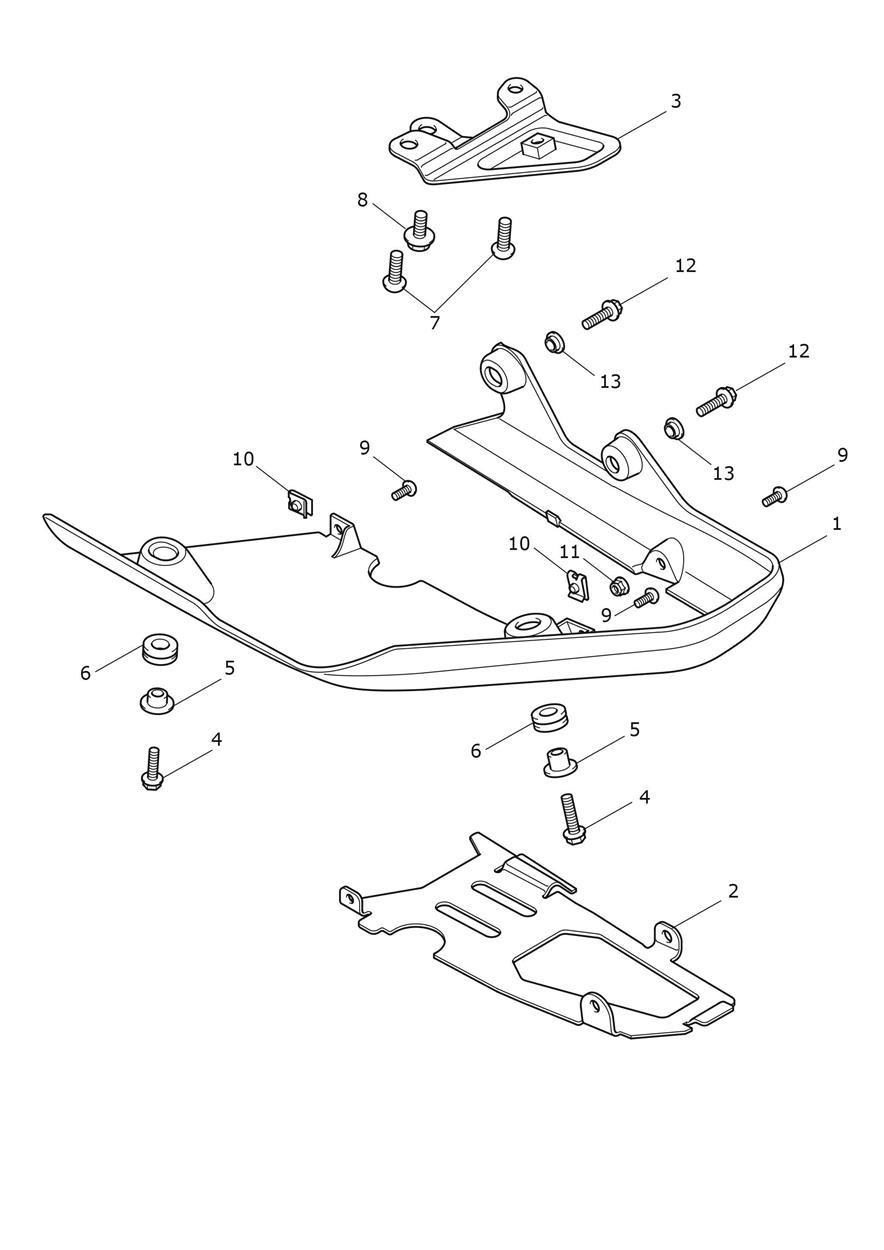

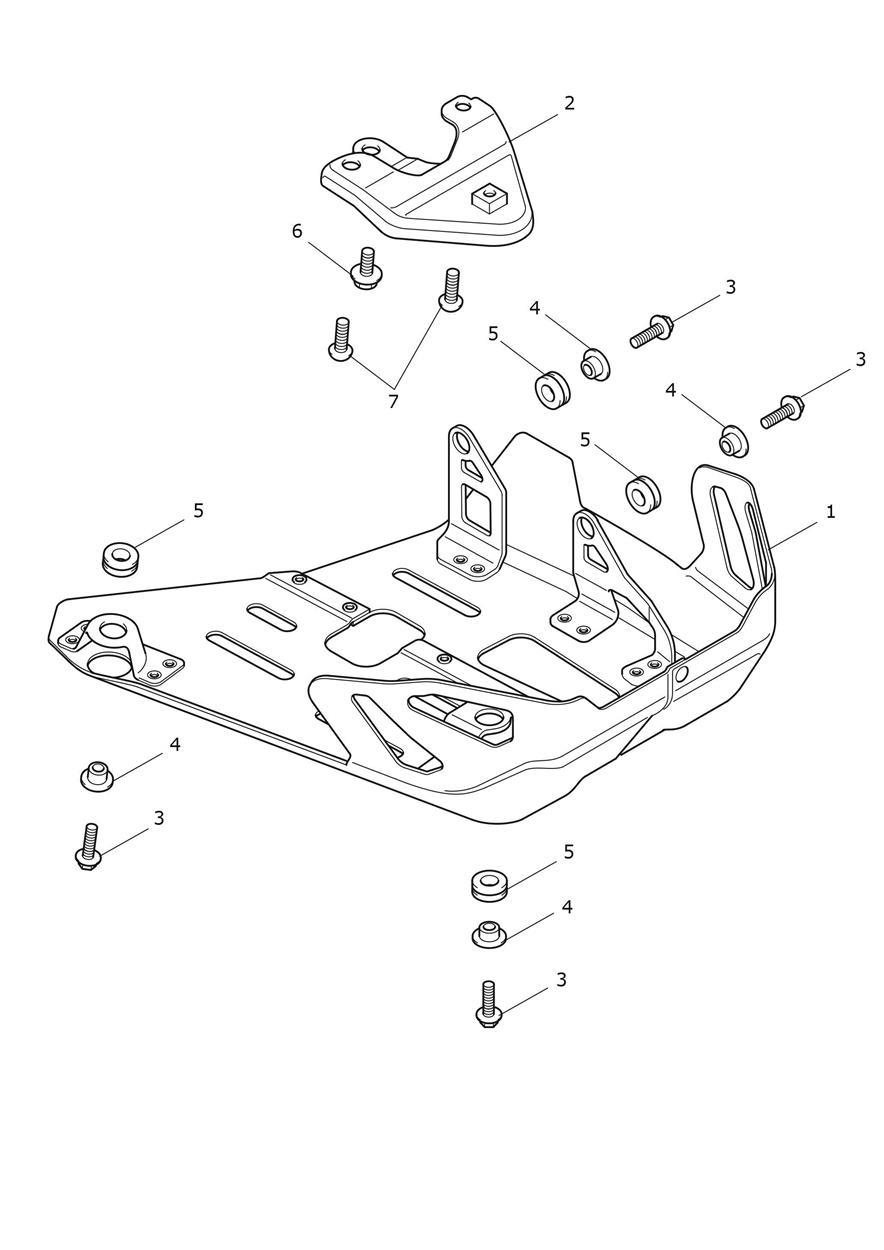

Sumpguard
13 parts

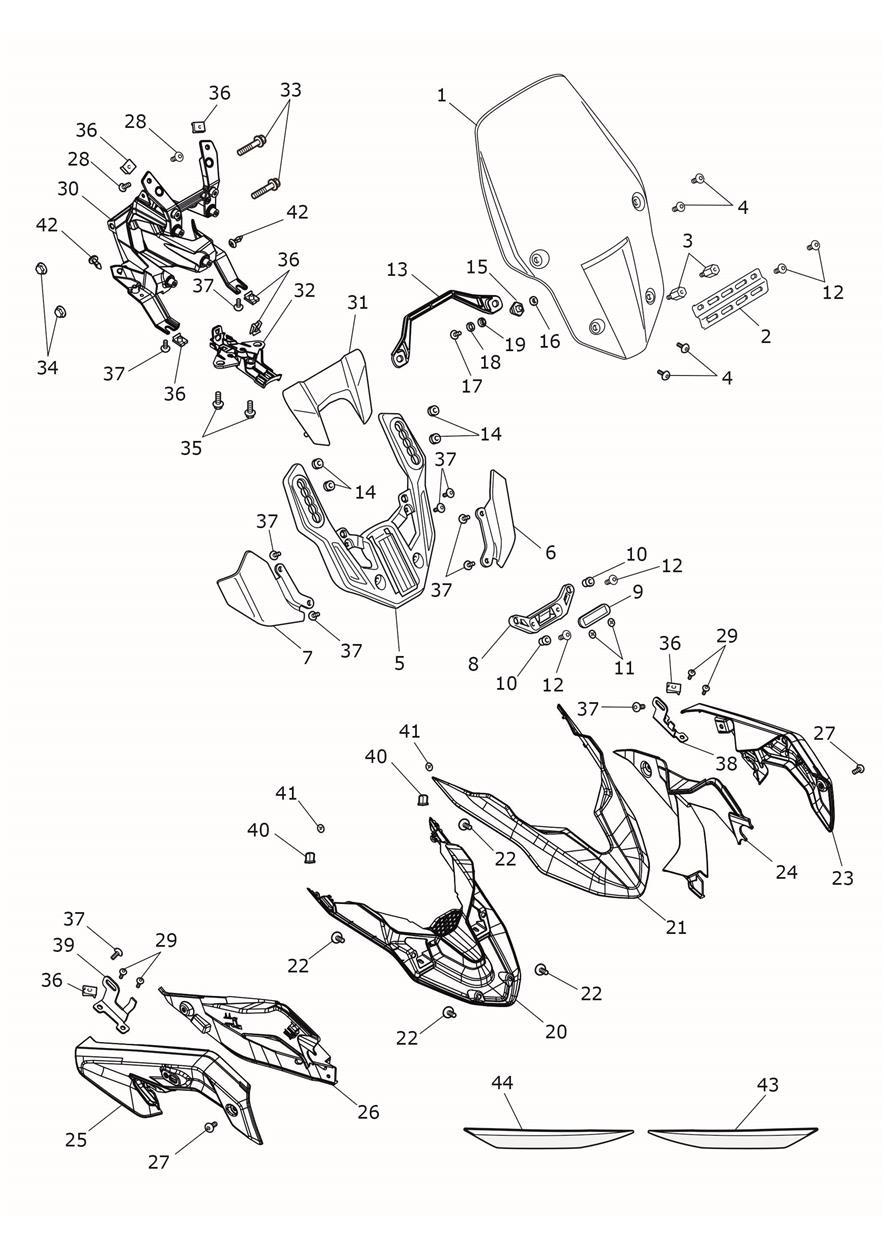

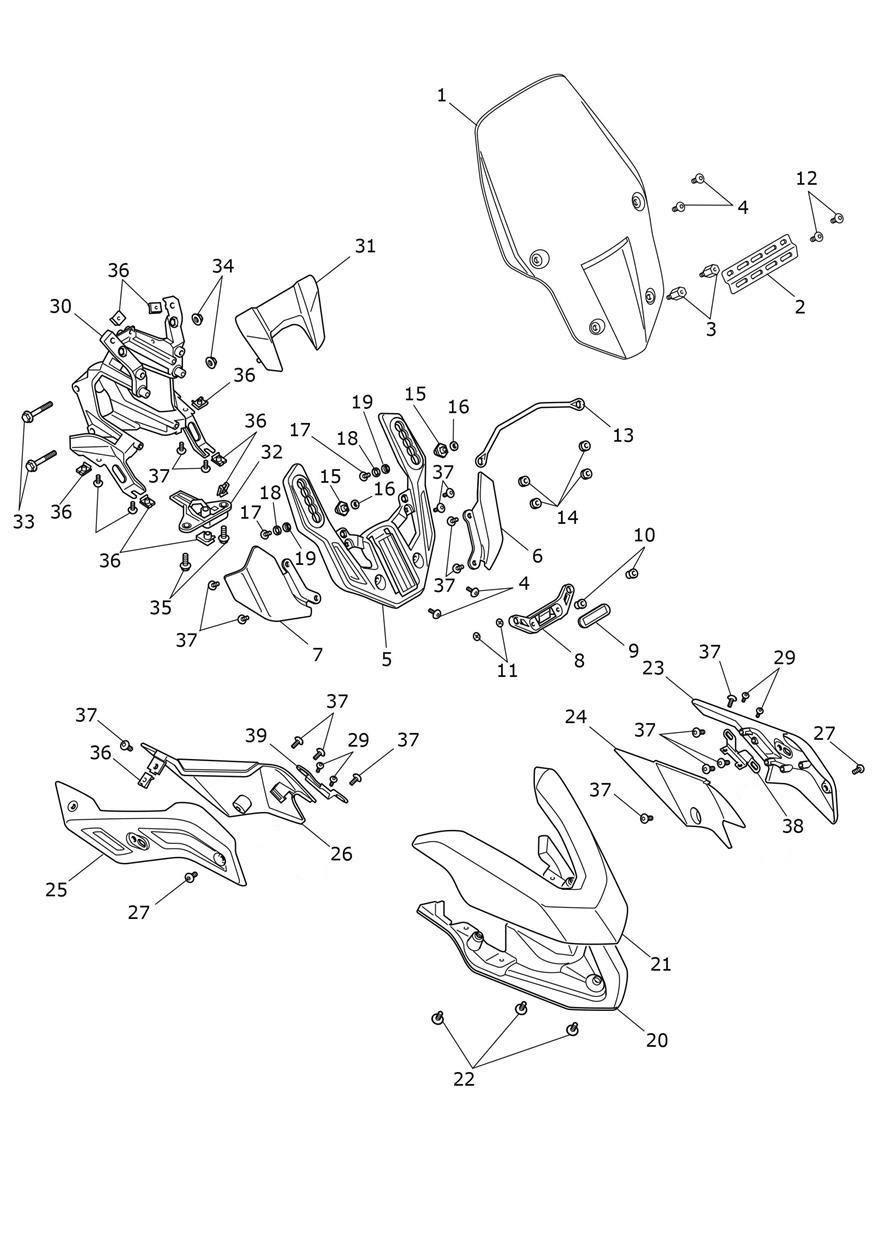

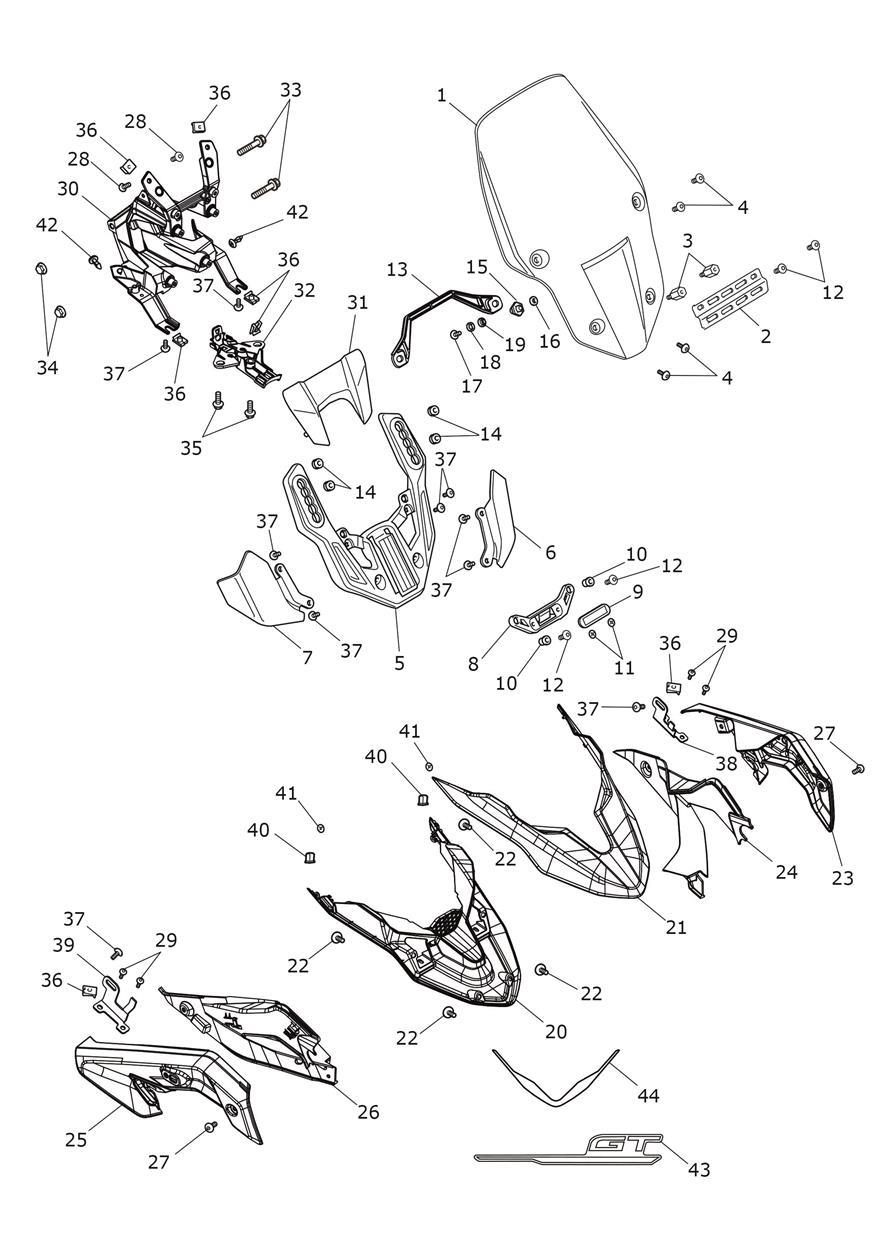

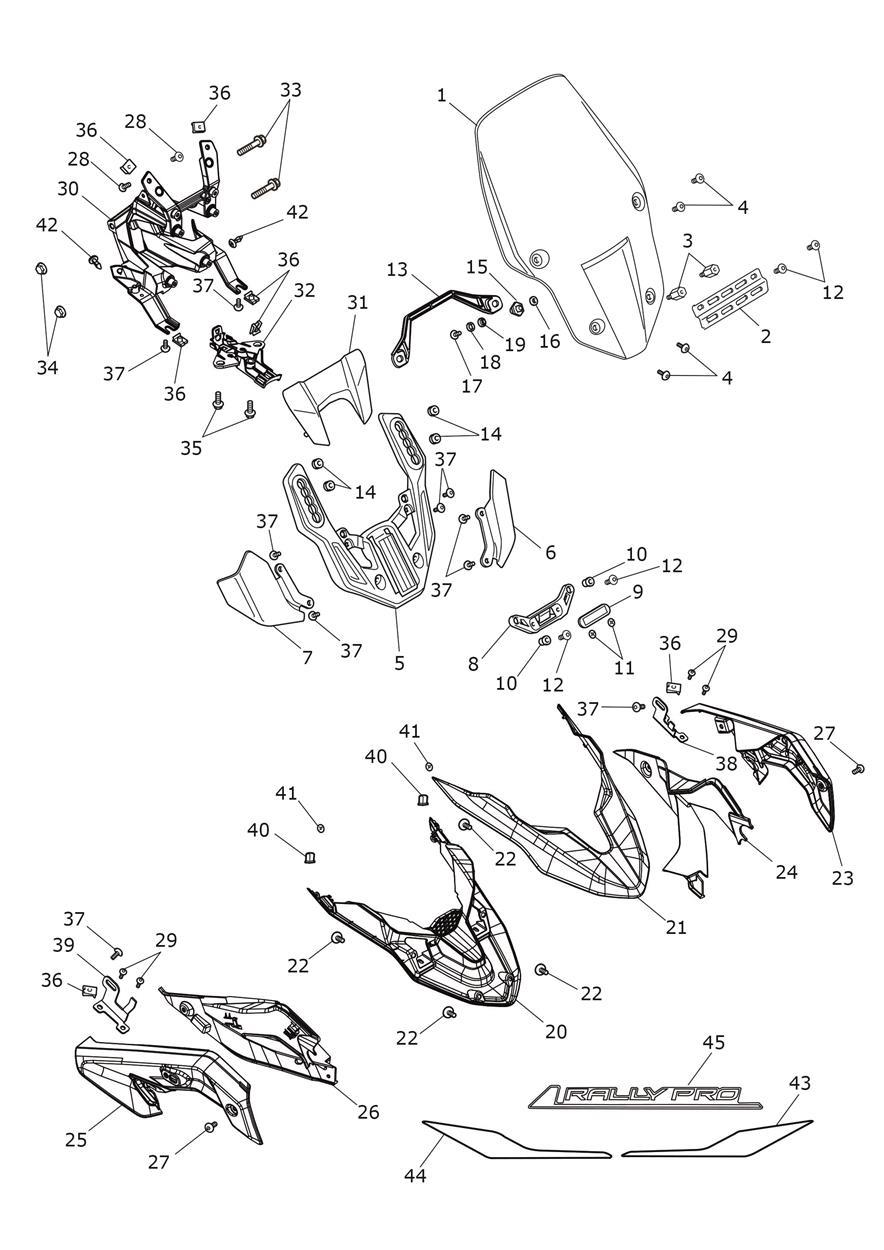

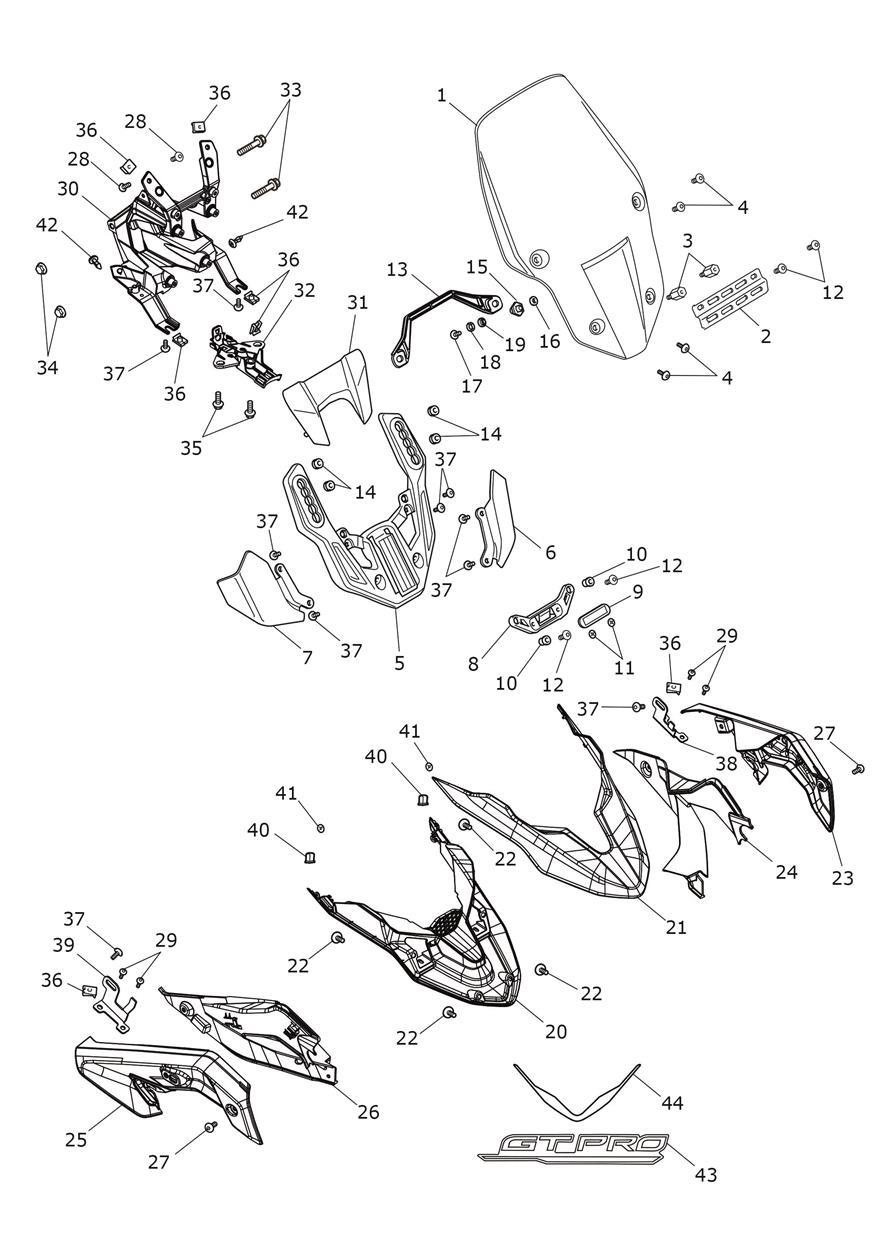

Cockpit
40 parts
Cockpit
55 parts
Cover O2 Sensor
6 parts
Handguards
8 parts
Luggage Mounting System - BR Only
10 parts
Luggage Mounting System BR Only
14 parts
Rear Bodywork
19 parts
Side Panels
23 parts
Sumpguard
10 parts
Sumpguard
13 parts
Sumpguard
13 parts
Cockpit
56 parts
Cockpit
47 parts
Cockpit
55 parts
Luggage Mounting System BR Only
14 parts
Rear Bodywork
19 parts
Rear Bodywork
19 parts
Seats
34 parts
Seats
29 parts
Side Panels
50 parts
Side Panels
60 parts
Sumpguard
10 parts
Cockpit
54 parts
Handguards
8 parts
Handguards
8 parts
Luggage Mounting System BR Only
14 parts
Luggage Mounting System BR Only
14 parts
Rear Bodywork
19 parts
Rear Bodywork
19 parts
Seats
48 parts
Seats
42 parts
Seats
39 parts

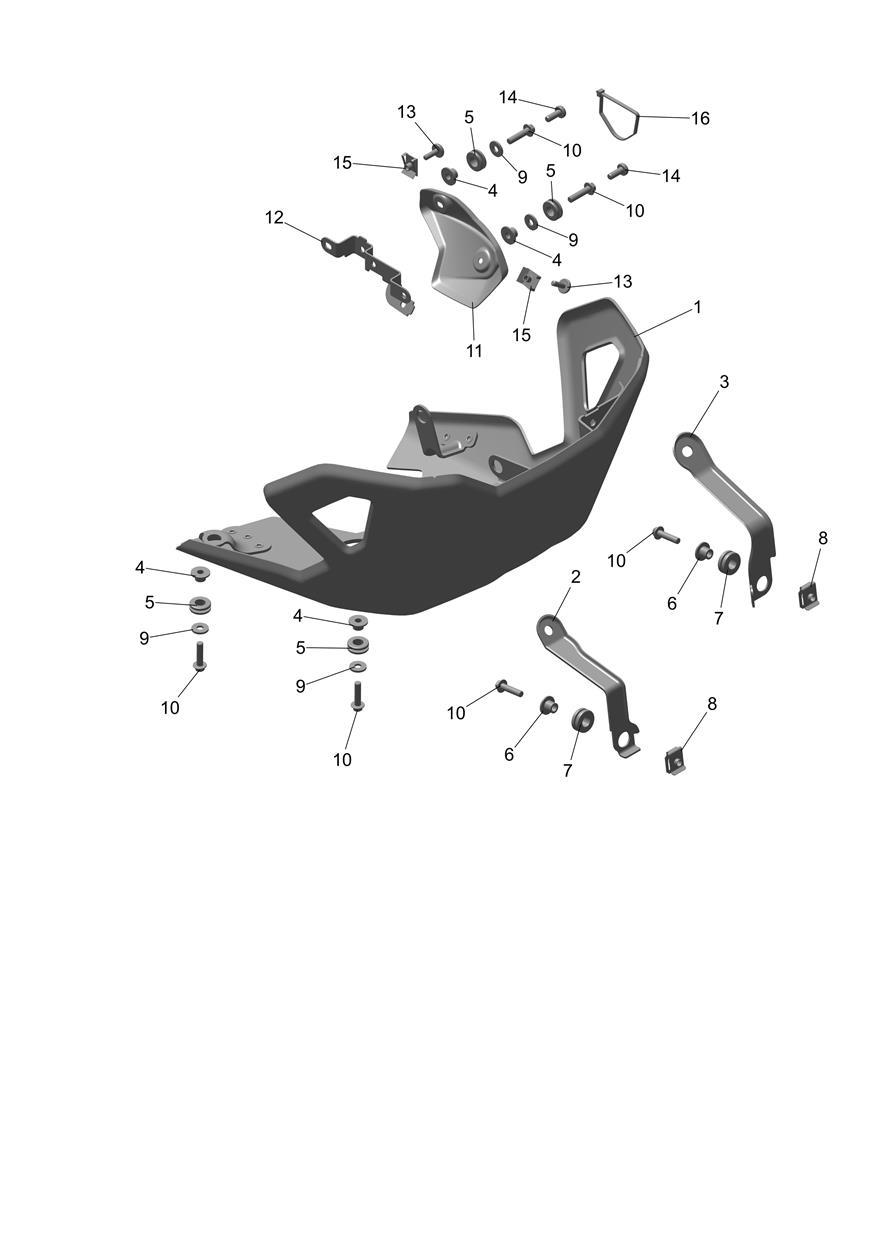

Sumpguard & O2 Cover Sensor
16 parts
Cockpit
59 parts
Cockpit
44 parts
Handguards
8 parts
Handguards
8 parts
Handguards
8 parts
Handguards
8 parts
Rear Bodywork
19 parts
Seats
40 parts
Side Panels
41 parts
Sumpguard
13 parts
Sumpguard
13 parts
Cockpit
48 parts
Cockpit
43 parts
Cockpit
44 parts
Handguards
8 parts
Seats
48 parts
Seats
40 parts
Side Panels
50 parts
Side Panels
41 parts
Side Panels
23 parts
Sumpguard
7 parts
