Front Suspension & Steering incl. Clutch Controls
Triumph Tiger 900 & 850 · 33 diagrams
33 exploded diagrams for the front suspension & steering incl. clutch controls of the Triumph Tiger 900 & 850, covering the Tiger 850 Sport, Tiger 900 Alpine Edition, Tiger 900 Desert Edition, Tiger 900 GT, Tiger 900 GT Aragón Edition, Tiger 900 GT Pro, Tiger 900 Rally, Tiger 900 Rally Aragón Edition, Tiger 900 Rally Pro. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

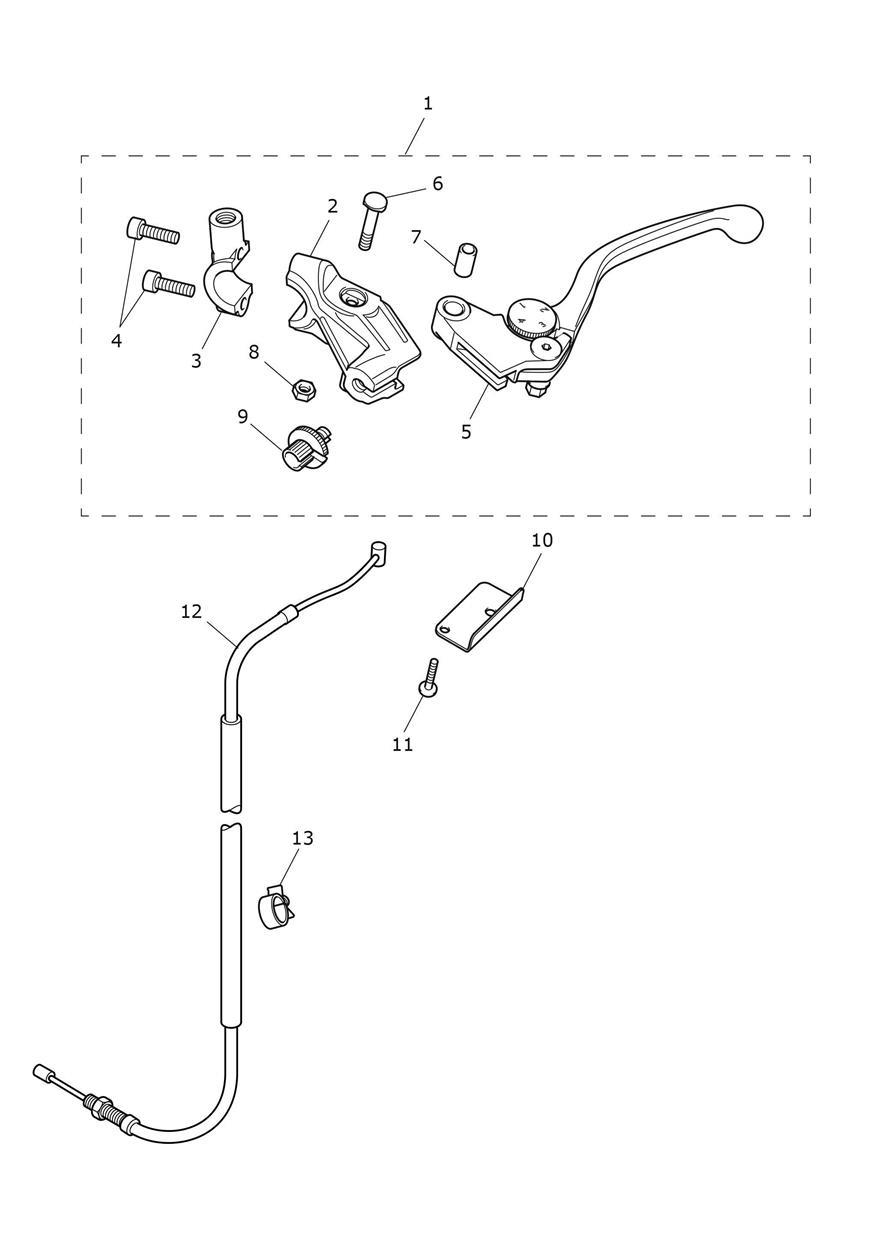

Clutch Controls
13 parts
VIN BP5373 and higher
Clutch Controls
13 parts
VIN BP6441 and higher

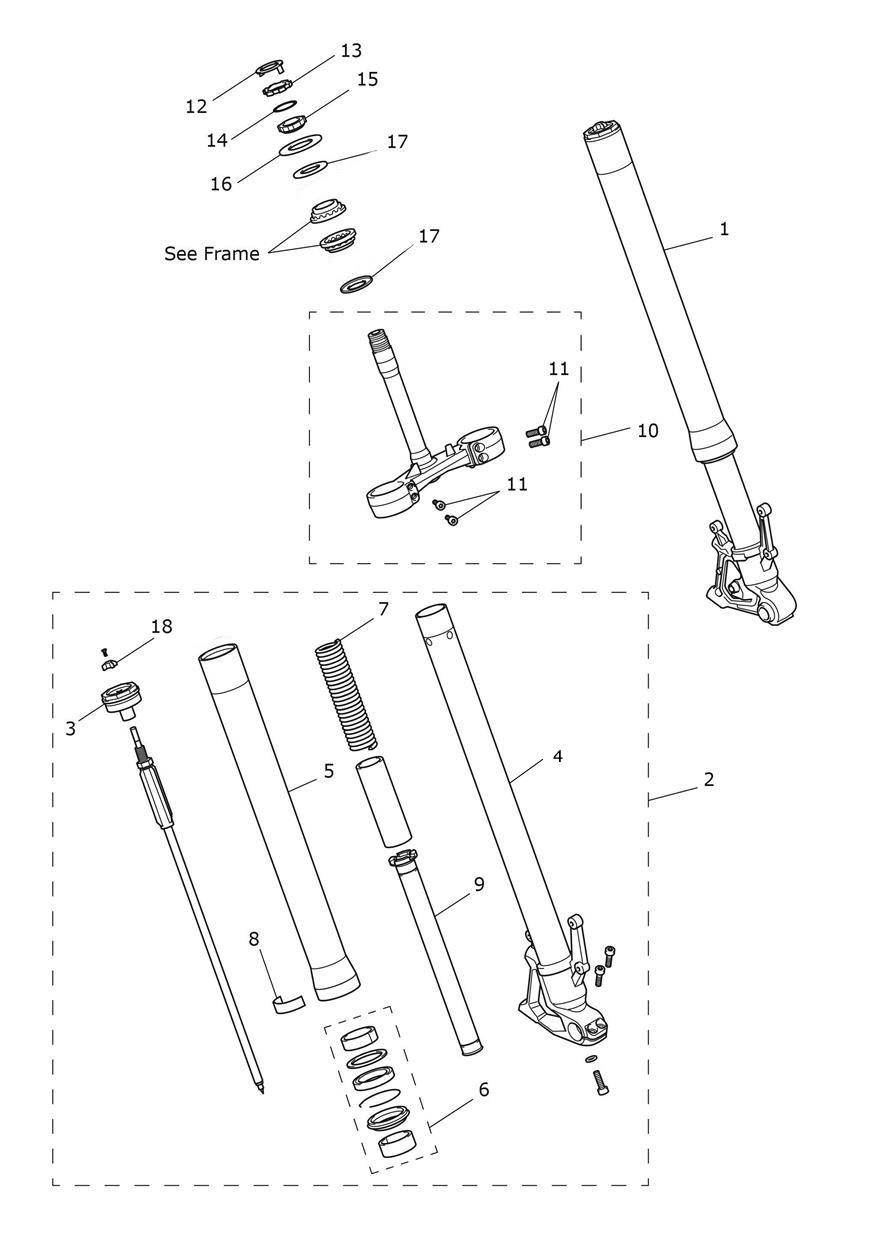

Front Forks & Lower Yoke Assy
34 parts

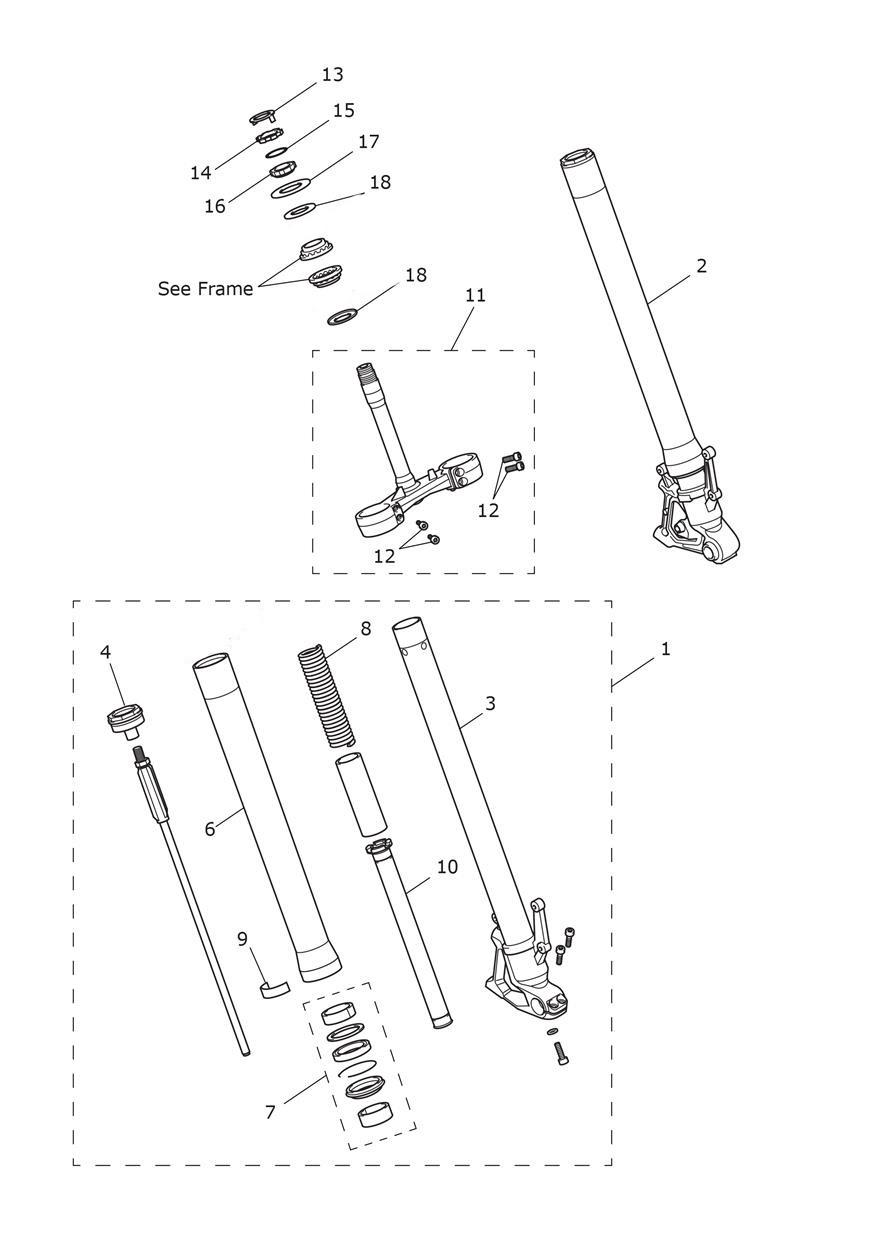

Front Forks & Lower Yoke Assy
34 parts

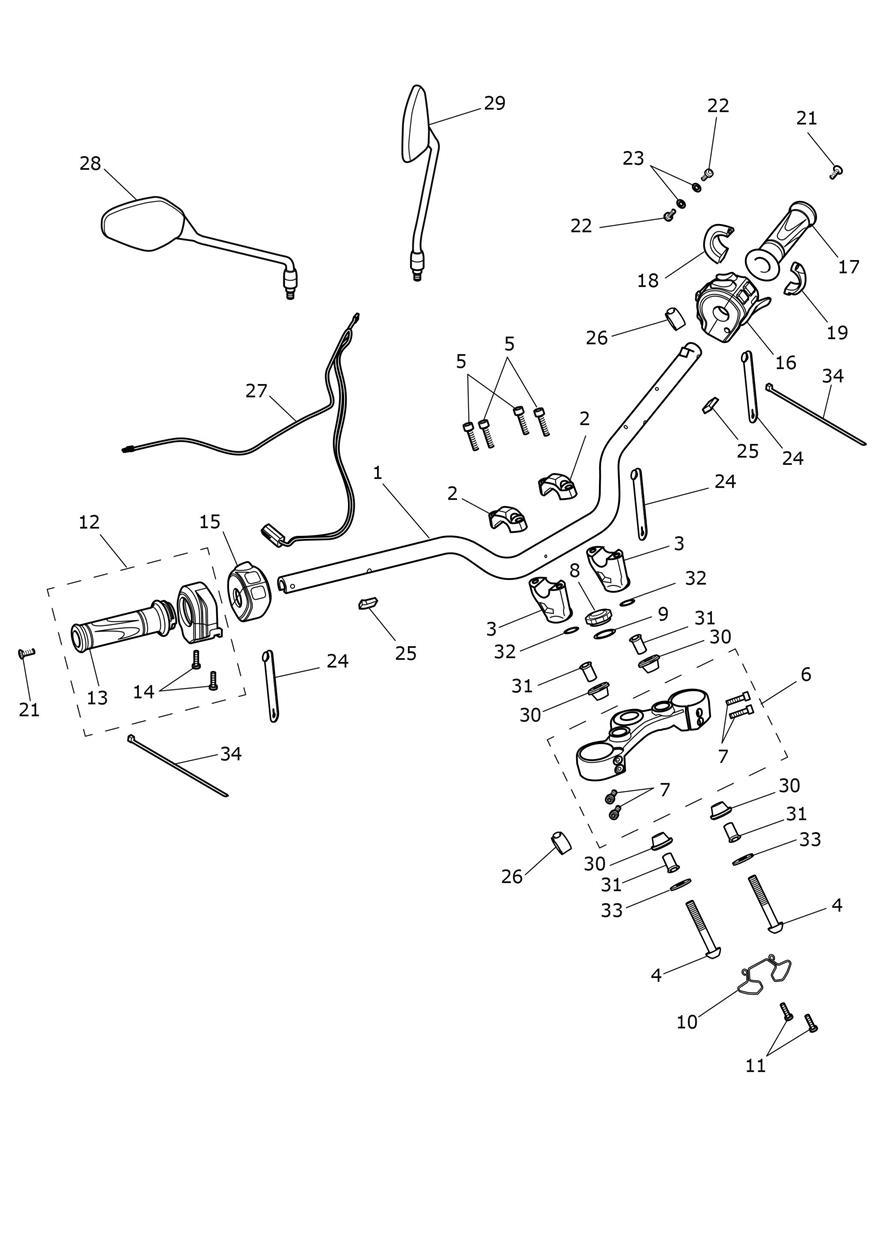

Handlebars & Switches
29 parts

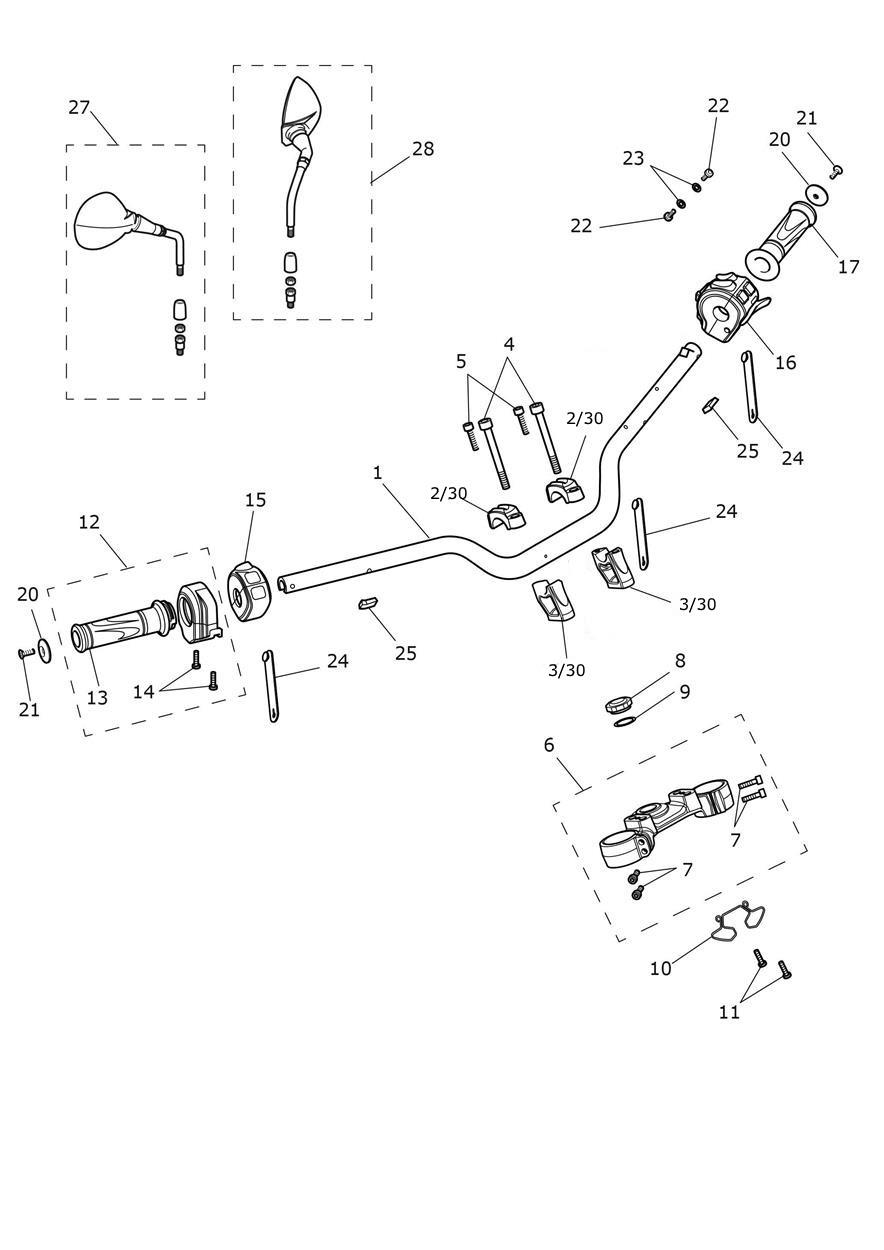

Handlebars & Switches
33 parts
VIN BP4996 and higher

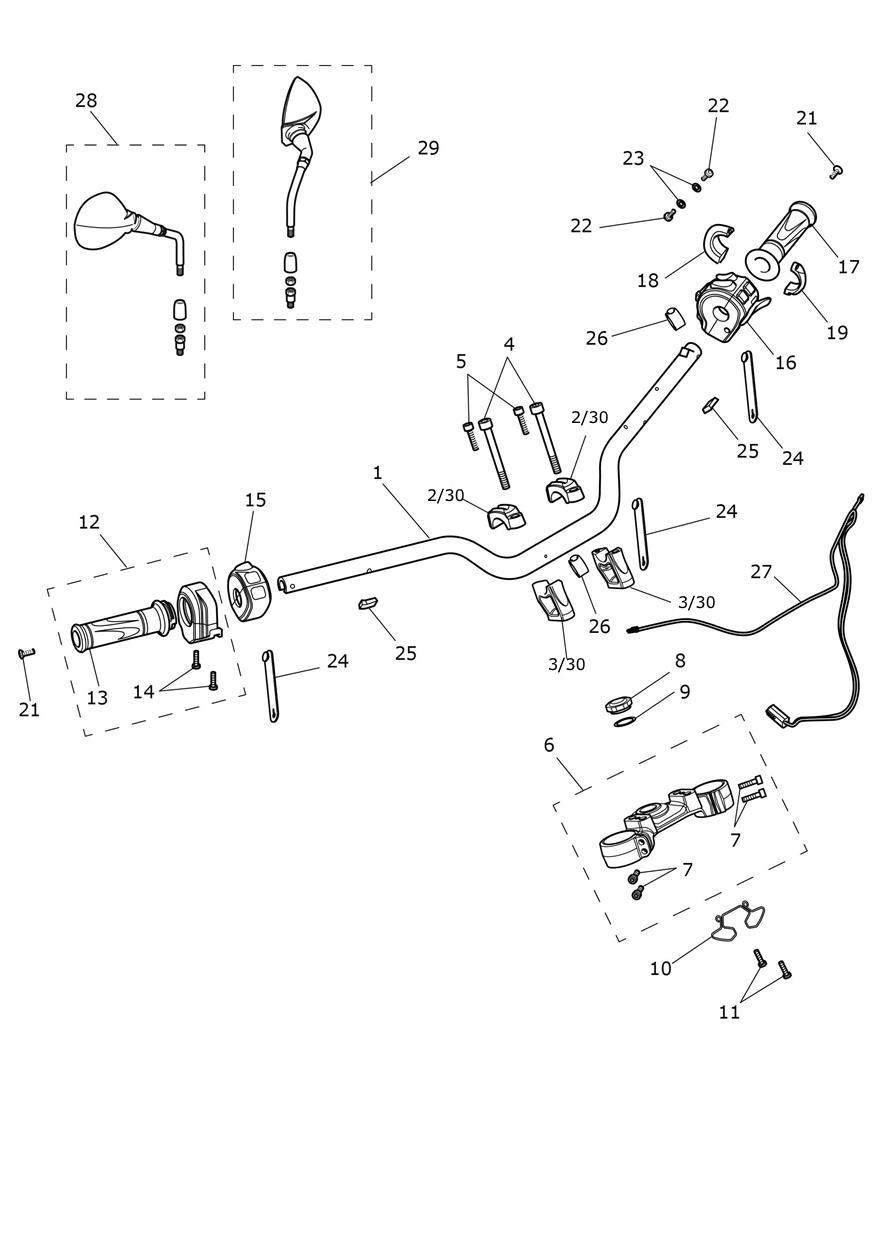

Handlebars & Switches
29 parts
VIN BP6440 and lower
Handlebars & Switches
29 parts
Handlebars & Switches
33 parts
Clutch Controls
13 parts

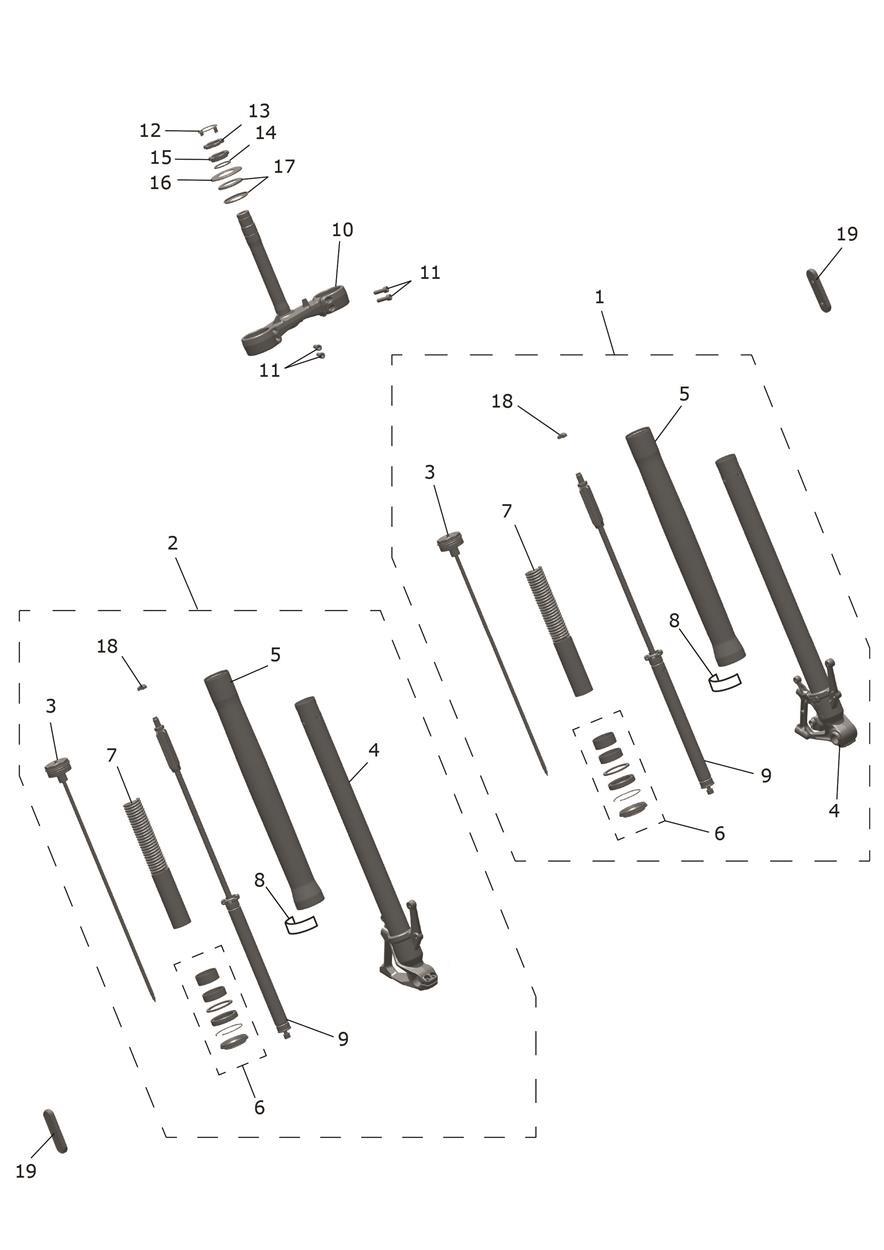

Front Forks & Lower Yoke Assy
20 parts

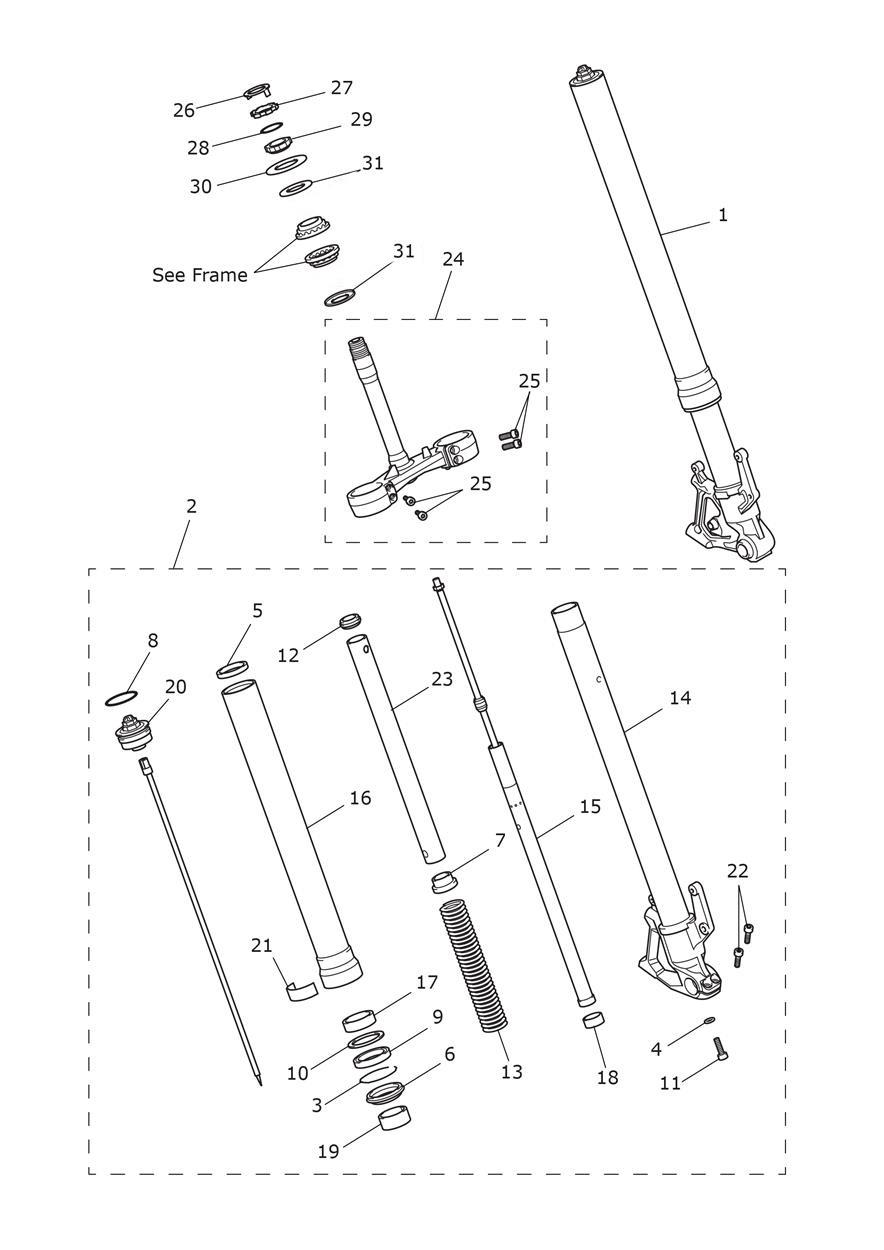

Front Forks & Lower Yoke Assy
21 parts
VIN BP5373 and higher
Front Forks & Lower Yoke Assy
34 parts
VIN BP4996 and higher
Front Forks & Lower Yoke Assy
34 parts
Front Forks & Lower Yoke Assy
25 parts
VIN BP6440 and lower
Front Forks & Lower Yoke Assy
21 parts
Handlebars & Switches
33 parts
VIN BP6441 and higher
Handlebars & Switches
29 parts
Clutch Controls
13 parts
VIN BP4996 and higher
Clutch Controls
13 parts
Clutch Controls
13 parts
Clutch Controls
13 parts
VIN BP6440 and lower
Clutch Controls
13 parts
Clutch Controls
13 parts
Front Forks & Lower Yoke Assy
21 parts
VIN BP6441 and higher
Handlebars & Switches
34 parts
VIN BP5373 and higher
Handlebars & Switches
33 parts
Clutch Controls
13 parts
Handlebars & Switches
26 parts
Front Forks & Lower Yoke Assy
19 parts
Handlebars & Switches
26 parts
Clutch Controls
13 parts
Front Forks & Lower Yoke Assy
19 parts
114 parts you can order online
Every part below appears in Triumph’s Front Suspension & Steering incl. Clutch Controls diagrams for the Tiger 900 & 850 and is priced and orderable online. Open a part to see what it fits and to buy it.
Clutch Controls VIN BP5373 and higher
T2043679 Clutch Lever Assy, Adj
$161.29
AvailableT2043073 Clutch Lever Bracket
$19.65
AvailableT2043539 Clamp, Clutch Lever Bracket
Low stock at Triumph
$29.57
Limited availabilityT2046522 Bolt, Handlebar Clamp
$1.99
AvailableT2046042 Clutch Lever, Adjustable
$81.41
AvailableT2046524 Pivot Bolt
$2.43
AvailableT2046526 Collar, Clutch Lever
$3.05
In stock in BreaT2046521 Nut, Pivot Bolt
Low stock at Triumph
$1.99
Limited availabilityT2046520 Adjuster Screw
$7.90
AvailableT2042663 Cover, Switch, Clutch
$10.27
AvailableT3332335 Screw, Tx, M4 x 0.7 x 19.5, Black
$3.98
AvailableT2043047 Clutch Cable
$52.94
AvailableT3700268 Firtree Cable Clip
$3.00

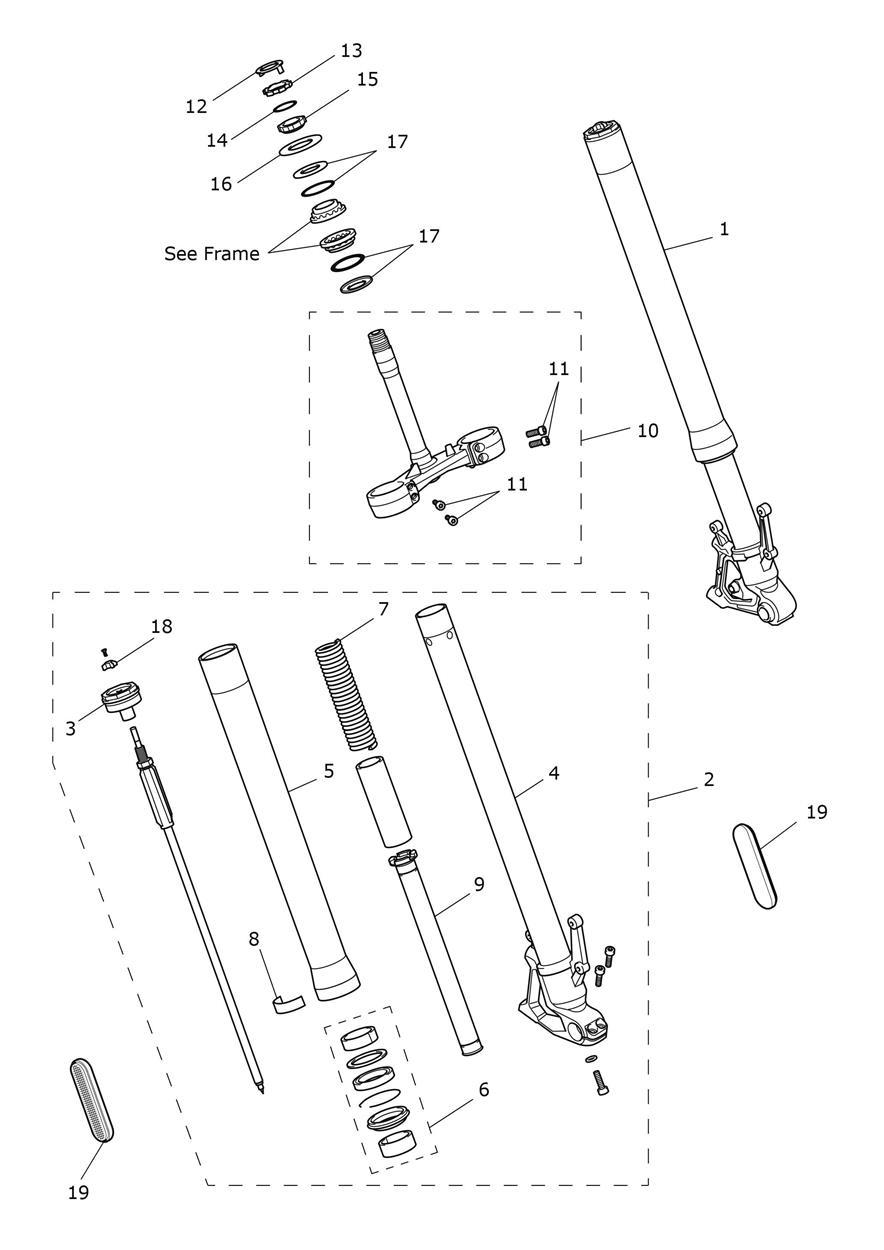

AvailableFront Forks & Lower Yoke Assy
T2048710 Fork Assy, Manual, LH
$1052.76
AvailableT2048709 Fork Assy, Manual, RH
$1052.76
AvailableT2041690 Oil Seal Stopper Ring
Backordered at Triumph · expected Nov 13
$21.62
On backorderT2042907 Sealing washer
$1.99
AvailableT2043347 Seat Rubber
$3.42
AvailableT2043354 Dust Seal
$12.71
AvailableT2043356 Spg Joint
$7.64
AvailableT2046138 O Ring
Low stock at Triumph
$3.32
Limited availabilityT2046143 Oil Seal
$20.68
In stock in BreaT2046144 Seal, Spacer
$18.29
AvailableT2046178 Slider
$12.20
AvailableT2048747 Spring
$109.14
AvailableT2048750 Slide Pipe, P/Comp, RH
$545.70
AvailableT2048744 Damper Comp, LH
Backordered at Triumph · expected Nov 6
$519.31
On backorderT2048751 Damper Comp, RH
$519.31
AvailableT2048745 Outer Tube
$668.93
AvailableT2048174 Centering Plate
$13.11
AvailableT2048748 Slide Bush
Backordered at Triumph · we’ll confirm the ship date after you order
$11.53
On backorderT2048749 Fork Bolt Comp, LH
$272.65
AvailableT2048756 Fork Bolt Comp, RH
$272.65
AvailableT2048754 Label
$2.06
AvailableT2046146 Hex Socket Bolt
$5.02
AvailableT2044968 Lower Yoke Assembly
Low stock at Triumph
$396.95
Limited availabilityT3050183 Screw, Cap/Hd, M8 x 1.25 x 25, SS
$2.14
AvailableT2044184 Washer, Tabbed
$9.98
AvailableT2040304 Locknut, M30
$19.08
AvailableT2042738 Rubber Washer
$1.99
AvailableT2040301 Adjuster Nut, M30, Lower
Low stock at Triumph
$26.39
Limited availabilityT2046559 Cover, Headstock Bearing
Low stock at Triumph
$9.43
Limited availabilityT3600234 Dust Seal, Dia 55
Low stock at Triumph
$7.72
Limited availabilityHandlebars & Switches
T2043181 Handlebar, Tapered, Black
$171.53
AvailableT2048902 Clamp, Handlebar, Upper
$44.90
AvailableT2048901 Clamp, Handlebar, Lower
$56.93
AvailableT3050154 Bolt, Cap/Hd, M10 x 90, Slv
Low stock at Triumph
$6.87
Limited availabilityT3050323 Screw, Cap/Hd, M8 x 30, Slv
$4.39
AvailableT2043048 Upper Yoke Assembly
$272.68
AvailableT2040442 Nut, Upper Yoke
$23.23
AvailableT3551551 Washer, 27.5 x 35 x 0.5
$1.99
AvailableT2042949 Wire Guide, Upper Yoke
Backordered at Triumph · we’ll confirm the ship date after you order
$7.15
On backorderT3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc
$1.99
In stock in BreaT2045224 Sensor, AP, Cruise, Heated
$207.55
AvailableT2042078 Heated Grip, RH
Low stock at Triumph
$163.59
Limited availabilityT3050314 Bolt, M5 x 20
Low stock at Triumph
$6.50
Limited availabilityT2044829 Switchcube, RH
Low stock at Triumph
$276.34
Limited availabilityT2044782 Switchcube, LH
$366.38
AvailableT2046369 Heated Grip, LH
$163.63
AvailableT2043692 Heated Grip, Housing, Switch
$6.83
AvailableT2043694 Heated Grip, Housing, Rear
Backordered at Triumph · we’ll confirm the ship date after you order
$6.76
On backorderT3330264 Screw, S/Tap, TX, 3 x 1.35 x 12, Blk
$4.65
AvailableT3330247 Screw, S/Tap, Pan/Hd, M4 x 10, HD
$6.61
AvailableT3550500 Washer, 4.3 x 9.0 x 0.8
$1.99
AvailableT3700212 Band, Rubber
$3.04
AvailableT2049701 Switchcube Mounting Block
$4.91
AvailableT3700259 Rubber Band, 43mm
$3.61
AvailableT2502215 Subharness, Heated Grips
Backordered at Triumph · we’ll confirm the ship date after you order
$34.93
On backorderT2060185 Mirror Assy, RH
$124.99
AvailableT2060175 Mirror Assy, LH
$124.99
AvailableT2048951 Handlebar Clamp Kit
$96.82
AvailableHandlebars & Switches VIN BP4996 and higher
T2043193 Handlebar, Tapered, Black
$171.53
AvailableT2044474 Clamp, Handlebar, Upper
Backordered at Triumph · expected Dec 18
$45.13
On backorderT2044478 Clamp, Handlebar, Lower
$54.17
AvailableT3205765 Bolt, HHF, M10 x 65, Slv
$3.81
AvailableT2044472 Upper Yoke Assy
Backordered at Triumph · expected Nov 20
$361.13
On backorderT2047319 Sensor, AP, Cruise, Heated
$207.55
AvailableT2046400 Heated Grip, RH
$163.59
AvailableT2044025 Switchcube, RH
$279.87
AvailableT2043762 Switchcube, LH
$478.48
AvailableT2060159 Mirror, RHS
Low stock at Triumph
$118.45
Limited availabilityT2060160 Mirror, LHS
$116.71
AvailableT2042136 Rubber Bush, Handlebar Clamp
Low stock at Triumph
$7.64
Limited availabilityT3550632 Washer, 10.5 x 21 x 2
$2.73
AvailableT3555030 Washer, 10.5 x 30 x 2.5
$6.16
AvailableT3700015 Cable Tie, 185.7 Long
$1.99
AvailableHandlebars & Switches VIN BP6440 and lower
Handlebars & Switches

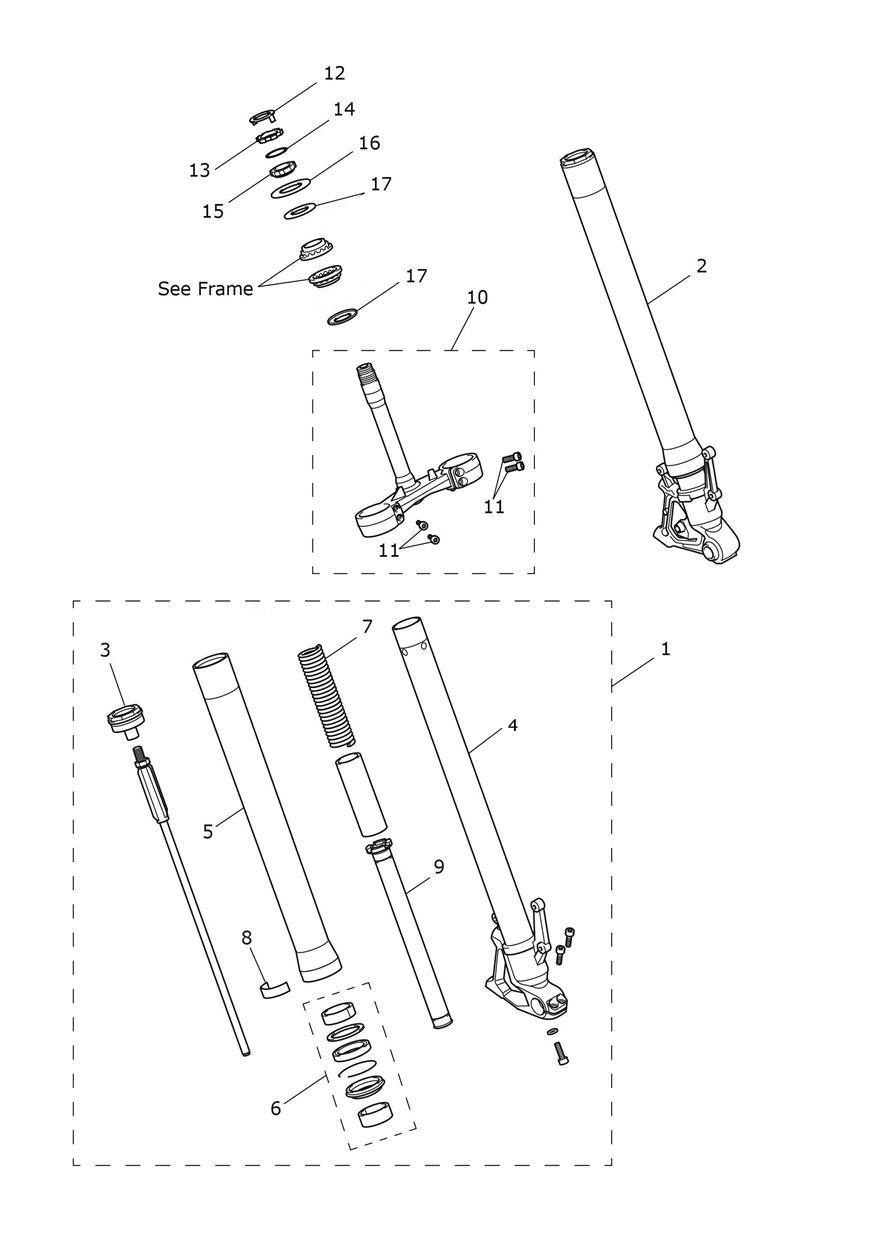

Front Forks & Lower Yoke Assy
T2048862 Fork Assy, Manual, LH
$1052.76
AvailableT2048858 Fork Assy, Manual, RH
$1052.76
AvailableT2048720 Top Cap Assembly
$80.99
AvailableT2048731 Stanchion, LH
$968.21
AvailableT2048730 Stanchion, RH
$968.21
AvailableT2048733 Outer Tube
$668.93
AvailableT2048722 Seal & Bushing Set
$121.00
AvailableT2048717 Spring, Compression
$109.14
AvailableT2048753 Decal, Fork Leg
$34.25
AvailableT2048737 Cartridge, Compression, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$668.93
On backorderT2048738 Cartridge, Rebound, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$668.93
On backorderT2048716 Thumbwheel Set
$51.81
AvailableFront Forks & Lower Yoke Assy VIN BP5373 and higher
T2048732 Spring, Compression
Backordered at Triumph · we’ll confirm the ship date after you order
$109.14
On backorderT2700454 Amber reflector
Low stock at Triumph
$5.69
Limited availabilityFront Forks & Lower Yoke Assy VIN BP6440 and lower
T2048865 Fork Assy, Manual, Low, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$1052.76
On backorderT2048707 Stanchion Assy, RH
$1052.76
AvailableT2048718 Spring, Compression
$109.14
AvailableHandlebars & Switches VIN BP5373 and higher
Handlebars & Switches
T2048096 Sensor, AP, Cruise
Low stock at Triumph
$222.00
Limited availabilityT2044901 Grip, Handlebar, RH
$19.86
In stock in BreaT2045139 Grip, Handlebar, LH
$24.67
AvailableT2042979 Finisher, M6, CSK
$17.39
AvailableT3330923 Screw, Csk, M6 x 20, Slv, Enc
$2.20
In stock in Brea
