Rear Swinging Arm & Rear Suspension
Triumph Tiger 900 & 850 · 33 diagrams
33 exploded diagrams for the rear swinging arm & rear suspension of the Triumph Tiger 900 & 850, covering the Tiger 850 Sport, Tiger 900 Alpine Edition, Tiger 900 Desert Edition, Tiger 900 GT, Tiger 900 GT Aragón Edition, Tiger 900 GT Pro, Tiger 900 Rally, Tiger 900 Rally Aragón Edition, Tiger 900 Rally Pro. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

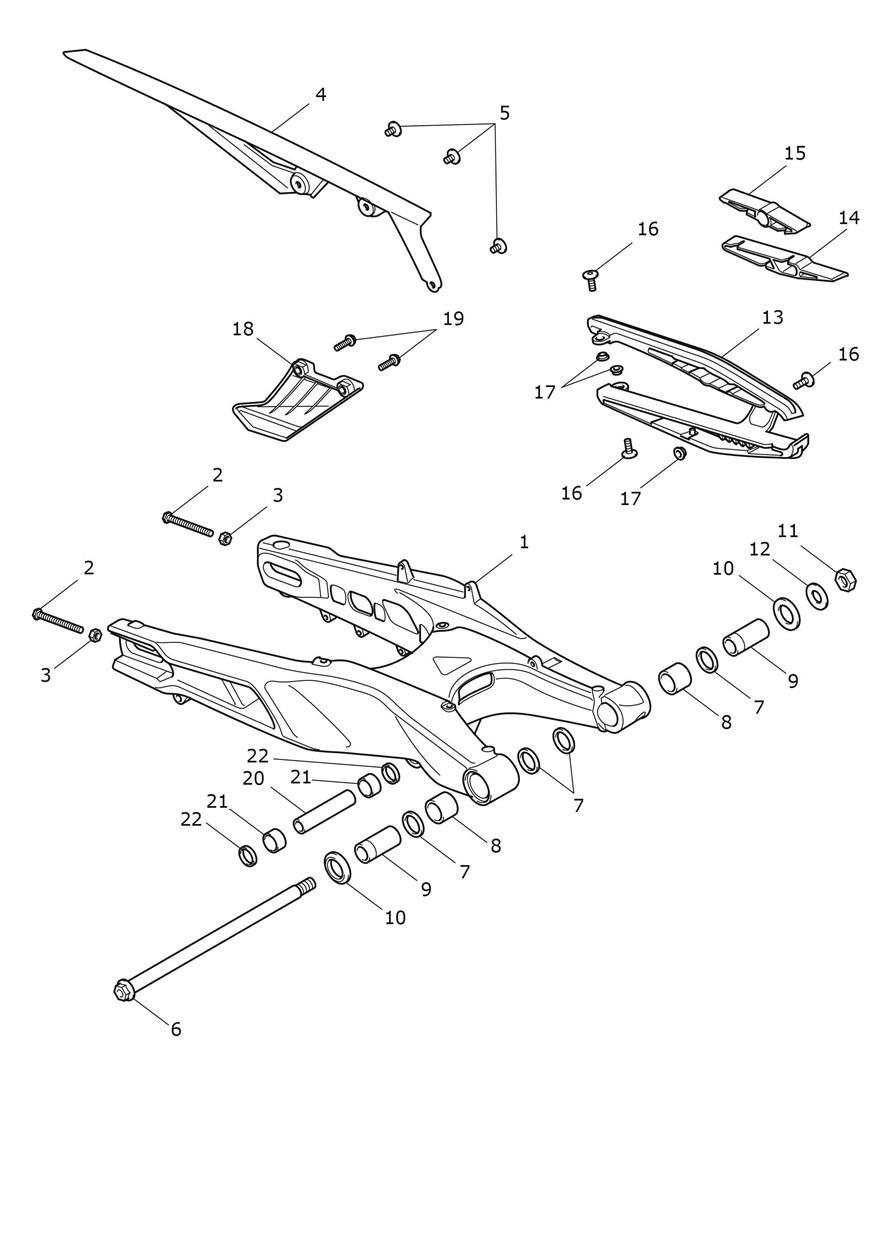

Rear Swingarm
21 parts
VIN BP5373 and higher
Rear Swingarm
22 parts

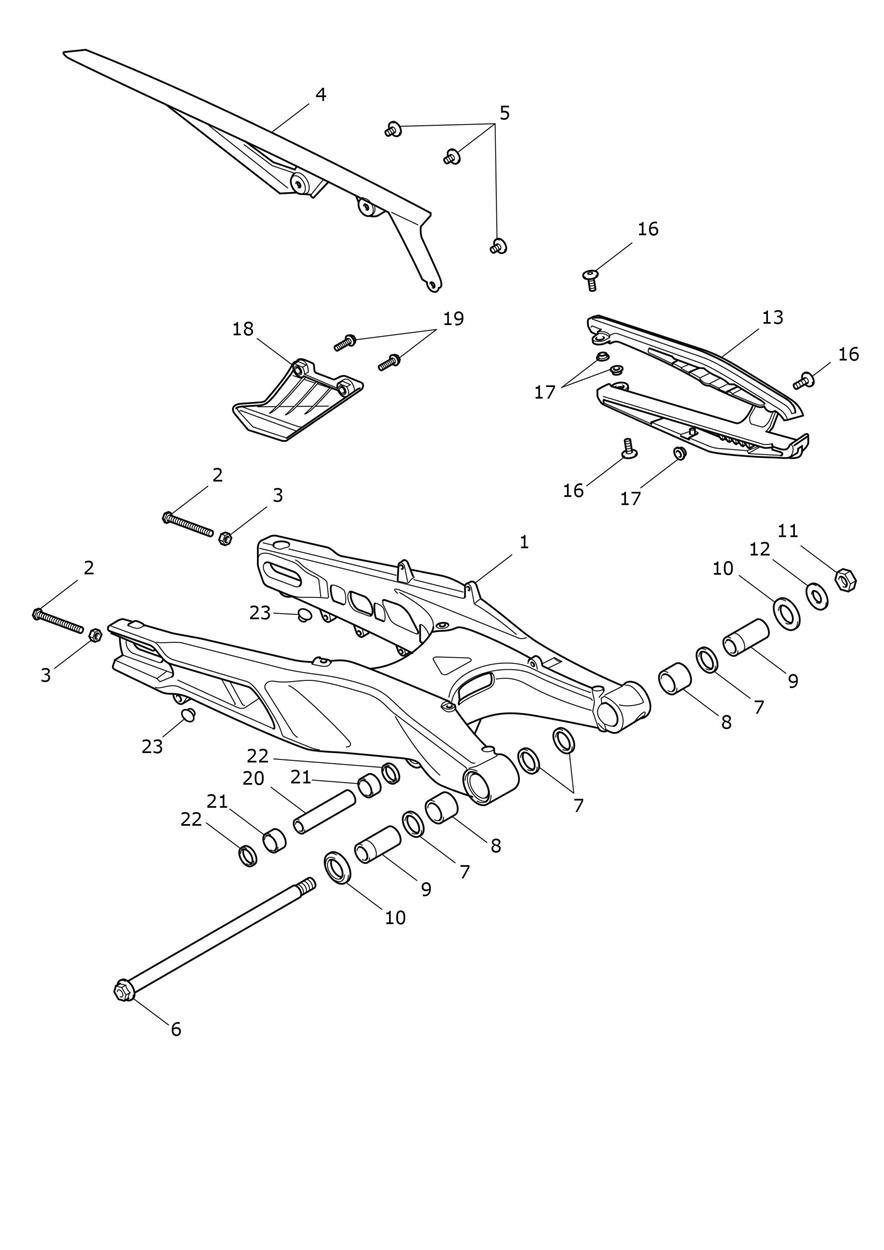

Rear Swingarm
21 parts

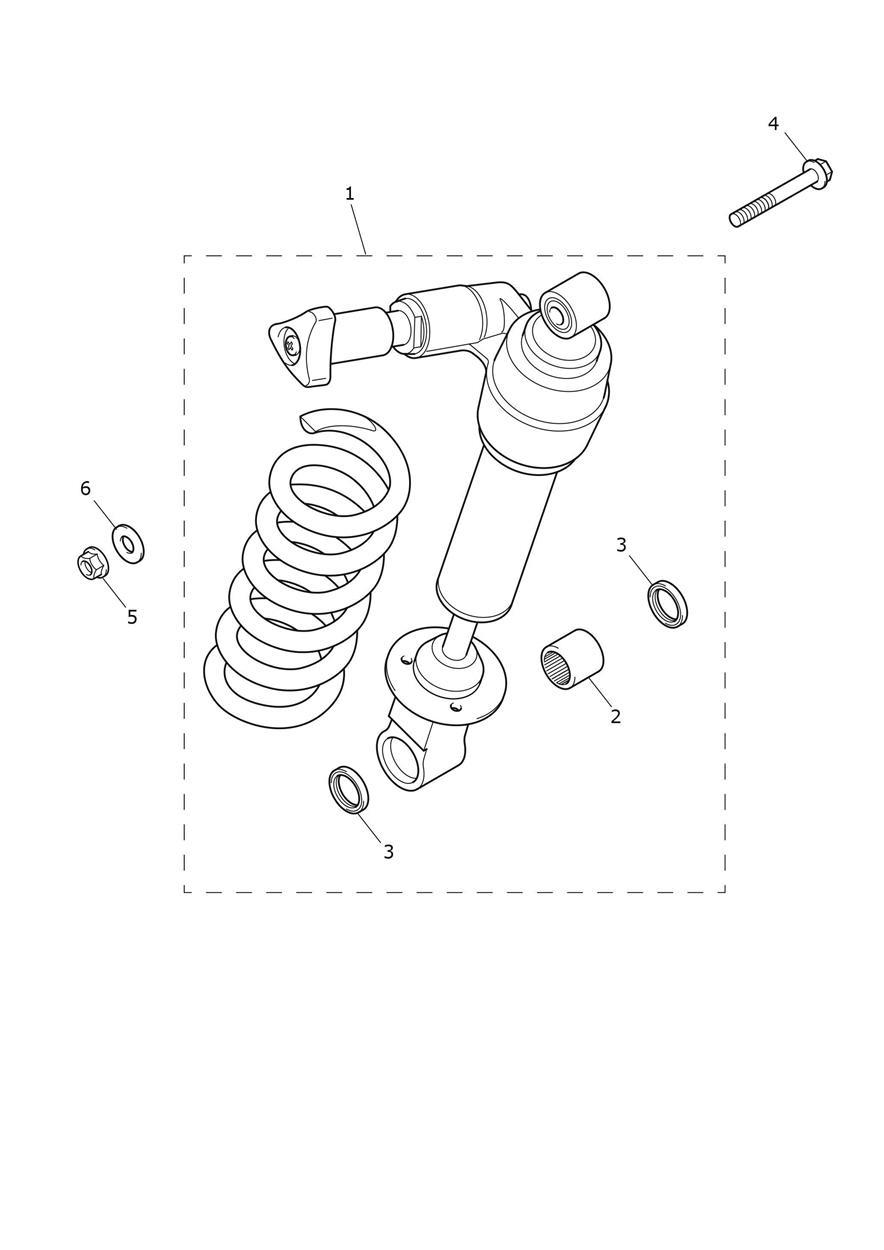

RSU
6 parts
RSU
6 parts
VIN BP4996 and higher

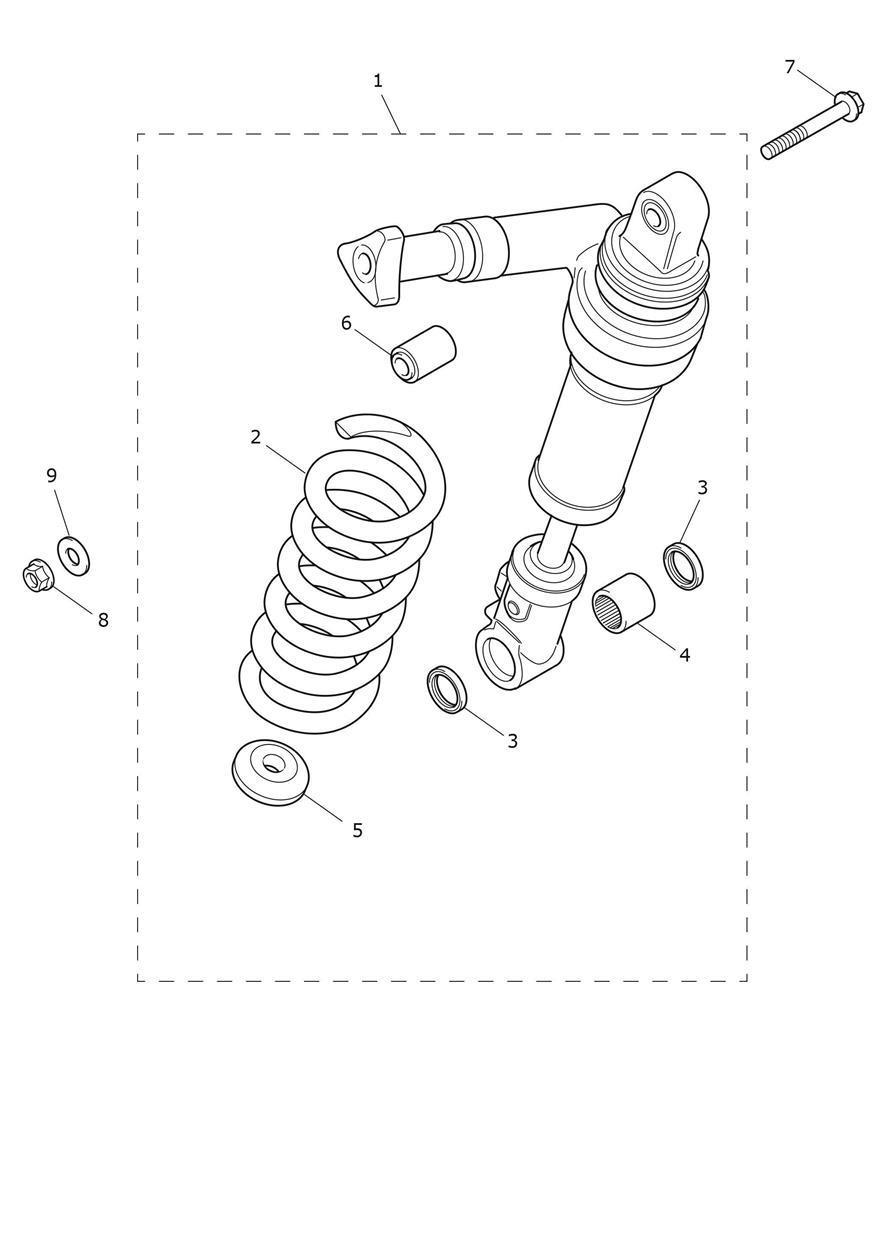

RSU
6 parts

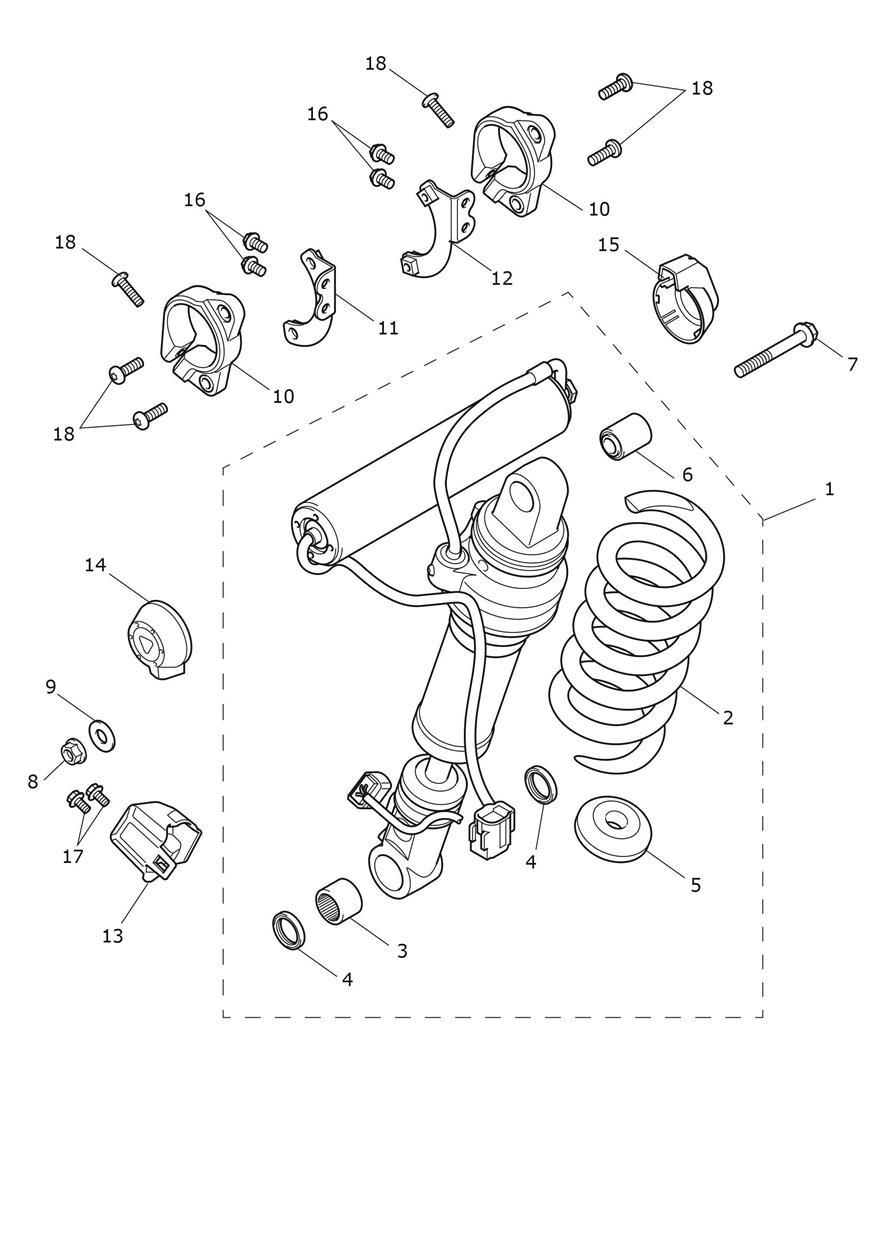

RSU
18 parts

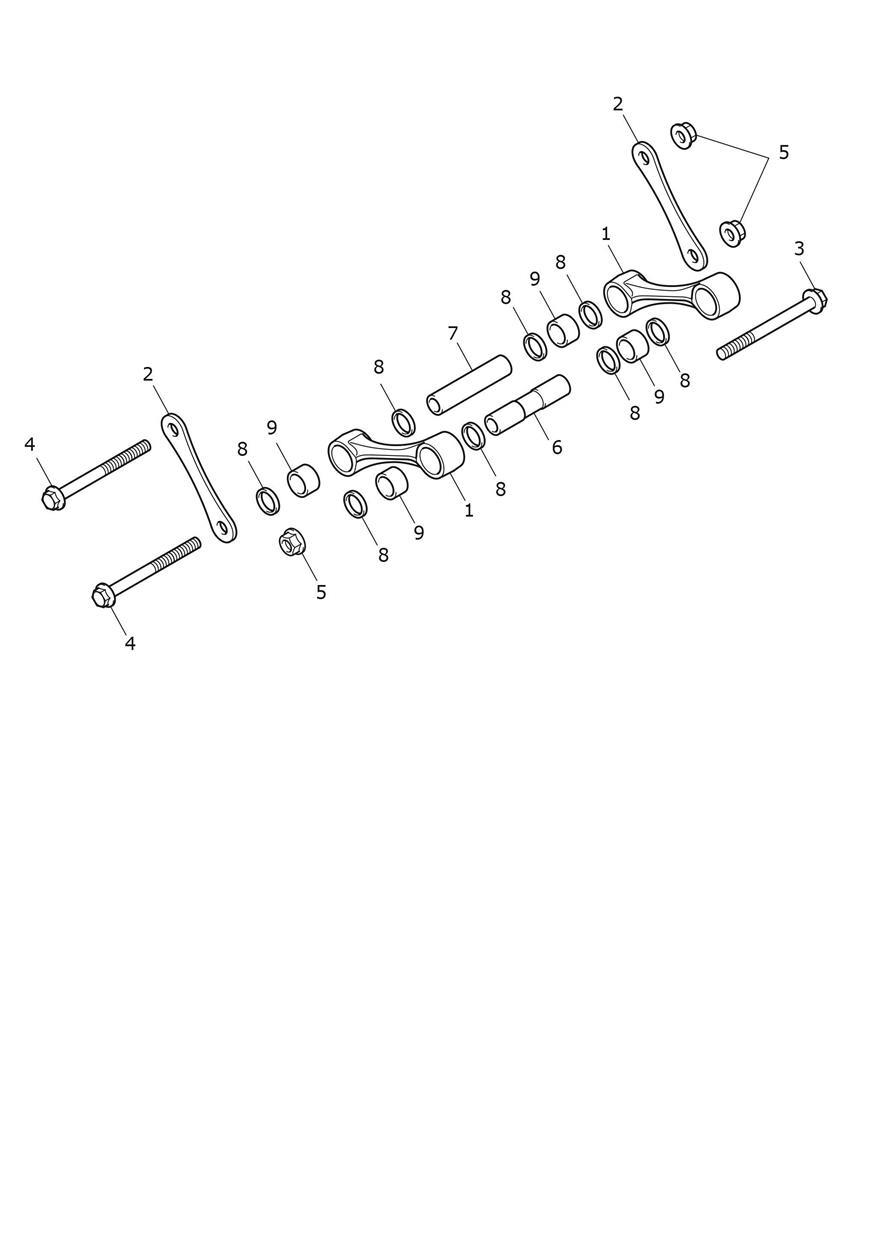

Rear Suspension Linkage
9 parts
Rear Suspension Linkage
9 parts
VIN BP4996 and higher
Rear Suspension Linkage
9 parts
Rear Suspension Linkage
9 parts
Rear Swingarm
21 parts
RSU
18 parts
RSU
18 parts
VIN BP5373 and higher
Rear Suspension Linkage
9 parts
VIN BP5373 and higher
Rear Suspension Linkage
9 parts
Rear Suspension Linkage
9 parts
Rear Swingarm
22 parts
Rear Swingarm
21 parts
VIN BP4996 and higher
Rear Swingarm
22 parts
RSU
6 parts
Rear Suspension Linkage
9 parts
VIN BP6441 and higher
RSU
12 parts
VIN BP6440 and lower
Rear Suspension Linkage
9 parts
VIN BP6440 and lower
RSU
9 parts
VIN BP6441 and higher
Rear Swingarm
22 parts
VIN BP6440 and lower
Rear Swingarm
21 parts
VIN BP6441 and higher
Rear Swingarm
22 parts
Rear Swingarm
22 parts
Rear Suspension Linkage
9 parts
RSU
9 parts
Rear Suspension Linkage
9 parts
RSU
9 parts
49 parts you can order online
Every part below appears in Triumph’s Rear Swinging Arm & Rear Suspension diagrams for the Tiger 900 & 850 and is priced and orderable online. Open a part to see what it fits and to buy it.
Rear Swingarm VIN BP5373 and higher
T3330644 Screw, H/HD, M8 x 75, Slv
Backordered at Triumph · expected Nov 20
$1.99
On backorderT3350303 Nut, M8, Silver
$1.99
AvailableT2050993 Chainguard, Upper, Moulded
$63.83
AvailableT3331726 Screw, But/Hd, M6 x 12, Slv
$3.98
AvailableT2050460 Spindle, Swingarm
$93.29
AvailableT3600162 Oil Seal, 32 25 4
Backordered at Triumph · we’ll confirm the ship date after you order
$7.90
On backorderT3800014 Roller bearing
Backordered at Triumph · expected Nov 20
$13.26
On backorderT2052235 Sleeve, Ground
Backordered at Triumph · we’ll confirm the ship date after you order
$21.28
On backorderT2054562 Bush, Moulded
Backordered at Triumph · we’ll confirm the ship date after you order
$7.41
On backorderT3350155 Locknut, Thin, M16
Low stock at Triumph
$8.71
Limited availabilityT3551240 Washer, M16 x 34 x 3
Low stock at Triumph
$2.43
Limited availabilityT2052083 Rubbing Strip, Moulded
Low stock at Triumph
$61.60
Limited availabilityT3330727 Screw, But/Hd, M6 x 20, Slv
$3.14
AvailableT3010061 Flanged Sleeve, M6 x 9 x 3.25
$6.68
AvailableT2050994 Lower Chainguard, Moulded
$63.83
AvailableT3202304 Bolt, RHHF, M6 x 20, Slv
$4.91
AvailableT2057399 Sleeve, Ground Steel, 90mm
$37.24
AvailableT3800199 Bearing, Needle Roller, 20 x 26 x 20
Low stock at Triumph
$15.27
Limited availabilityT3600178 Seal, 20 x 26 x 4
$7.14
AvailableT3700180 Plug, Hole, Plastic
$2.36
AvailableRear Swingarm
T2050998 Damper, Rubbing Strip, Lower
$38.37
AvailableT2050997 Damper, Rubbing Strip, Upper
$38.37
AvailableRSU
T2057766 RSU, Manual
$1199.49
AvailableT2057778 Bearing, Needle Roller
$34.40
AvailableT2057779 Seal
$7.14
AvailableT3200817 Bolt, HHF, M10 x 1.25 x 70, Slv
$4.04
AvailableT3350250 Locknut, Flanged, M10
$3.85
In stock in BreaT3555042 Washer, 10.5 x 23 x 2
$1.99
AvailableRSU
T2057764 RSU, Tes, Electronic
Low stock at Triumph
$1760.39
Limited availabilityT2057753 Bearing, Needle Roller
$34.40
AvailableT2057754 Seal
$7.14
AvailableT2057755 Bump Rubber
$20.60
AvailableT2057752 Metalastic Bush
$41.28
AvailableT2057772 Clamp, Preload Motor
Backordered at Triumph · expected Oct 30
$17.67
On backorderT2057784 Finisher, Preload Motor, RH
$22.53
AvailableT2057785 Finisher, Preload Motor, LH
$22.53
AvailableT3205061 Bolt, HHF, Lghtd, M6 X 10, Slv
$6.24
AvailableT3330894 Bolt, RHHF, M5 x 10
$6.16
AvailableT3331234 Screw, Torx, P/H, M6 x 20, Slv
$4.91
In stock in BreaRear Suspension Linkage
T2050982 Drag Link Assy, Spares
$59.83
AvailableT2050986 Drop Link
$30.70
AvailableT3334635 Screw, HHF, M12 x 1.25 x 130
$8.54
AvailableT3334680 Bolt, HHF, M12 x 119, Slv
$7.71
AvailableT3350234 Locknut, Flgd, M12 x 1.25
$5.62
AvailableT2050987 Ground Sleeve, Waisted, 90mm
Backordered at Triumph · expected Nov 6
$36.51
On backorderRSU VIN BP6440 and lower
T2057762 RSU, Manual
$1199.49
AvailableT2057763 RSU, Manual
$1199.49
AvailableT2057756 Bump Rubber
Backordered at Triumph · we’ll confirm the ship date after you order
$20.66
On backorder
