Cylinder Head, Valves, Pistons, Liners, Camshaft & Balancers

Triumph Tiger 900 - Bond Edition · 4 diagrams

4 exploded diagrams for the cylinder head, valves, pistons, liners, camshaft & balancers of the Triumph Tiger 900 - Bond Edition, covering the Tiger 900 Bond Edition. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

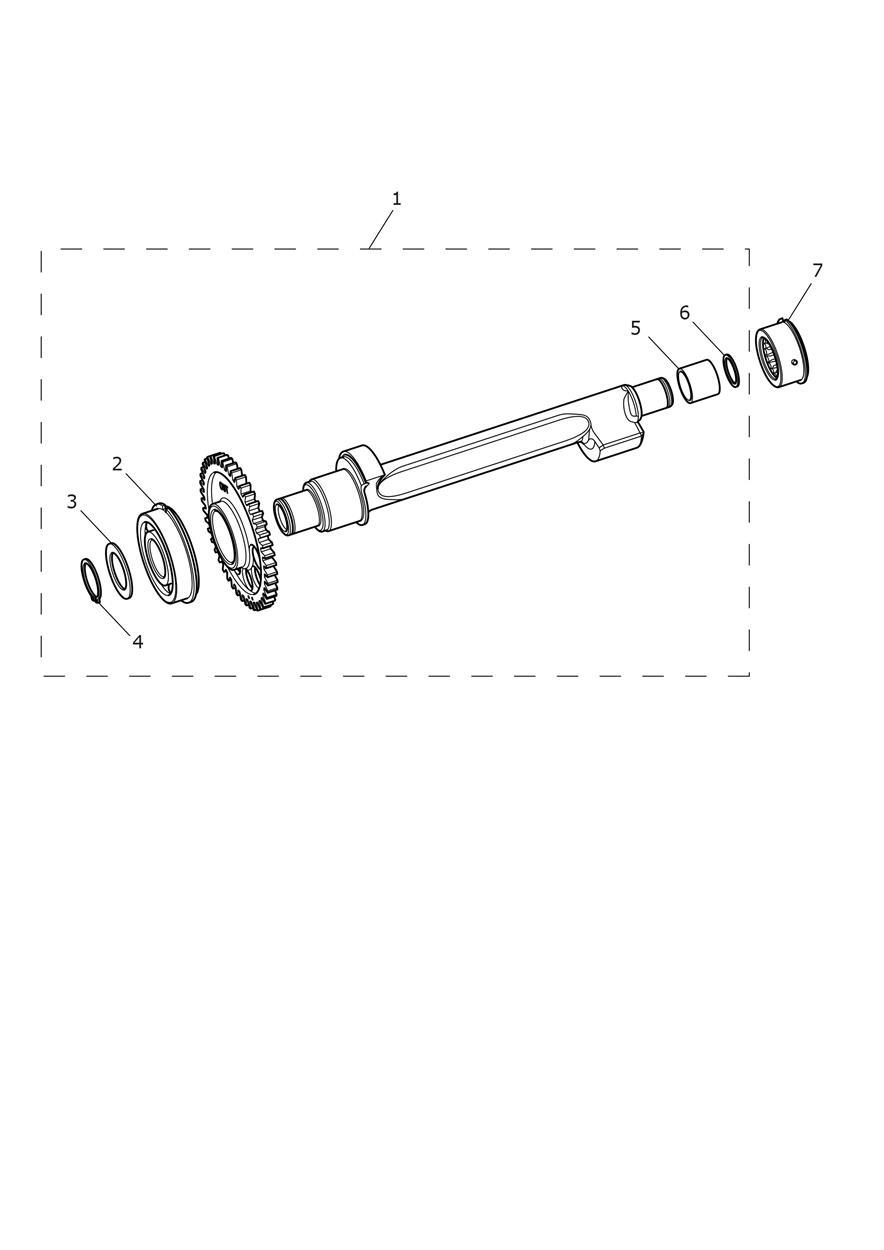

Balancer exploded diagram
Balancer
7 parts

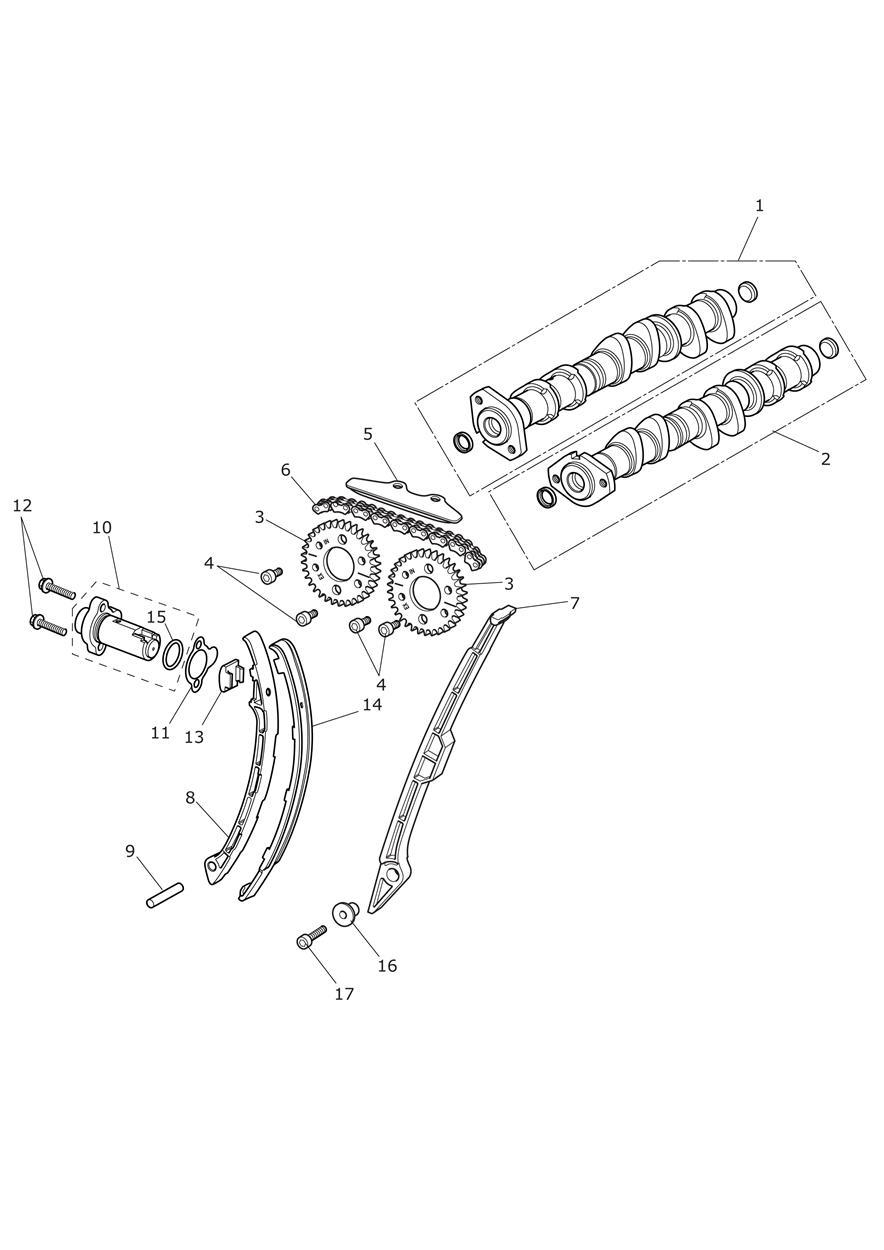

 Camshaft & Camshaft Drive exploded diagram
Camshaft & Camshaft Drive
17 parts

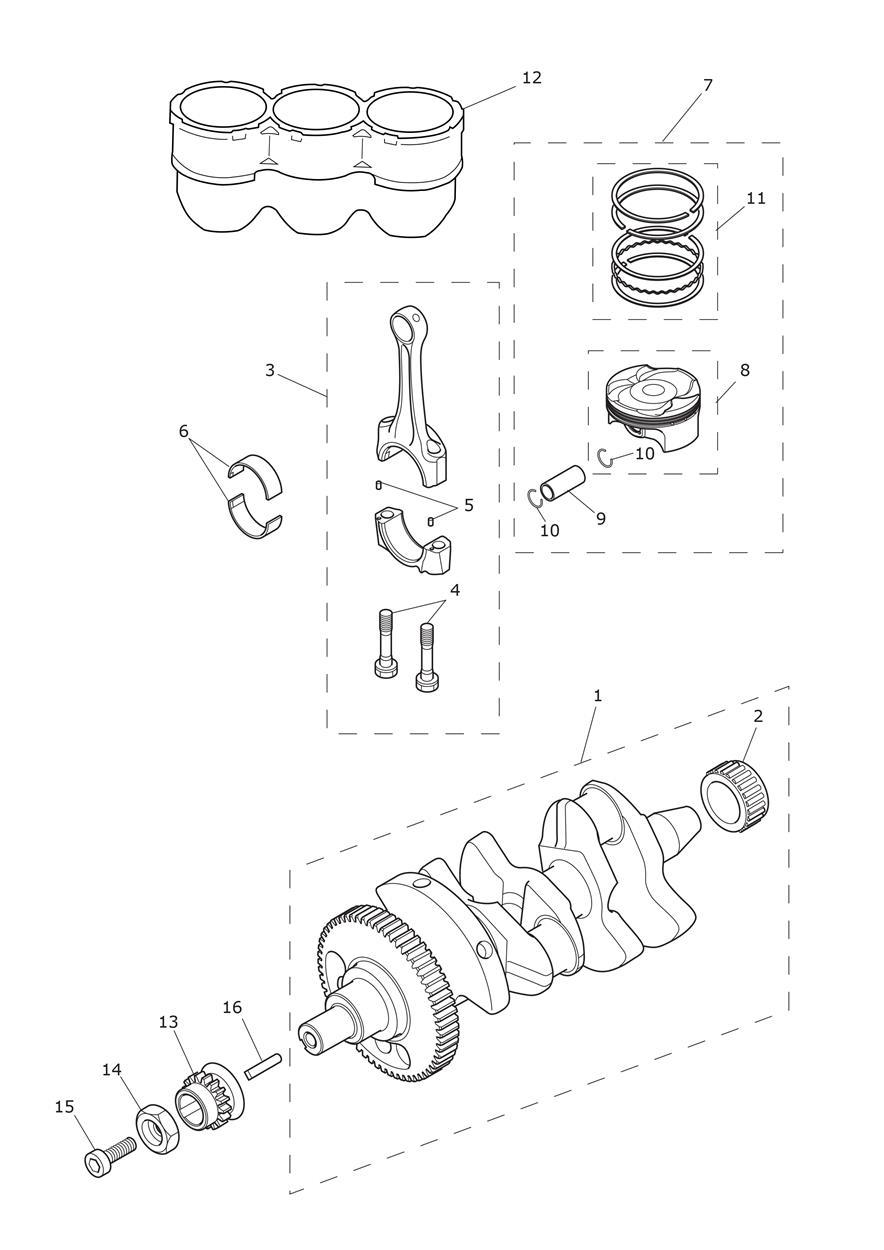

 Crankshaft, Connecting Rods, Pistons & Liners exploded diagram
Crankshaft, Connecting Rods, Pistons & Liners
17 parts

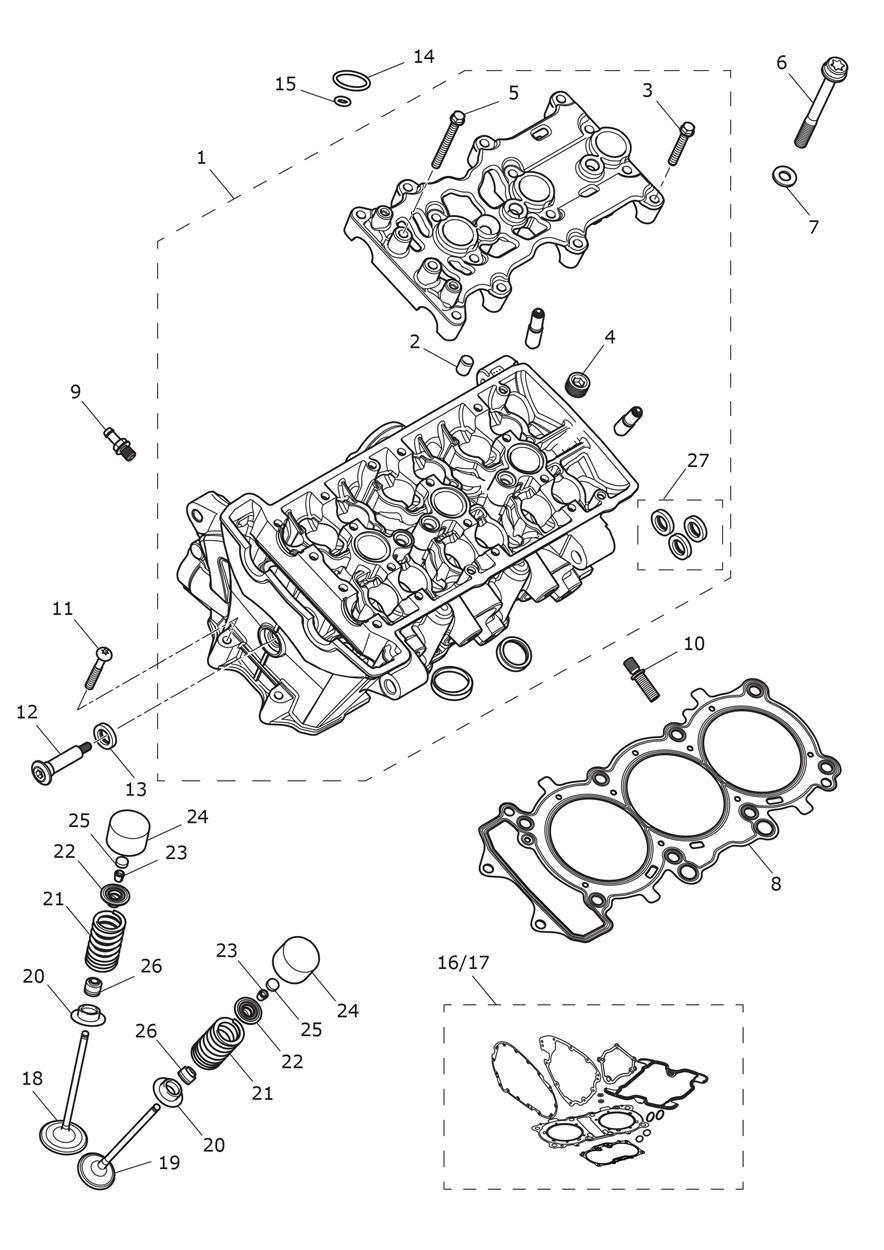

 Cylinder Head & Valves exploded diagram
Cylinder Head & Valves
79 parts
