Fuel Tank, Eng. Management & Exhaust Systems.

Triumph Tiger 900 - Bond Edition · 6 diagrams

6 exploded diagrams for the fuel tank, eng. management & exhaust systems. of the Triumph Tiger 900 - Bond Edition, covering the Tiger 900 Bond Edition. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

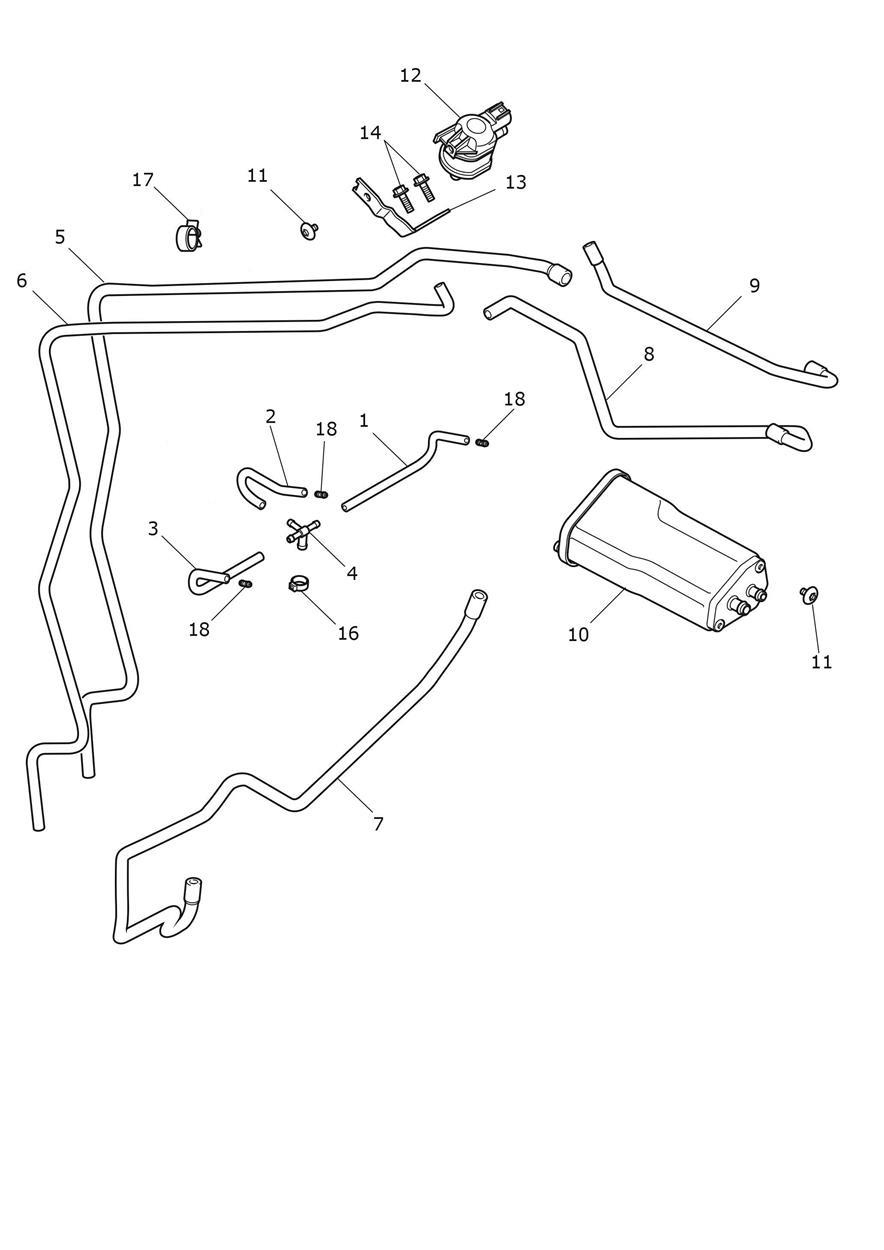

Evaporative Loss Control System exploded diagram
Evaporative Loss Control System
17 parts

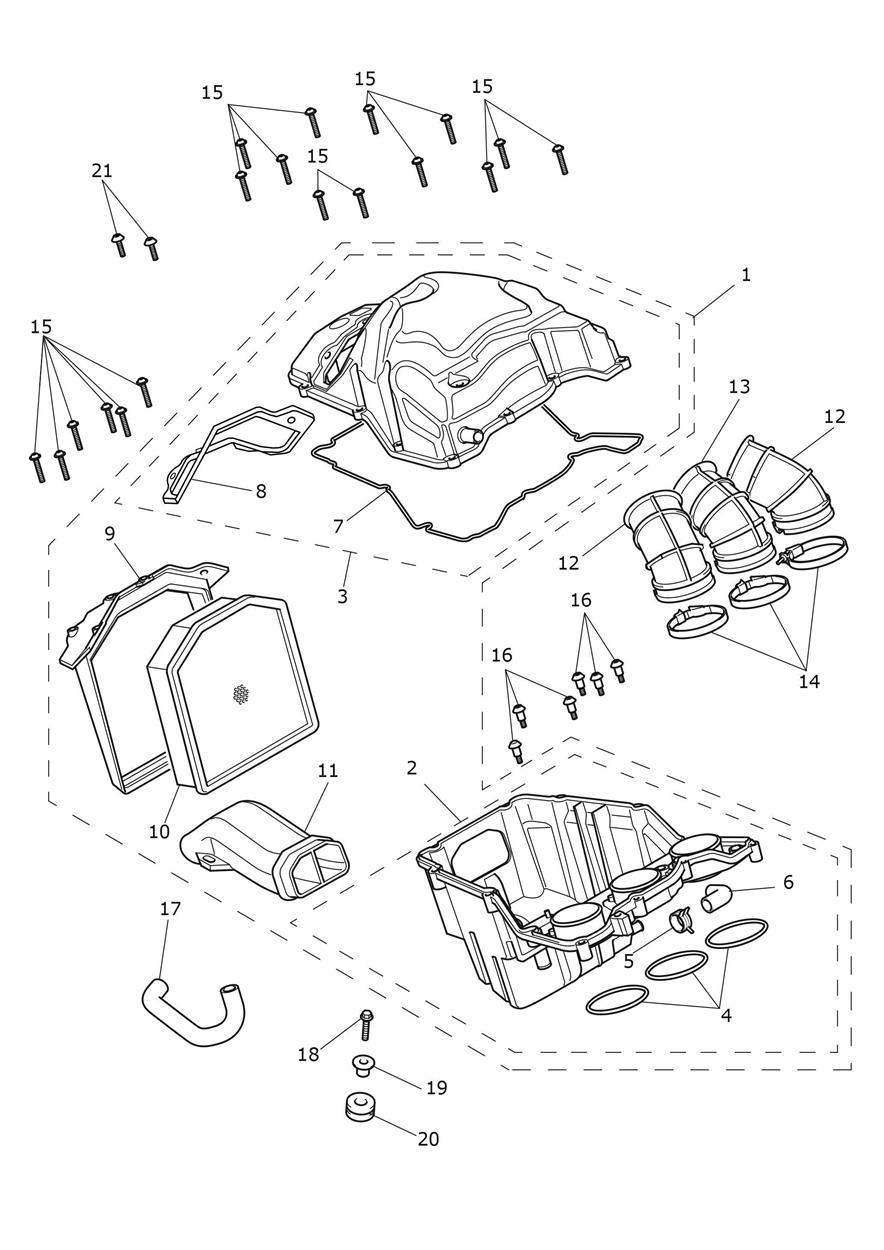

 Airbox exploded diagram
Airbox
21 parts

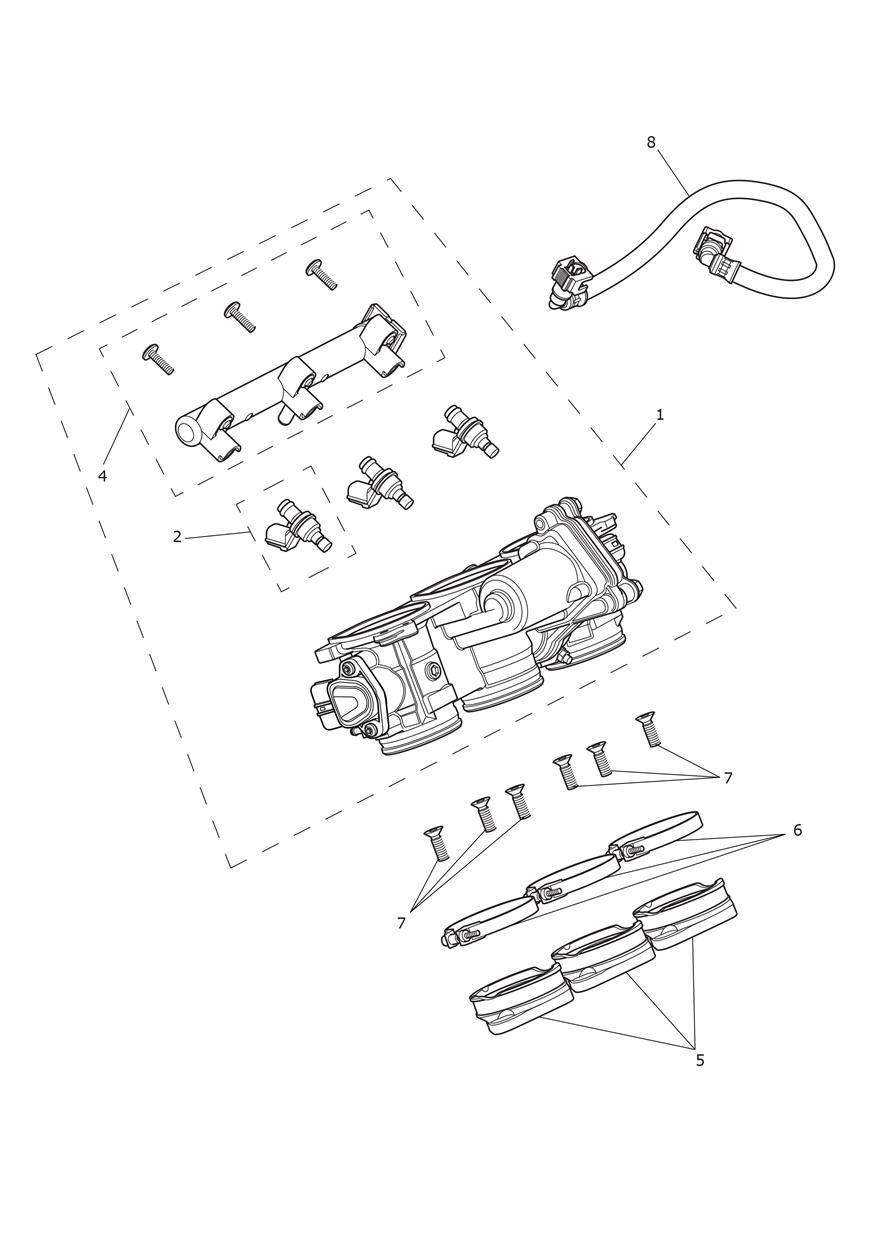

 Throttles, Injectors and Fuel Rail exploded diagram
Throttles, Injectors and Fuel Rail
7 parts

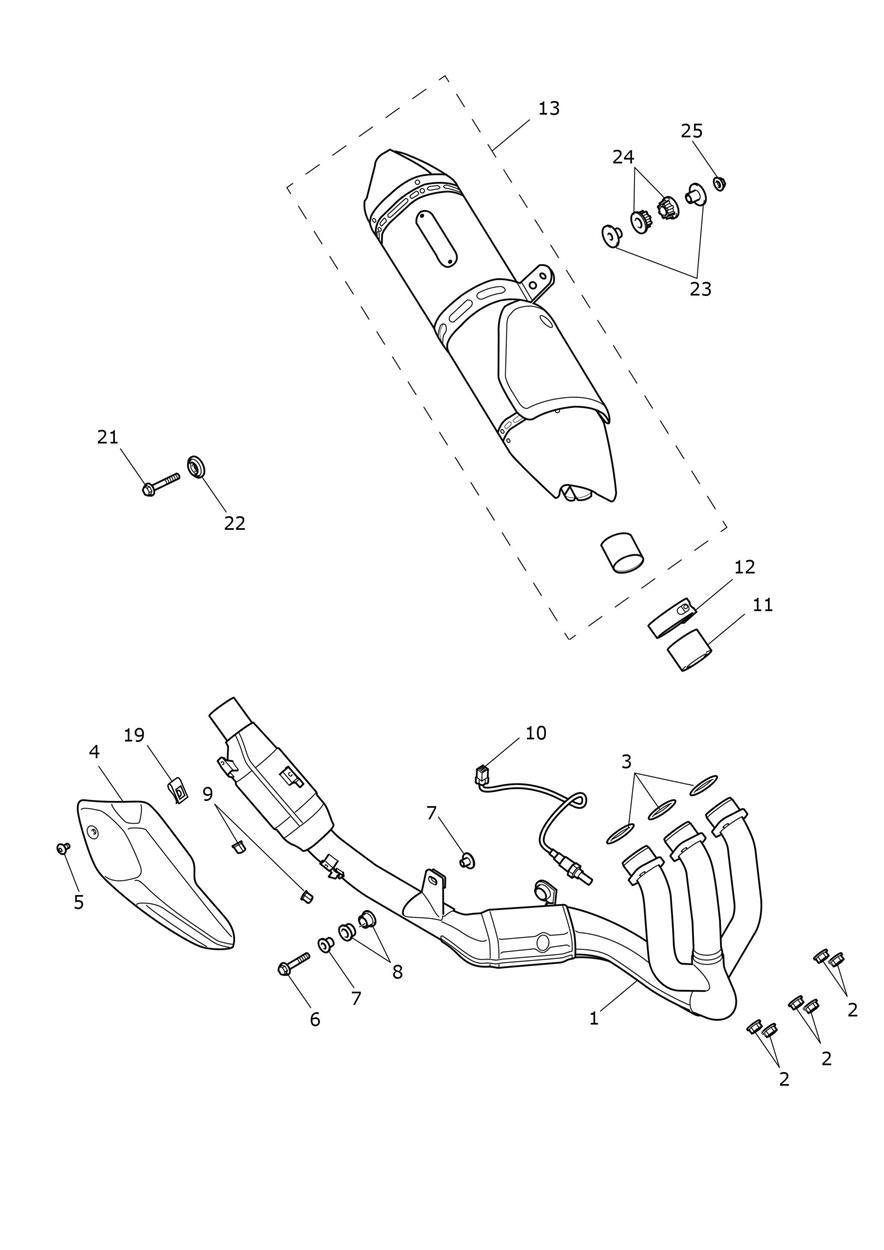

 Exhaust System exploded diagram
Exhaust System
22 parts

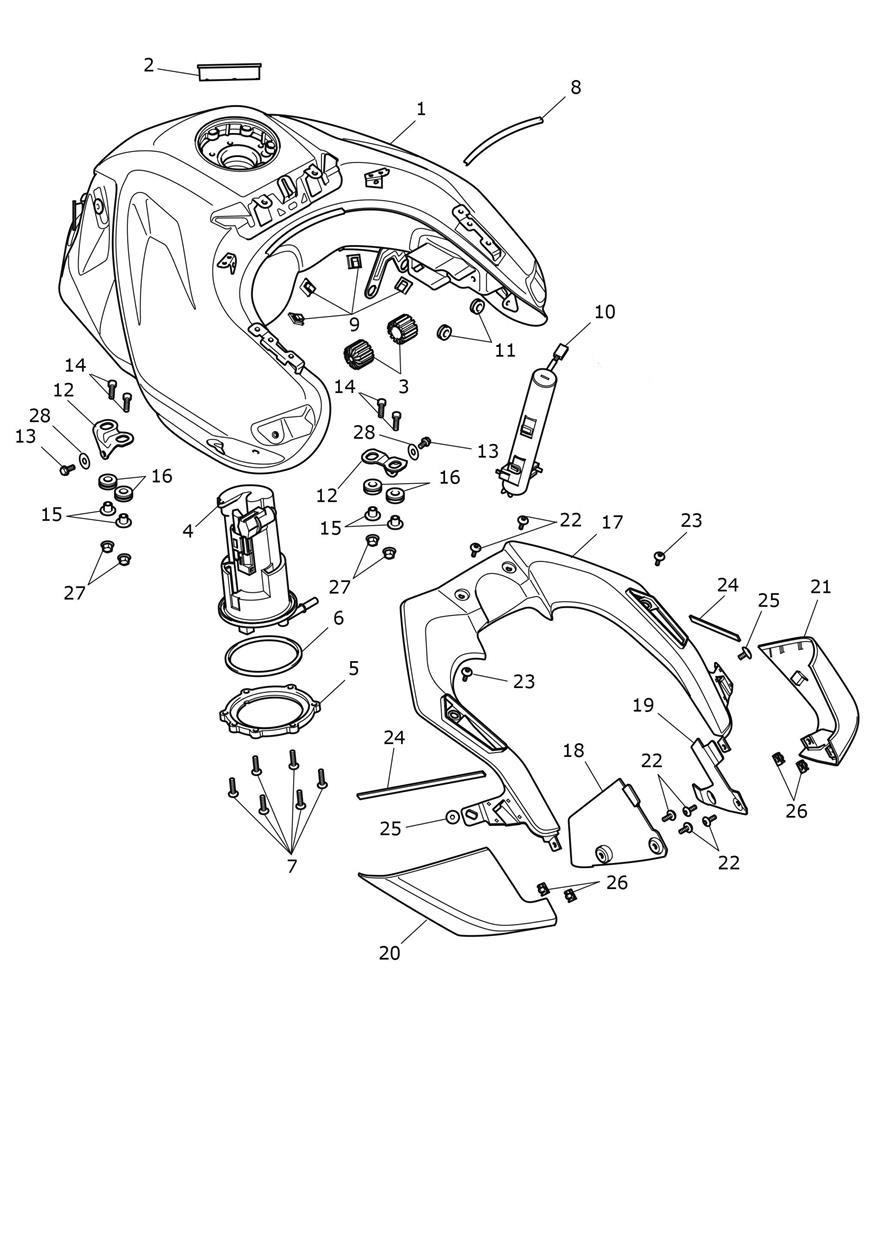

 Fuel Tank, Fuel Pump & Fittings exploded diagram
Fuel Tank, Fuel Pump & Fittings
29 parts

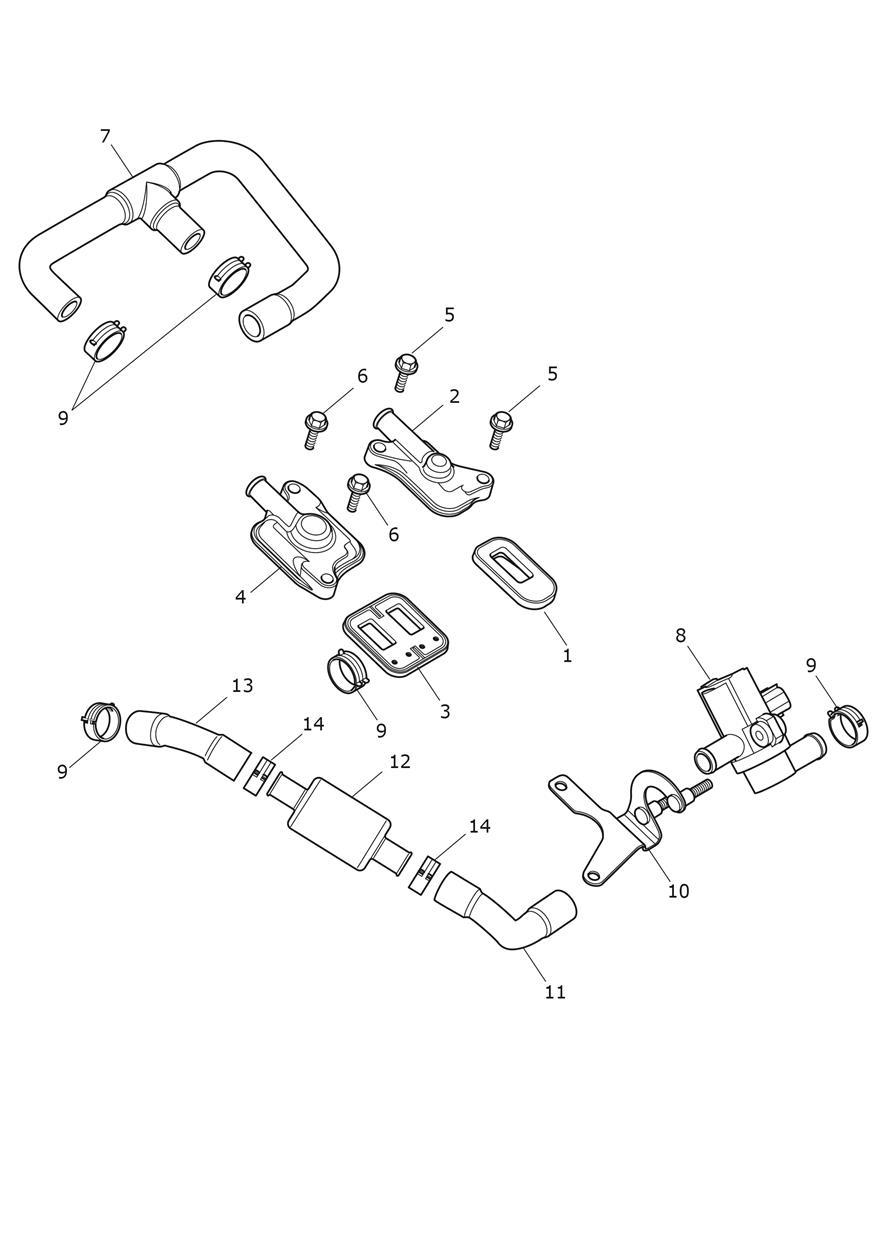

 Emissions Control exploded diagram
Emissions Control
14 parts
