Crankcase, Engine Covers, Lubrication System
Triumph Tiger Explorer · 48 diagrams
48 exploded diagrams for the crankcase, engine covers, lubrication system of the Triumph Tiger Explorer, covering the Tiger Explorer. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

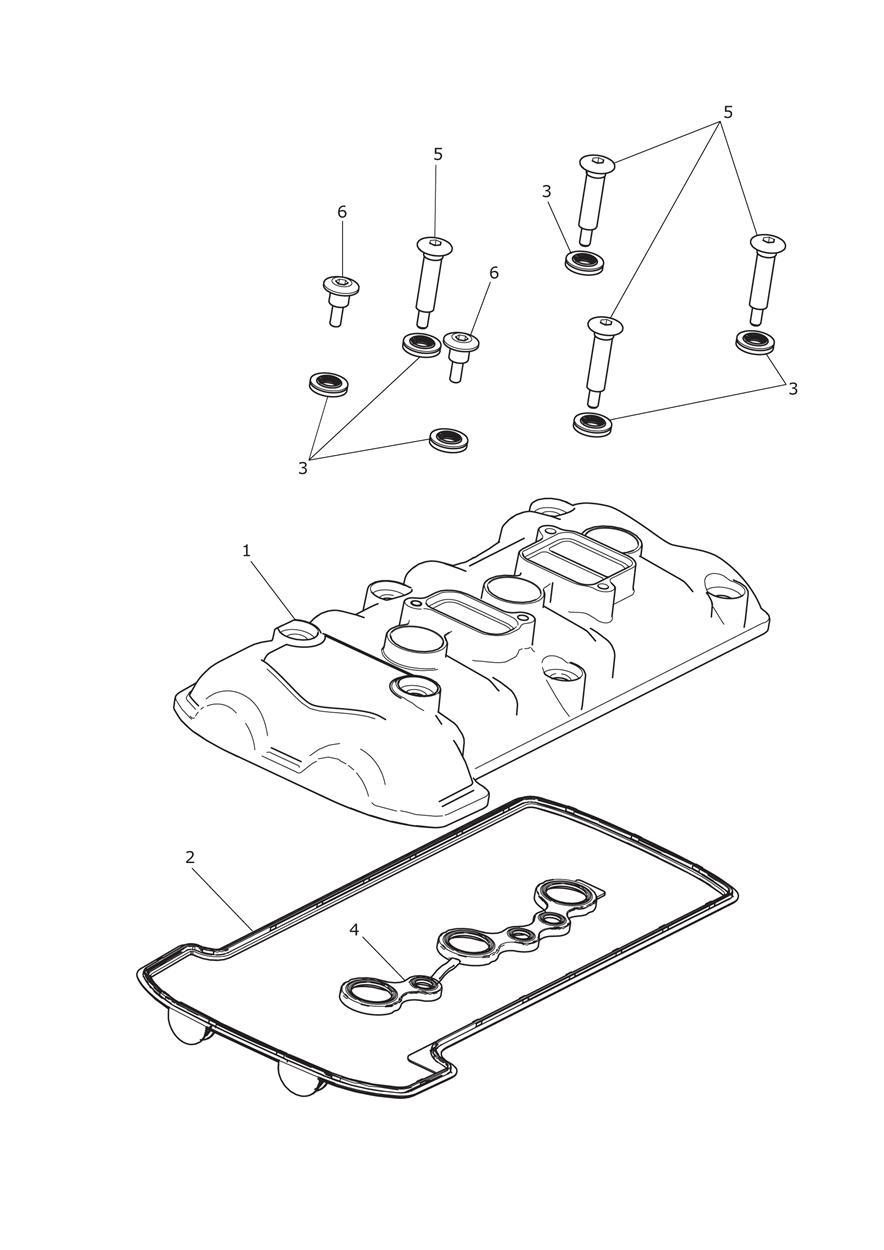

Cam Cover
6 parts
VIN 740276 and lower
Cam Cover
7 parts
VIN 740277 and higher
Cam Cover
7 parts
VIN 740277 and higher

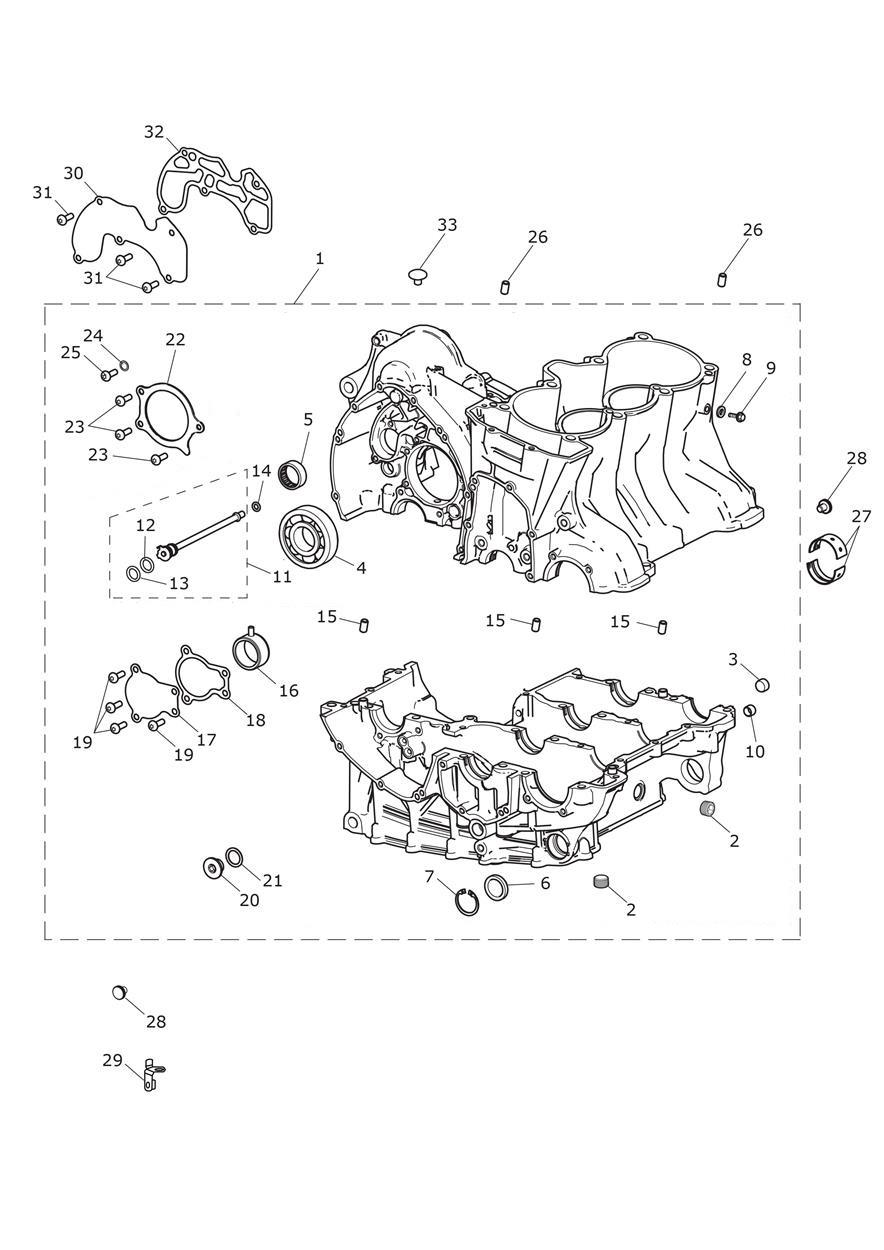

Crankcase & Fittings
37 parts
VIN 740277 and higher
Crankcase & Fittings
37 parts
VIN 740277 and higher

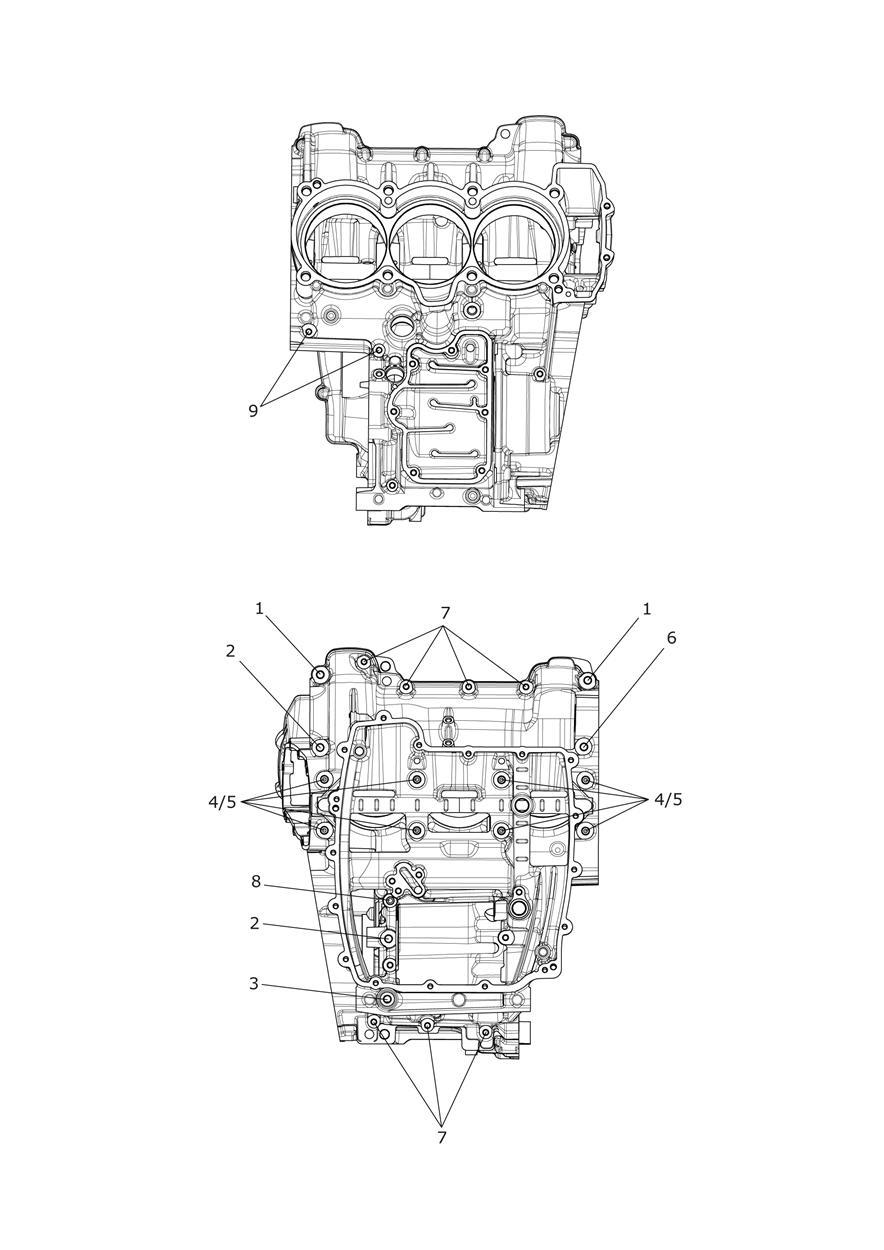

Crankcase Bolts
9 parts
VIN 740276 and lower
Crankcase Bolts
9 parts
VIN 740277 and higher
Crankcase Bolts
9 parts
VIN 740277 and higher

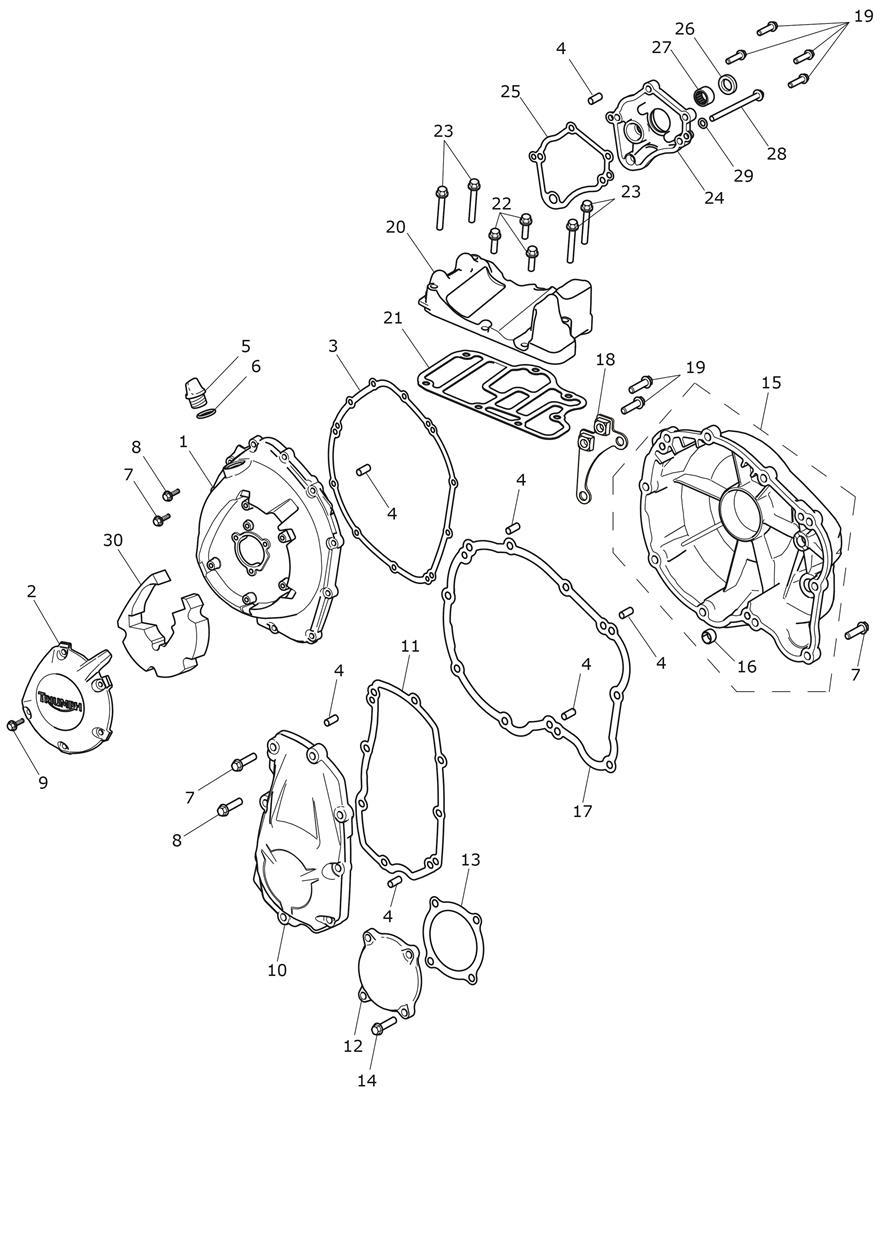

Engine Covers
32 parts
VIN 740276 and lower

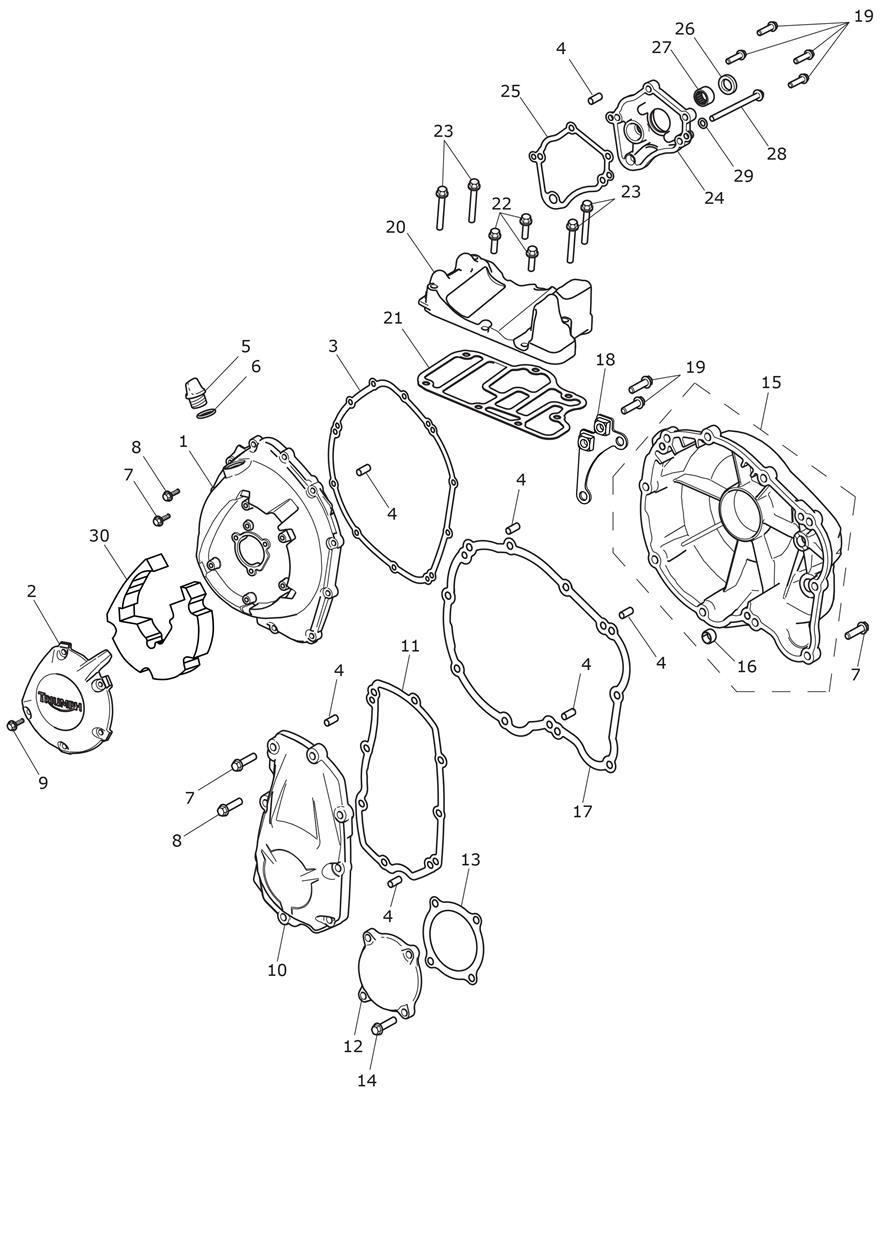

Engine Covers
30 parts
VIN 740277 and higher
Engine Covers
30 parts
VIN 740277 and higher

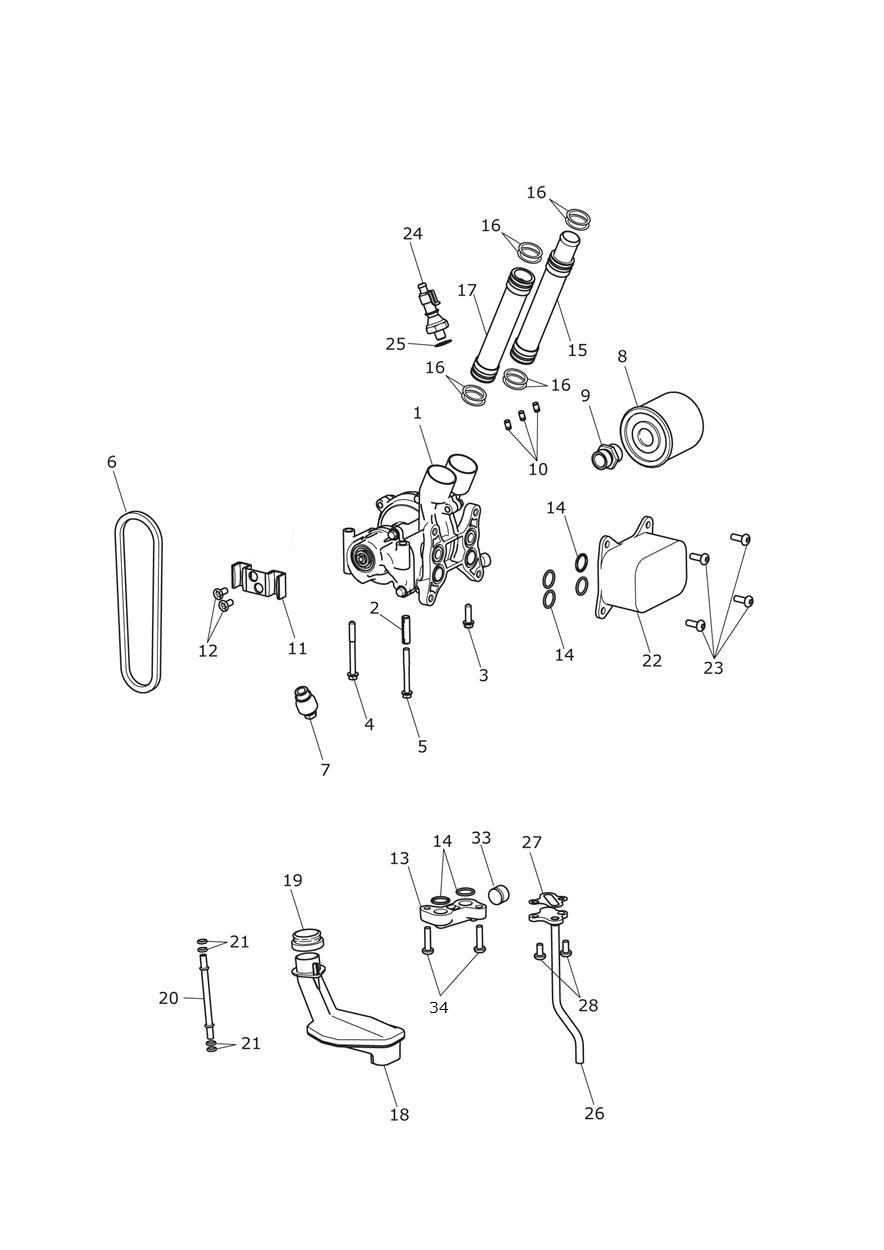

Oil Pump Drive
31 parts
VIN 740276 and lower
Oil Pump Drive
31 parts
VIN 740277 and higher
Oil Pump Drive
31 parts
VIN 740277 and higher

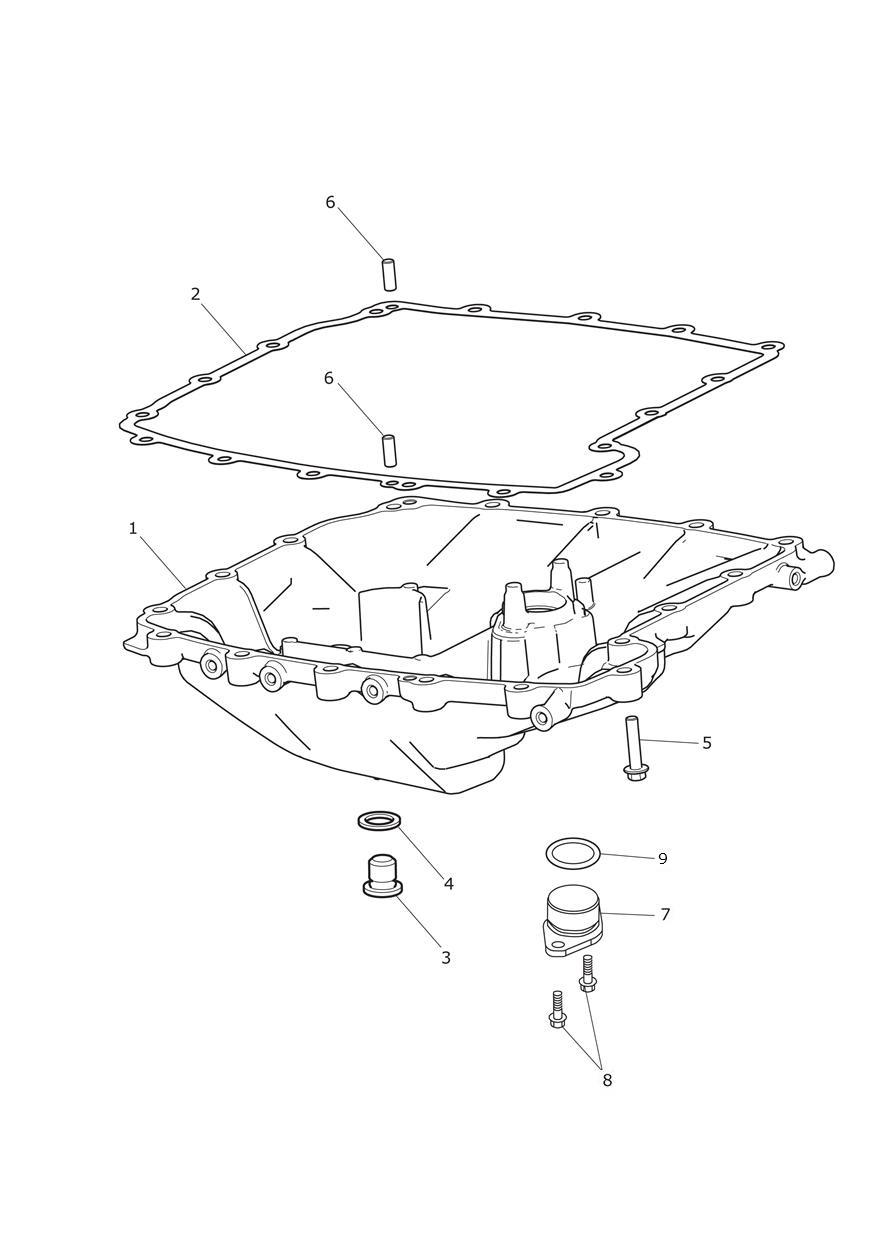

Sump & Fittings
9 parts
VIN 740276 and lower
Crankcase & Fittings
37 parts
VIN 740276 and lower

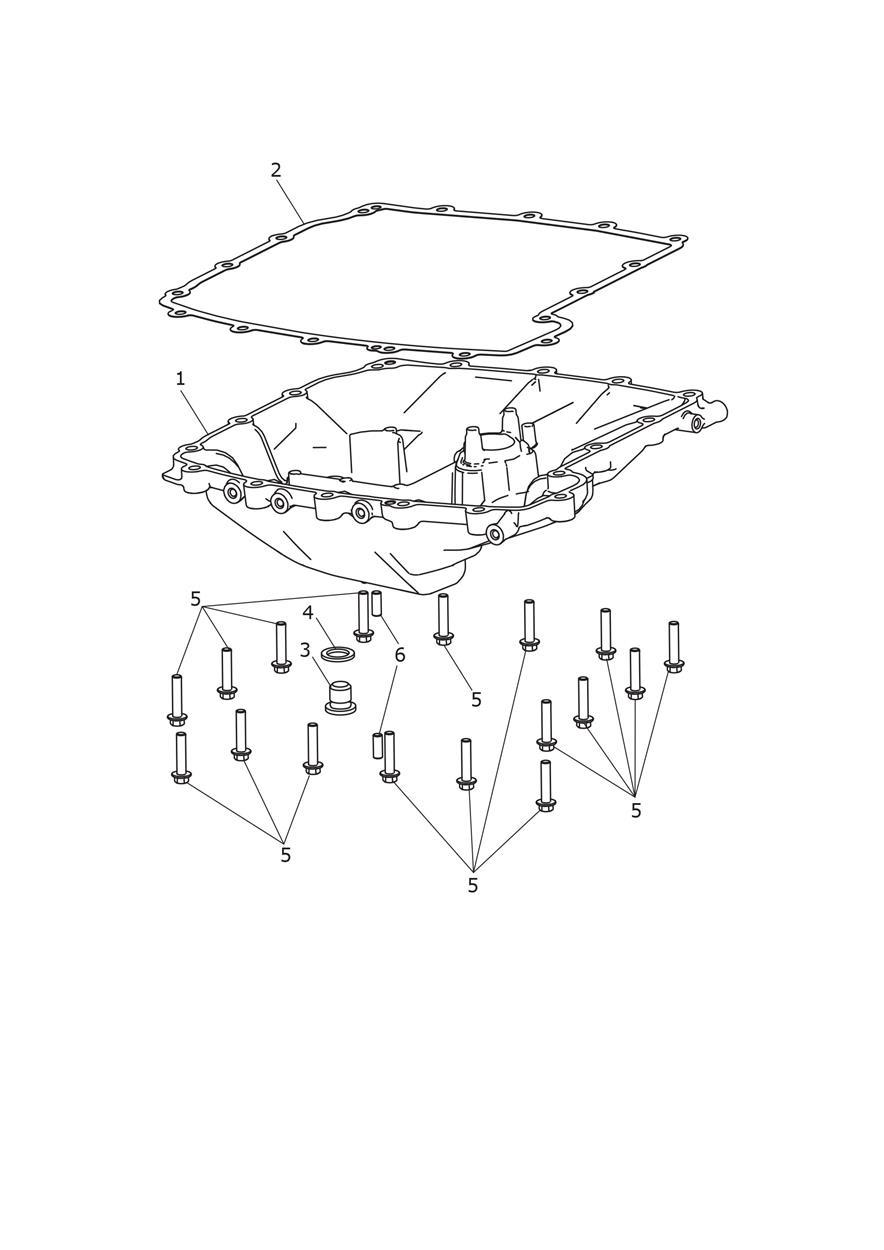

Sump & Fittings
6 parts
VIN 740277 and higher
Sump & Fittings
6 parts
VIN 740277 and higher
Cam Cover
6 parts
Crankcase & Fittings
37 parts
Crankcase Bolts
9 parts
Engine Covers
32 parts
Oil Pump Drive
31 parts
Sump & Fittings
9 parts
Cam Cover
7 parts
VIN 740277 and higher
Cam Cover
7 parts
VIN 740277 and higher
Crankcase & Fittings
37 parts
VIN 740277 and higher
Crankcase & Fittings
37 parts
VIN 740277 and higher
Crankcase Bolts
9 parts
VIN 740277 and higher
Crankcase Bolts
9 parts
VIN 740277 and higher
Engine Covers
30 parts
VIN 740277 and higher
Engine Covers
30 parts
VIN 740277 and higher
Oil Pump Drive
31 parts
VIN 740277 and higher
Oil Pump Drive
31 parts
VIN 740277 and higher
Sump & Fittings
6 parts
VIN 740277 and higher
Sump & Fittings
6 parts
VIN 740277 and higher
Cam Cover
7 parts
VIN 740277 and higher
Crankcase & Fittings
37 parts
VIN 740277 and higher
Crankcase Bolts
9 parts
VIN 740277 and higher
Engine Covers
30 parts
VIN 740277 and higher
Oil Pump Drive
31 parts
VIN 740277 and higher
Sump & Fittings
6 parts
VIN 740277 and higher
Cam Cover
7 parts
VIN 740277 and higher
Crankcase & Fittings
37 parts
VIN 740277 and higher
Crankcase Bolts
9 parts
VIN 740277 and higher
Engine Covers
30 parts
VIN 740277 and higher
Oil Pump Drive
31 parts
VIN 740277 and higher
Sump & Fittings
6 parts
VIN 740277 and higher
105 parts you can order online
Every part below appears in Triumph’s Crankcase, Engine Covers, Lubrication System diagrams for the Tiger Explorer and is priced and orderable online. Open a part to see what it fits and to buy it.
Most of these parts are shared with the Tiger 1200 up to AV5526 and Trophy 1215 books. 3 parts are specific to the Tiger Explorer.
Cam Cover VIN 740276 and lower
T1261374 Cam Cover, Machined, Sai
$510.48
AvailableT1261372 Seal, Cam Cover
$43.09
In stock in BreaT1260337 Seal, Cam Cover Screw
$5.74
In stock in BreaT1261373 Seal, Plug Towers
$6.80
In stock in BreaT3332066 Bolt, Lge Skt HD, Shld, M6x42.5
Low stock at Triumph
$5.02
Limited availabilityT3330241 Bolt, Lge Skt Hd, Shld, M6 x 24.0
$10.84
AvailableCrankcase & Fittings VIN 740277 and higher
T3450005 Plug, NPSI 3/8 Dryseal
$6.16
AvailableT3450000 Plug, PTF-SAE Short, 3/8-18, Enc
Backordered at Triumph · we’ll confirm the ship date after you order
$6.16
On backorderT3450091 Plug, Dia 14, Alum
$2.29
AvailableT3800165 Bearing, Ball, 6306R
$36.88
AvailableT3802512 Bearing, Needle
Backordered at Triumph · we’ll confirm the ship date after you order
$10.39
On backorderT1261049 Sight glass
$16.00
AvailableT3500078 Circlip, Int Dia 81.4 x 1.2
$1.99
AvailableT3550542 Washer, Cu, OD12.5 x Id6.4
$1.99
In stock in BreaT3205062 Bolt, HHF, Lghtd, M6 x 12, Slv
Backordered at Triumph · expected Oct 23
$3.88
On backorderT1222207 Bush, 10 x 12 x 8
$5.27
AvailableT1210288 Pipe, Gearbox, Oil Feed Spray
Backordered at Triumph · we’ll confirm the ship date after you order
$27.87
On backorderT3600143 O Ring, ID 9.1 x 1.6, Viton
Low stock at Triumph
$1.99
Limited availabilityT3600252 O Ring, 10.1 Dia x 1.6
$2.64
AvailableT3600109 O Ring, ID 5.6 x 2.3
$4.91
In stock in BreaT3000102 Dowel, Hollow, 10 x 14
Backordered at Triumph · expected Nov 20
$1.99
On backorderT1180156 Sleeve Assy, Needle bearing
$58.98
AvailableT1160217 Plate, Oil Retainer
$3.98
AvailableT1160218 Gasket, Oil Retainer Plate
Backordered at Triumph · expected Nov 6
$3.08
On backorderT3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc
$1.99
In stock in BreaT3450119 Plug, Face Seal, M16 x 1.5
$6.33
AvailableT3600191 O Ring, 16 x 2
$3.49
AvailableT1182203 Plate, Retainer, Bearing, Input
$4.49
AvailableT3555012 Washer, 6.4 x 16 x 2
$3.81
AvailableT3000101 Dowel, Hollow, 8 x 14
$3.61
AvailableT1161450 Main Bearing, Grooved, White
$15.12
AvailableT1161451 Main Bearing, Grooved, Red
$15.12
AvailableT1161452 Main Bearing, Grooved, Blue
$15.12
AvailableT1161453 Main Bearing, Grooved, Green
$15.12
AvailableT3450299 Firtree, M6
$3.08
AvailableT1162202 Gasket, Breather Plate
$11.08
AvailableCrankcase Bolts VIN 740276 and lower
T3202325 Bolt, HHF, M8 x 43, Slv
Low stock at Triumph
$1.99
Limited availabilityT3202315 Bolt, HHF, M8 x 65, Slv
$7.57
AvailableT3202323 Bolt, HHF, M8 x 80, Slv
$1.99
AvailableT3202317 Bolt, HHF, M8 x 116.5, Slv
$9.43
AvailableT3550184 Washer, Hardened, 8.2 x 18.7 x 2
$2.09
AvailableT3202303 Bolt, RHHF, M6 x 28, Slv
$1.99
AvailableT3200195 Bolt, RHHF, M6 x 68, Slv
$4.04
AvailableT3202330 Bolt, RHHF, M6 x 90, Slv
Backordered at Triumph · expected Oct 23
$10.22
On backorderEngine Covers VIN 740276 and lower
T1261440 Clutch Cover
$330.97
AvailableT1261408 Kit, Slave Cylinder Cover
$75.69
AvailableT1261430 Gasket, Clutch Cover
$14.16
AvailableT3000005 Dowel, Dia 6 x 16.5
$1.99
AvailableT1261053 Oil Filler Cap
$10.63
AvailableT3600163 O Ring, ID 19 x 3
$11.68
AvailableT3205067 Bolt, HHF, Lghtd, M6 x 25, Slv
$2.27
AvailableT3205085 Bolt, HHF, Lghtd, M6 x 20, Enc
$5.27
AvailableT1261421 Cover, Crank, RHS
$142.58
AvailableT1261431 Gasket, RH Crank Cover
$16.37
In stock in BreaT1260267 Balancer Cover Gasket
$8.43
In stock in BreaT3205066 Bolt, HHF, Lghtd, M6 x 20, Slv
$4.21
In stock in Brea · last onesT1261422 Cover, LH Crank, Assy
$147.87
AvailableT1261433 Gasket, LH Crank
$13.37
In stock in BreaT3205083 Bolt, HHF, Lghtd, M6 x 28, Slv
$2.29
AvailableT1262201 Breather Cover Assembly
Backordered at Triumph · we’ll confirm the ship date after you order
$112.68
On backorderT1260296 Gasket, Breather Cover
$23.57
AvailableT3205064 Bolt, RHHF, Domed, S/S, M6 x 16, Enc
$3.71
AvailableT3205082 Bolt, HHF, Lghtd, M6 x 35, Enc
$2.20
AvailableT1261426 Gasket, Gearchange Cover
$8.86
In stock in BreaT3600088 Seal, Oil, 14 x 22 x 4.5
$5.92
In stock in BreaT3800001 Bearing, Needle, 20 x 14 x 12
$7.96
AvailableT1262202 Clutch Suppression Pad
$28.59
AvailableEngine Covers VIN 740277 and higher
T1260509 Clutch Cover, Wet Paint
Backordered at Triumph · we’ll confirm the ship date after you order
$330.97
On backorderT1260573 RH Crank Cover, Wet Paint
$142.58
AvailableT1260528 LH Crank Cover Assy, Wet Paint
$161.95
AvailableT1260534 Gearchange Cover, Wet Paint
$140.84
AvailableOil Pump Drive VIN 740276 and lower
T1210400 Oil & Water Pump Assembly
Low stock at Triumph
$302.81
Limited availabilityT3205065 Bolt, HHF, Lghtd, M6 x 20, Enc
$5.19
AvailableT3201055 Bolt, RHHF, M6 x 60, Raw, Enc
$2.20
AvailableT3200122 Bolt, RHHF, M6 x 50, Encaps
$2.64
AvailableT1210420 Chain, Aux Drive, Silent
$34.77
AvailableT1210430 Pressure Relief Valve
$35.82
AvailableT1218001 Oil Filter, OES
$16.63
AvailableT1210440 Oil Filter Multipack (24)
$379.33
AvailableT1210438 Oil Filter Adaptor
Low stock at Triumph
$11.38
Limited availabilityT1211000 Sleeve, Oil Jet, Piston
$5.69
AvailableT1210431 Plate, Retainer, Aux Drive
$11.26
AvailableT3051055 Screw, Cap/Hd, M5 x 10, Slv, Enc
$2.81
AvailableT1211121 Oil Feed Casting
Backordered at Triumph · we’ll confirm the ship date after you order
$16.38
On backorderT1210422 Pipe, Coolant Return, Internal
$23.50
AvailableT3600124 O Ring, ID 21.5 x 3
$3.14
In stock in BreaT1210423 Pipe, Coolant Feed, Internal
$23.50
AvailableT1212201 Oil Pick Up
$7.90
AvailableT3600128 Seal, Oil, Strainer
$7.14
AvailableT1210128 Pump Drain Tube
$5.27
AvailableT1210412 Heat Exchanger, Aluminium
$440.08
AvailableT3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv
$1.99
In stock in BreaT1210091 Oil Pressure Switch, M10
Low stock at Triumph
$46.64
Limited availabilityT3550546 Washer, Cu, OD 16 x ID 10.2/
$1.99
AvailableT1210428 Gasket, Breather Drain
$11.08
AvailableT3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc
$1.99
In stock in BreaSump & Fittings VIN 740276 and lower
T1232201 Sump, Black
$484.11
AvailableT1232202 Gasket, Sump
Low stock at Triumph
$17.19
Limited availabilityT3458989 Sump Plug, M14 x 1.5, Blk
$5.08
AvailableT3551092 Sealing Washer Multipack (25)
$25.51
In stock in BreaT1232208 Bung, Sump Assy
$4.12
AvailableT3205063 Bolt, HHF, Lghtd, M6 x 16, Slv
Low stock at Triumph
$3.24
Limited availabilityT3600028 O Ring, Filler Cap
$1.99
Available
