Bodywork
Triumph Tiger Sport 660cc · 16 diagrams
16 exploded diagrams for the bodywork of the Triumph Tiger Sport 660cc, covering the Tiger Sport 660. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

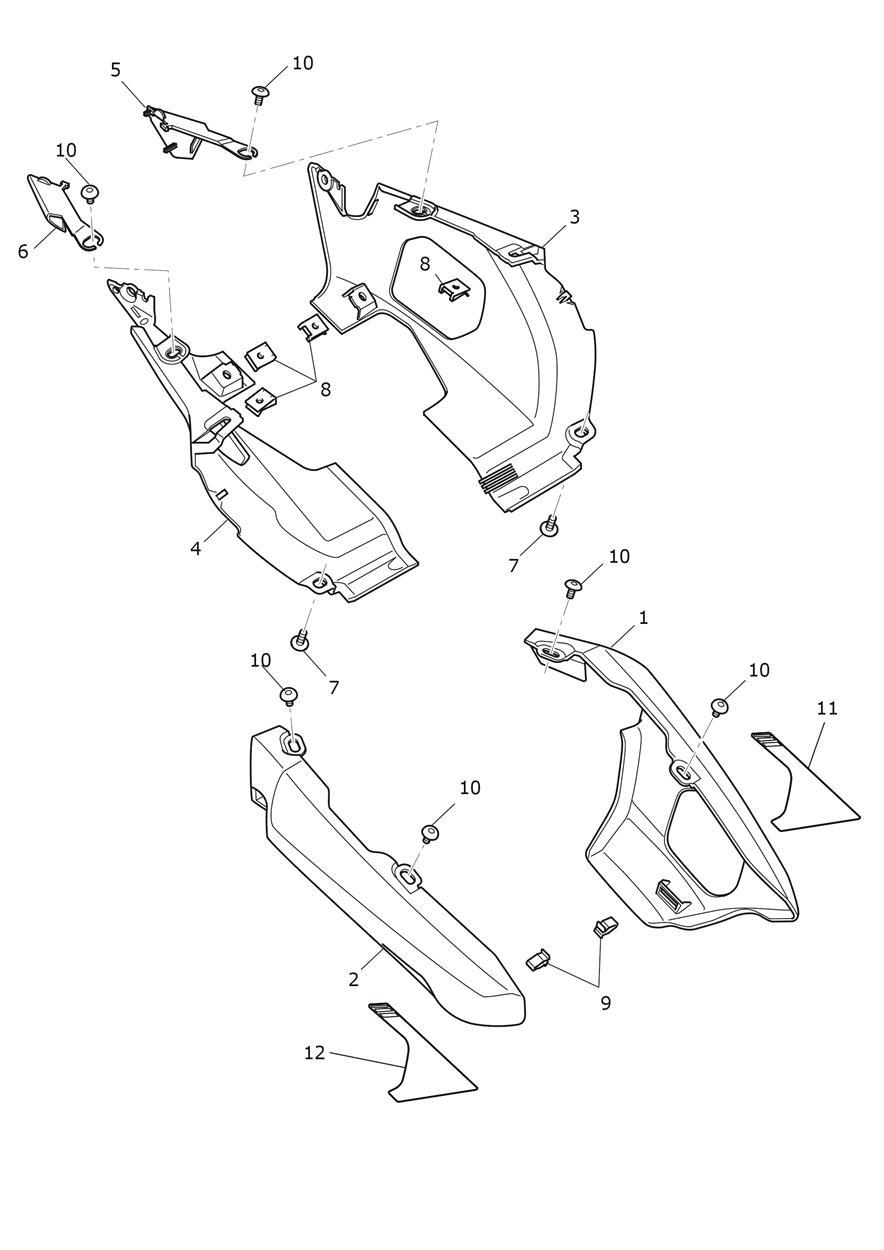

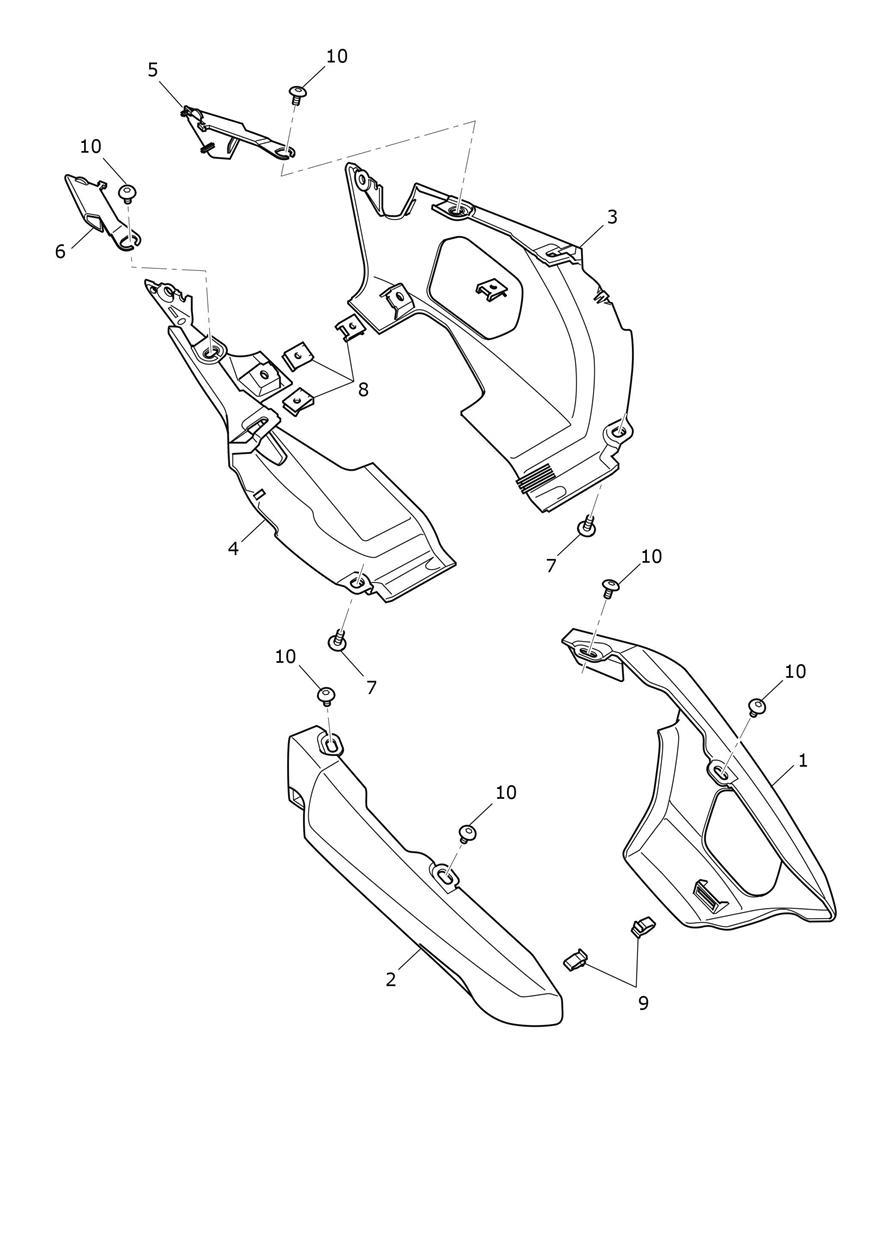

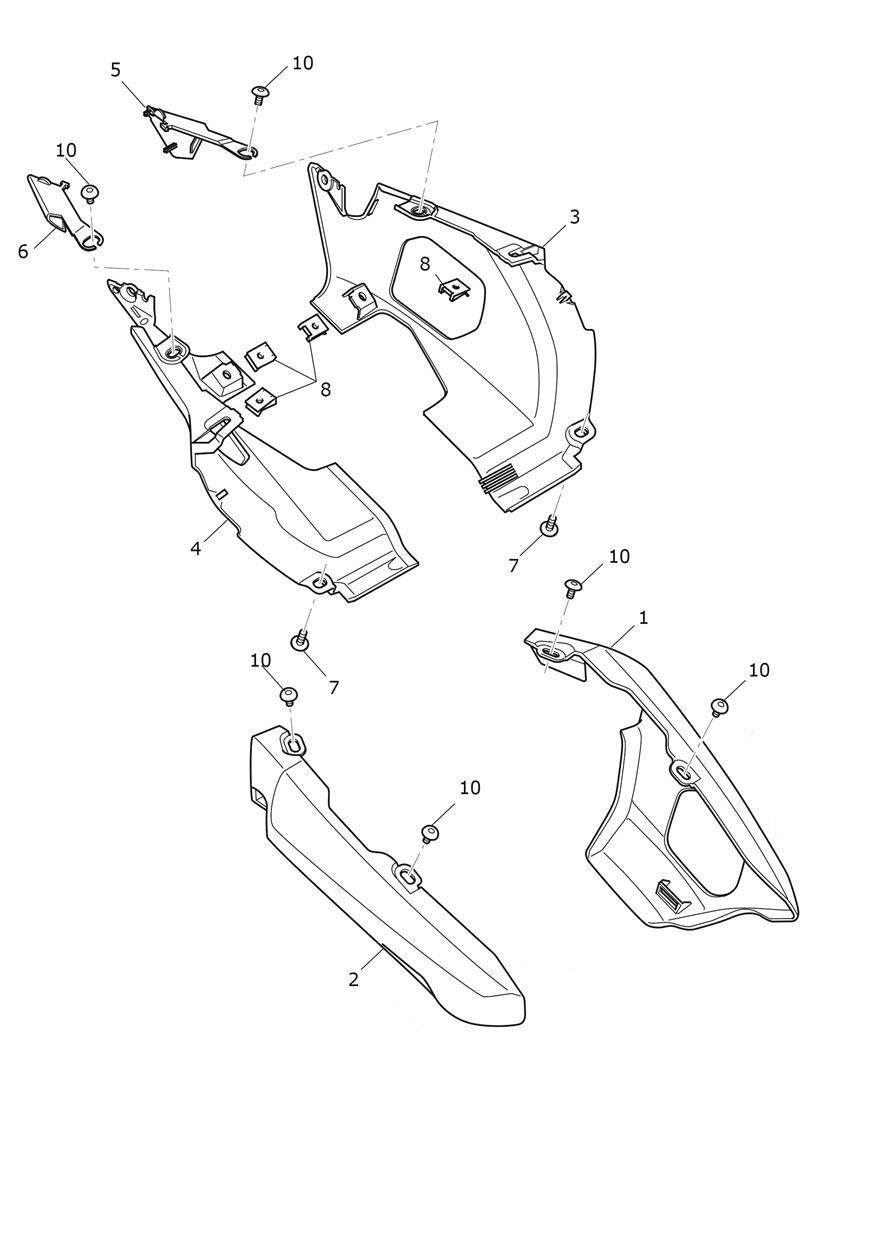

Rear Bodywork
13 parts

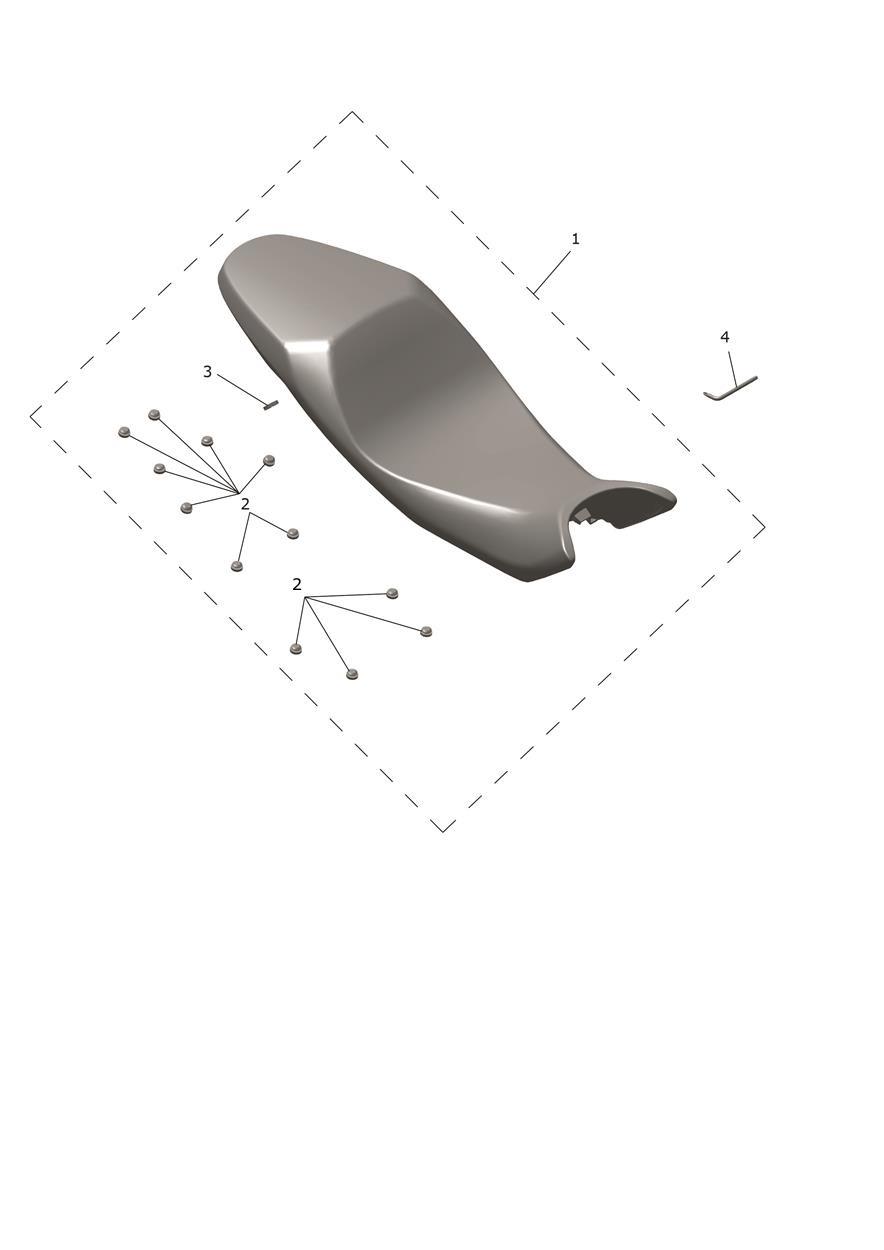

Seat
4 parts

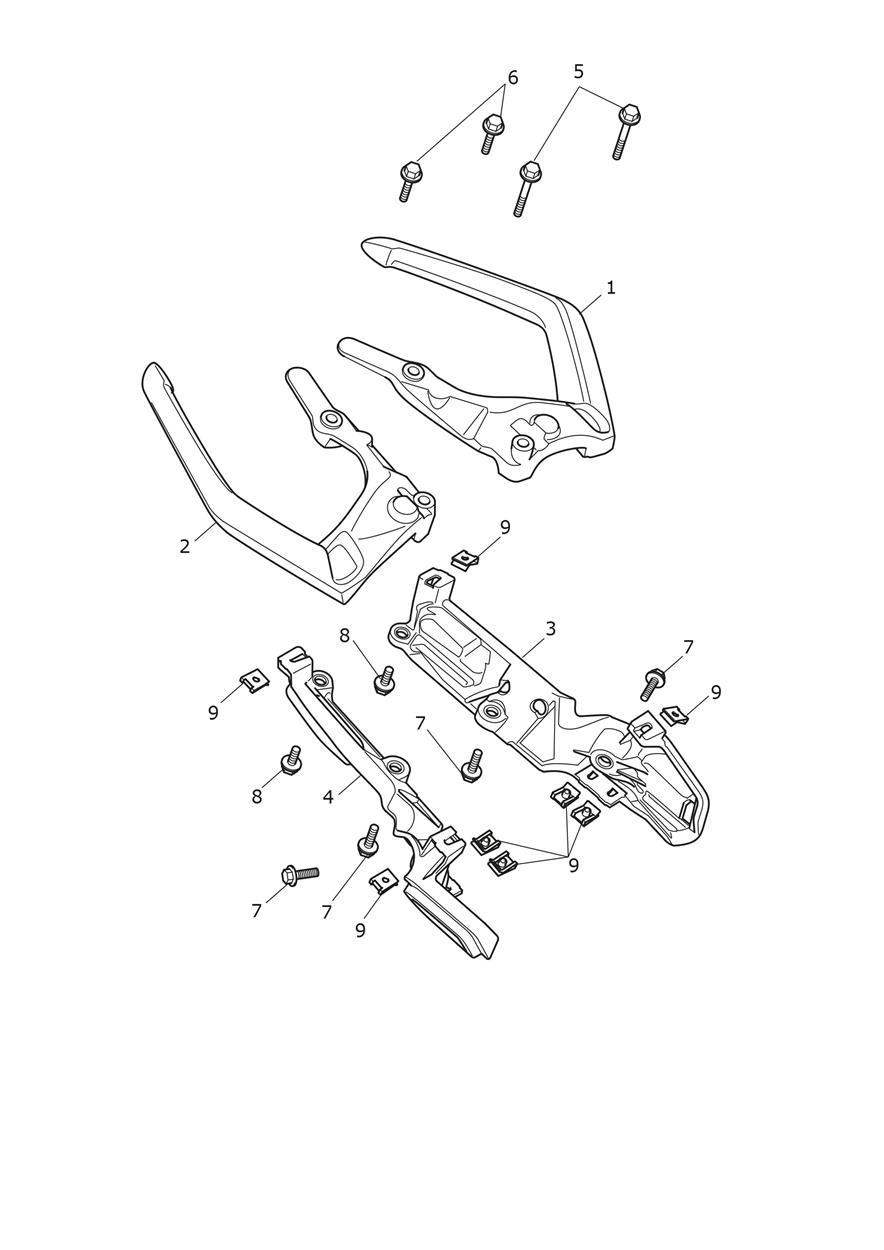

Grab Handles
9 parts

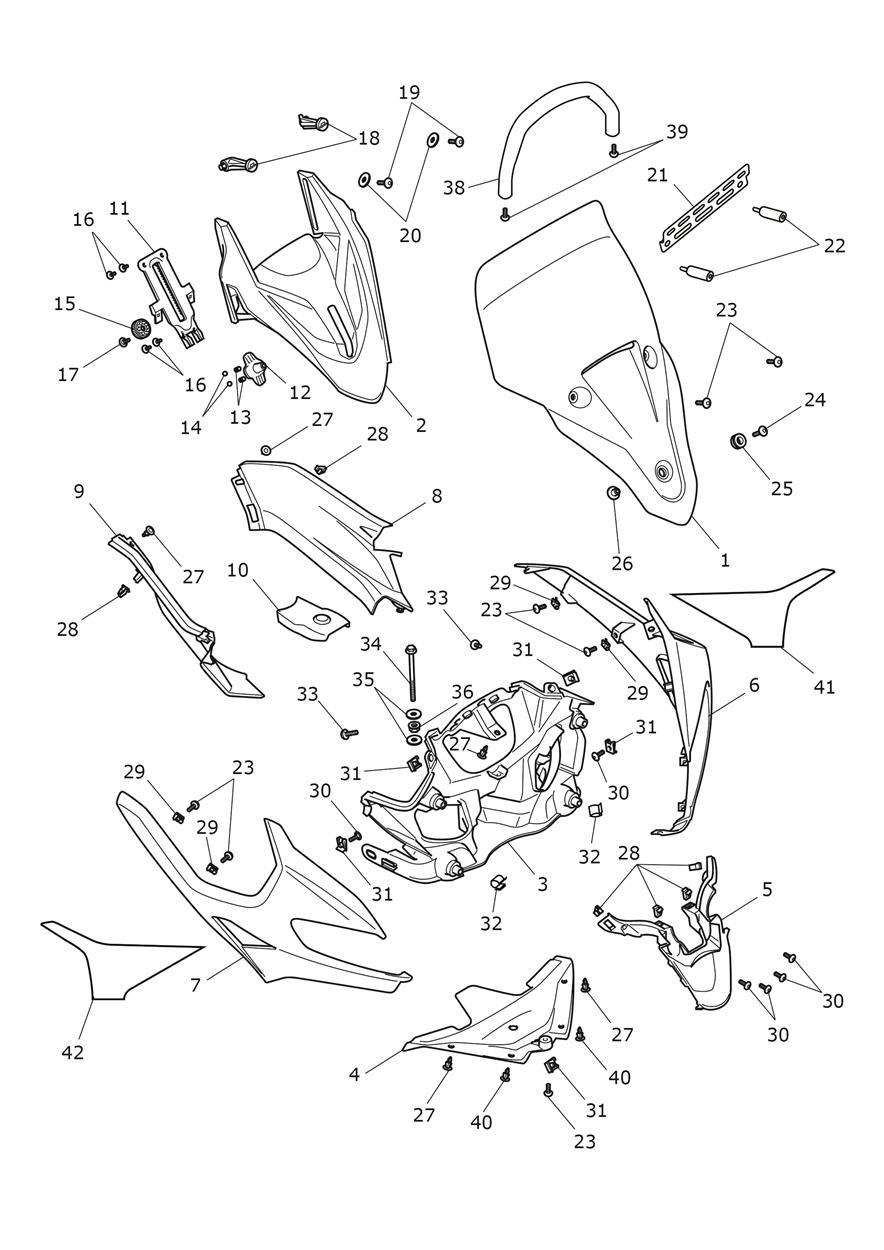

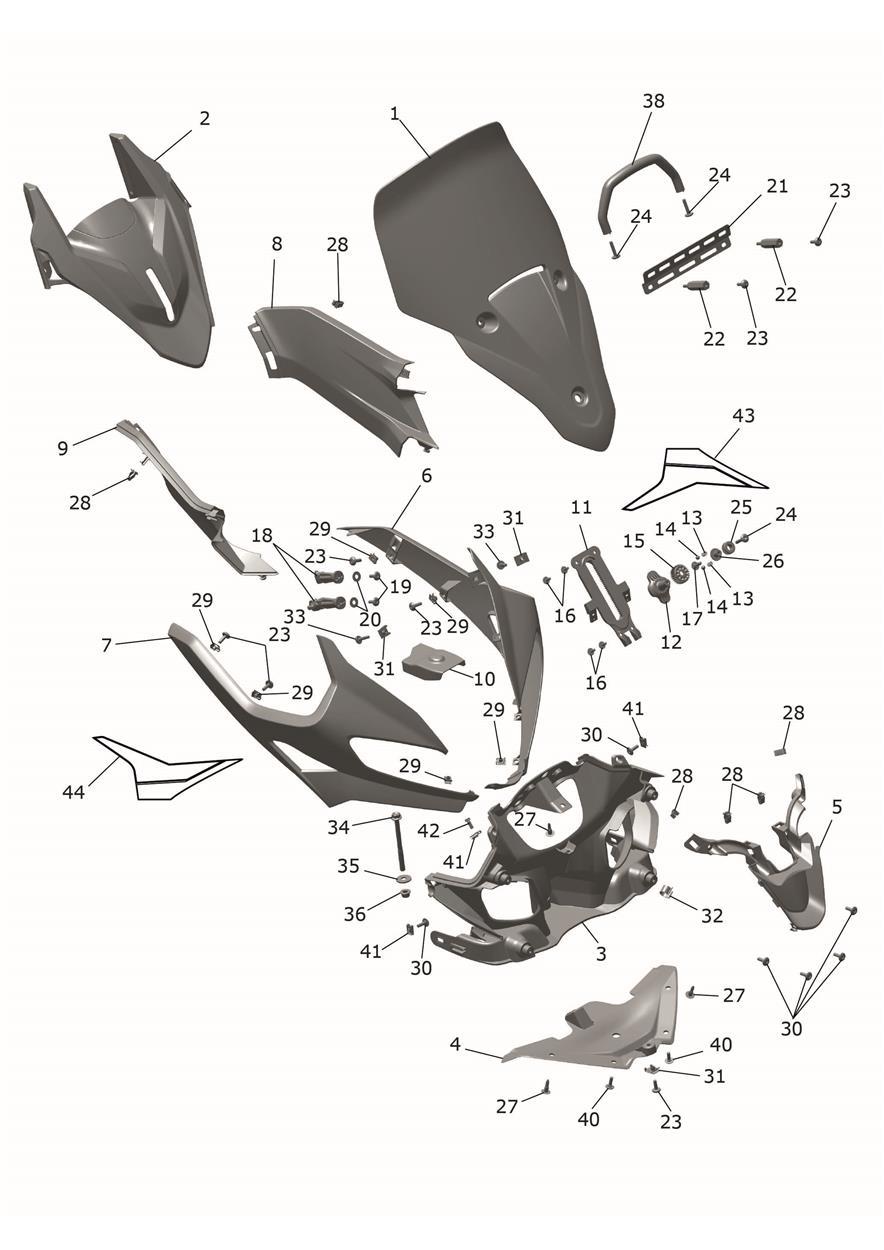

Cockpit
46 parts

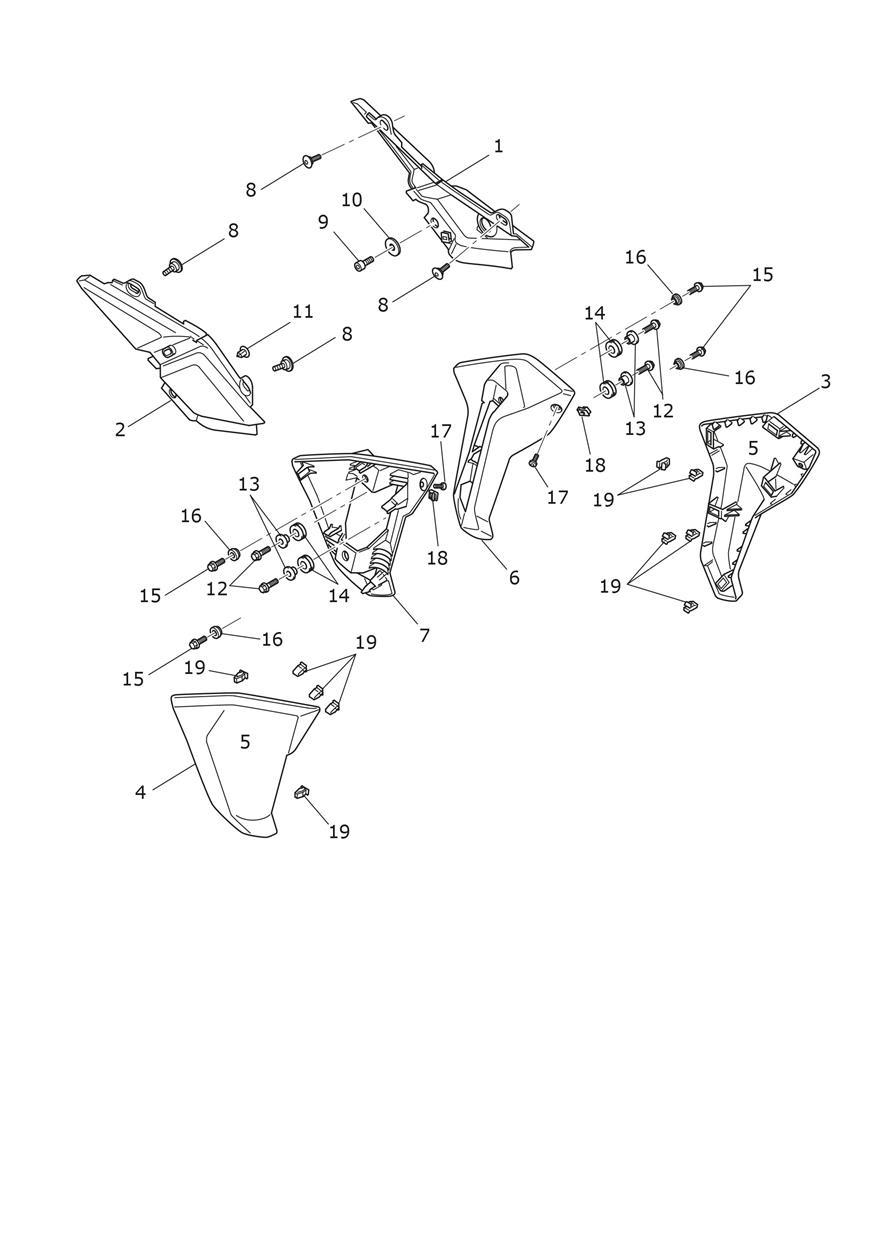

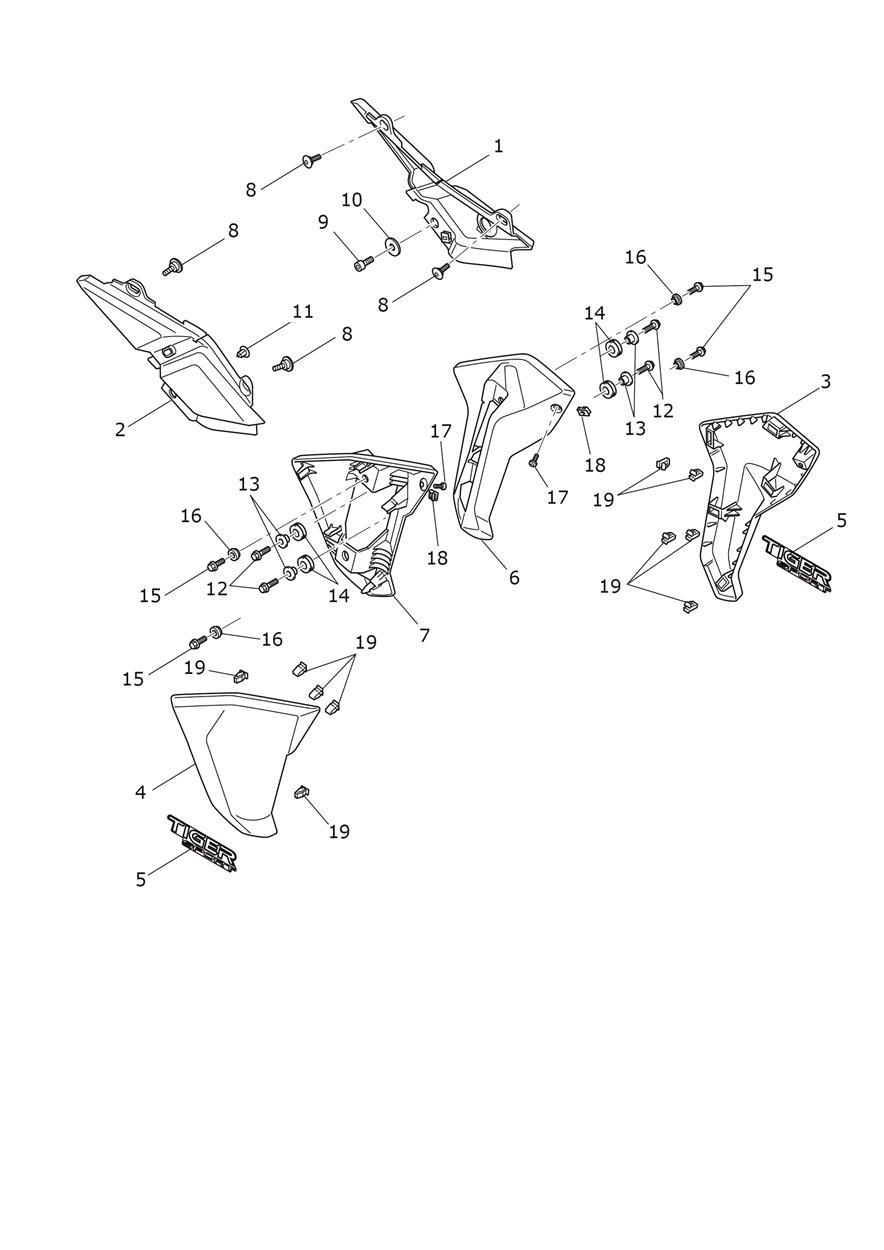

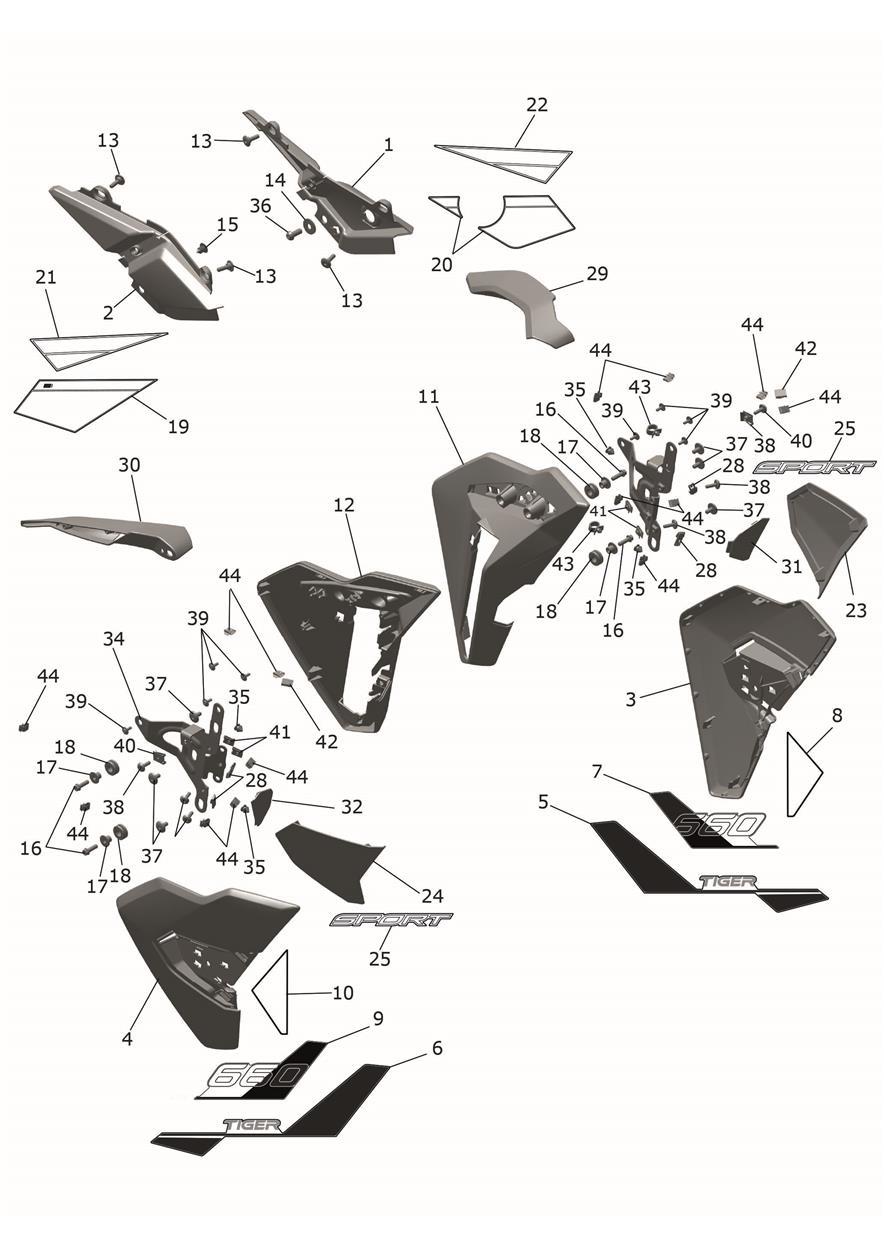

Side Panels
58 parts

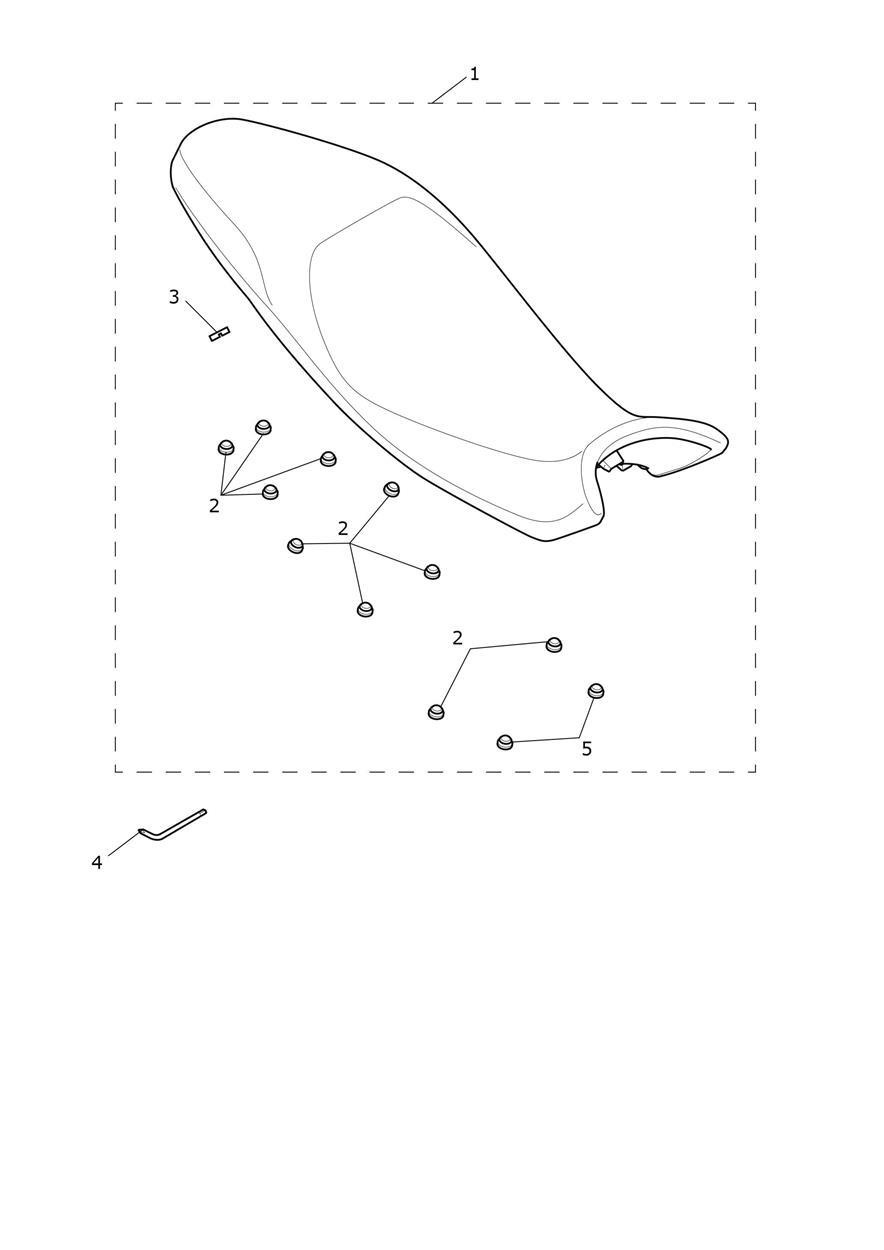

Seat
5 parts
Seat
4 parts
Grab Handles
9 parts
Rear Bodywork
22 parts

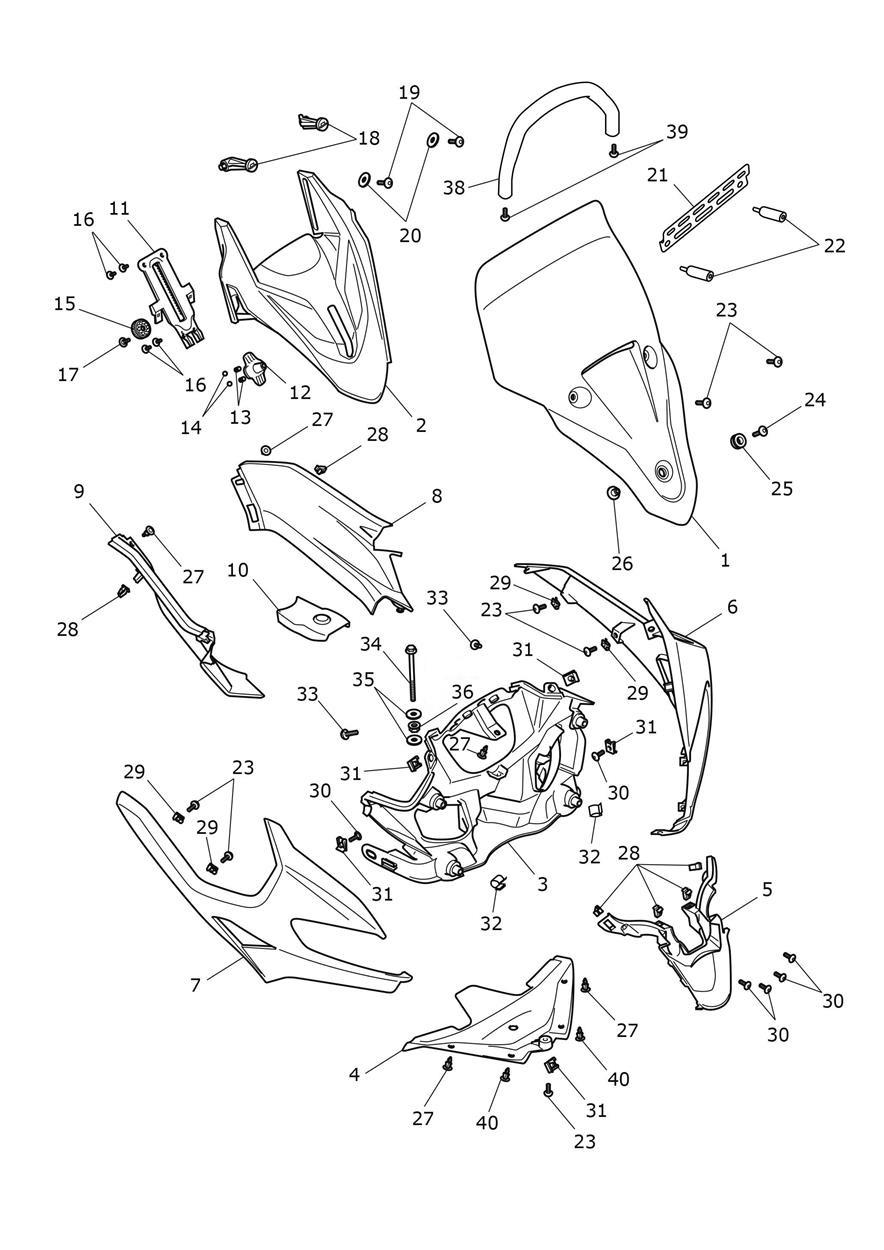

Cockpit
47 parts
Rear Bodywork
16 parts
Cockpit
58 parts
Side Panels
28 parts
Grab Handles
9 parts
Side Panels
29 parts

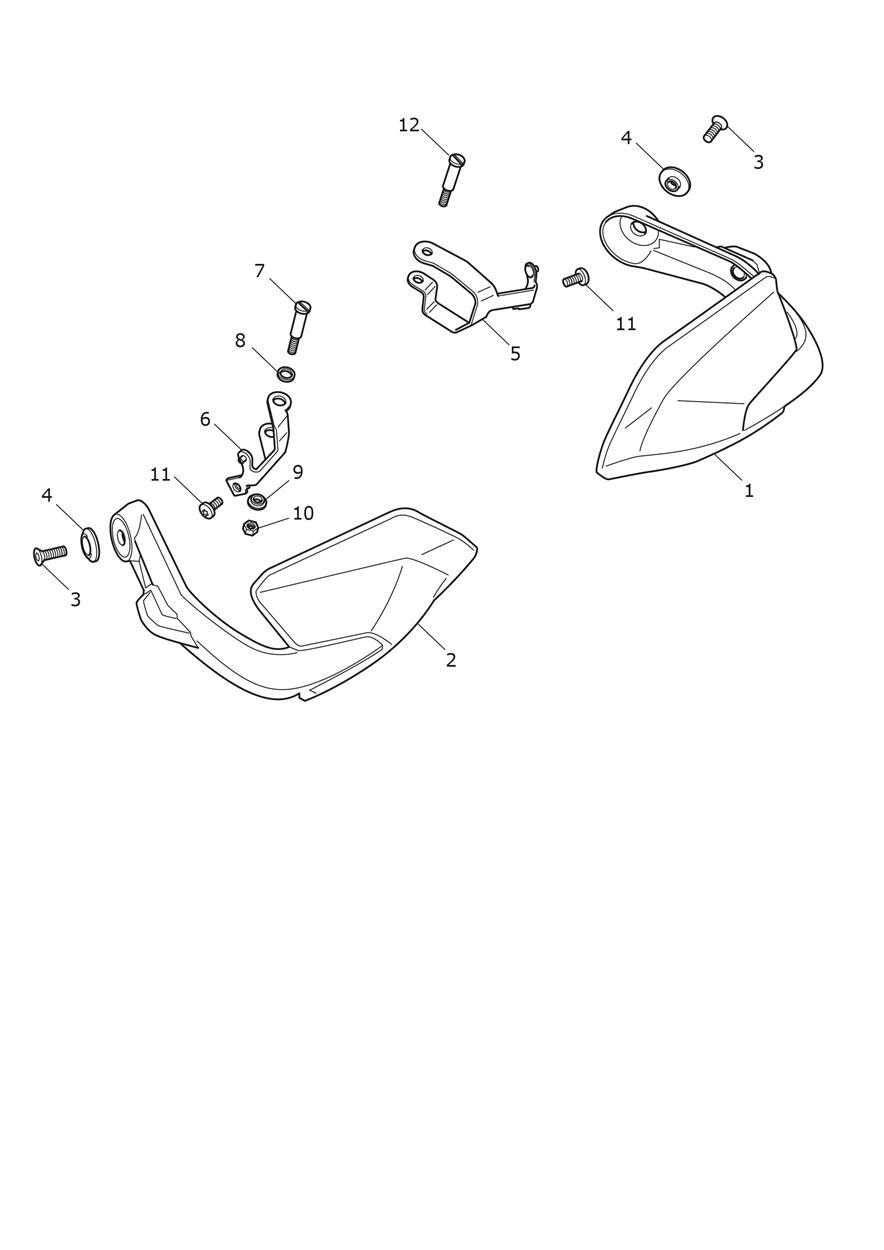

Handguards - TH Only
12 parts
