Braking System
Triumph Tiger Sport 660cc · 15 diagrams
15 exploded diagrams for the braking system of the Triumph Tiger Sport 660cc, covering the Tiger Sport 660. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

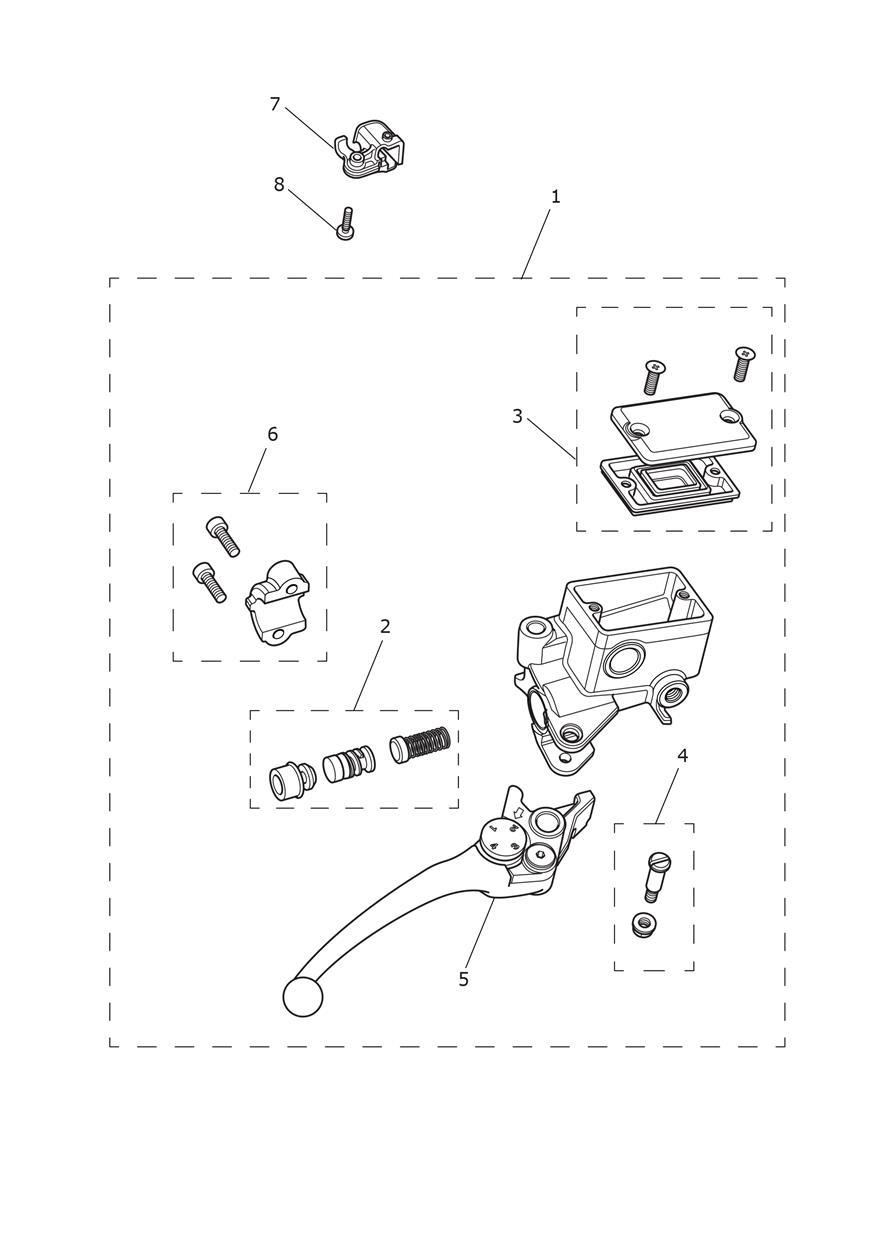

Front Brake Master Cylinder & Hoses
8 parts

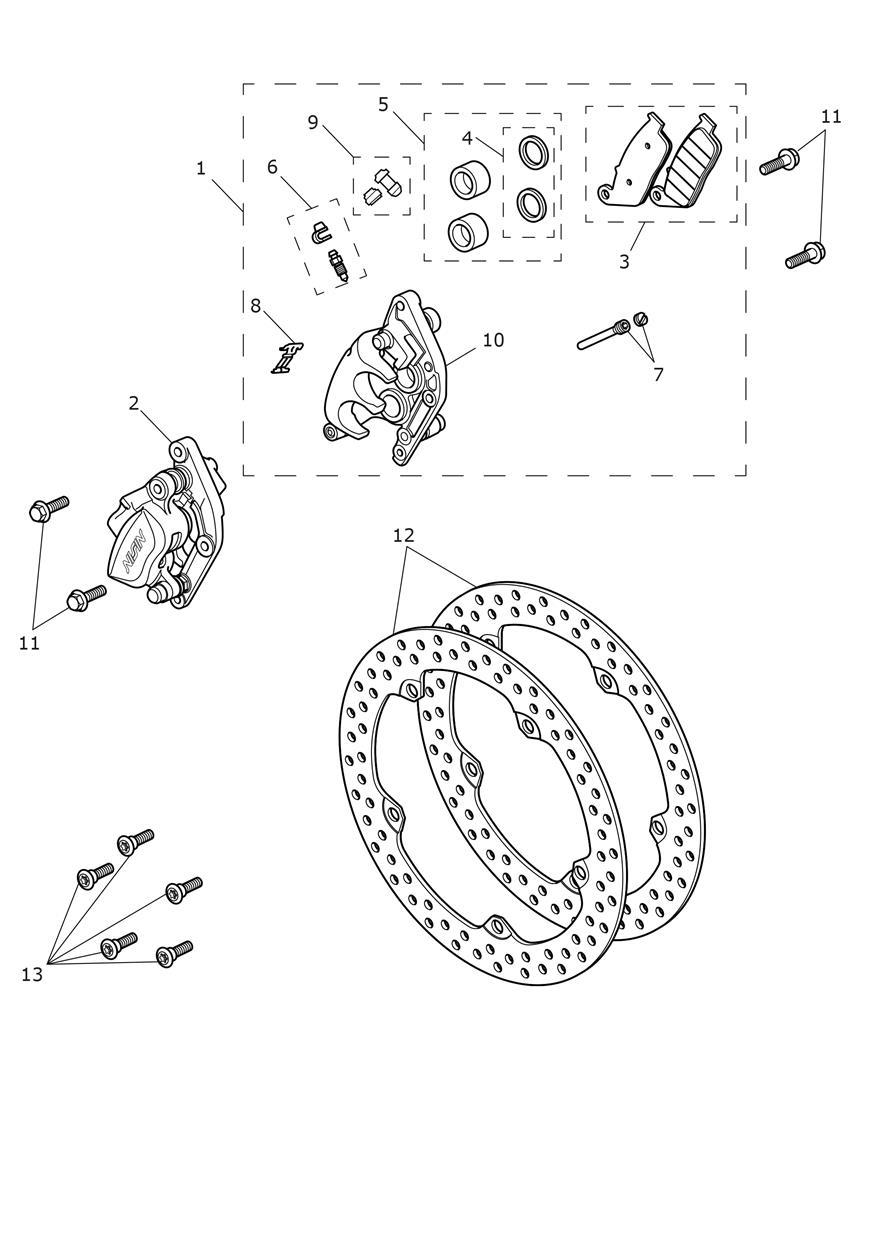

Front Brake Caliper & Discs
14 parts

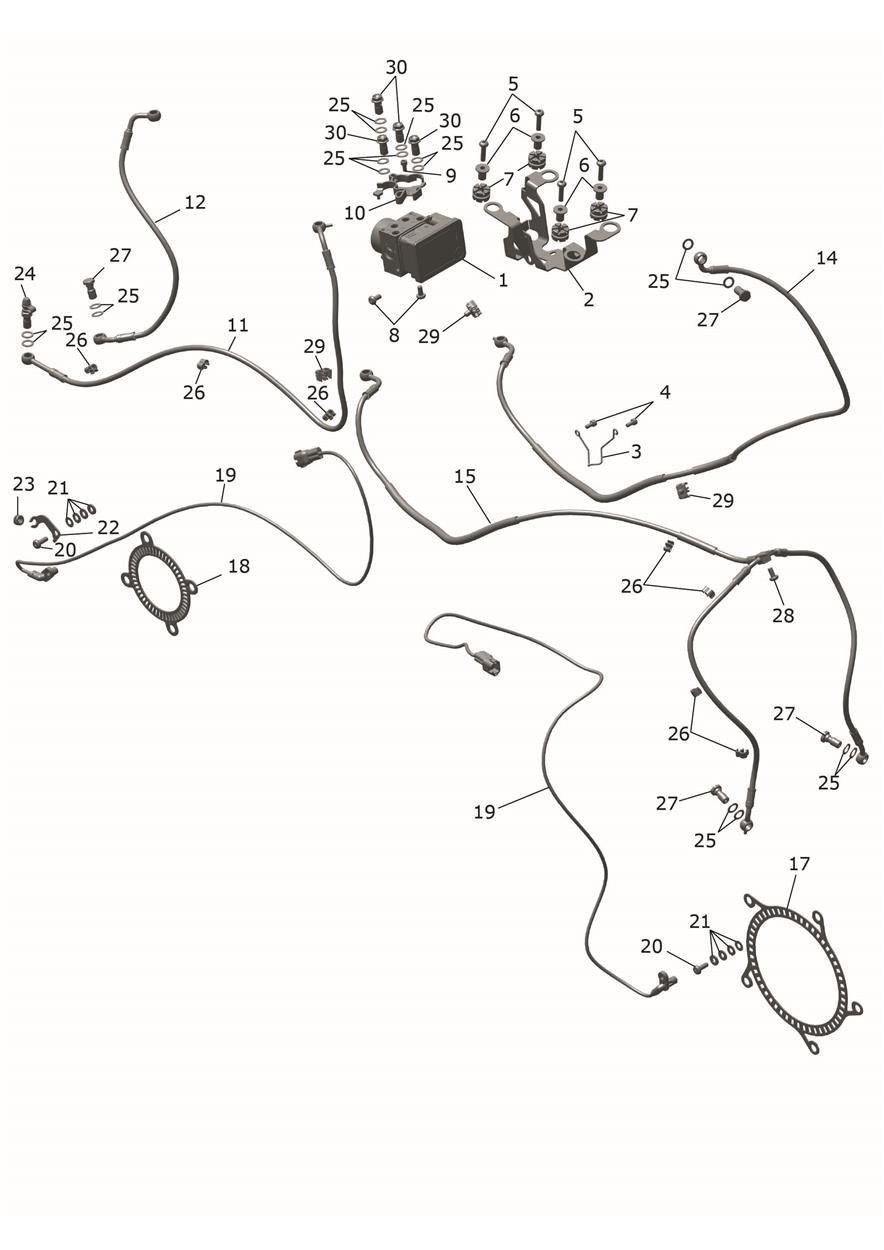

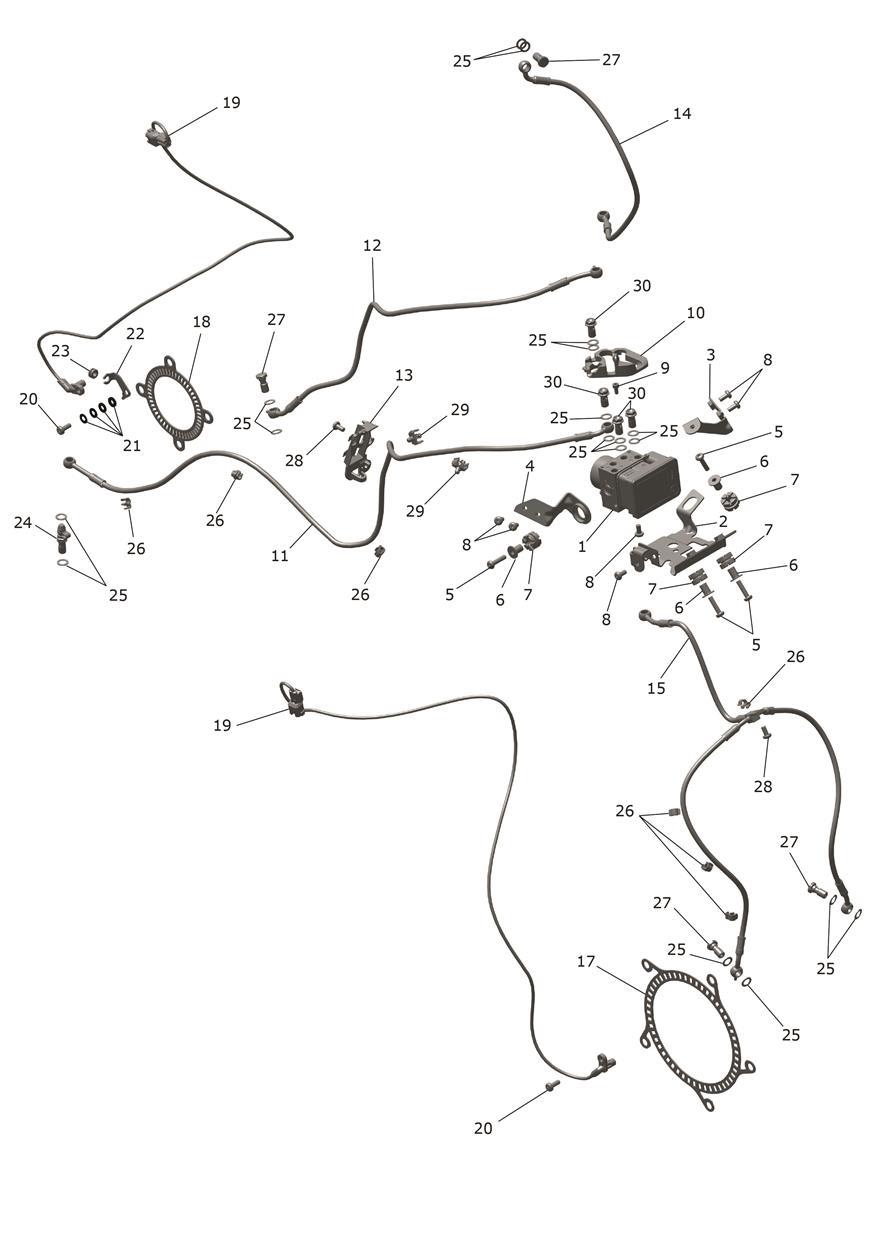

ABS System
29 parts

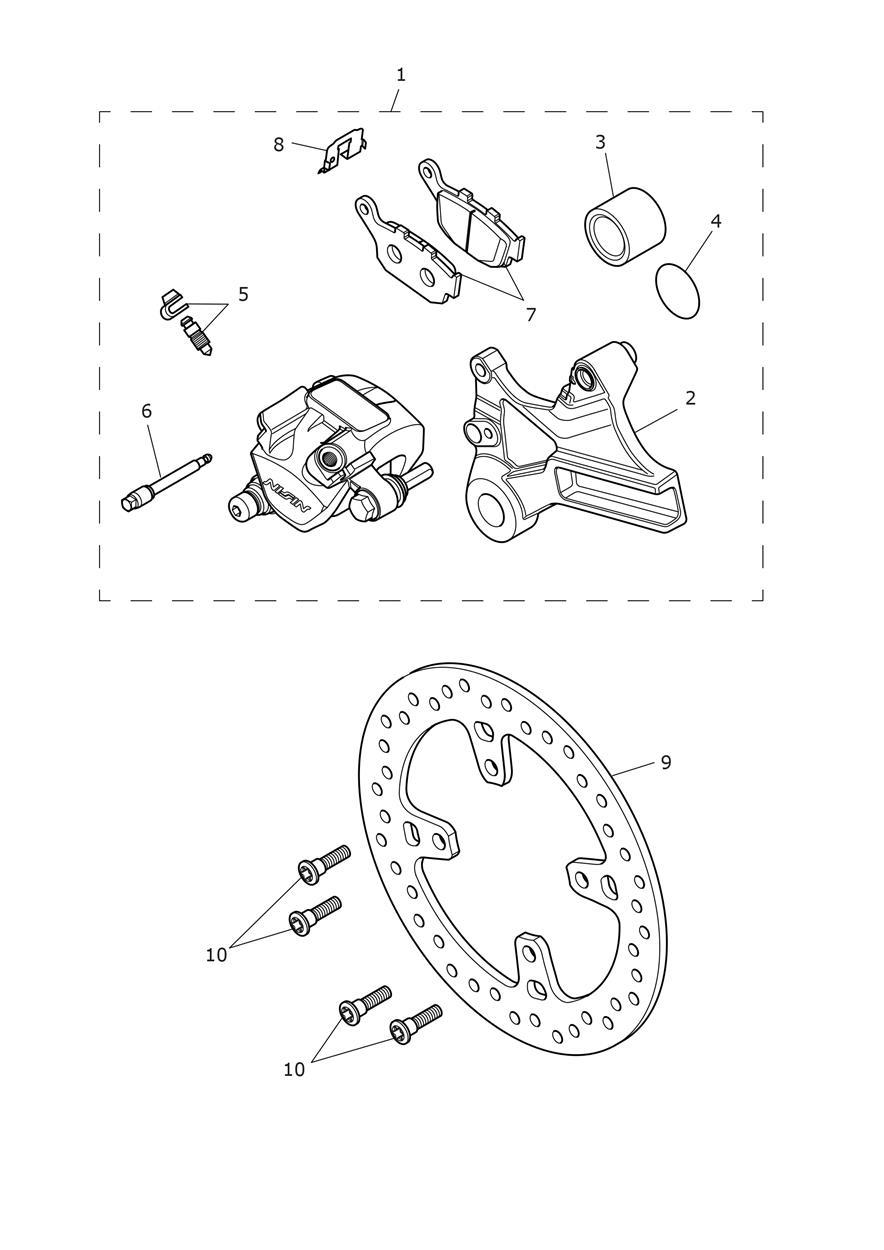

Rear Caliper & Disc
10 parts

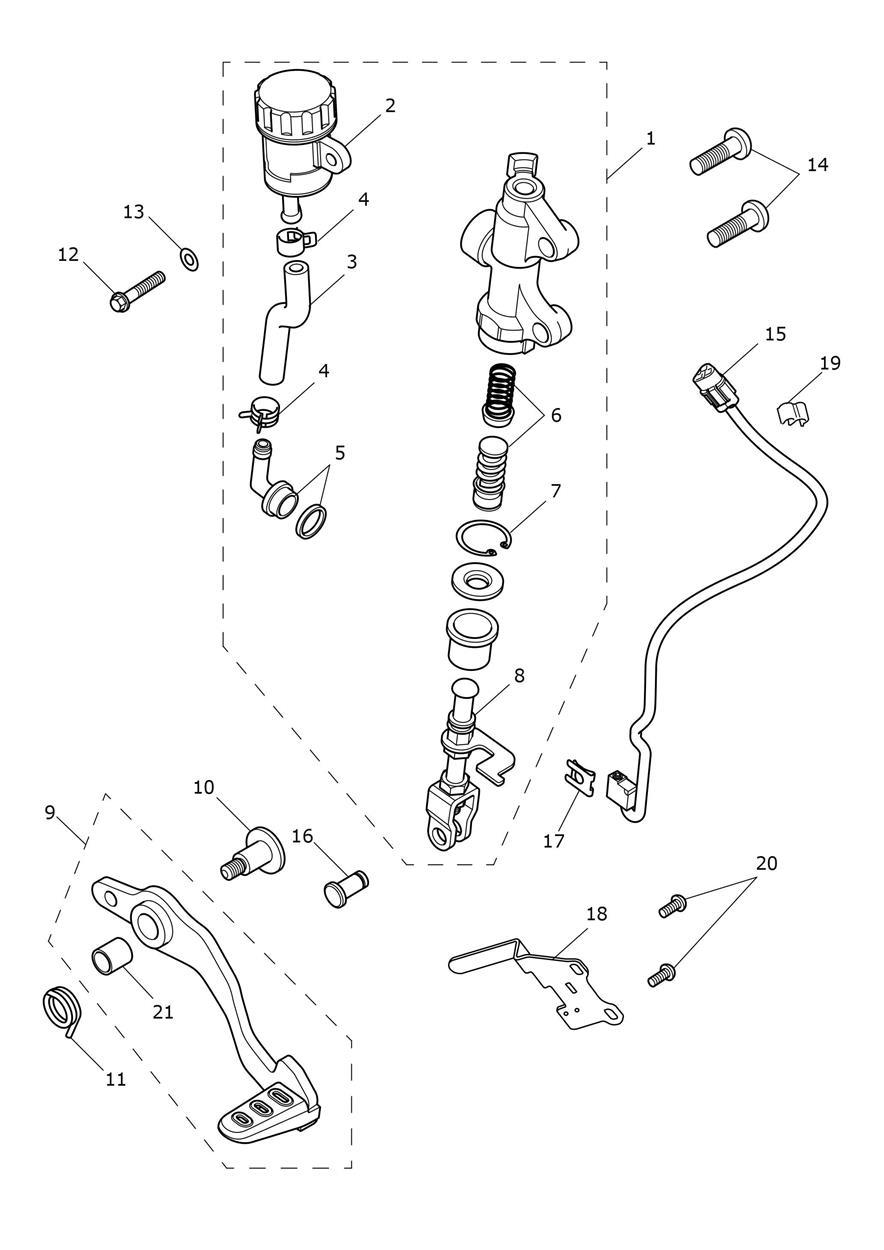

Rear Brake Master Cylinder
23 parts

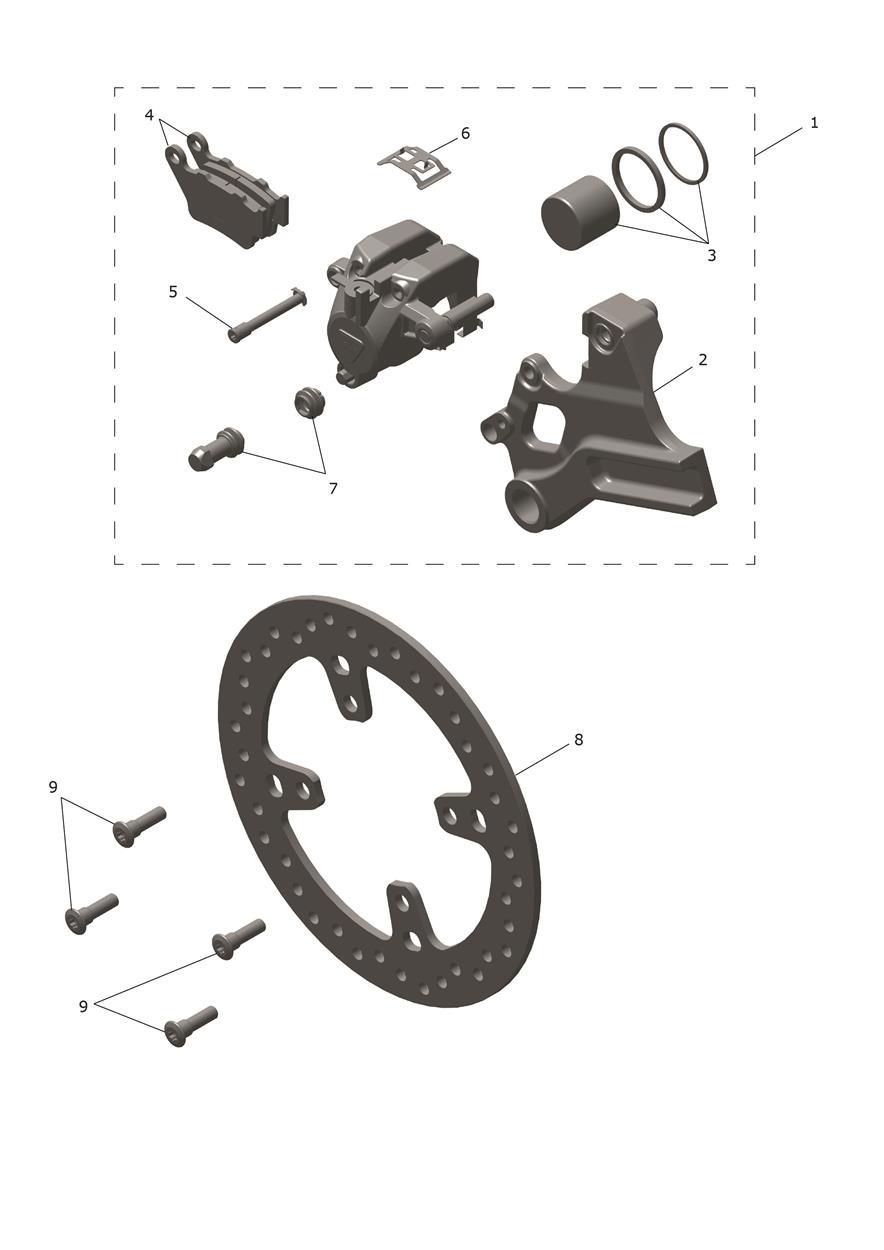

Rear Caliper & Disc
9 parts

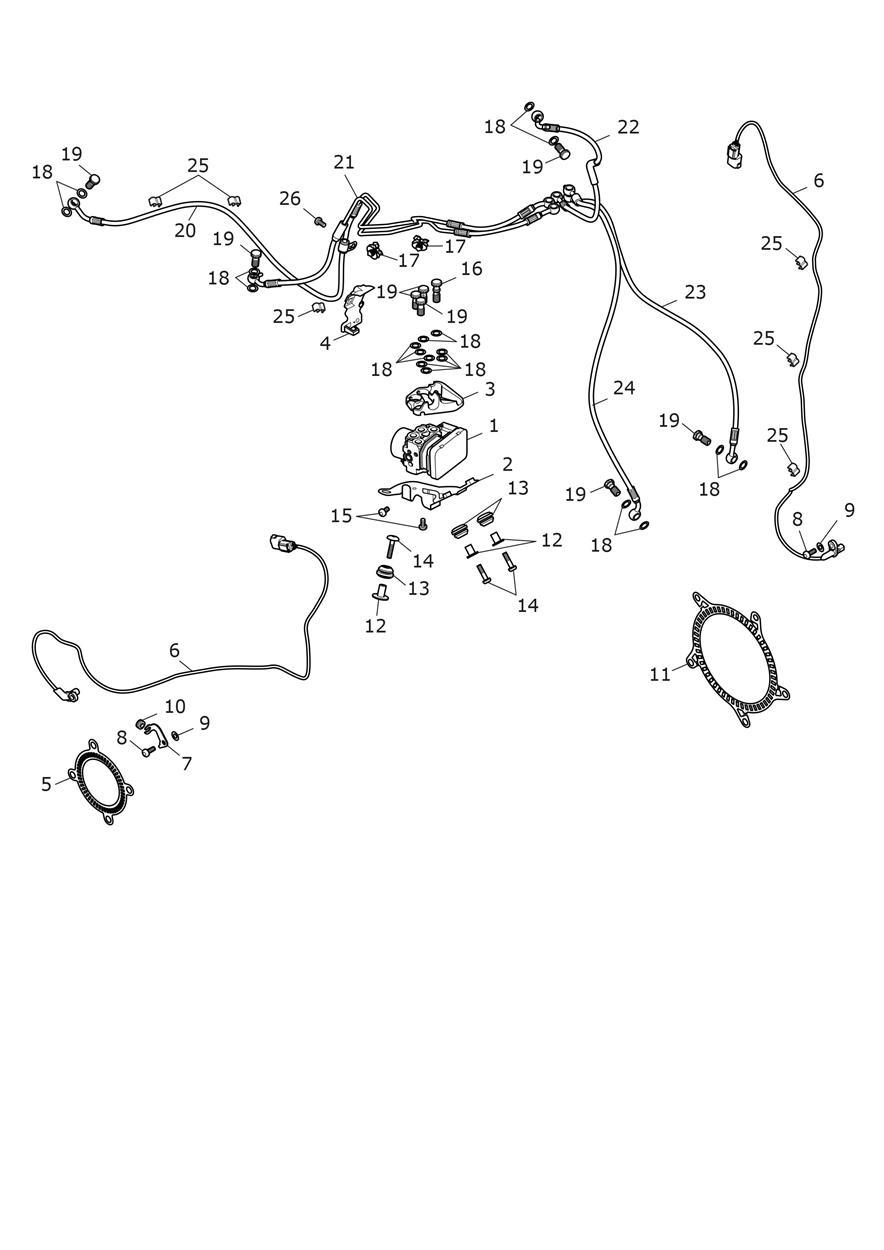

ABS System
31 parts
Front Brake Master Cylinder & Hoses
8 parts
Front Brake Caliper & Discs
14 parts

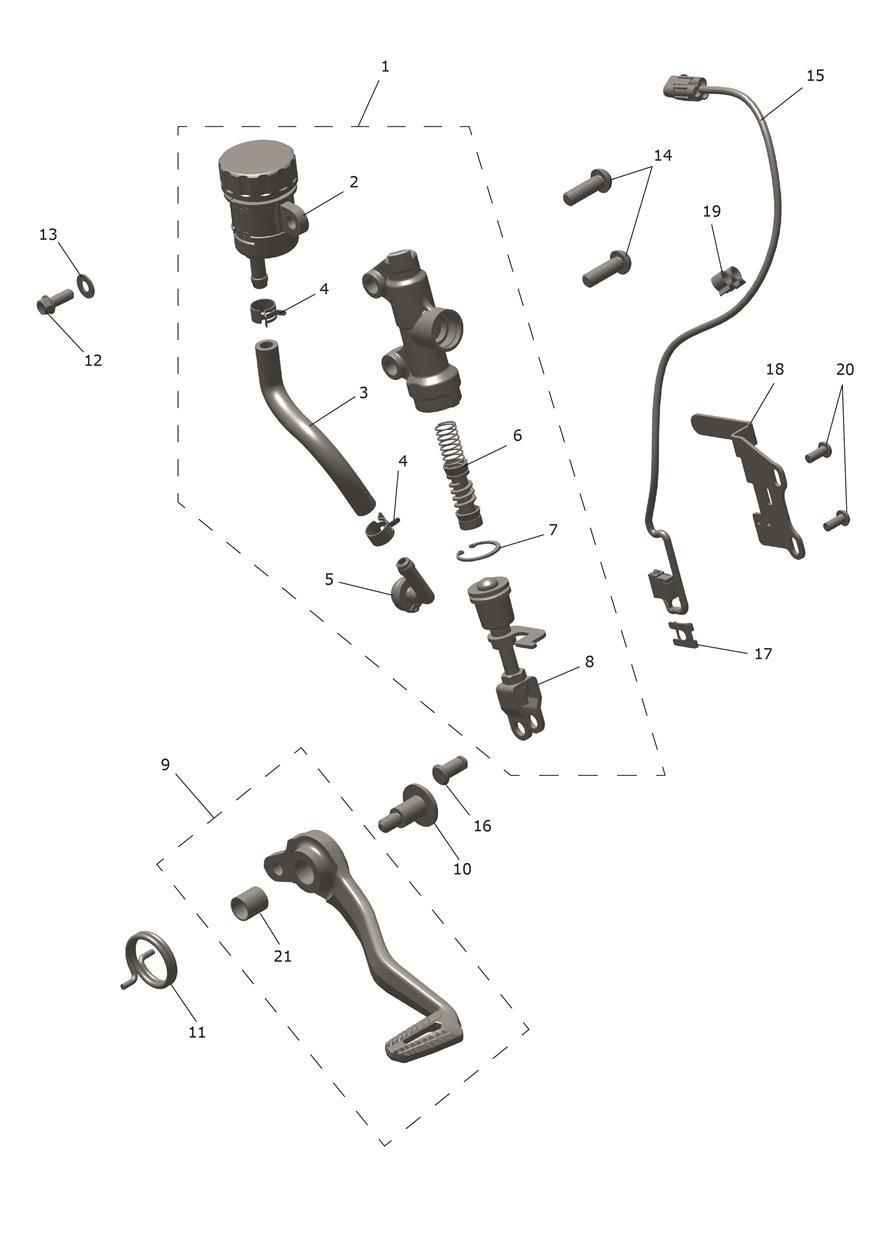

Rear Brake Master Cylinder
21 parts
Front Brake Master Cylinder & Hoses
8 parts
Front Brake Caliper & Discs
14 parts
Rear Brake Master Cylinder
21 parts
Rear Caliper & Disc
9 parts
ABS System
34 parts
