Cooling System
Triumph Tiger Sport 660cc · 3 diagrams
3 exploded diagrams for the cooling system of the Triumph Tiger Sport 660cc, covering the Tiger Sport 660. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

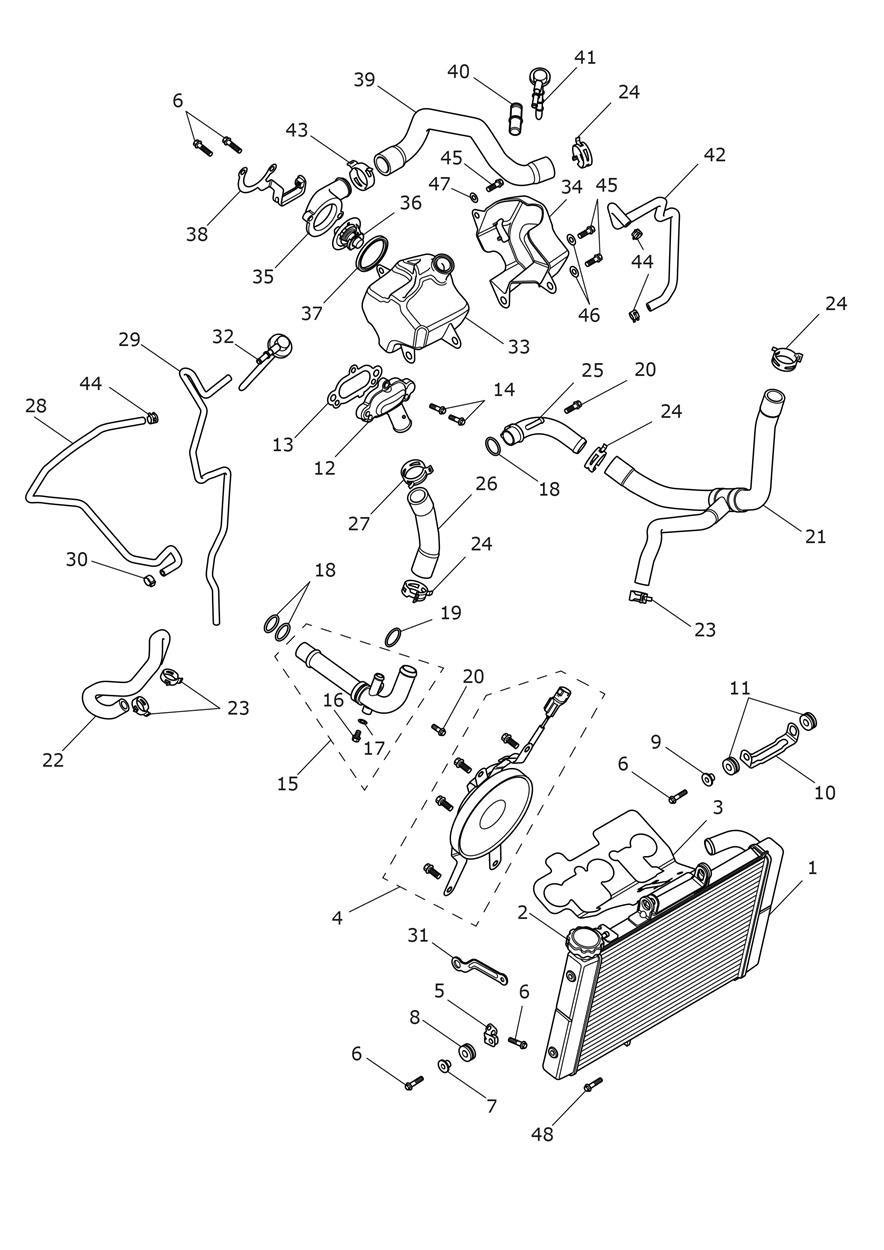

Cooling System
51 parts
VIN CB9285 and lower
Cooling System
49 parts
VIN CB9286 to CN4033
Cooling System
49 parts
VIN CN4034 and higher
57 parts you can order online
Every part below appears in Triumph’s Cooling System diagrams for the Tiger Sport 660cc and is priced and orderable online. Open a part to see what it fits and to buy it.
Most of these parts are shared with the Trident 660cc book. 6 parts are specific to the Tiger Sport 660cc.
Cooling System VIN CB9285 and lower
T2106401 Radiator Assembly
$856.33
AvailableT2101623 Cap Assy
$17.71
In stock in BreaT2107511 Air Deflector
$28.80
AvailableT2106302 Fan Assy
$394.27
AvailableT2100168 Bracket, Radiator, Lower, Rear
$7.90
AvailableT3205067 Bolt, HHF, Lghtd, M6 x 25, Slv
$2.27
AvailableT3010144 Flanged Sleeve, M6 x 9.5 x 10.5
Low stock at Triumph
$3.49
Limited availabilityT3020033 Grommet; 12 x 2 x 9.6
$4.12
AvailableT3010159 Flanged Sleeve, 6.4 x 9 x 8.5
Backordered at Triumph · expected Oct 23
$5.35
On backorderT2107512 Air Deflector Retainer Bracket
Low stock at Triumph
$9.70
Limited availabilityT3020188 Grommet, 16.5 x 3 x 9.5
$1.99
AvailableT2100224 Cover, Water Inlet
Backordered at Triumph · expected Nov 6
$29.06
On backorderT2100205 Gasket, Water Inlet
$3.00
AvailableT3205066 Bolt, HHF, Lghtd, M6 x 20, Slv
$4.21
In stock in Brea · last onesT2107013 Pipe, Water Pump Outlet
Low stock at Triumph
$39.42
Limited availabilityT3200444 Bolt, M6 x 10
$11.26
AvailableT3551111 Copper Washer, M6 x 12
$2.29
AvailableT3600124 O Ring, ID 21.5 x 3
$3.14
In stock in BreaT3600190 O Ring, 24 x 2.5
$1.99
AvailableT3205064 Bolt, RHHF, Domed, S/S, M6 x 16, Enc
$3.71
AvailableT2107503 Hose, T-Piece
$31.42
AvailableT2107508 Hose, Water Inlet, Heat Ex
$9.58
AvailableT3706211 Clamp, Constant Tension, Dia 19
$12.95
AvailableT3706214 Clamp, Constant Tension, Dia 29
$12.95
In stock in BreaT2107012 Pipe, Water Pump Inlet
Low stock at Triumph
$39.42
Limited availabilityT2105201 Hose, Water Pump, Outlet
$30.89
AvailableT3706215 Clamp, Constant Tension, Dia 30
$12.95
AvailableT2107550 Hose, Rad to Expansion Tank
$8.73
AvailableT2107567 Hose, Expansion Tank Overflow
$7.90
AvailableT3700077 Clip, 10.5 Rer Oetiker
$3.71
AvailableT2107509 Radiator Bracket
$14.32
AvailableT2109006 Cap, Expansion Tank, Overflow
$13.20
AvailableT2107575 Expansion Tank
Backordered at Triumph · we’ll confirm the ship date after you order
$42.64
On backorderT2107602 Spares Kit, Expansion Tank Cover
Backordered at Triumph · we’ll confirm the ship date after you order
$36.66
On backorderT2107601 Cover, Expansion Tank
$34.04
AvailableT2100206 Cover, Water Outlet
Low stock at Triumph
$46.64
Limited availabilityT2100675 Thermostat
$63.35
AvailableT2100201 Seal, Thermostat
$6.61
In stock in BreaT2107513 Bracket, Expansion Tank, Upper
$7.63
AvailableT2107507 Hose, Water, Head to Rad
Backordered at Triumph · we’ll confirm the ship date after you order
$14.56
On backorderT2103011 Spigot, Straight
$8.32
AvailableT2107518 Spigot, Right Angle
$5.78
AvailableT2100408 Hose, Bypass, Water
$12.34
AvailableT3706515 Clamp, Spring Band, 32mm
$4.21
AvailableT3700440 Clip, Hose, 11-12.5mm
$5.02
In stock in BreaT3205094 Bolt, HHF, Lghtd, M6 x 20, Enc
$5.27
AvailableT3550634 Washer, 6.4 x 16 x 2
$1.99
AvailableT3555025 Washer, 6.4 x 18 x 1.6
$1.99
AvailableT3552004 Washer, M6 x 14 x 2
$1.99
In stock in BreaT3205063 Bolt, HHF, Lghtd, M6 x 16, Slv
Low stock at Triumph
$3.24
Limited availabilityCooling System VIN CB9286 to CN4033
T2106101 Radiator Assembly
Backordered at Triumph · we’ll confirm the ship date after you order
$698.87
On backorderT2106111 Cap Assy, Radiator
Backordered at Triumph · expected Oct 30
$20.56
On backorderT2106202 Fan Assembly
$402.87
AvailableCooling System VIN CN4034 and higher
T2106801 Radiator Assembly
Backordered at Triumph · we’ll confirm the ship date after you order
$657.76
On backorderT2106702 Fan Assembly
Backordered at Triumph · we’ll confirm the ship date after you order
$402.87
On backorderT2107888 Hose, Rad to Expansion Tank
$8.53
AvailableT2107521 Cover, Expansion Tank
$33.26
Available
