Fuel Tank, Eng. Management & Exhaust Systems.
Triumph Tiger Sport 660cc · 22 diagrams
22 exploded diagrams for the fuel tank, eng. management & exhaust systems. of the Triumph Tiger Sport 660cc, covering the Tiger Sport 660. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

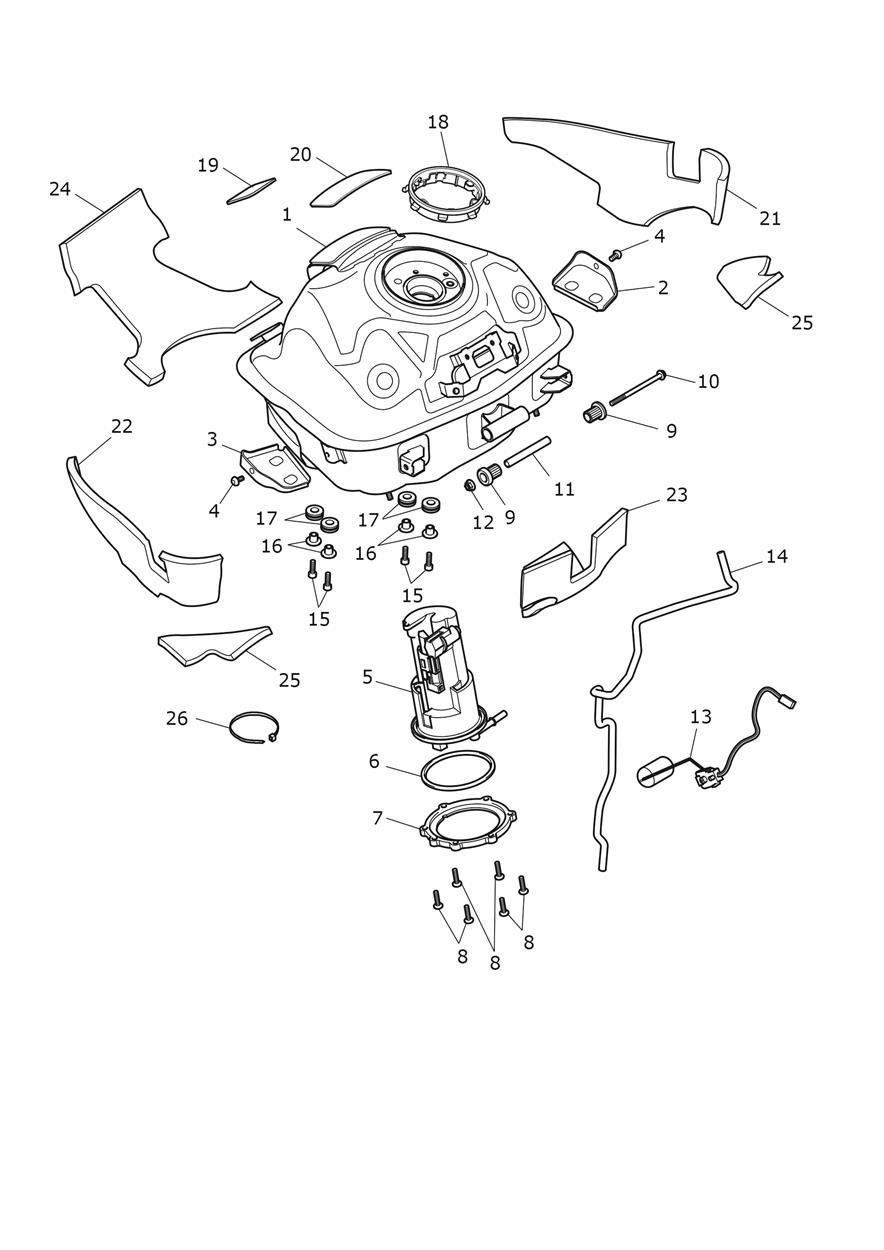

FUEL TANK, PUMP, FITTINGS & BODYWORK

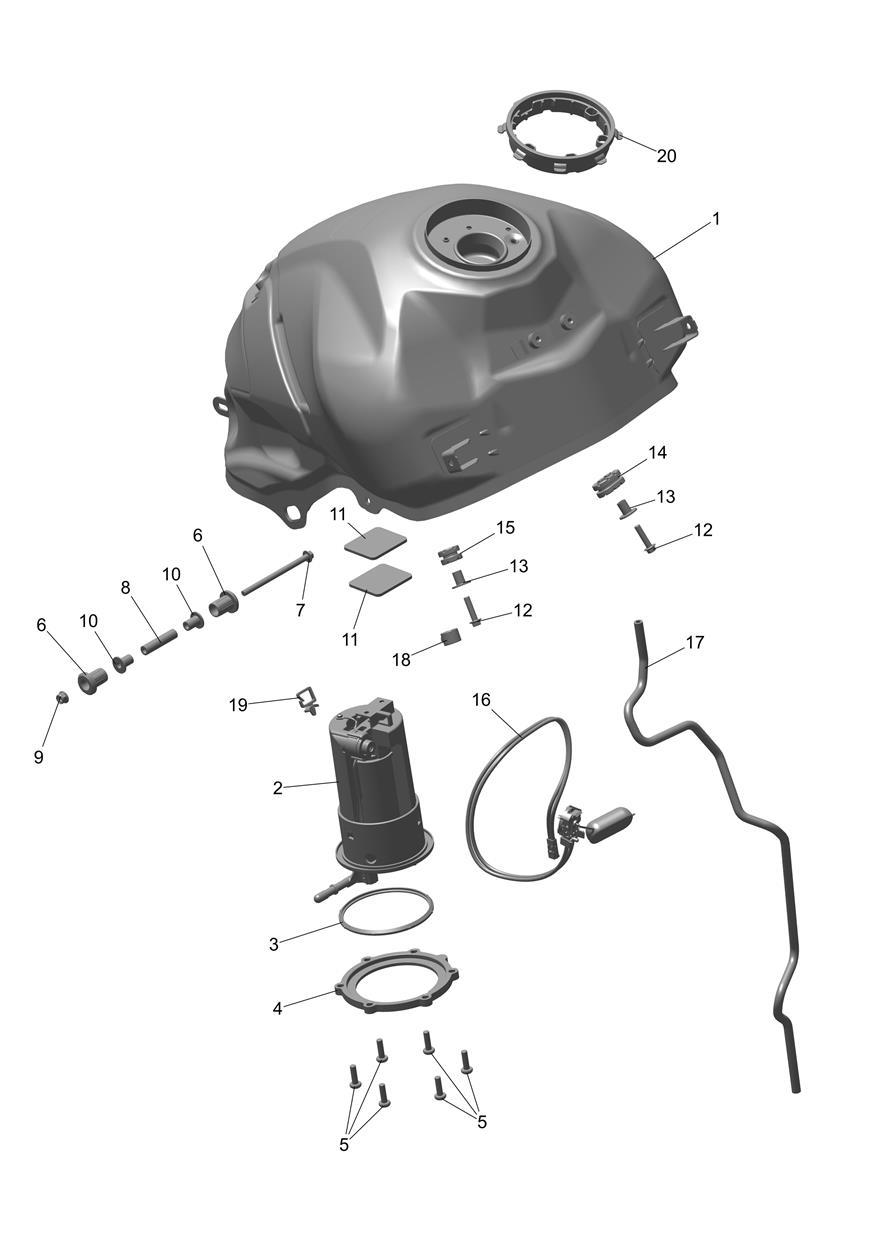

Fuel Tank, Pump and Fittings
25 parts
VIN CB9285 and lower
Fuel Tank Bodywork
45 parts
VIN CB9285 and lower

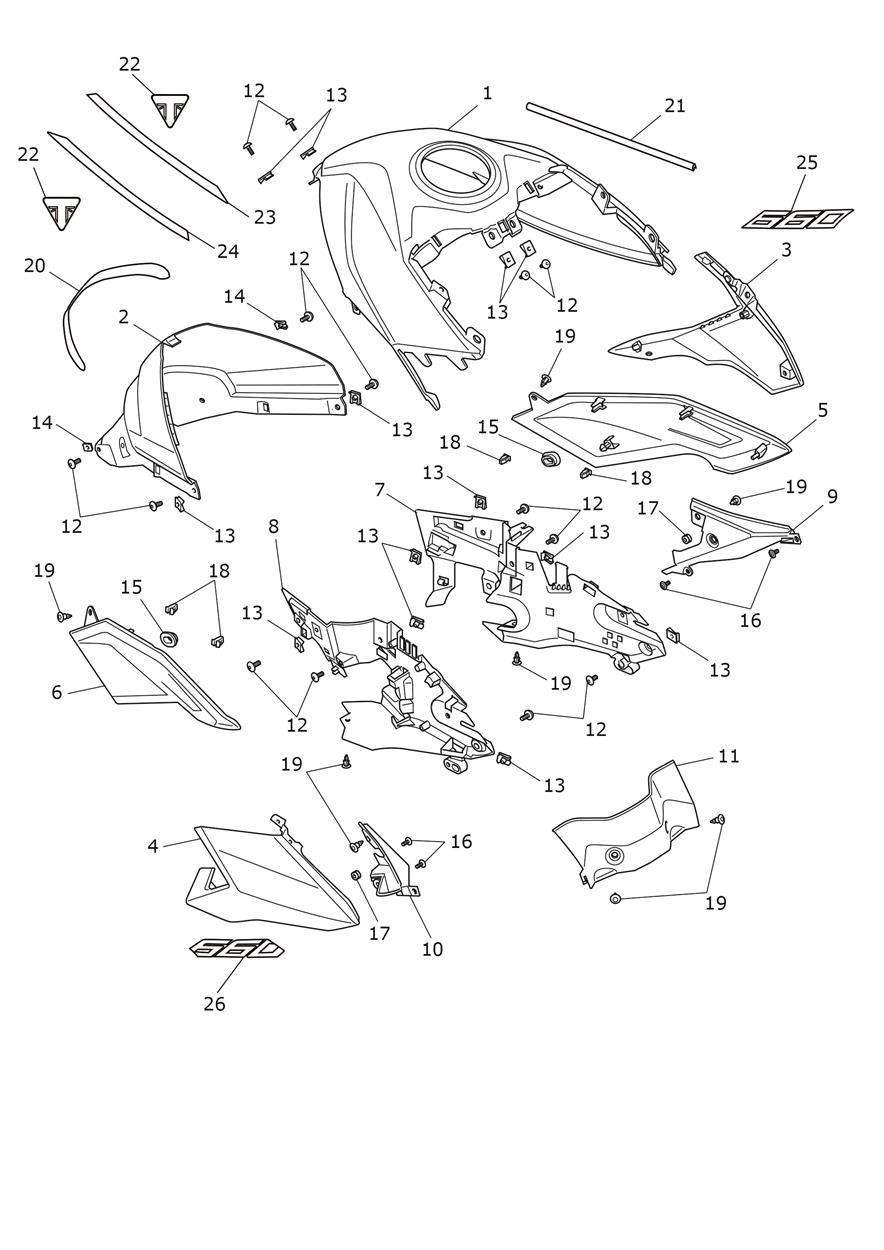

Fuel Tank Bodywork - Sapphire Black Tanks
26 parts
VIN CB9286 to CN4033

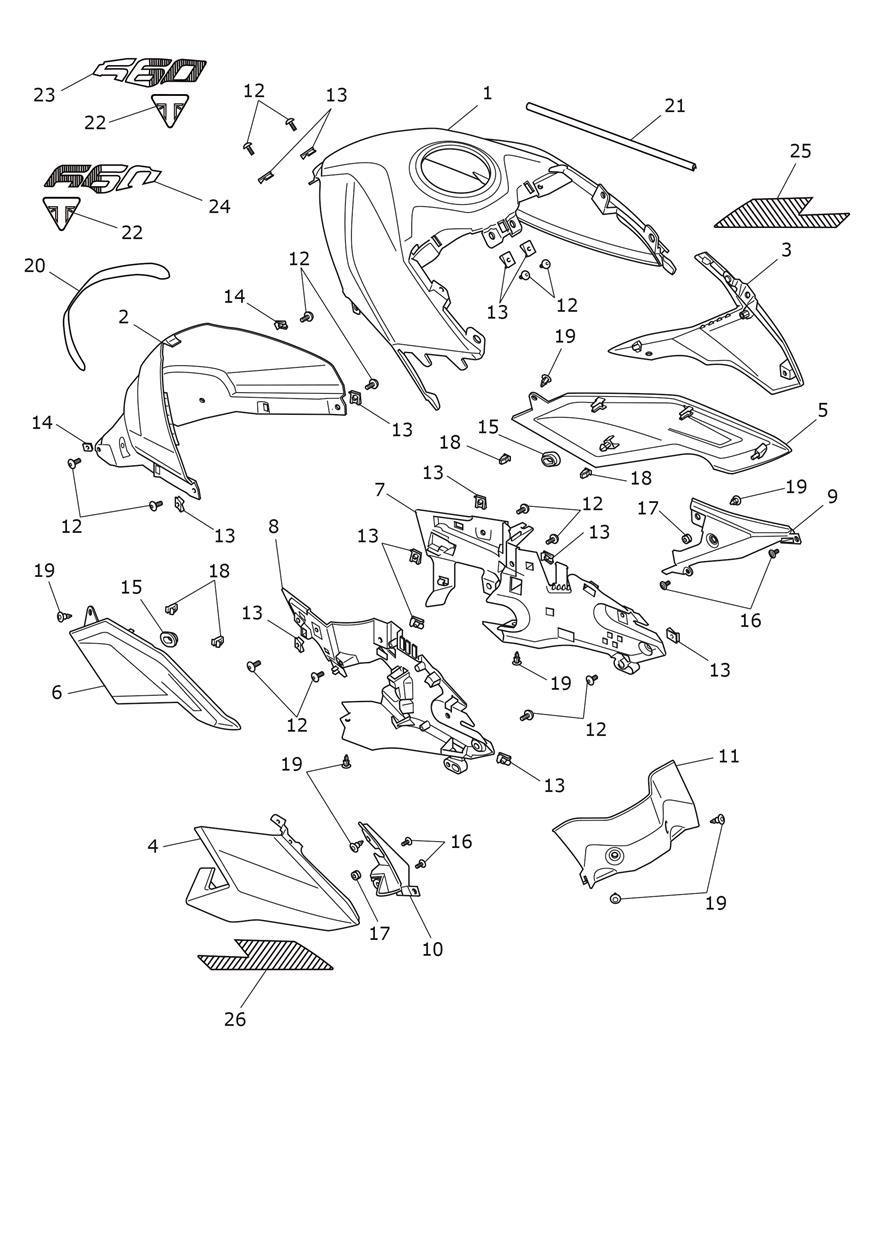

Fuel Tank Bodywork - Crystal White, Carnival Red & Roulette Green Tanks
35 parts
VIN CB9286 to CN4033

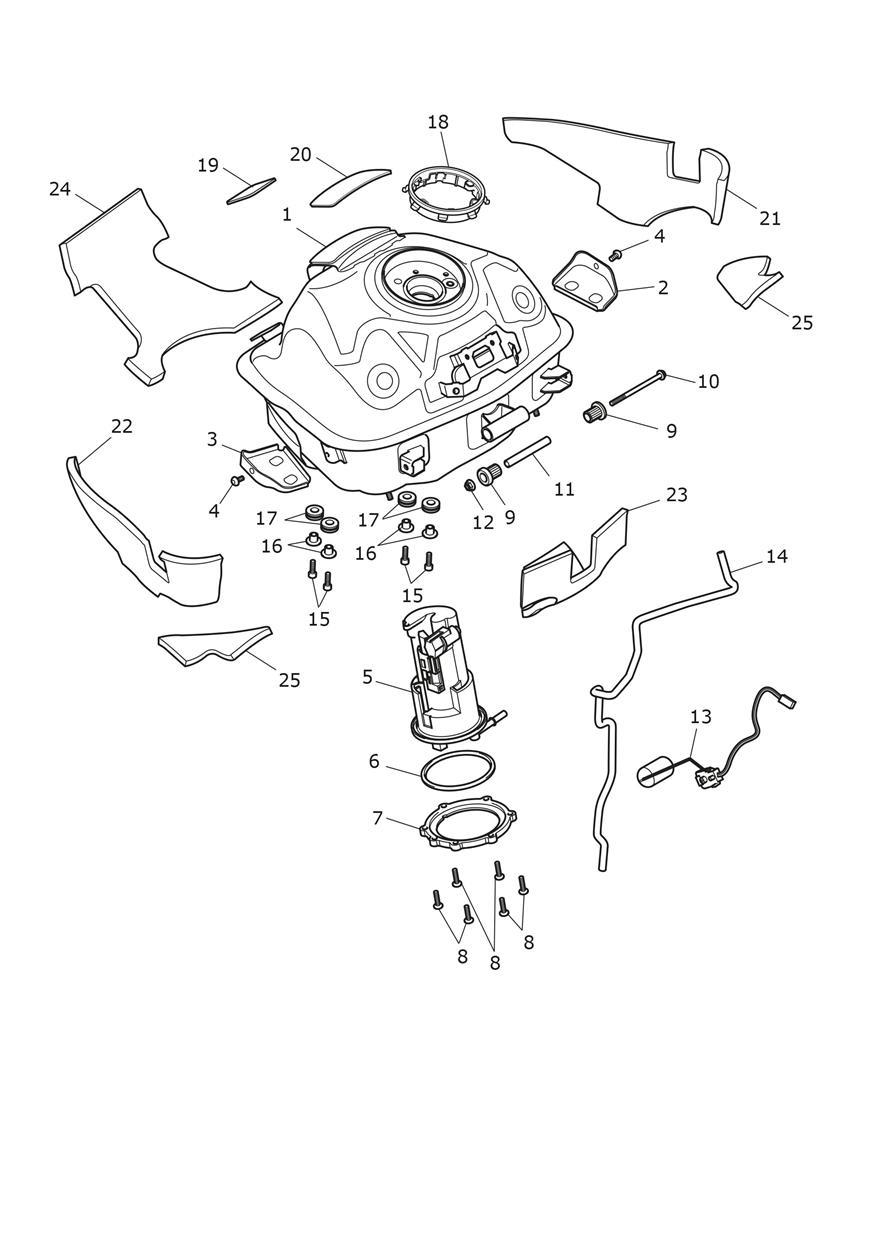

Fuel Tank, Pump and Fittings
26 parts
VIN CB9286 to CN4033

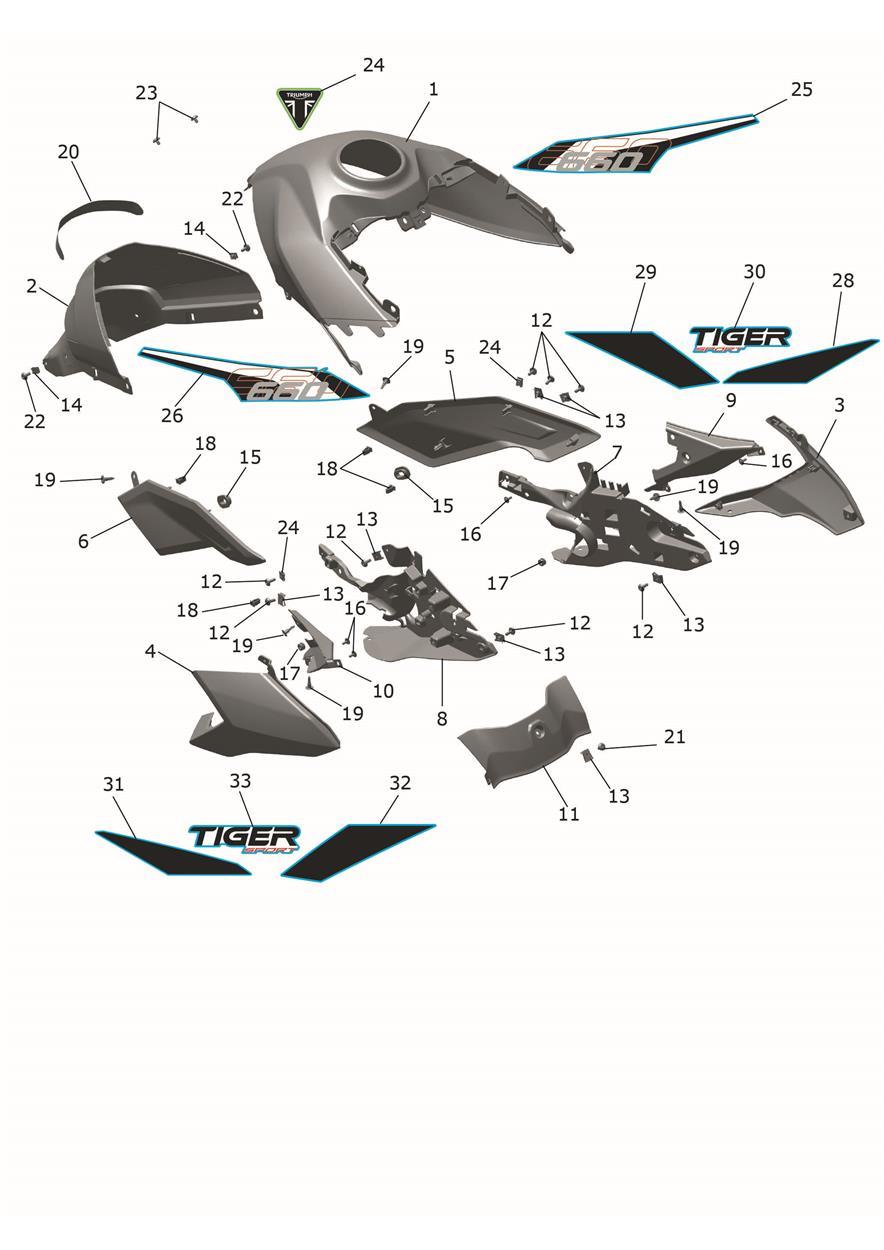

Fuel Tank Bodywork
42 parts
VIN CN4034 and higher
Fuel Tank, Pump and Fittings
20 parts
VIN CN4034 and higher

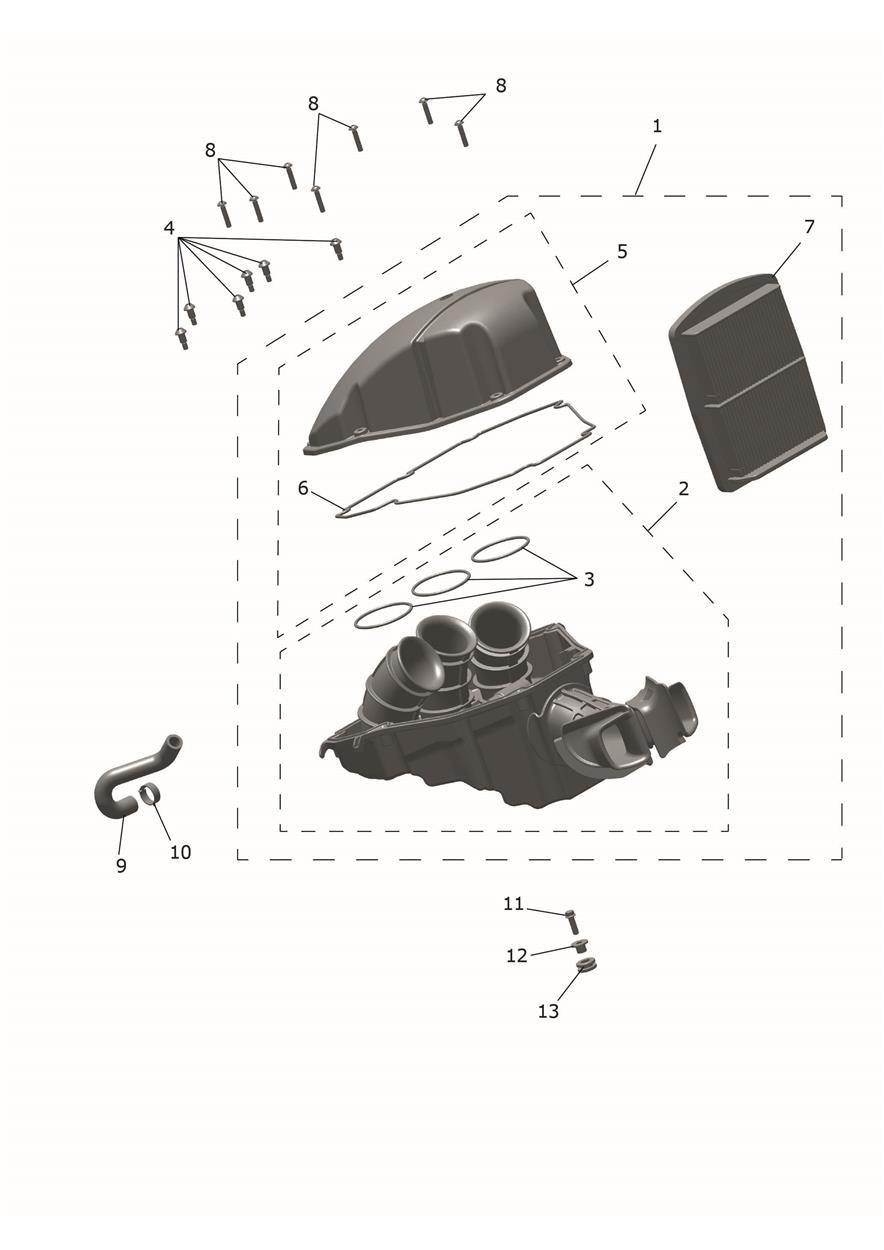

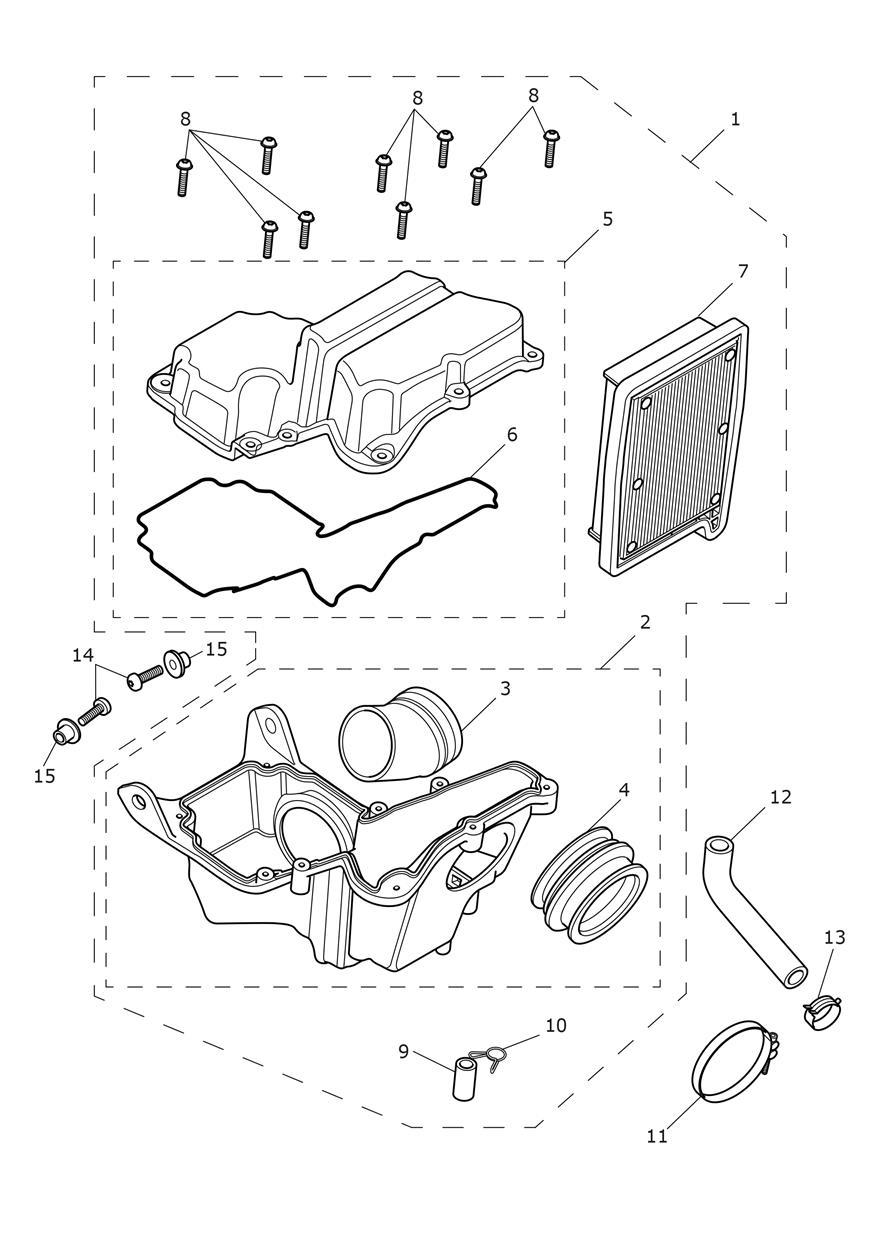

Airbox Assembly
15 parts
VIN CB9285 and lower

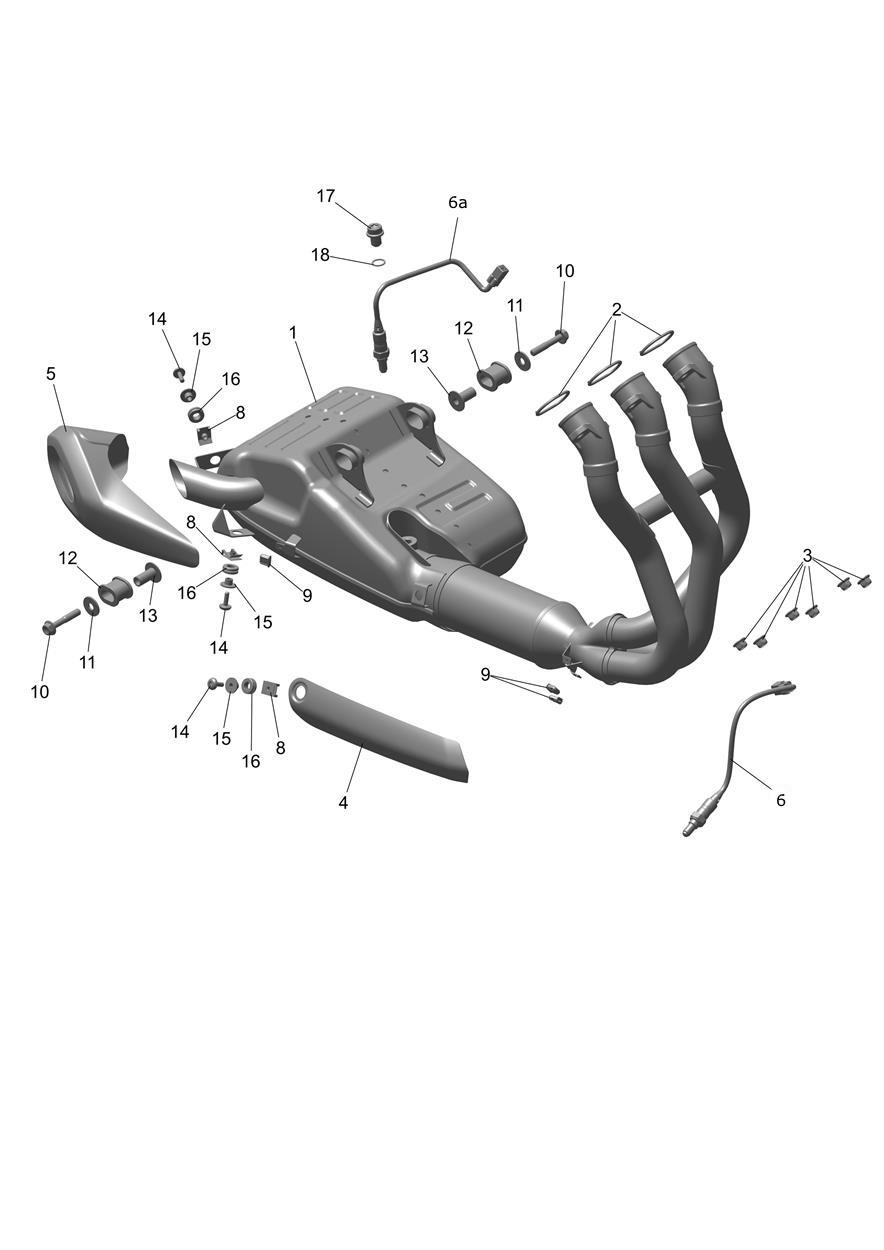

Exhaust System
15 parts
VIN CB9285 and lower

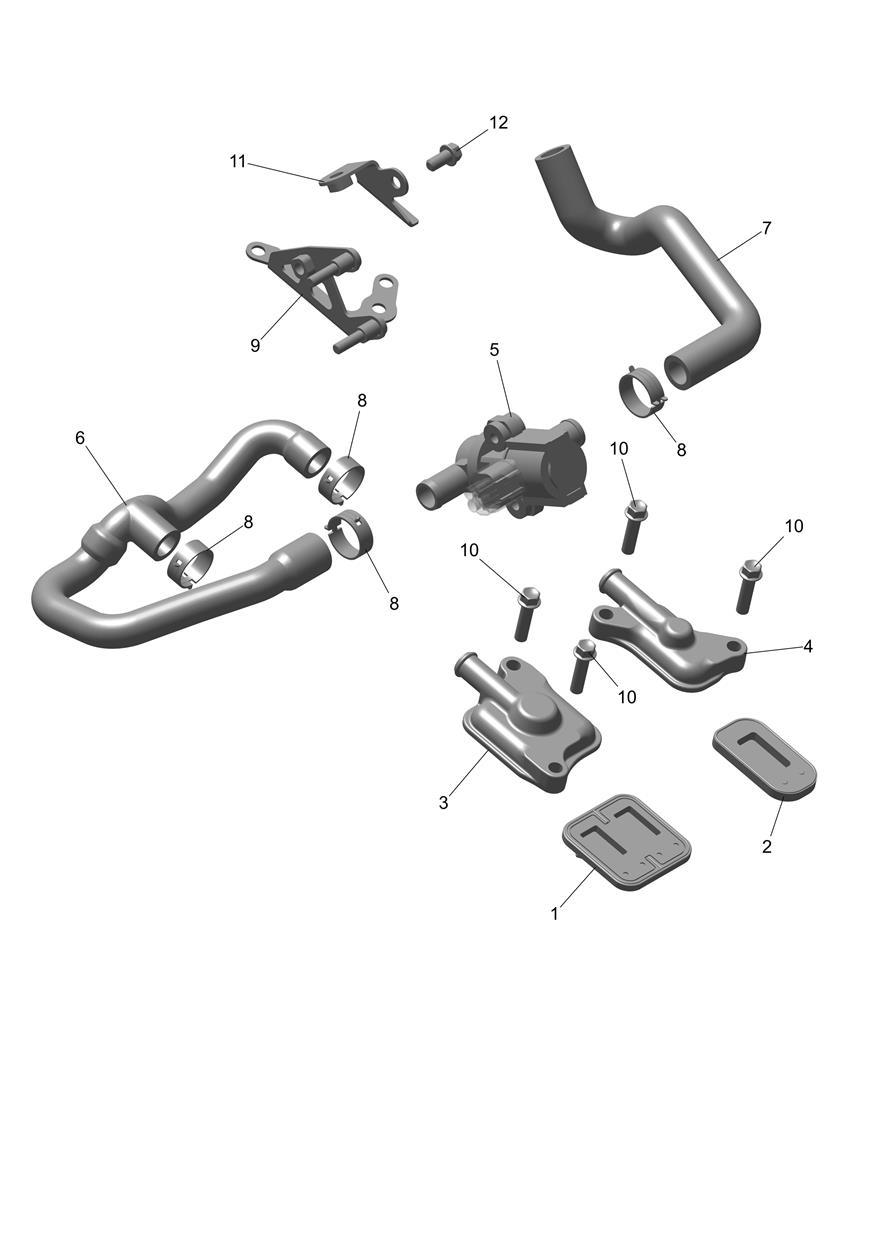

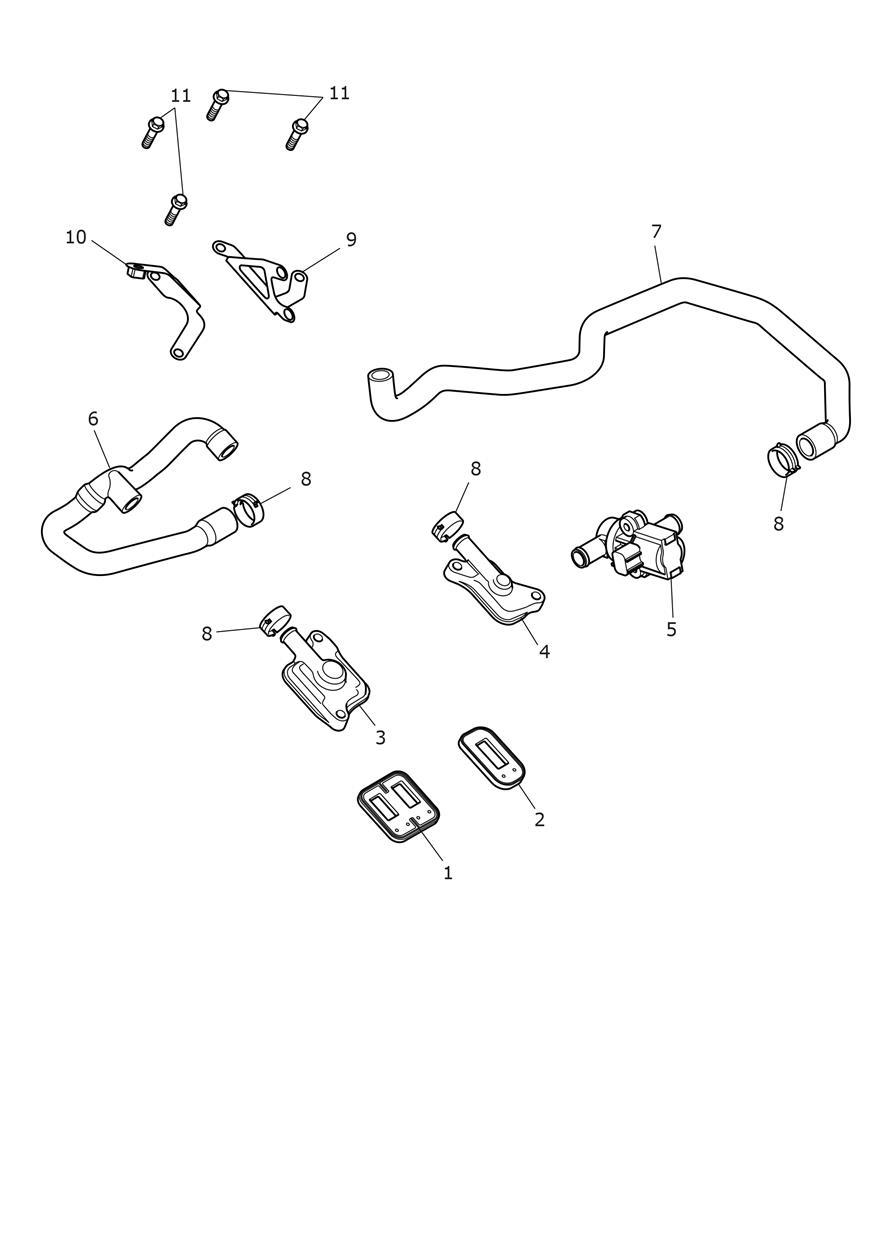

Emissions Control System
11 parts
VIN CB9285 and lower

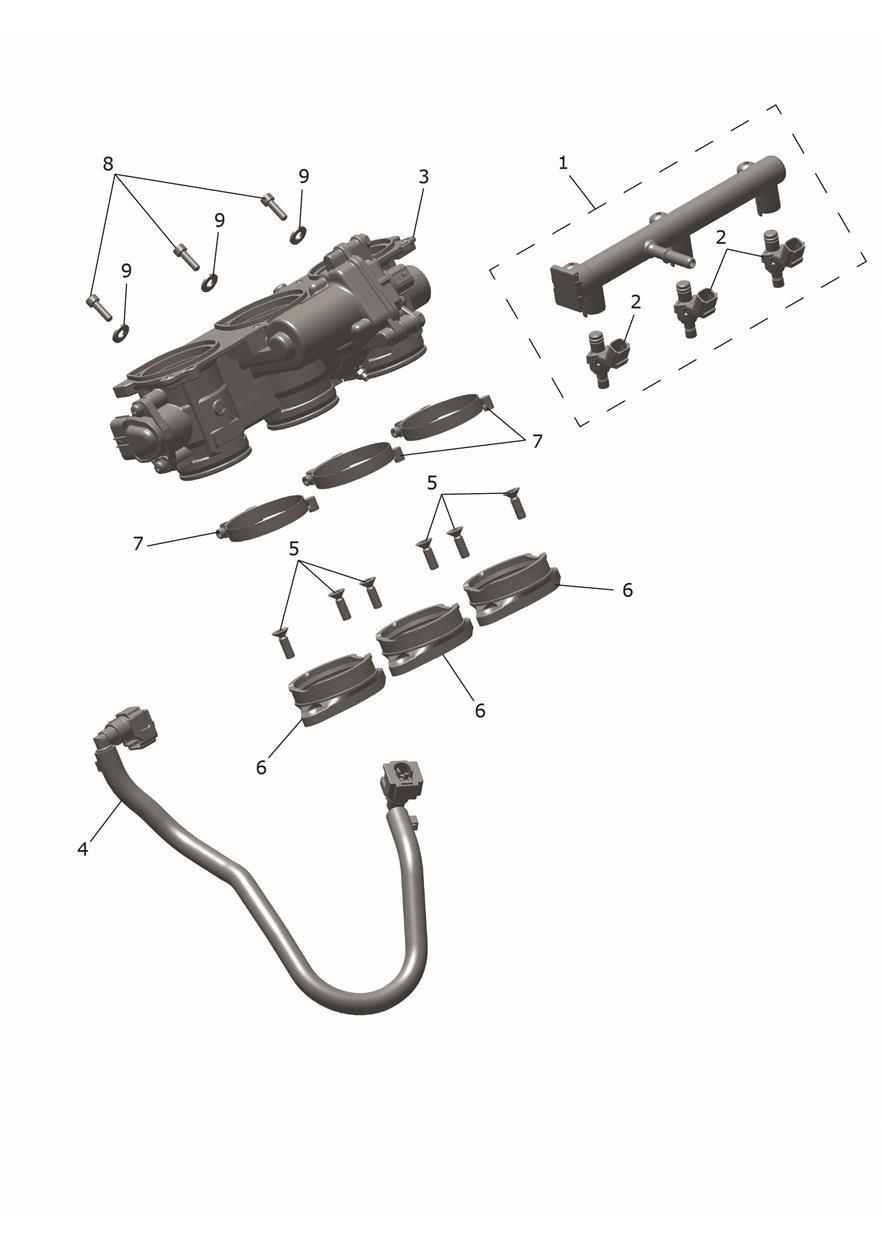

Throttle Bodies
18 parts
VIN CB9285 and lower

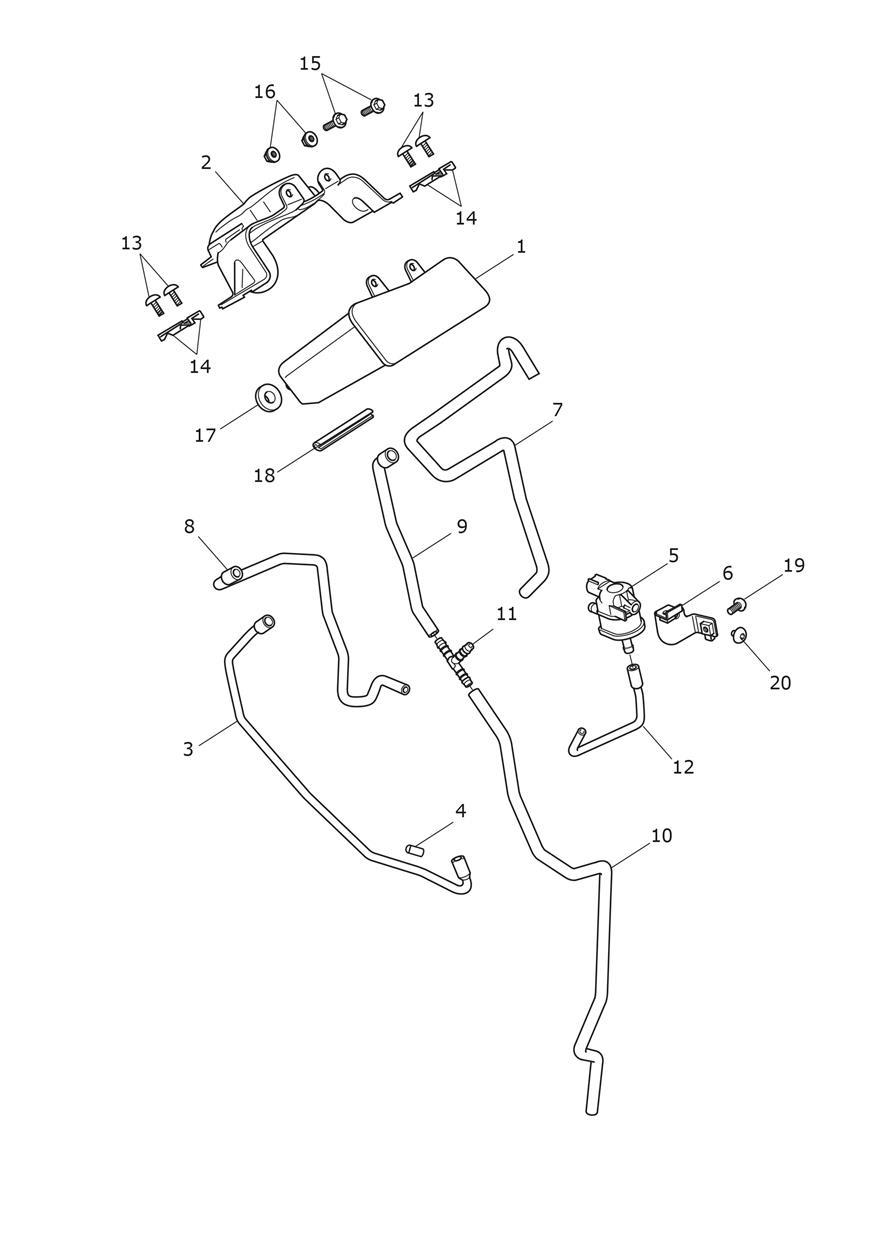

Evap System
20 parts
VIN CB9285 and lower
Airbox Assembly
15 parts
VIN CB9286 to CN4033

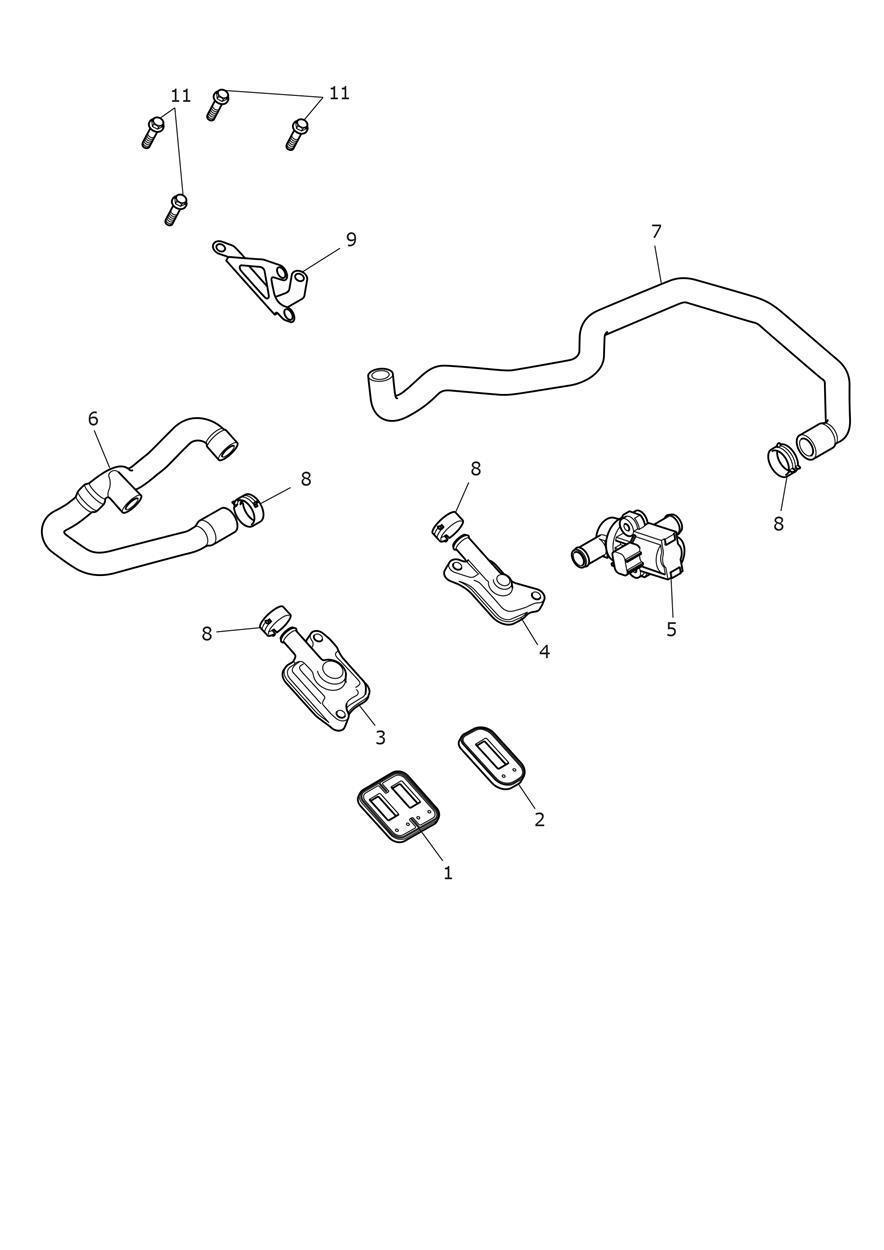

Emissions Control System
10 parts
VIN CB9286 to CN4033

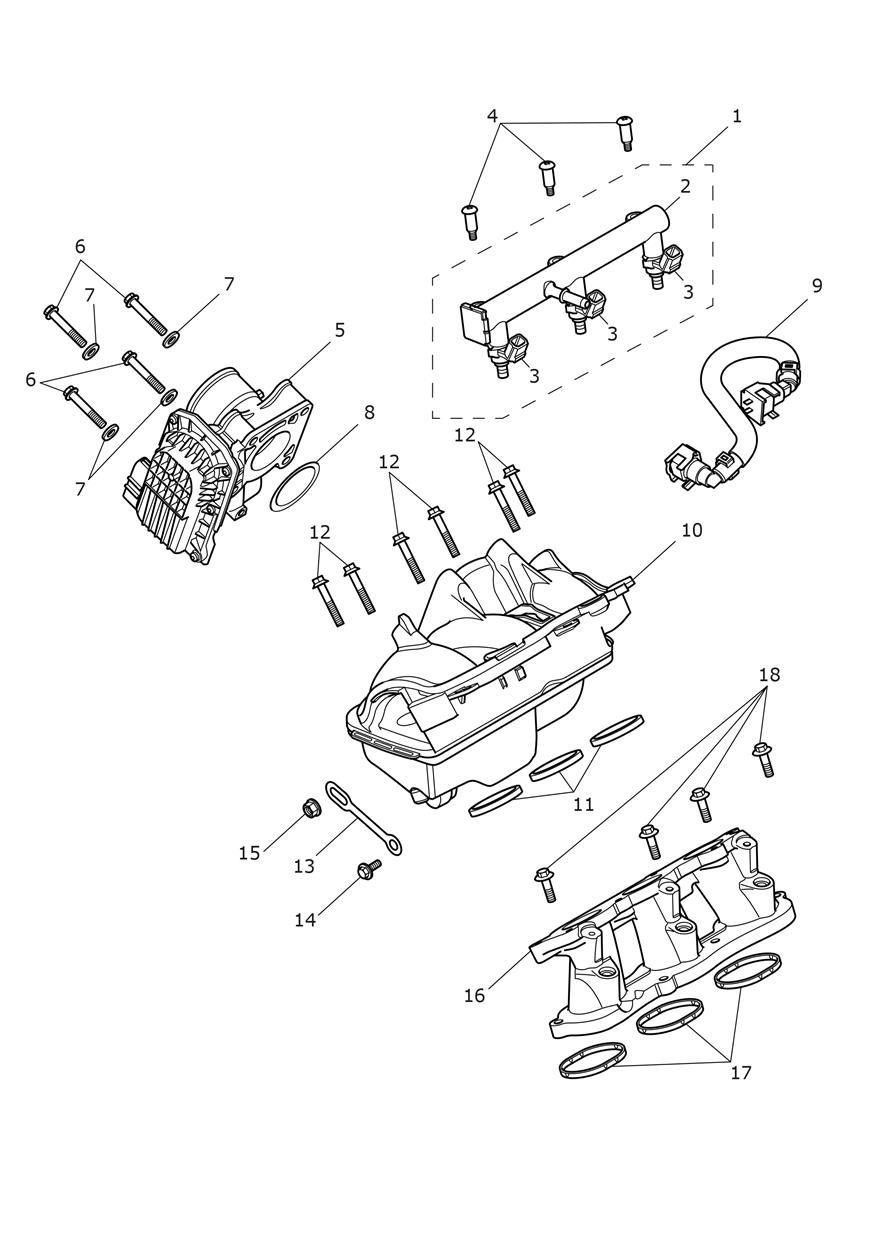

Throttle Bodies
18 parts
VIN CB9286 to CN4033
Evap System
20 parts
VIN CB9286 to CN4033

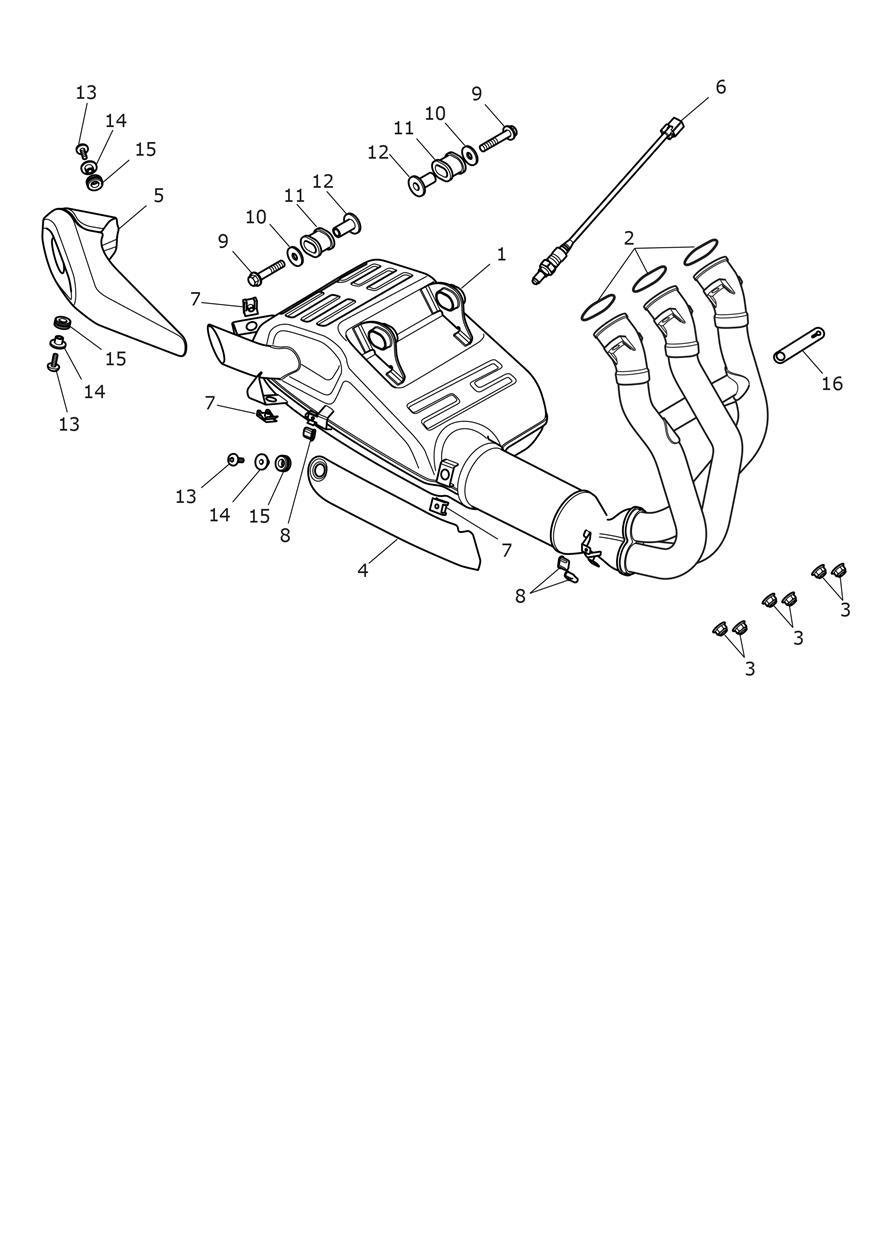

Exhaust System
18 parts
VIN CB9286 to CN4033
Evap System
18 parts
VIN CN4034 and higher
Throttle Bodies
9 parts
VIN CN4034 and higher
Emissions Control System
12 parts
VIN CN4034 and higher
Airbox Assembly
13 parts
VIN CN4034 and higher
Exhaust System
18 parts
VIN CN4034 and higher
169 parts you can order online
Every part below appears in Triumph’s Fuel Tank, Eng. Management & Exhaust Systems. diagrams for the Tiger Sport 660cc and is priced and orderable online. Open a part to see what it fits and to buy it.
Fuel Tank, Pump and Fittings VIN CB9285 and lower
T2404471 Fuel Tank & Bodywork Pads
$792.68
AvailableT2401927 Bracket, Fuel Tank, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$11.21
On backorderT3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv
$1.99
AvailableT2403892 Pump, Fuel, 3.5 Bar
$167.34
AvailableT2401887 Seal, Fuel Pump Module
$9.49
In stock in BreaT2400562 Location Plate, Pump
Low stock at Triumph
$34.34
Limited availabilityT3331234 Screw, Torx, P/H, M6 x 20, Slv
$4.91
In stock in BreaT2400446 Rubber Bush
$3.00
In stock in Brea · last onesT3202330 Bolt, RHHF, M6 x 90, Slv
Backordered at Triumph · expected Oct 23
$10.22
On backorderT2401401 Turned Spacer, Tank Mount
$8.01
AvailableT3350003 Locknut, Flanged, M6 x 1
$1.99
AvailableT2406404 Level Sender, Fuel Tank
$96.73
AvailableT3050334 Screw, Cap/Hd, M6 x 20, Slv
$1.99
AvailableT3010702 Flanged Sleeve, 6.4 x 10 x 8.5
$5.35
AvailableT3021100 Grommet, Dia 13 x 1.8
$2.64
AvailableT2405473 Seal, Fuel Filler Cap
$7.52
AvailableT2402959 Fuel Tank Pad, Evap, Lower
Backordered at Triumph · expected Oct 30
$3.10
On backorderT2402960 Fuel Tank Pad, Bodywork
$4.65
AvailableT2404142 Heat Pad, Fuel Tank, LH
$24.29
AvailableT2404144 Heat Pad, Fuel Tank, Front
$25.88
AvailableT2404145 Heat Pad, Fuel Tank, Rear
$35.67
AvailableAirbox Assembly VIN CB9285 and lower
T2205972 Lower Airbox Assembly
Backordered at Triumph · we’ll confirm the ship date after you order
$56.60
On backorderT2205978 Seal, airbox
$1.99
AvailableT2205986 Air Filter
$39.12
In stock in BreaT3332464 Screw, S/Tap, Tx, 5 x 25
Low stock at Triumph
$2.01
Limited availabilityT2203336 Drain, Stub Pipe
Backordered at Triumph · we’ll confirm the ship date after you order
$74.75
On backorderT3701245 Clip, Wire Hose
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorderT3700041 Clip, Intake, Venturi, 60mm, Cap
$7.28
AvailableT3700051 Hose Clip, Dia 18.1-20 x 8mm
$2.09

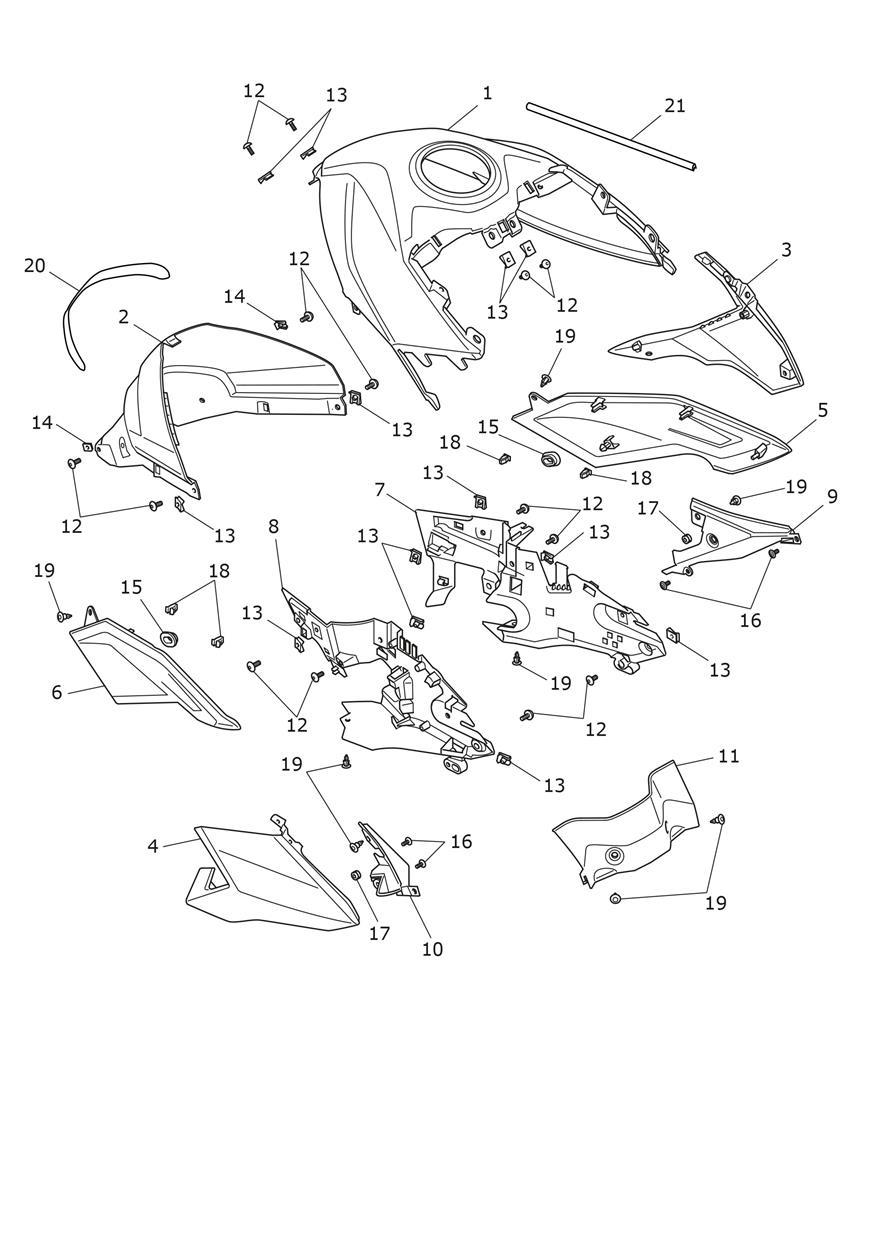

AvailableFuel Tank Bodywork VIN CB9285 and lower
T2310974-DG Fuel Tank Upper, Painted, Korosi Red
Low stock at Triumph
$306.85
Limited availabilityT2310974-JF Fuel Tank Upper, Painted, Lucerne Blue
$306.85
AvailableT2310974-LC Fuel Tank Upper, Painted, Graphite
Backordered at Triumph · we’ll confirm the ship date after you order
$306.85
On backorderT2310974-PG Fuel Tank Upper, Jet Black
$306.94
AvailableT2310974-NM Fuel Tank Upper, Snowdonia White
$306.94
AvailableT2311716 Panel, Fuel Tank, Lower
Low stock at Triumph
$67.17
Limited availabilityT2310375-DG Fairing Upper, LH, Korosi Red
$156.98
AvailableT2310375-JF Fairing Upper, LH, Lucerne Blue
Backordered at Triumph · we’ll confirm the ship date after you order
$156.98
On backorderT2310375-LC Fairing Upper, LH, Graphite
Backordered at Triumph · we’ll confirm the ship date after you order
$156.98
On backorderT2310375-PG Fairing Upper, LH, Jet Black
$135.40
AvailableT2310375-NM Fairing Upper, LH, Snowdonia White
Backordered at Triumph · expected Nov 20
$135.40
On backorderT2310376-DG Fairing Upper, RH, Korosi Red
$156.98
In stock in Brea · last onesT2310376-JF Fairing Upper, RH, Lucerne Blue
Backordered at Triumph · expected Oct 30
$156.98
On backorderT2310376-LC Fairing Upper, RH, Graphite
$156.98
AvailableT2310376-PG Fairing Upper, RH, Jet Black
$135.40
AvailableT2311761 Infill, Upper Fairing, LH
$44.29
AvailableT2311762 Infill, Upper Fairing, RH
$44.29
AvailableT2310603 Fairing Infill, LH
$15.06
AvailableT2310604 Fairing Infill, RH
$15.06
AvailableT2310981 Infill Panel, Fuel Tank, Centre
$14.89
AvailableT3330943 Screw, But/Hd, M5 x 14, Slv
$4.56
AvailableT3350123 Nut, Captive, M5, Non-Secured
$2.29
AvailableT3350129 Nut, Captive, M5
Low stock at Triumph
$3.14
Limited availabilityT3020059 Grommet, Bodywork
$2.36
AvailableT3020131 Grommet, 9 x 2 x 6
$1.99
AvailableT3700290 Clip, Panel, Bayonet
$2.20
In stock in Brea · last onesT3701150 Plastic Rivet, Push Release
$1.99
In stock in BreaT2312220 Protective Film, Fuel Tank
$12.74
AvailableT2402957 Seam Protector, Fuel Tank
$4.53
AvailableT2311049 Fuel Tank Decal
Backordered at Triumph · we’ll confirm the ship date after you order
$31.99
On backorderT2310795 Fuel Tank Decal
Backordered at Triumph · expected Oct 23
$11.47
On backorderT2310979 Decal, Fuel Tank, LH
$56.92
AvailableT2319851 Decal, Fuel Tank, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$63.19
On backorderT2312942 Decal, Fuel Tank, LH, Phantom Black
$56.92
AvailableT2310980 Decal, Fuel Tank, RH
$56.92
AvailableT2319852 Decal, Fuel Tank, RH
Backordered at Triumph · expected Oct 30
$63.19
On backorderT2312943 Decal, Fuel Tank, RH, Phantom Black
$56.92
AvailableExhaust System VIN CB9285 and lower
T2207557 Header & Silencer Assy
$2345.90
AvailableT2200854 Header Gasket
$6.77
In stock in BreaT3350004 Locknut, Flanged, M8 x 1.25
$2.27
In stock in BreaT2207380 Catalyst Heatshield Cover
Backordered at Triumph · expected Oct 23
$94.69
On backorderT2207370 Exit, Cover
Backordered at Triumph · we’ll confirm the ship date after you order
$206.65
On backorderT2207250 Oxygen Sensor, Exhaust, M12, 250mm
$221.82
AvailableT2204745 Grommet, Secondary Cvr Brkt
$2.43
In stock in BreaT3205109 Bolt, HHF, Lghtd, M8 x 45, Slv
$4.74
In stock in BreaT3555033 Washer, 8.4 x 24 x 2
$2.53
AvailableT2200912 Rubber Grommet, 7.86mm
$2.93
AvailableT3010212 Flanged Sleeve, M8 x 26.6
$2.29
AvailableT3330941 Screw, But/Hd, Skt, M5 x 16, Slv
$6.24
AvailableT3010126 Flanged Sleeve, M5, Slv
$2.01
AvailableT3020085 Grommet, Dia 18 x 9
$1.99
AvailableEmissions Control System VIN CB9285 and lower
T1250015 Reed Valve, Double
$55.43
AvailableT1250075 Reed Valve
$49.20
AvailableT1250196 Cover, Reed Valve, Double
Backordered at Triumph · we’ll confirm the ship date after you order
$51.04
On backorderT1250188 Cover, Reed Valve, Single
$33.87
AvailableT1250522 Solenoid, Sai
$91.53
AvailableT1250208 Hose, Sai, Formed
Low stock at Triumph
$44.90
Limited availabilityT1257305 Hose, Sai
$21.44
AvailableT2027779 Bracket, Modulator, Engine
$7.81
AvailableT3205067 Bolt, HHF, Lghtd, M6 x 25, Slv
$2.27
AvailableThrottle Bodies VIN CB9285 and lower
T1246400 Fuel Rail Assembly
$268.80
AvailableT1243403 Pipe Set, Fuel
$202.44
AvailableT1243401 Fuel Injector Assy
$211.23
AvailableT1240471 Screw, Fuel Rail
Low stock at Triumph
$4.49
Limited availabilityT1243320 Throttle Body Assembly, Single
$466.48
AvailableT3205072 Bolt, HHF, Lghtd, M6 x 40, Slv
$1.99
AvailableT3555004 Washer, 6.4 x 14 x 1.6
Low stock at Triumph
$1.99
Limited availabilityT1241996 Intake Seal
$6.42
In stock in BreaT1242660 Intake Seal
$1.99
AvailableT3200180 Bolt, RHHF, M6 x 35, Slv, Enc
$4.74
AvailableT1247044 Tiebar, Manifold, Lower
$1.99
AvailableT3203222 Bolt, HHF, M6 x 12, Slv
$1.99
AvailableT3350305 Locknut, Flgd, M6 x 1.0, Slv
$1.99
AvailableT1246966 Intake Manifold, Cast
Backordered at Triumph · expected Oct 23
$190.68
On backorderT1242078 Seal, Intake Manifold
$6.18
AvailableT3202304 Bolt, RHHF, M6 x 20, Slv
$4.91

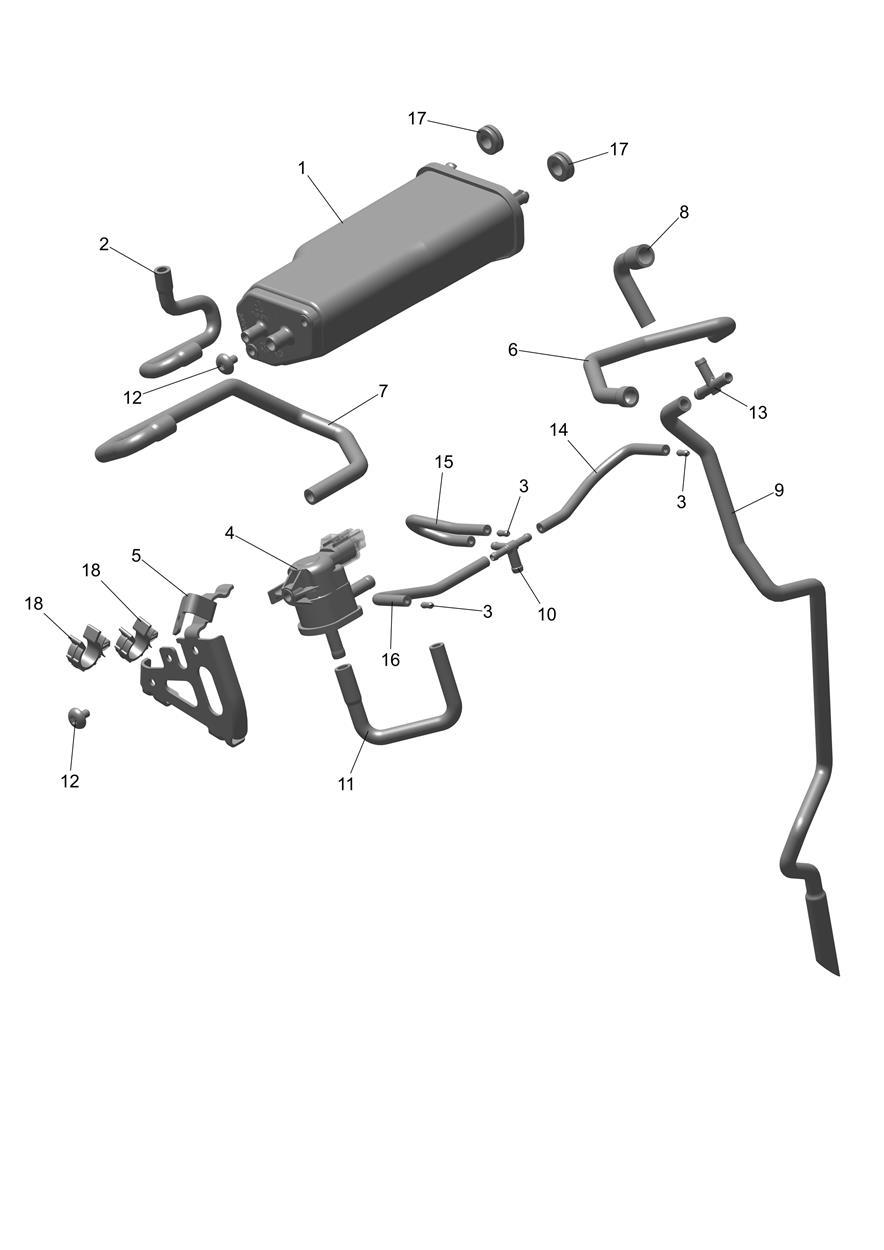

AvailableEvap System VIN CB9285 and lower
T2403030 Carbon Cannister
$110.89
AvailableT2403179 Hose, Tank to Evap
$17.44
AvailableT1241890 Restrictor, Purge, Evap
$10.49
AvailableT1248990 Purge Valve
$61.60
AvailableT2403178 Hose, Evap Drain, Vent
$36.34
AvailableT2402636 Hose, Evap to Purge
$26.39
AvailableT2403176 Hose, Evap Drain, Upper
$14.14
AvailableT2405055 T-Piece, 5mm, Int Dia
$15.35
AvailableT2406924 Hose, Purge to Manifold
$22.26
AvailableT3350067 Nut, Flanged, M6
$1.99
AvailableT3020135 Rubber Grommet
$1.99
AvailableT2502698 Edge Protector, Headstock
Backordered at Triumph · we’ll confirm the ship date after you order
$8.57
On backorderT3332568 Screw, But/HD, M5 x 8, Slv
$3.61
AvailableFuel Tank Bodywork - Sapphire Black Tanks VIN CB9286 to CN4033
T2312790-PM Fuel Tank Upper, Sapphire Black
$320.66
AvailableT2312780-PM Fairing, Upper, LH, Sapphire Black
Backordered at Triumph · we’ll confirm the ship date after you order
$74.00
On backorderT2312399 Decal, Tank Badge
Backordered at Triumph · expected Oct 23
$7.92
On backorderT2312785 Decal, Fuel Tank, LH, Red/White
$16.45
AvailableFuel Tank Bodywork - Crystal White, Carnival Red & Roulette Green Tanks VIN CB9286 to CN4033
T2312790-NW Fuel Tank Upper, Crystal White
Backordered at Triumph · we’ll confirm the ship date after you order
$320.66
On backorderT2312790-HG Fuel Tank Upper, Roulette Green
$320.66
AvailableT2312782-NW Fairing, Upper, LH, Crystal White
Backordered at Triumph · we’ll confirm the ship date after you order
$74.00
On backorderT2312782-HG Fairing, Upper, LH, Roulette Green
$74.00
AvailableT2312783-NW Fairing, Upper, RH, Crystal White
Backordered at Triumph · we’ll confirm the ship date after you order
$74.00
On backorderT2312783-CU Fairing, Upper, RH, Carnival Red
$74.00
AvailableFuel Tank, Pump and Fittings VIN CB9286 to CN4033
Exhaust System VIN CB9286 to CN4033
T2207667 Header & Silencer Assy
$1555.80
AvailableT2204258 Oxygen Sensor, PT, M12, 250mm
$208.52
AvailableT3550571 Washer, Cu, OD 16 x ID 12.5
$4.70
AvailableFuel Tank Bodywork VIN CN4034 and higher
T2311497 Infill, Upper Fairing, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$32.89
On backorderT2311498 Infill, Upper Fairing, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$32.89
On backorderT3330958 Screw, But/Hd, M5 x 10, Blk, Enc
$1.99
In stock in BreaT3350161 Nut, Captive, M5
$4.21
AvailableT2310473 Decal, Tank Badge
$7.57
AvailableT2404496 Decal 3, Fuel Tank, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$16.74
On backorderT2401713 Decal 4, Fuel Tank, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$16.74
On backorderT2404487 Decal 1, Fuel Tank, RH
Backordered at Triumph · expected Oct 23
$8.36
On backorderEvap System VIN CN4034 and higher
T2407853 Bracket, Purge Valve
Backordered at Triumph · expected Oct 30
$8.36
On backorderT1242929 Connector, 4 Way
$10.10
AvailableT1292075 Hose, Throttle Body, Cyl 1
$3.00
AvailableT1292076 Hose, Throttle Body, Cyl 2
$3.00
AvailableT1292077 Hose, Throttle Body, Cyl 3
$3.00
AvailableT3700072 Cable Clip, Dia 15-16mm BK
$3.81
AvailableFuel Tank, Pump and Fittings VIN CN4034 and higher
T3010701 Flanged Sleeve, 6.4 x 10 x 14.5
$4.91
AvailableT3200190 Bolt, RHHF, M6 x 25, Slv
$2.43
AvailableT3010710 Flanged Sleeve, 6.4 x 9.6 x 13.4
Low stock at Triumph
$3.81
Limited availabilityT3020644 Grommet, Slotted, Castellated
Backordered at Triumph · we’ll confirm the ship date after you order
$2.47
On backorderT3020622 Grommet, Castellated
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorderT2404532 Level Sender, Fuel Tank
Backordered at Triumph · we’ll confirm the ship date after you order
$74.00
On backorderT3700259 Rubber Band, 43mm
$3.61
AvailableT3700404 Clip, Wire
$9.87
AvailableThrottle Bodies VIN CN4034 and higher
T1248055 Injector Assembly, Fuel
Backordered at Triumph · we’ll confirm the ship date after you order
$207.55
On backorderT1248054 Throttle Body Assembly, 3 Cyl
Backordered at Triumph · we’ll confirm the ship date after you order
$2055.50
On backorderT3331200 Screw, CSK, M6 x 20, T30, Slv, Enc
Low stock at Triumph
$6.68
Limited availabilityT1240677 Transition Piece, Rubber, TBody
$28.27
AvailableT3701055 Band Clamp, 55mm
$6.16
AvailableT3050355 Screw, Cap/Hd, M5 x 16, Slv, Enc
$1.99
AvailableT3552001 Washer, M6 x 14 x 0.5
$1.99
AvailableEmissions Control System VIN CN4034 and higher
T1250332 Bracket, Sai, Airbox
$26.31
AvailableT3205062 Bolt, HHF, Lghtd, M6 x 12, Slv
Backordered at Triumph · expected Oct 23
$3.88
On backorder
