Braking System
Triumph Tiger Sport 800 · 10 diagrams
10 exploded diagrams for the braking system of the Triumph Tiger Sport 800, covering the Tiger Sport 800, Tiger Sport 800 Tour. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

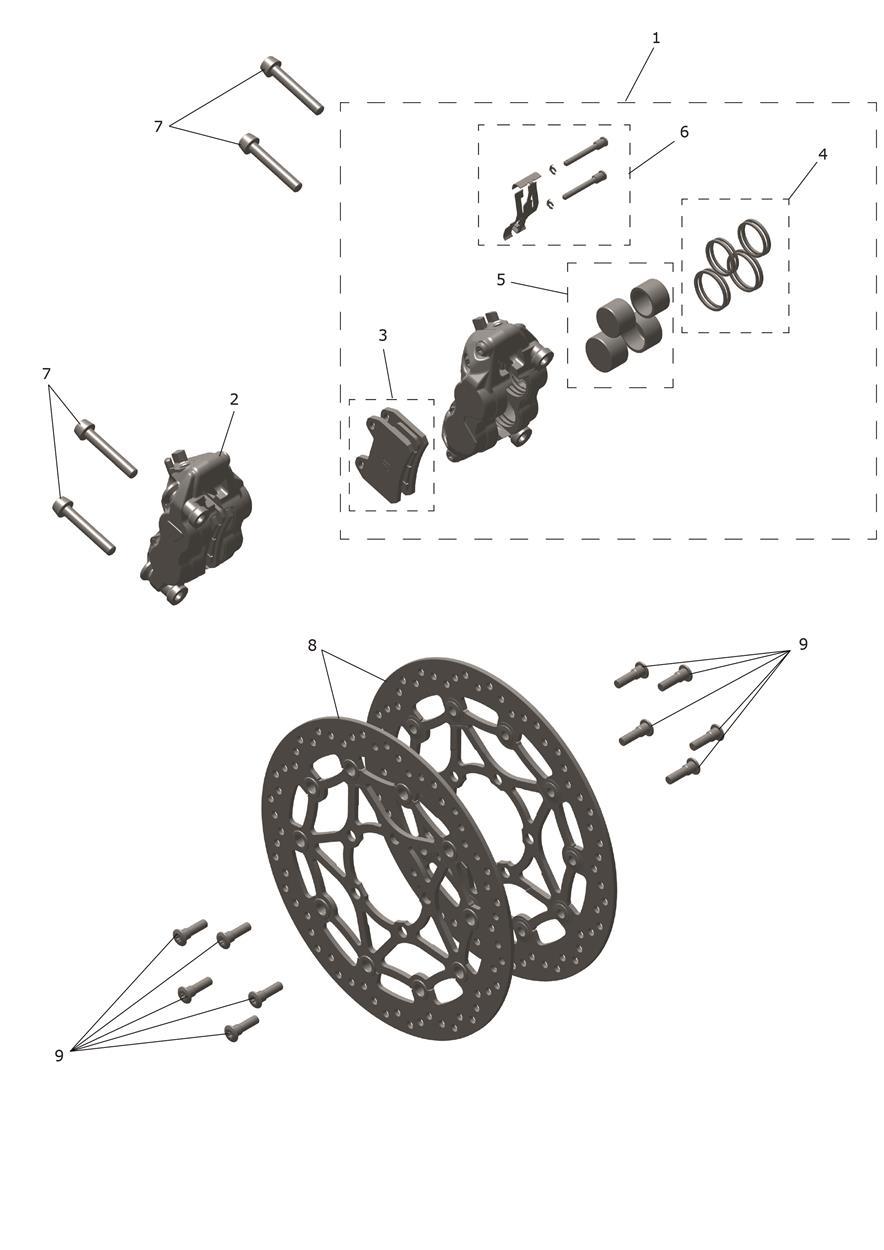

Front Brake Caliper & Discs
9 parts

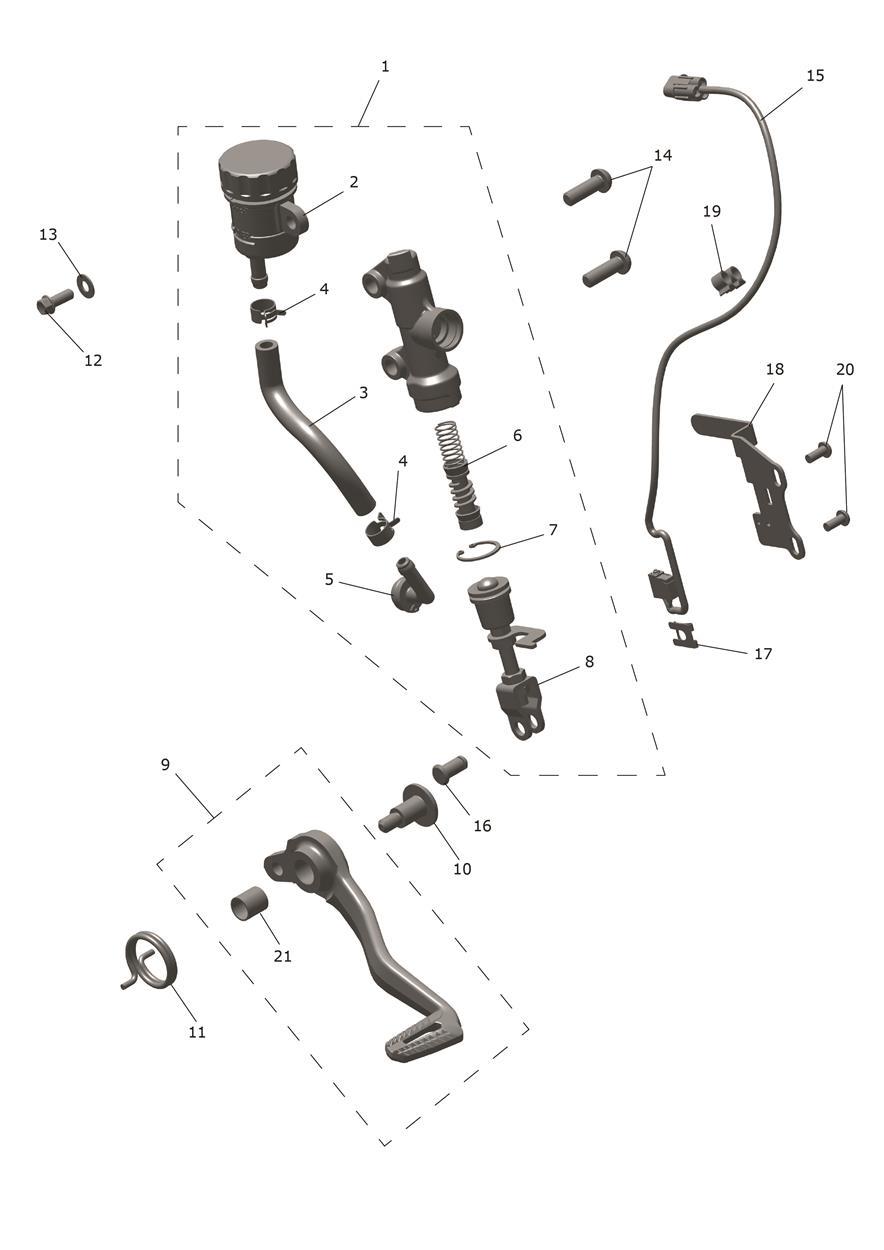

Rear Brake Master Cylinder
21 parts

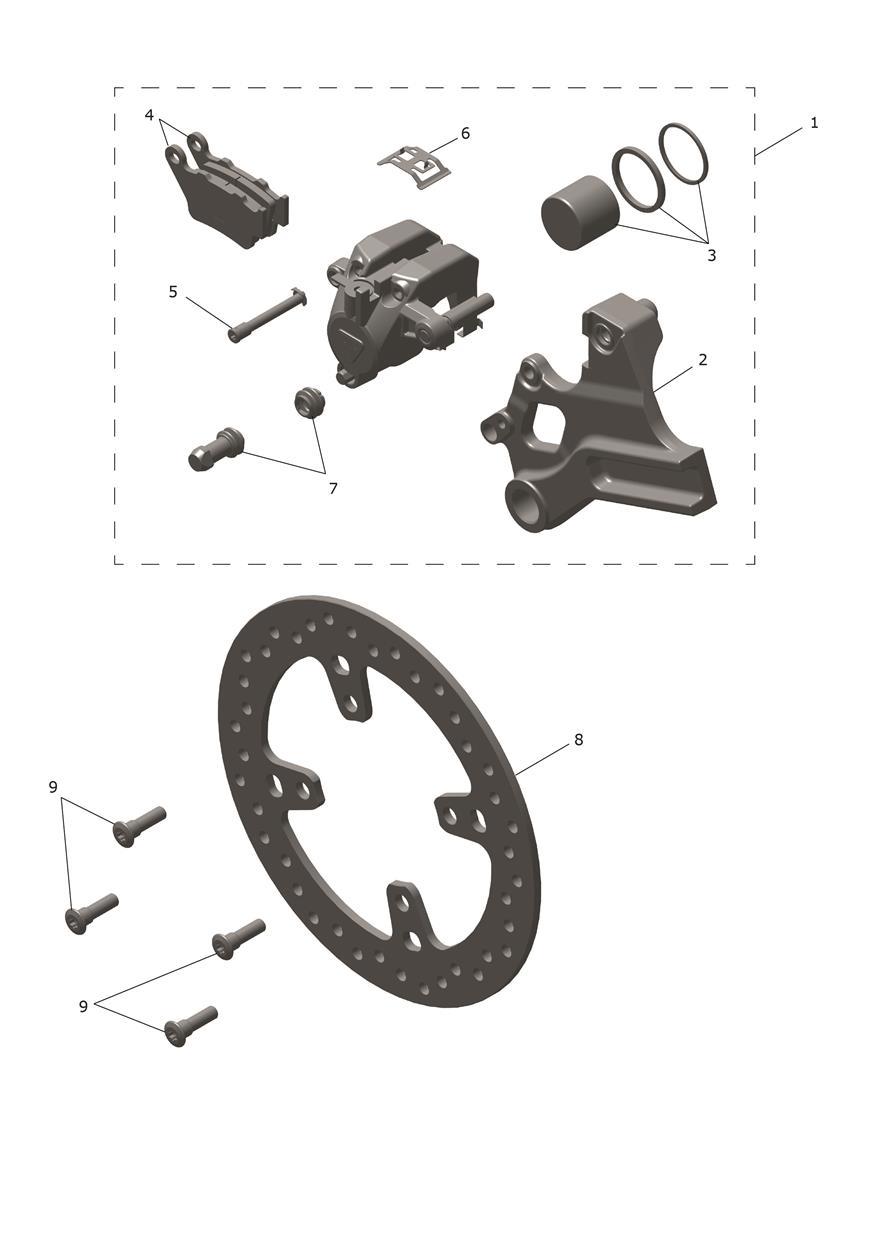

Rear Caliper & Disc
9 parts

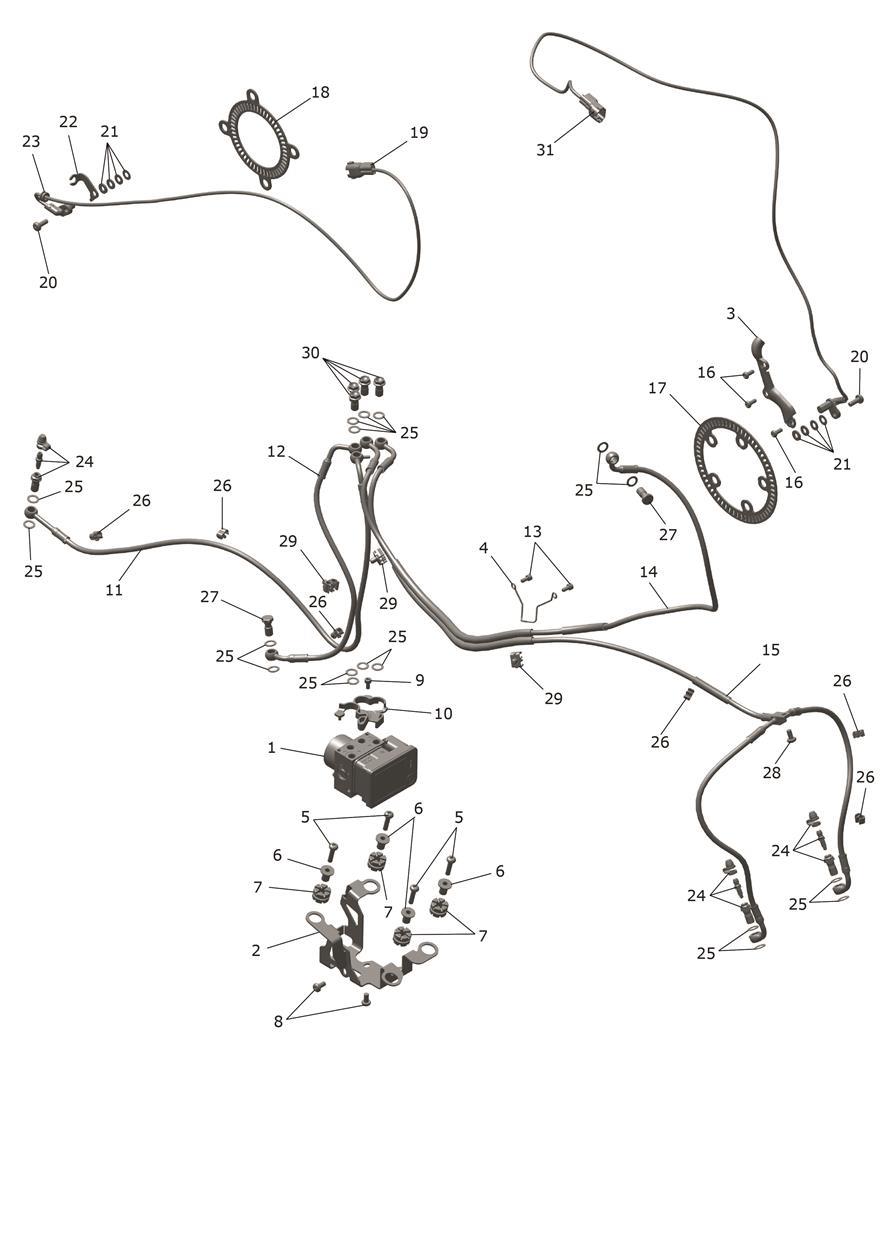

ABS System
34 parts

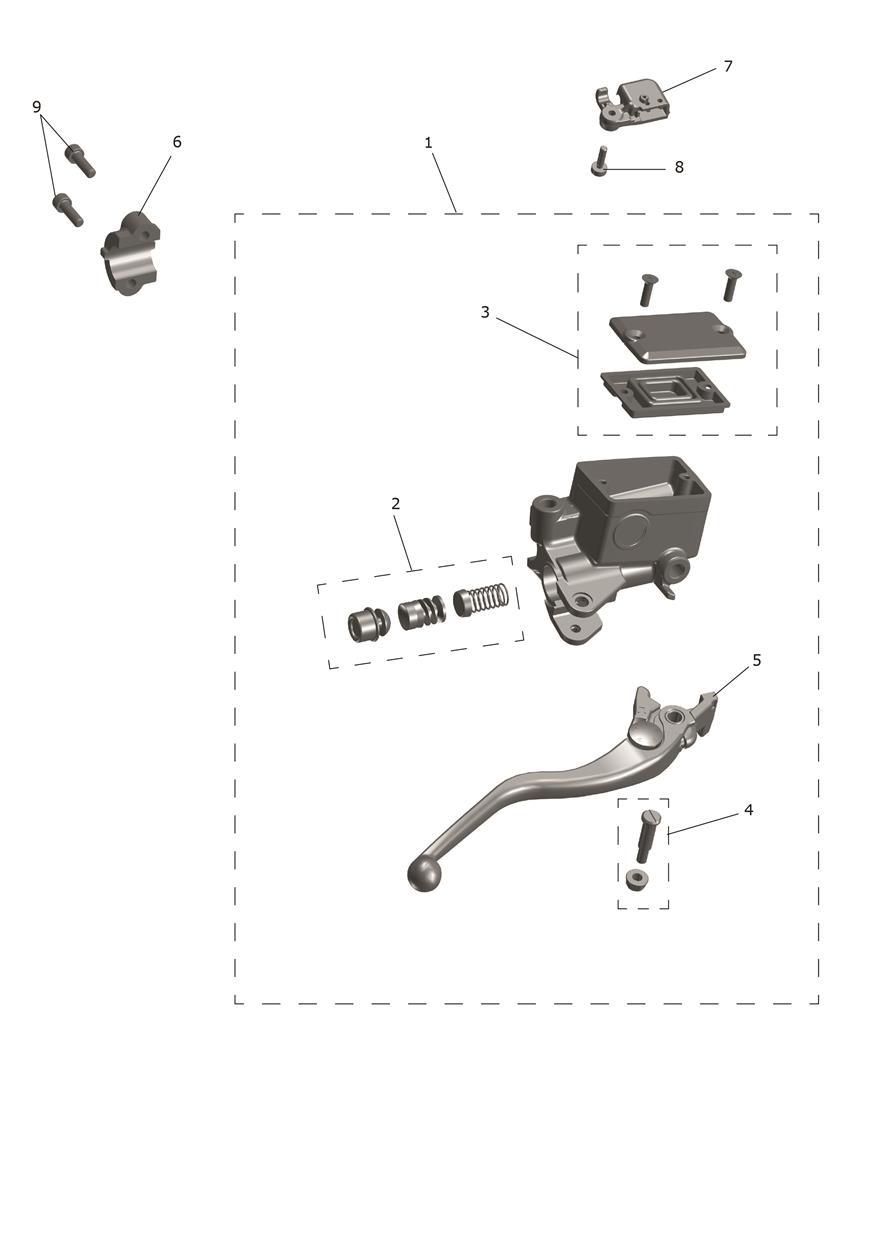

Front Brake Master Cylinder & Hoses
9 parts
Front Brake Caliper & Discs
9 parts
Rear Caliper & Disc
9 parts
Front Brake Master Cylinder & Hoses
9 parts
Rear Brake Master Cylinder
21 parts
ABS System
34 parts
