Fuel Tank, Eng. Management & Exhaust Systems.

Triumph Tiger Sport 800 · 14 diagrams

14 exploded diagrams for the fuel tank, eng. management & exhaust systems. of the Triumph Tiger Sport 800, covering the Tiger Sport 800, Tiger Sport 800 Tour. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

FUEL TANK, PUMP, FITTINGS & BODYWORK

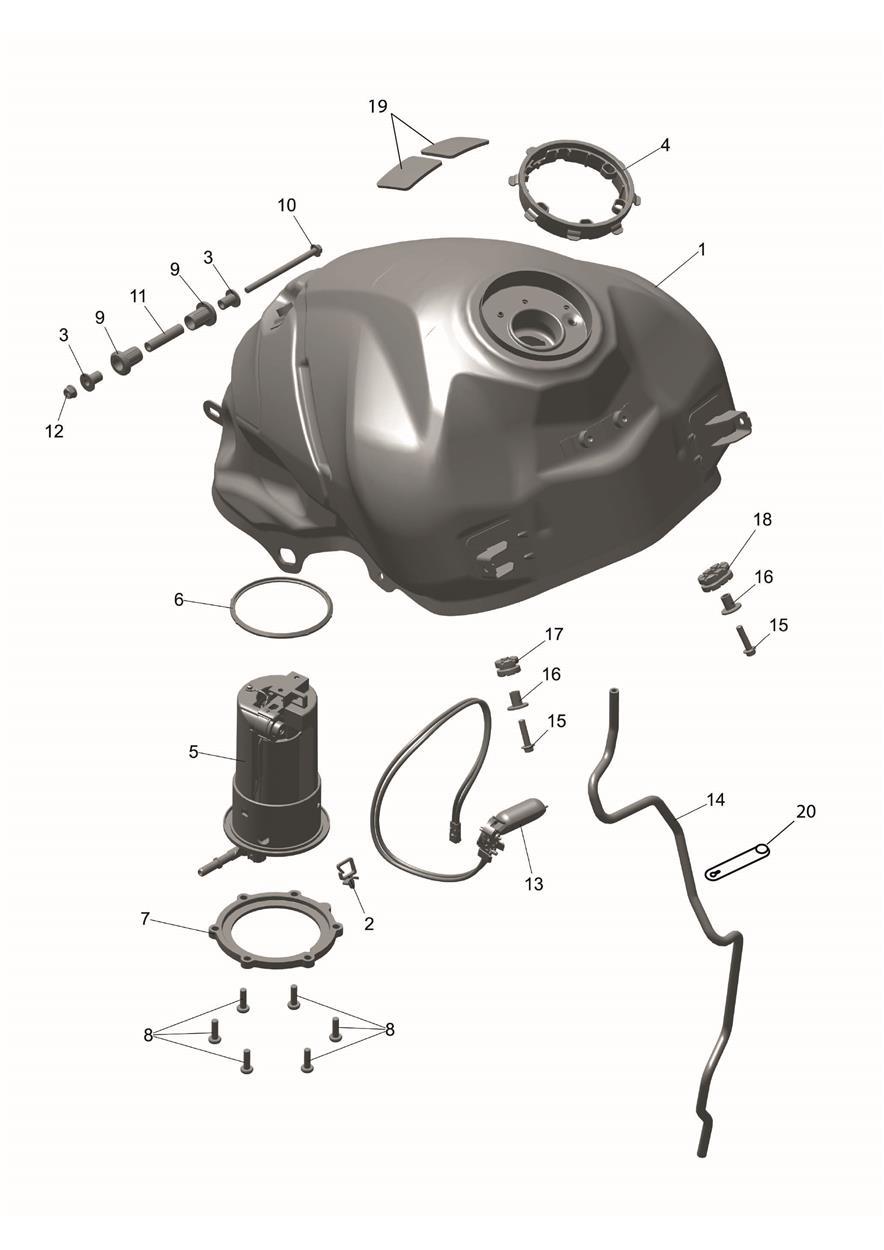

Fuel Tank, Pump and Fittings exploded diagram
Fuel Tank, Pump and Fittings
20 parts

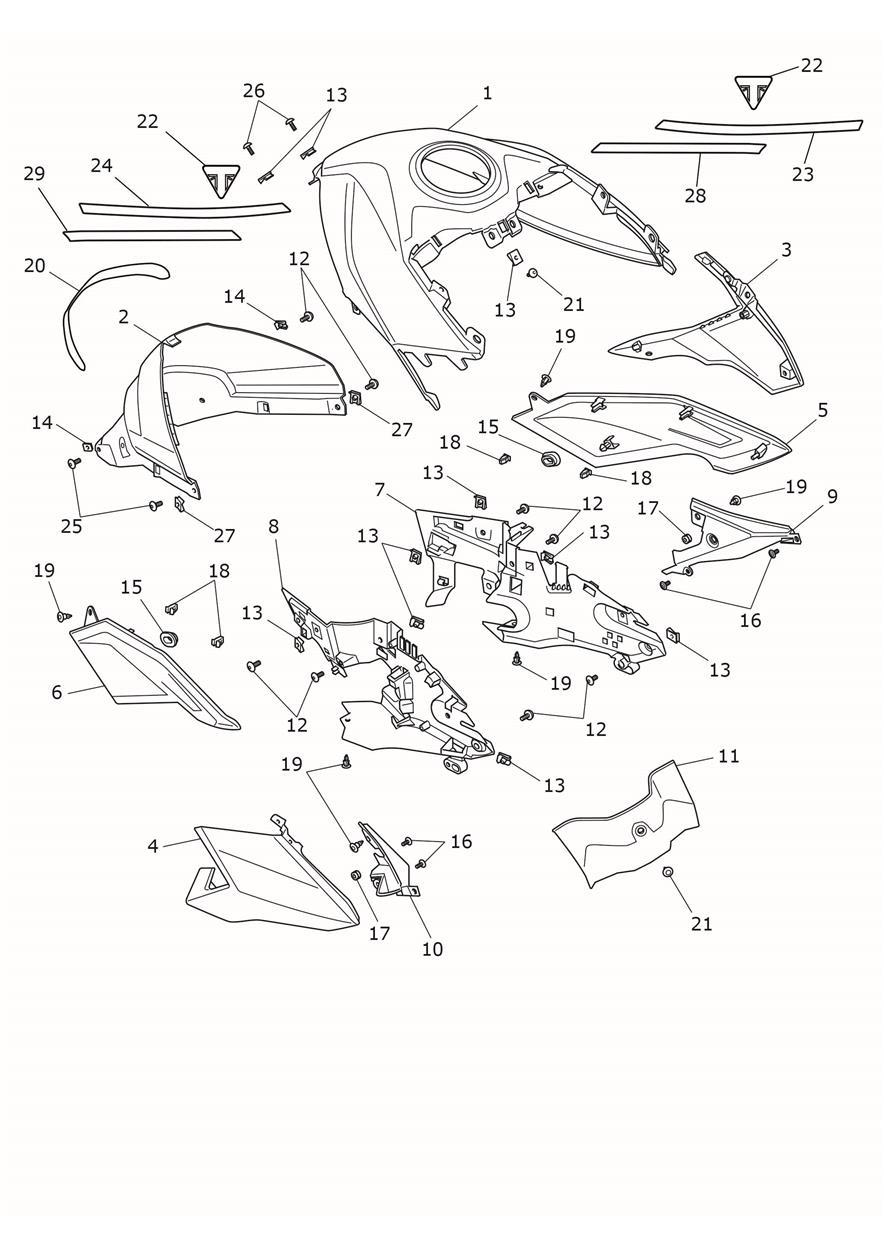

 Fuel Tank Bodywork exploded diagram
Fuel Tank Bodywork
34 parts

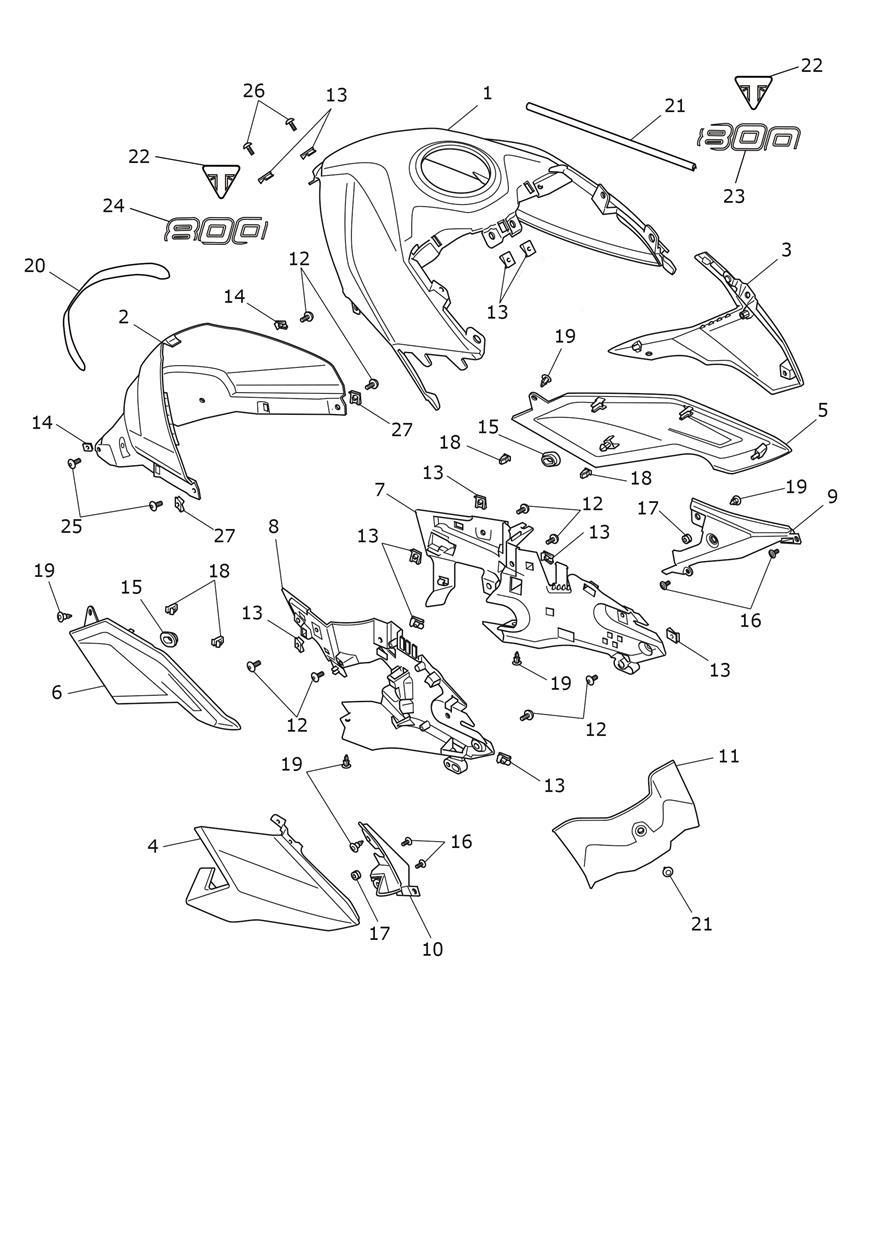

 Fuel Tank Bodywork exploded diagram
Fuel Tank Bodywork
43 parts
 Fuel Tank, Pump and Fittings exploded diagram
Fuel Tank, Pump and Fittings
19 parts

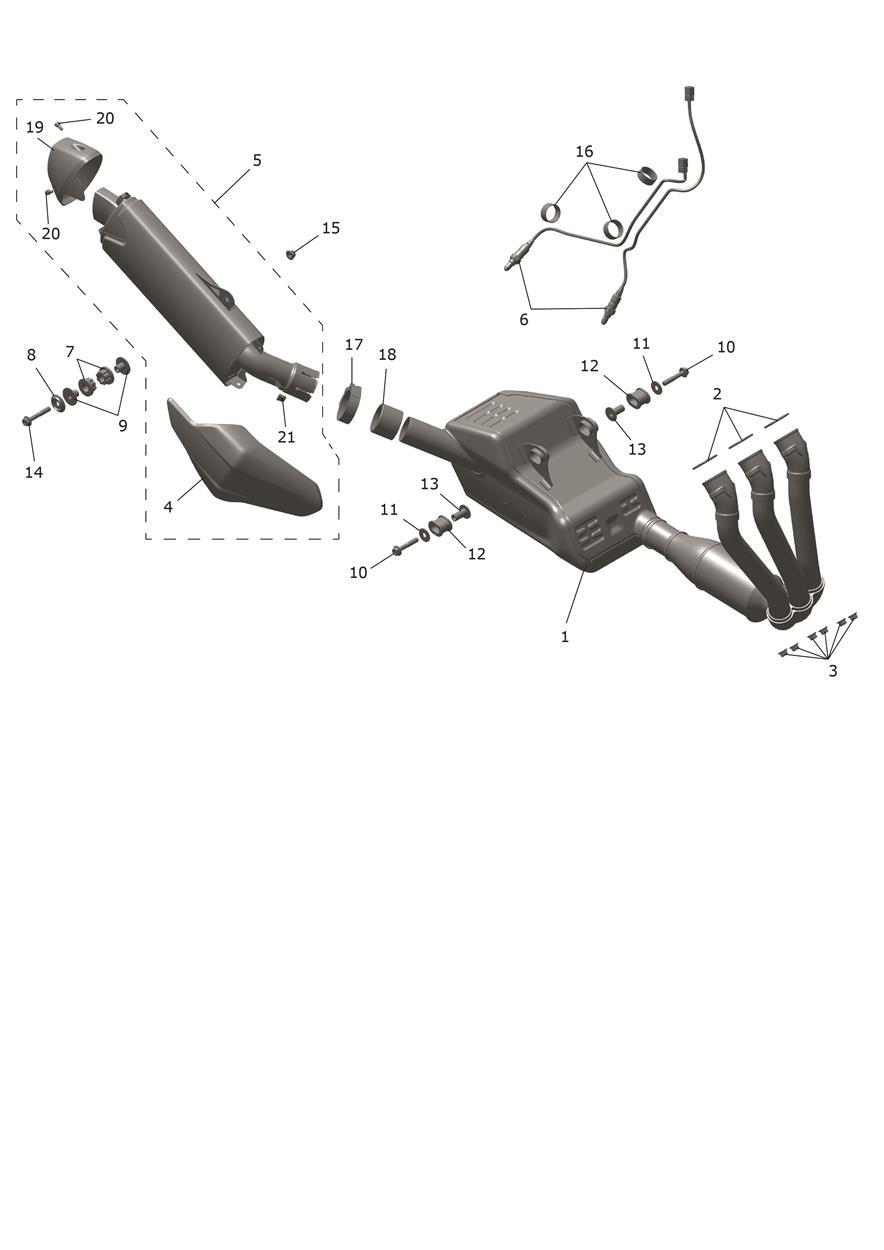

Exhaust System exploded diagram
Exhaust System
21 parts

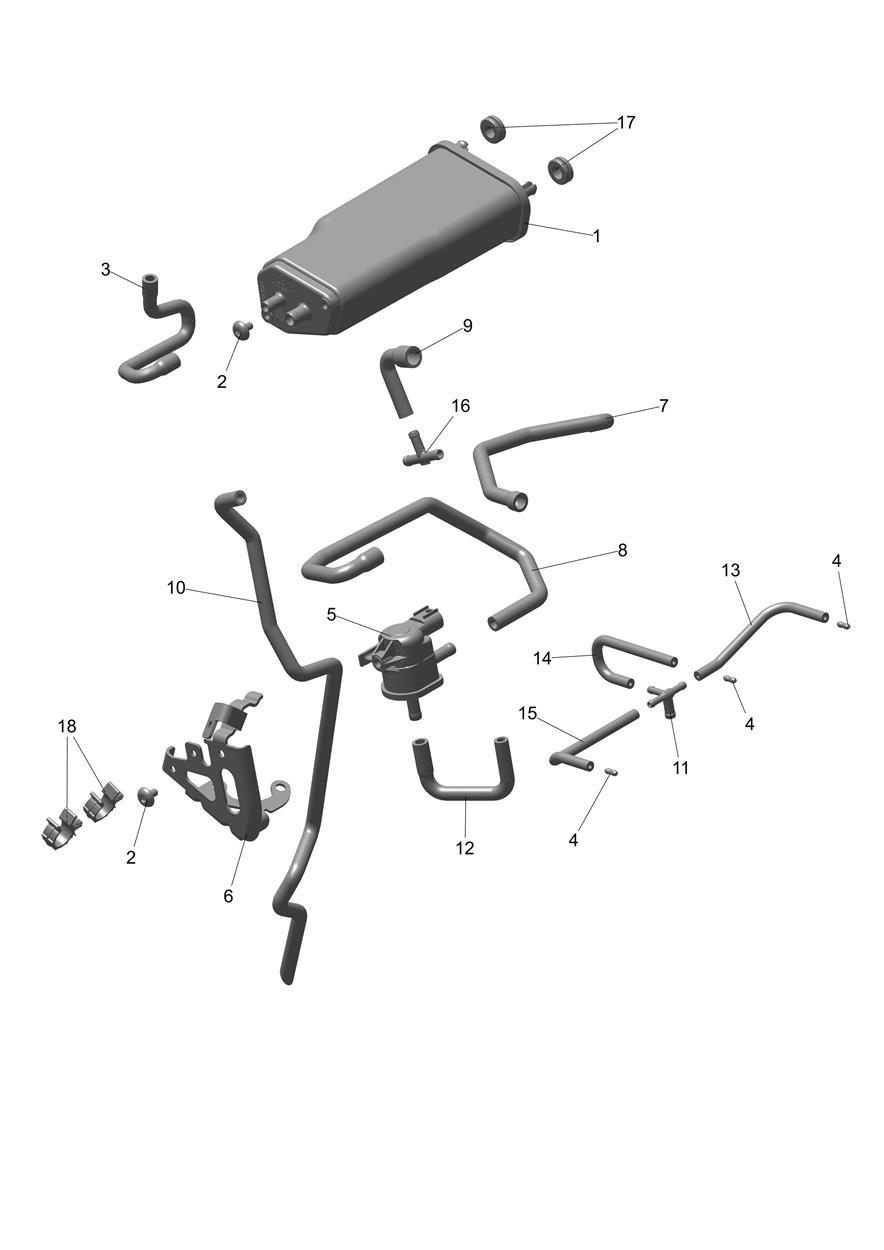

 Evap System exploded diagram
Evap System
18 parts

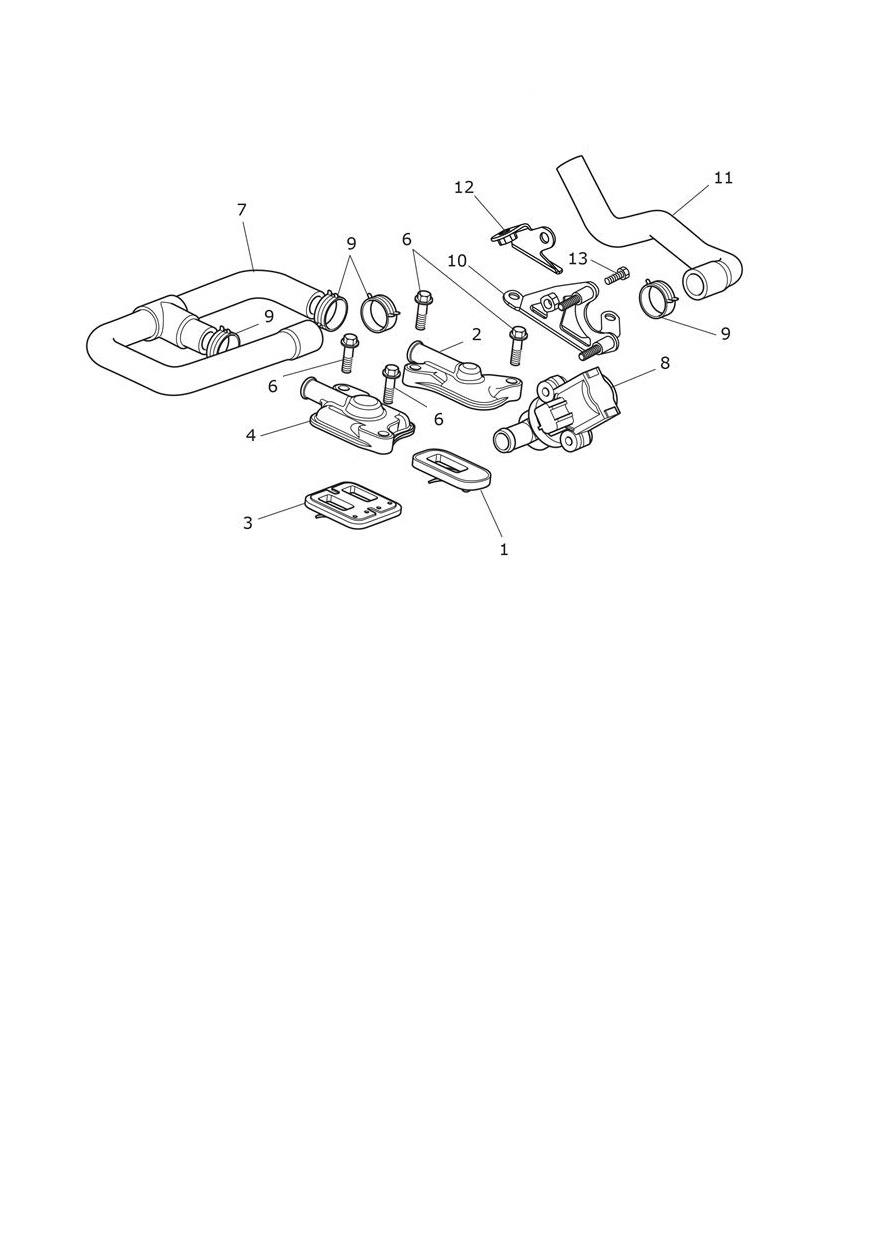

 Emissions Control exploded diagram
Emissions Control
12 parts

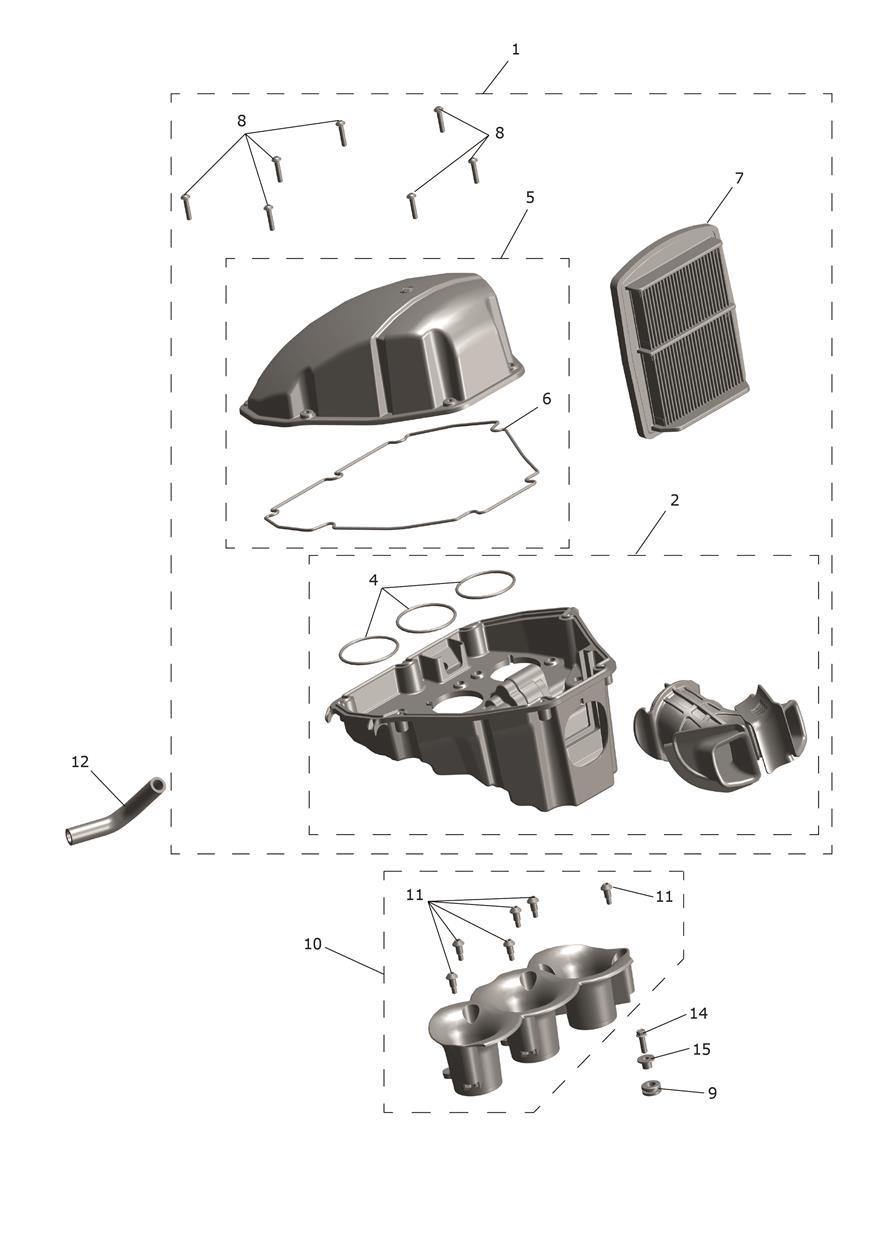

 Airbox Assembly exploded diagram
Airbox Assembly
13 parts

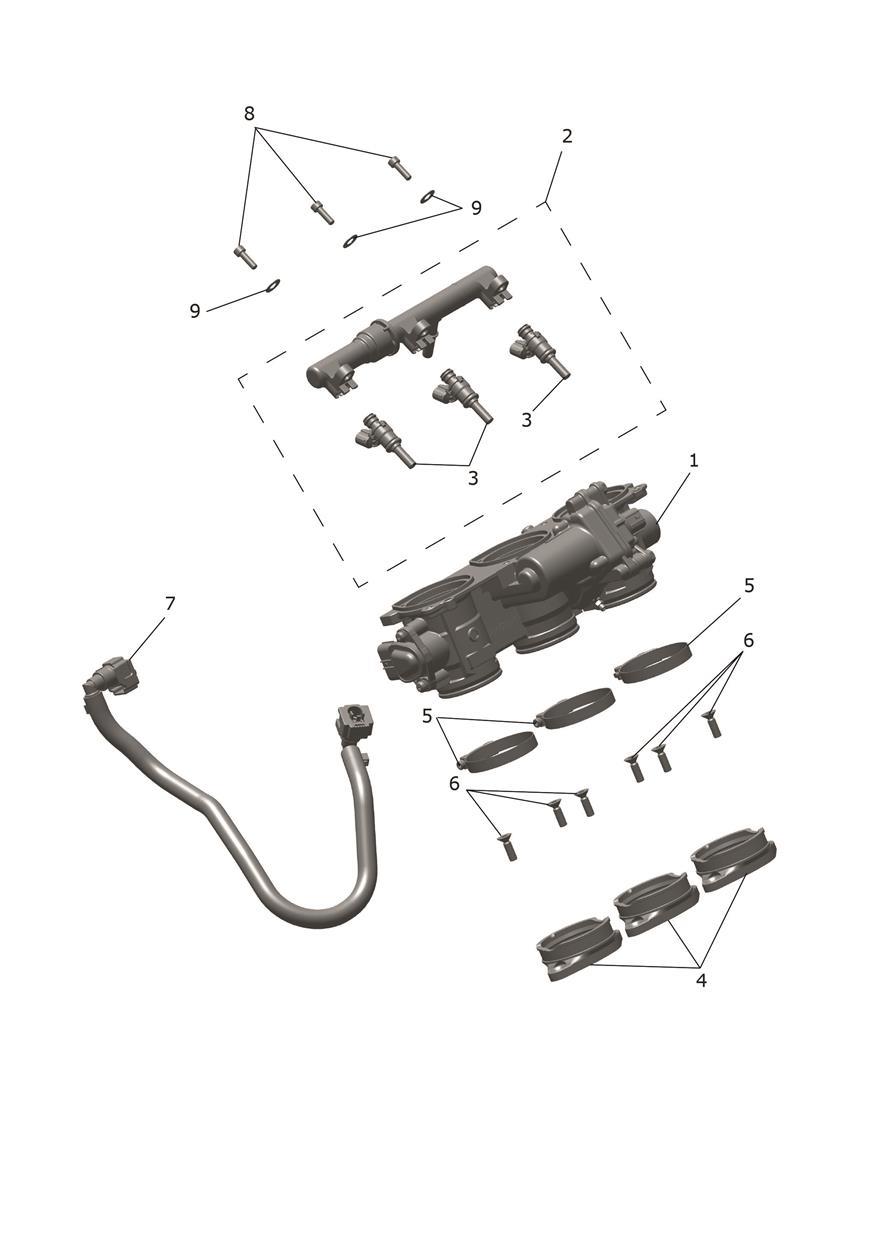

 Throttles, Injectors and Fuel Rail exploded diagram
Throttles, Injectors and Fuel Rail
9 parts
 Evap System exploded diagram
Evap System
18 parts
 Exhaust System exploded diagram
Exhaust System
21 parts
 Emissions Control exploded diagram
Emissions Control
12 parts
 Throttles, Injectors and Fuel Rail exploded diagram
Throttles, Injectors and Fuel Rail
9 parts
 Airbox Assembly exploded diagram
Airbox Assembly
13 parts
