Wheels
Triumph Tiger Sport 800 · 4 diagrams
4 exploded diagrams for the wheels of the Triumph Tiger Sport 800, covering the Tiger Sport 800, Tiger Sport 800 Tour. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
37 parts you can order online
Every part below appears in Triumph’s Wheels diagrams for the Tiger Sport 800 and is priced and orderable online. Open a part to see what it fits and to buy it.

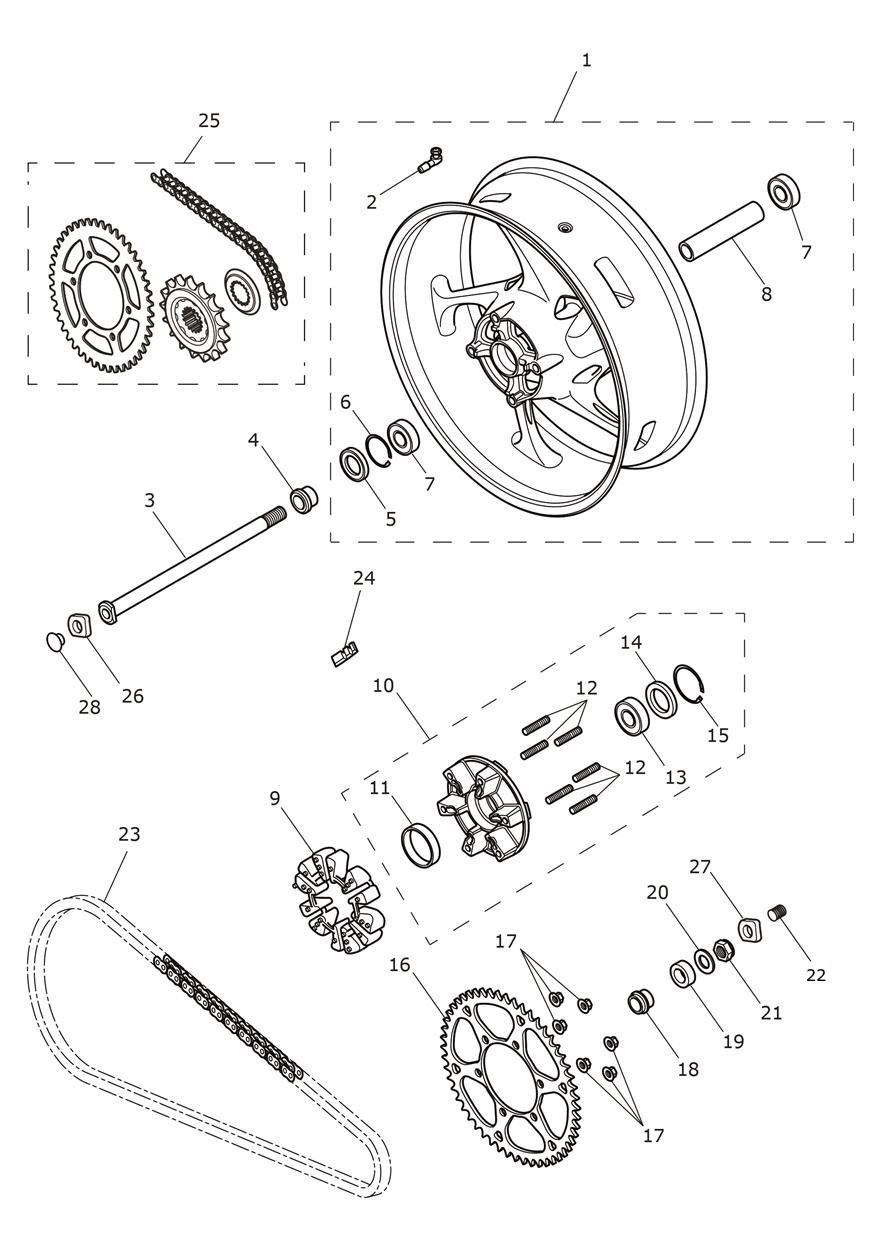

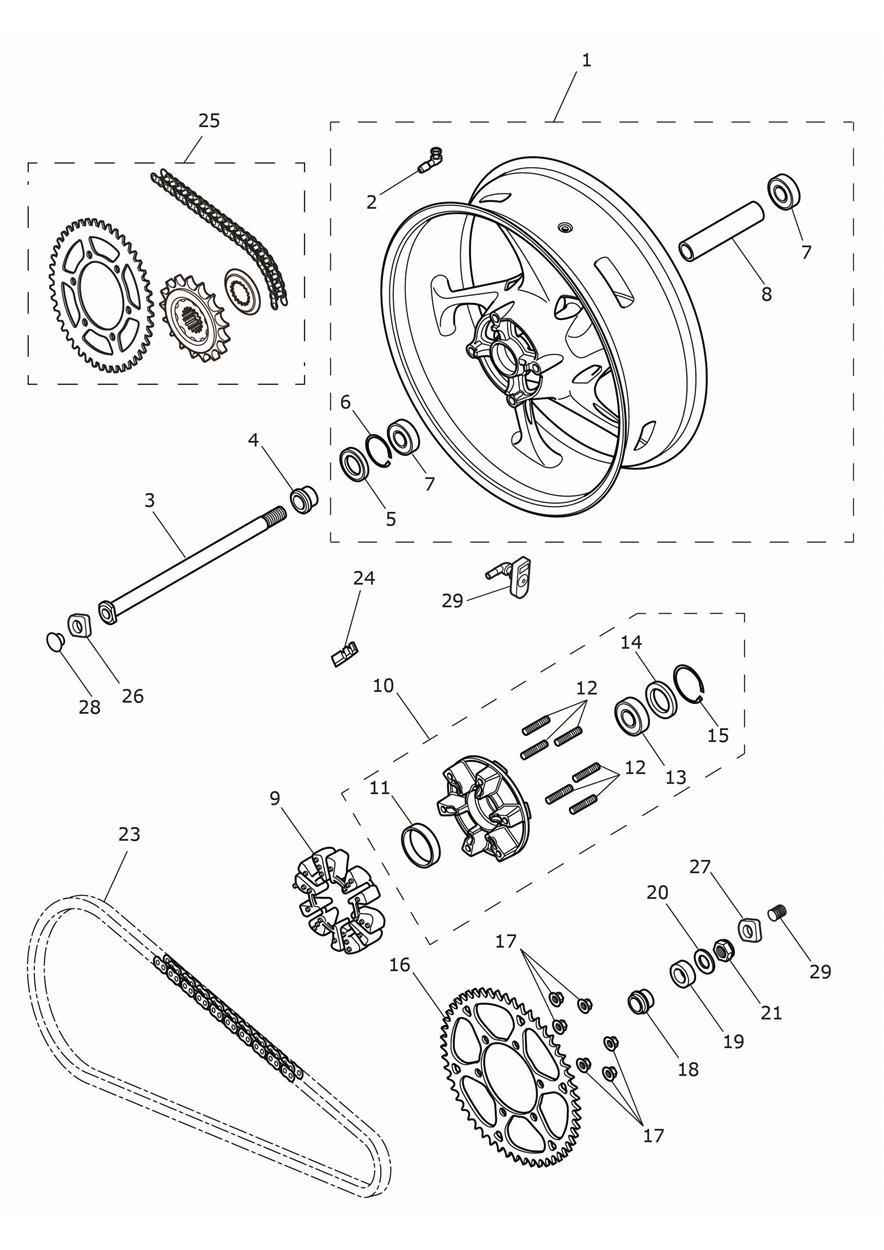

Rear Wheel
T2017900 Rear Wheel Assembly, Spares
$904.42
AvailableT2006635 Valve Assy, Alum, 90, Black
$14.86
AvailableT2015060 Rear Wheel Spindle
$89.79
AvailableT2012048 Top Hat Spacer, 22.4 Long
$10.49
AvailableT3600701 Oil Seal, DC 28 47 7
$20.85
In stock in BreaT3500402 Circlip, Int Dia 47
$1.99
AvailableT3800703 Bearing, Ball, 20 47 14
$42.41
AvailableT2004204 Spacer, Wheel
$44.90
AvailableT2010650 Cush Drive Rubber
$83.61
AvailableT2010601 Sprocket Carrier Assy, Graphite
$607.34
In stock in BreaT2010630 Bearing, Ring
Low stock at Triumph
$50.18
Limited availabilityT2012144 Stud, Sprocket Carrier
$7.05
AvailableT3800029 Bearing Ball, 25 52 15
$15.10
AvailableT3600073 Oil Seal, 35 52 6
$20.24
In stock in BreaT2011776 Rear Sprocket, 48T, 520
$114.15
AvailableT3350250 Locknut, Flanged, M10
$3.85
In stock in BreaT2010492 Spacer, Stepped
$17.94
In stock in BreaT2011920 Spacer Tube, 35 x 20 x 11
Backordered at Triumph · we’ll confirm the ship date after you order
$7.41
On backorderT3555035 Washer, 19 x 34 x 3
Low stock at Triumph
$1.99
Limited availabilityT3350118 Locknut, Plain, M18
$10.71
AvailableT3450765 Bung, Hole Dia 9-11mm, Blk
$2.64
AvailableT2011281 Chain, Spares, 520VM4, 120L
$216.37
AvailableT2011330 Master Link, ZJ Type, 520
$27.08
AvailableT2006688 Wheel Weight, 5 Gram, Black
$10.20
AvailableT2017524 Chain & Sprocket Kit
$209.54
AvailableT2011052 Adjuster, Rear Wheel
Backordered at Triumph · we’ll confirm the ship date after you order
$14.14
On backorderT3450063 Bung
Backordered at Triumph · expected Nov 13
$5.98
On backorderT2504861 Sensor, TPMS, 90 Deg, 434MHZ
$205.55
AvailableT2504868 Sensor, TPMS, 90 Deg, 315MHZ
Backordered at Triumph · we’ll confirm the ship date after you order
$214.92

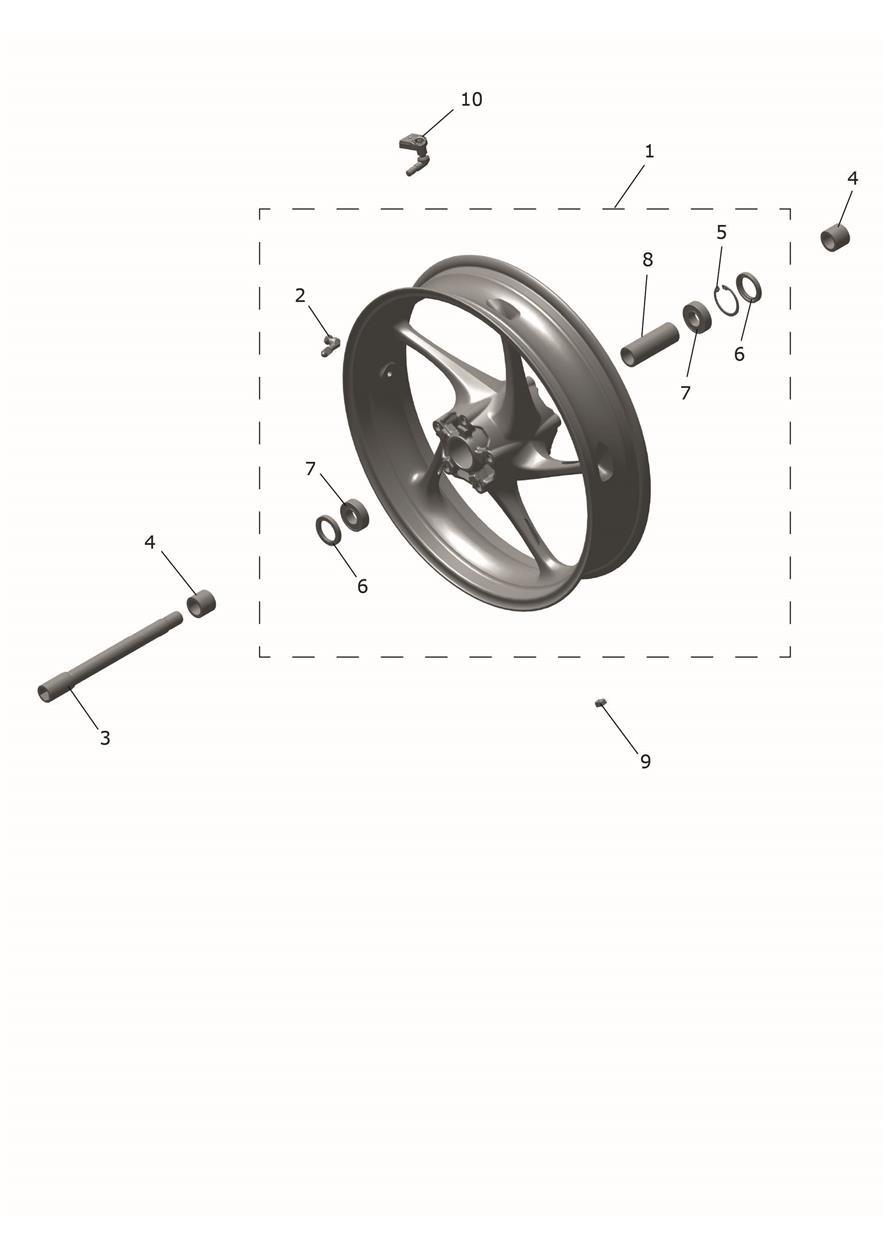

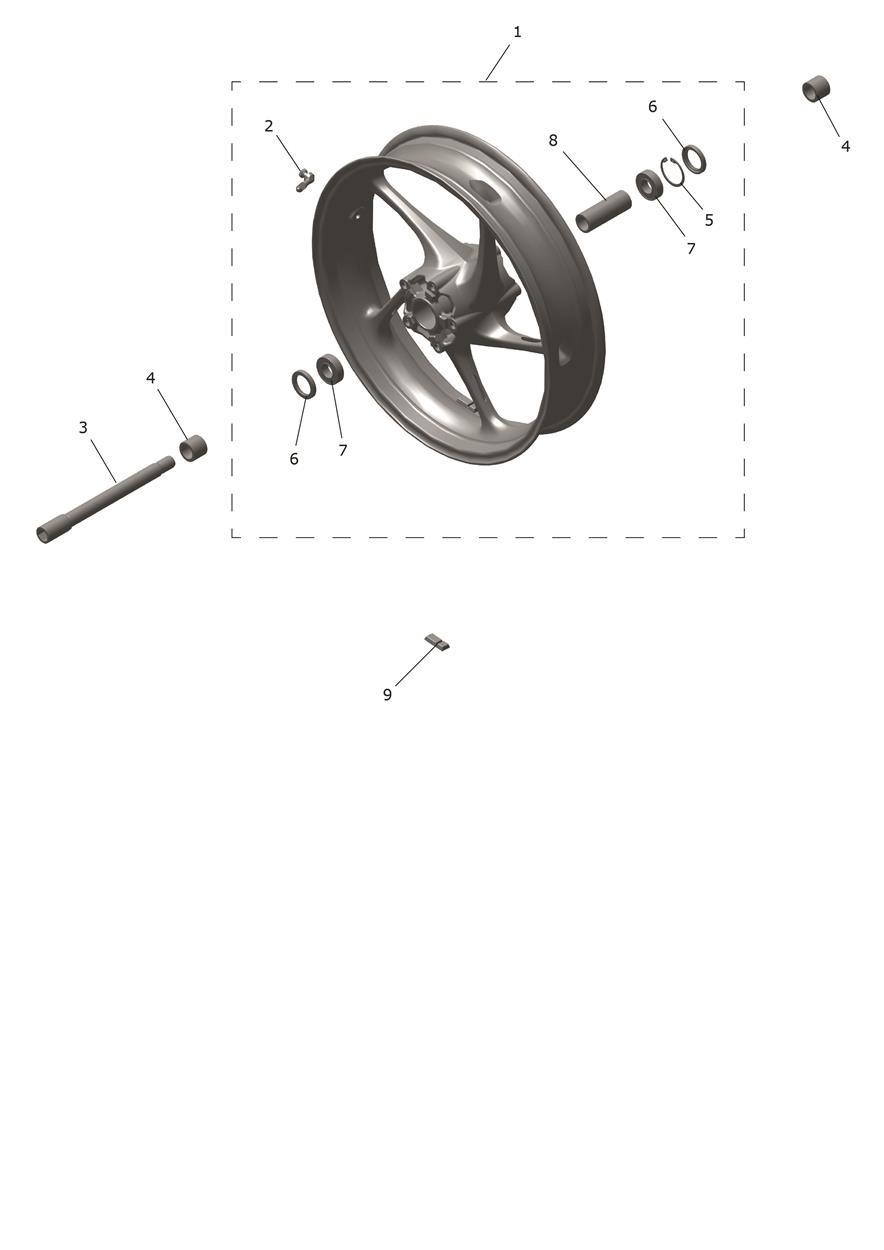

On backorderFront Wheel
T2002716 Front Wheel Assembly, Spares
$986.64
AvailableT2000650 Front Wheel Spindle
$87.14
AvailableT2001422 Spacer, 30 OD, 20.2 ID
$6.64
AvailableT3500401 Circlip, Int Dia 42
$14.86
AvailableT3600703 Oil Seal, 30 42 6
$11.46
AvailableT3800702 Bearing Ball, 20 42 12
$35.65
In stock in BreaT2004201 Spacer, Wheel, 20 81
$36.11
Available
