Frame/Footrests/Eng Mtgs/Stands/Luggage/Tool Kit
Triumph Tiger · 19 diagrams
19 exploded diagrams for the frame/footrests/eng mtgs/stands/luggage/tool kit of the Triumph Tiger, covering the Tiger 1050 & Tiger Sport 1050. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

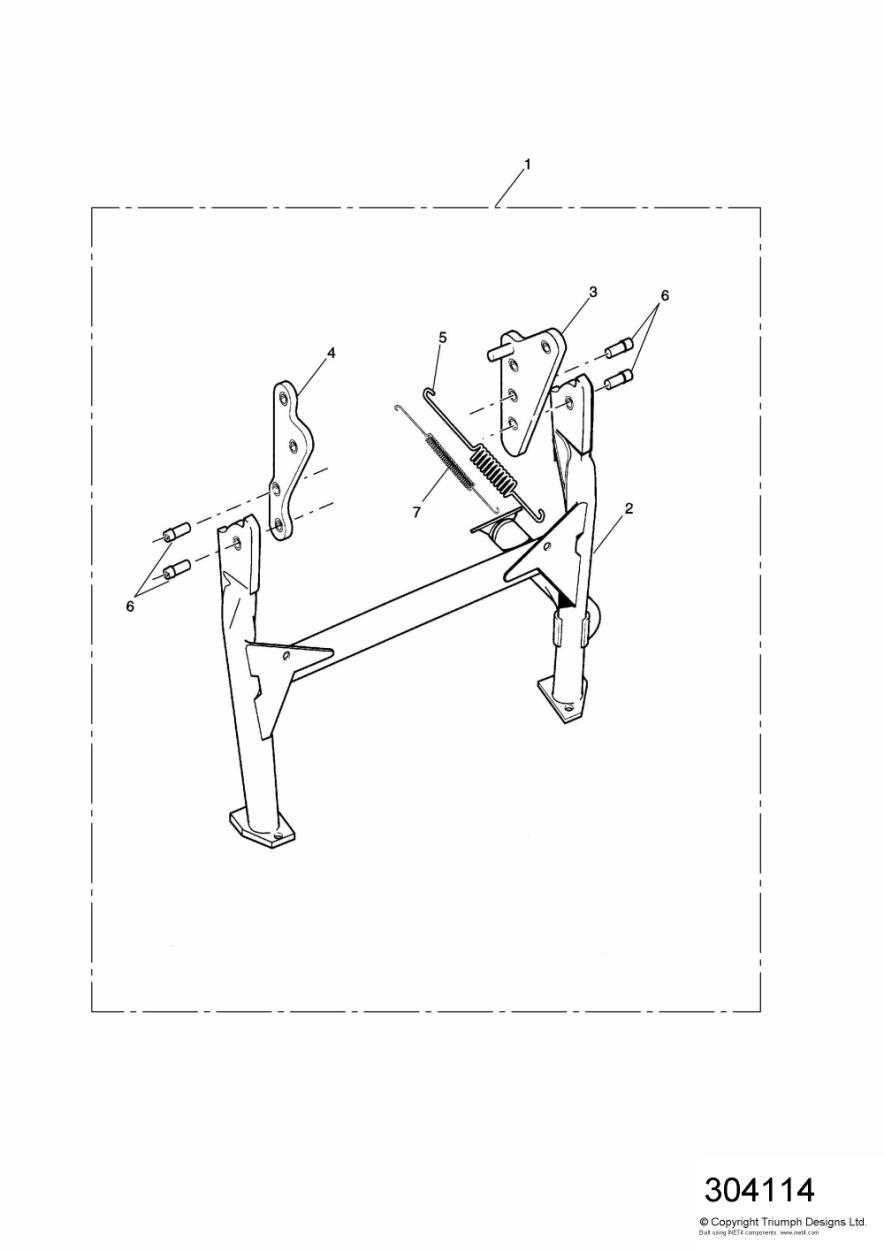

Centrestand DE,ES,IT,JP,NL,NZ,SE & UK
7 parts

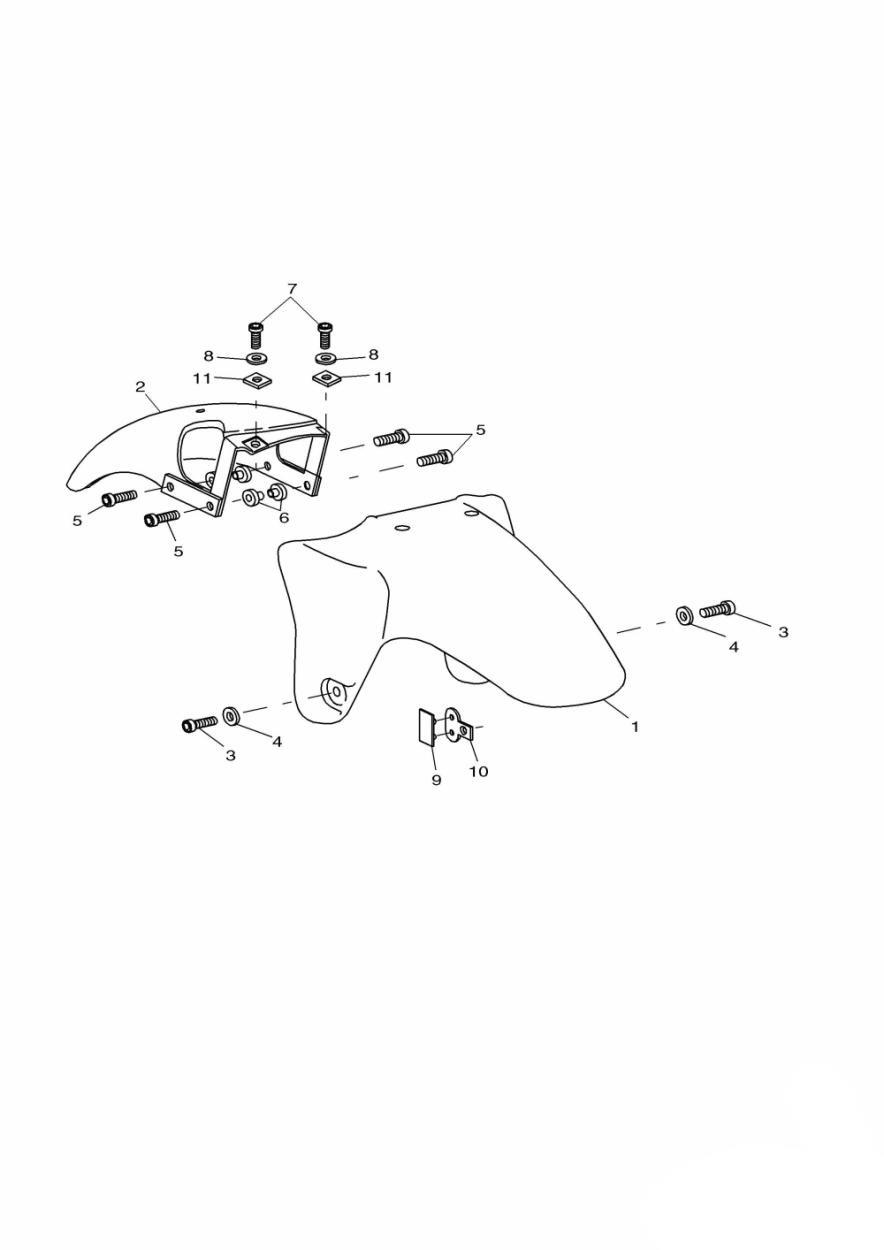

Front Mudguard
13 parts

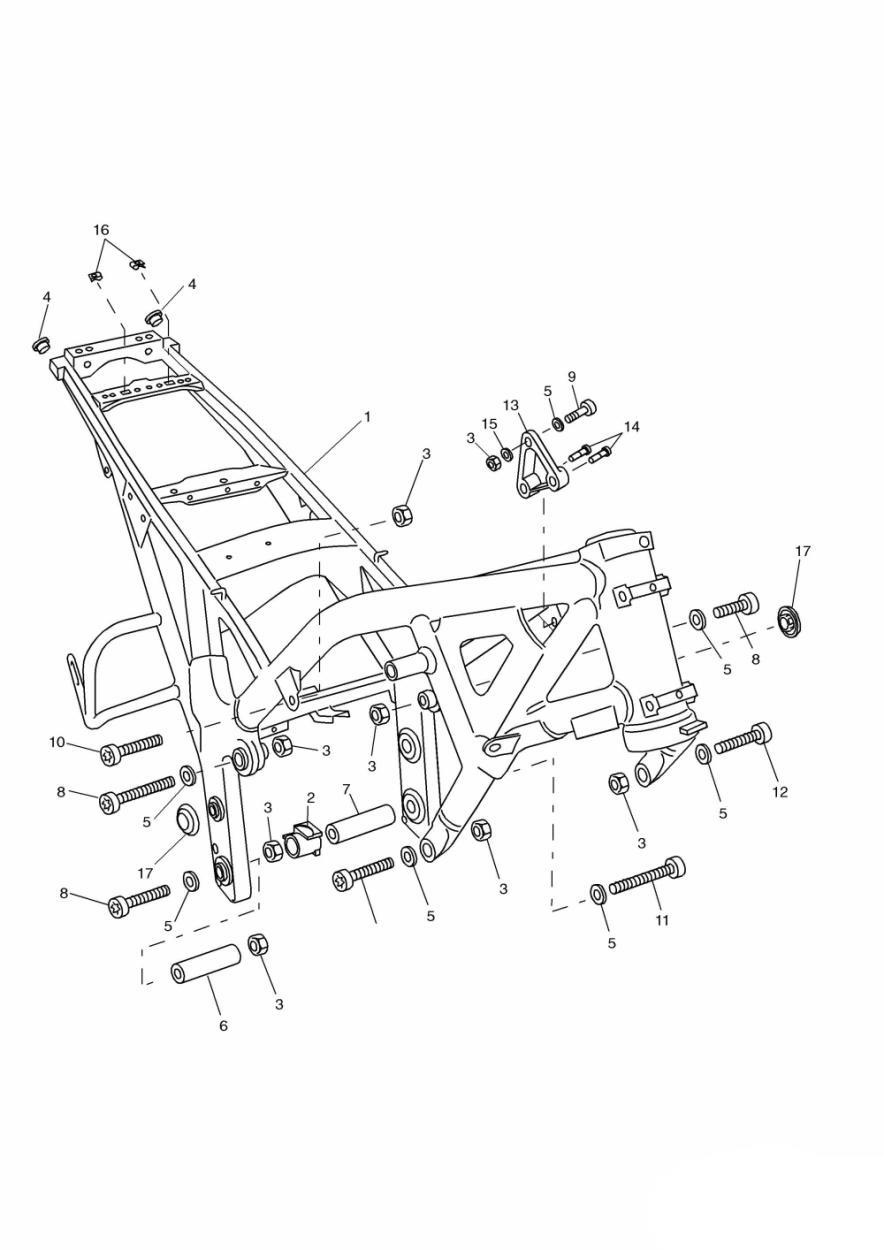

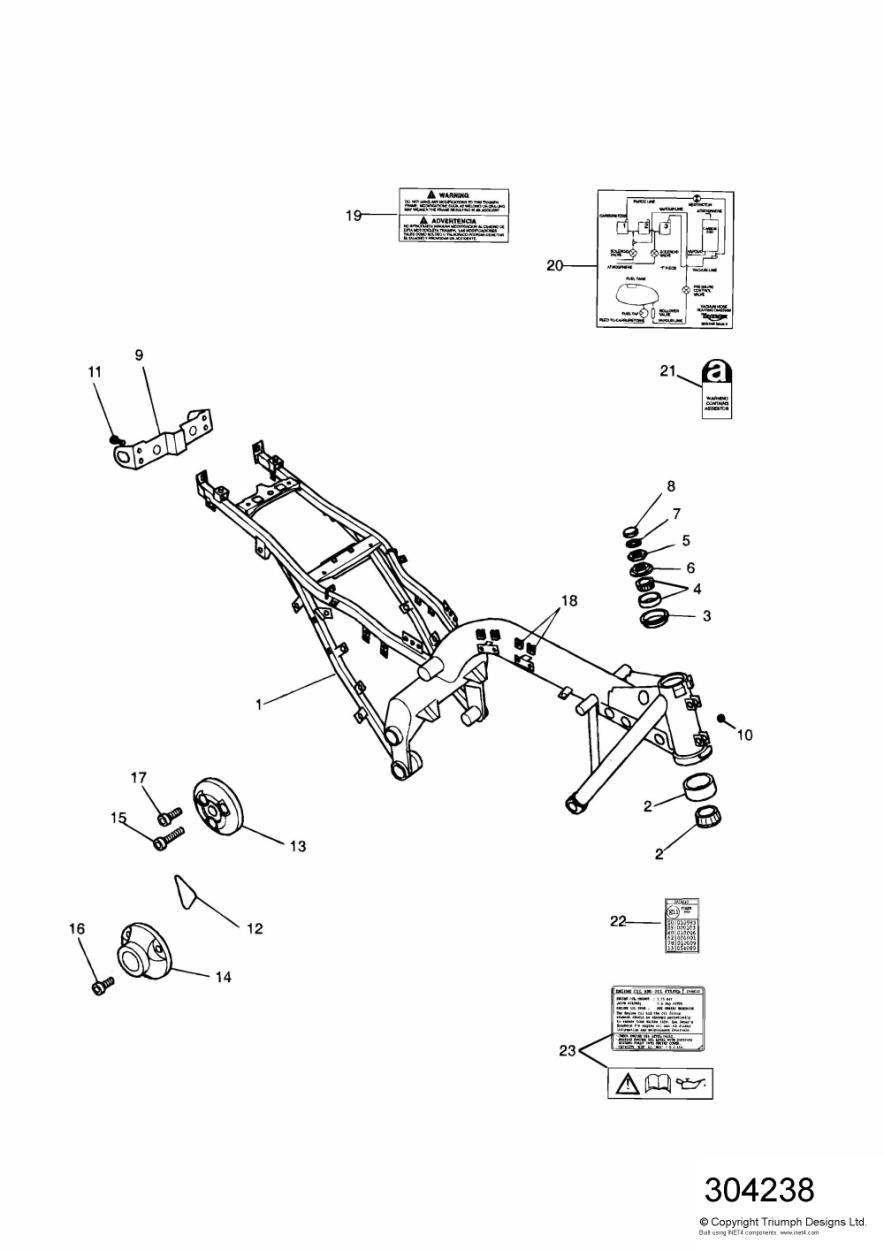

Main Frame & Fittings
33 parts

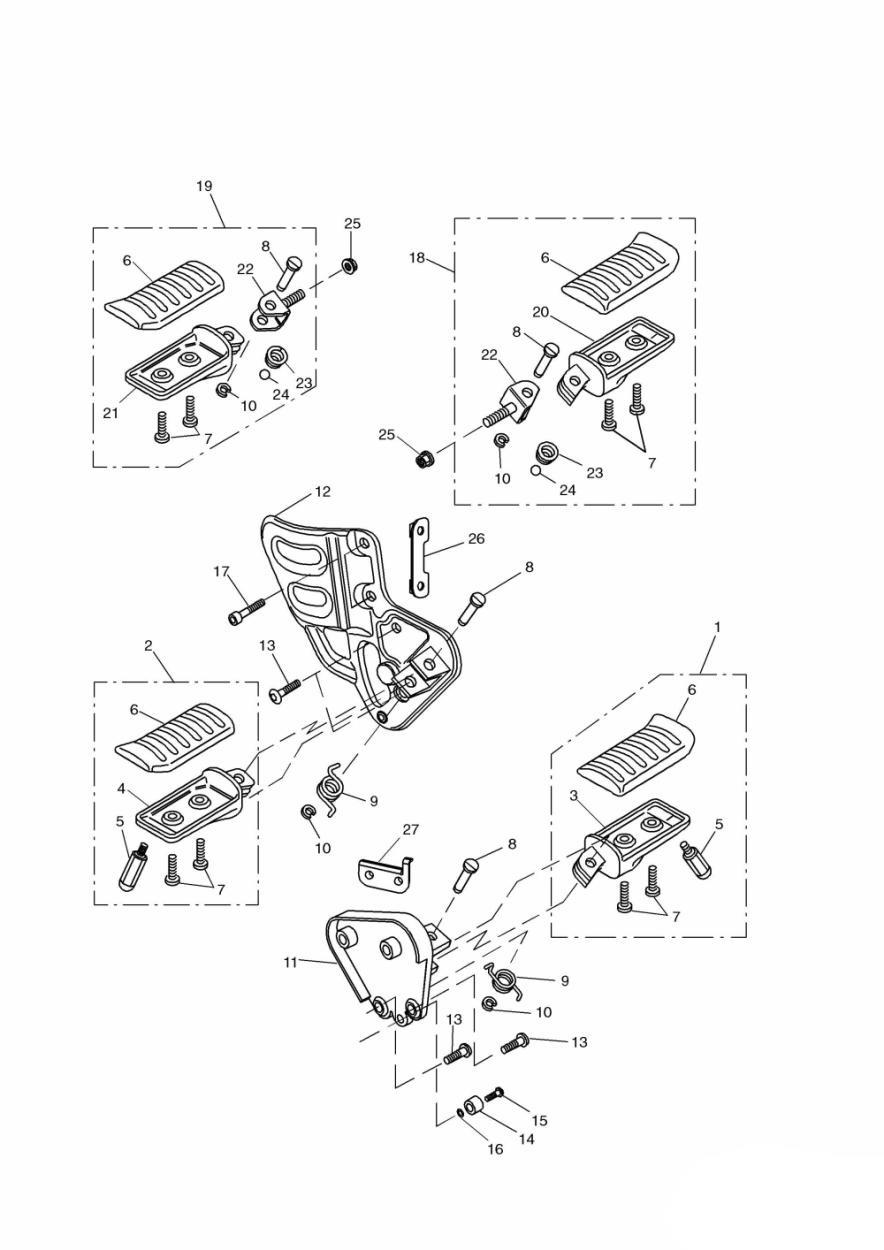

Footrests & Mountings
34 parts
Main Frame & Fittings
22 parts

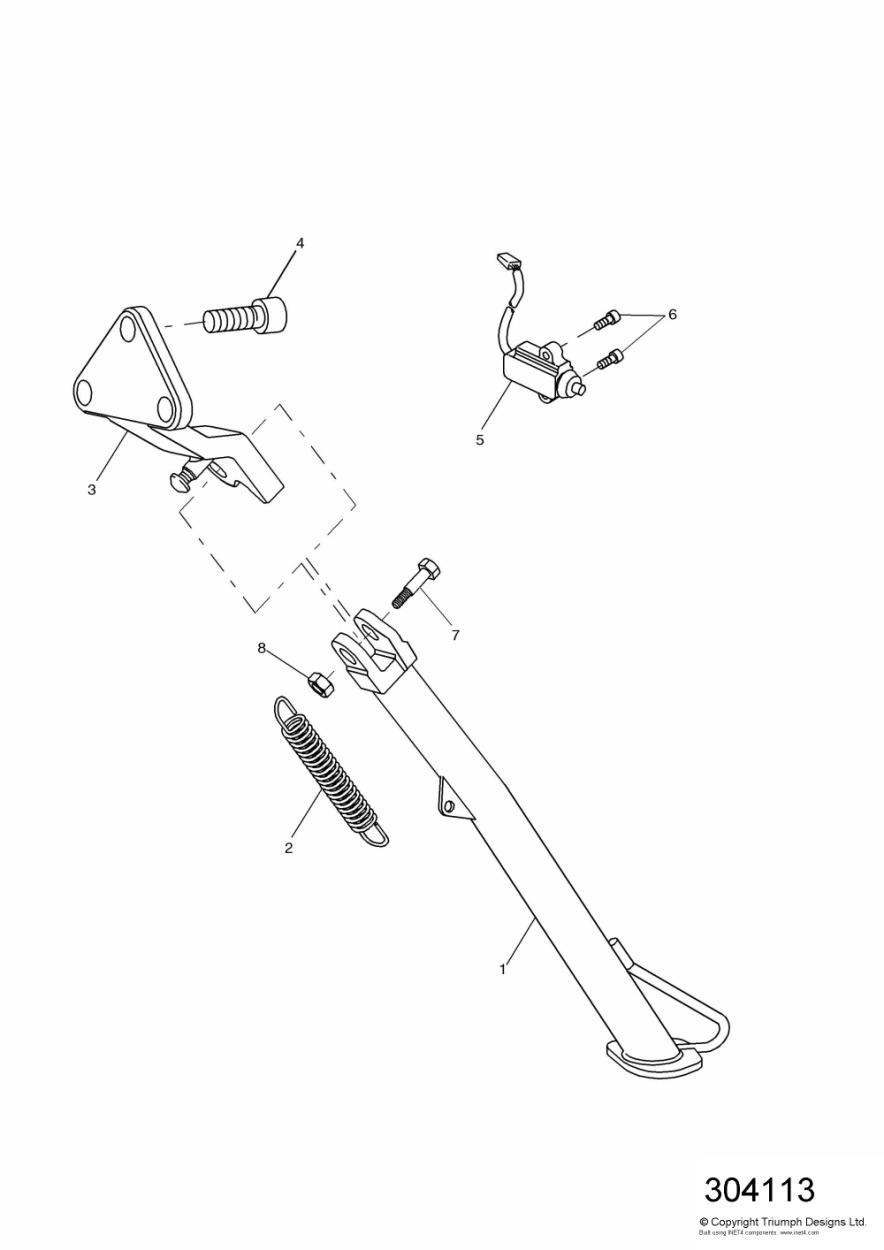

Side Stand
8 parts

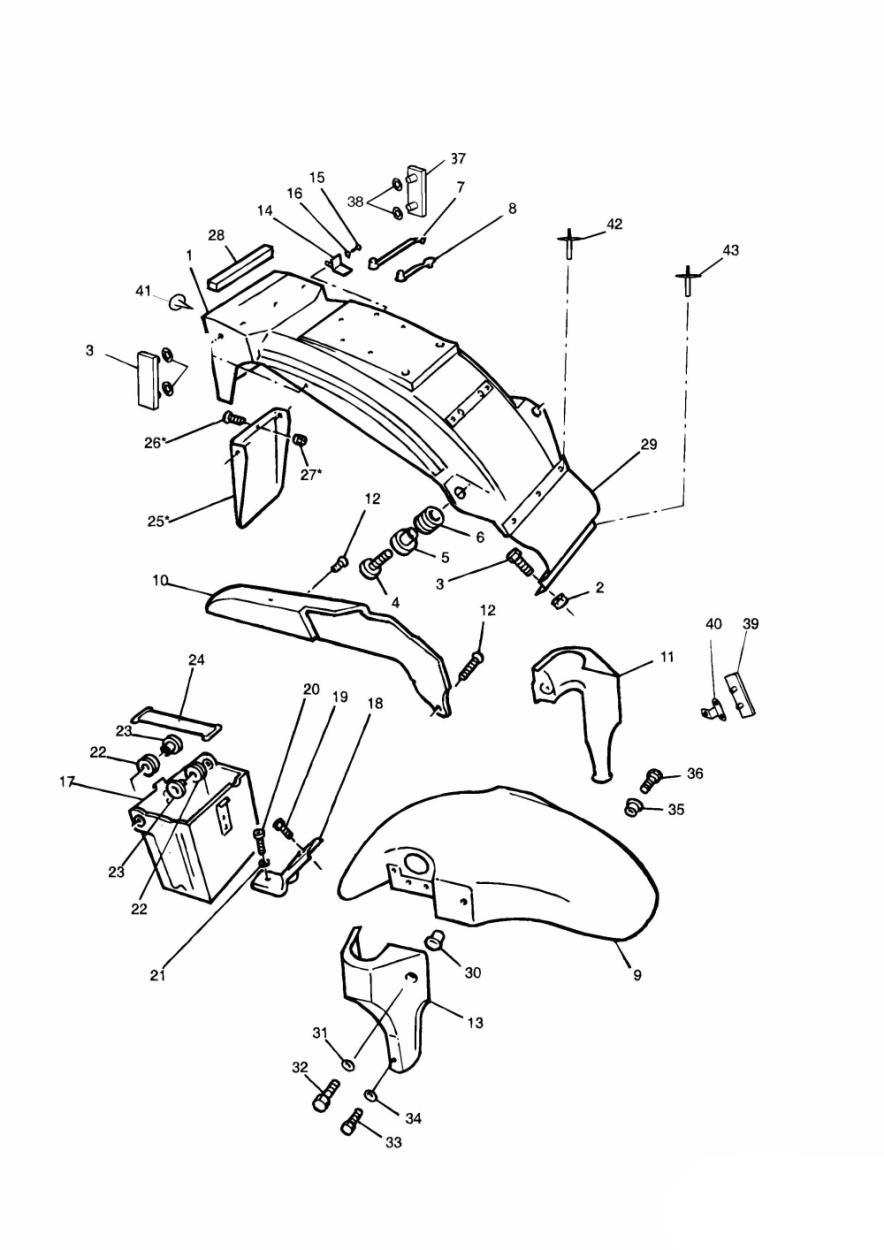

Mudguards/Chainguard/Battery Box
69 parts

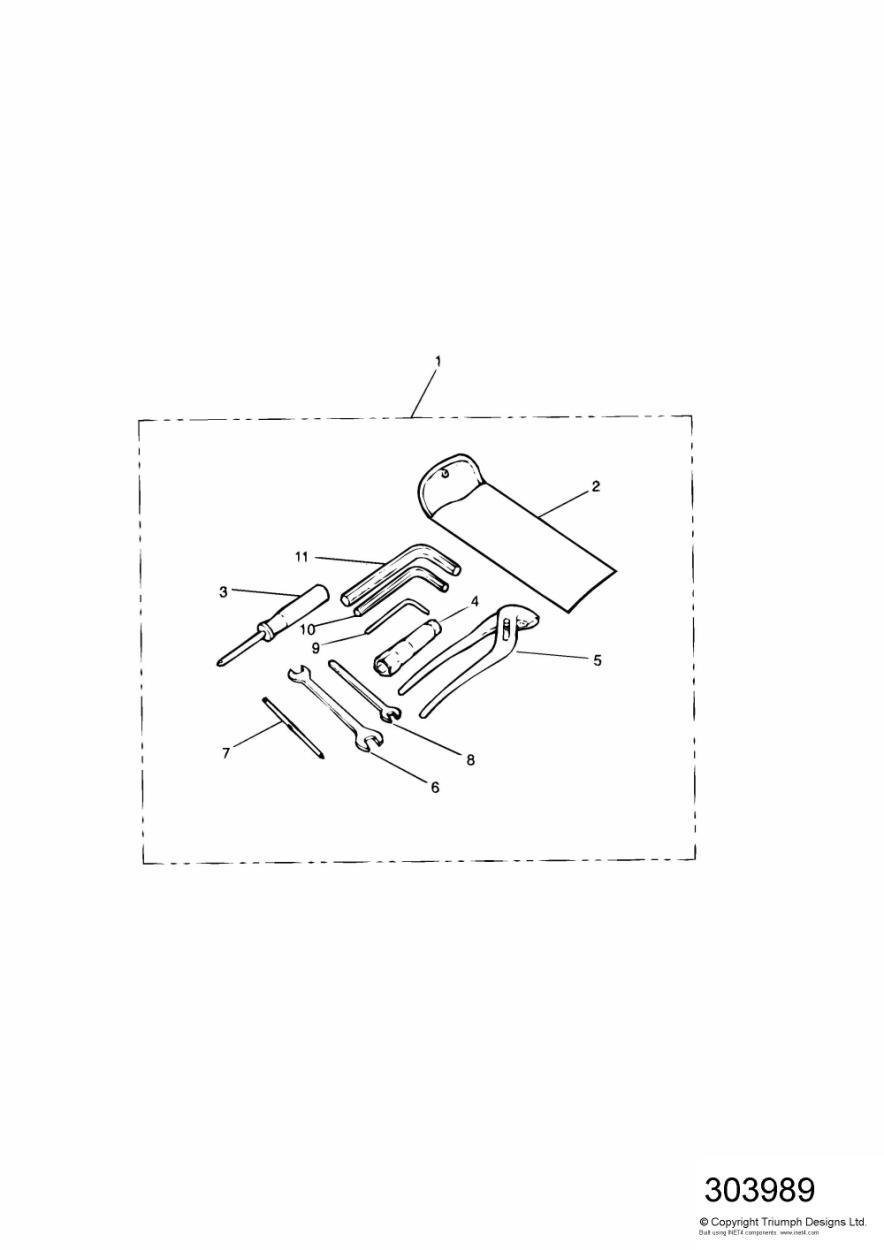

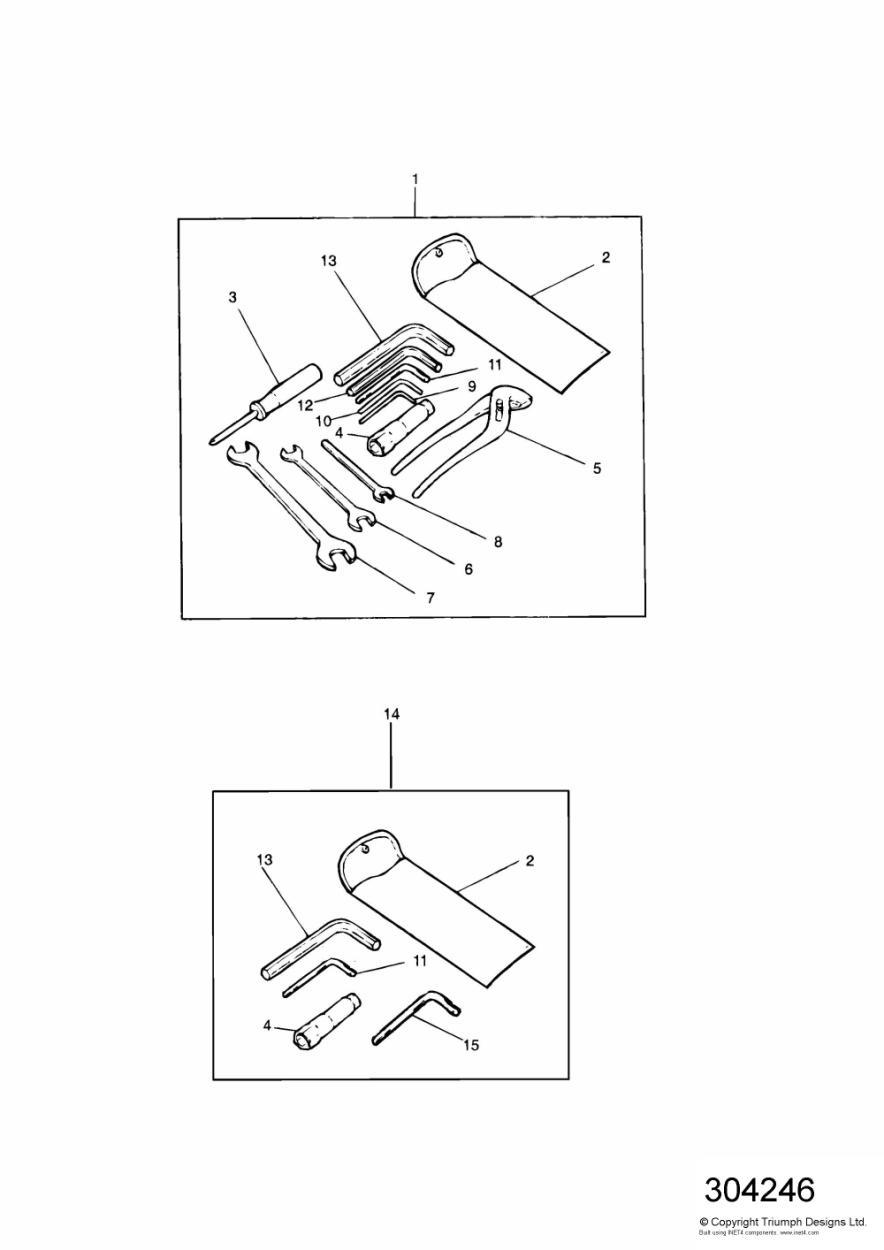

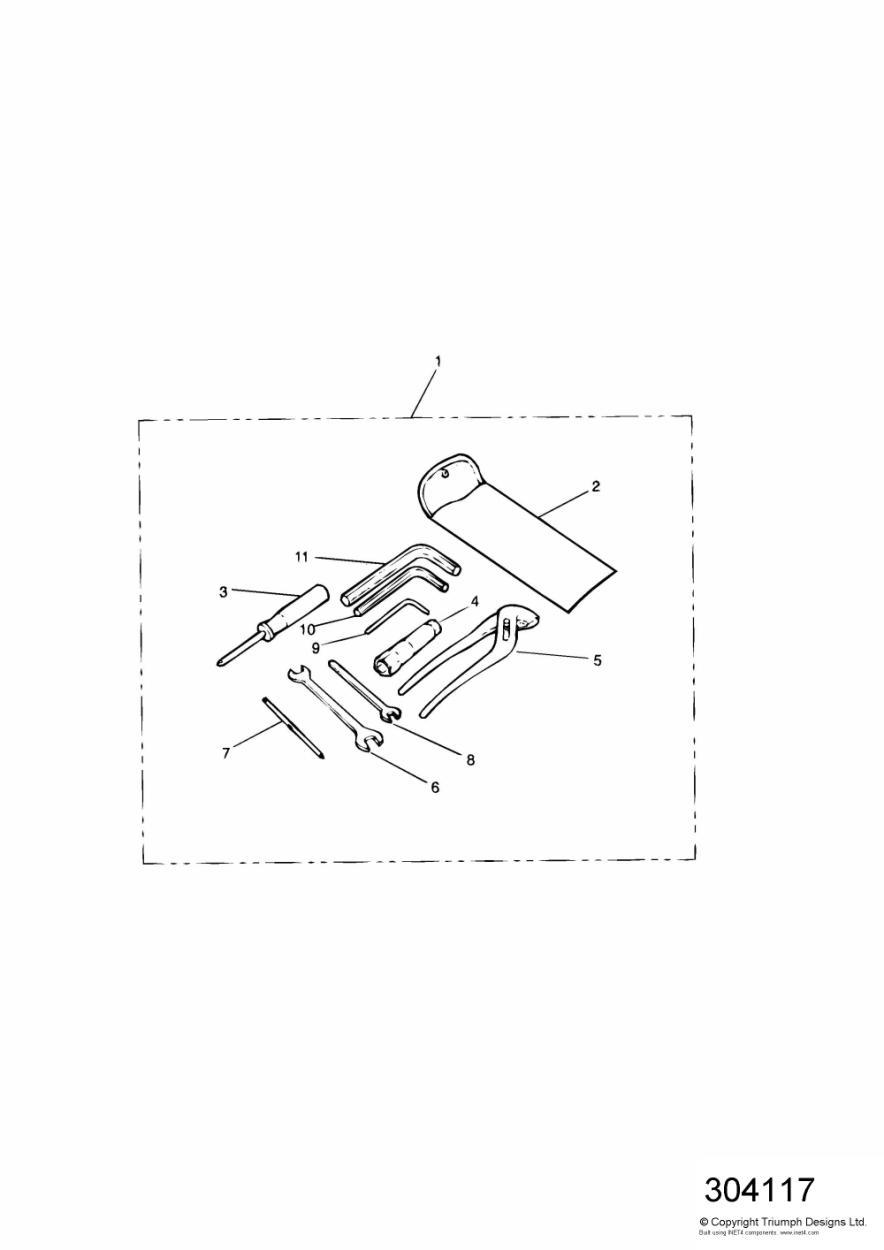

Tool Kit
11 parts
Tool Kit
11 parts

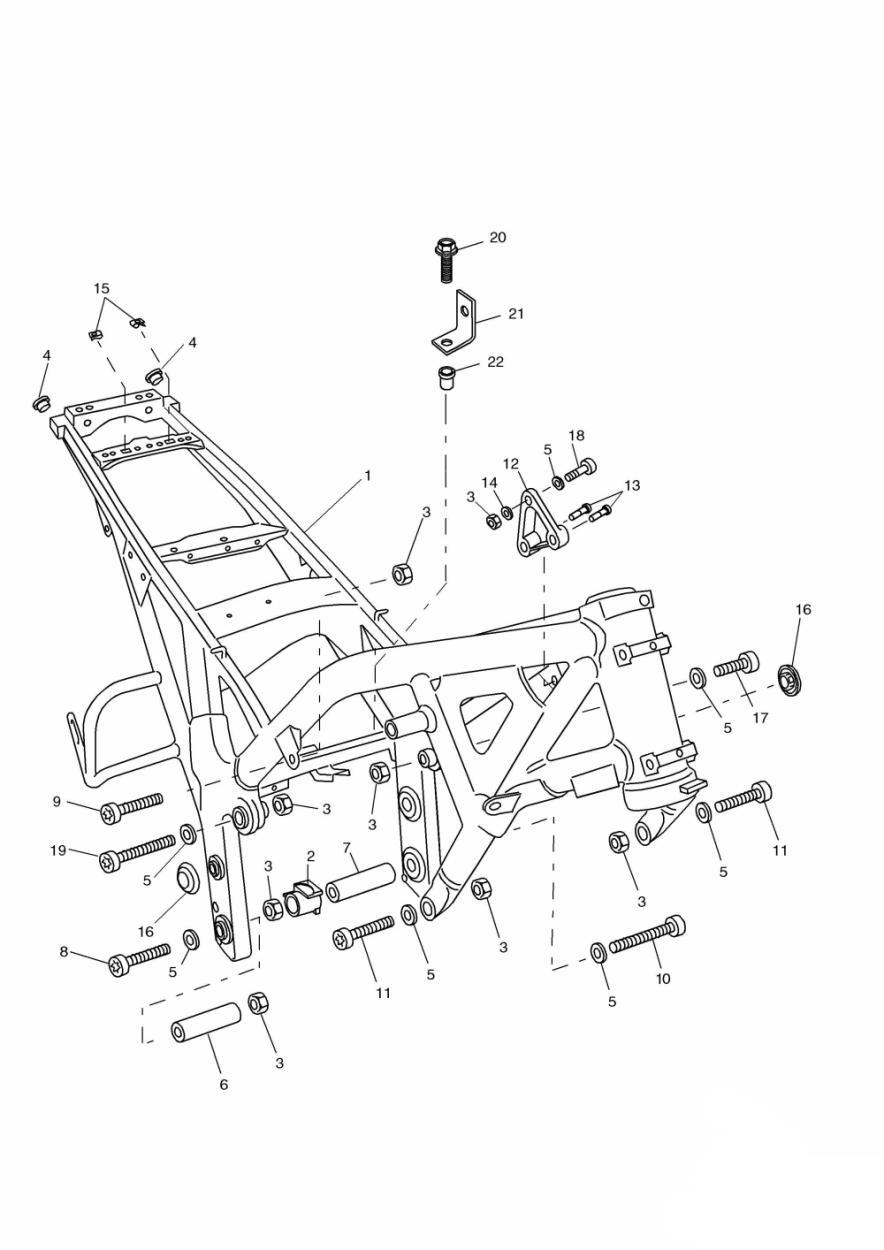

Main Frame & Fittings
18 parts

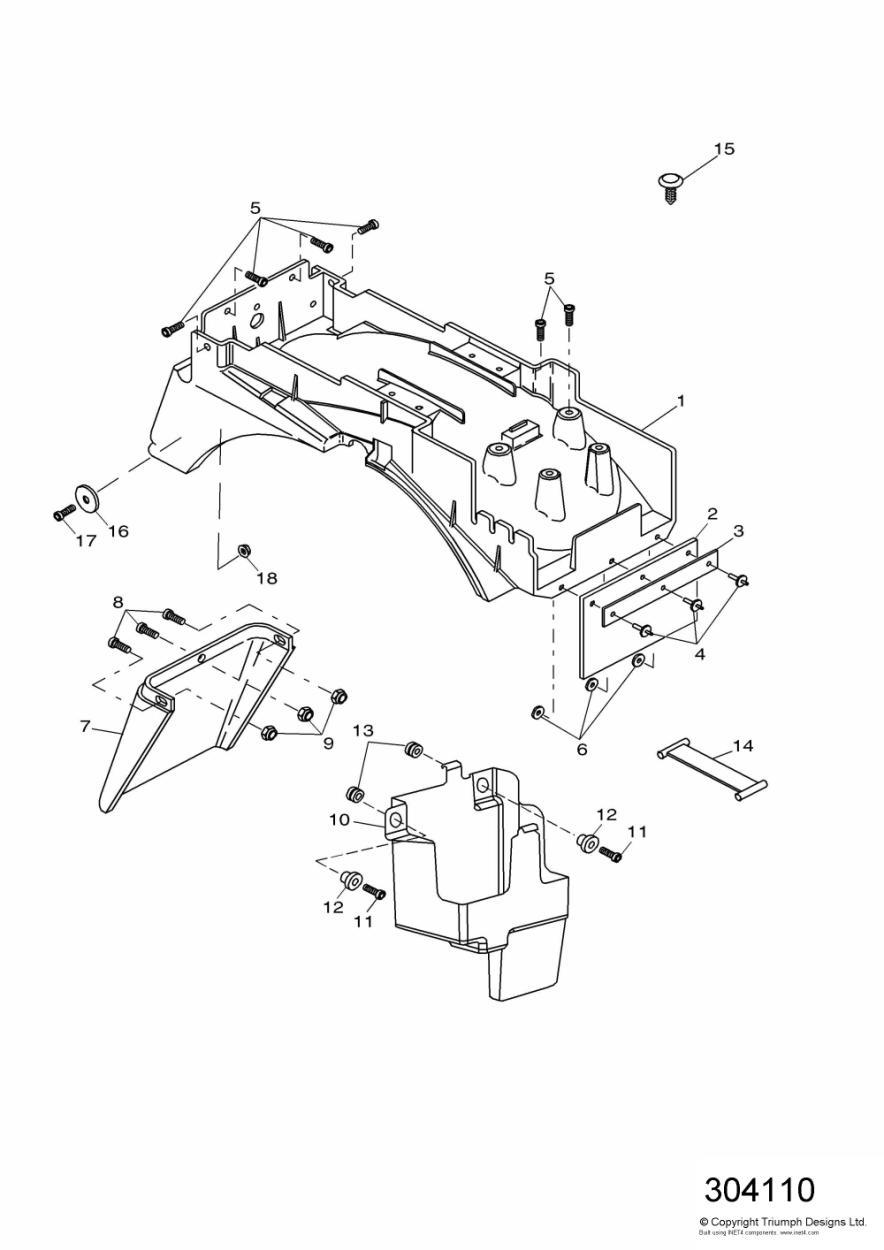

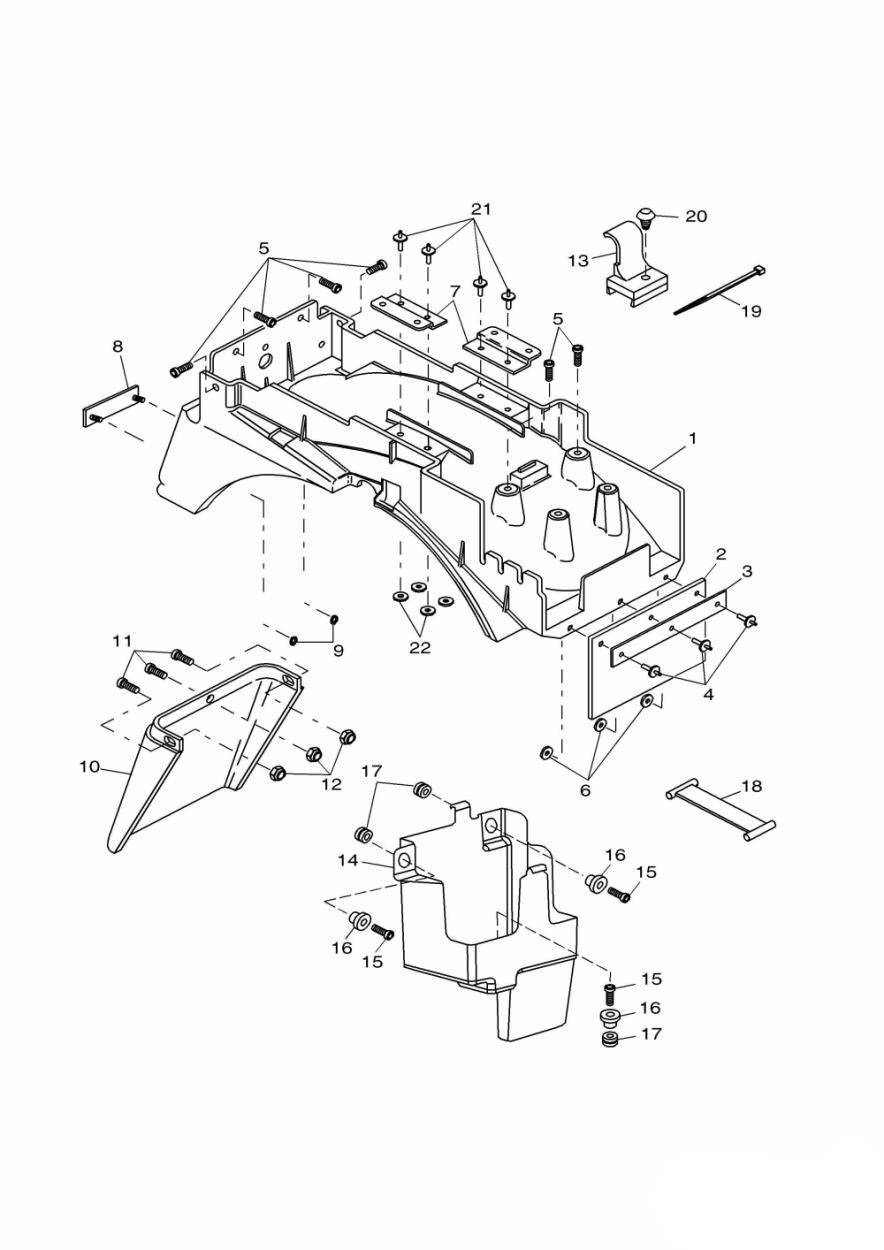

Rear Mudguard & Battery Box
18 parts
Tool Kit
16 parts

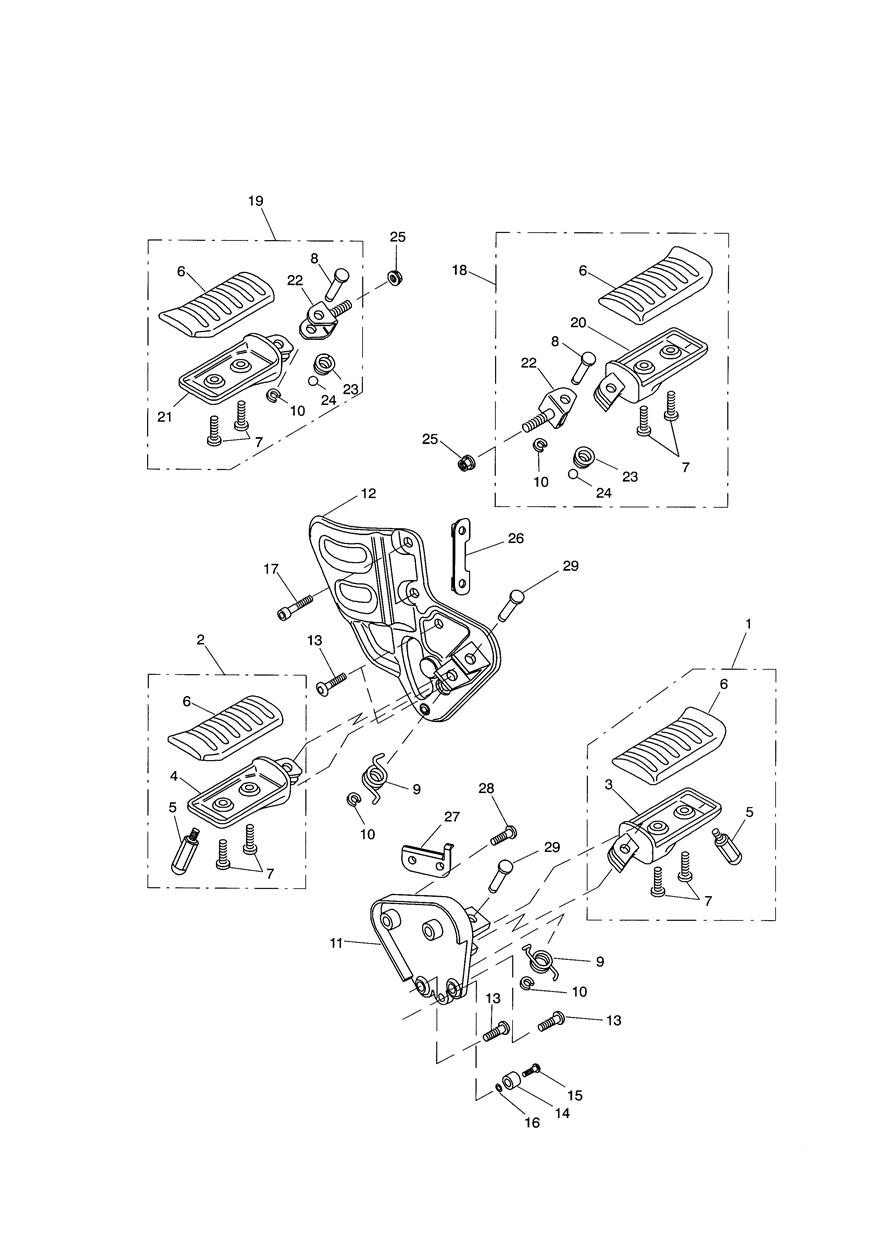

Footrests & Control Plates
29 parts

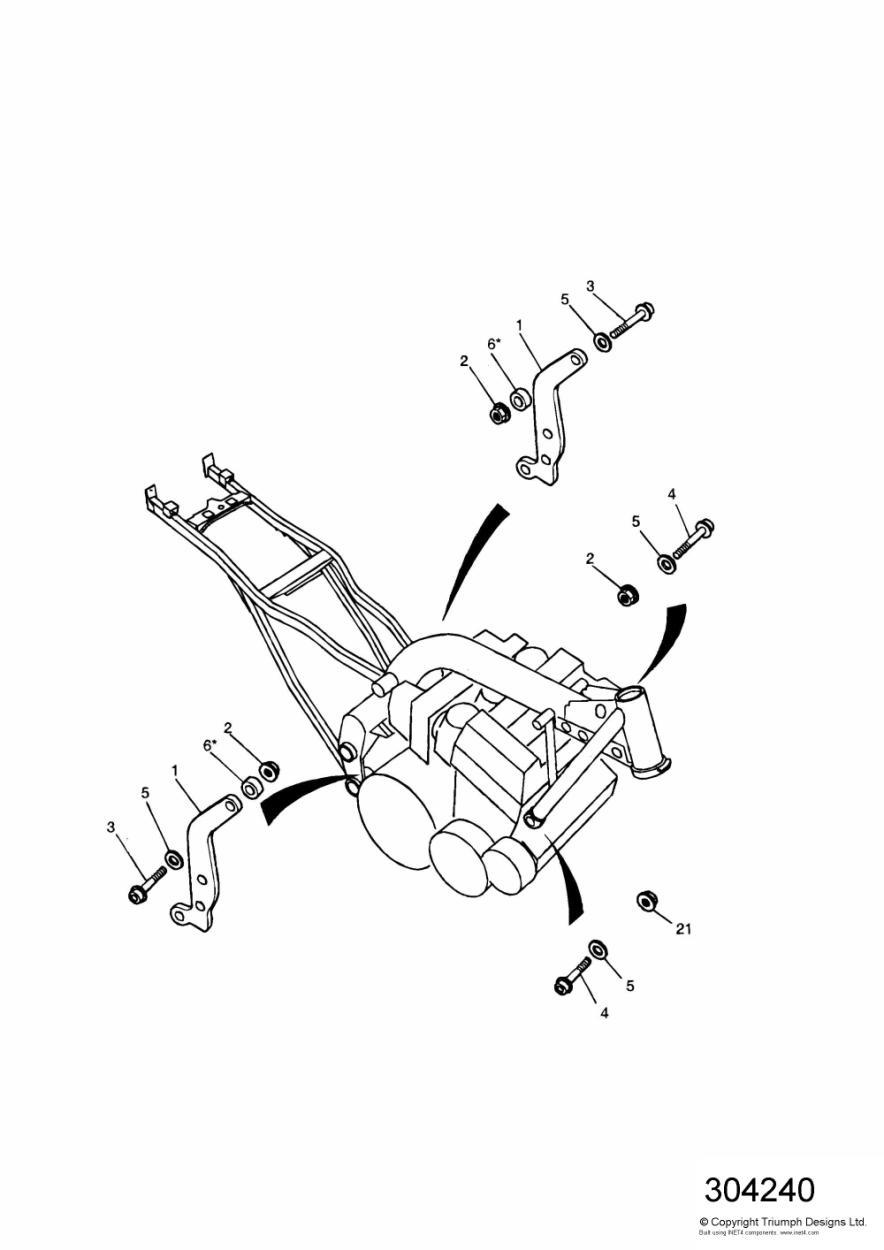

Linkage Carrier/Engine Mounting Bolts
6 parts
Rear Mudguard & Battery Box
22 parts

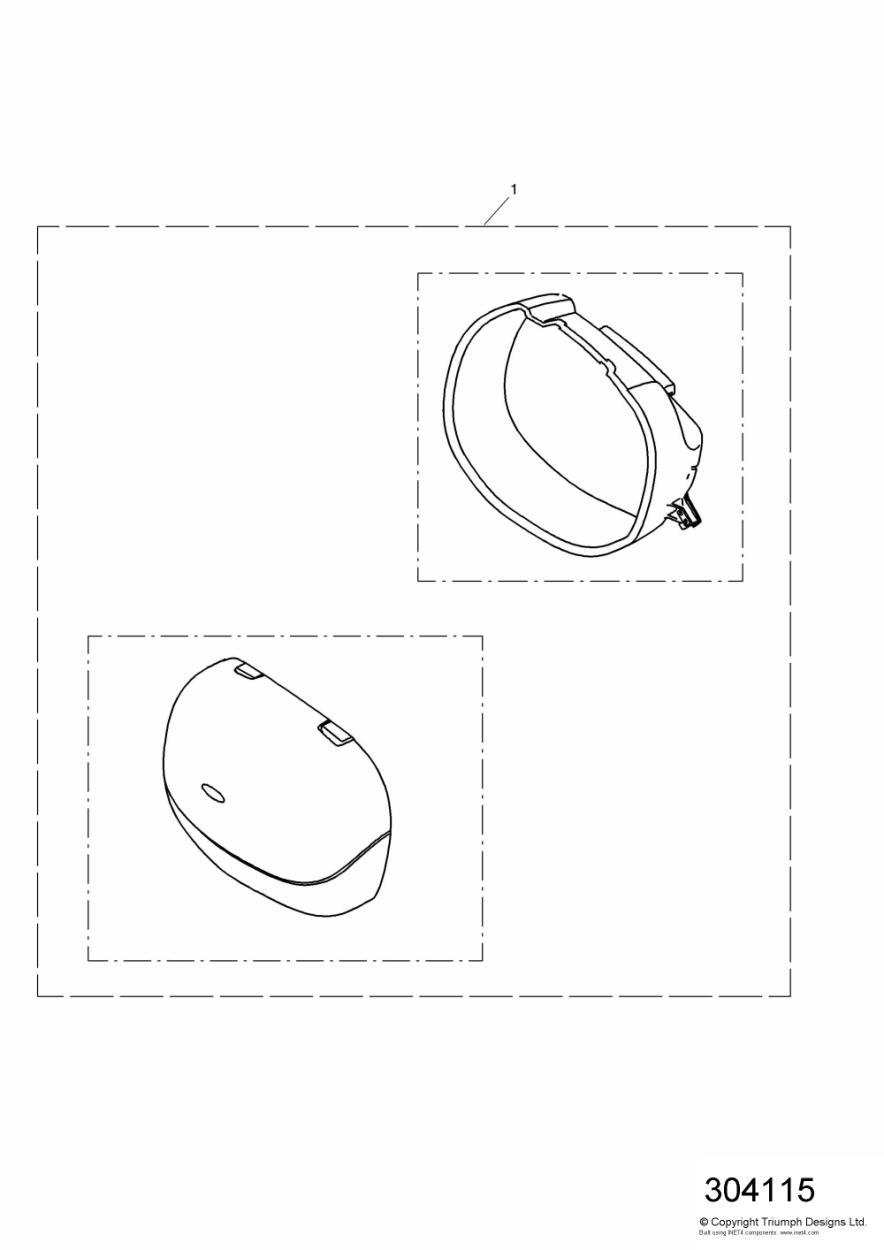

2 Box Pannier System CA,DE,ES,FR,GR,IT,JP,NL,SE,TW,UK & US
3 parts

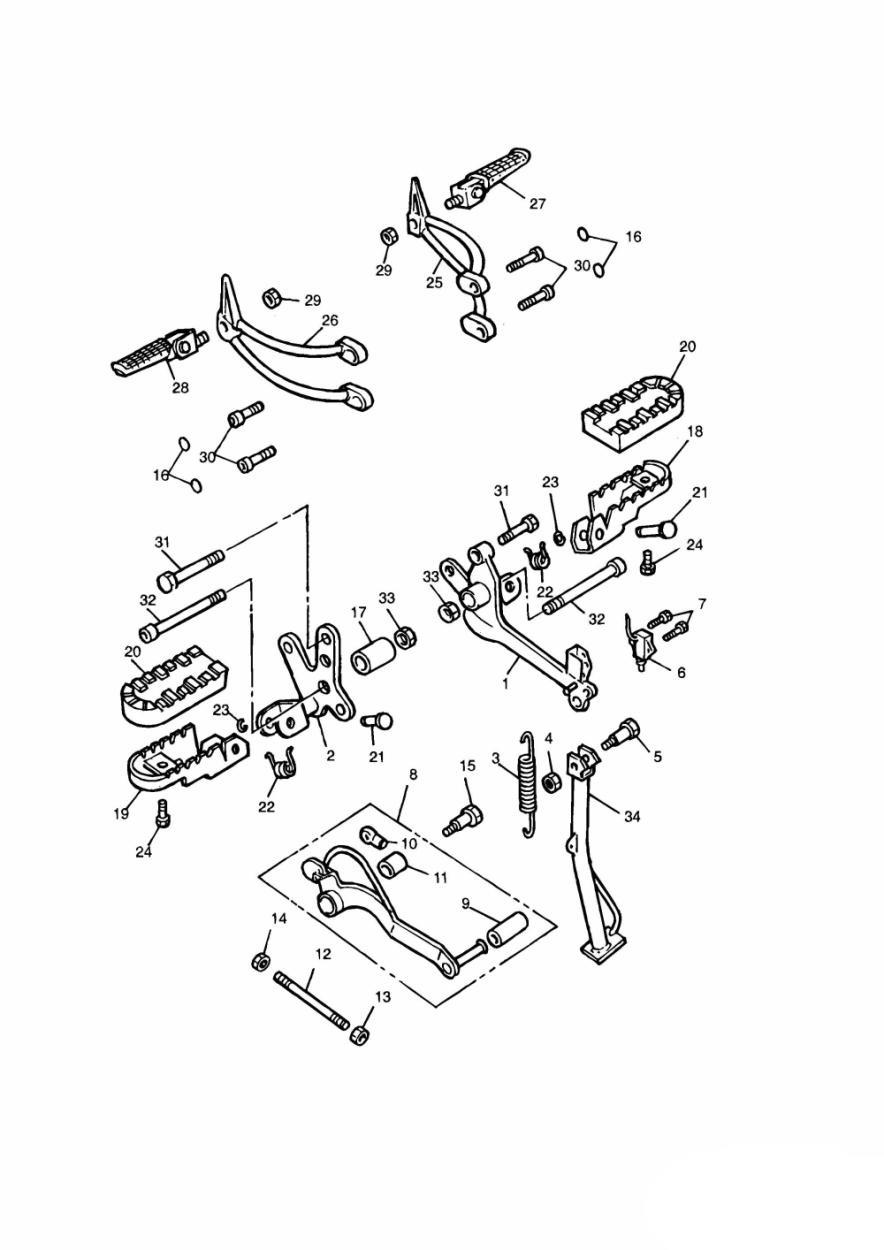

Footrests & Mountings
27 parts
Front Mudguard
14 parts

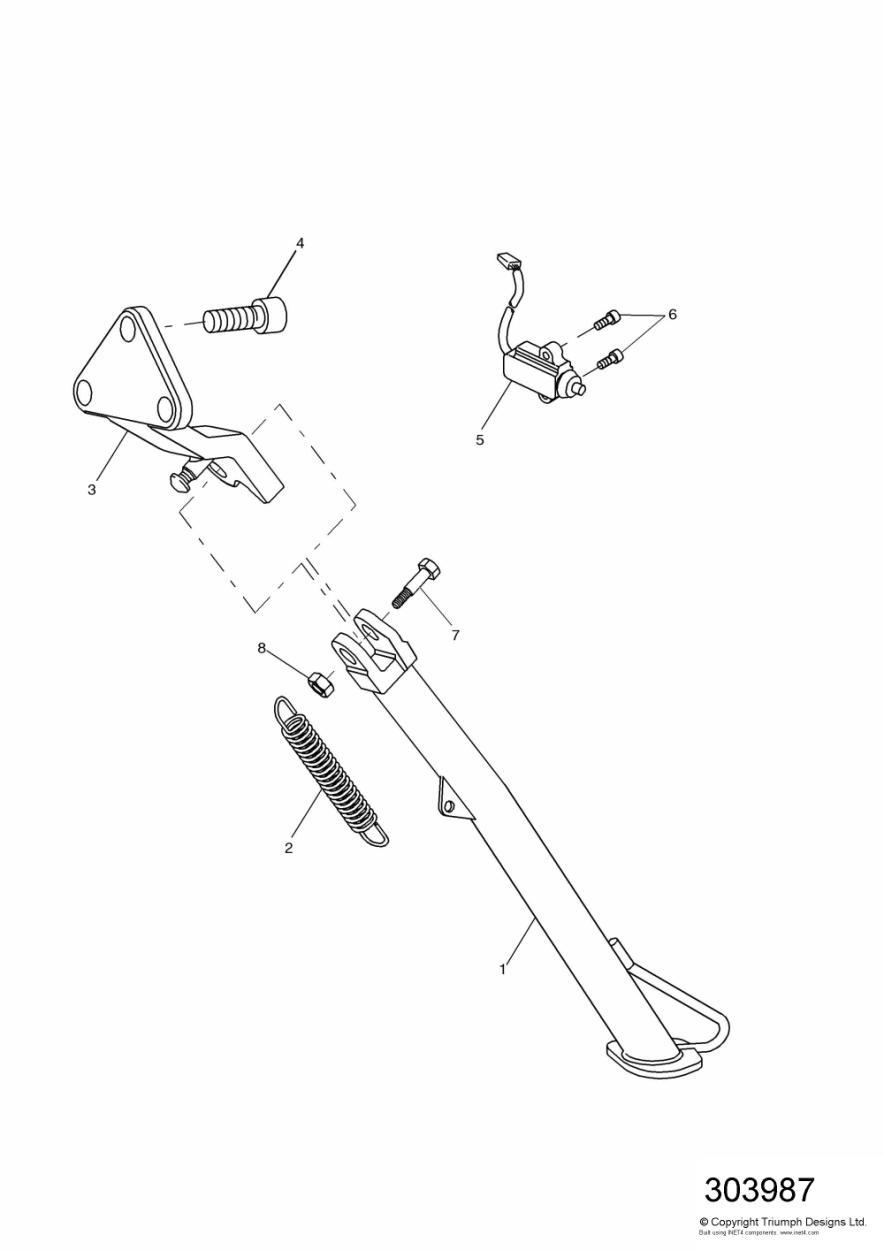

Side Stand
8 parts
