Front Suspension/Steering/Clutch Master Cylinder
Triumph Tiger · 16 diagrams
16 exploded diagrams for the front suspension/steering/clutch master cylinder of the Triumph Tiger, covering the Tiger 1050 & Tiger Sport 1050. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Front Forks & Yokes
42 parts
VIN 198875 and higher
Front Forks and Yokes
40 parts
VIN 71699 to 124105
Handlebars and Switches
15 parts
VIN 124106 to 198874
Clutch Master Cylinder
16 parts
VIN 71698 and lower

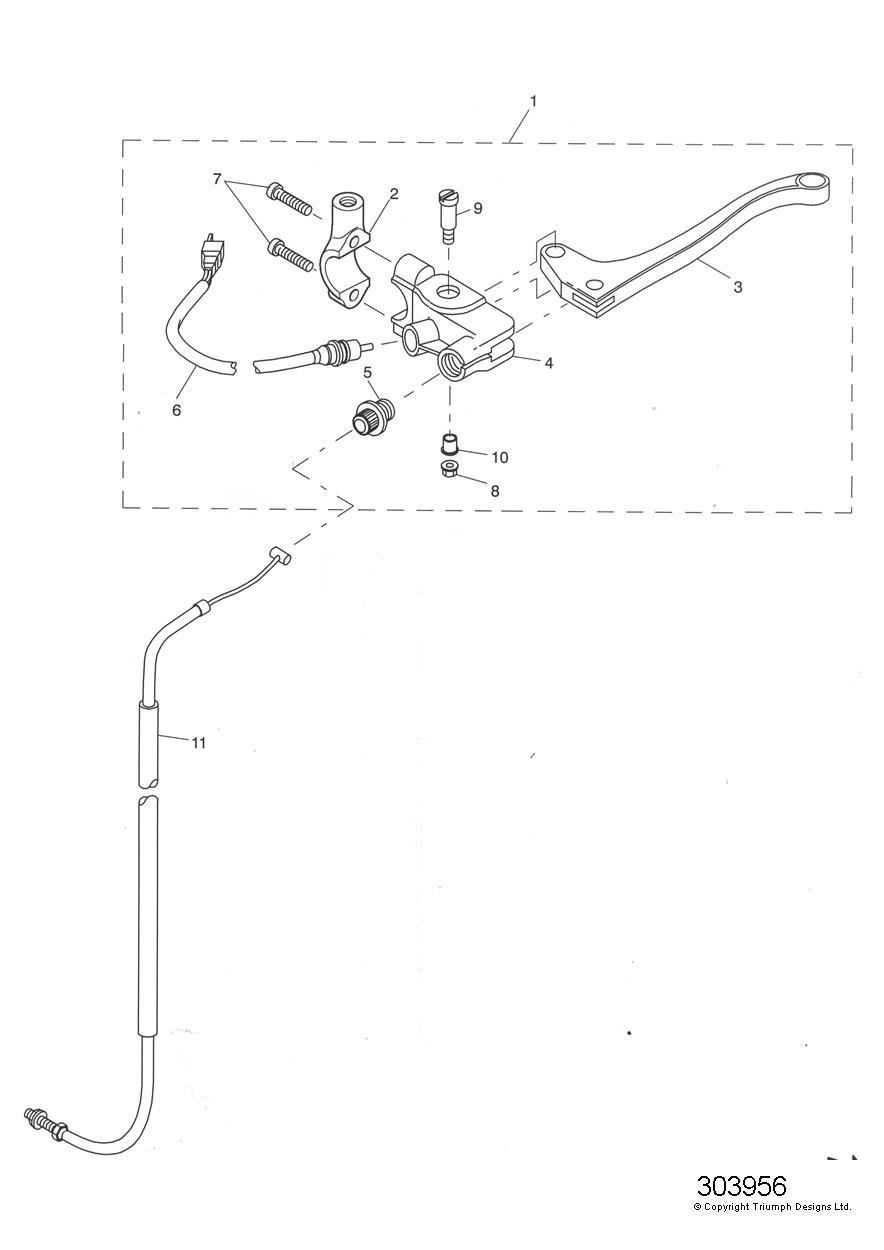

Control Cables
11 parts
VIN 124106 to 198874
Handlebars & Switchgear
15 parts
VIN 198875 and higher
Handlebars & Switchgear
16 parts
VIN 71699 to 124105

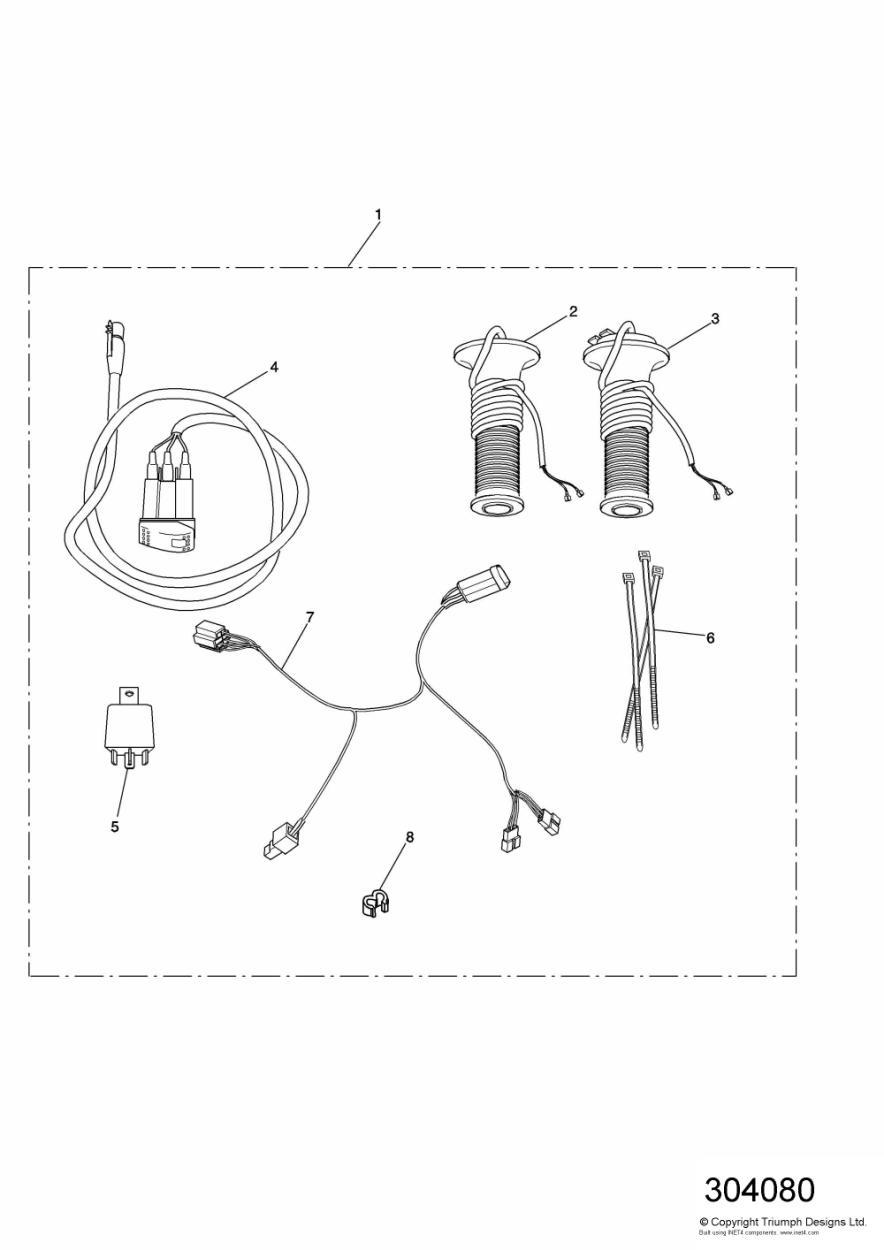

Heated Handlebar Grips DE,ES,IT,JP,NL,SE & UK
8 parts
VIN 186151 and higher
Control Cables
8 parts
VIN 71698 and lower
Control Cables
11 parts
VIN 71699 to 124105

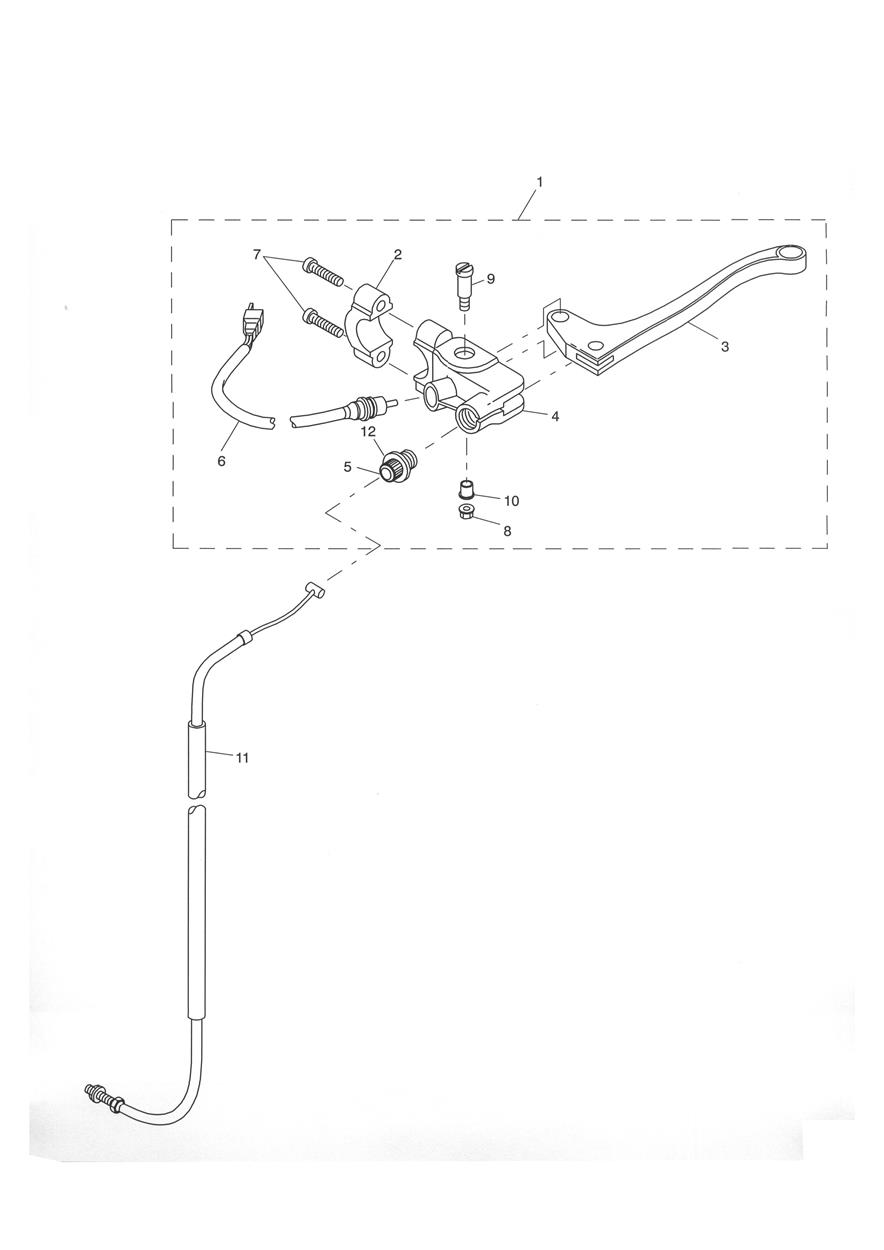

Controls
13 parts
VIN 198875 and higher

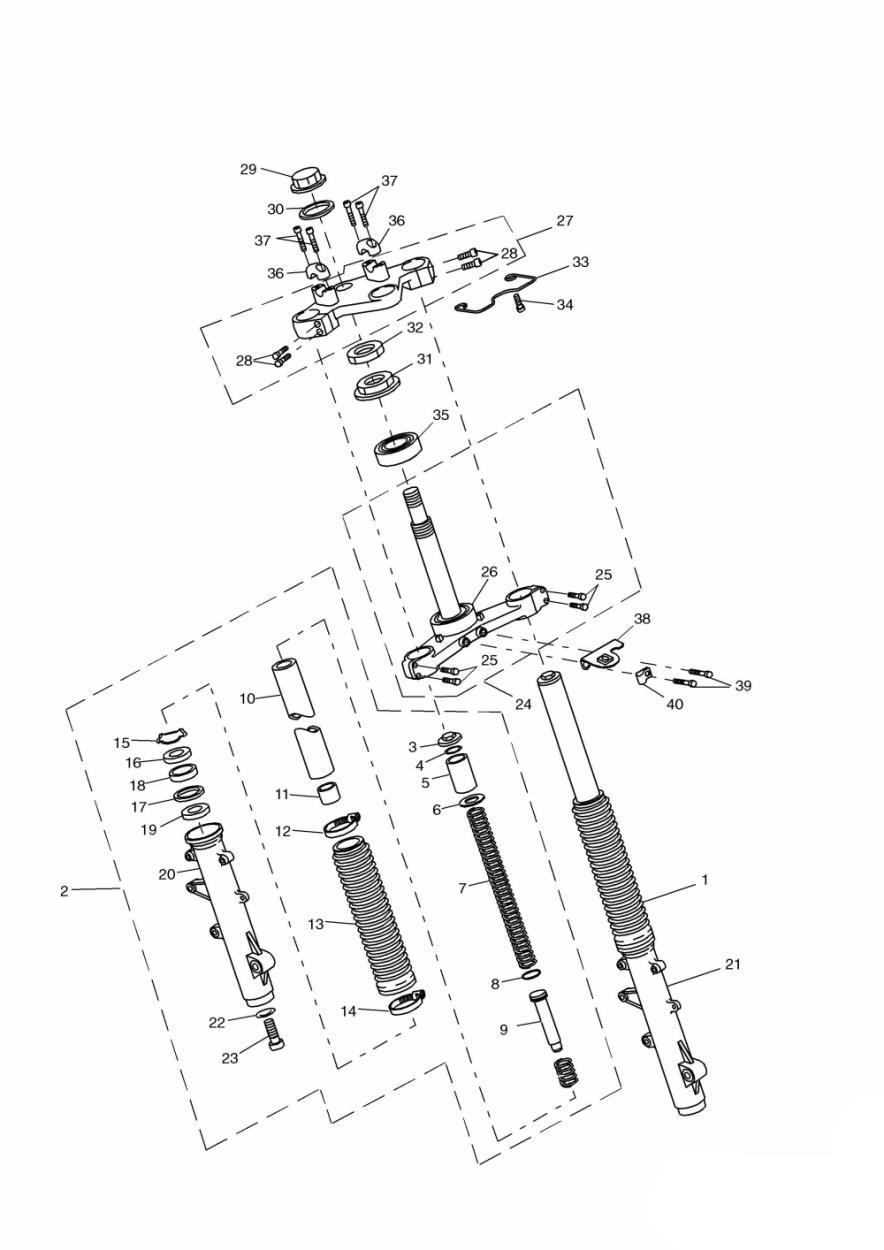

Front Forks and Yokes
42 parts
VIN 124106 to 198874

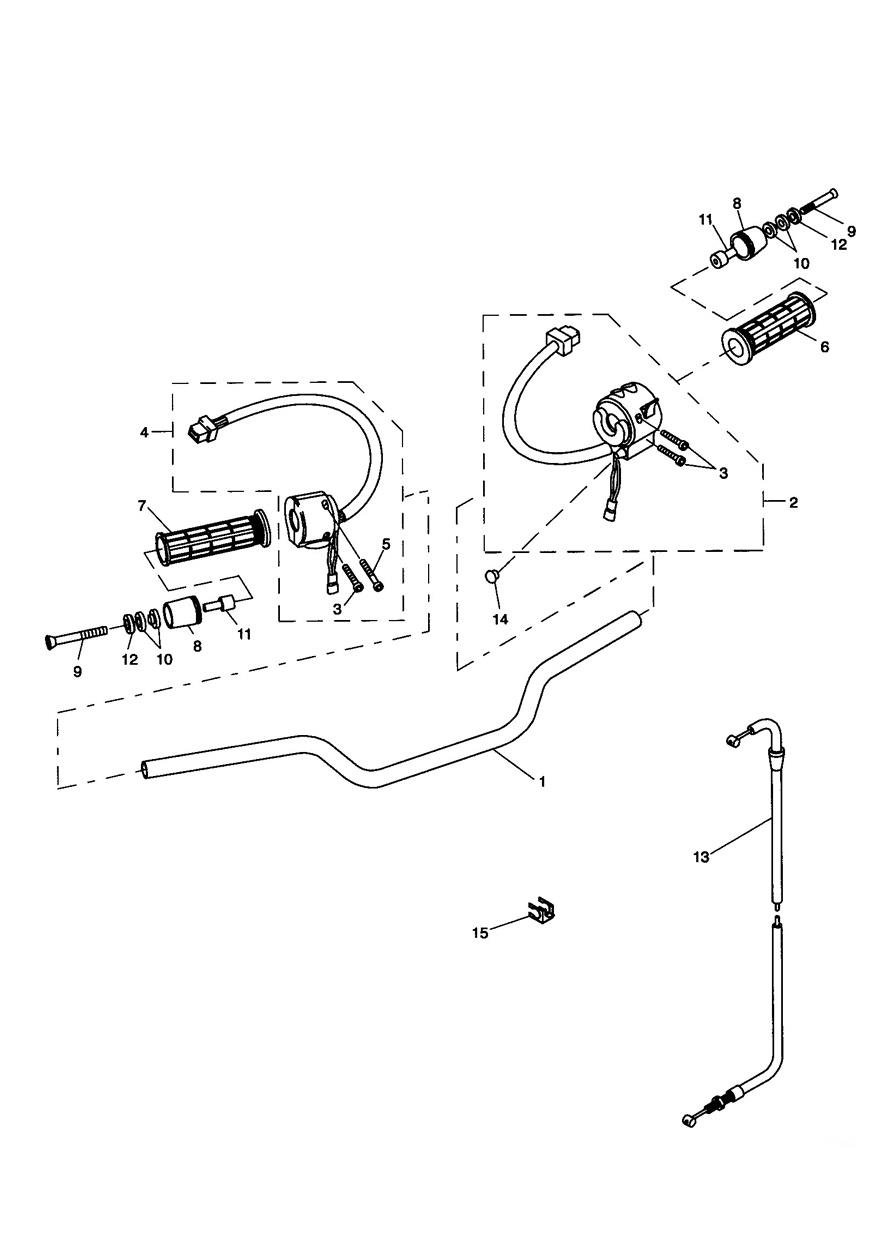

Handlebars and Switches
30 parts
VIN 71698 and lower

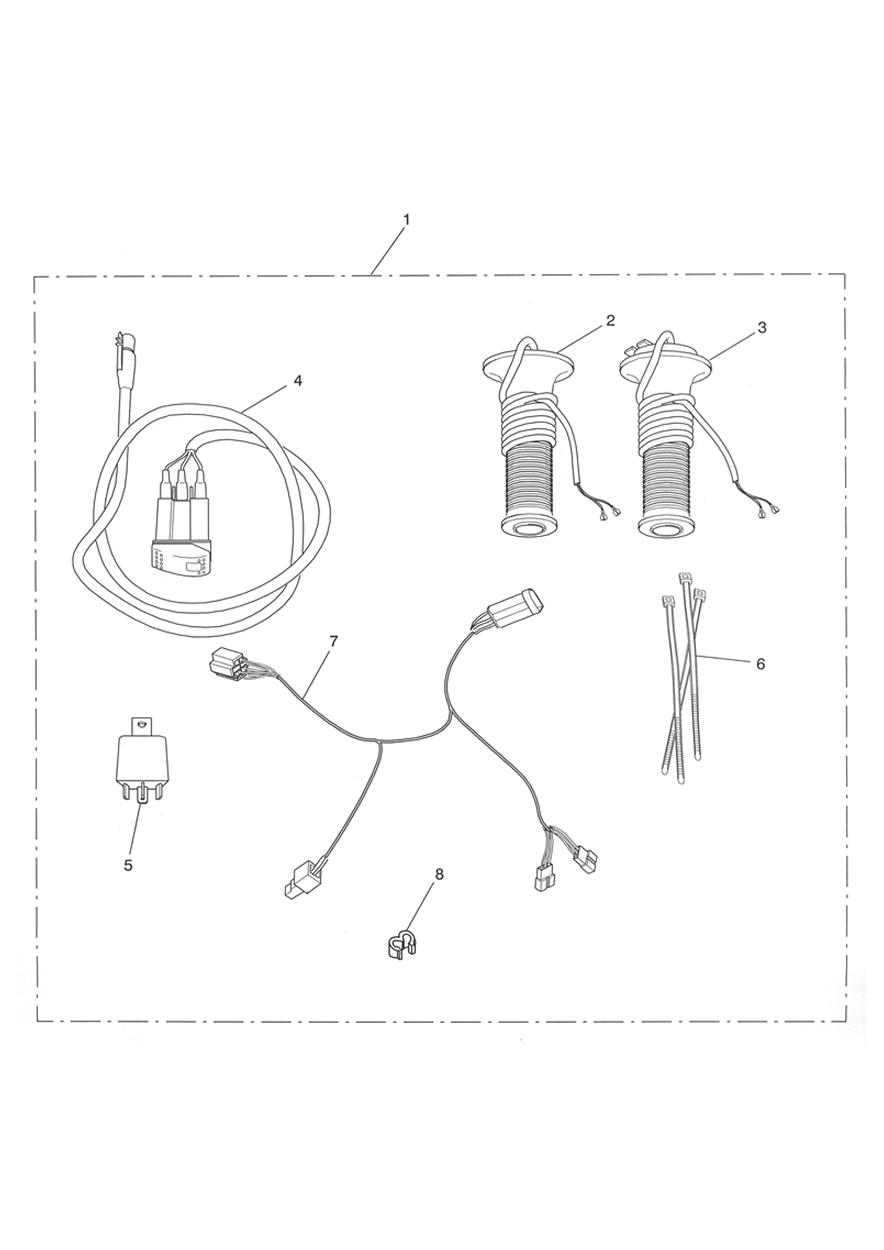

Heated Handlebar Grips DE,ES,GR,IT,JP,NL,SE & UK All Vins ZA
8 parts
VIN 234372 and higher
Front Forks & Yokes
Front Forks and Yokes
36 parts
VIN 43524 and higher
Front Forks and Yokes
37 parts
VIN 43523 and lower
86 parts you can order online
Every part below appears in Triumph’s Front Suspension/Steering/Clutch Master Cylinder diagrams for the Tiger and is priced and orderable online. Open a part to see what it fits and to buy it.

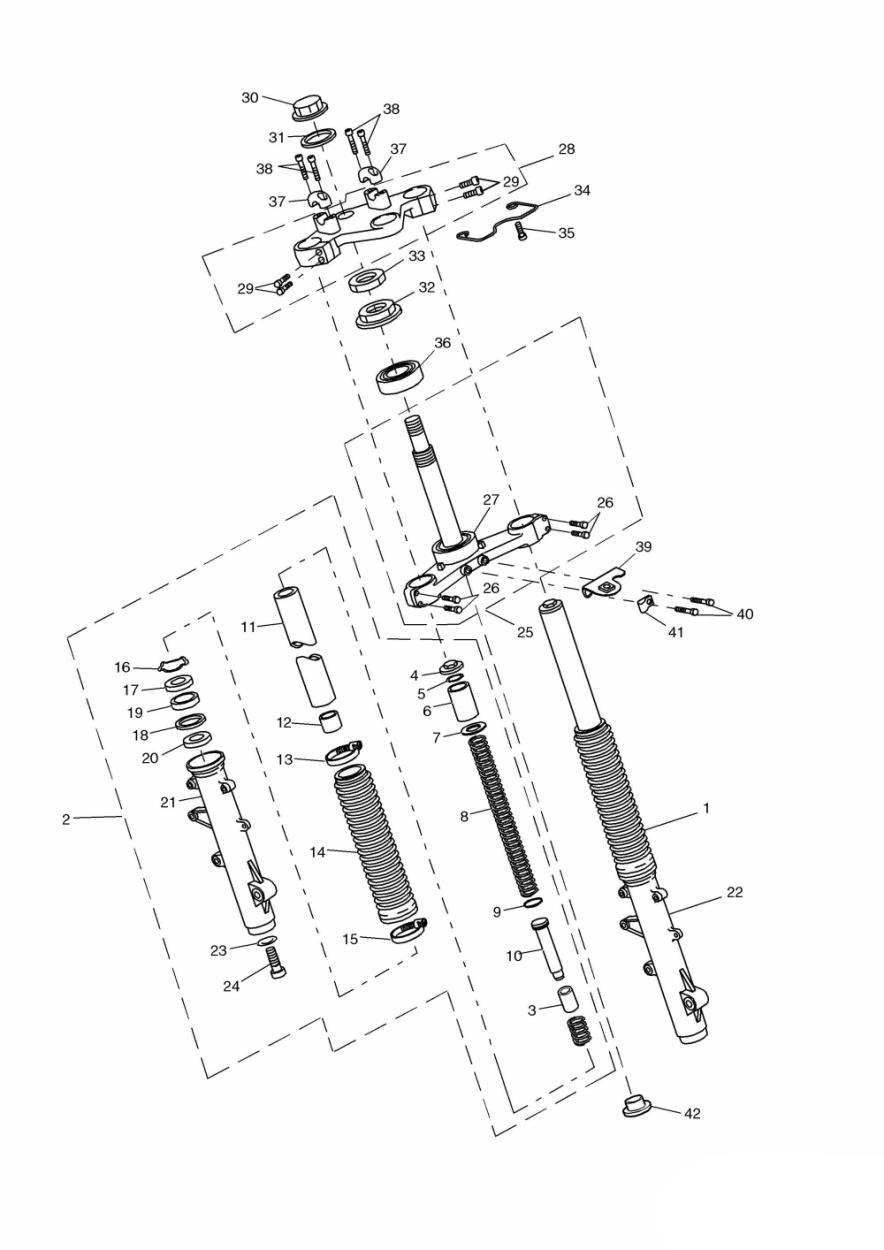

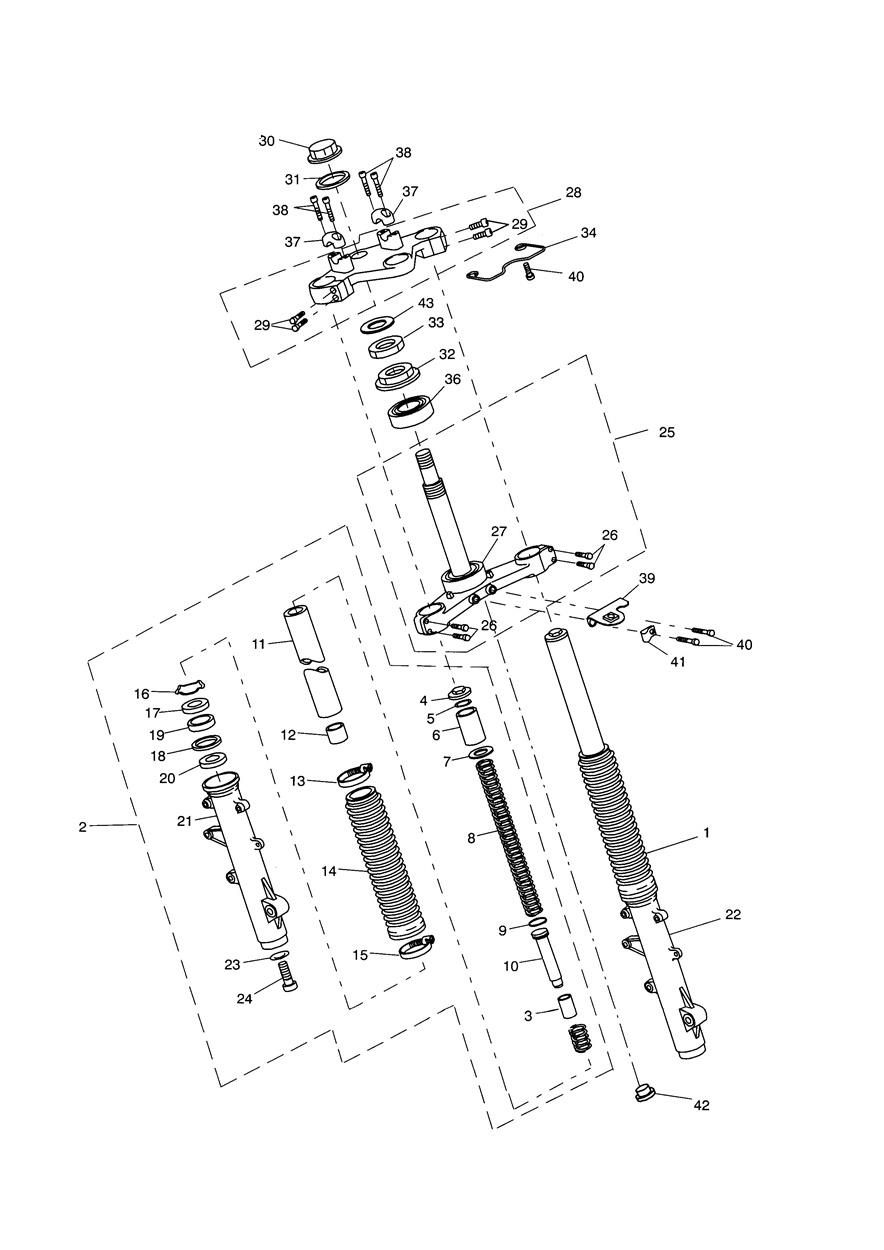

Front Forks & Yokes VIN 198875 and higher
2040160-T0301 Oil lock
$8.35
AvailableT2040169 Cap, Fork
$75.69
AvailableT2040081 O Ring, Fork Seal
Low stock at Triumph
$3.32
Limited availabilityT2045043 Guide spring
$10.49
Available2040171-T0301 Bearing
$6.61
AvailableT2045083 Bearing
$10.84
Available2040079-T0301 Ring snap
$6.33
In stock in BreaT2040284 Dust seal
Low stock at Triumph
$18.54
Limited availabilityT2040283 Oil seal
Low stock at Triumph
$19.78
Limited availabilityT2045085 Slider
Low stock at Triumph
$13.64
Limited availabilityT2040281 Tube rh
$318.60
AvailableT2045045 Washer, Sealing B
$1.99
AvailableT2045046 Capscrew, Oil Lock
$9.85
AvailableT3800031 Bearing, 30x55x17, Taper Roll
$30.14
AvailableT3050132 Screw, Skt Hd, Ss
$3.24
AvailableT2040060 Nut
$22.99
AvailableT2040061 Washer Upper Yoke
$6.61
AvailableT2040259 Cover, Headstock Assy
$22.53
AvailableT2140210 Adjuster Nut, Upper
$3.14
AvailableT3800055 Bearing
Backordered at Triumph · expected Oct 30
$50.10
On backorderT3050175 Kit, 4 x Screw M8 x 1.25 x 30 Slv
$7.83
AvailableT3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv
$1.99
AvailableT3450060 Cap
Low stock at Triumph
$1.99
Limited availabilityFront Forks and Yokes VIN 71699 to 124105

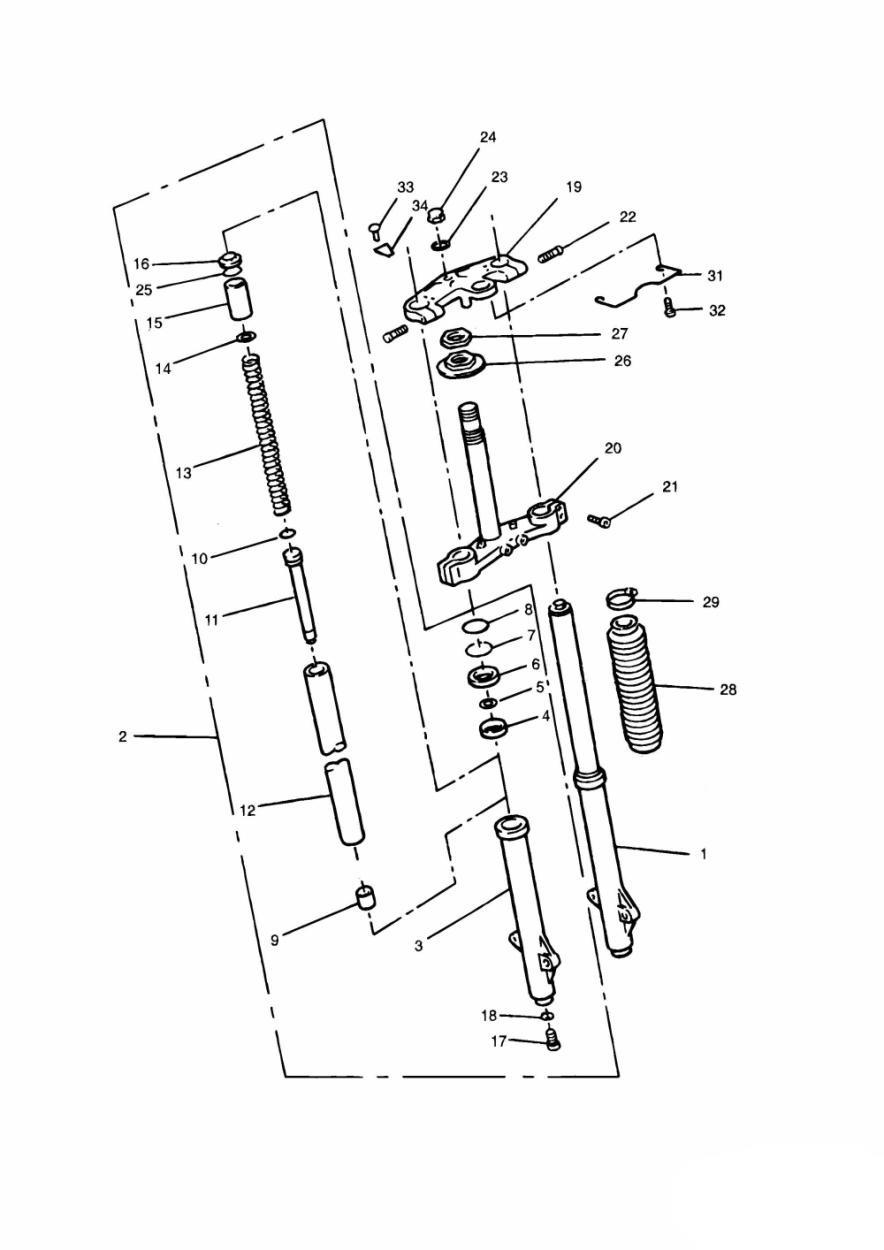

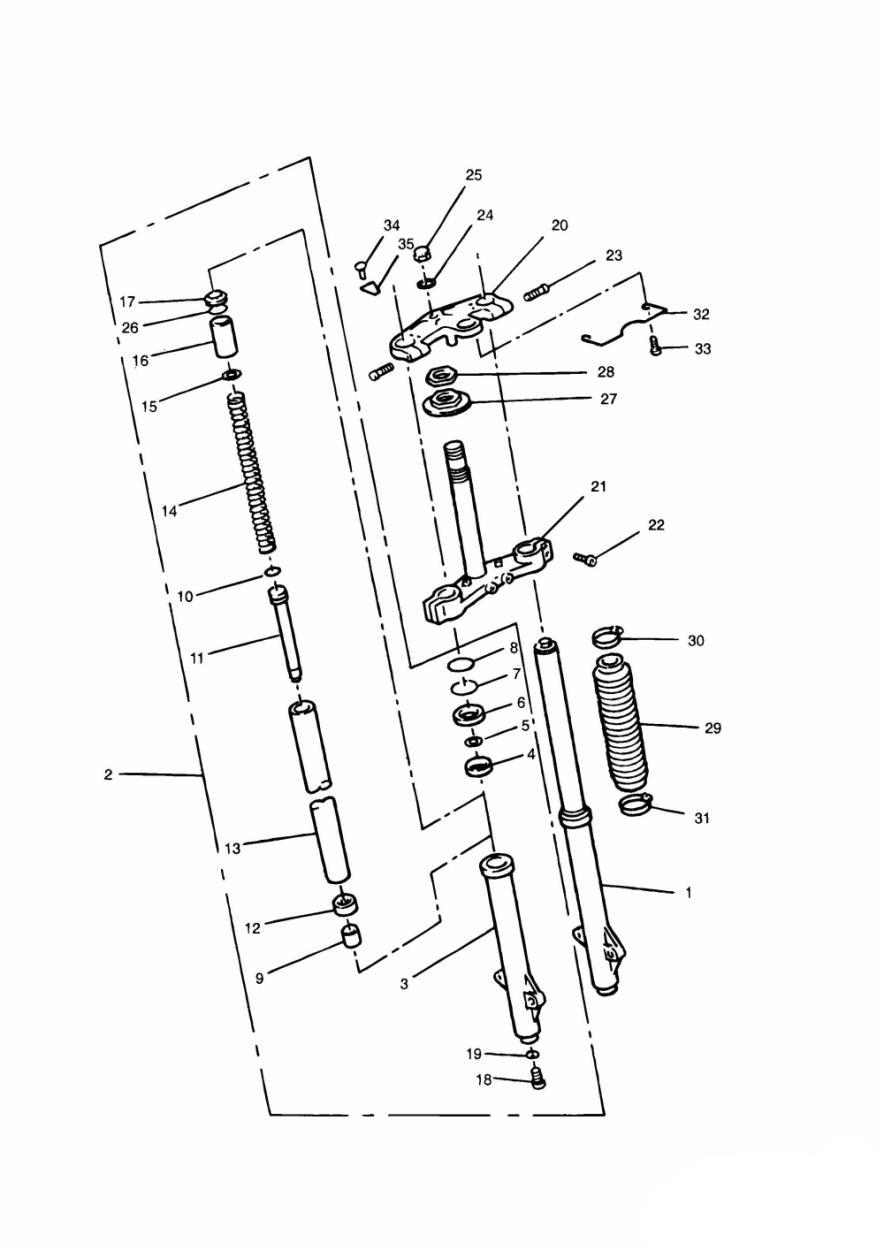

Front Forks and Yokes VIN 43524 and higher
T2045862 Guide, Bush
$11.62
AvailableT2046246 Seal, Spacer
$5.54
AvailableT2042894 Oil seal
$19.78
AvailableT2046248 Stop Ring
Low stock at Triumph
$6.33
Limited availabilityT2042906 Oil lock
$9.52
AvailableT2042888 Fork Leg Piston Ring
$9.43
AvailableT2042902 Guide spring
$11.76
AvailableT2042904 Cap
$75.69
AvailableT2042908 Capscrew
$10.10
AvailableT2042907 Sealing washer
$1.99
AvailableT3050073 Capscrew
Low stock at Triumph
$5.45
Limited availabilityT2042905 O Ring, Fork Seal
Low stock at Triumph
$3.14
Limited availabilityT3300090 Rivet
$1.99
AvailableT3900405 Badge
$20.60

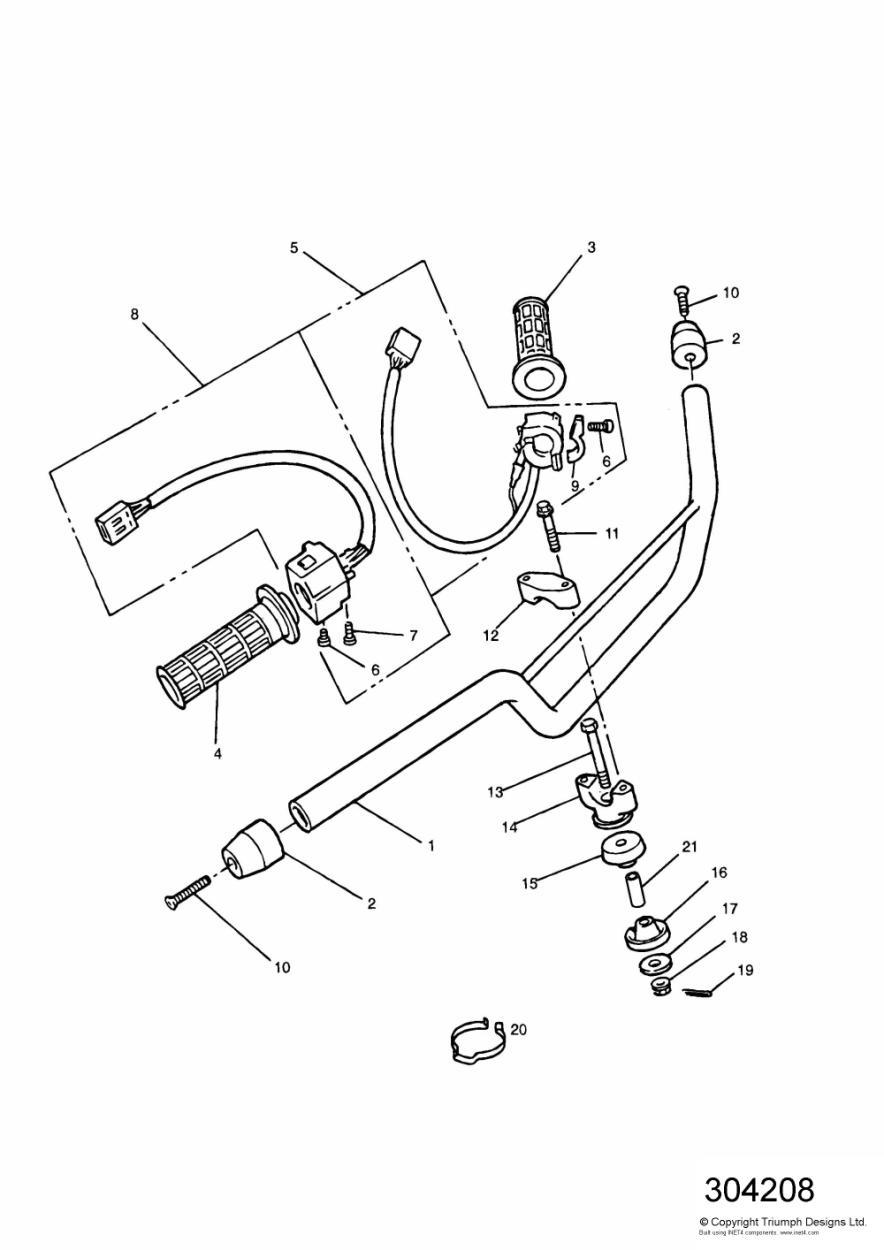

AvailableHandlebars and Switches VIN 124106 to 198874
T2040732 Handlebars
$183.07
AvailableT2040222 Switch assembly
$225.30
AvailableT2040131 Switch assembly
$176.03
AvailableT2040740 Handlebar Grip, LH
$16.81
AvailableT2040750 Grip
$16.81
AvailableT2040965 Weight
$34.51
AvailableT3330933 Screw, CSK, M6 x 60, Slv
$1.99
AvailableT2040968 Sleeve
$5.19
AvailableT2040969 Finisher, Handlebar
$16.38
AvailableT3450017 Plug
$1.99
AvailableT1240941 Clip
$14.26

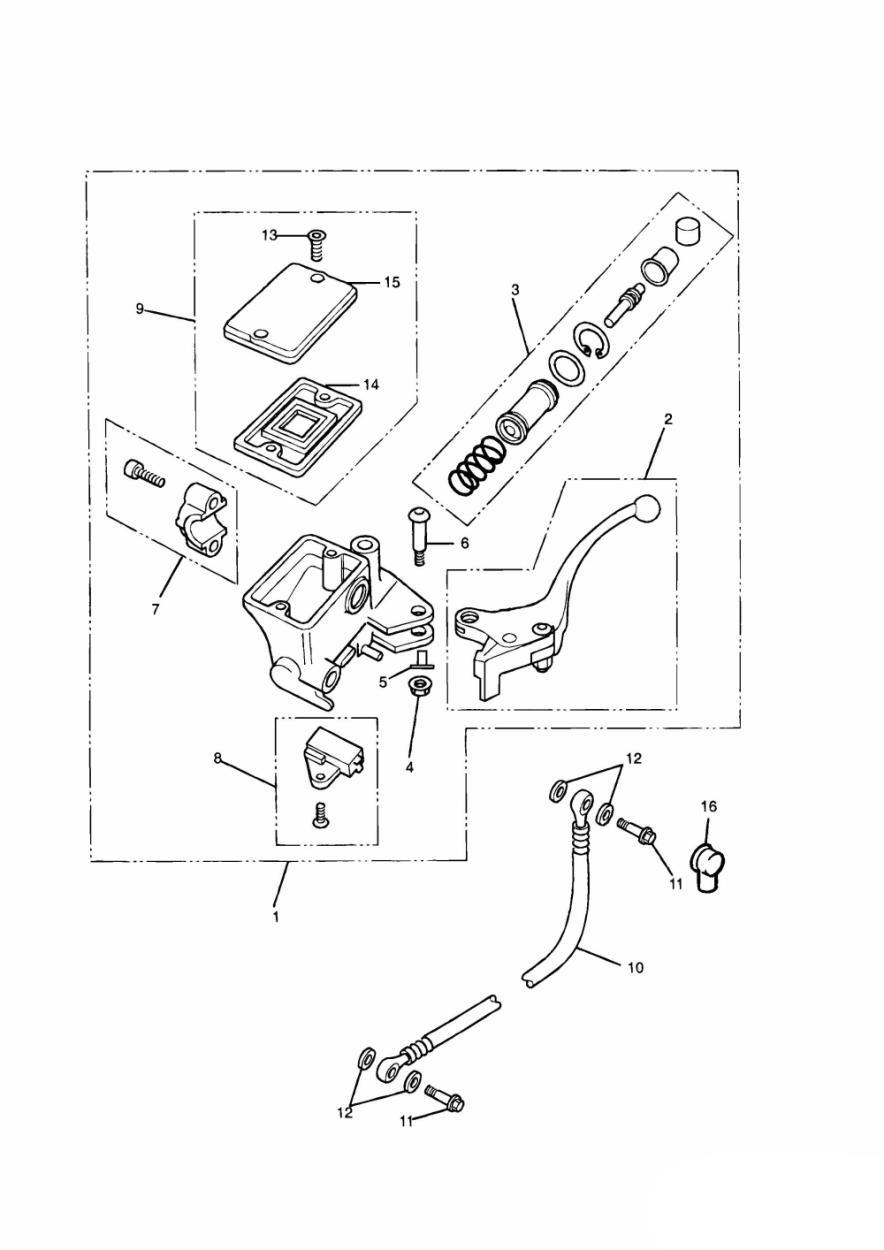

AvailableClutch Master Cylinder VIN 71698 and lower
2040352-T0301 Lever assembly
$56.78
Available2040040-T0301 Piston set
$70.41
AvailableT3350012 Locknut, Flgd, M6, Black, Zinc
$1.99
AvailableT3010062 Flanged Sleeve, M6 x 7.8 x 2.85
$6.61
Available2043550-T0301 Bolt
$9.43
Available2040038-T0301 Switch
$25.93
AvailableT2020152 Top Set, Front M/Cyl
$54.55
AvailableT2043543 Hose clutch
$168.96
AvailableT3250125 Bolt, Banjo, M10 x 21
$6.50
AvailableT3550229 Washer, 15.2 x 10 x 1, Plated
$1.99
In stock in BreaT2020166 Screw, Reservoir
$1.99
AvailableT2020164 Diaphragm, Reservoir
$10.57
AvailableT2020074 Boot cover
$1.99
AvailableControl Cables VIN 124106 to 198874
T2025450 Clamp, Clutch Lever Bracket
$29.57
AvailableT2046520 Adjuster Screw
$7.90
AvailableT2505005 Switch assembly
$19.56
AvailableT2046522 Bolt, Handlebar Clamp
$1.99
AvailableT2040462 Clutch cable
Backordered at Triumph · expected Feb 12
$48.18
On backorderFront Forks and Yokes VIN 43523 and lower
2043052-T0301 Oil seal
$14.78
Available2043054-T0301 Dust seal
Backordered at Triumph · expected Nov 6
$17.42
On backorder2043400-T0301 Boot protective
$50.18

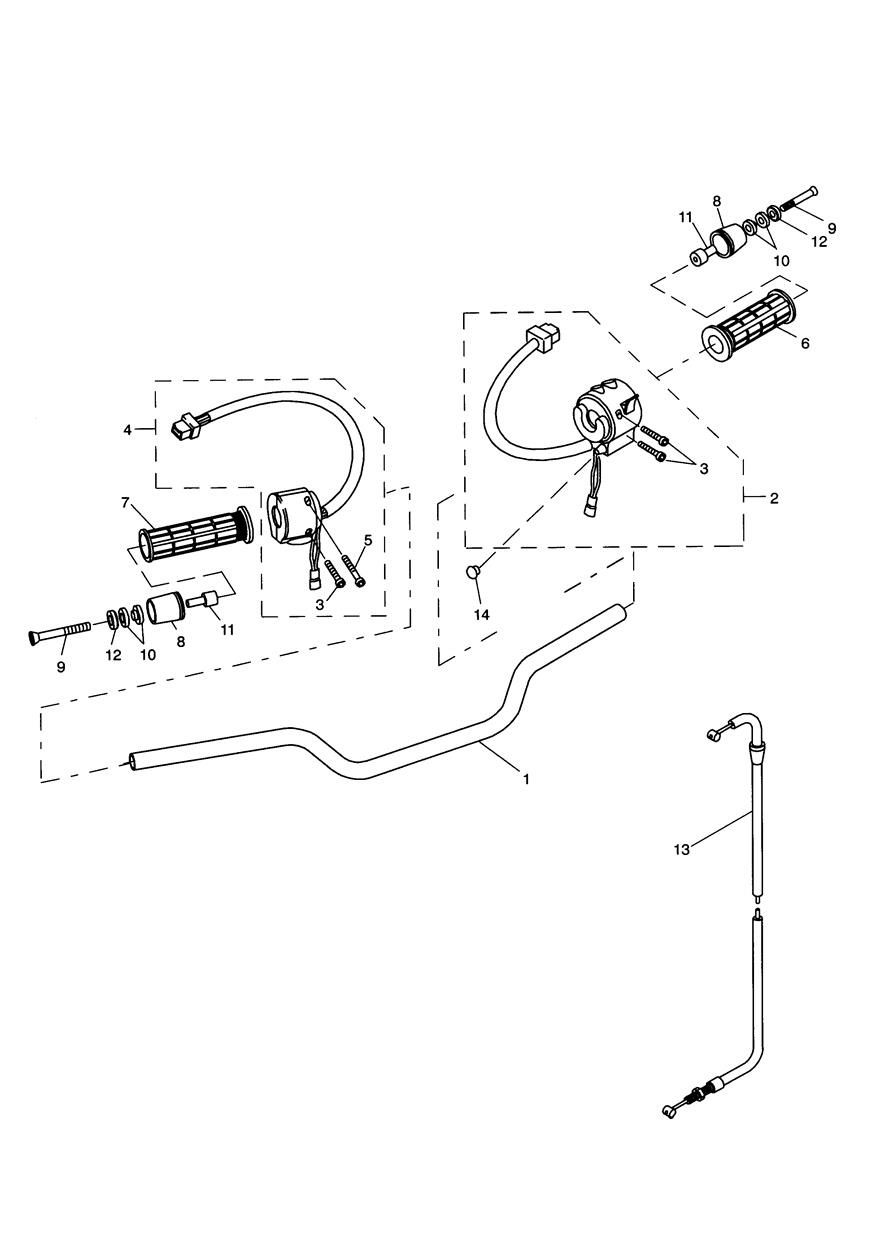

AvailableHandlebars & Switchgear VIN 198875 and higher
Handlebars & Switchgear VIN 71699 to 124105
Heated Handlebar Grips DE,ES,IT,JP,NL,SE & UK VIN 186151 and higher
T2500155 Relay, 12V/30A
$25.84
AvailableT3700015 Cable Tie, 185.7 Long
$1.99
AvailableT2501493 Subharness
$36.05

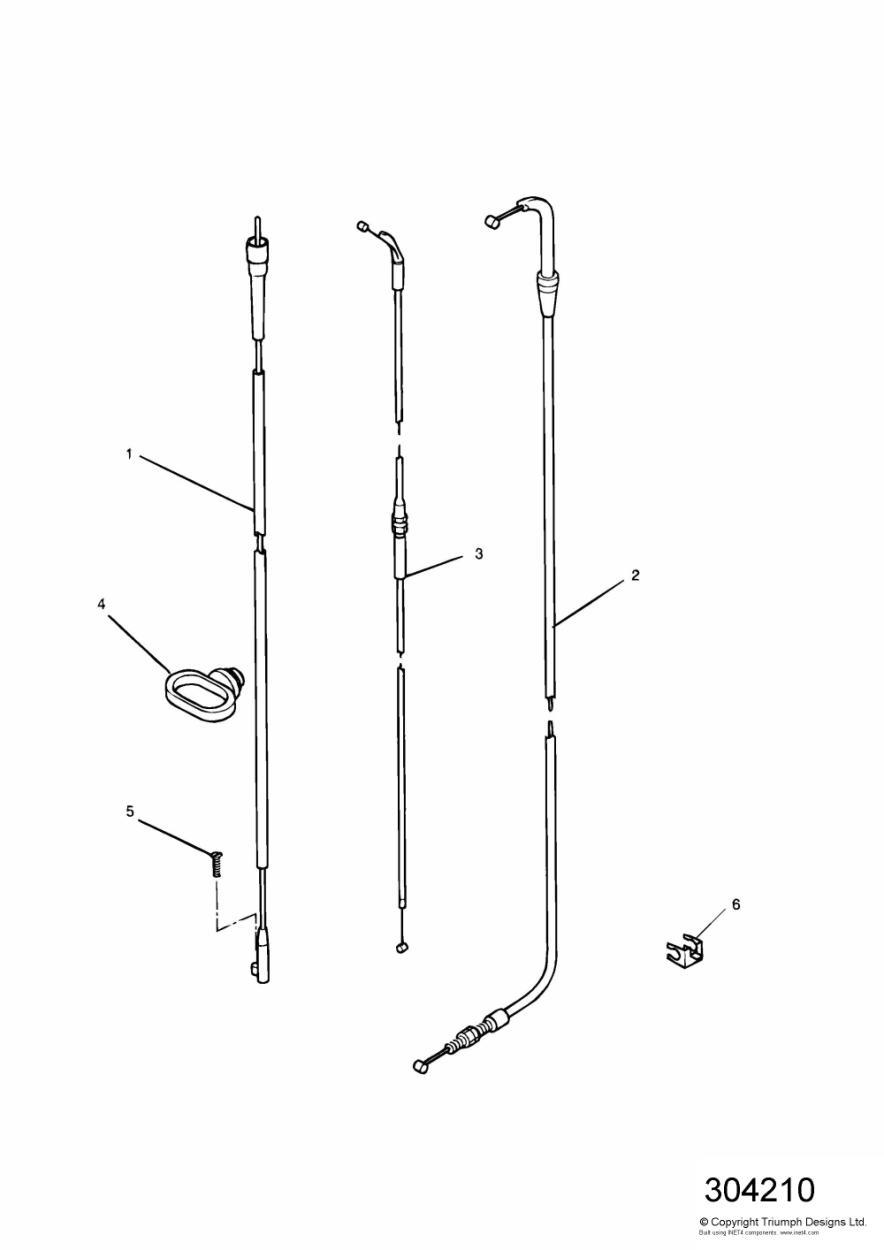

AvailableControl Cables VIN 71698 and lower
T2043512 Cable throttle
$50.69
AvailableT2040454 Cable throttle
$46.55
AvailableT3331017 Screw. Phil CSK. M5 x 20, Slv
$3.94
AvailableT1240945 Clip
$4.56
Available
