Braking System
Triumph Tracker 400 · 5 diagrams
5 exploded diagrams for the braking system of the Triumph Tracker 400, covering the Tracker 400. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

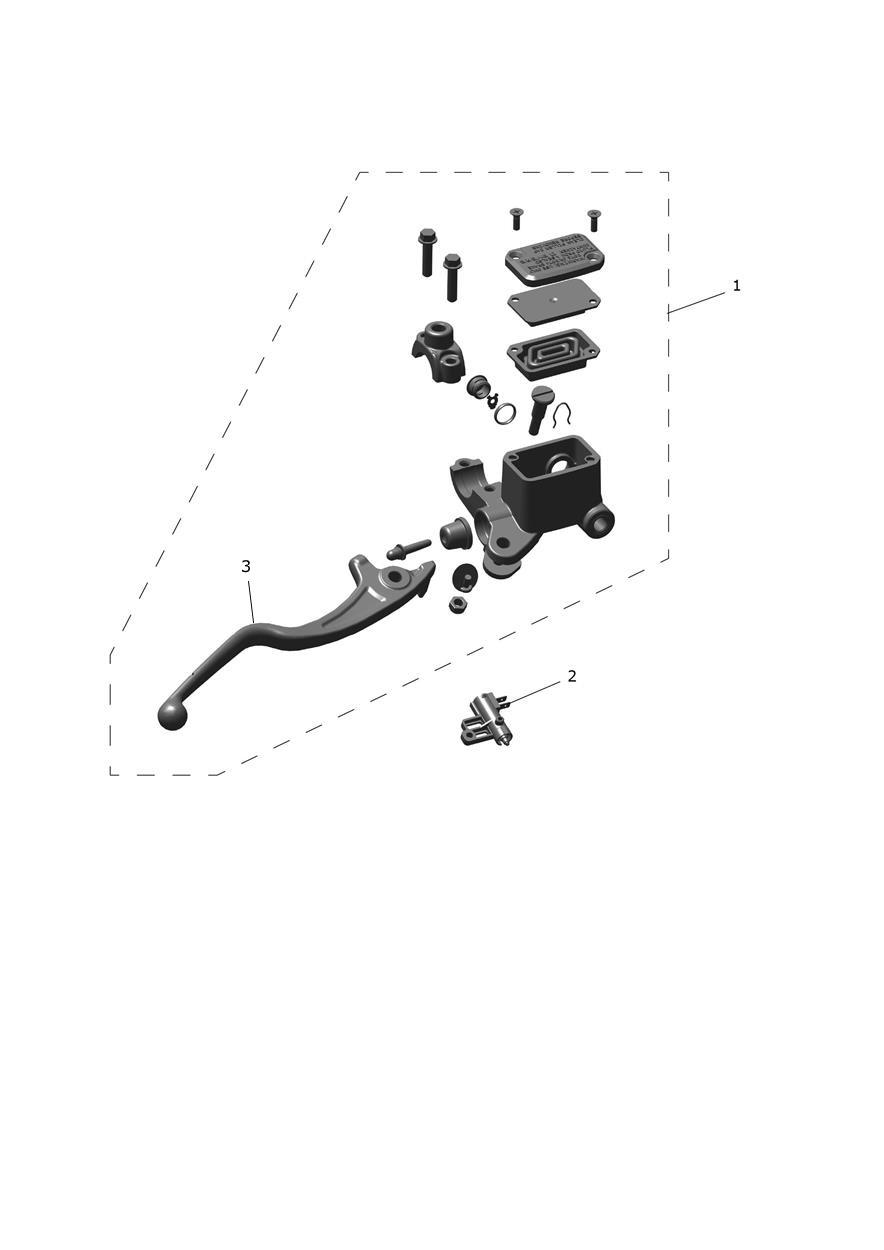

Front Master Cylinder
4 parts

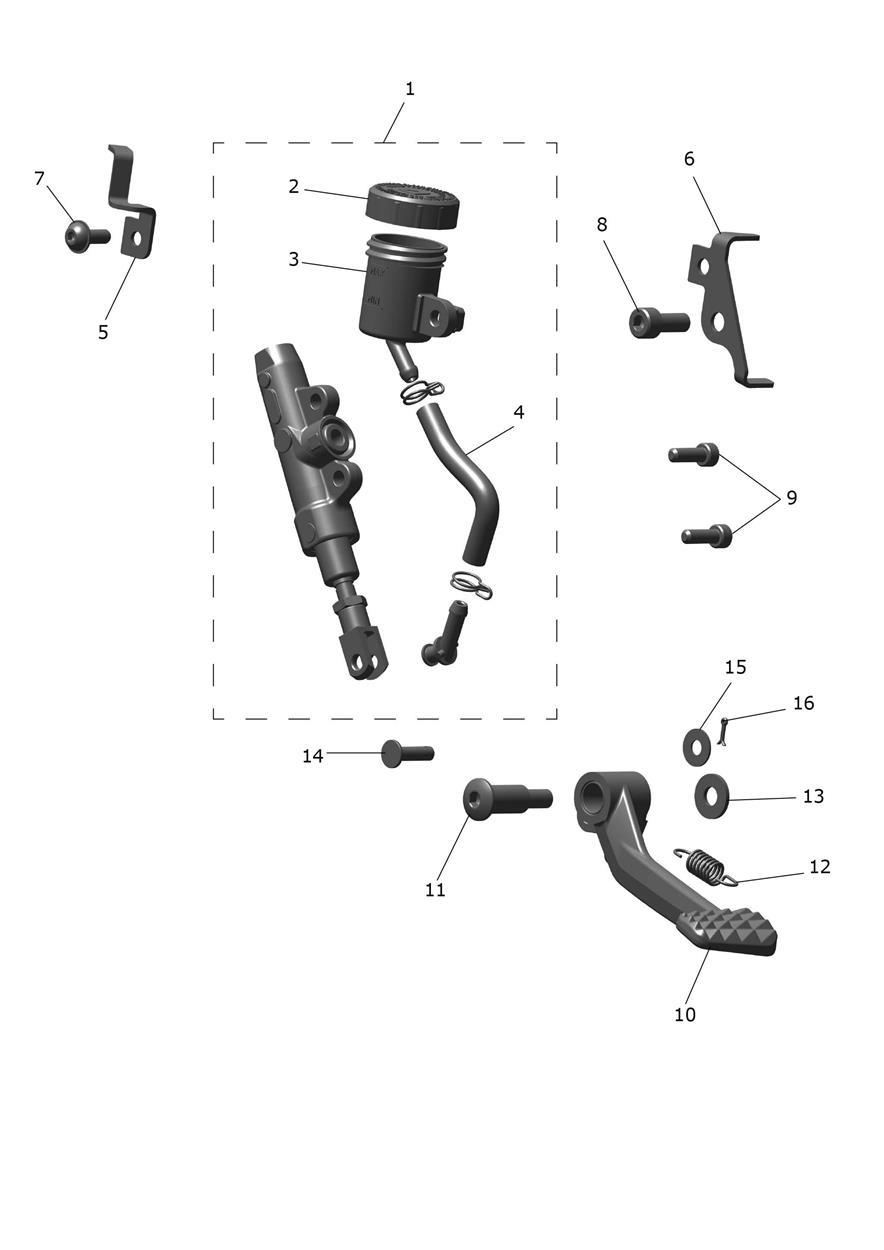

Rear Master Cylinder
18 parts

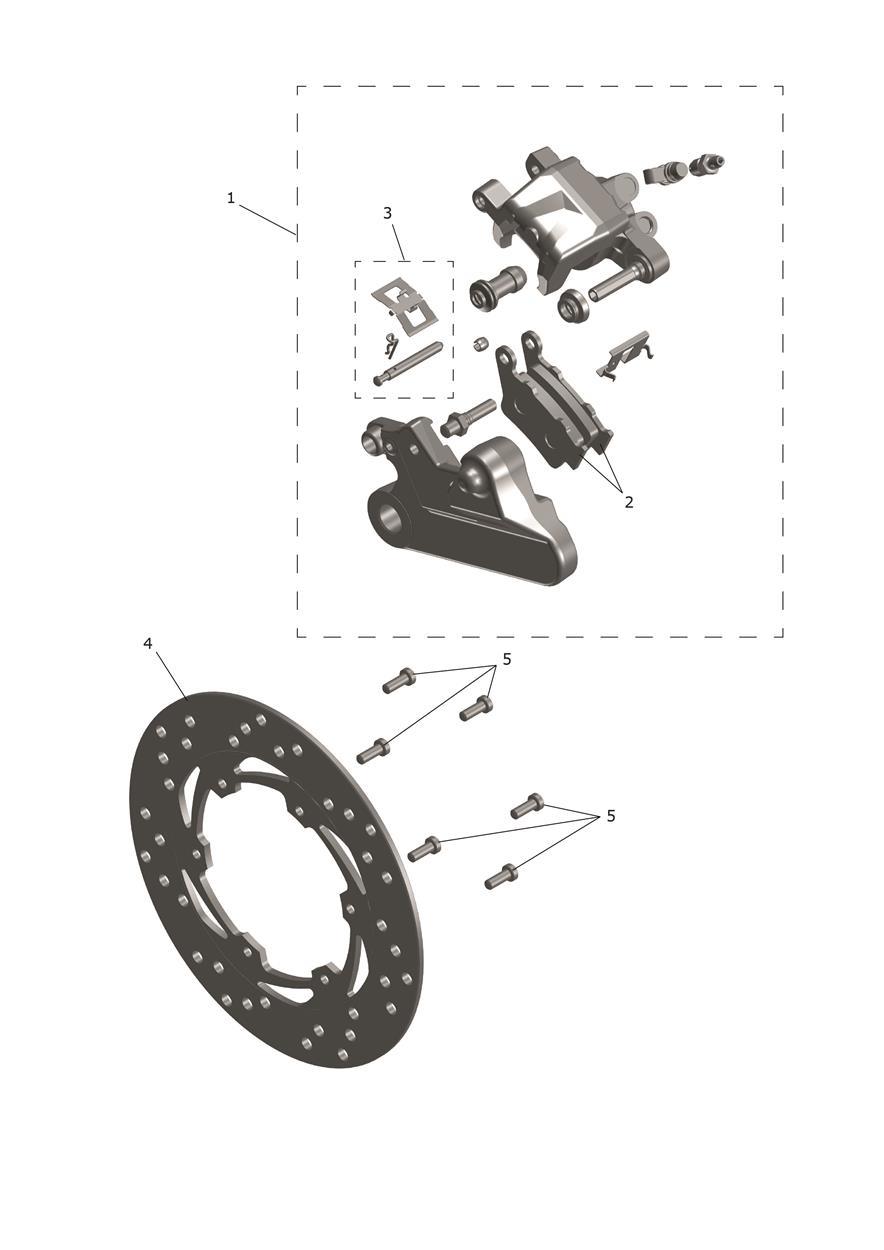

Rear Caliper & Disc
7 parts

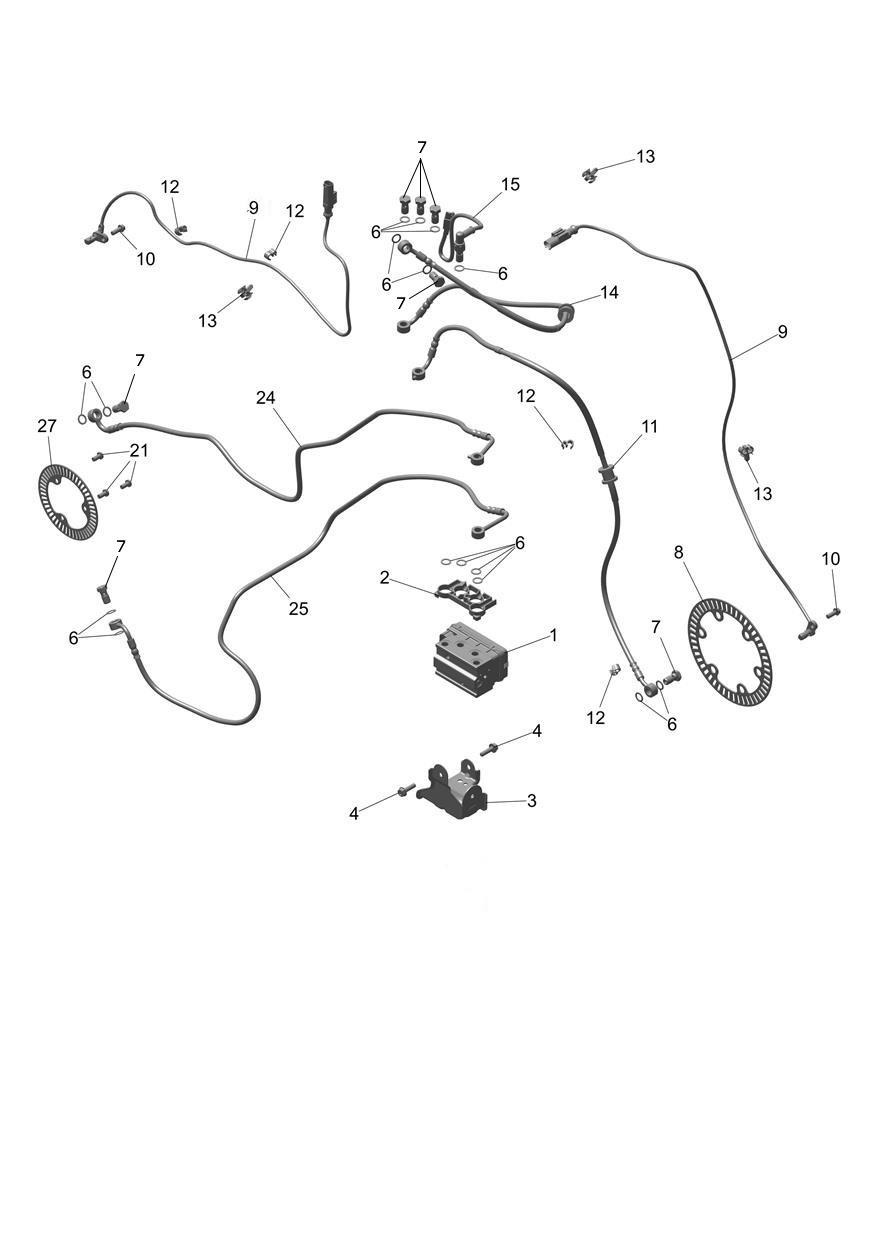

ABS System
18 parts

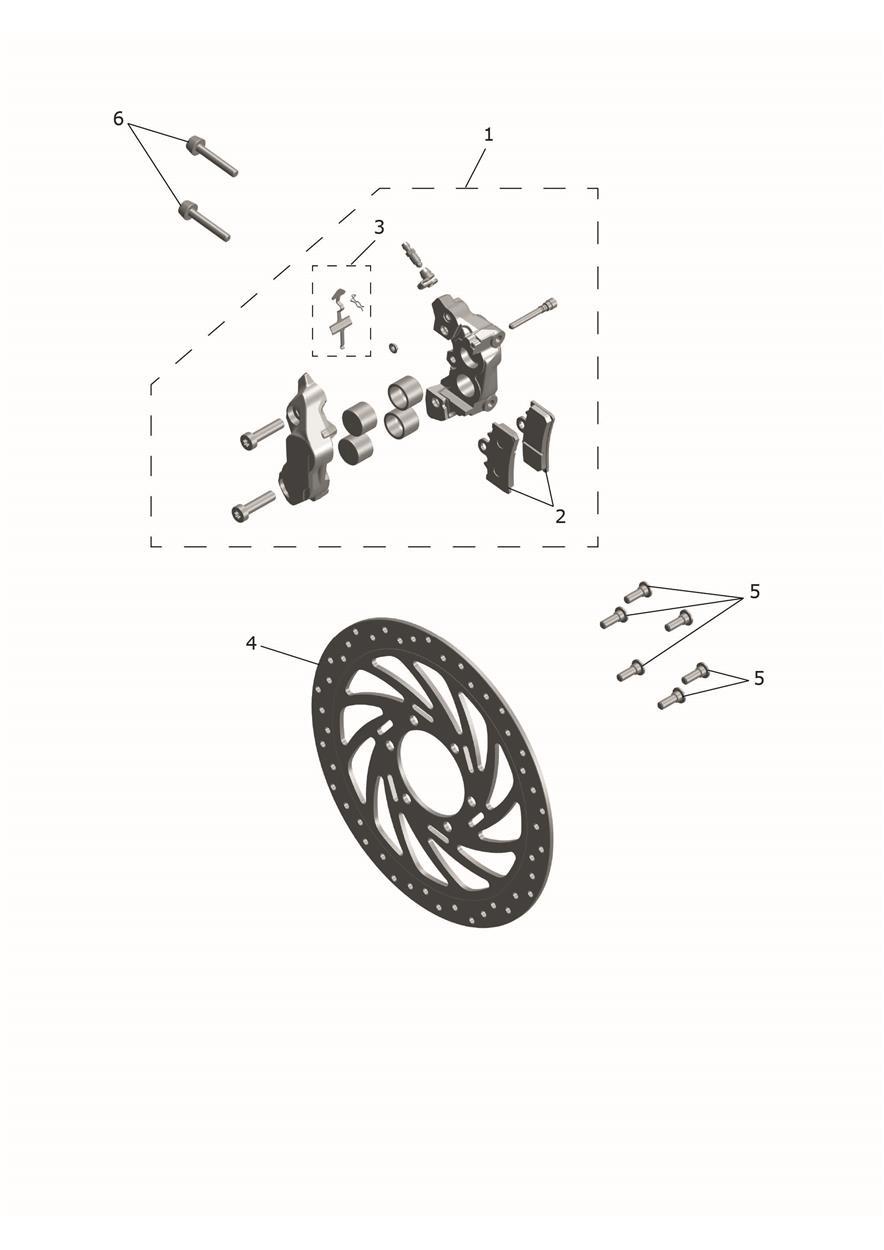

Front Caliper & Disc
10 parts
44 parts you can order online
Every part below appears in Triumph’s Braking System diagrams for the Tracker 400 and is priced and orderable online. Open a part to see what it fits and to buy it.
Front Master Cylinder
TA131880 Front Master Cylinder Assy
$279.39
AvailableDJ201109 Switch, Brake
$7.41
Available36TA0140 Brake Lever Kit
$30.71
Available36JP0161 Major Kit, Master Cylinder
$51.89
AvailableRear Master Cylinder
YTA02023 Rear Reservoir Cap
$5.47
AvailableKACA0820 Bolt, Socket, M8 x 1.25
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorderLAC00115 Bolt, Socket, M6 x 1 x 18, Blk, Precoat
$1.99
AvailableTA161026 Brake Pedal Assembly
Backordered at Triumph · expected Oct 30
$78.09
On backorderLBU00236 Screw Skt Step M8 x 1.25
$3.29
AvailableJG161001 Tension Spring
$1.99
AvailableLDB00151 Plain Washer
$1.99
AvailableLHE00021 Clevis Pin, Dia 6
$1.99
Available39178924 Nylon Washer
$1.99
AvailableKHAA2015 Pin Cotter
Low stock at Triumph
$1.99
Limited availabilityRear Caliper & Disc
TA131805 Rear Caliper Assembly
$438.15
AvailableTA131887 Rear Brake Pad Set
$35.20
Available36TA0150 Rear Caliper Spring, Pin Kit
$39.91
AvailableJF131861 Rear Disc, Dia 230
$154.86
AvailableDH151040 Bolt, Socket, M6 x 1
$1.99
Available36TA0114 Minor Kit, Caliper Assy
$19.96
AvailableABS System
TA131836 Unit, ABS, Wet
$656.89
AvailableTA131835 Guide Hose
$17.28
AvailableTA113809 Bracket, ABS Unit, Mid
Backordered at Triumph · expected Nov 6
$12.77
On backorderDE191010 Copper Washer, KBX
$1.99
AvailableDK151069 Bolt, M10 x 1 x 19, Cl 8.8 x Bright
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorderTA131844 Disc, Front Speed Sensor
$12.31
AvailableJR403608 Speed Sensor Assy
Low stock at Triumph
$49.43
Limited availabilityLBU00042 Screw, Btn Hd, M6 x 10, Blk
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder36TA0142 Brake Hose Kit, ABS Unit - Front Caliper
$147.25
AvailableJG403603 Clamp Sensor Cable Holding
$1.99
AvailableJF131871 Clip, Separator
$1.99
Available36TA0196 Brake Hose Kit, RR M/Cyl to ABS Unit
$106.01
AvailableTA131814 Pressure Sensor
$35.19
AvailableLBU00227 Screw, Button Head, M6 x 1
$1.99
Available36TA0144 Brake Hose Kit, ABS Unit to Rear Caliper
$147.25
Available36TA0195 Brake Hose Kit, Rear M/Cyl - ABS Unit
$161.78
AvailableTA131845 Disc, Rear Speed Sensor
$6.91
AvailableFront Caliper & Disc
JY131922 Front Caliper Assy
$467.68
AvailableYJG45009 Front Brake Pad Kit, Sint Cham
$72.93
In stock in Brea36TA0149 Front Caliper Spring, Pin Kit
$39.91
AvailableJP131861 Brake Disc, Dia 300
$181.77
AvailableJD131811 Screw, Socket Step, M8 x 1.25
$1.99
AvailableLAC00211 Bolt, Socket, M8 x 1
$2.50
AvailableJU131815 Caliper Kit Major Front
Backordered at Triumph · we’ll confirm the ship date after you order
$36.82
On backorder
