Front Suspension & Steering incl. Clutch Controls
Triumph Trident 660cc · 9 diagrams
9 exploded diagrams for the front suspension & steering incl. clutch controls of the Triumph Trident 660cc, covering the Trident 660. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

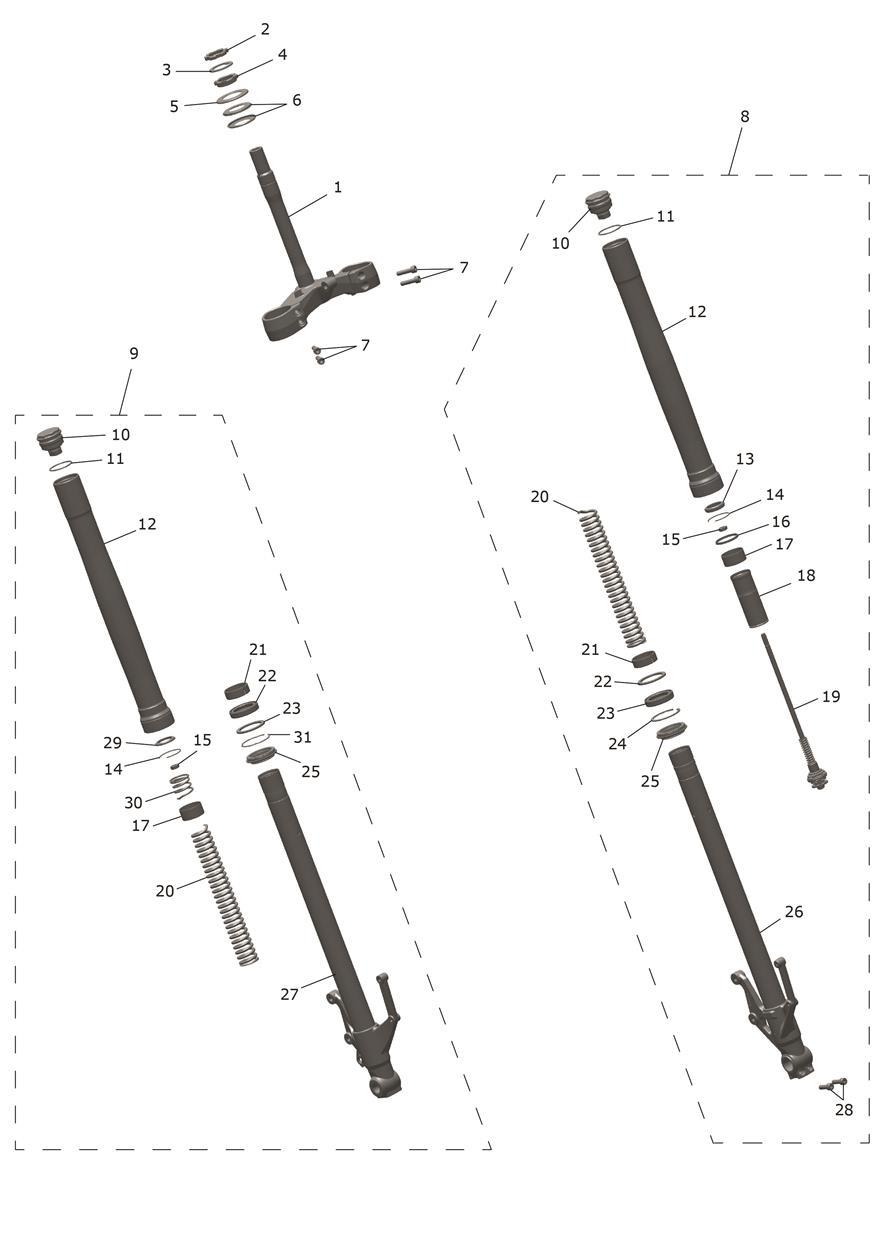

Front Forks & Lower Yoke Assy
35 parts
VIN CN4040 and higher

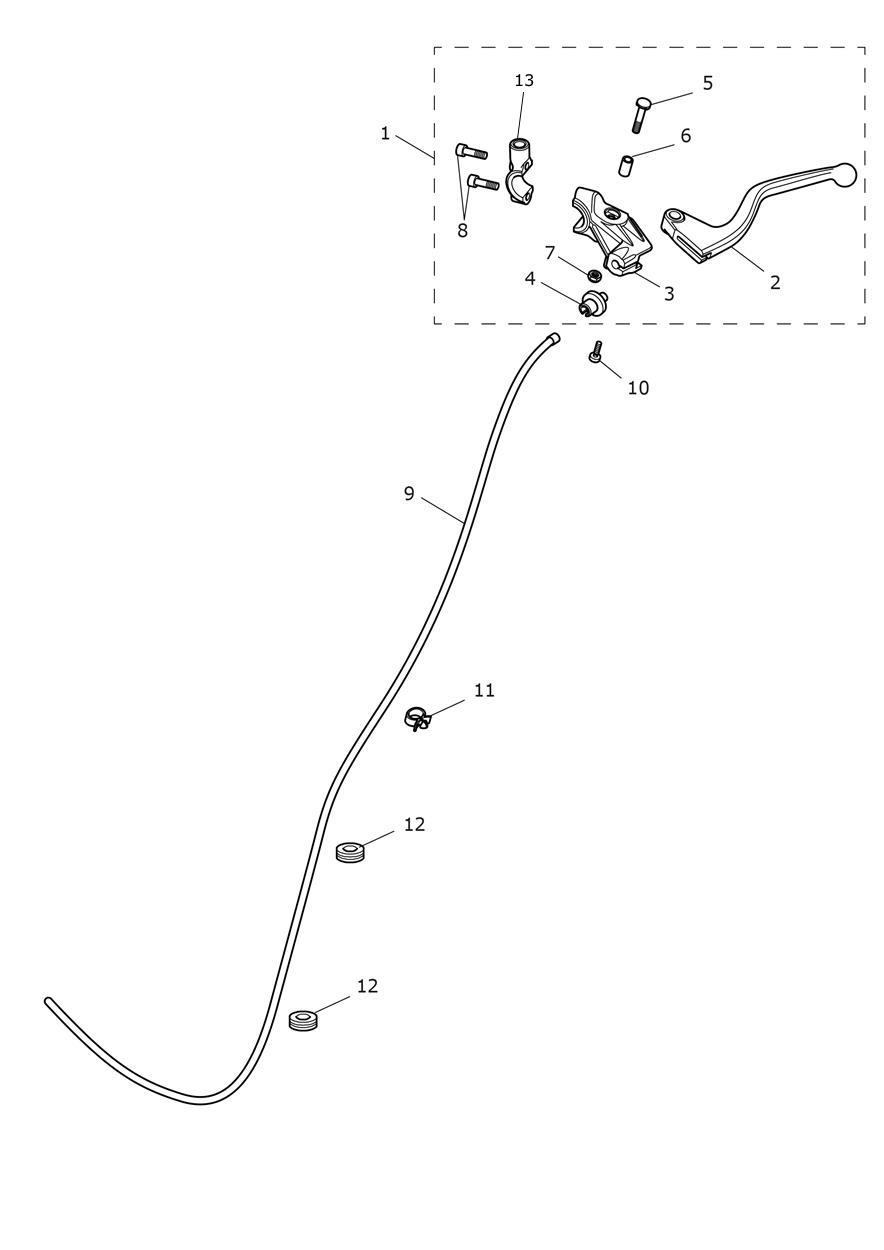

Clutch Controls
13 parts
VIN CN4040 and higher

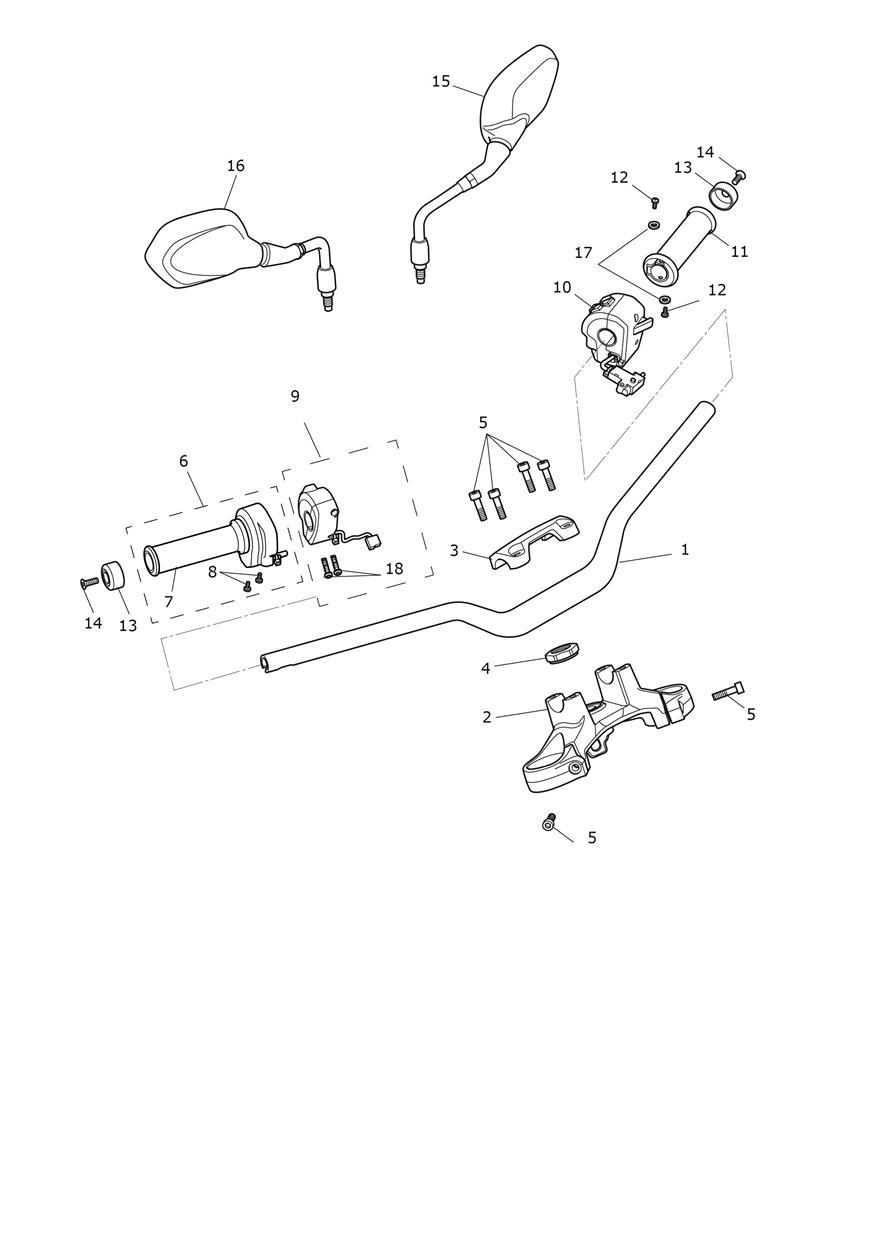

Handlebars, Top Yoke & Mirrors
19 parts
VIN CN4040 and higher

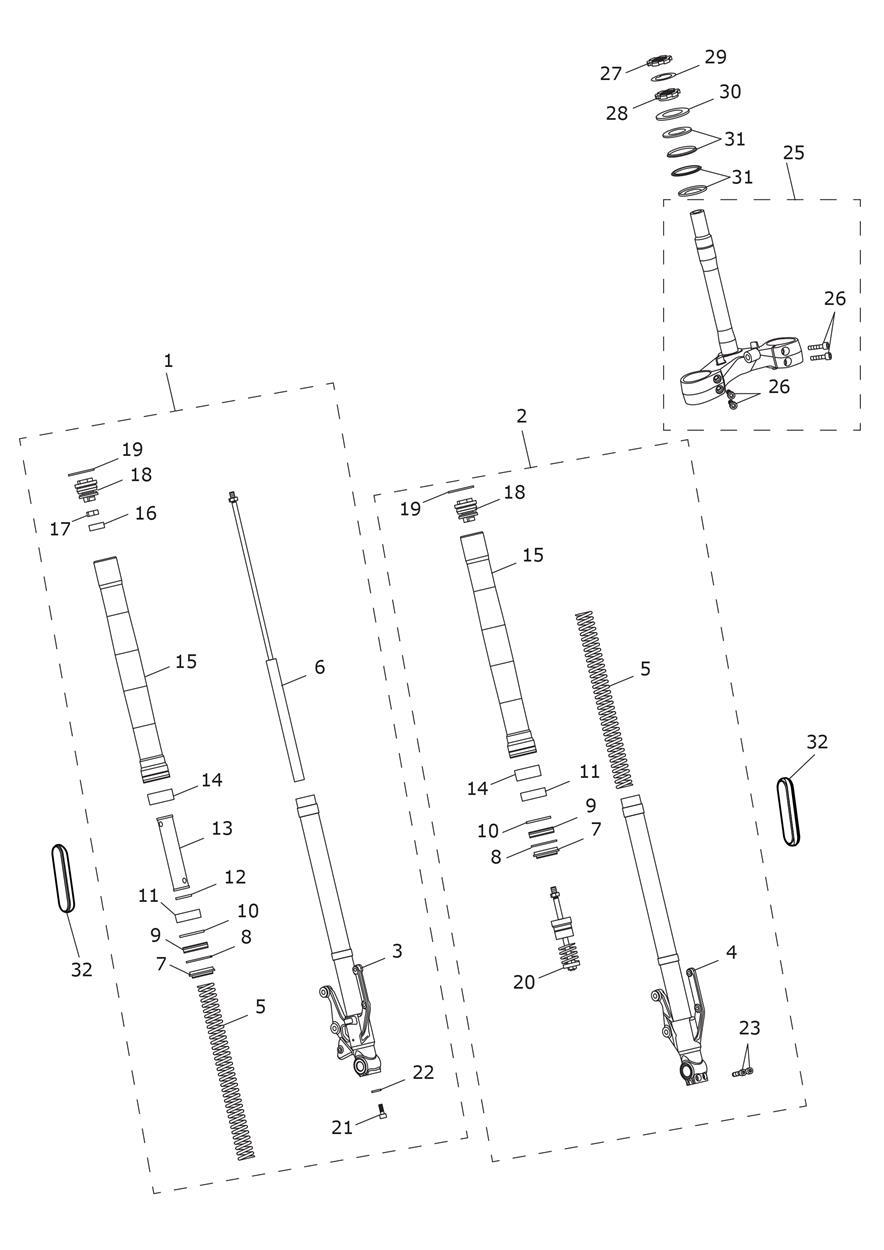

Front Forks & Lower Yoke Assy
32 parts
VIN CB1389 and lower

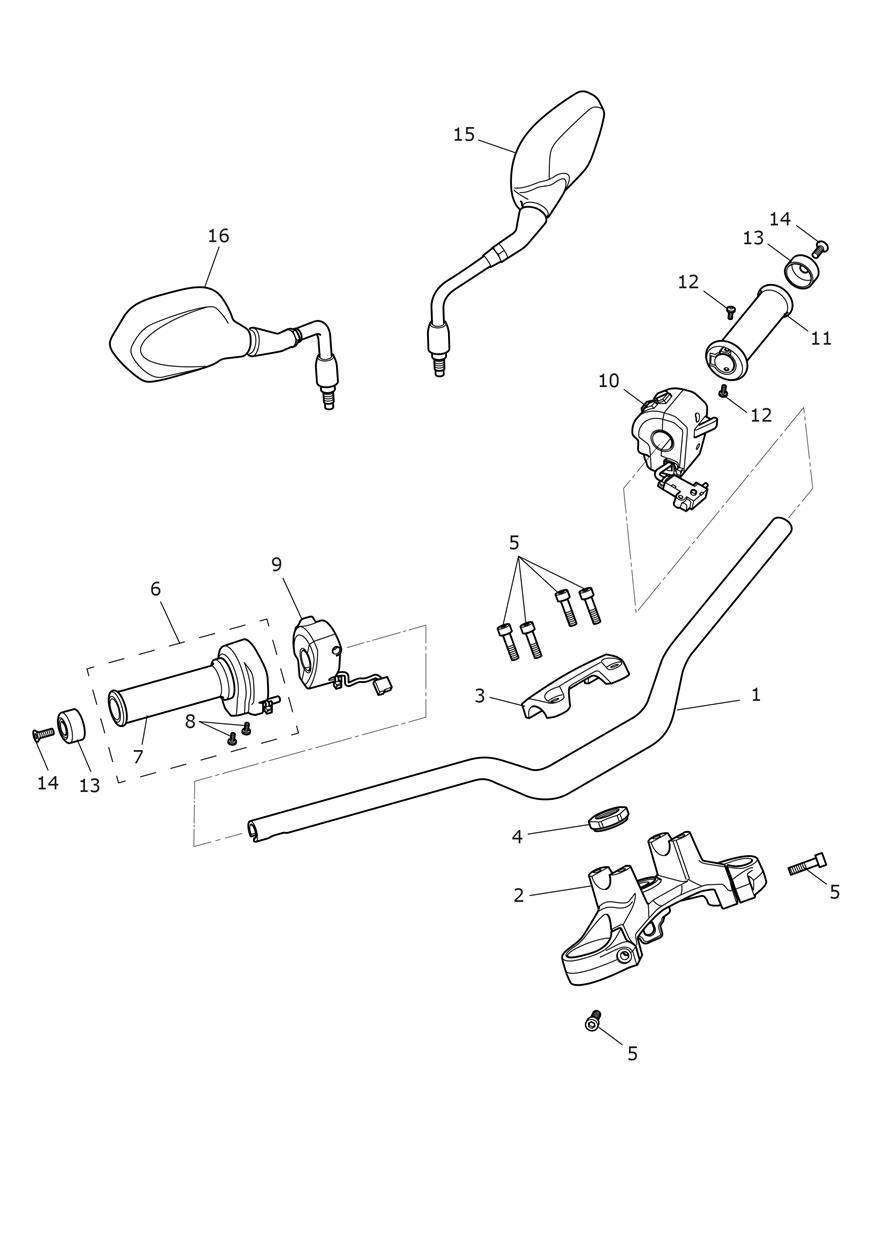

Handlebars, Top Yoke & Mirrors
16 parts
VIN CB1389 and lower
Clutch Controls
14 parts
VIN CB1389 and lower
Clutch Controls
13 parts
VIN CB1390 to CN4039
Front Forks & Lower Yoke Assy
36 parts
VIN CB1390 to CN4039

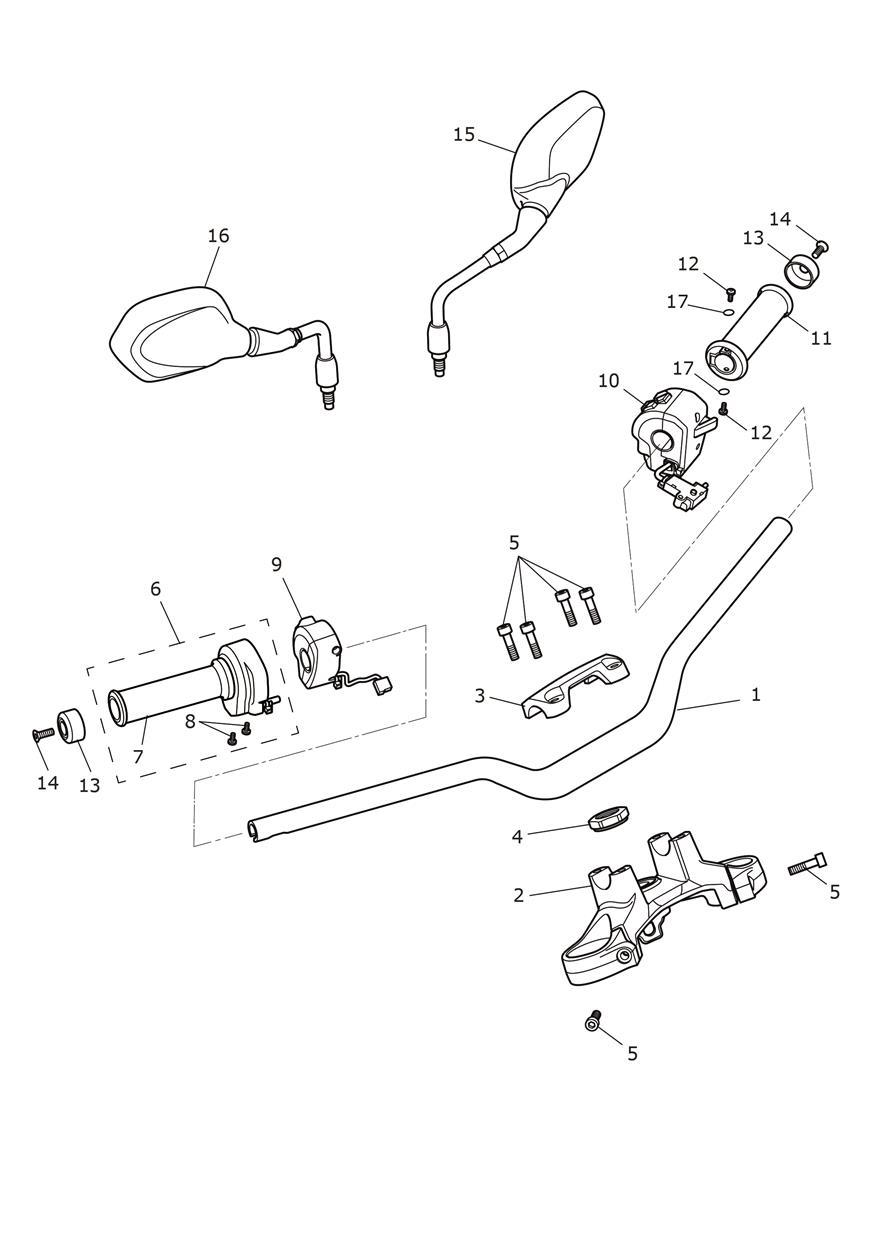

Handlebars, Top Yoke & Mirrors
17 parts
VIN CB1390 to CN4039
69 parts you can order online
Every part below appears in Triumph’s Front Suspension & Steering incl. Clutch Controls diagrams for the Trident 660cc and is priced and orderable online. Open a part to see what it fits and to buy it.
Front Forks & Lower Yoke Assy VIN CN4040 and higher
T2046199 Spares Kit, Lower Yoke Assy
Backordered at Triumph · expected Jan 8
$312.44
On backorderT2040304 Locknut, M30
$19.08
AvailableT2044183 Washer, Headstock
$7.68
AvailableT2040301 Adjuster Nut, M30, Lower
Low stock at Triumph
$26.39
Limited availabilityT2043869 Cover, Headstock Bearing, Black
Low stock at Triumph
$9.70
Limited availabilityT3600234 Dust Seal, Dia 55
Low stock at Triumph
$7.72
Limited availabilityT3050323 Screw, Cap/Hd, M8 x 30, Slv
$4.39
AvailableT2045666 O Ring, End Cap
Low stock at Triumph
$2.53
Limited availabilityT2047225 Stopper Ring B
Backordered at Triumph · we’ll confirm the ship date after you order
$16.45
On backorderT2049566 Slide Bush Fork
Low stock at Triumph
$16.45
Limited availabilityT2049870 Guide Bush
Low stock at Triumph
$13.79
Limited availabilityT2049869 Seal Spacer
Backordered at Triumph · we’ll confirm the ship date after you order
$5.54
On backorderT2049868 Oil Seal
$19.93
AvailableT2049898 Internal Circlip
$2.81
AvailableT2049866 Dust Seal
$19.44
AvailableT2047212 R Slide Pipe, P/Comp
Backordered at Triumph · we’ll confirm the ship date after you order
$534.43
On backorderT2046146 Hex Socket Bolt
$5.02
AvailableT2046248 Stop Ring
Low stock at Triumph
$6.33
Limited availabilityT2048754 Label
$2.06
AvailableT2700332 Reflector, Amber, Oval
$5.92
AvailableClutch Controls VIN CN4040 and higher
T2043872 Clutch Lever Assembly
$84.66
AvailableT2043870 Clutch Lever
$47.89
AvailableT2046082 Clutch Lever Bracket
$36.08
AvailableT2046520 Adjuster Screw
$7.90
AvailableT2046524 Pivot Bolt
$2.43
AvailableT2046526 Collar, Clutch Lever
$3.05
In stock in BreaT2046521 Nut, Pivot Bolt
Low stock at Triumph
$1.99
Limited availabilityT2046522 Bolt, Handlebar Clamp
$1.99
AvailableT2047373 Clutch Cable
$46.57
AvailableT3331750 Screw, Tx, M4 x 17.5, Slv
$3.98
AvailableT3700108 Clip, Cable, 14.3 x 10
$3.00
AvailableT3020076 Grommet, 11.8 x 2.5 x 10.0
$1.99
AvailableT2025450 Clamp, Clutch Lever Bracket
$29.57
AvailableHandlebars, Top Yoke & Mirrors VIN CN4040 and higher
T2043132 Upper Yoke Assembly
$245.14
AvailableT2044789 Upper Handlebar Clamp
$49.34
AvailableT2041120 Nut, Upper Yoke, Black
$22.62
AvailableT2046075 APS Sensor, Assy
$246.66
AvailableT2044707 Grip, RH
$24.67
In stock in BreaT3050314 Bolt, M5 x 20
Low stock at Triumph
$6.50
Limited availabilityT2043616 Switchcube, RH
$131.49
AvailableT2044572 Switchcube, LH, Cruise, DRL
$304.21
AvailableT2045446 Switchcube, LH
$386.44
AvailableT2045139 Grip, Handlebar, LH
$24.67
AvailableT3330247 Screw, S/Tap, Pan/Hd, M4 x 10, HD
$6.61
AvailableT2046667 Finisher, Bar End, Black
$30.19
AvailableT3330959 Screw, Csk, M6 x 16. Slv, Enc
$2.20
AvailableT2060160 Mirror, LHS
$116.71
AvailableT2060159 Mirror, RHS
Low stock at Triumph
$118.45
Limited availabilityT3550500 Washer, 4.3 x 9.0 x 0.8
$1.99
AvailableT3331857 Screw, Torx, M4 x 0.7 x 18, Blk
$1.99
AvailableFront Forks & Lower Yoke Assy VIN CB1389 and lower
T2042543 Fork Leg Assembly, RH
$822.81
AvailableT2043815 RH Slide Pipe, P/Comp
$553.37
AvailableT2043811 LH Slide Pipe, P/Comp
$553.37
AvailableT2043813 Spring
$89.92
AvailableT2049884 Spg Joint
$3.71
AvailableT2049872 Slide Bush
$14.64
AvailableT2043812 Outer Tube
Backordered at Triumph · expected Dec 25
$496.05
On backorderT2049875 Fork Bolt P/Comp
Backordered at Triumph · we’ll confirm the ship date after you order
$53.69
On backorderT2049874 O Ring
$3.81
AvailableT2042907 Sealing washer
$1.99
AvailableT3050312 Screw, Skt, Cap, M8 x 30, S/S
$3.81
AvailableHandlebars, Top Yoke & Mirrors VIN CB1389 and lower
T2042975 Handlebar, 22.2mm
Low stock at Triumph
$175.82
Limited availabilityT2042649 Upper Handlebar Clamp
$49.87
AvailableT2045069 Switchcube, LH
$394.34
AvailableT2060910 Mirror, LH, CCC
Low stock at Triumph
$103.07
Limited availabilityT2060911 Mirror, RH, CCC
$103.07
Available
