Front Suspension/Steering/Clutch Master Cylinder
Triumph Trident 750/900 · 5 diagrams
5 exploded diagrams for the front suspension/steering/clutch master cylinder of the Triumph Trident 750/900, covering the Trident 750/900. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Front Forks & Yokes
Front Forks and Yokes
42 parts
VIN 44301 and lower
Front Forks and Yokes
32 parts
VIN 44302 and higher
55 parts you can order online
Every part below appears in Triumph’s Front Suspension/Steering/Clutch Master Cylinder diagrams for the Trident 750/900 and is priced and orderable online. Open a part to see what it fits and to buy it.

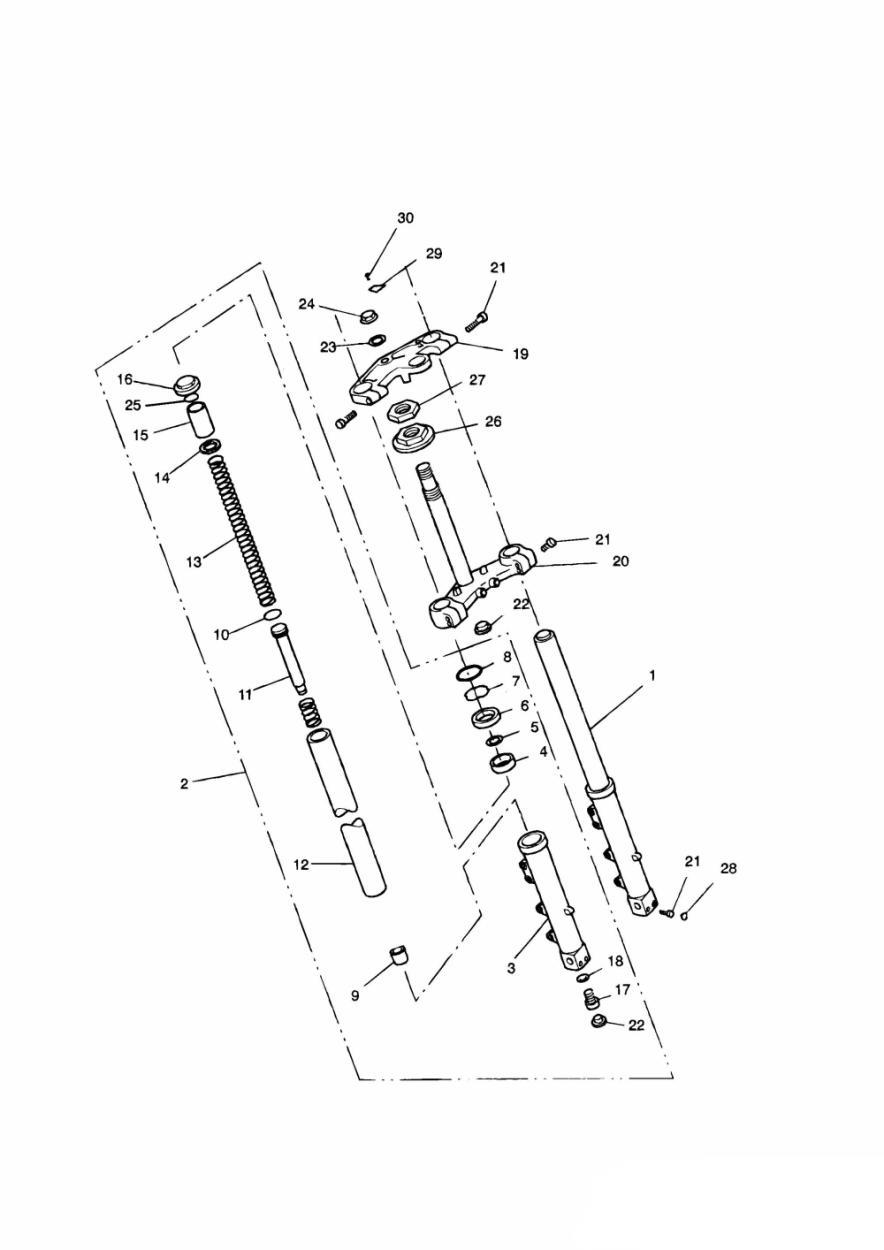

Front Forks and Yokes VIN 44301 and lower
2040076-T0301 Sliding bush
$13.64
Available2040078-T0301 Oil seal
$19.44
Available2040079-T0301 Ring snap
$6.33
In stock in Brea2040080-T0301 Dust seal
$18.60
Available2040160-T0301 Oil lock
$8.35
Available2040171-T0301 Bearing
$6.61
Available2040172-T0301 Bearing
$9.15
Available2040085-T0301 Guide
$3.71
AvailableT2040169 Cap, Fork
$75.69
Available2040074-T0301 Sealing washer
$1.99
AvailableT3051032 Screw, Cap/HD, M8 x 40, Slv
Backordered at Triumph · expected Nov 6
$1.99
On backorderT3450060 Cap
Low stock at Triumph
$1.99
Limited availabilityT2040061 Washer Upper Yoke
$6.61
AvailableT2040060 Nut
$22.99
AvailableT2040081 O Ring, Fork Seal
Low stock at Triumph
$3.32
Limited availability2040173-T0301 Seal kit
$32.81
AvailableT2040259 Cover, Headstock Assy
$22.53
AvailableT2140210 Adjuster Nut, Upper
$3.14
AvailableT3450200 Plug, Caphead, Chrome
$3.88
AvailableT3900405 Badge
$20.60
AvailableT3300090 Rivet
$1.99
AvailableT3550405 Washer, M8 x 17 x 1.6
$1.99

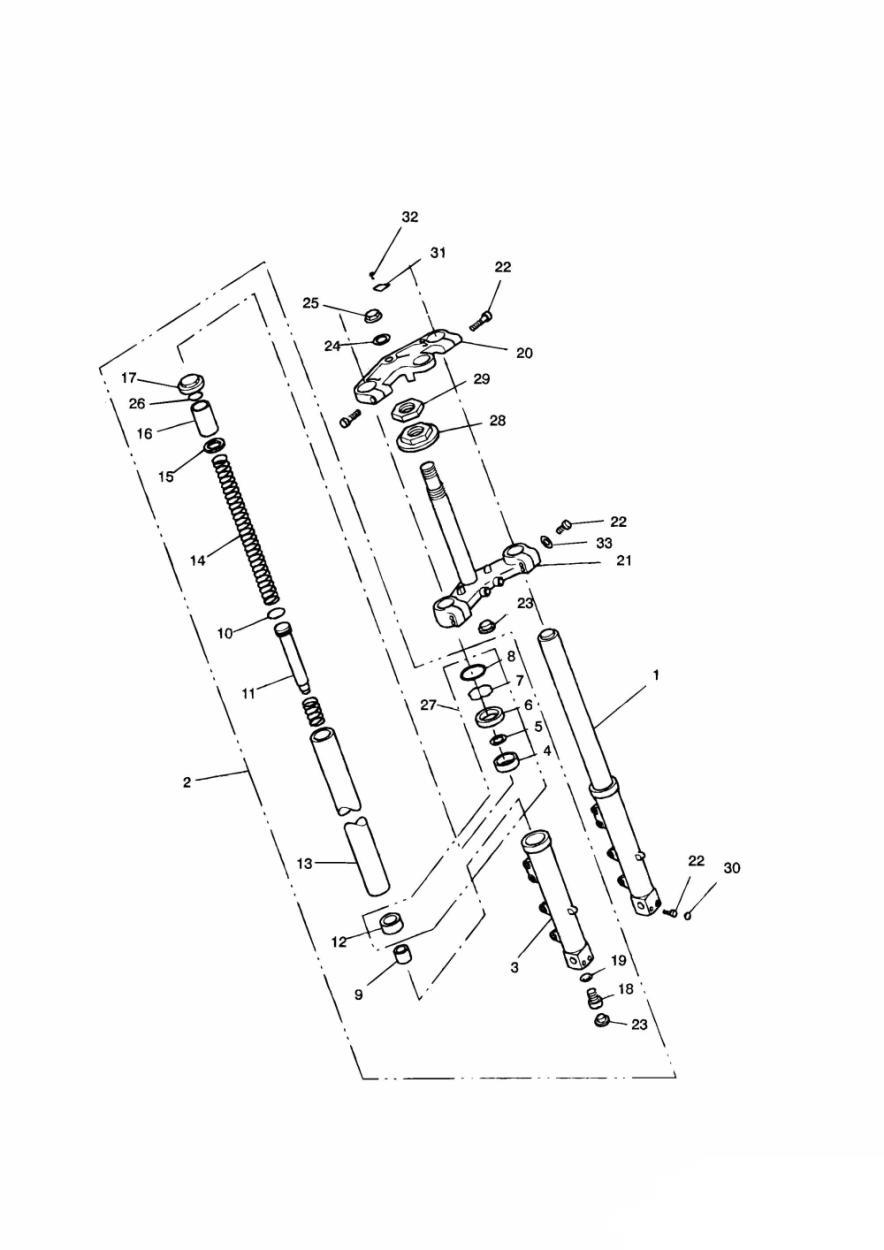

AvailableFront Forks and Yokes VIN 44302 and higher
T2045862 Guide, Bush
$11.62
AvailableT2046246 Seal, Spacer
$5.54
AvailableT2042894 Oil seal
$19.78
AvailableT2046248 Stop Ring
Low stock at Triumph
$6.33
Limited availabilityT2042906 Oil lock
$9.52
AvailableT2042888 Fork Leg Piston Ring
$9.43
AvailableT2042915 Tube inner
$475.29
AvailableT2042902 Guide spring
$11.76
AvailableT2042904 Cap
$75.69
AvailableT2042908 Capscrew
$10.10
AvailableT2042907 Sealing washer
$1.99
AvailableT3050073 Capscrew
Low stock at Triumph
$5.45
Limited availabilityT3450250 Moss Plug
$1.99
AvailableT2042905 O Ring, Fork Seal
Low stock at Triumph
$3.14

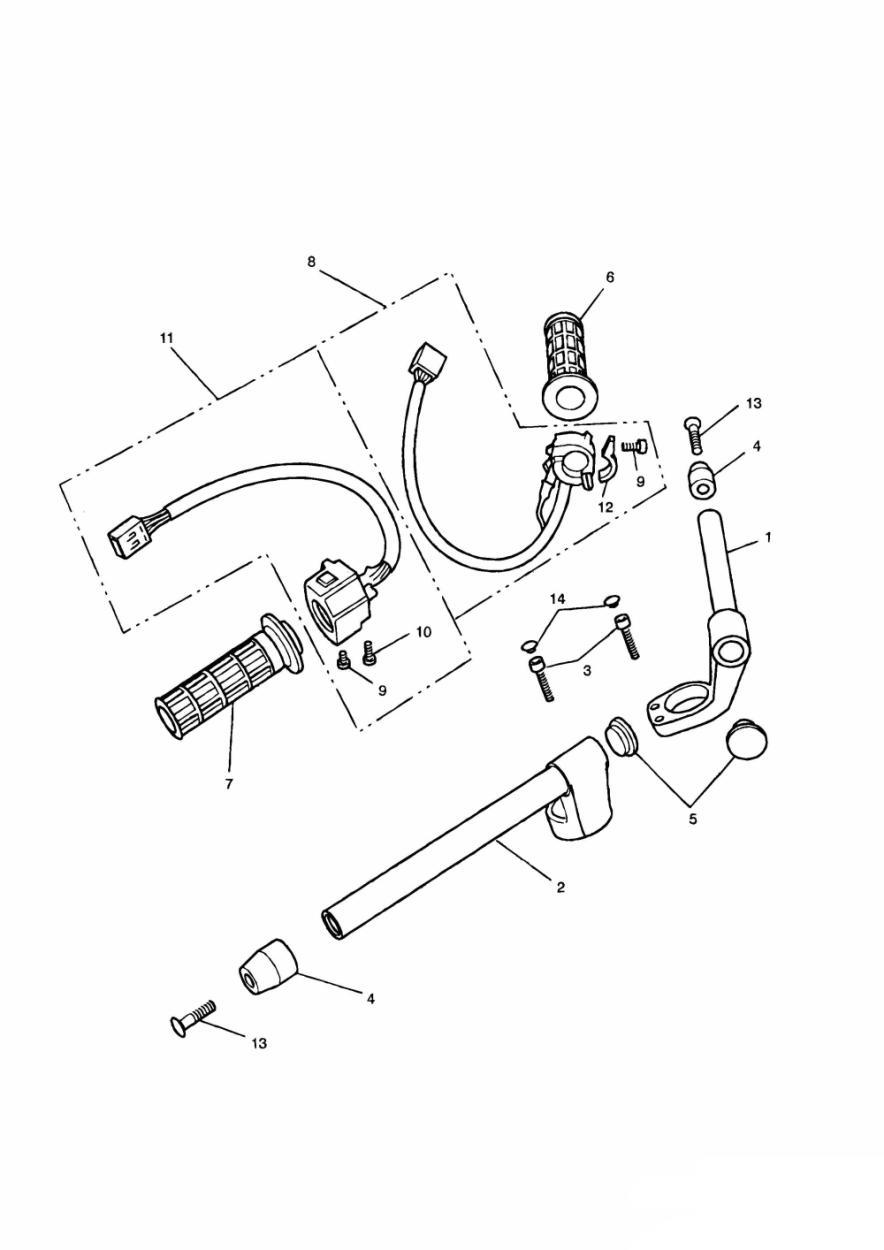

Limited availabilityHandlebars and Switches
2040126-T0301 Handlebar rh
$170.73
AvailableT3050323 Screw, Cap/Hd, M8 x 30, Slv
$4.39
Available2040026-T0301 Grip
Low stock at Triumph
$16.81
Limited availabilityT3330933 Screw, CSK, M6 x 60, Slv
$1.99
AvailableT3450195 Plug, M8, Black
$1.99

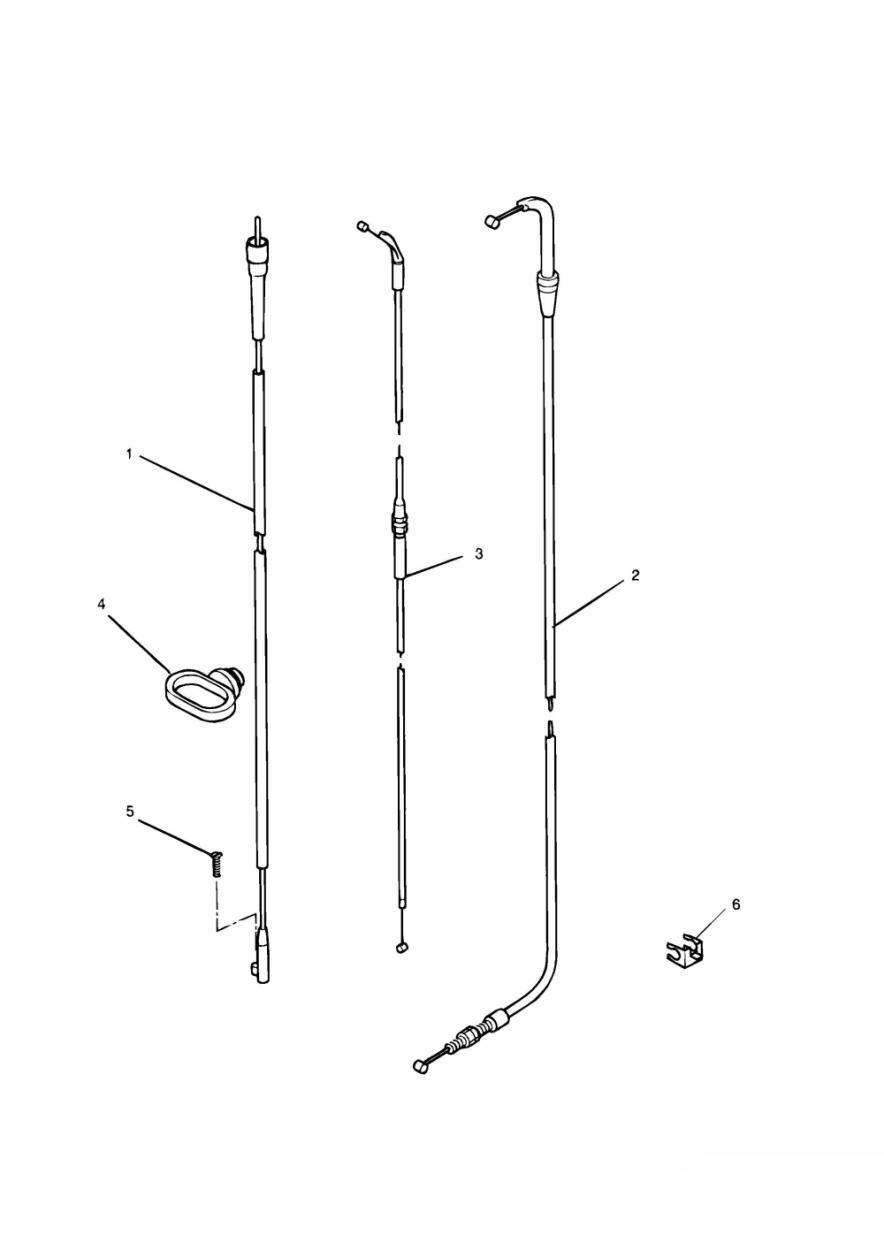

AvailableControl Cables
T2040466 Cable choke
Low stock at Triumph
$56.05
Limited availabilityT3331017 Screw. Phil CSK. M5 x 20, Slv
$3.94
AvailableT1240945 Clip
$4.56

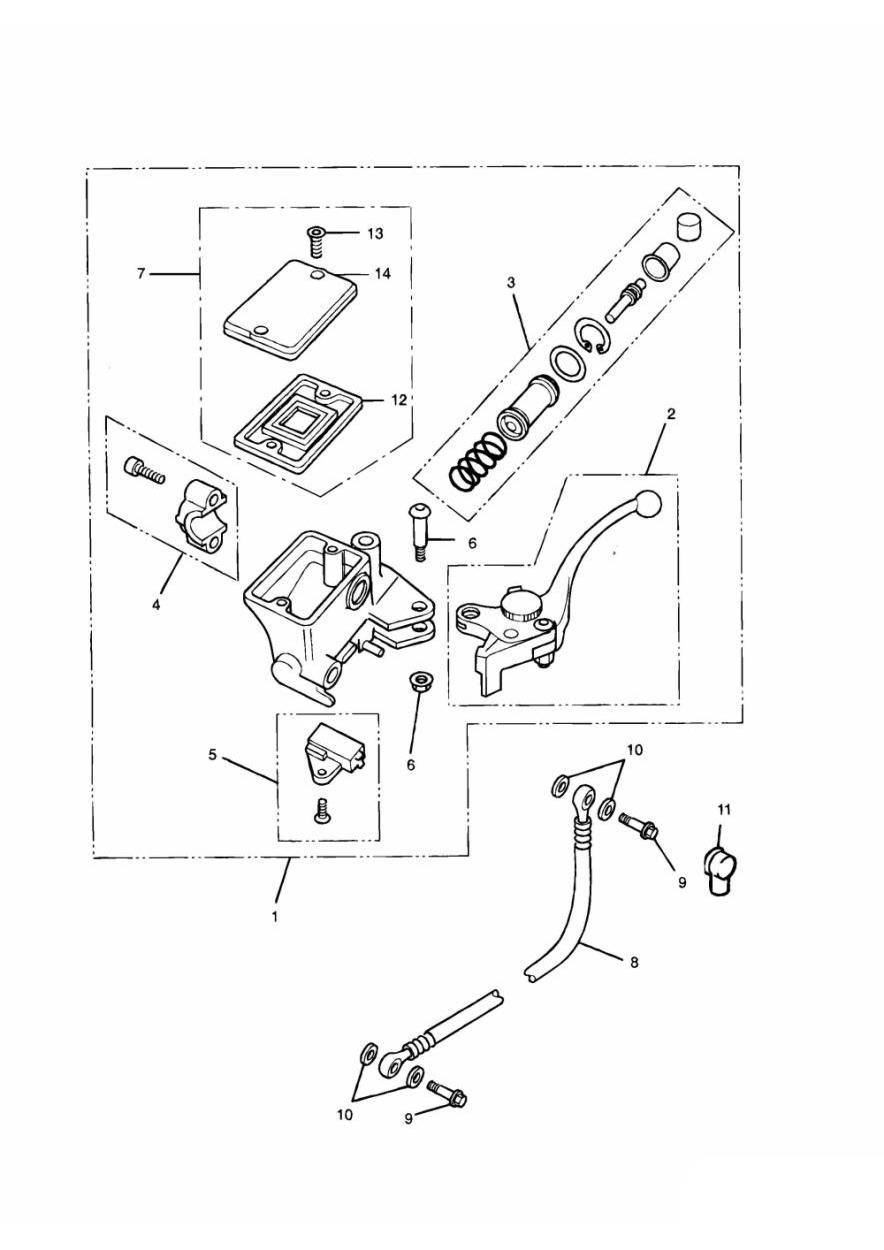

AvailableClutch Master Cylinder
2040352-T0301 Lever assembly
$56.78
AvailableT2040351 Lever, Clutch, ADJ/Polished
$59.81
Available2040040-T0301 Piston set
$70.41
Available2040038-T0301 Switch
$25.93
AvailableT2020158 Lever, Bolt, Front M/Cyl
$12.56
AvailableT2020152 Top Set, Front M/Cyl
$54.55
AvailableT3250125 Bolt, Banjo, M10 x 21
$6.50
AvailableT3550229 Washer, 15.2 x 10 x 1, Plated
$1.99
In stock in BreaT2020074 Boot cover
$1.99
AvailableT2020164 Diaphragm, Reservoir
$10.57
AvailableT2020166 Screw, Reservoir
$1.99
Available
