Electrical System
Triumph Trident 800 · 8 diagrams
8 exploded diagrams for the electrical system of the Triumph Trident 800, covering the Trident 800. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Lockset
20 parts
Electrical System
47 parts
Instruments
18 parts
Headlamp
19 parts
Indicators
12 parts
Rear Light & Reflectors
5 parts
Engine Management System
19 parts
Starter & Alternator
13 parts
114 parts you can order online
Every part below appears in Triumph’s Electrical System diagrams for the Trident 800 and is priced and orderable online. Open a part to see what it fits and to buy it.

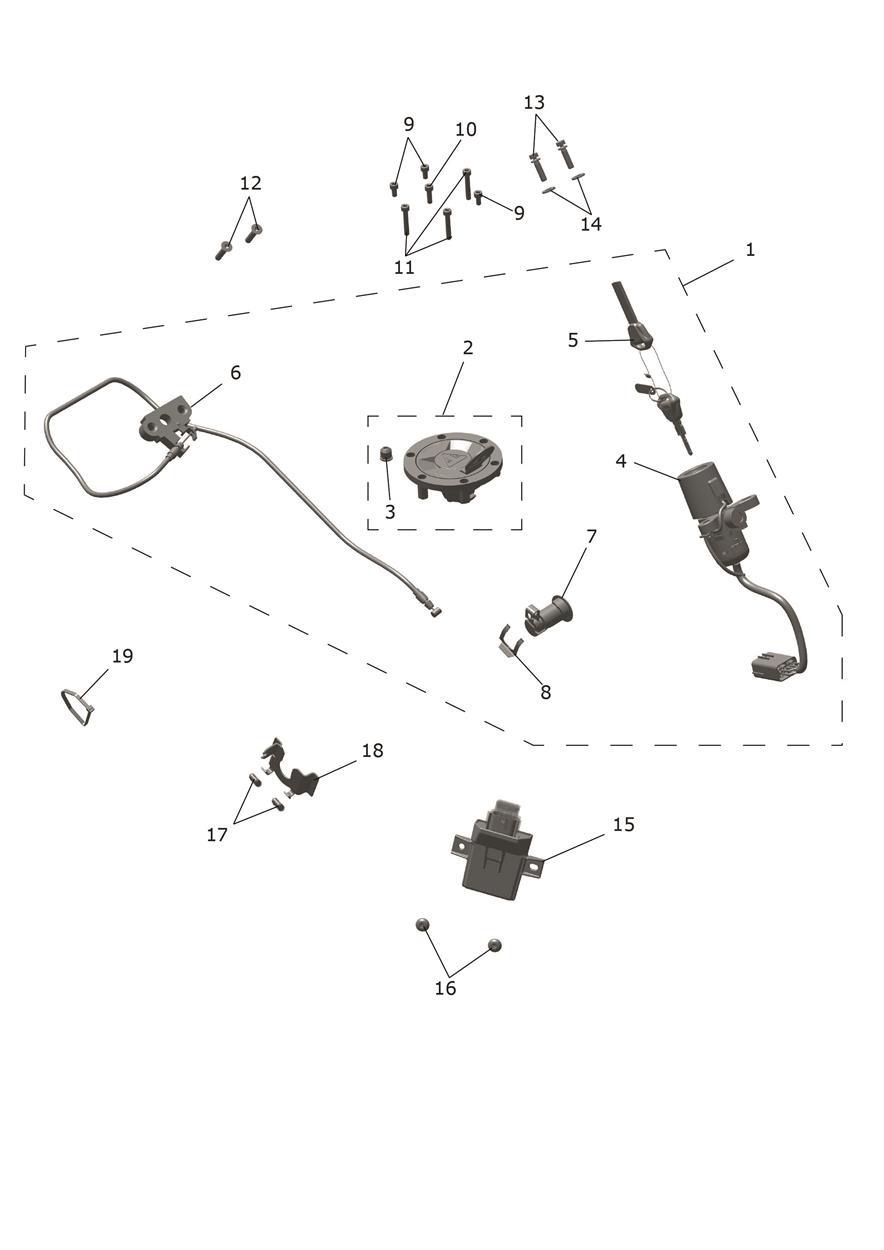

Lockset
T2401242 Filler Cap Assy, Fuel Tank
$197.17
AvailableT2500622 Seal, Filler Cap, Breather
Low stock at Triumph
$5.69
Limited availabilityT2502464 Ignition Barrel Assembly
$272.95
AvailableT2503717 Key, Blank, Immobiliser
$66.90
AvailableT2501922 Seat Lock, Panel Mount
$28.42
AvailableT2505616 Clip, Seat Lock
$9.23
AvailableT3050341 Screw, Cap/Hd, M5 x 10, Slv
Low stock at Triumph
$3.51
Limited availabilityT3050342 Screw, Cap/Hd, M5 x 16, Slv
Low stock at Triumph
$2.64
Limited availabilityT3050343 Screw, Cap/Hd, M5 x 30, Slv
$4.12
AvailableT3330184 Screw, C'sunk Tx, M6 x 25, Slv
$1.99
AvailableT3330327 Bolt, Shear, M6 x 22, Enc
$4.85
In stock in BreaT3555004 Washer, 6.4 x 14 x 1.6
Low stock at Triumph
$1.99
Limited availabilityT2507434 Immobiliser ECU, RF 434
$1173.60
AvailableT3330943 Screw, But/Hd, M5 x 14, Slv
$4.56
AvailableT2204745 Grommet, Secondary Cvr Brkt
$2.43
In stock in BreaT3700015 Cable Tie, 185.7 Long
$1.99

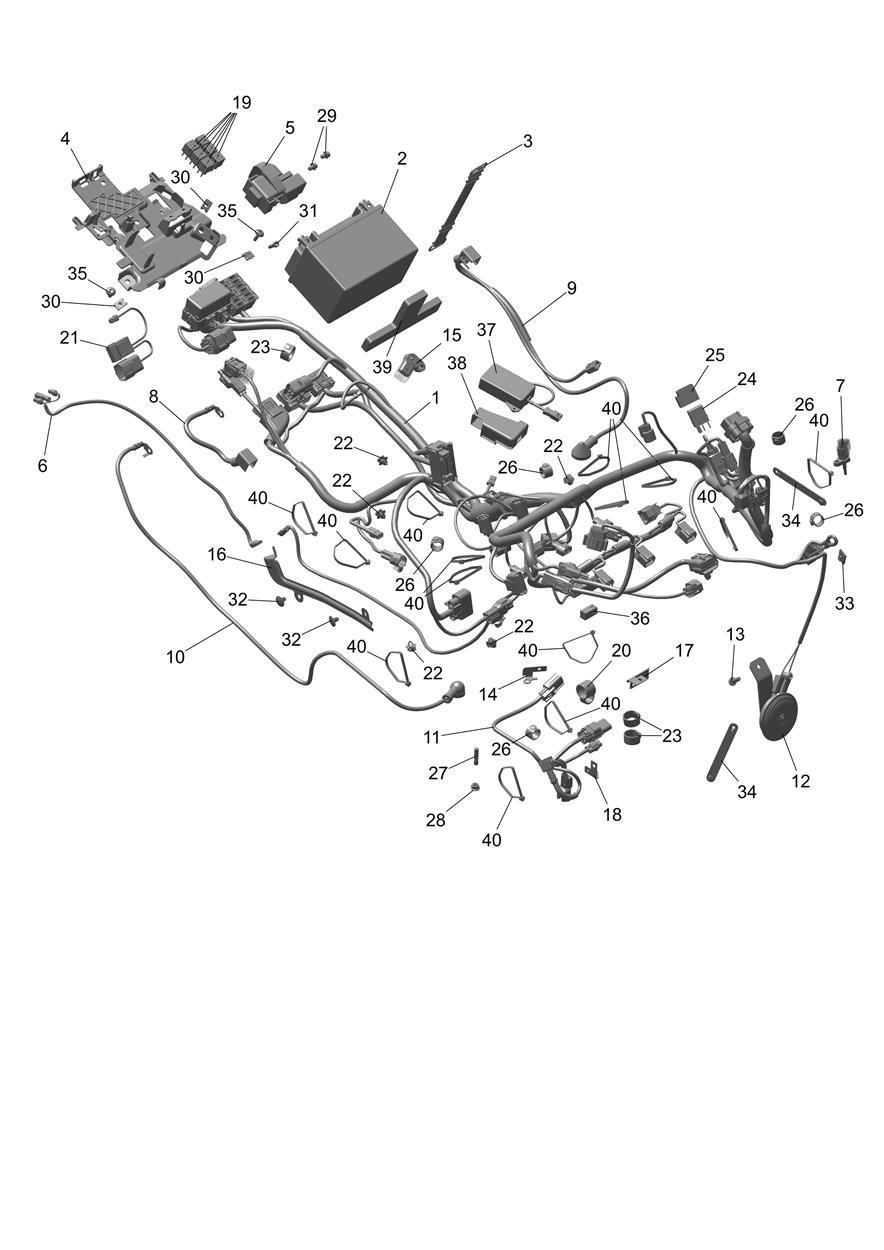

AvailableElectrical System
T2501305 Fuse, Mini, 5A
$4.39
AvailableT2501310 Fuse, Mini, 10A
$4.39
AvailableT2501315 Fuse, Mini, 15A
$4.39
In stock in BreaT2501325 Fuse, Mini, 25A
$4.39
AvailableT2500183 Battery
$116.06
In stock in BreaT2501789 Battery Strap
Low stock at Triumph
$9.77
Limited availabilityT1310120 Starter, Solenoid, Fused
$57.74
AvailableT2500805 Fuse, 30A
$1.99
AvailableT2503338 Subharness, Rear Number Plate
$41.11
AvailableT1290088 Sensor, Air Temperature
Low stock at Triumph
$59.95
Limited availabilityT2505778 Lead, Battery, Positive
$11.27
AvailableT2505073 Lead, Starter
$22.21
AvailableT2510000 Engine Subharness
$74.65
AvailableT2505171 Horn Assy, 440HZ
$41.40
AvailableT3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv
$2.43
AvailableT1290975 Air Pressure Sensor
$133.79
AvailableT2505043 Conduit, Swingarm
$7.26
AvailableT2509670 Tab, Connector, Crank Pos
Backordered at Triumph · expected Oct 30
$1.99
On backorderT2507729 Relay, Ultra Micro, ISO 280
$6.97
AvailableT3704444 Clip, Cable Tie, Fir Tree
$2.30
AvailableT3700212 Band, Rubber
$3.04
AvailableT2507728 Relay, Changeover
$17.13
AvailableT3700259 Rubber Band, 43mm
$3.61
AvailableT3100050 Stud, M6 x 28, Enc
$3.42
AvailableT3350003 Locknut, Flanged, M6 x 1
$1.99
AvailableT3205077 Bolt, HHF, Lghtd, M6 x 8, Slv
$4.52
AvailableT3350161 Nut, Captive, M5
$4.21
AvailableT3050346 Screw, Cap/Hd, M5 x 20, Slv
$2.29
AvailableT3450345 Clip, Wire, Self Adhesive
$3.88
AvailableT3700252 Rubber Band, 88mm
$8.88
AvailableT2505049 Blanking Plug, O2 Sensor
$6.16
AvailableT2508989 Connectivity Module
$345.16
AvailableT2508990 Jacket, Connectivity Module
$12.58
AvailableT2509978 Pad, Battery
$8.53

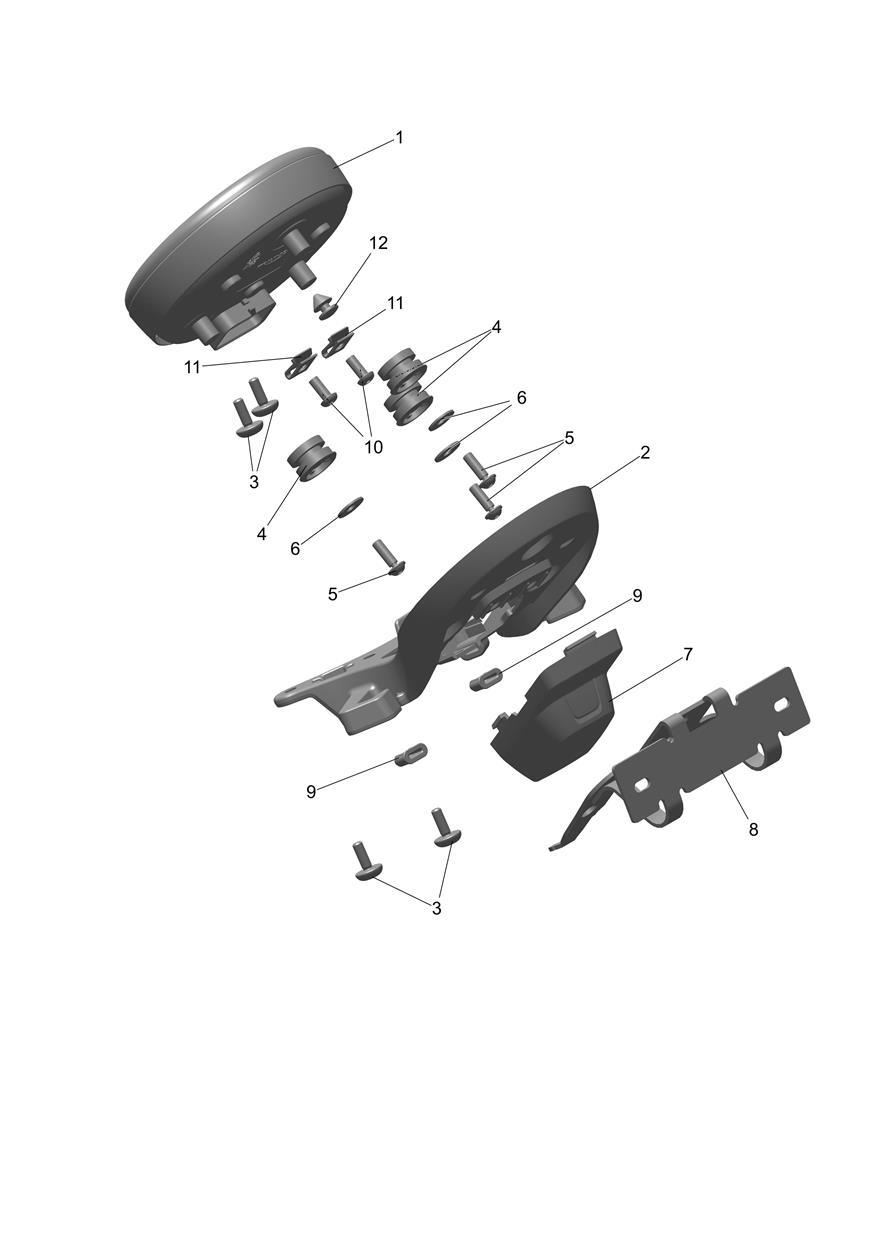

AvailableInstruments
T2507253 Instrument Pack, Mph, UK
Backordered at Triumph · expected Oct 23
$1363.68
On backorderT2507254 Instrument Pack, Mph, US
$1363.68
AvailableT2504108 Bracket, Instrument
Low stock at Triumph
$18.96
Limited availabilityT3020123 Grommet, Instruments
$6.42
AvailableT3331414 Screw, S/Tap, Tx, 5 x 16
$1.99
In stock in BreaT3551178 Washer, M5 x 15 x 1.6
$1.99
In stock in BreaT2502631 Cover, Instruments
$6.18
AvailableT2503073 Front Number Plate Bracket
$47.17
AvailableT3020073 Grommet, Rubber, Cone
$4.04

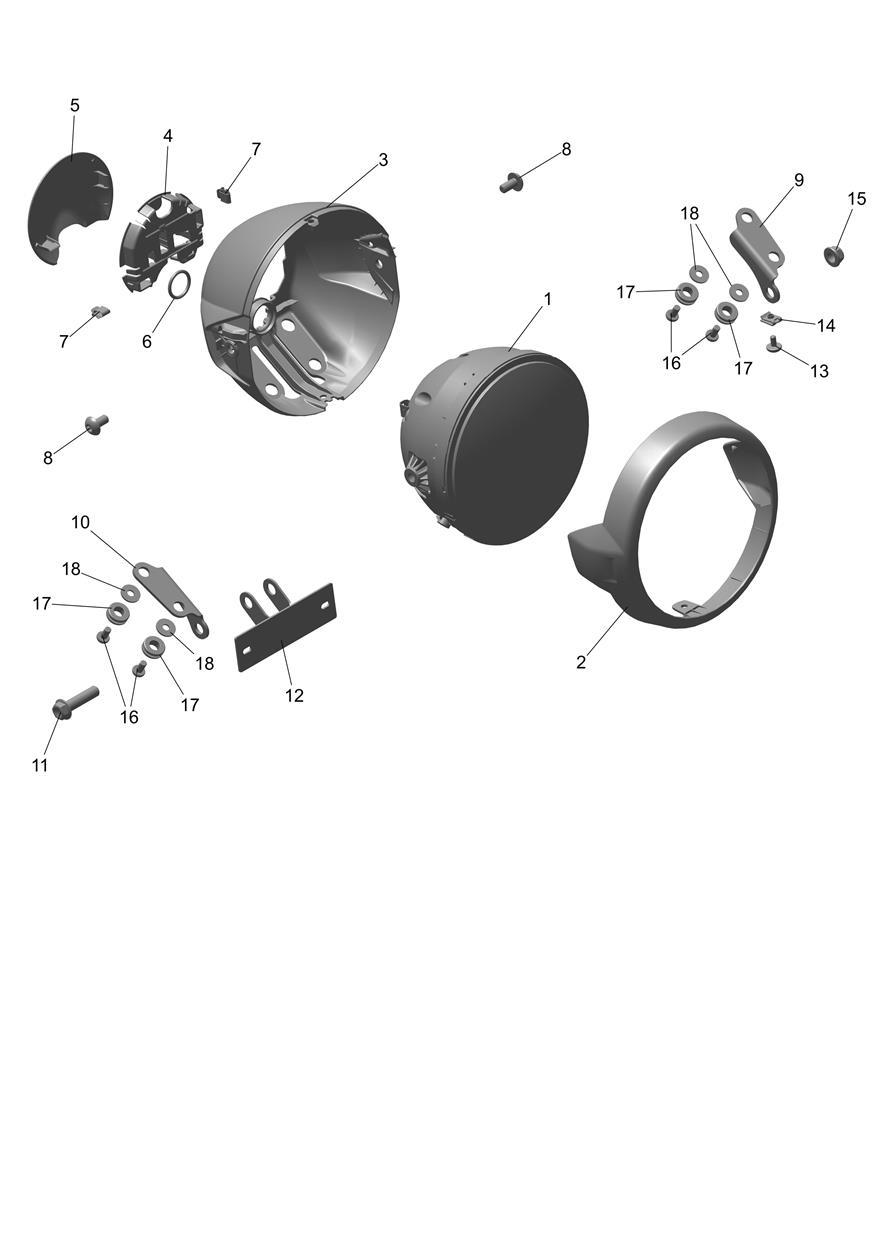

AvailableHeadlamp
T2701686 Headlamp Assy With Position
$427.54
AvailableT2703240-PG Bezel, Headlamp, Jet Black
$206.22
AvailableT2701385 Bowl, Headlamp
Backordered at Triumph · we’ll confirm the ship date after you order
$59.87
On backorderT3600124 O Ring, ID 21.5 x 3
$3.14
In stock in BreaT3700282 S Panel Clip, 2mm
$1.99
AvailableT3205884 Bolt, Truss/Hd, TRX, M8 x 16
$8.21
AvailableT2701476 Bracket, Headlamp, LH
$8.65
AvailableT2701477 Bracket, Headlamp, RH
$8.65
AvailableT3205840 Bolt, HHF, Lghtd, M10 x 40, Slv
$5.49
AvailableT3205825 Bolt, HHF, Lghtd, M10 x 45, Slv
$6.33
AvailableT3330958 Screw, But/Hd, M5 x 10, Blk, Enc
$1.99
In stock in BreaT3350005 Locknut, Flgd, M10
$4.90
In stock in BreaT3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc
$1.99
In stock in BreaT3020076 Grommet, 11.8 x 2.5 x 10.0
$1.99
AvailableT3555025 Washer, 6.4 x 18 x 1.6
$1.99

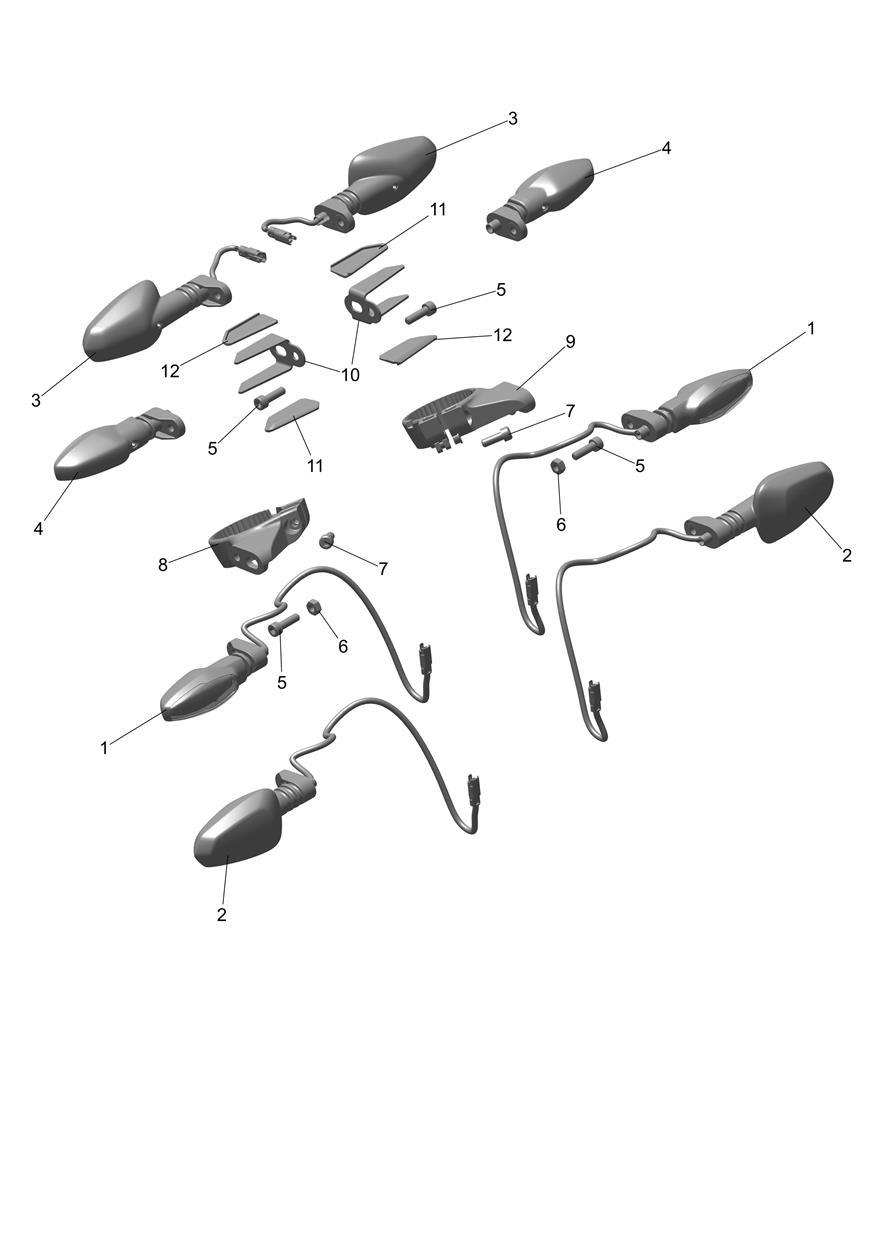

AvailableIndicators
T2701448 Indicator, LED, US, Amber
$84.67
In stock in BreaT2701449 Indicator, LED, US, Red
$114.30
AvailableT2701497 LED Indicator
$96.89
AvailableT3050334 Screw, Cap/Hd, M6 x 20, Slv
$1.99
AvailableT3350300 Nut, M6 x 1.0, Slv
$1.99
In stock in BreaT3050159 Capscrew, Skt HD, M6 x 20, SS
$4.76
AvailableT2701427 Mount, Indicator, Front, LH
$12.34
AvailableT2701663 Bracket, Indicator Support
Low stock at Triumph
$8.82
Limited availabilityT2701906 Rubber Pad
Backordered at Triumph · we’ll confirm the ship date after you order
$5.84
On backorderT2701907 Rubber Pad
Backordered at Triumph · expected Oct 30
$5.84

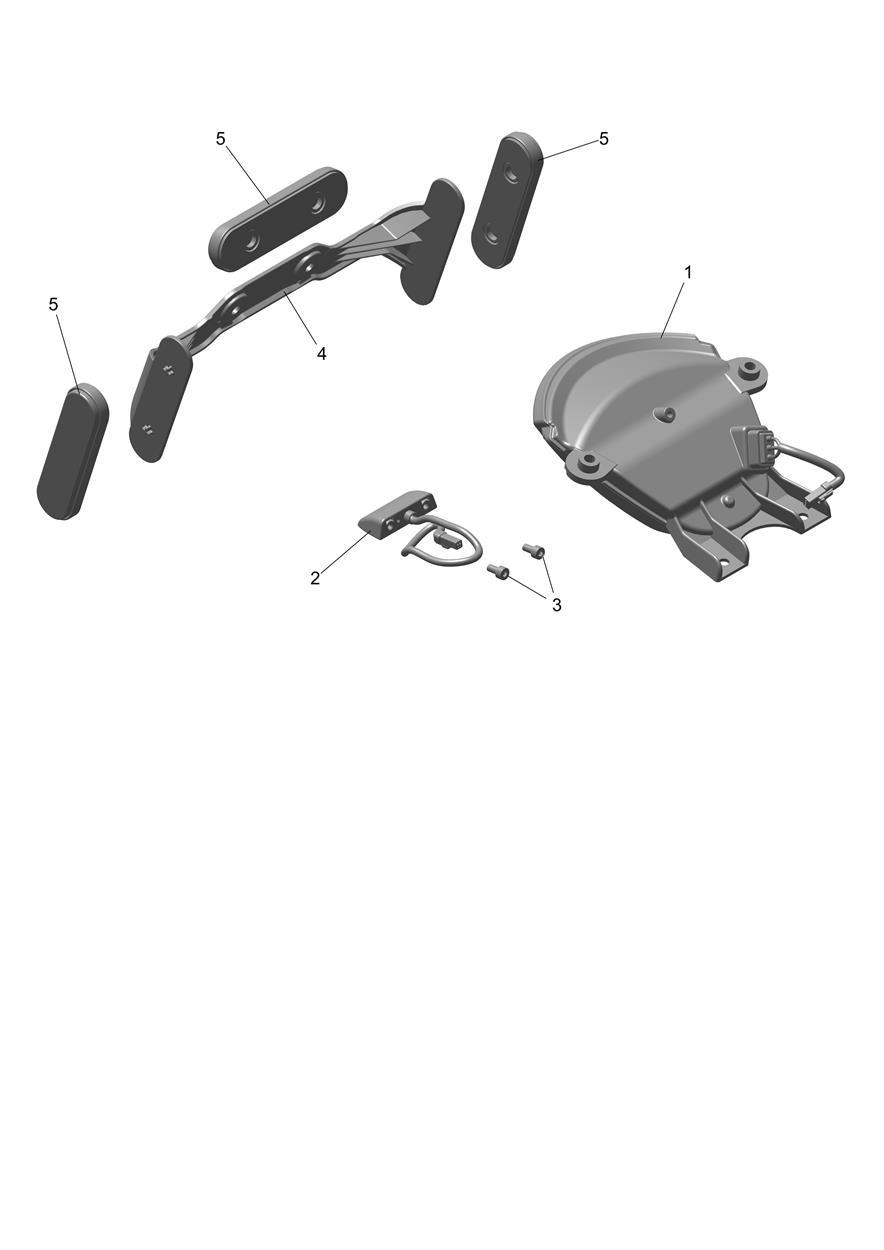

On backorderRear Light & Reflectors
T2701254 LED Light, Reg Plate
$33.72
In stock in BreaT3050308 Screw, Cap/Hd, M4 x 8
Low stock at Triumph
$4.76
Limited availabilityT2313208 Side Reflector Bracket
Backordered at Triumph · we’ll confirm the ship date after you order
$60.12
On backorderT2700443 Reflector, Oval, Red
$5.69

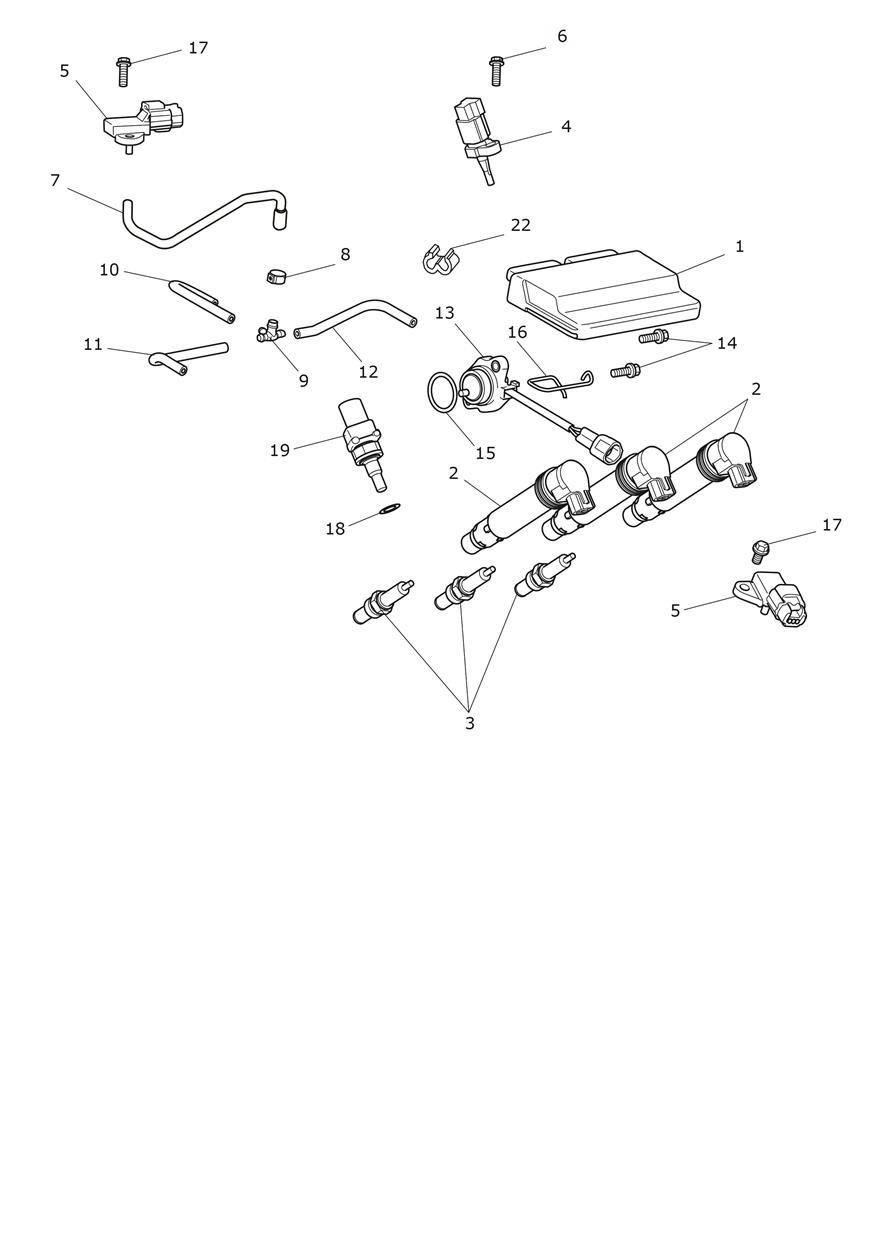

In stock in BreaEngine Management System
T1293199 ECU, Base, KTKS
$2137.71
AvailableT1291504 Coil, Ignition
$181.31
AvailableT1290023 Spark plug
$16.20
In stock in BreaT3332464 Screw, S/Tap, Tx, 5 x 25
Low stock at Triumph
$2.01
Limited availabilityT1292382 Hose, Map Sensor
Backordered at Triumph · we’ll confirm the ship date after you order
$9.84
On backorderT1242929 Connector, 4 Way
$10.10
AvailableT1292075 Hose, Throttle Body, Cyl 1
$3.00
AvailableT1292076 Hose, Throttle Body, Cyl 2
$3.00
AvailableT1292077 Hose, Throttle Body, Cyl 3
$3.00
AvailableT1299232 Sensor, Gear Position
$110.89
AvailableT3205066 Bolt, HHF, Lghtd, M6 x 20, Slv
$4.21
In stock in Brea · last onesT3600267 O Ring, ID 26.65 x Dia 2.62
$1.99
In stock in BreaT3700154 Hose Guide
Backordered at Triumph · we’ll confirm the ship date after you order
$6.07
On backorderT3050301 Screw, Cap/Hd. M5 x 20, Blk
$2.03
In stock in Brea · last onesT3550571 Washer, Cu, OD 16 x ID 12.5
$4.70
AvailableT2100808 Sensor, Engine Coolant
$50.02
AvailableT2040811 Twin Clip, Brake Hose
$2.43

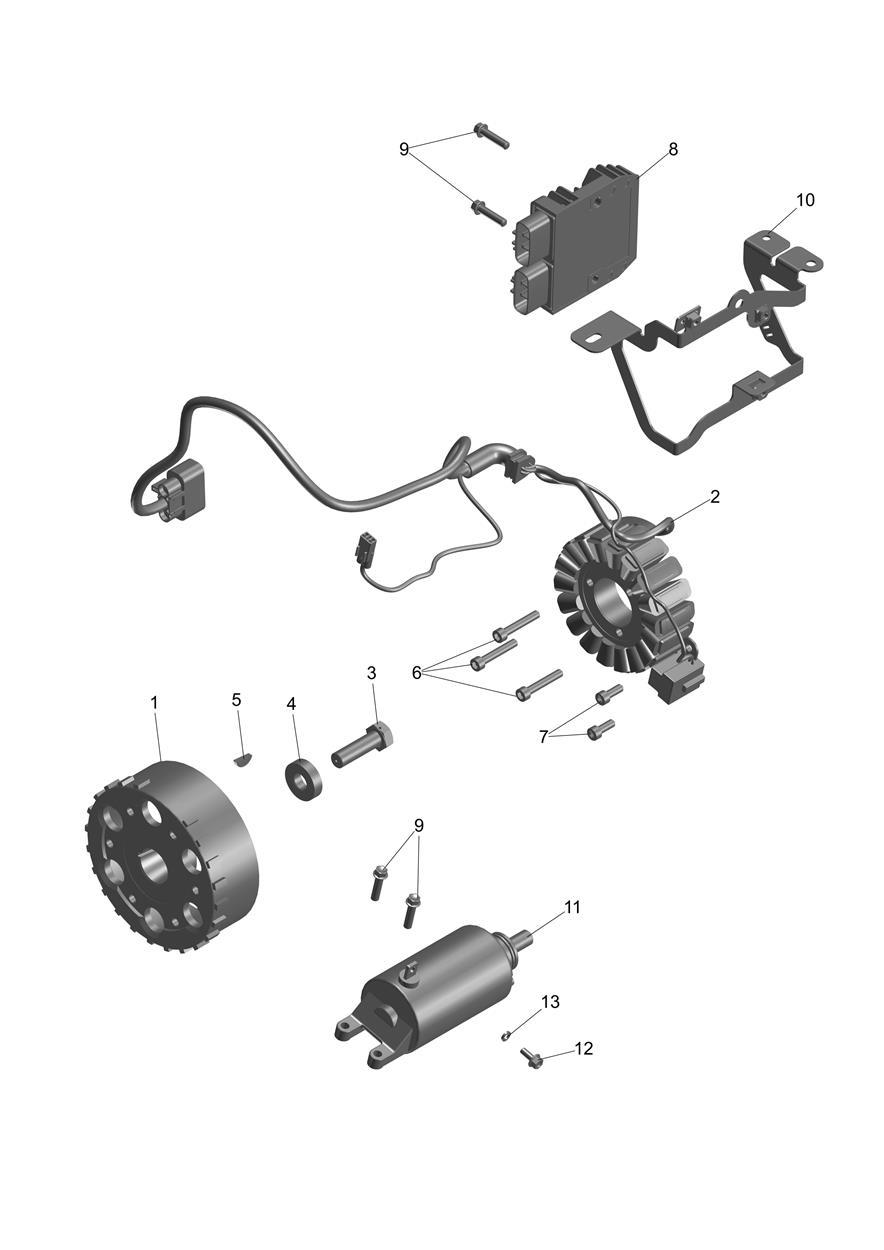

AvailableStarter & Alternator
T1300182 Alternator Rotor
$853.60
AvailableT3208888 Bolt, Radial Feed, M12 x 40
$13.39
AvailableT3550846 Washer, M12 x 30 x 8
$10.22
AvailableT3050302 Capscrew, Skt/Hd, M6 x 35
$1.99
AvailableT3051063 Screw, Cap/Hd, M6 x 16, Enc, Raw
$1.99
AvailableT1300679 Regulator Rectifier
$412.16
AvailableT3205067 Bolt, HHF, Lghtd, M6 x 25, Slv
$2.27
AvailableT3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041
$3.00
AvailableT3555007 Spring Washer, M5
$1.99
Available
