Frame, Footrests, Engine Mountings & Stands
Triumph Trident 800 · 5 diagrams
5 exploded diagrams for the frame, footrests, engine mountings & stands of the Triumph Trident 800, covering the Trident 800. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Main Frame Assembly
24 parts
Foot Controls
24 parts
Sidestand
7 parts
Front Mudguard
12 parts
Rear Mudguard
24 parts
67 parts you can order online
Every part below appears in Triumph’s Frame, Footrests, Engine Mountings & Stands diagrams for the Trident 800 and is priced and orderable online. Open a part to see what it fits and to buy it.

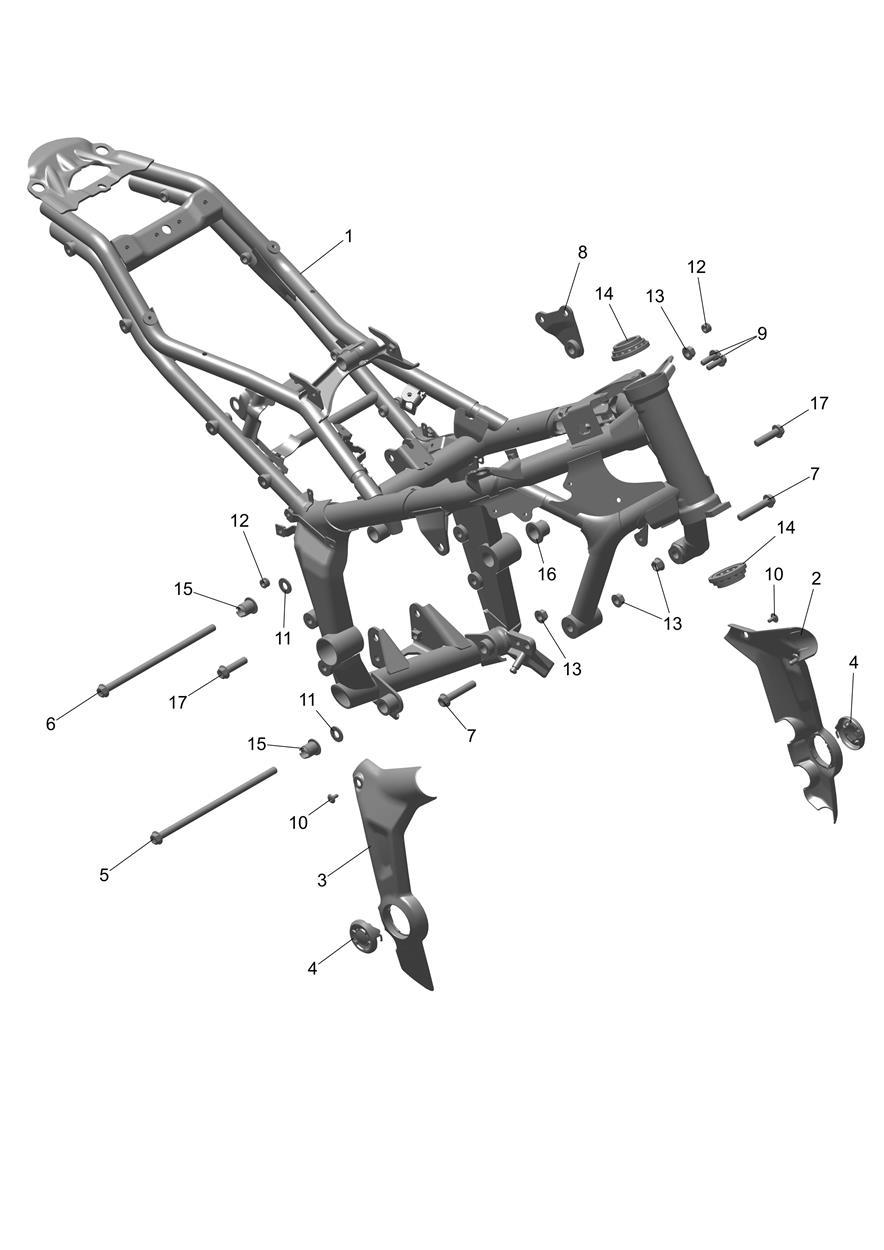

Main Frame Assembly
T2073061 Cover, Outrigger LH, Mldg
Low stock at Triumph
$14.13
Limited availabilityT2076717 Cover, Swingarm Pivot
$10.91
In stock in BreaT3151051 Bolt, HHF, M10 x 210, Slv
$8.04
AvailableT3205766 Bolt, HHF, Lghtd, M10 x 55, Slv
$5.69
AvailableT3205781 Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv
$1.99
AvailableT3331061 Bolt, But/Hd, M5 x 11, Shld, Slv
$4.65
AvailableT3555029 Washer, 10.5 x 23 x 2
$2.53
AvailableT3020131 Grommet, 9 x 2 x 6
$1.99
AvailableT3350250 Locknut, Flanged, M10
$3.85
In stock in BreaT3800091 Bearing, Sac
$31.43
In stock in BreaT3205841 Bolt, HHF, Lghtd, M10 x 40, Slv
$2.64

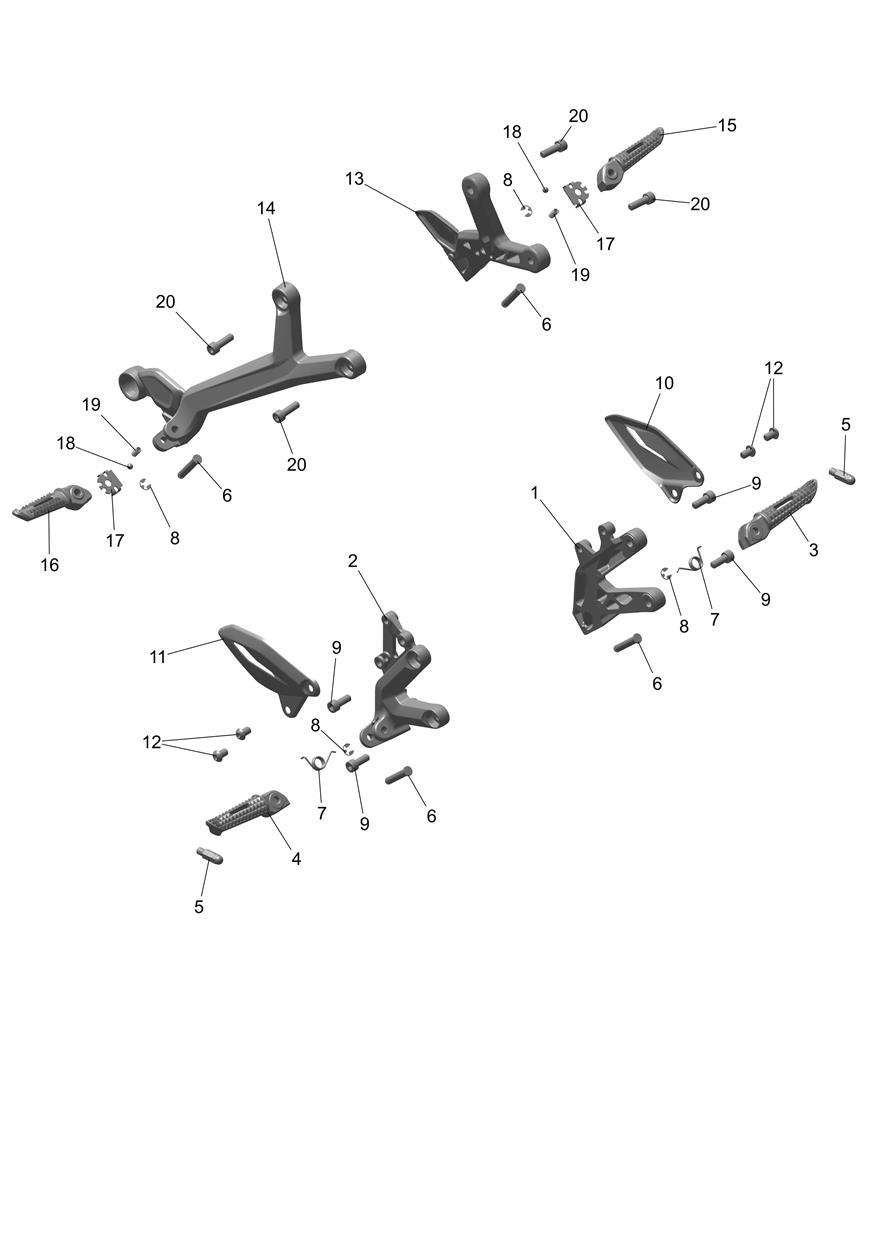

AvailableFoot Controls
T2083632 Control Plate, RH
$73.17
AvailableT2082830 Footrest, Front, LH
$73.03
AvailableT2089803 Footrest, Front, LH
$72.94
AvailableT2082831 Footrest, Front, RH
$73.03
In stock in BreaT2089804 Footrest, Front, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$72.94
On backorderT2085162 Peg, Bank Angle, 25mm
Low stock at Triumph
$13.03
Limited availabilityT2080546 Pin, Pivot, Footrest
$6.07
AvailableT2080819 Return Spring, Footrest
$5.83
In stock in BreaT3500207 Circlip, Ext 8 X 0.89
$2.64
AvailableT3050321 Screw, Cap/Hd, M8 x 20, Slv
$6.87
AvailableT2083459 Heelguard, RH
$26.62
AvailableT3331625 Screw, Btn Hd, M8 x 12, Slv
$1.99
AvailableT2082793 Footrest Hanger, LH
$138.28
AvailableT2082784 Footrest Hanger, RH
$86.48
AvailableT2088202 Footrest, Rear, LH
Low stock at Triumph
$33.29
Limited availabilityT2088203 Footrest, Rear, RH
$33.29
AvailableT2089505 Rear Footrest, LH
$62.88
AvailableT2089504 Rear Footrest, RH
Low stock at Triumph
$62.88
Limited availabilityT2081672 Detent Plate
$4.91
AvailableT2081675 Detent Ball
$1.99
AvailableT2081674 Spring, Detent
$5.92
AvailableT3051097 Screw, Cap/Hd, M8 x 25, Silver
$3.81

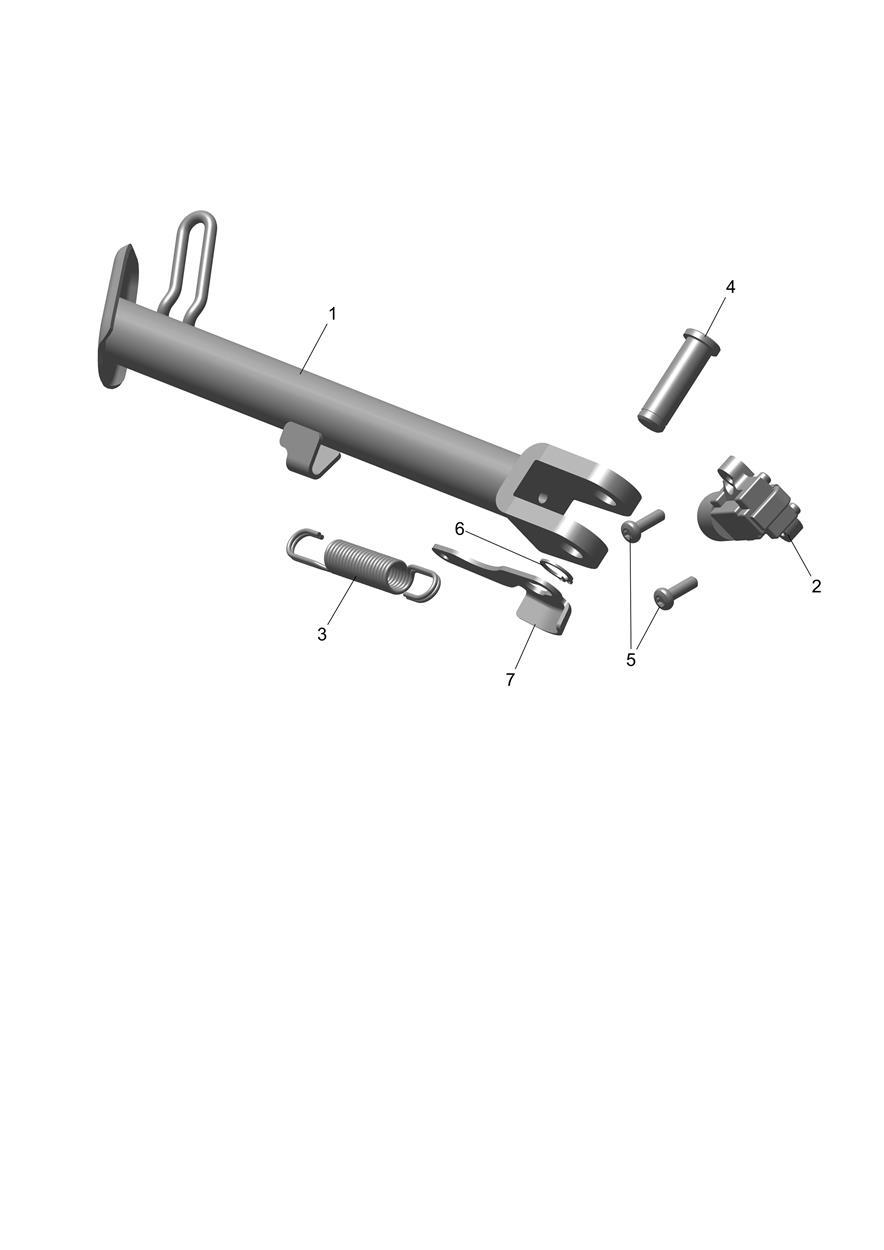

AvailableSidestand
T2082824 Sidestand
$52.85
AvailableT2080746 Sidestand Switch
$56.36
AvailableT2081389 Spring, Sidestand
$10.84
AvailableT2084080 Pivot Pin, Sidestand
$6.96
AvailableT3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc
$1.99
AvailableT3502095 Circlip
$1.99
In stock in BreaT2086610 Cam Plate, Sidestand
$3.89

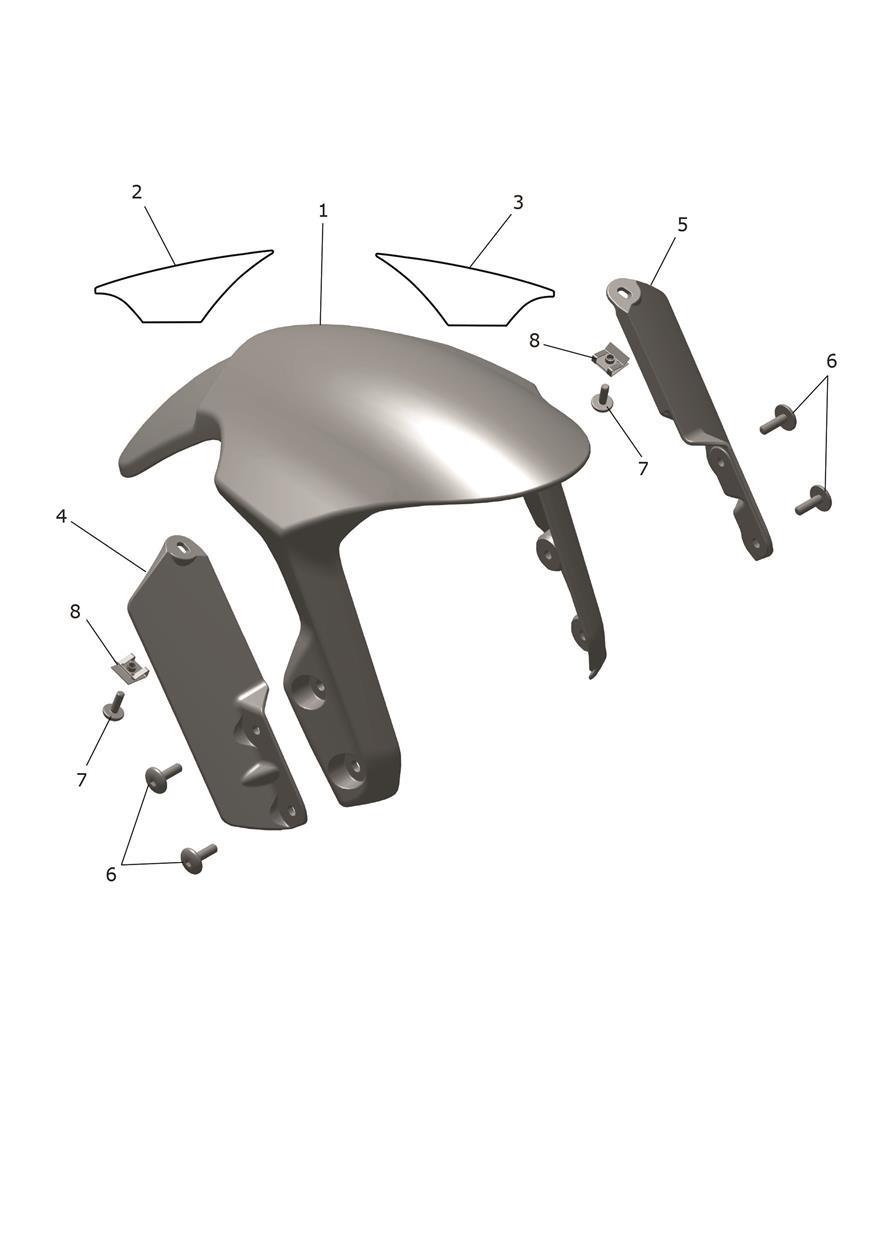

AvailableFront Mudguard
T2313729 Decal, Front Mudguard, RH
Backordered at Triumph · we’ll confirm the ship date after you order
$13.30
On backorderT2313731 Decal, Front Mudguard, LH
Backordered at Triumph · we’ll confirm the ship date after you order
$13.30
On backorderT2320003 Fork Protector, Fork, RH
$44.04
AvailableT2320002 Fork Protector, Fork, LH
$44.04
AvailableT3330312 Screw, But/Hd, M6 x 20, Slv
Backordered at Triumph · we’ll confirm the ship date after you order
$3.32
On backorderT3330945 Screw, But/Hd, M5 x 16, Blk
Low stock at Triumph
$7.83
Limited availabilityT3351002 Nut, Captive, U-Type, M5, Slv
$2.20

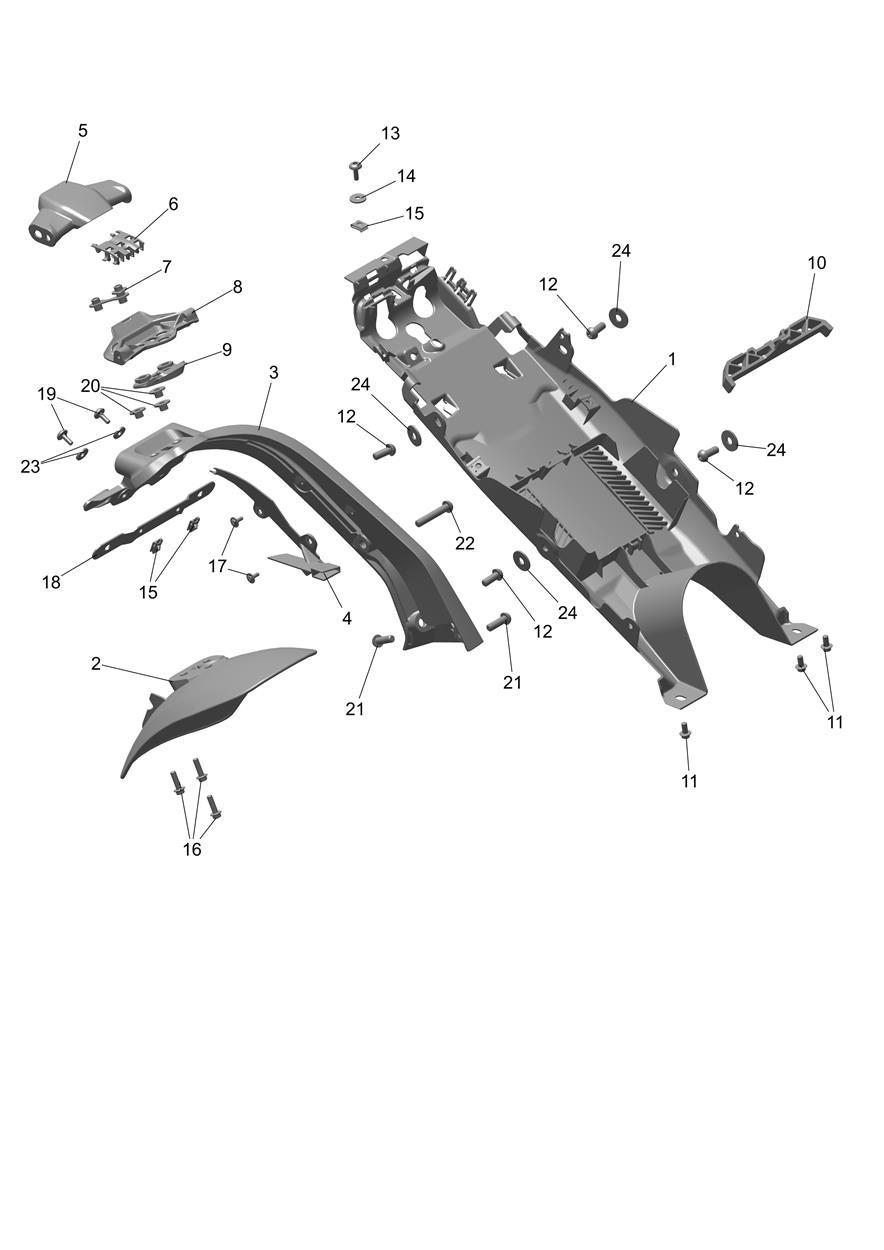

AvailableRear Mudguard
T2310844 Battery Tray Mldg
Backordered at Triumph · expected Nov 6
$54.17
On backorderT2313202 Spray Guard, Number Plate Hanger, Moulding
$27.00
AvailableT2316789-PS Arm, Number Plate Hanger, Matt Jet Black
Backordered at Triumph · expected Oct 23
$180.89
On backorderT2313222 Harness Cover, Number Plate, Mldg
Backordered at Triumph · expected Oct 23
$13.27
On backorderT2319995 Light Holder, Number Plate Mldg
Low stock at Triumph
$12.63
Limited availabilityT2312631 Connector Holder, Moulding
$2.78
AvailableT2313205 Bracket, Indicator Mount
Backordered at Triumph · we’ll confirm the ship date after you order
$49.20
On backorderT2313204 Indicator Mount, Moulding
Backordered at Triumph · we’ll confirm the ship date after you order
$18.96
On backorderT2313206 Gasket, Number Plate Hanger
Backordered at Triumph · expected Oct 23
$4.31
On backorderT3203222 Bolt, HHF, M6 x 12, Slv
$1.99
AvailableT3330275 Screw, But/Hd, Tx, M8 x 20, Enc
$3.32
AvailableT3330941 Screw, But/Hd, Skt, M5 x 16, Slv
$6.24
AvailableT3550286 Washer, 5.3 x 18 x 1.6
Low stock at Triumph
$1.99
Limited availabilityT3350161 Nut, Captive, M5
$4.21
AvailableT3202304 Bolt, RHHF, M6 x 20, Slv
$4.91
AvailableT3331005 Screw, But/Hd, M5 x 14, Slv, Enc
$7.83
AvailableT3010108 Flanged Sleeve, M6
Backordered at Triumph · we’ll confirm the ship date after you order
$2.79
On backorderT3330286 Screw, But/Hd, TX, M8 x 25, Enc
$3.10
AvailableT3335001 Screw, Btn Hd, M5 x 14, Slv Enc
$2.47
AvailableT3555033 Washer, 8.4 x 24 x 2
$2.53
Available
